Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Volvo XC70 T-6 2012

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

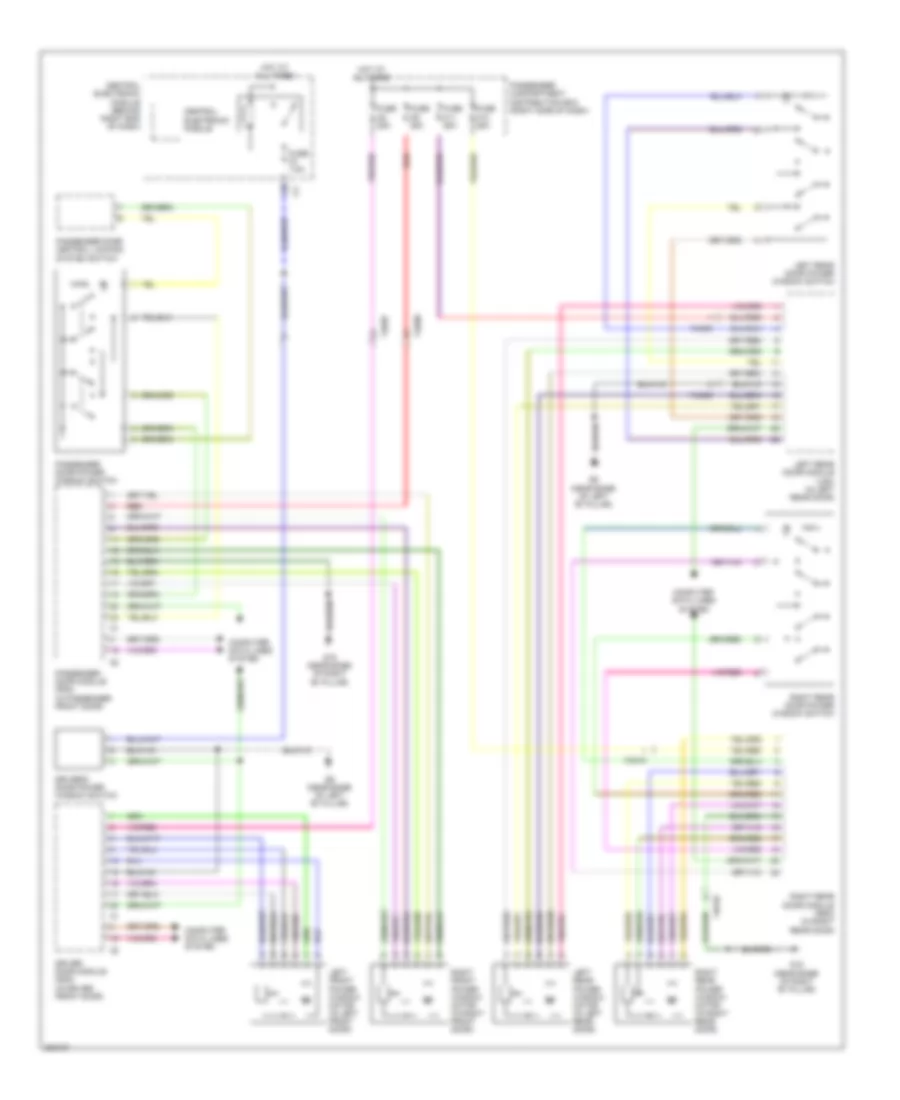

Электросхема стеклоподъемников для Volvo XC70 T-6 2012

Электросхема стеклоподъемников для Volvo XC70 T-6 2012 - Список элементов:

• 74/507
• 74/508
• 74/509
• 74/510
• Central electronic module
• Central electronic module (behind right end of dash)
• Computer data lines system
• Driver door module (ddm) (in driver front door)
• Driver's door power window switch
• Fuse c10 25a
• Fuse c11 25a
• Fuse c8 25a
• Fuse c9 25a
• Fuse f3 7.5a
• G15 (near base of right "b" pillar)
• G6 (near base of left "b" pillar)
• Hot at all times
• Left front power window motor (in left front door)
• Left rear door module (ldm) (in left rear door)
• Left rear door power window switch
• Left rear power window motor (in left rear door)
• Passenger compartment distribution box (right side of dash)
• Passenger door central locking system switch
• Passenger door module (pdm) (in passenger front door)
• Passenger door power window switch
• Red
• Right front power window motor (in right front door)
• Right rear door module (rdm) (in right rear door)
• Right rear door power window switch
• Right rear power window motor (in right rear door)
