Электросхемы Противоугонная система Сигнализация Chevrolet Equinox LS 2011

Противоугонная система Сигнализация

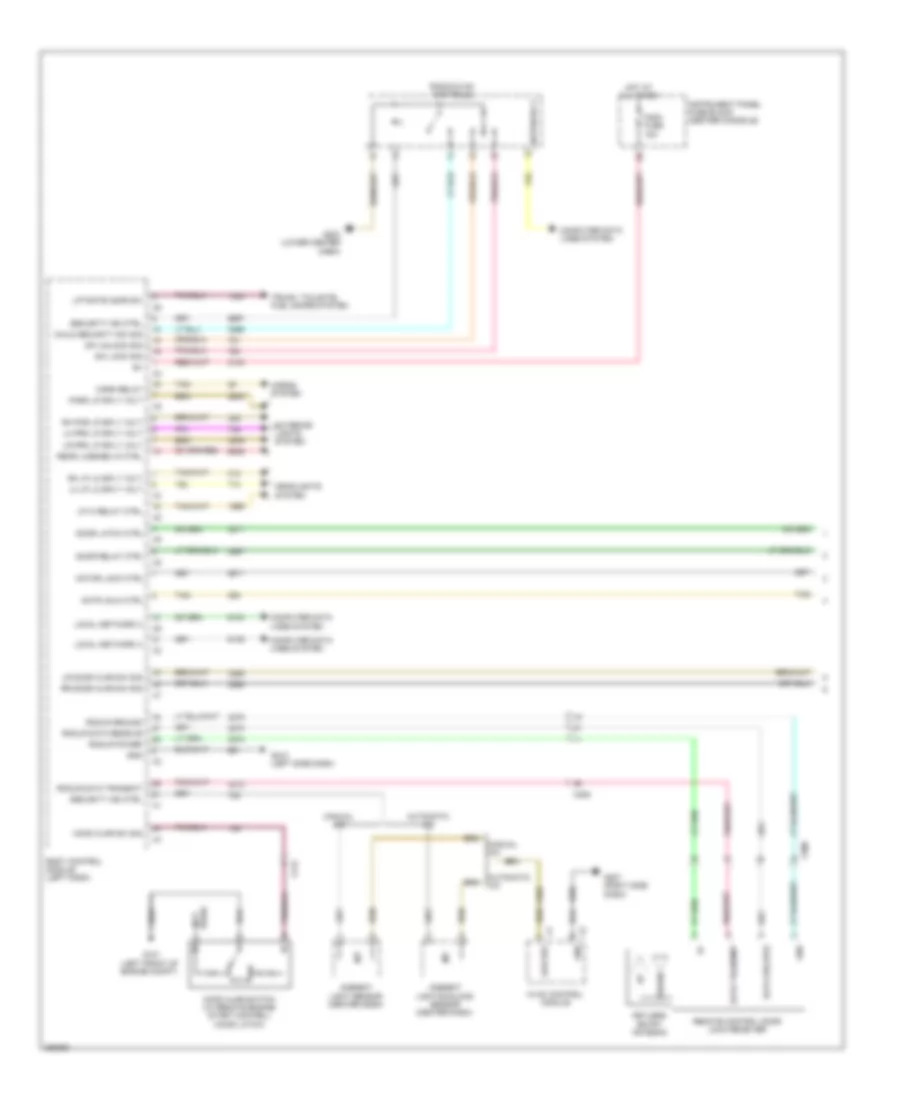

Электросхема открывания авто (1 из 2) для Chevrolet Equinox LS 2011

Электросхема открывания авто (1 из 2) для Chevrolet Equinox LS 2011 - Список элементов:

• (not used)
• Actr unlk ctrl
• Ambient light sensor (center dash)
• Ambient light/sunload sensor (center dash)
• Automatic a/c
• Body control module (left dash)
• Child security sw sig
• Computer data lines system
• Data receive
• Data transmit
• Door latch ctrl
• Door relay ctrl
• Down
• Exterior lights system
• F4da fuse 15a
• G101 (left front of engine compt)
• G203 (lower center dash)
• G207 (right side dash)
• G210 (left side dash)
• Gnd
• Headlights system
• Hood ajar sw sig
• Hood ajar switch (w/ remote engine start control) (hood latch)
• Horn relay
• Horns system
• Hot at all times
• Hvac control module
• Instrument panel fuse block (center console)
• Keyless entry antenna
• Lh lp lo sply volt
• Lh prk lp sply volt
• Liftgate azar sw
• Local network 3
• Local network 4
• Low ref
• Lp hi relay ctrl
• Lr door ajar sw sig
• Lr prk lp sply volt
• Manual a/c
• Motor lock ctrl
• Network 3
• Park lp sply volt
• Radio/hvac controls
• Rcdlr data receive
• Rcdlr data transmit
• Rcdlr ground
• Rcdlr power
• Rear license lp ctrl
• Remote control door lock receiver
• Rh lp lo sply volt
• Rh par lp sply volt
• Rr door ajar sw sig
• Security ind ctrl
• Sw lock sig
• Sw unlock sig
• Tan
• Trunk, tailgate, fuel doors system
• X115
• X206
• X300

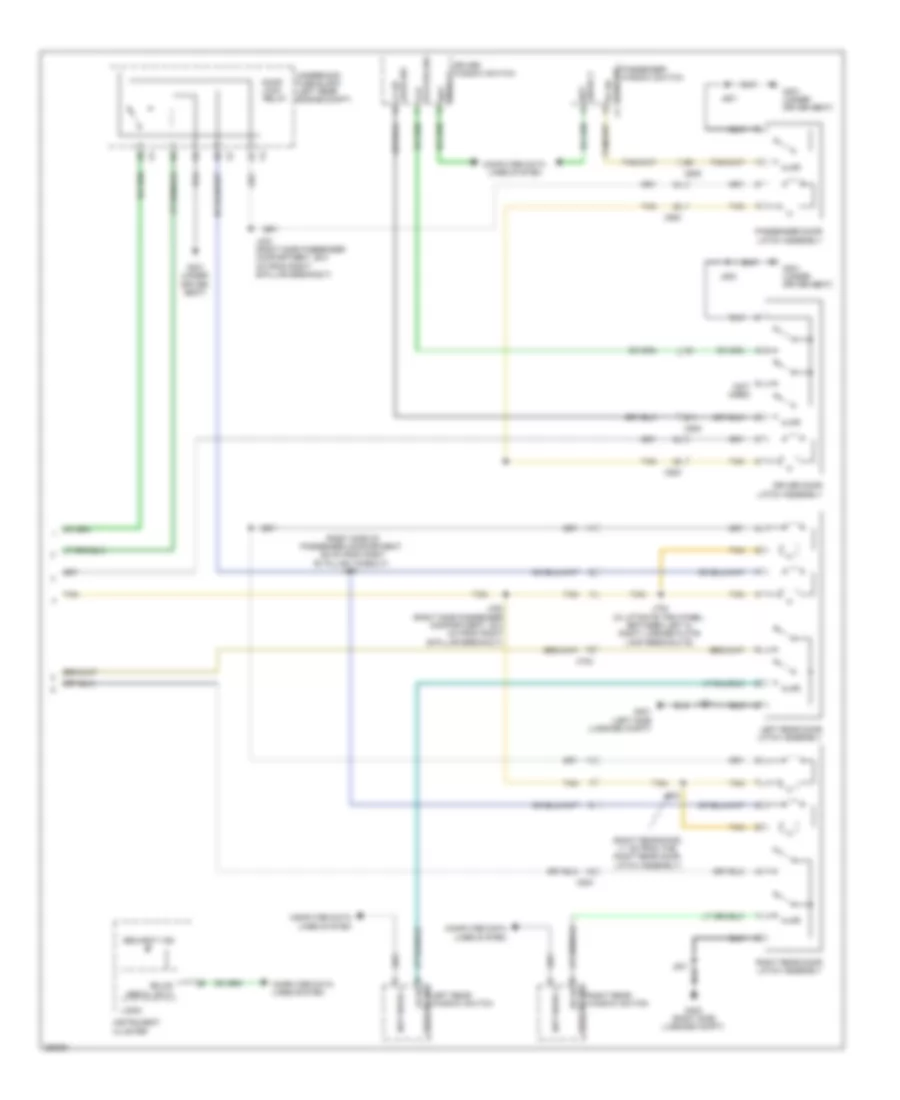

Электросхема открывания авто (2 из 2) для Chevrolet Equinox LS 2011

Электросхема открывания авто (2 из 2) для Chevrolet Equinox LS 2011 - Список элементов:

• "b" pillar takeout) j310
• (not used)
• (right rear door, 11 cm from the right rear door latch assembly)
• (right side of passenger compartment, 65 cm from right
• Ajar
• Azar sw sig
• B11
• Computer data lines system
• Door lock relay
• Driver door latch assembly
• Driver window switch
• G301 (under driver seat)
• G401 (left side luggage compt)
• G403 (right side luggage compt)
• Gmlan serial data
• Instrument cluster
• J302 (right side passenger compartment, 35.0 cm from right b-pillar breakout)
• J303 (right side passenger compartment, 55.0 cm from right b-pillar breakout)
• J502
• J601
• J701
• J702 (in liftgate trim panel, between left & right license plate lamp breakouts)
• J801
• J802
• Left rear door latch assembly
• Left rear window switch
• Lf dr azar sw
• Logic
• Lr dr azar sw sig
• Net work 4
• Passenger door latch assembly
• Passenger window switch
• Rf dr azar sw x1
• Right rear door latch assembly
• Right rear window switch
• Rr dr
• Security ind
• Status sw lck
• Tan
• Underhood fuse block (left rear engine compt)
• Work 3 net
• X500
• X505
• X600
• X605
• X700
• X800

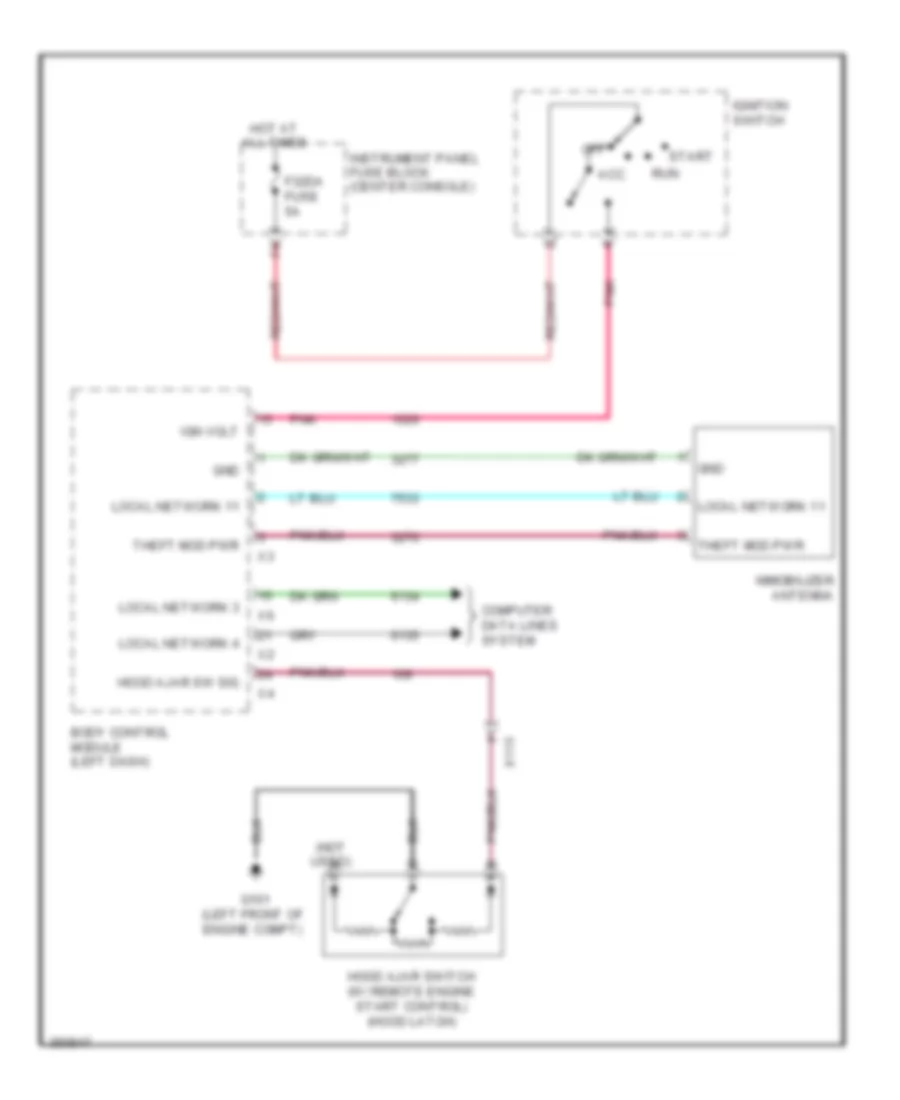

схема отмычки для Chevrolet Equinox LS 2011

схема отмычки для Chevrolet Equinox LS 2011 - Список элементов:

• (not used) a
• Acc
• Body control module (left dash)
• Computer data lines system
• F32da fuse 5a
• G101 (left front of engine compt)
• Gnd
• Hood ajar sw sig
• Hood ajar switch (w/ remote engine start control) (hood latch)
• Hot at all times
• Ign volt
• Ignition switch
• Immobilizer antenna
• Instrument panel fuse block (center console)
• Local network 11
• Local network 3
• Local network 4
• Off
• Pnk
• Run
• Start
• Theft mod pwr
• X115
