Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Acura 3.2TL 2002

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

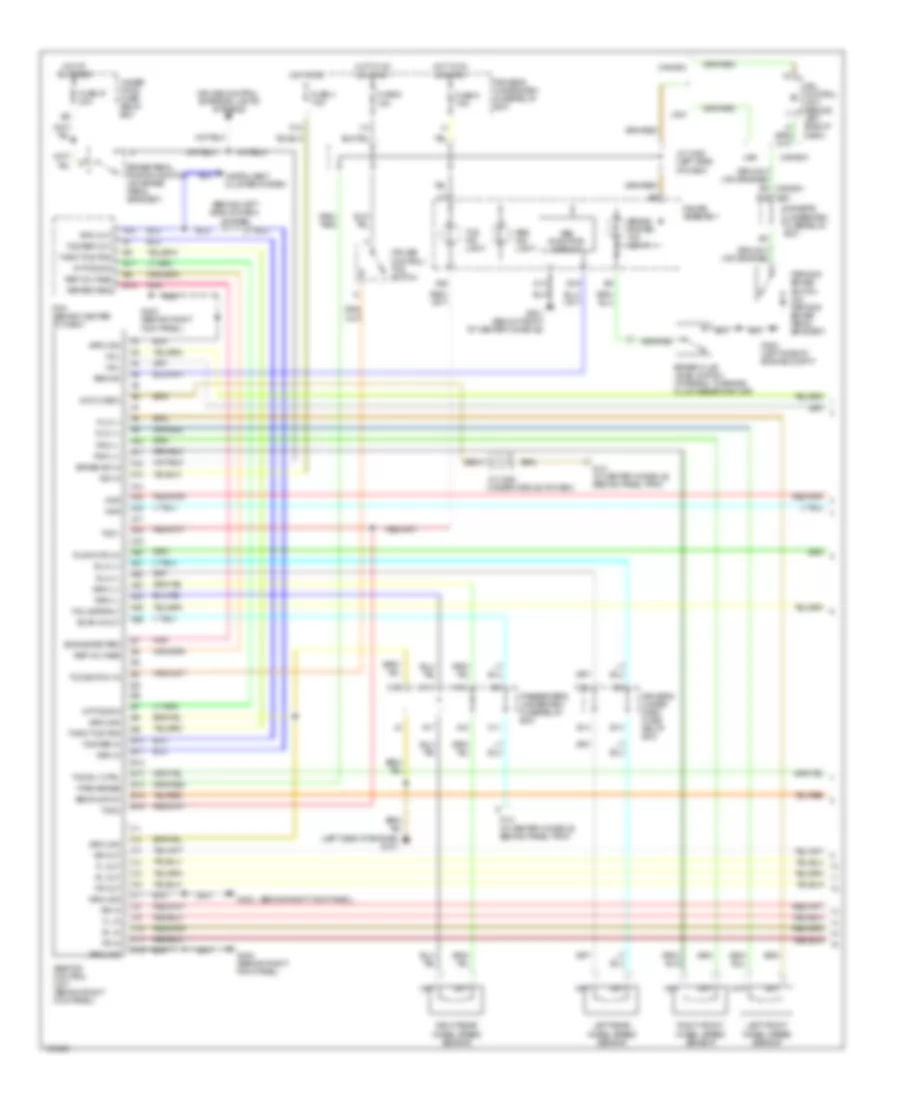

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Acura 3.2TL 2002

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 2) для Acura 3.2TL 2002 - Список элементов:

• (behind left side of dash) j/c c303
• (behind right kick panel)
• (left side of engine) g101
• A/t pos sw
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• A19
• A20
• A21
• A22
• A23
• A24
• A25
• A26
• A29
• Abs ind
• Abs ind light
• Abs indicator circuit
• Abs pump ck
• Abs/tcs control unit (behind right kick panel)
• B10
• B11
• B12
• B13
• B14
• B15
• B16
• B4
• Brake fluid level switch (integral to brake fluid reservoir cap)
• Brake pedal position switch (on brake pedal bracket)
• Brake sw in
• Brake system ind light
• C10
• C11
• C12
• C16
• C18
• C4
• Canada
• Cruise control, exterior lights systems
• Cruise control/ tcs switch
• Dlc (in center console, behind panel tray)
• Driver's under dash fuse/ relay box
• Driver's underdash fuse/relay box
• Drl control unit (behind left side of dash)
• E16
• E17
• Engine retard
• Fail-safe rly
• Fl in
• Fl out
• Flw (+)
• Flw (-)
• Fr in
• Fr out
• Frw (+)
• Frw (-)
• Fuse 4 7.5a
• Fuse 47 20a
• Fuse 6 15a
• Fuse 9 7.5a
• G302 (left side of engine compt)
• G402
• G403 (behind right kick panel)
• G501 (below front of center console)
• Gauge assembly
• Ground
• Hot at all times
• Hot in on
• Hot in on or start
• I12
• Ign in
• Instrument cluster system
• J/c c452 (left side of dash)
• J/c c453 (under middle of dash)
• K11
• K14 usa
• Left front wheel speed sensor
• Left rear wheel speed sensor
• Ncl
• Ncr
• Nol
• Nor
• O10
• O15
• Park brake
• Parking brake switch (on parking brake pedal bracket)
• Passenger's underdash fuse/relay box
• Pcm (behind center of dash)
• Pnk
• Pump mtr ck
• Q9 canada
• Ref voltage
• Retard req
• Right front wheel speed sensor
• Right rear wheel speed sensor
• Rl in
• Rl out
• Rlw (+)
• Rlw (-)
• Rpm in
• Rpm out
• Rr in
• Rr out
• Rrw (+)
• Rrw (-)
• Scan in/out
• Svc check
• Tcs 1
• Tcs 2
• Tcs ind light
• Tcs per in
• Tcs per out
• Tcs rly ctrl
• Tcs switch in
• Throttle pos
• Under hood fuse/ relay box
• Usa

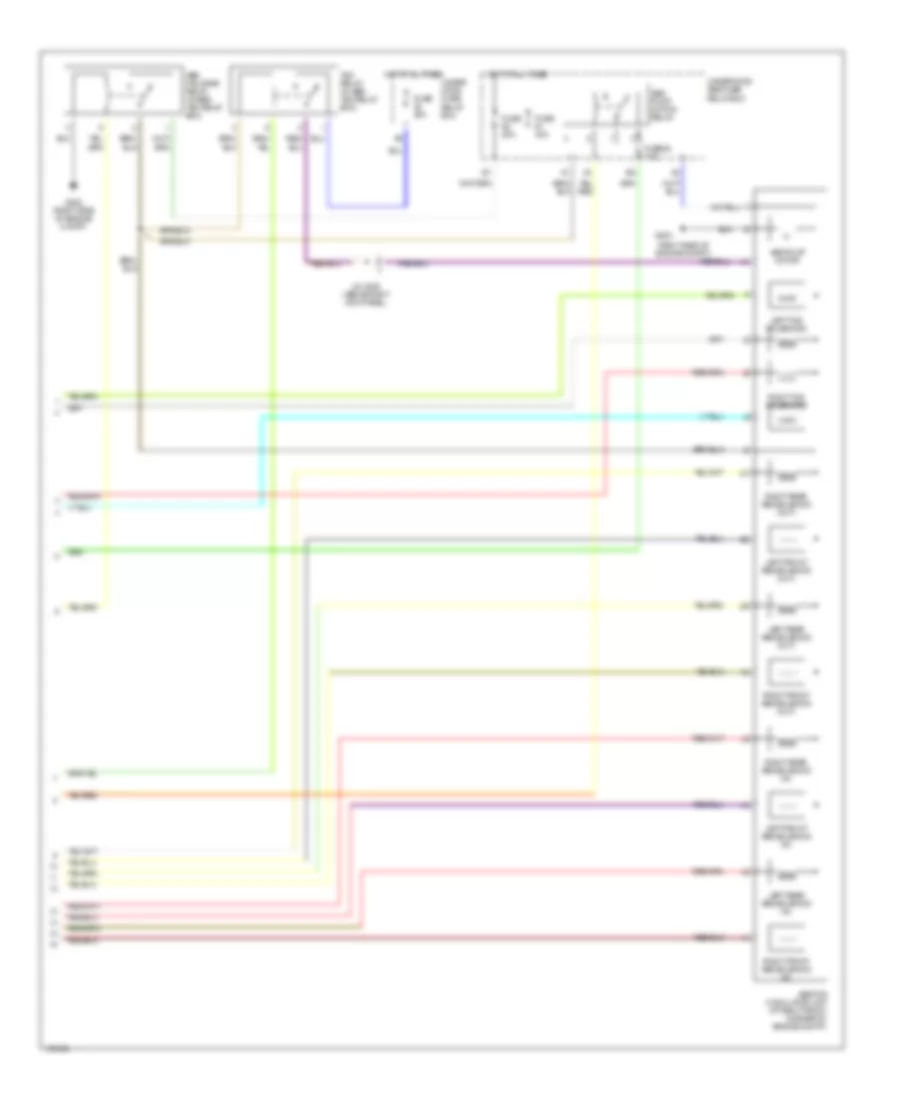

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Acura 3.2TL 2002

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 2) для Acura 3.2TL 2002 - Список элементов:

• (right side of engine compt)
• Abs fail-safe relay (in abs/ tsc relay box)
• Abs pump motor
• Abs pump motor relay
• Abs/tcs modulator unit (at right front corner of engine compt)
• Fuse 20a
• Fuse 40a
• Fuse 63 7.5a
• G202 (right side of engine compt)
• G203
• Hot at all times
• J/c c205 (above right kick panel)
• Left front abs solenoid (in)
• Left front abs solenoid (out)
• Left rear abs solenoid (in)
• Left rear abs solenoid (out)
• Left tcs solenoids
• Right front abs solenoid (in)
• Right front abs solenoid (out)
• Right rear abs solenoid (in)
• Right rear abs solenoid (out)
• Right tcs solenoids
• Tsc relay (in abs/ tsc relay box)
• Under hood fuse/ relay box
• Underhood abs fuse/ relay box
