Электросхемы Система Фар Subaru Forester X 2011

Система Фар

Электросхема фар (1 из 2) для Subaru Forester X 2011

Электросхема фар (1 из 2) для Subaru Forester X 2011 - Список элементов:

• (left side of dash)
• B361
• B434
• B440
• B441
• B52
• B71
• Can transceiver & receiver
• Combination meter
• Combination switch (left side of dash)
• Computer data lines system
• Daytime running light relay (except c6 model)
• Daytime running light resistor (right side of engine compt)
• Dimmer & passing switch
• Drive circuit
• F108
• Fog light switch
• Front fog light ind
• Front fog light relay (driver side fuse & relay block)
• Fuse & relay box (f/b) (left kick panel)
• Fuse 29 15a
• Fuse 7 15a
• Gb-10 (center of dash)
• Gb-5 (left side of dash)
• Hi beam ind light
• Hot at all times
• I102
• Lighting switch
• Micro computer
• Multi joint connector b440, b441 & b434
• Nca
• Off
• Pass
• Pnk
• R167
• R168
• Red
• Relay holder
• Through joint connector f108 & b361

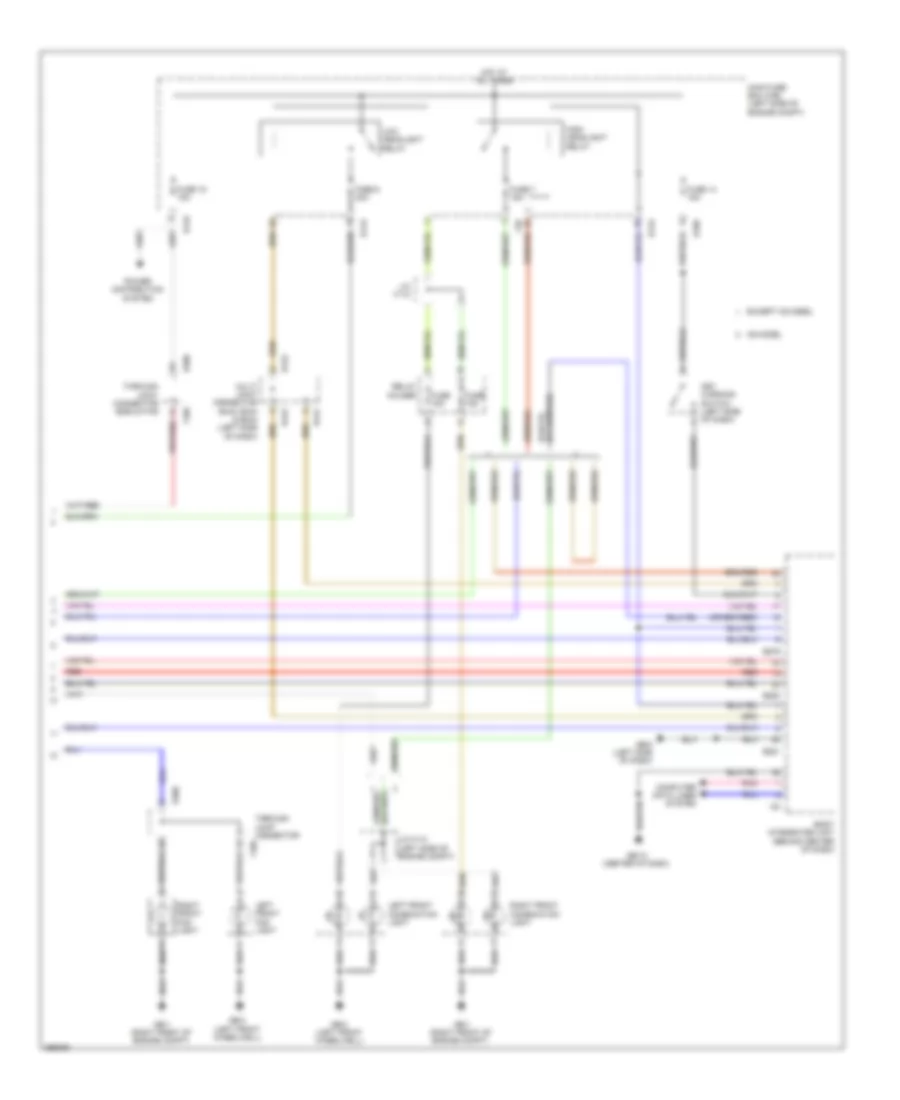

Электросхема фар (2 из 2) для Subaru Forester X 2011

Электросхема фар (2 из 2) для Subaru Forester X 2011 - Список элементов:

• B143
• B145
• B186
• B279
• B280
• B281
• B360
• B442
• B443
• B444
• Body integrated unit (behind center of dash)
• C6 model
• Computer data lines system
• Except c6 model
• F109
• F36
• Fuse 14 15a
• Fuse 15 15a
• Fuse 15a
• Fuse 6 30a
• Fuse 7 15a
• Gb-1 (right front of engine compt)
• Gb-10 (center of dash)
• Gb-2 (left front wheelwell)
• Gb-5 (left side of dash)
• High headlight relay
• Hot at all times
• I84
• J/c f110
• J/c f110 (left side of engine compt)
• Key warning switch (left side of dash)
• Left front combination light
• Left front fog light
• Low headlight relay
• Main fuse box (m/b) (left side of engine compt)
• Multi joint connector b442, b443 & b444 (left side of dash)
• Pnk
• Power distribution system
• Red
• Relay holder
• Right front combination light
• Right front fog light
• Through joint connector
• Through joint connector b360 & f109

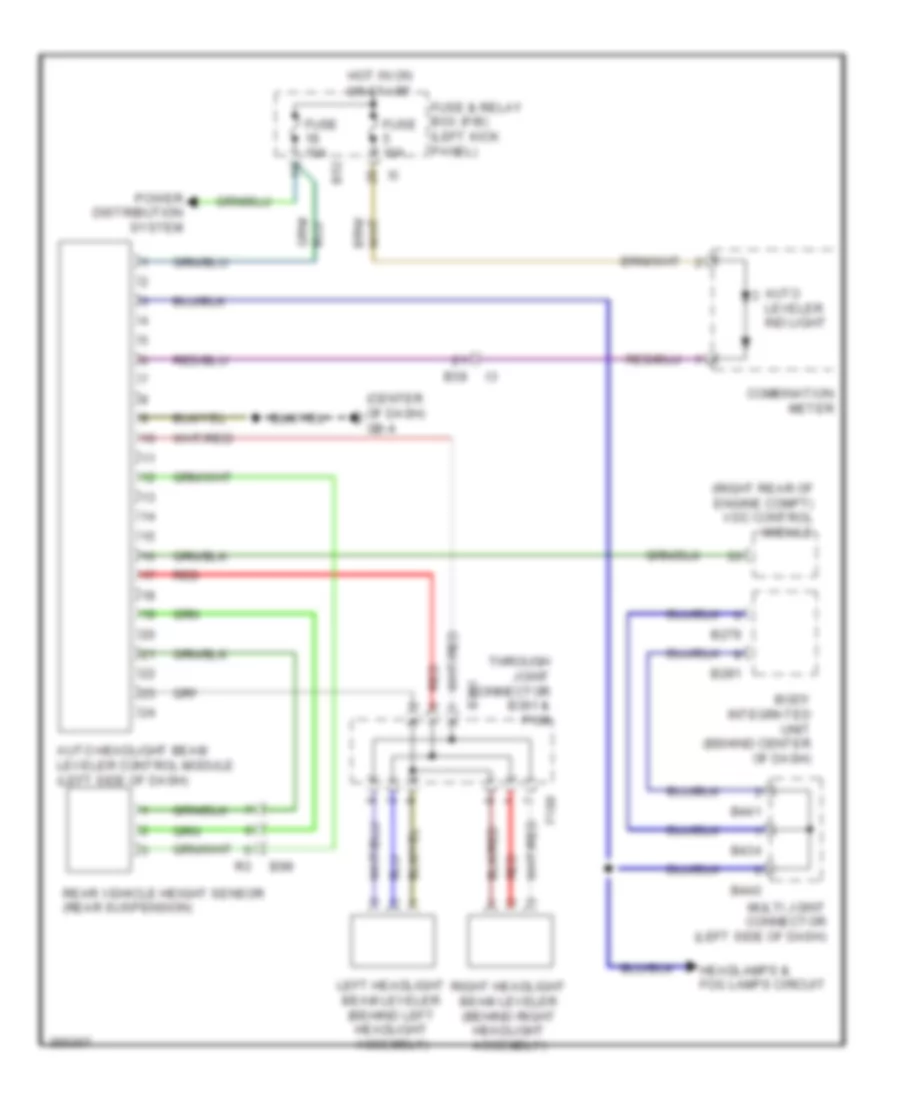

Электросхема корректора фар для Subaru Forester X 2011

Электросхема корректора фар для Subaru Forester X 2011 - Список элементов:

• (center of dash) gb-4
• (right rear of engine compt) vdc control module
• Auto headlight beam leveler control module (left side of dash)
• Auto leveler ind light
• B279
• B281
• B361
• B38
• B434
• B440
• B441
• B52
• B99
• Body integrated unit (behind center of dash)
• Combination meter
• F108
• Fuse & relay box (f/b) (left kick panel)
• Fuse 10a
• Headlamps & fog lamps circuit
• Hot in on or start
• Left headlight beam leveler (behind left headlight assembly)
• Multi joint connector (left side of dash)
• Power distribution system
• Rear vehicle height sensor (rear suspension)
• Red
• Right headlight beam leveler (behind right headlight assembly)
• Through joint connector b361 & f108
