Электросхемы СИСТЕМА КОНДИЦИОНЕРА Chevrolet Suburban C1500 2013

СИСТЕМА КОНДИЦИОНЕРА

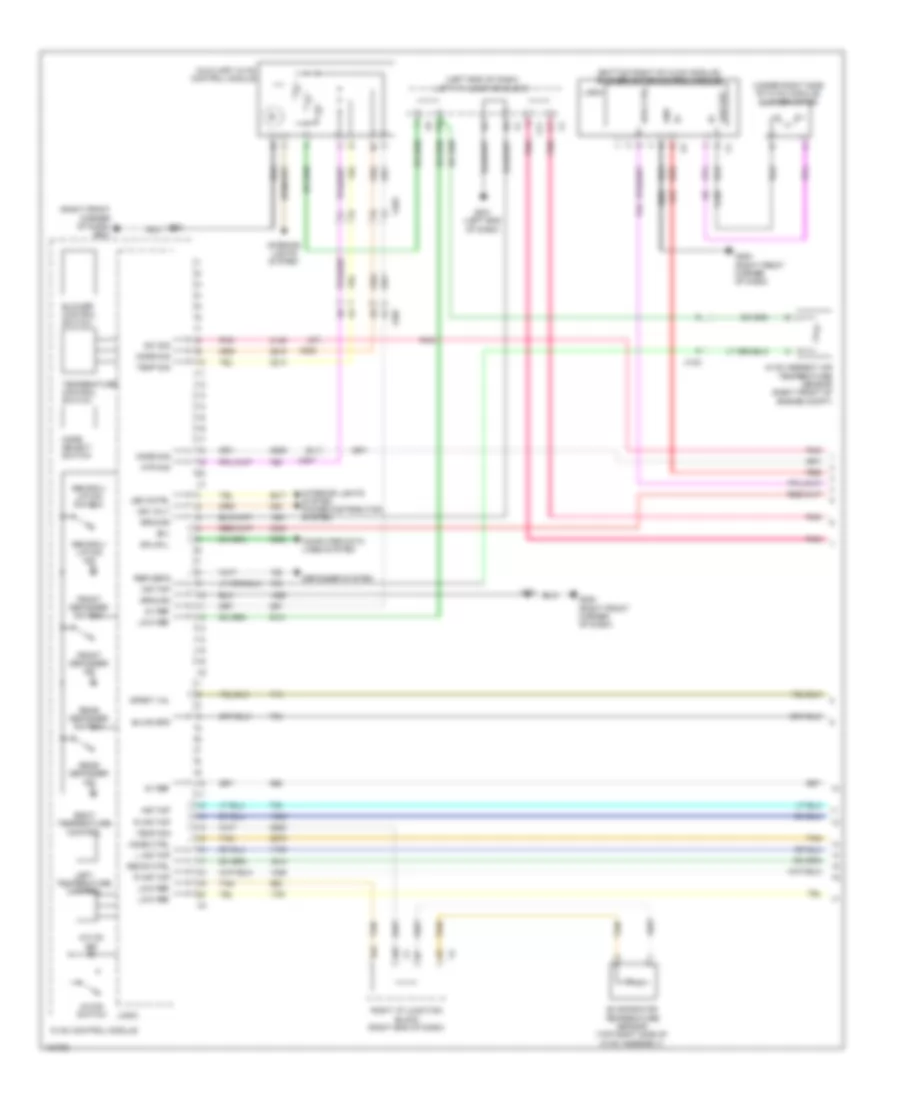

Электросхема кондиционера (1 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера (1 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (bottom right of hvac module) blower motor control module
• (headliner harness, 105 cm from left sunshade lamp breakout)
• (right front corner of dash) g200
• (under right side of hvac module) blower motor
• 4b7
• 5v ref
• A/c on ind
• A/c on switch
• Air temp
• Air tmp
• Amb tmp
• Ambient light/ sunload sensor assembly (top center of dash)
• B (+)
• Blwr spd
• Computer data lines system
• Defogger system
• Dfrst val
• Duct)
• Evaporator temperature sensor (top right side of hvac assembly)
• Fresh air ind
• Fresh air request switch
• Front defogger ind
• Front defogger switch
• Front inside air temperature sensor (left front of headliner)
• G200 (right front corner of dash)
• G201 (left end of dash)
• Gmlan l
• Gnd
• Ground
• Hvac ambient air temperature sensor (right front of engine compt)
• Hvac control module
• Ign volt
• J203
• J206 (instrument panel harness, approximately 14 cm from x207 breakout)
• J325
• J328
• L air tmp
• Left i/p junction block (left end of dash)
• Left temperature control
• Lf sunld
• Logic
• Long wheel base
• Low ref
• Mode ctrl
• Mode down switch
• Mode up switch
• Pass sunld
• Pnk
• Power distribution system
• R air tmp
• Rear defogger ind
• Rear defogger switch
• Recir ctrl
• Recirc
• Recircu- lation ind
• Recircu- lation switch
• Red
• Rer defg
• Right i/p junction block (right end of dash)
• Right temperature control
• Sens sig
• Short wheel base
• Sns sig
• Spd ctrl
• Sw sig
• Tan
• Temp sig
• Upper auxiliary air temperature sensor (in auxiliary hvac module upper duct)
• Upper left air temperature sensor (top left center of dash)
• Upper right air temperature sensor (top right center of dash)
• X103
• X11
• X207
• X403
• X407

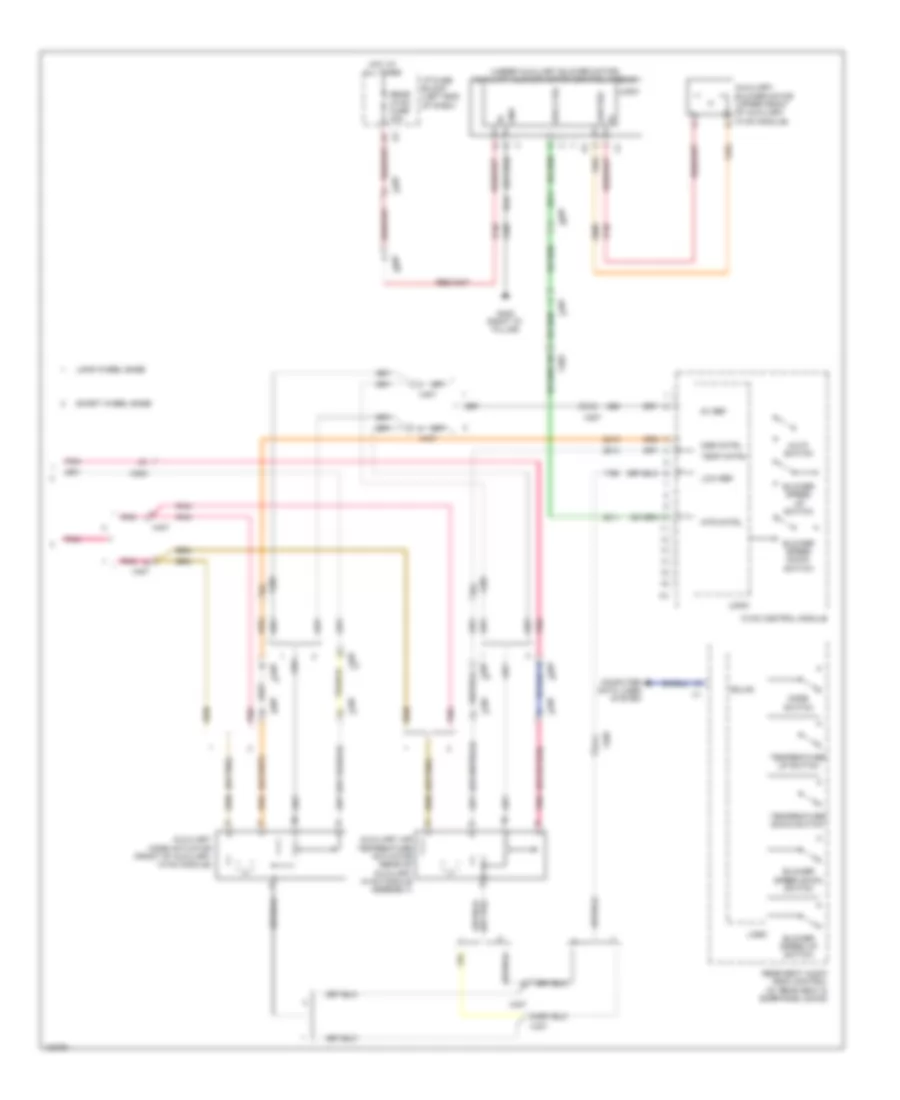

Электросхема кондиционера (2 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера (2 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (left side of dash) body control module (bcm)
• (left side of fan shroud) engine control module (ecm)
• (lower right front of engine) a/c compressor clutch
• 4a1
• 4a2
• 4a3
• 4a4
• 4a5
• 4a6
• 4b2
• 4b3
• 4b5
• 4b6
• 5-volt ref
• A/c cmprsr fuse 17 10a
• A/c compressor/ relay
• Aux hvac-ign fuse 48 10a
• Coil ctrl
• Computer data lines system
• Data bus+
• Data bus-
• E x4
• Engine coolant temperature (ect) sensor (front of left cylinder head) b
• G102 (lower left front of engine)
• Hot at all times
• Hot w/ pwr/trn relay energized
• Hvac batt fuse 39 10a
• Hvac blwr fuse 70 40a
• Hvac-ign fuse 55 10a
• J219 (w/ heated steering wheel)
• Low ref
• Pnk
• Red
• Right i/p junction block (right end of dash)
• Rly ctrl
• Run/ crank relay
• Sens sig
• Tan
• Under- hood fuse block (left side of engine compt)

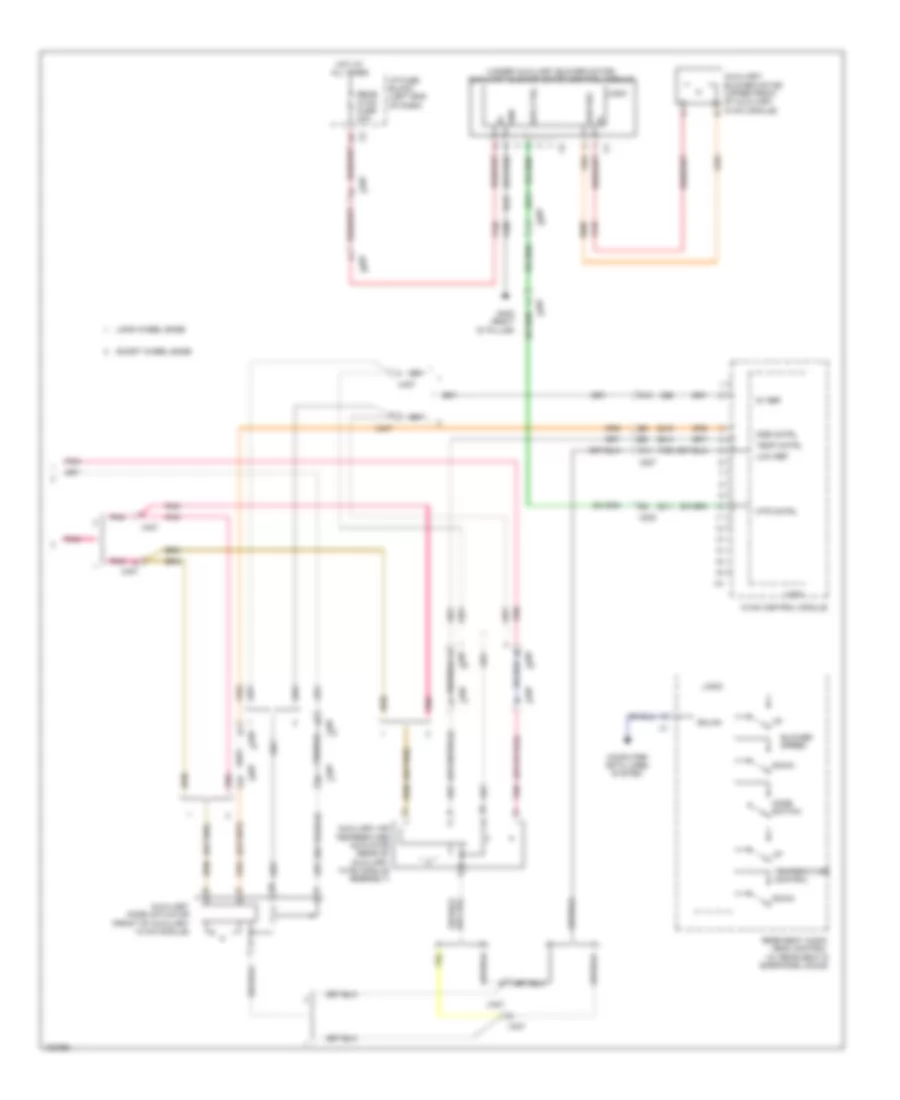

Электросхема кондиционера (3 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера (3 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (a/c high pressure hose) a/c refrigerant pressure sensor
• (bottom left side of hvac module) lower right air temperature sensor
• (left side of hvac module) lower left air temperature sensor
• 87a
• Fan cntrl relay
• Fan hi relay
• Fan lo relay
• Fan-1 fuse 57 40a
• Fan-2 fuse 60 40a
• G100 (lower left radiator support)
• G101
• Hot at all times
• J100
• J101
• J242 (in hvac wiring harness)
• Left air temperature actuator (under left side of hvac module)
• Left cooling fan (behind radiator)
• Mode actuator (left side of hvac module)
• Pnk
• Pwr/ trn relay
• Recirculation actuator (upper right of hvac module)
• Right air temperature actuator (top center of hvac module)
• Right cooling fan (behind radiator)
• Tan
• Under- hood fuse block (left side of engine compt)

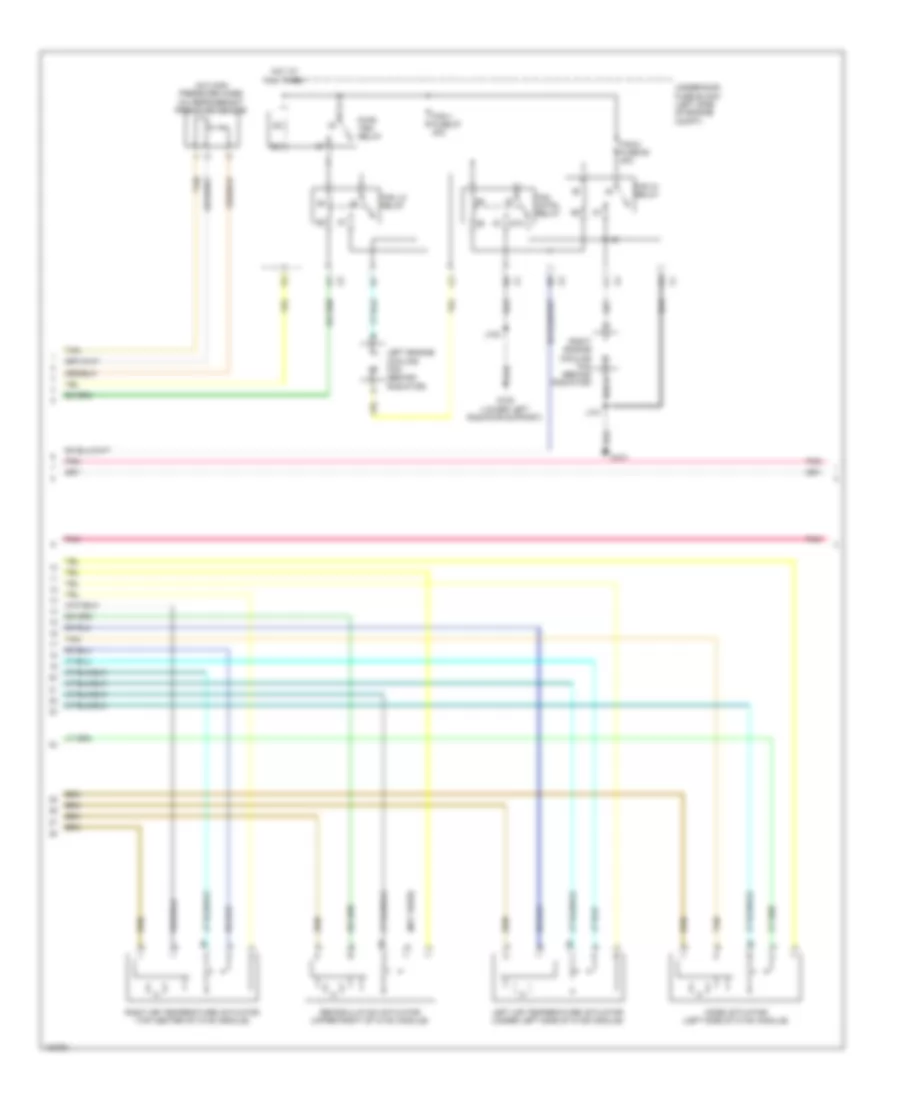

Электросхема кондиционера (4 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера (4 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (or pnk)
• (under auxiliary blower motor) auxiliary blower motor control module
• 5v ref
• A10
• A11
• Auto switch
• Auxiliary air temperature actuator (rear of auxiliary hvac module assembly)
• Auxiliary blower motor (upper front of auxiliary hvac module)
• Auxiliary mode actuator (front of auxiliary hvac module)
• Blower speed down switch
• Blower speed up switch
• Computer data lines system
• G402 (right "d" pillar)
• Gmlan
• Gnd
• Hot at all times
• Hvac control module
• I/p fuse block (left end of dash)
• Logic
• Long wheel base
• Low ref
• Mde cntrl
• Mode switch
• Mtr cntrl
• Pnk
• Rear hvac fuse 30a
• Rear seat audio (rsa) control (w/ rear seat & earphone jacks)
• Short wheel base
• Spd ctrl
• Temp cntrl
• Temperature down switch
• Temperature up switch
• X202
• X207
• X407

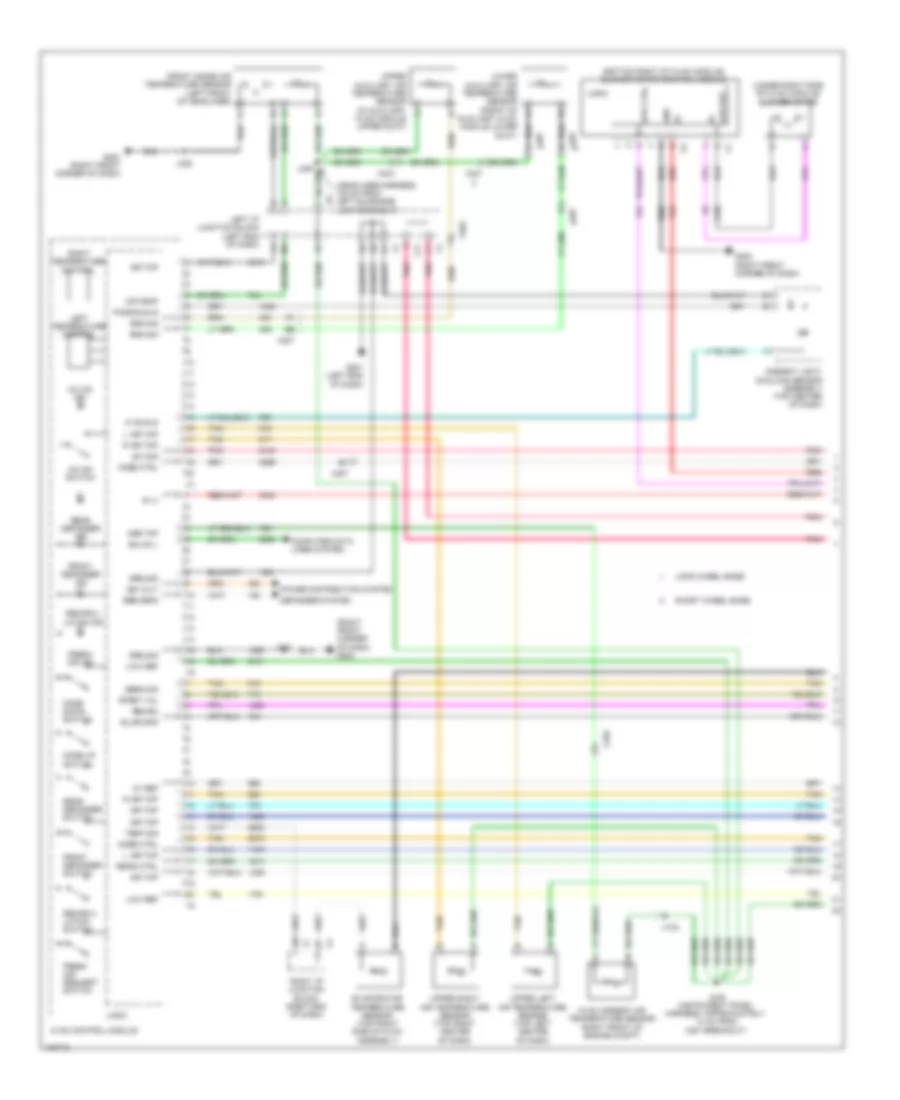

Электросхема кондиционера с ручный управлением (1 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера с ручный управлением (1 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (bottom right of hvac module) blower motor control module
• (left end of dash) left i/p junction block
• (right front corner of dash) g200
• (under right side of hvac module) blower motor
• 4a2
• 4b7
• 5v ref
• A/c on ind
• A/c on switch
• Air tmp
• Auxiliary hvac control module
• B(+)
• Blower control switch
• Blwr spd
• Computer data lines system
• Defogger system
• Dfrst val
• Evaporator temperature sensor (top right side of hvac assembly)
• Front defogger ind
• Front defogger switch
• G200 (right front corner of dash)
• G201 (left end of dash)
• Gmlan l
• Gnd
• Ground
• Hvac ambient air temperature sensor (right front of engine compt)
• Hvac control module
• Ign volt
• Interior lights system
• Interior lights system power distribution system
• J203
• J328
• L air tmp
• Led cntrl
• Left temperature control
• Logic
• Low ref
• Mode ctrl
• Mode select switch
• Mode sig
• Mtr sig
• Pnk
• R air tmp
• Rear defogger ind
• Rear defogger switch
• Recir ctrl
• Recircu- lation ind
• Recircu- lation switch
• Red
• Rer defg
• Right i/p junction block (right end of dash)
• Right temperature control
• Spd ctrl
• Sw sig
• Tan
• Temp sig
• Temperature control switch
• X103
• X11
• X202
• X207
• X403

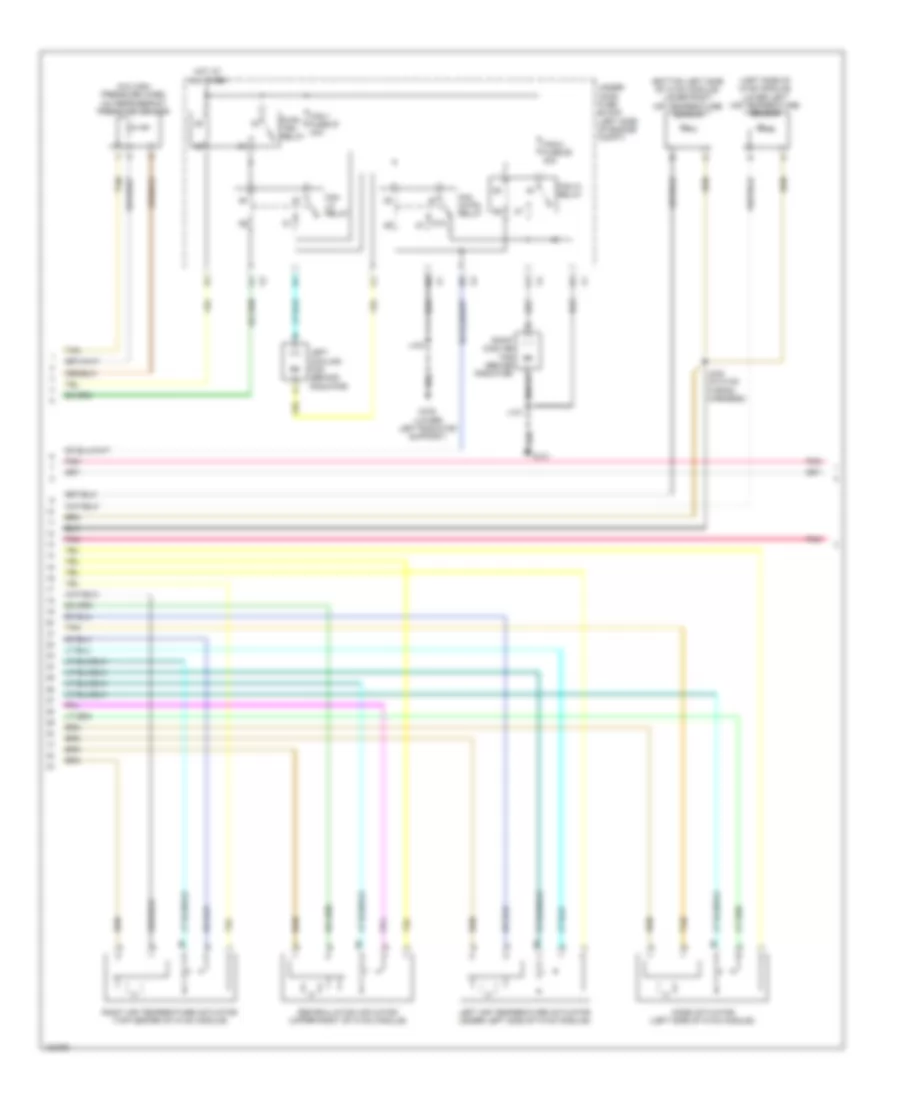

Электросхема кондиционера с ручный управлением (2 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера с ручный управлением (2 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (left side of dash) body control module (bcm)
• (left side of fan shroud) engine control module (ecm)
• (lower right front of engine) a/c compressor clutch
• 4a1
• 4a4
• 4a6
• 4b2
• 4b3
• 4b5
• 4b6
• 5-volt ref
• A/c cmprsr fuse 17 10a
• A/c compressor/ relay
• Aux hvac-ign fuse 48 10a
• Coil ctrl
• Computer data lines system
• Data bus+
• Data bus-
• Engine coolant temperature (ect) sensor (front of left cylinder head) b
• G102 (lower left front of engine)
• Hot at all times
• Hot w/ pwr/ trn relay energized
• Hvac batt fuse 39 10a
• Hvac blwr fuse 70 40a
• Hvac-ign fuse 55 10a
• J219 (w/ heated steering wheel)
• Low ref
• Pnk
• Red
• Right i/p junction block (right end of dash)
• Rly ctrl
• Run/ crank relay
• Sens sig
• Tan
• Under- hood fuse block (left side of engine compt)

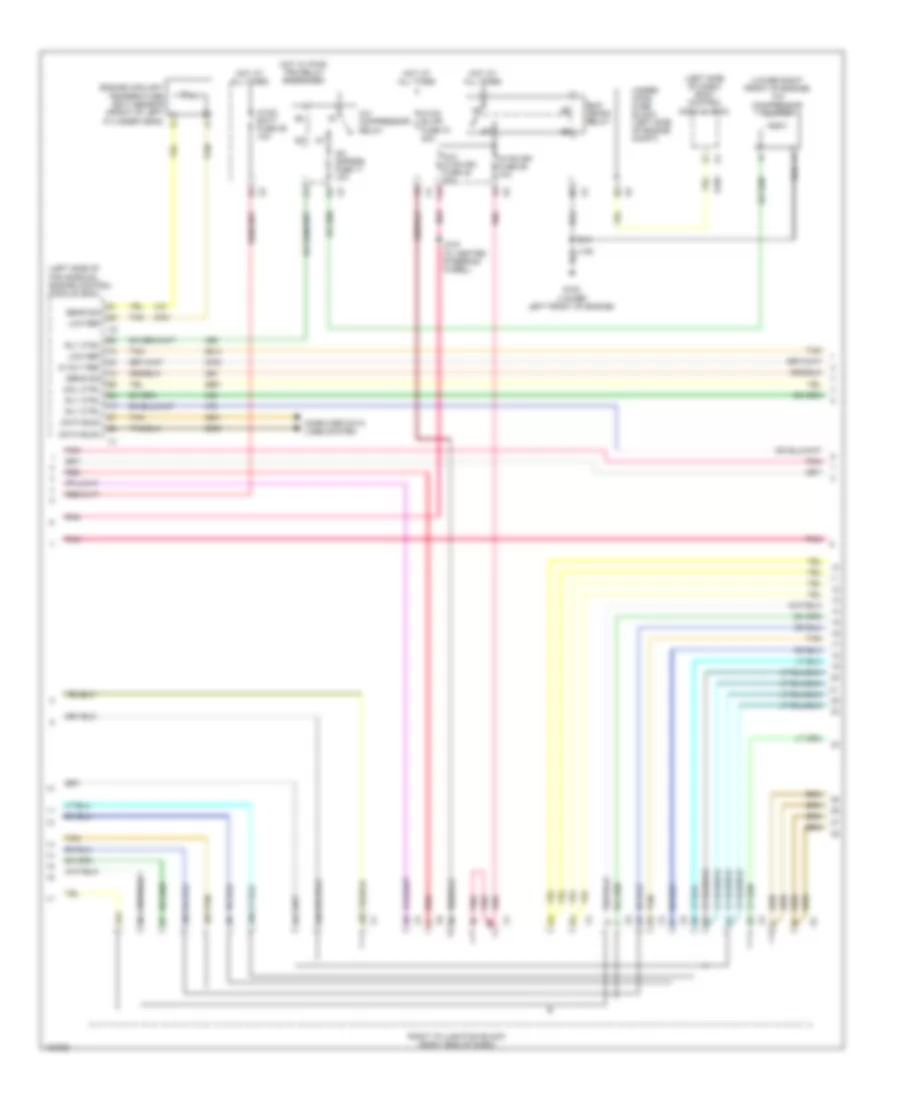

Электросхема кондиционера с ручный управлением (3 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера с ручный управлением (3 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (a/c high pressure hose) a/c refrigerant pressure sensor
• (not used)
• 87a
• Fan cntrl relay
• Fan hi relay
• Fan lo relay
• Fan-1 fuse 57 40a
• Fan-2 fuse 60 40a
• G100 (lower left radiator support)
• G101
• Hot at all times
• J100
• J101
• Left air temperature actuator (under left side of hvac module)
• Left engine cooling fan (behind radiator)
• Mode actuator (left side of hvac module)
• Pnk
• Pwr/ trn relay
• Recirculation actuator (upper right of hvac module)
• Right air temperature actuator (top center of hvac module)
• Right engine cooling fan (behind radiator)
• Tan
• Underhood fuse block (left side of engine compt)

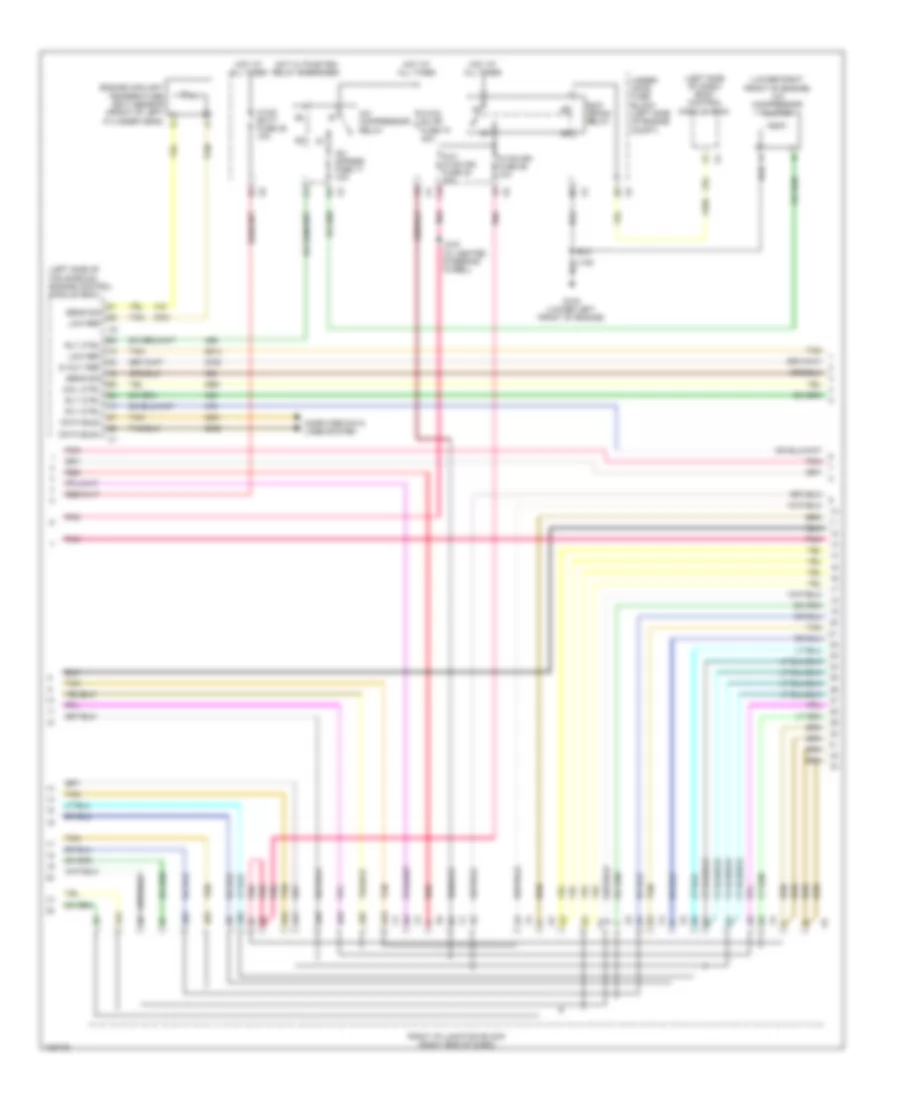

Электросхема кондиционера с ручный управлением (4 из 4) для Chevrolet Suburban C1500 2013

Электросхема кондиционера с ручный управлением (4 из 4) для Chevrolet Suburban C1500 2013 - Список элементов:

• (or pnk)
• (under auxiliary blower motor) auxiliary blower motor control module
• 5v ref
• A10
• A11
• Auxiliary air temperature actuator (rear of auxiliary hvac module assembly)
• Auxiliary blower motor (upper front of auxiliary hvac module)
• Auxiliary mode actuator (front of auxiliary hvac module)
• Blower speed
• Computer data lines system
• Down
• G402 (right "d" pillar)
• Gmlan
• Gnd
• Hot at all times
• Hvac control module
• I/p fuse block (left end of dash)
• Logic
• Long wheel base
• Low ref
• Mde cntrl
• Mode switch
• Mtr cntrl
• Pnk
• Rear hvac fuse 30a
• Rear seat audio (rsa) control (w/ rear seat & earphone jacks)
• Short wheel base
• Spd ctrl
• Temp cntrl
• Temperature control
• X202
• X207
• X407
