Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Chevrolet Equinox LS 2011

СИСТЕМА КРУИЗКОНТРОЛЯ

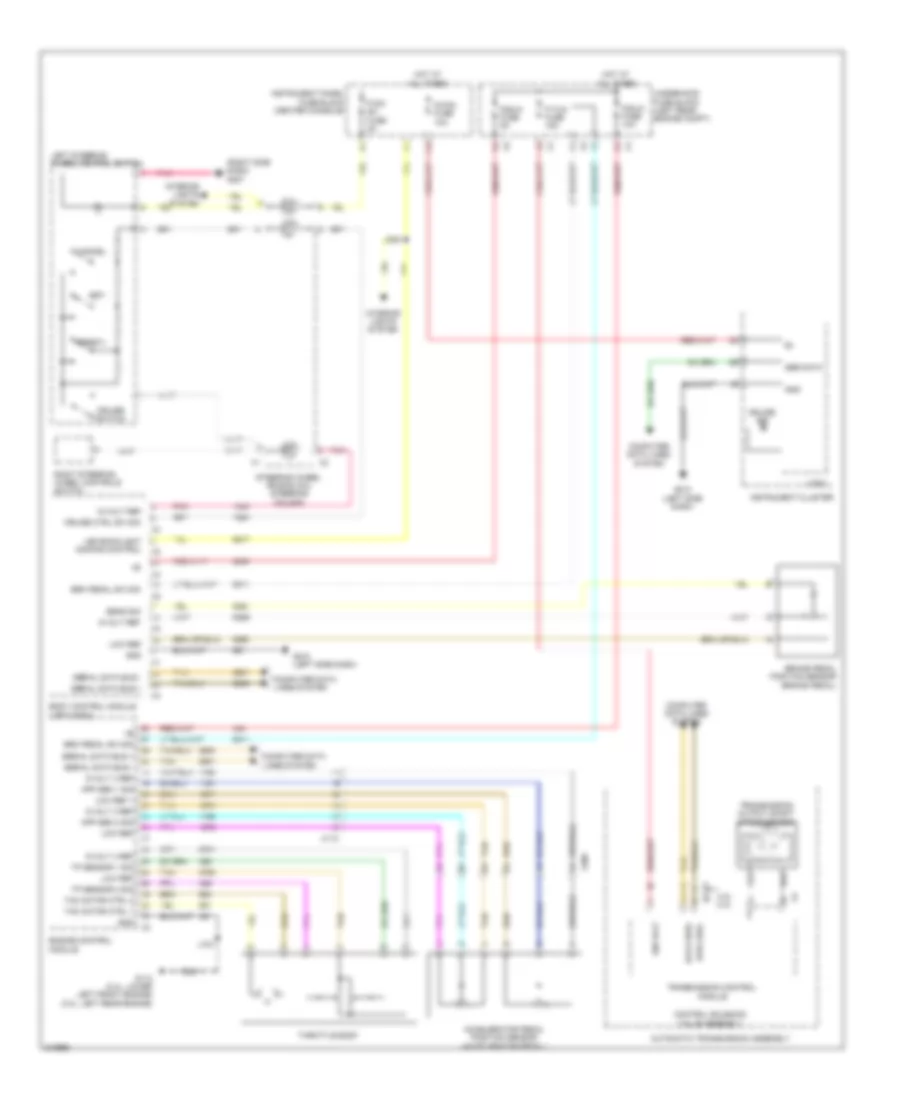

Электросхема системы круизконтроля для Chevrolet Equinox LS 2011

Электросхема системы круизконтроля для Chevrolet Equinox LS 2011 - Список элементов:

• (right side dash) g207
• 12-volt ref
• 3.ol 2.4l
• 5-volt 3 ref
• 5-volt 4 ref
• 5-volt ref
• Accelerator pedal position sensor (accelerator pedal)
• App sen 1 sig
• App sen 2 sig
• Automatic transmission assembly
• Body control module (left dash)
• Brake pedal position sensor (brake pedal)
• Brk pedal sw sig
• Cancel
• Computer data lines system
• Control solenoid valve assembly
• Cruise ctrl sw sig
• Cruise ind
• Cruise switch
• Data bus+
• Data bus-
• Engine control module
• F10
• F17ua fuse 15a
• F1da dm fuse 2a
• F20ua fuse 10a
• F28ua fuse 5a
• F37da fuse 10a
• G112 (2.4l: lower left front engine) (3.0l: left rear engine)
• G210 (left side dash)
• Gnd
• Hot at all times
• Ign volt
• Instrument cluster
• Instrument panel fuse block (center console)
• Interior lights system
• J103
• J205
• Led backlight dimming control
• Left steering wheel control switch
• Logic
• Low ref
• Low ref 1
• Pnk
• Reset+
• Right steering wheel controls switch
• Sens sig
• Ser data
• Serial data bus +
• Serial data bus -
• Set-
• Steering wheel air bag coil (steering column)
• Tac motor ctrl 1
• Tac motor ctrl 2
• Tan
• Throttle body
• Tp sensor 1 sig
• Tp sensor 2 sig
• Transmission control module
• Transmission output shaft speed sensor
• Underhood fuse block (left rear engine compt)
• X112
• X206
