Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Chevrolet Corvette 1990

СИСТЕМА ОХЛАЖДЕНИЯ

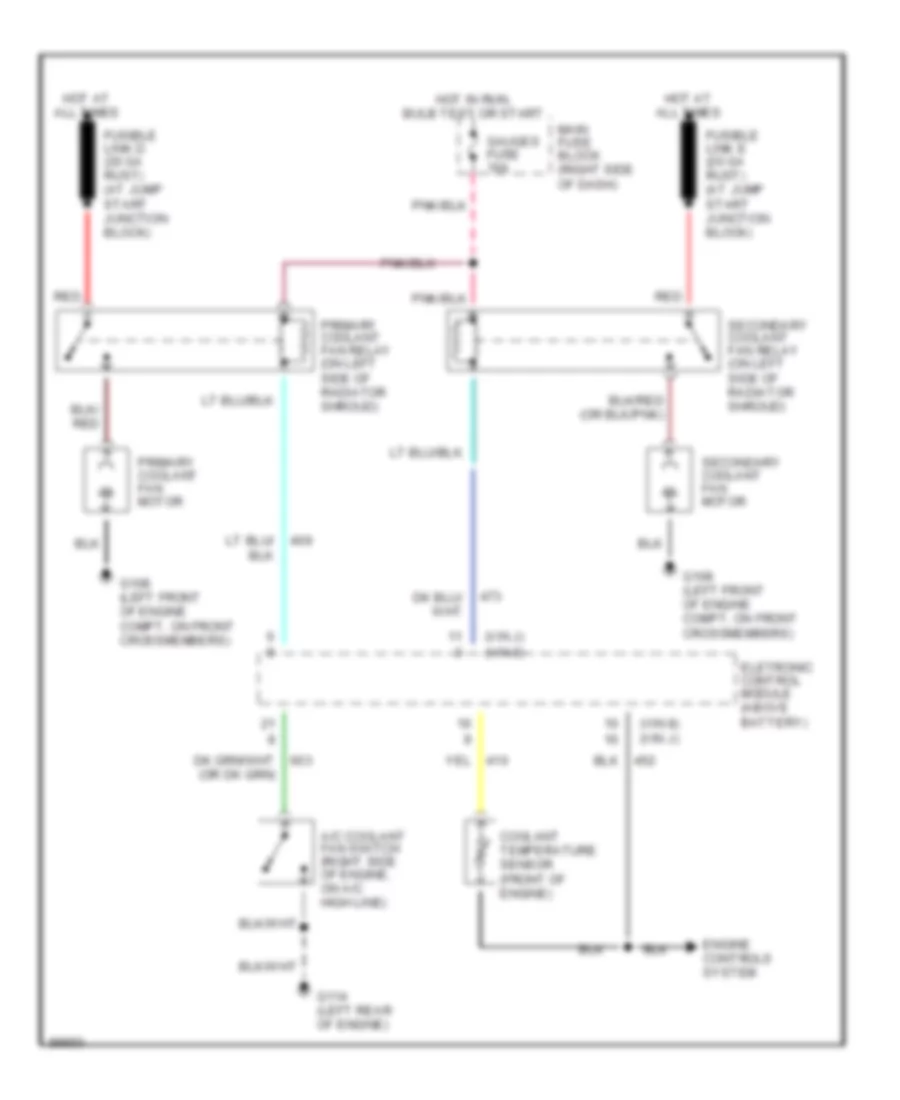

Электросхема системы охлаждения для Chevrolet Corvette 1990

Электросхема системы охлаждения для Chevrolet Corvette 1990 - Список элементов:

• (vin 8)
• (vin j)
• A/c coolant fan switch (right side of engine, on a/c high line)
• Coolant temperature sensor (front of engine)
• Eletronic control module (above battery)
• Engine controls system
• Fusible link d (20 ga rust) (at jump start junction block)
• Fusible link e (20 ga rust) (at jump start junction block)
• G108 (left front of engine compt, on front crossmembers)
• G114 (left rear of engine)
• Gauges fuse 10a
• Hot at all times
• Hot in run, bulb test or start
• Main fuse block (right side of dash)
• Primary coolant fan motor
• Primary coolant fan relay (on left side of radiator shroud)
• Red
• Secondary coolant fan motor
• Secondary coolant fan relay (on left side of radiator shroud)
