Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Subaru Tribeca Limited 2010

СИСТЕМА ОХЛАЖДЕНИЯ

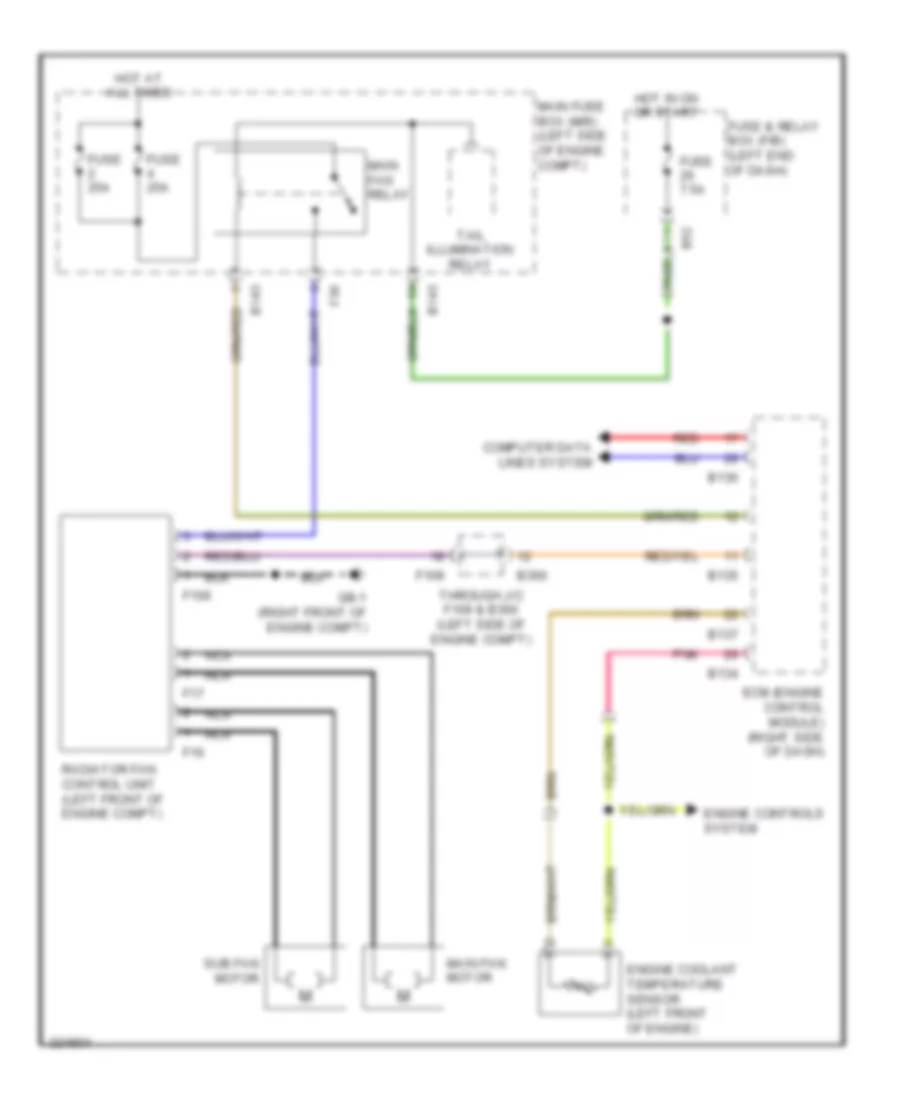

Электросхема системы охлаждения для Subaru Tribeca Limited 2010

Электросхема системы охлаждения для Subaru Tribeca Limited 2010 - Список элементов:

• B134
• B135
• B136
• B137
• B143
• B360
• B52
• Computer data lines system
• Ecm (engine control module) (right side of dash)
• Engine controls system
• Engine coolant temperature sensor (left front of engine)
• F106
• F109
• F16
• F17
• F36
• Fuse & relay box (f/b) (left end of dash)
• Fuse 25a
• Fuse 7.5a
• Gb-1 (right front of engine compt)
• Hot at all times
• Hot in on or start
• Main fan motor
• Main fan relay
• Main fuse box (m/b) (left side of engine compt)
• Nca
• Pnk
• Radiator fan control unit (left front of engine compt)
• Red
• Sub fan motor
• Tail illumination relay
• Through j/c f109 & b360 (left side of engine compt)
