Электросхемы СИСТЕМЫ ПАМЯТИ Acura 3.2TL 2002

СИСТЕМЫ ПАМЯТИ

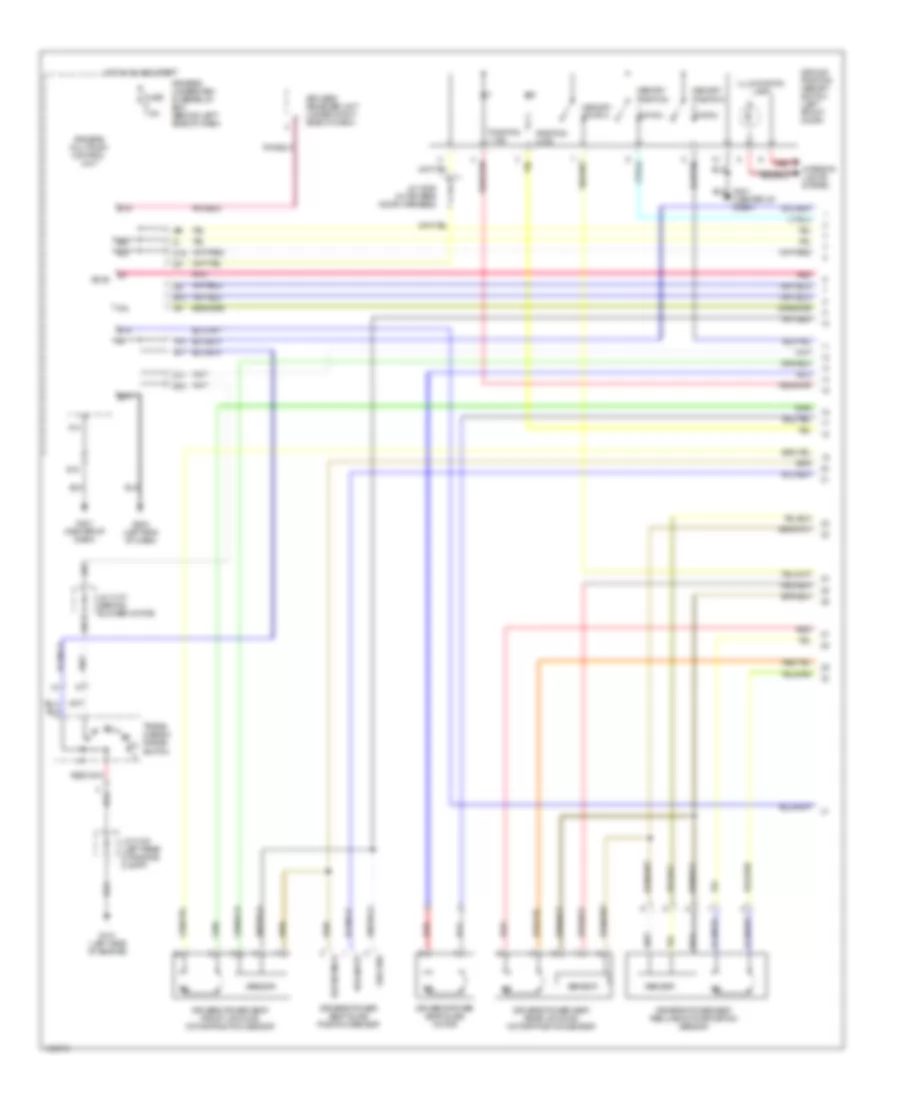

Электросхема памяти водительского сиденья (1 из 2) для Acura 3.2TL 2002

Электросхема памяти водительского сиденья (1 из 2) для Acura 3.2TL 2002 - Список элементов:

• (bus)
• A12
• A14
• A16
• A24
• B11
• B12
• B14
• B19
• Drivers multiplex control unit
• Drivers power seat front up-down motor/position sensor
• Drivers power seat rear up-down motor/position sensor
• Drivers power seat recline motor/postion sensor
• Drivers power seat slide motor
• Drivers power seat slide position sensor
• Drivers underdash fuse/relay box (behind left side of dash)
• Driving position memory switch (left front door)
• E10
• E17
• Fuse 7.5a
• G101 (left side of engine)
• G401 (center of dash)
• G503 (left end of dash)
• Ground
• Hot in on and start
• Illumination lamp
• Interior lights system
• J/c c105 (left rear of engine compt)
• J/c c107 (behind blower motor)
• J/c c635 (in drivers door harness)
• K10
• K11
• Keyless receiver unit (under right side of dash)
• Memory position switch
• Memory switch
• Pnk
• Pos input
• Position 1 ind
• Position 2 ind
• Q15
• Red
• Reference
• Sensor
• Trans- mission range d3 switch

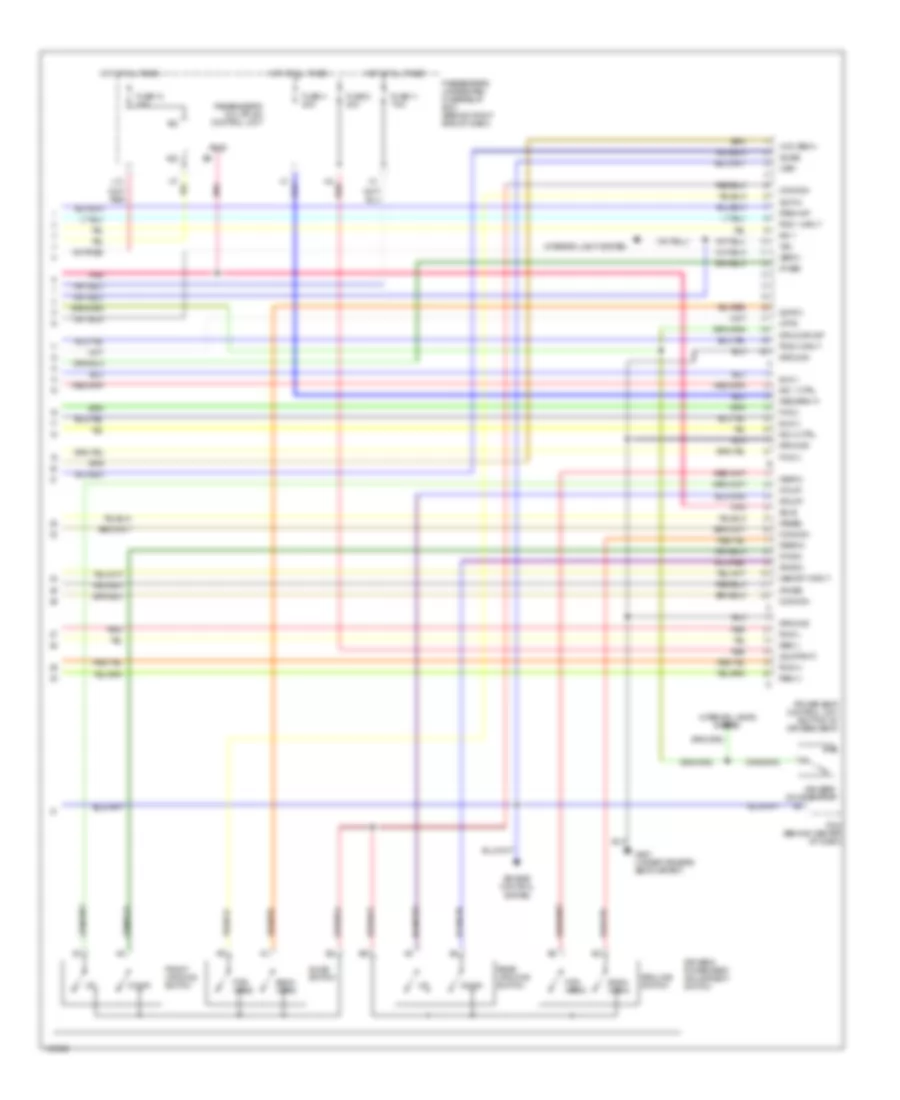

Электросхема памяти водительского сиденья (2 из 2) для Acura 3.2TL 2002

Электросхема памяти водительского сиденья (2 из 2) для Acura 3.2TL 2002 - Список элементов:

• (at-r)
• (bus)
• (fhdn)
• (fhse)
• (fhup)
• (rec/rrht)
• (refw)
• (rerw)
• (rese)
• (rhdn)
• (rhse)
• (rhup)
• (seg1)
• (sld/frht)
• (slfw)
• (slrw)
• (slse)
• (vcc sen1)
• (vsp)
• A22
• A24
• Back- ward
• Common
• Down
• Dr door inp
• Drivers door switch
• Drivers power seat adjustment switch
• Engine control system
• Fhm(+)
• Fhm(-)
• For- ward
• Front up/down switch
• Fuse 11 7.5a
• Fuse 13 15a
• Fuse 2 20a
• Fuse 4 20a
• G551 (under drivers seat carpet)
• Ground
• H2 red
• Hot at all times
• Ign 1
• Ind 1 ctrl
• Ind 2 ctrl
• Interior lamps system
• Interior light system
• J12
• Memory input
• Park inp
• Passenger's multiplex control unit
• Passengers underdash fuse/relay box (behind right end of dash)
• Pcm (behind center of dash)
• Pnk
• Pos 1 input
• Pos 2 input
• Power seat control unit (bottom of drivers seat)
• Rear up/down switch
• Recline switch
• Red
• Rem(+)
• Rem(-)
• Rhm(+)
• Rhm(-)
• Slide switch
• Slm(+)
• Slm(-)
• Vsu

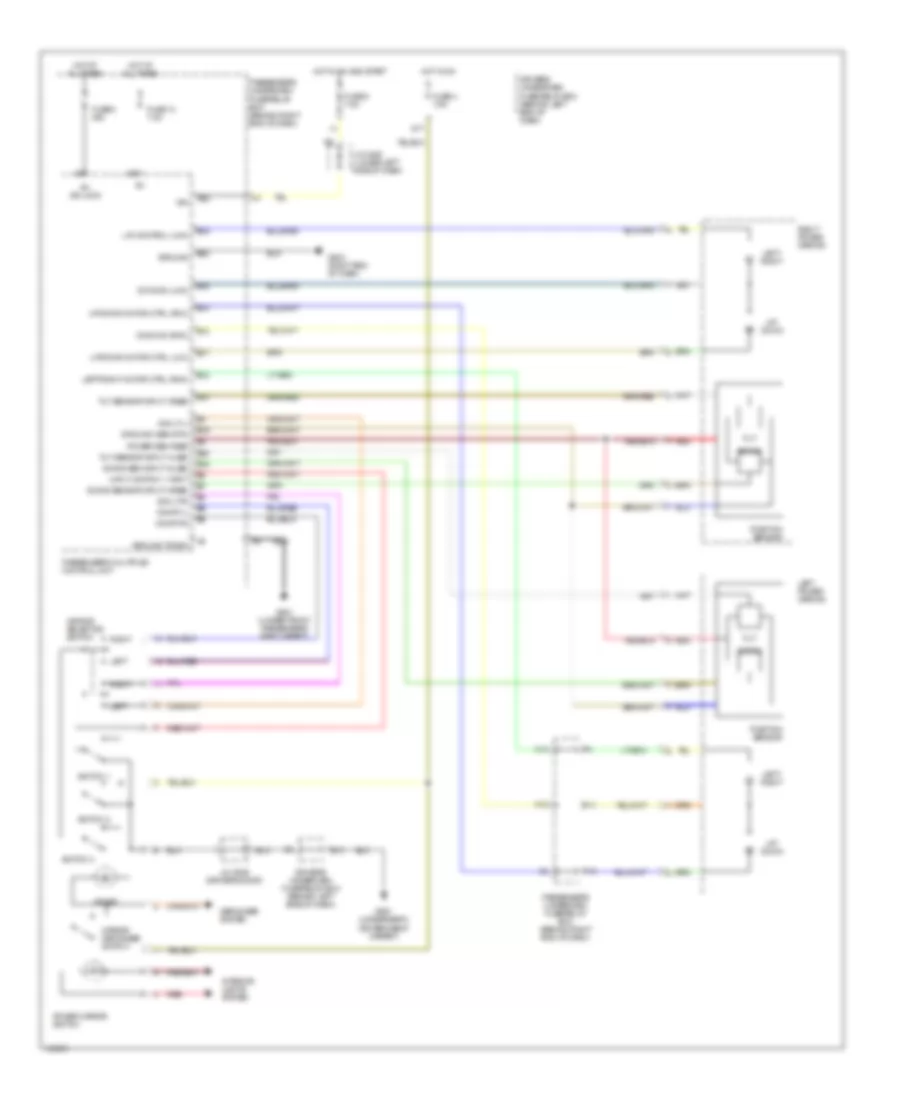

Электросхем памяти регулировки зеркал заднего вида для Acura 3.2TL 2002

Электросхем памяти регулировки зеркал заднего вида для Acura 3.2TL 2002 - Список элементов:

• (dn/lt-l)
• (dn/lt-r)
• (dn/rt-l)
• (dn/rt-r)
• (up/lt) switch 1 input
• A22
• A24
• B+ dr lock
• B10
• B12
• B13
• B14
• B15
• B16
• B17
• B18
• B19
• B20
• B22
• Common (lmc)
• Common (rmc)
• Defogger system
• Drivers underdash fuse/relay box (behind left end of dash)
• Drivers underdash fuse/relay box (behind left side of dash)
• F11
• F19
• Fuse 13 7.5a
• Fuse 4 7.5a
• Fuse 5 20a
• Fuse 9 7.5a
• G17
• G504 (right end of dash)
• G551 (underneath drivers seat carpet)
• G581 (under front passengers seat carpet)
• Ground
• Ground (pgnd)
• Ground (sen rtn)
• Hot at all times
• Hot in on
• Hot in on and start
• Ign
• Interior lights system
• J/c c452 (lower left side of dash)
• J/c c635 (drivers door)
• K12
• K13
• L/r control (lmh)
• Left
• Left power mirror
• Left/ right
• Left/right motor ctrl (rmh)
• Mirror defogger switch
• Mirror selector switch
• On ind
• Passenger's multiplex control unit
• Passengers underdash fuse/relay box (behind right end of dash)
• Position sensor
• Power mirror switch
• Power sen feed
• Red
• Right
• Right power mirror
• Swing
• Swing sen input (hlse)
• Swing sensor input (hrse)
• Switch 1
• Switch 2
• Switch 3
• Tilt
• Tilt sensor input (vlse)
• Tilt sensor input (vrse)
• Up/ down
• Up/down motor ctrl (lmv)
• Up/down motor ctrl (rmv)
