Электросхемы Стартер Генератор Subaru Forester 2.5i Touring 2014

Стартер Генератор

Электросхема Генератора для Subaru Forester 2.5i Touring 2014

Электросхема Генератора для Subaru Forester 2.5i Touring 2014 - Список элементов:

• 2.0l turbo
• 2.5l
• B134
• B135
• B137
• B143
• B553
• Battery
• Battery current & temperature sensor (on battery)
• Charge ind
• Combination meter
• Computer data lines system
• Engine control module (2.5l: right side of dash) (2.0l turbo: right front of engine compt)
• F37
• Fuse & relay box (f/b)
• Fuse 5 10a
• Fuse 7.5a
• Generator
• Hot in on or start
• I231
• Joint connector b122 (2.0l turbo) joint connector b120 (2.5l) (2.0l turbo: right side of engine compt) (2.5l: right side of dash)
• Main fuse box (m/b) (left side of engine compt)
• Main sbf fuse 120a
• Nca
• Red
• Starter motor

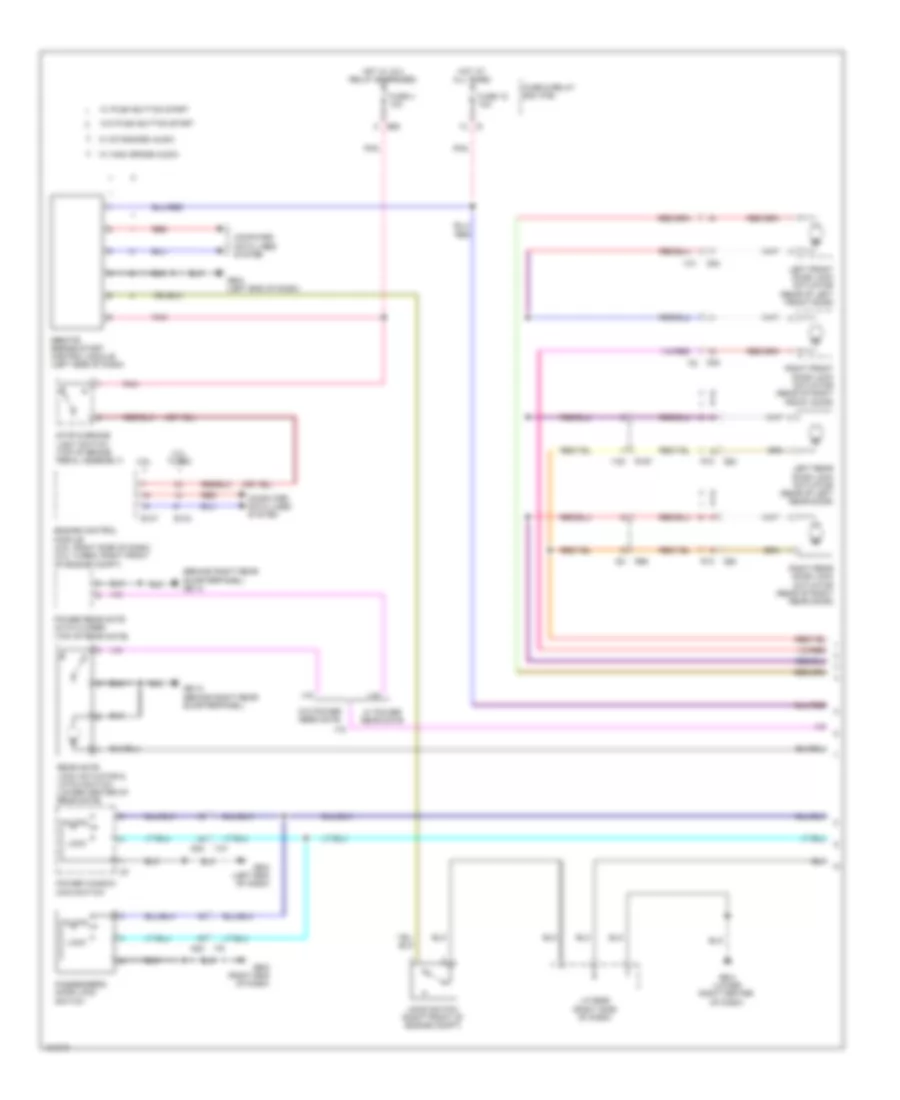

удаленная Электросхема стартера (1 из 2) для Subaru Forester 2.5i Touring 2014

удаленная Электросхема стартера (1 из 2) для Subaru Forester 2.5i Touring 2014 - Список элементов:

• (behind right rear quarterpanel) gb-12
• 2.0l turbo
• 2.5l
• B134
• B137
• B52
• Computer data lines system
• D22
• D28
• D83
• D84
• Engine control module (2.5l: right side of dash) (2.0l turbo: right front of engine compt)
• Fuse & relay box (f/b)
• Fuse 15 10a
• Fuse 4 10a
• Gb-12 (behind right rear quarterpanel)
• Gb-4 (lower right center of dash)
• Gb-5 (left end of dash)
• Gb-6 (right end of dash)
• Hood switch (right front of engine compt)
• Hot at all times
• Hot w/ ig 2 relay energized
• I101
• I102
• I53
• I76
• J/c b260 (right side of dash)
• Left front door lock actuator (rear of left front door)
• Left rear door lock actuator (rear of left rear door)
• Lock
• Passenger's door lock switch
• Pnk
• Power rear gate auto closer (top of rear gate)
• Power window main switch
• R10
• R13
• R167
• R98
• Rear gate lock actuator & latch switch (lower center of rear gate)
• Red
• Remote engine start control module (left side of dash)
• Right front door lock actuator (rear of right front door)
• Right rear door lock actuator (rear of right rear door)
• Stop & brake light switch (top of brake pedal assembly)
• Unlock
• W/ high grade audio
• W/ power rear gate
• W/ push button start
• W/ standard audio
• W/o power rear gate
• W/o push button start

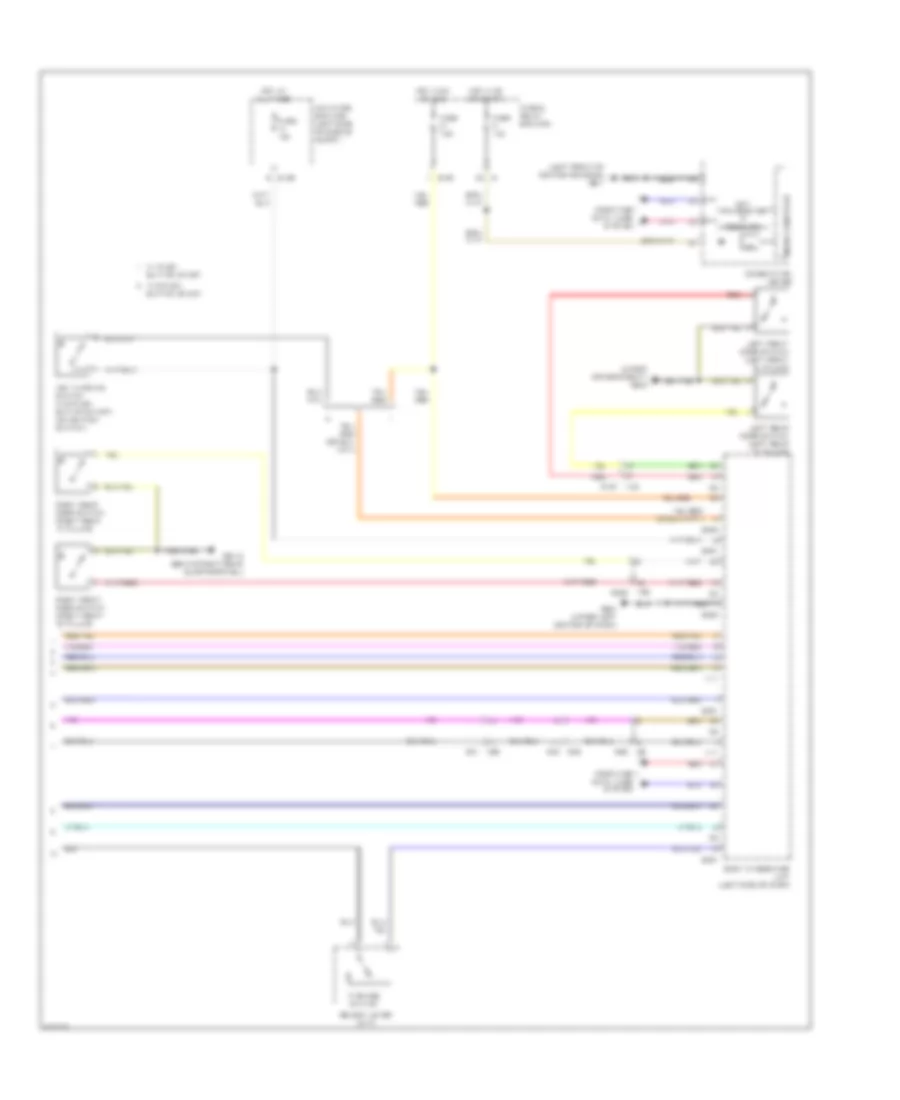

удаленная Электросхема стартера (2 из 2) для Subaru Forester 2.5i Touring 2014

удаленная Электросхема стартера (2 из 2) для Subaru Forester 2.5i Touring 2014 - Список элементов:

• (left front of center console) gb-7
• (under driver's seat) gb-9
• B152
• B186
• B280
• B281
• Body integrated unit (left side of dash)
• Button start
• Can transceiver & receiver
• Combination meter
• Computer data lines system
• D34 r38
• D80
• D81
• Fuse & relay box (f/b)
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• Gb-12 (behind right rear quarterpanel)
• Gb-3 (upper left center of dash)
• Hot at all times
• Hot in on or acc
• Hot in on or start
• I/f
• I171
• I195
• I53
• I84
• Key warning switch (w/o push button start) (on ignition switch)
• Left front door switch (left front "b" pillar)
• Left rear door switch (left rear "c" pillar)
• Main fuse box (m/b) (left side of engine compt)
• Micro computer
• P range switch
• Pnk
• R167 i102
• R382
• R98
• Red
• Right front door switch (right front "b" pillar)
• Right rear door switch (right rear "c" pillar)
• Select lever (cvt)
• W/ push
• W/o push

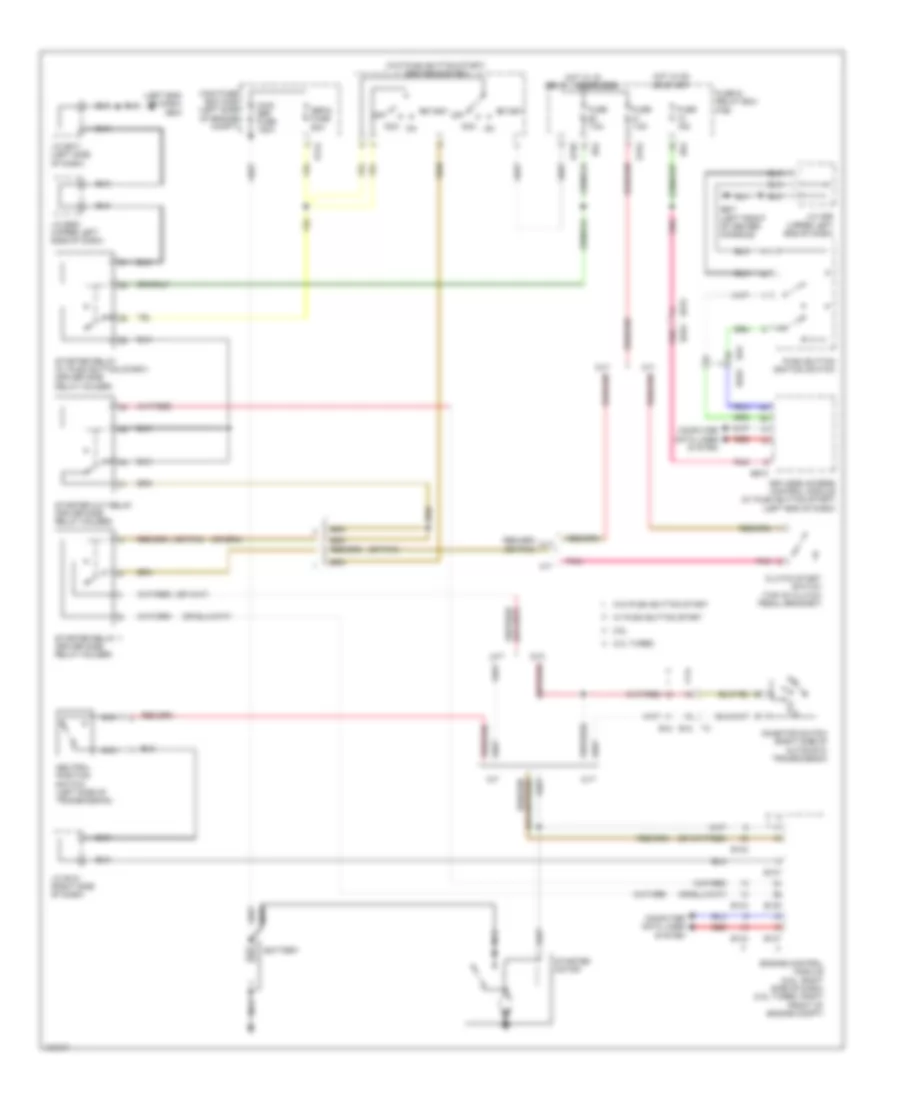

Электросхема стартера для Subaru Forester 2.5i Touring 2014

Электросхема стартера для Subaru Forester 2.5i Touring 2014 - Список элементов:

• (left end of dash) gb-5
• (or pnk)
• (w/o push button start) ignition switch
• 2.0l turbo
• 2.5l
• Acc
• B12
• B134
• B135
• B137
• B144
• B152
• B159
• B52
• B553
• B574
• B575
• B576
• Battery
• Clutch start switch (top of clutch pedal bracket)
• Computer data lines system
• Cvt
• Engine control module (2.5l: right side of dash) (2.0l turbo: right front of engine compt)
• Fuse & relay box (f/b)
• Fuse 15a
• Fuse 7.5a
• Gb-7 (left front of center console)
• Hot in on or start
• Hot w/ ig relay 1 energized
• I231
• Inhibitor switch (right side of automatic transmission)
• J/c b121 (right side of dash)
• J/c b261 (upper left side of dash)
• J/c b371 (left side of dash)
• J/c i255 (upper left end of dash)
• Keyless access control module (w/ push button start) (left end of dash)
• M/t
• Main fuse box (m/b) (left side of engine compt)
• Main sbf fuse 120a
• Nca
• Neutral position switch (left side of transmission)
• Off
• Pnk
• Push button ignition switch
• Red
• Sbf-6 fuse 50a
• Start
• Starter cut relay (driver side relay holder)
• Starter motor
• Starter relay (w/ push button start) (driver side relay holder)
• Starter relay 1 (driver side relay holder)
• W/ push button start
• W/o push button start
