АНТЕННА ПИТАНИЯ

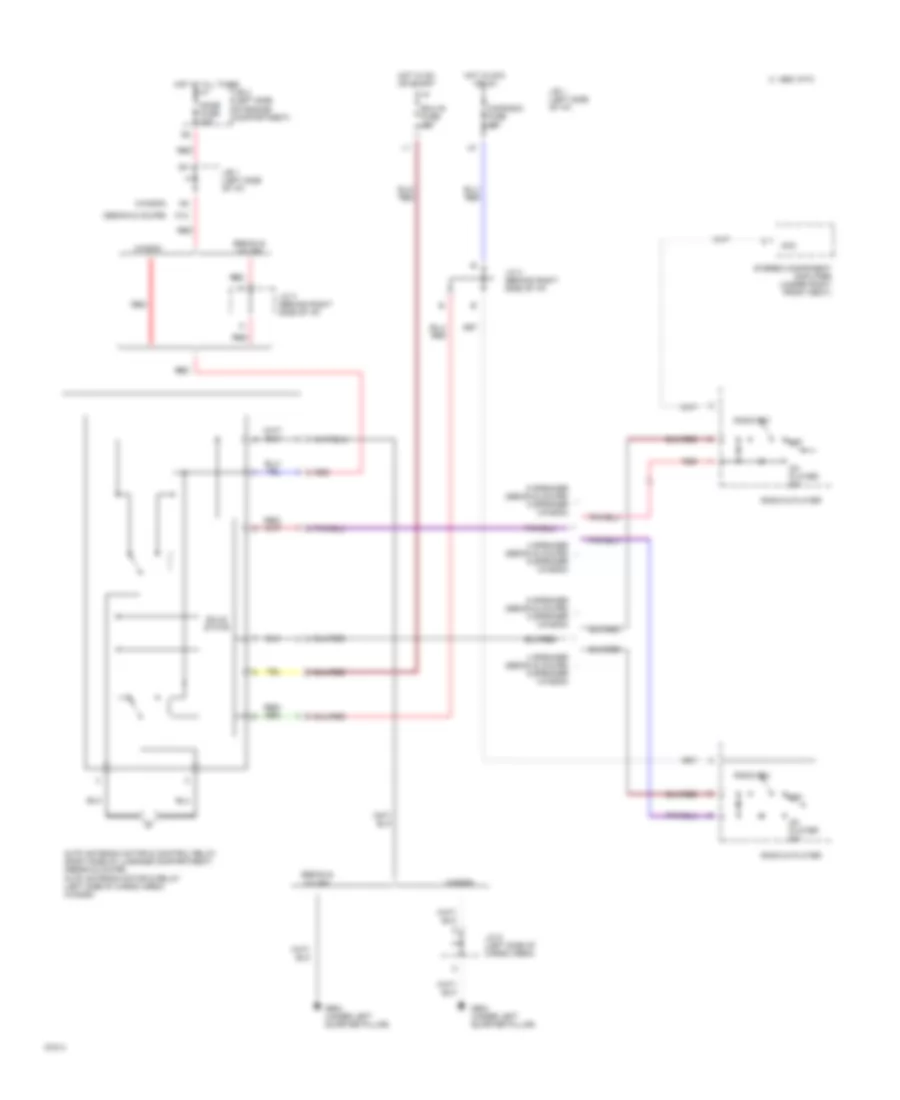

Электросхема антенны для Toyota Camry DX 1994

Электросхема антенны для Toyota Camry DX 1994 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема антенны для Toyota Camry DX 1994 - Список элементов:

  • (sedan & coupe)
  • (wagon)
  • 4 speaker (sedan & coupe) 6 speaker (wagon)
  • 6 speaker (sedan & coupe) 8 speaker (wagon)
  • Acc
  • Auto antenna motor & control relay (right side of luggage compartment) (sedan & coupe) auto antenna motor & relay (left side of cargo area) (wagon)
  • C 1995 vftc
  • Cig/radio fuse 15a
  • Dome fuse 20a
  • Ecu-ig fuse 15a
  • G904 (under left quarter pillar)
  • Hot at all times
  • Hot in acc or on
  • Hot in on or start
  • J/b 1 (left side of i/p)
  • J/b 1 (left side of i/p)
  • J/b 2 (left side of engine compartment)
  • J/c 3 (behind right side of i/p)
  • J/c 3 (behind right side of i/p)
  • J/c 5 (left side of cargo area)
  • K12
  • Off
  • On player sw
  • Radio & player
  • Radio sw
  • Red
  • Sedan & coupe
  • Solid state
  • Stereo component amplifier (under right front seat)
  • Wagon
