Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Toyota Highlander Hybrid Limited 2012

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

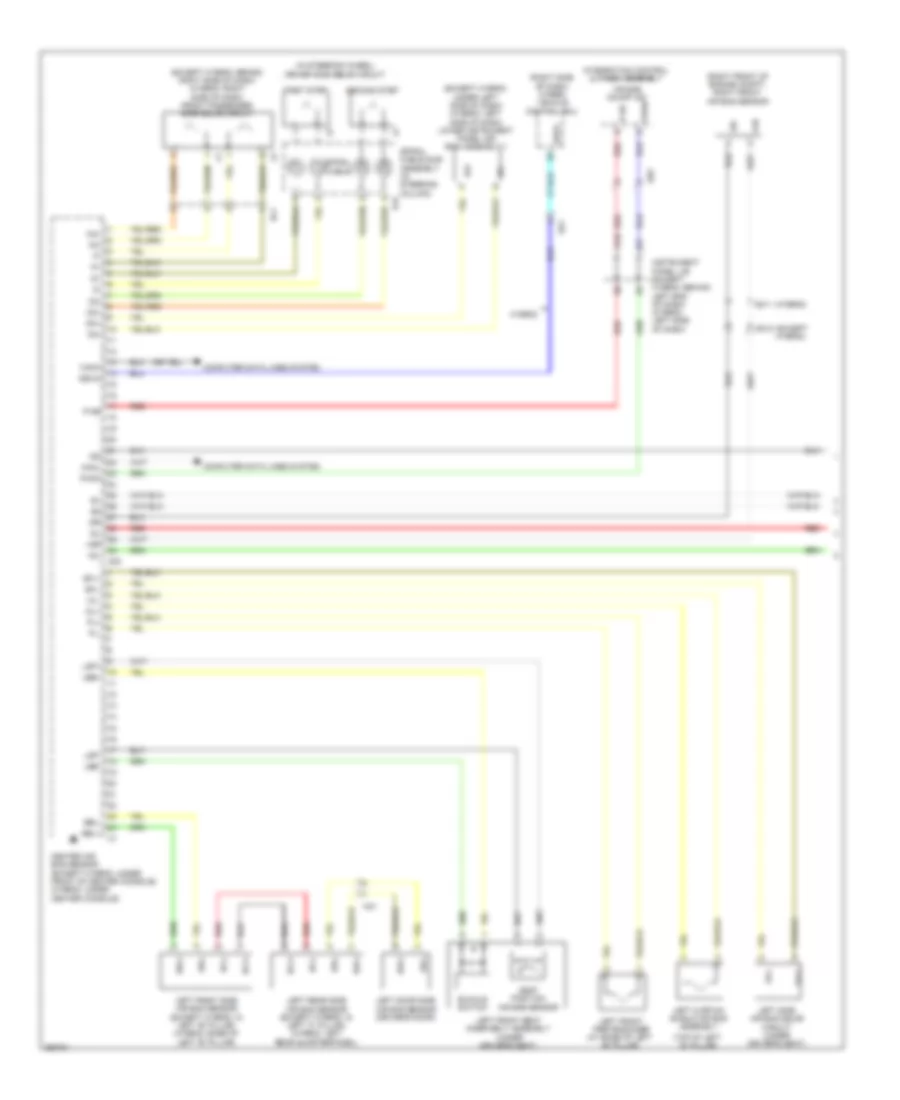

Электросхема подушек безопасности SRS AirBag (1 из 3) для Toyota Highlander Hybrid Limited 2012

Электросхема подушек безопасности SRS AirBag (1 из 3) для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (except hybrid)
• (except hybrid: behind right side of dash) (hybrid: right side of dash) front passenger side squib circuit
• (except hybrid: under left side of dash) (hybrid: left side of dash) lower instrument panel air bag assembly 1
• (hybrid)
• (in steering wheel) driver side squib circuit
• (right front of engine compt) right front air bag sensor
• (right side of dash) hybrid vehicle control ecu
• (top of left "d" pillar)
• +sl
• +sr
• -sl
• -sr
• Abfs
• Ad11
• Ad12
• Air bag on/off ind
• Bbl+
• Bbl-
• Bcl+
• Bcl-
• Bdl+
• Bdl-
• Buckle switch
• Canh
• Canl
• Center air bag sensor (except hybrid: under front of center console) (hybrid: under center console)
• Computer data lines system
• D15
• D2+
• D2-
• D30
• Dd1
• Dk+
• Dk-
• De1
• Ed5
• First step
• Gsw2
• H10
• Ho1
• Hybrid
• Icl+
• Icl-
• Ig2
• Instrument panel j/b (except hybrid: behind left end of dash) (hybrid: left side of dash)
• Integration control & panel assembly
• Lbe+
• Lbe-
• Left curtain shield air bag assembly
• Left door side air bag sensor (driver's door)
• Left front pretensioner (at base of left "b" pillar)
• Left front seat inner belt assembly (under driver's seat)
• Left front side air bag sensor (except hybrid: in left "b" pillar) (hybrid: base of left "b" pillar)
• Left rear side air bag sensor (except hybrid: in left "c" pillar) (hybrid: left rear quarterpanel)
• Left side air bag squib circuit (under driver's seat)
• Lsp+
• Lsp-
• P-ab
• P2+
• P2-
• Paon
• Pl+
• Pl-
• Red
• Seat position air bag sensor
• Second step
• Sfl+
• Sfl-
• Spiral cable
• Spiral cable sub- assembly (in steering column)

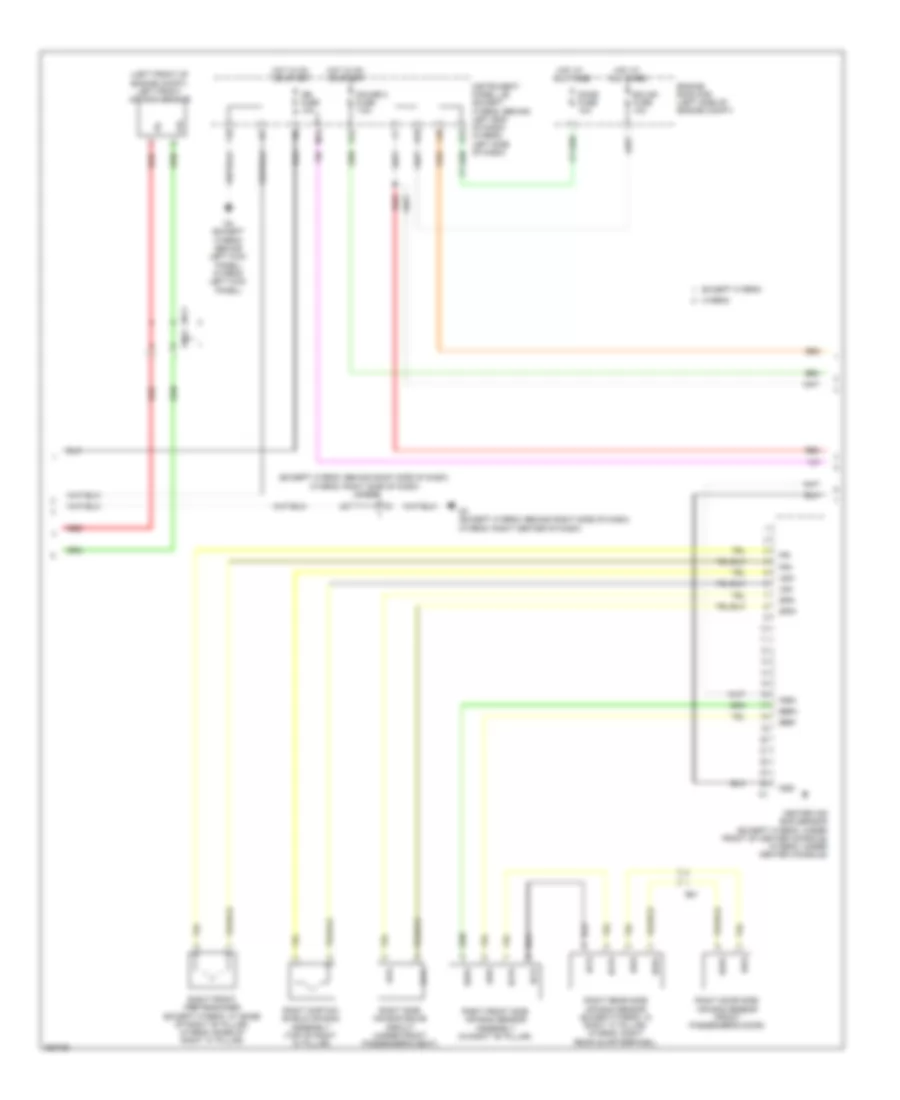

Электросхема подушек безопасности SRS AirBag (2 из 3) для Toyota Highlander Hybrid Limited 2012

Электросхема подушек безопасности SRS AirBag (2 из 3) для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (except hybrid: behind right side of dash) (hybrid: right side of dash) j/c d56
• (left front of engine compt) left front air bag sensor
• +sl
• -sl
• Ad11
• Ad12
• Bbr+
• Bbr-
• Bcr+
• Bcr-
• Bdr+
• Bdr-
• Center air bag sensor (except hybrid: under front of center console) (hybrid: under center console)
• D10
• D13
• D3 (except hybrid: behind right side of dash) (hybrid: right center of dash)
• D4 (except hybrid: behind left kick panel) (hybrid: left kick panel)
• Dome fuse 10a
• Ecu-b1 fuse 10a
• Engine room r/b (left side of engine compt)
• Except hybrid
• F10
• Fsr+
• Fsr-
• G12
• Gauge 2 fuse 7.5a
• Gn1
• Hot at all times
• Hot in on or start
• Hybrid
• Icr+
• Icr-
• Ign fuse 10a
• Instrument panel j/b (except hybrid: behind left end of dash) (hybrid: left side of dash)
• L10
• M14
• Pr+
• Pr-
• Red
• Right curtain shield air bag assembly (top of right "d" pillar)
• Right door side air bag sensor (front passenger's door)
• Right front pretensioner (except hybrid: at base of right "b" pillar) (hybrid: base of right "c" pillar)
• Right front side air bag sensor assembly (in right "b" pillar)
• Right rear side air bag sensor (except hybrid: in right "c" pillar) (hybrid: right rear quarterpanel)
• Right side air bag squib circuit (under front passenger's seat)
• Sfr+
• Sfr-

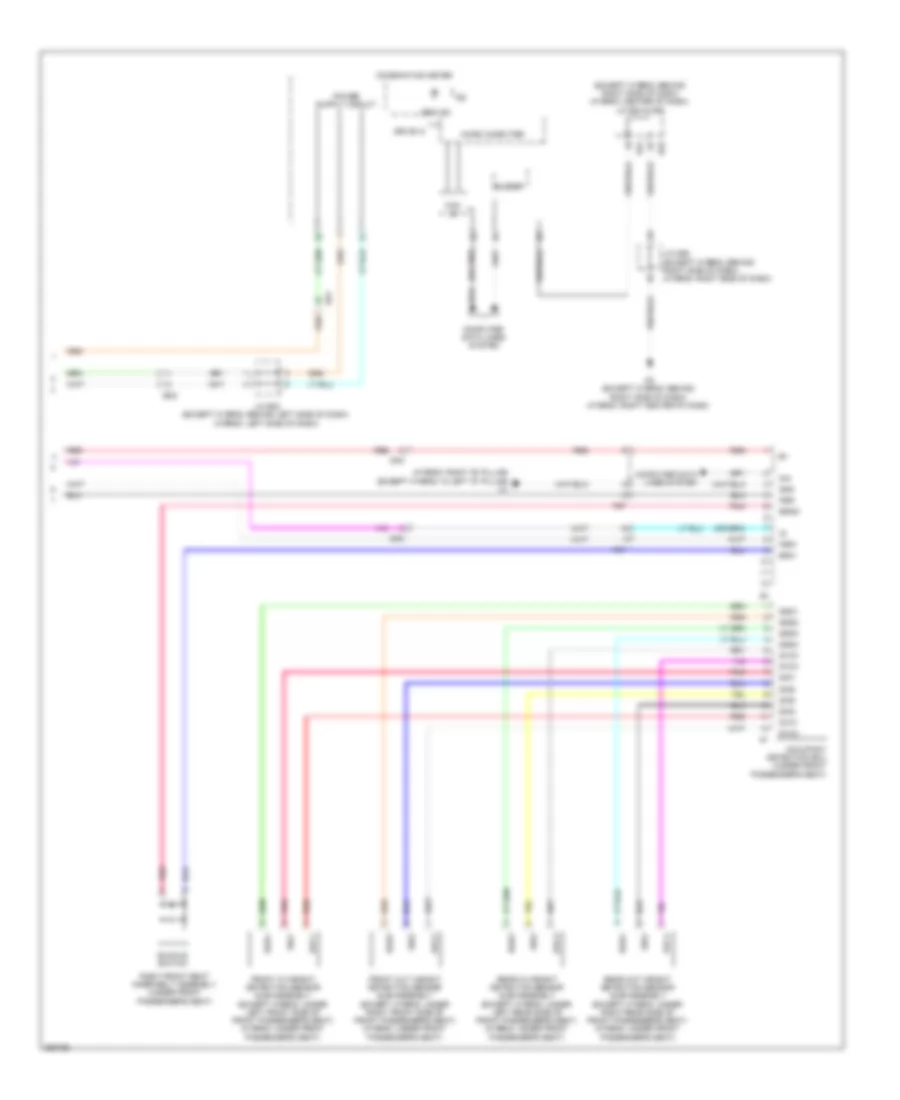

Электросхема подушек безопасности SRS AirBag (3 из 3) для Toyota Highlander Hybrid Limited 2012

Электросхема подушек безопасности SRS AirBag (3 из 3) для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (except hybrid: behind right side of dash) (hybrid: center of dash) j/c e24 & d53
• (hybrid: right "b" pillar) (except hybrid: in left "d" pillar) n1
• (or pnk)
• Bgnd
• Bsw
• Buckle switch
• Buzzer
• Can i/f
• Combination meter
• Computer data lines system
• D3 (except hybrid: behind right side of dash) (hybrid: right center of dash)
• D53
• Dia
• Dn3
• Drive ic
• E24
• Ed1
• Ed3
• Front in weight detection sensor sub-assembly (except hybrid: under left front side of front passenger's seat) (hybrid: under front passenger's seat)
• Front out weight detection sensor sub-assembly (except hybrid: under right front side of front passenger's seat) (hybrid: under front passenger's seat)
• Fsr+
• Fsr-
• Gnd
• Ig2
• J/c d56 (except hybrid: behind right side of dash) (hybrid: right side of dash)
• J/c e23 (except hybrid: behind left side of dash) (hybrid: left side of dash)
• Micro computer
• Na1
• Occupant detection ecu (under front passenger's seat)
• Pnk
• Rear in weight detection sensor sub-assembly (except hybrid: under left rear side of front passenger's seat) (hybrid: under front passenger's seat)
• Rear out weight detection sensor sub-assembly (except hybrid: under right rear side of front passenger's seat) (hybrid: under front passenger's seat)
• Red
• Right front seat inner belt assembly (under front passenger's seat)
• Sgd1
• Sgd2
• Sgd3
• Sgd4
• Sig1
• Sig2
• Sig3
• Sig4
• Srs ind
• Svc1
• Svc2
• Svc3
• Svc4
