Электросхемы ПРИВОД ЛЮКА И КРЫШИ Toyota Highlander Hybrid Limited 2012

ПРИВОД ЛЮКА И КРЫШИ

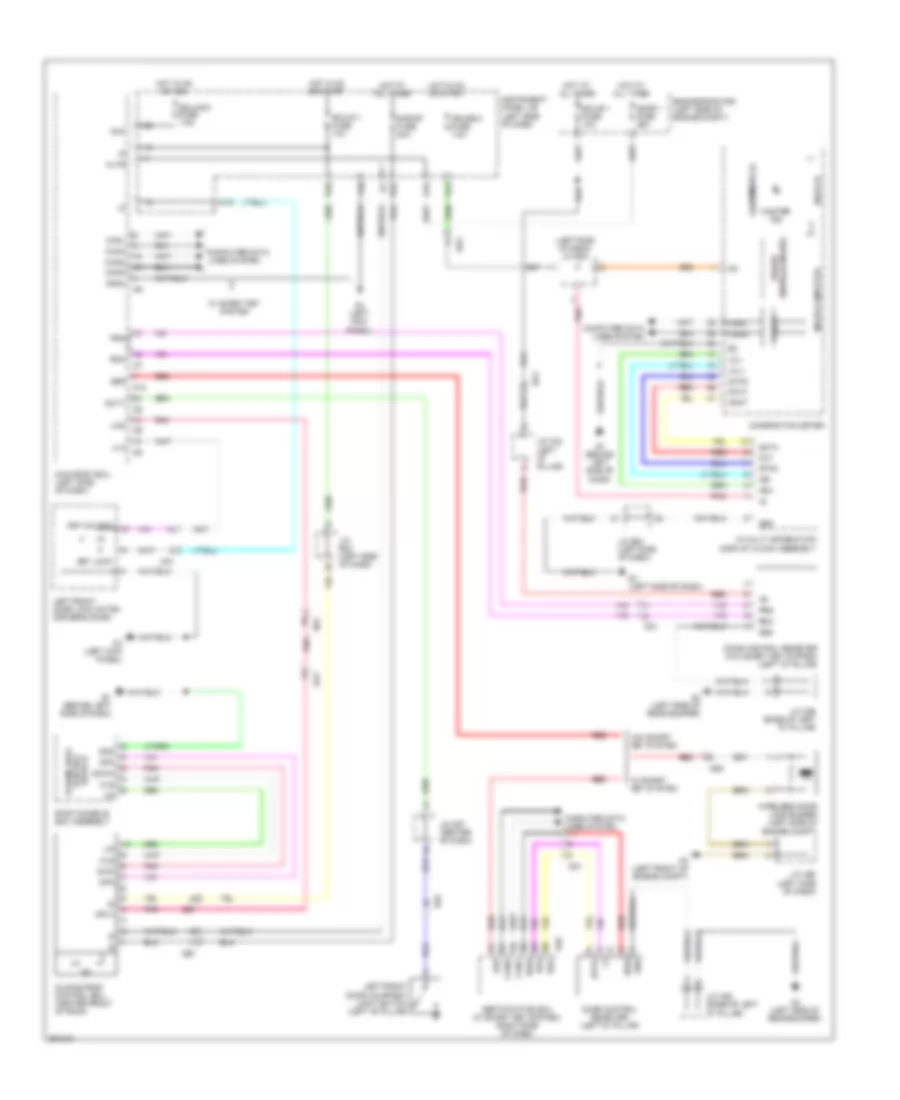

Электросхема привода люка или крыши, Кроме Гибрида для Toyota Highlander Hybrid Limited 2012

Электросхема привода люка или крыши, Кроме Гибрида для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (behind left side of dash) j/c e23
• +b(dome) or ig
• A3 (behind left front headlight)
• Acc
• Ad9
• Altb
• Becu
• Bzr
• Can i/f
• Canh
• Canl
• Cann
• Canp
• Certification ecu (w/ smart key system) (behind right side of dash)
• Clk
• Cls
• Combination meter
• Computer data lines system
• D10
• D16
• D4 (behind left kick panel)
• D40
• Data
• Dcty
• Do2
• Door 1 fuse 25a
• Door control receiver (in left "d" pillar)
• Door control receiver (w/o smart key system) (in left "d" pillar)
• Down
• Drive ic
• Dwn
• E1 (behind left side of dash)
• Ecu-acc fuse 7.5a
• Ecu-b 1 fuse 10a
• Ecu-ig 1 fuse 10a
• Ed3
• Ed4
• Engine room r/b (left side of engine compt)
• F10
• G12
• Gauge 2 fuse 7.5a
• Gnd
• Gnd3
• Hd1
• Hot at all times
• Hot in on or acc
• Hot in on or start
• Hsi+
• Hsi-
• Ig+
• Instrument panel j/b (behind left end of dash)
• J/c a39 (behind left side of dash)
• J/c d57 (behind left side of dash)
• J/c e23 (behind left side of dash)
• J/c o36 (behind left side of rear bumper)
• J/c o38 (in left "d" pillar)
• K16
• Key lock
• Key unlock
• Lcl+
• Lcl-
• Left front door courtesy
• Left front door lock motor assembly (rear of left front door)
• Light switch (in left "b" pillar)
• Lin2
• Main body ecu (on instrument panel j/b)
• Master ind
• Mclk
• Mdat
• Micro computer
• Mpx1
• O2 (behind left rear wheelwell)
• Od1
• Opn
• Pnk
• Prg
• Qe1
• R10
• R12
• Rc0
• Rda
• Red
• Roof console box assembly
• Rssi
• S/roof fuse 20a
• Sliding roof control ecu (front center of headliner)
• Switch control sliding roof
• Sync
• Ul3
• W/ multi information display clock assembly (if equipped)
• W/ smart key system
• W/o smart key system
• Wireless door lock buzzer (left side of engine compt)

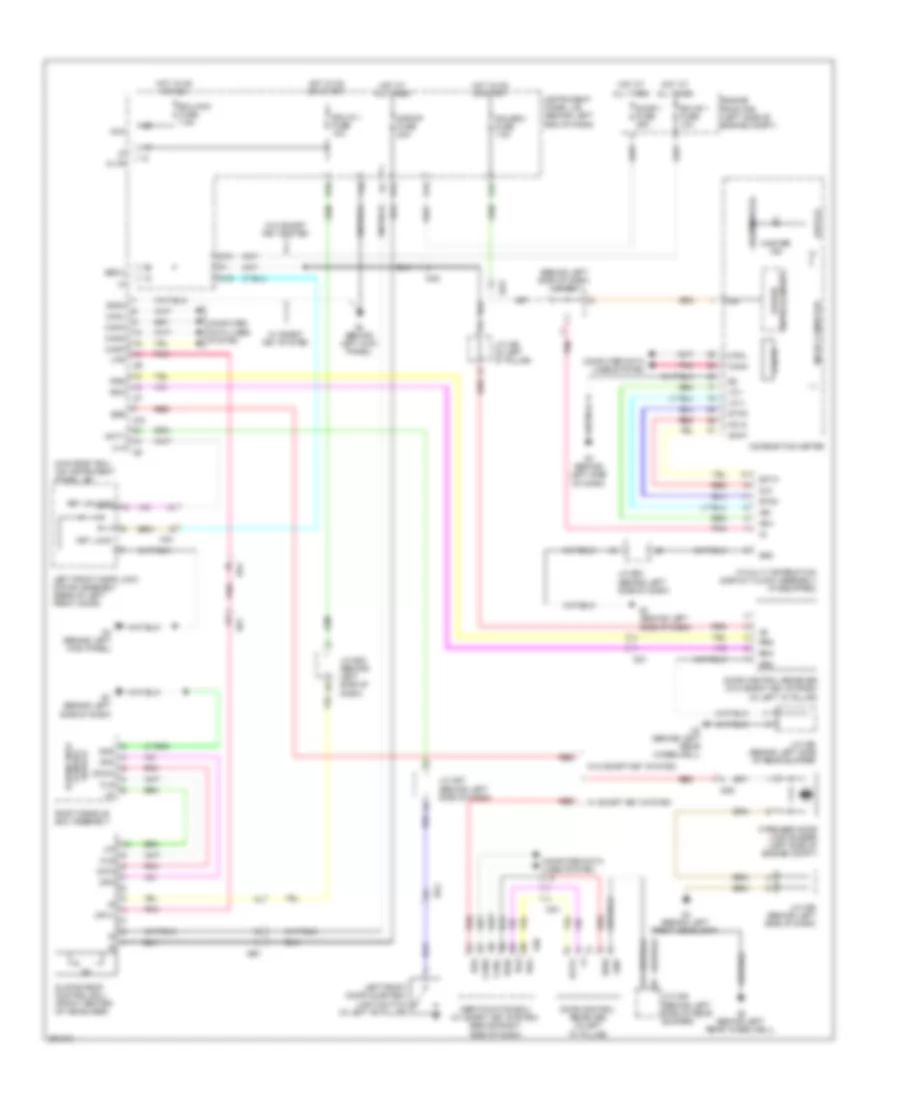

Электросхема привода люка или крыши, Гибрид для Toyota Highlander Hybrid Limited 2012

Электросхема привода люка или крыши, Гибрид для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (left side of dash) j/c e23
• +b(dome) or ig
• A3 (left front of engine compt)
• Acc
• Ad9
• Altb
• Bzr
• Can i/f
• Canh
• Canl
• Cann
• Canp
• Certification ecu (w/ smart key system) (right side of dash)
• Clk
• Cls
• Combination meter
• Computer data lines system
• D10
• D16
• D4 (left kick panel)
• D40
• Data
• Dcty
• Do2
• Door 1 fuse 25a
• Door control receiver (left "d" pillar)
• Door control receiver (w/o smart key system) (left "d" pillar)
• Down
• Drive ic
• Dwn
• E1 (behind left side of dash)
• E1 (left side of dash)
• Ecu-acc fuse 7.5a
• Ecu-b 1 fuse 10a
• Ecu-ig 1 fuse 10a
• Ed3
• Ed4
• Engine room r/b (left side of engine compt)
• F10
• G12
• Gauge 2 fuse 7.5a
• Gnd
• Gnd3
• Hd1
• Hot at all times
• Hot in on or acc
• Hot in on or start
• Hsi+
• Hsi-
• Ig+
• Instrument panel j/b (left side of dash)
• J/c a58 (left side of dash)
• J/c d57 (center of dash)
• J/c e23 (left side of dash)
• J/c o36 (base of left "d" pillar)
• J/c o38 (left "d" pillar)
• K16
• Key lock
• Key unlock
• Lcl+
• Lcl-
• Left front door courtesy light switch (left "b" pillar)
• Left front door lock motor (driver's door)
• Lin2
• Main body ecu (left side of dash)
• Master ind
• Mclk
• Mdat
• Micro computer
• Mpx1
• O2 (left side of rear bumper)
• Od1
• Opn
• Pnk
• Prg
• Qe1
• R10
• R12
• Rc0
• Rda
• Red
• Roof console box assembly
• Rssi
• S/roof fuse 20a
• Sliding roof control ecu (center front of roof)
• Switch control sliding roof
• Sync
• Ul3
• W/ multi information display clock assembly
• W/ smart key system
• W/o smart key system
• Wireless door lock buzzer (left side of engine compt)
