Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Toyota Highlander Hybrid Limited 2012

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

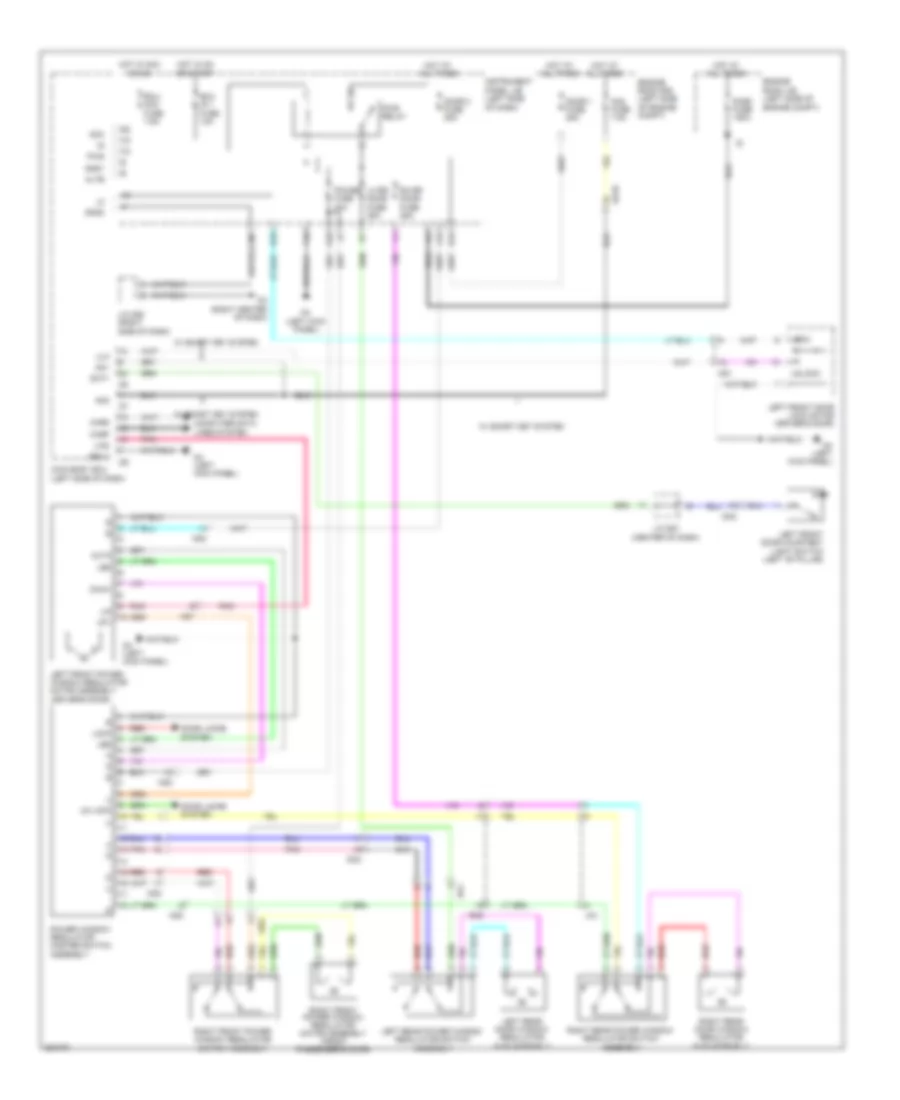

Электросхема стеклоподъемников, кроме гибрида для Toyota Highlander Hybrid Limited 2012

Электросхема стеклоподъемников, кроме гибрида для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• (behind right side of dash) j/c d52
• A41
• Acc
• Alt fuse 140a
• Altb
• Am1
• Am2
• Am2 fuse 7.5a
• Auto
• Becu
• Cann
• Canp
• Computer data lines system
• D10
• D16
• D3 (behind right side of dash)
• D4 (behind left kick panel)
• D62
• Dcty
• Dn2
• Do2
• Door 1 fuse 25a
• Door 2 fuse 25a
• Door locks system
• Dwn1
• Ecu ig 1 fuse 10a
• Ecu- acc fuse 7.5a
• Ecu-b 1 fuse 10a
• Engine room j/b (left side of engine compt)
• Engine room r/b (left side of engine compt)
• F10
• Gd1
• Gd2
• Gnd1
• Gnd2
• Gnd3
• Hd1
• Hd2
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Instrument panel j/b (behind left end of dash)
• J/c a41 & d62 (w/ smart key system) (behind left kick panel)
• J/c d57 (behind left side of dash)
• Jn1
• K10
• K16
• Ko1
• L12
• Led
• Left front door courtesy light switch (in left "b" pillar)
• Left front door lock motor assembly (rear of left front door)
• Left front power window regulator motor assembly (in left front door)
• Left rear door window regulator sub assembly
• Left rear power window regulator switch assembly
• Lh rr door fuse 25a
• Lin
• Lin2
• Lock
• Main body ecu (on instrument panel j/b)
• Pnk
• Power fuse 30a
• Power window regulator master switch assembly
• Pwr relay
• Pws
• Red
• Rh rr door fuse 25a
• Right front power window regulator motor assembly (in front passenger's door)
• Right front power window regulator switch assembly
• Right rear door window regulator sub assembly
• Right rear power window regulator switch assembly
• Ul3
• Unlock
• Up1
• W/ smart key system
• W/o smart key system

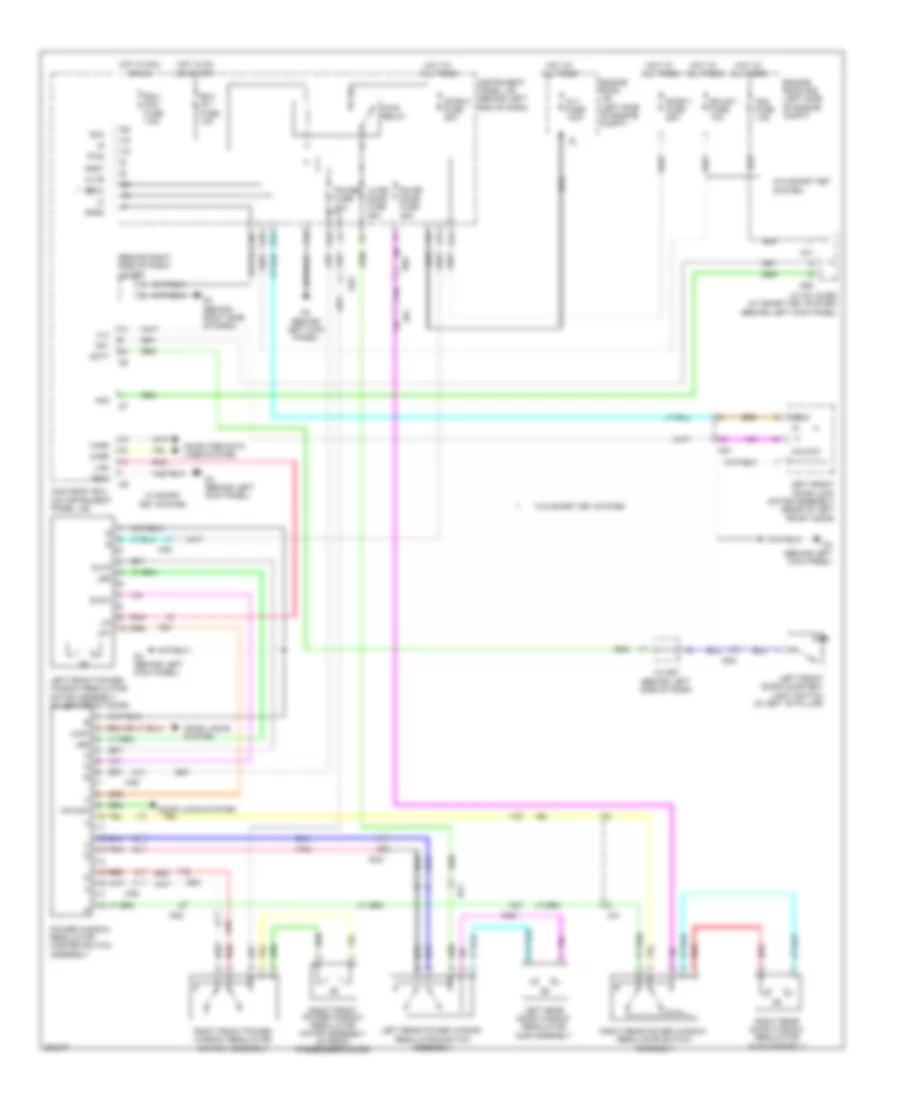

Электросхема стеклоподъемников, гибрид для Toyota Highlander Hybrid Limited 2012

Электросхема стеклоподъемников, гибрид для Toyota Highlander Hybrid Limited 2012 - Список элементов:

• Acc
• Ad10
• Altb
• Am1
• Am2
• Am2 fuse 7.5a
• Auto
• Cann
• Canp
• Computer data lines system
• D16
• D3 (right center of dash)
• D4 (left kick panel)
• Dcdc fuse 150a
• Dcty
• Dn2
• Do2
• Door 1 fuse 25a
• Door 2 fuse 25a
• Door locks system
• Dwn1
• Ecu ig 1 fuse 10a
• Ecu- acc fuse 7.5a
• Engine room j/b (left side of engine compt)
• Engine room r/b (left side of engine compt)
• F10
• Gd2
• Gnd 3
• Gnd1
• Gnd2
• Hd1
• Hd2
• Hot at all times
• Hot in acc or on
• Hot in on or start
• Instrument panel j/b (left side of dash)
• J/c d52 (right side of dash)
• J/c d57 (center of dash)
• Jn1
• K10
• K16
• Ko1
• L12
• Led
• Left front door courtesy light switch (left "b" pillar)
• Left front door lock motor (driver's door)
• Left front power window regulator motor assembly (driver's door)
• Left rear door window regulator sub assembly
• Left rear power window regulator switch assembly
• Lh rr door fuse 25a
• Lin
• Lin2
• Lock
• Main body ecu (left side of dash)
• Pnk
• Power fuse 30a
• Power window regulator master switch assembly
• Pwr relay
• Pws
• Red
• Rh rr door fuse 25a
• Right front power window regulator motor assembly (front passenger's door)
• Right front power window regulator switch assembly
• Right rear door window regulator sub assembly
• Right rear power window regulator switch assembly
• Ul3
• Un lock
• Unlock
• Up1
• W/ smart key system
