Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Toyota RAV4 2008

СИСТЕМА КРУИЗКОНТРОЛЯ

2.4L

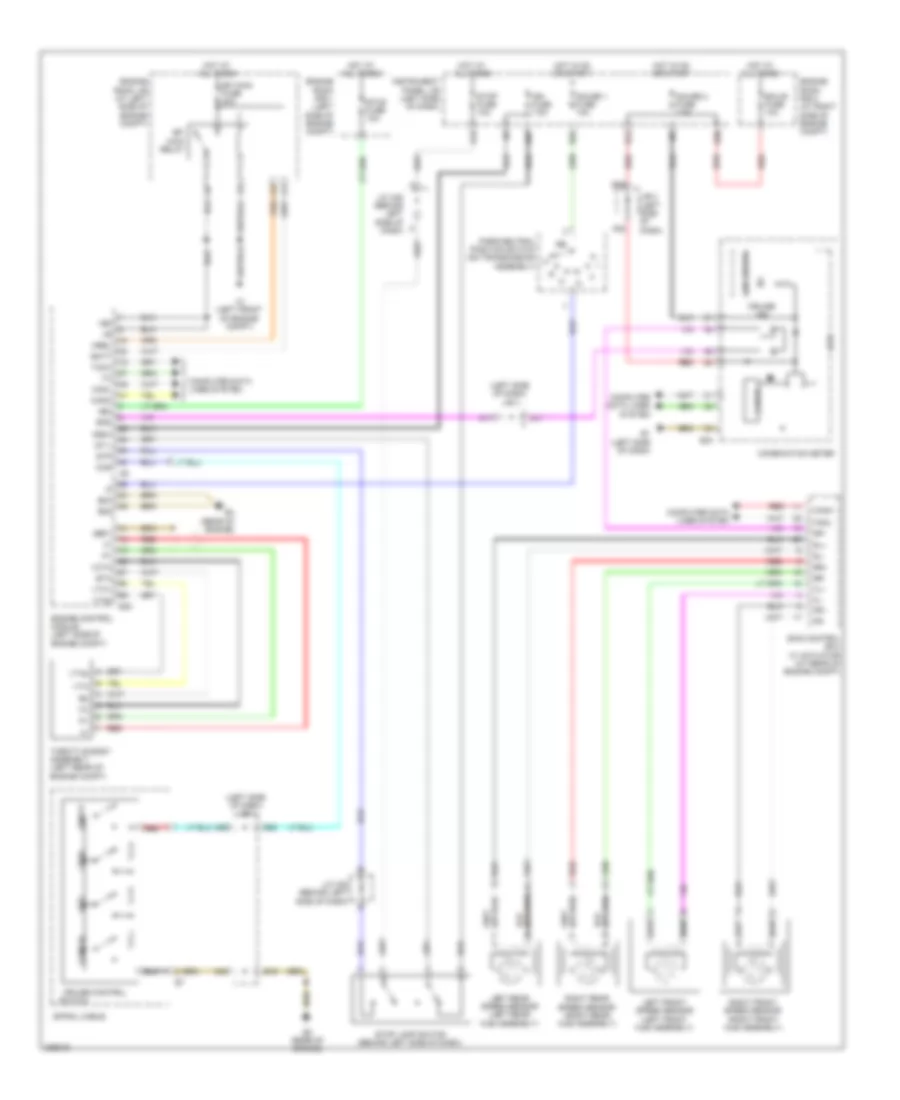

2.4L, Электросхема системы круизконтроля для Toyota RAV4 2008

2.4L, Электросхема системы круизконтроля для Toyota RAV4 2008 - Список элементов:

• (behind left side of dash) j/c a35
• (left side of dash) j/b 3
• +b2
• +bm
• +res
• -set
• A1 (left rear of engine compt)
• A17
• A22
• A54
• A56
• A77
• Accelerator position sensor
• Assembly)
• B1 (rear of engine)
• B18
• B20
• B27
• B29
• B30
• B46
• Batt
• Can h
• Can i/f
• Can l
• Cancel
• Canh
• Canl
• Ccs
• Combination meter
• Computer data lines system
• Cpu
• Cruise control switch
• Cruise ind
• E02
• E04
• E1 (left side of dash)
• E19
• Ecu-b fuse 10a
• Efi main fuse 20a
• Efi main relay
• Engine control module (left rear of engine compt)
• Engine room j/b (at left side of engine compt)
• Engine room r/b 1 (left side of engine compt)
• Engine room r/b 2 (at right side of engine compt)
• Epa
• Epa2
• Eta
• Etcs fuse 10a
• Fl+
• Fl-
• Fr+
• Fr-
• Gauge 1 fuse 10a
• Gauge 2 fuse 7.5a
• Ge01
• H12
• Hot at all times
• Hot in on or start
• I/f
• Ign fuse 7.5a
• Igsw
• Instrument panel j/b (left side of dash)
• J/b 3 (left side of dash)
• J/c a38 (behind left side of dash)
• Led driver
• Left front speed sensor (left front hub assembly)
• Left rear speed sensor (left rear hub assembly)
• Mrel
• On/off
• Park/neutral position switch (on transmission
• Red
• Right front speed sensor (right front hub assembly)
• Right rear speed sensor (right rear hub assembly)
• Rl+
• Rl-
• Rr+
• Rr-
• Skid control ecu w/ actuator (at rear of engine compt)
• Spd
• Spi
• Spiral cable
• St1-
• Stop fuse 10a
• Stop lamp switch (behind left side of dash)
• Stp
• System
• Tach
• Throttle body assembly (rear of engine)
• Transmissions
• Vcp2
• Vcpa
• Vcta
• Vpa
• Vpa2
• Vta
• Vta1
• Vta2

3.5L

3.5L, Электросхема системы круизконтроля для Toyota RAV4 2008

3.5L, Электросхема системы круизконтроля для Toyota RAV4 2008 - Список элементов:

• (left side of dash) j/b 3
• +b2
• +bm
• +res
• -set
• A1 (left front of engine compt)
• A17
• A22
• A54
• A77
• B18
• B20
• B27
• B29
• B3 (rear of engine)
• B30
• B4 (rear of engine)
• B46
• Batt
• Can i/f
• Cancel
• Canh
• Canl
• Ccs
• Combination meter
• Computer data lines system
• Cpu
• Cruise control
• Cruise ind
• E04
• E05
• E1 (left side of dash)
• E19
• Ecu-b fuse 10a
• Efi main fuse 20a
• Efi main relay
• Engine control module (left side of engine compt)
• Engine room j/b (at left side of engine compt)
• Engine room r/b 1 (left side of engine compt)
• Engine room r/b 2 (at right side of engine compt)
• Eta
• Etcs fuse 10a
• Fl+
• Fl-
• Fr+
• Fr-
• Gauge 1 fuse 10a
• Gauge 2 fuse 7.5a
• Ge01
• H12
• Hot at all times
• Hot in on or start
• I/f
• Ign fuse 7.5a
• Igsw
• Instrument panel j/b (left side of dash)
• J/b 3 (left side of dash)
• J/c a35 (behind left side of dash)
• J/c a38 (behind left side of dash)
• Led driver
• Left front speed sensor (left front hub assembly)
• Left rear speed sensor (left rear hub assembly)
• Mrel
• On/off
• Park/neutral position switch (on transmission assembly)
• Red
• Right front speed sensor (right front hub assembly)
• Right rear speed sensor (right rear hub assembly)
• Rl+
• Rl-
• Rr+
• Rr-
• Skid control ecu w/ actuator (at rear of engine compt)
• Spd
• Spi
• Spiral cable
• St1-
• Stop fuse 10a
• Stop lamp switch (behind left side of dash)
• Stp
• Switch
• Tach
• Throttle body assembly (left rear of engine compt)
• Vcta
• Vta
• Vta1
• Vta2
