Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Toyota Tercel 1995

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

1.5L

1.5L, Электросхема системы управления двигателя (1 из 3) для Toyota Tercel 1995

1.5L, Электросхема системы управления двигателя (1 из 3) для Toyota Tercel 1995 - Список элементов:

• #10
• #20
• (on top clutch pedal support)
• (on transmission)
• A/t
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• Ac1
• Acc
• Act
• Air conditioning system (a/c amplifier)
• B10
• B11
• B12
• B13
• B14
• B15
• B16
• B17
• B18
• B19
• B20
• B21
• B22
• B23
• B24
• B25
• B26
• Batt
• Clutch start switch
• Data link connector #1 (left rear corner of engine compartment)
• Driver side j/b (left kick panel)
• E01
• E03
• Egr
• Engine control module (behind right side of i/p)
• G100 (front of left fender)
• G121 (right side of surge tank)
• Gauge fuse 10a
• Gnd
• Hot at all times
• Hot in on or start
• Ht1
• Ht2
• Idl
• Ig-
• Igc1
• Igc2
• Igf
• Ign fuse 5a
• Igniter (left rear of engine compartment)
• Ignition coil no.1 (on top of engine)
• Ignition coil no.2 (on top of engine)
• Ignition switch
• Igt1
• Igt2
• Injector no.1
• Injector no.2
• Injector no.3
• Injector no.4
• J/c 1 (behind center of i/p)
• J/c 1 (behind right side of i/p)
• J/c 2 (behind center of i/p)
• Knk
• Lock
• M/t
• Ne-
• Nsw
• Odsw
• Odt
• Ox1
• Ox2
• P&n
• Park/ neutral position switch
• Pim
• Pnk
• Red
• Rsc
• Rso
• Sdl
• Spd
• Sta
• Start
• Starting/ charging system (starter circuit)
• Tach
• Te1
• Tha
• Thw
• Vcc
• Vta

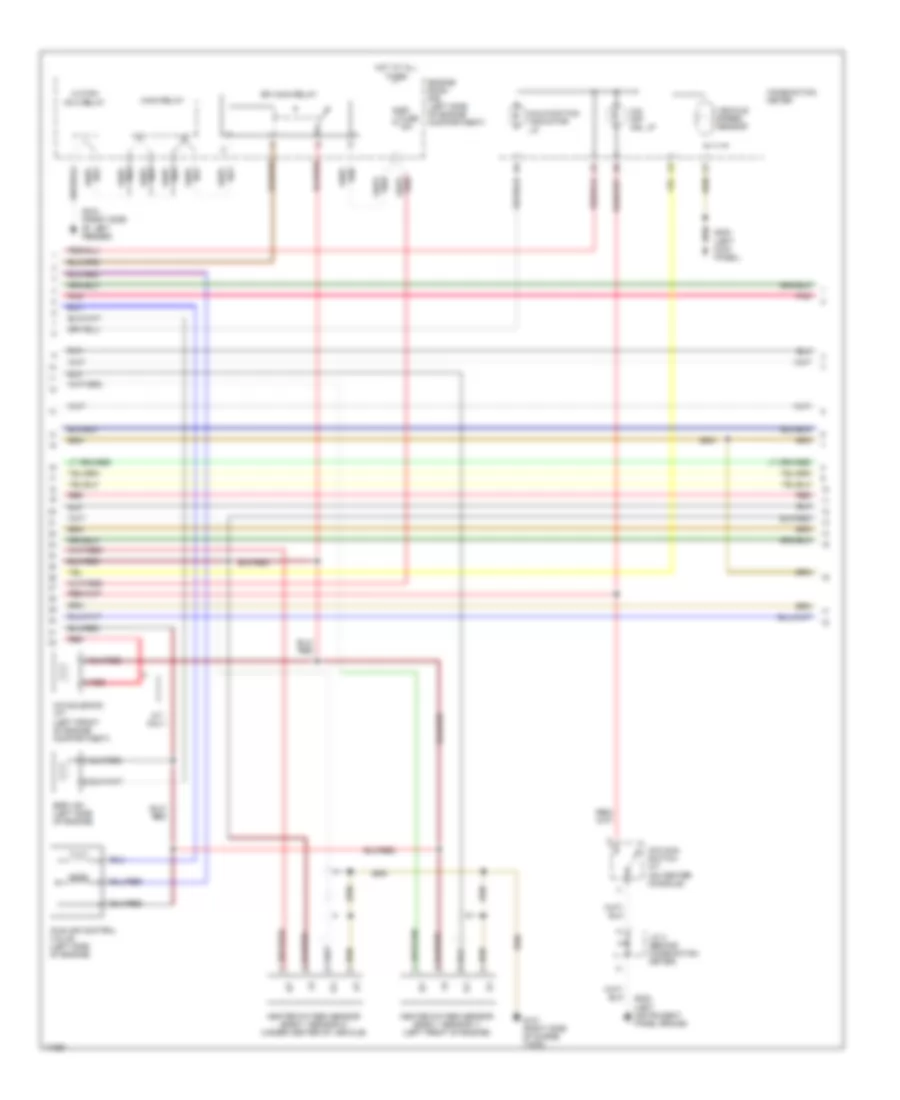

1.5L, Электросхема системы управления двигателя (2 из 3) для Toyota Tercel 1995

1.5L, Электросхема системы управления двигателя (2 из 3) для Toyota Tercel 1995 - Список элементов:

• (left front of engine compartment)
• (on center console)
• A.c fan no.2 relay
• A/t
• A/t only
• Combination meter
• Efi fuse 15a
• Efi main relay
• Egr vsv (left side of engine)
• Engine room r/b (left side of engine compartment)
• G100 (front side of left fender)
• G121 (right side of surge tank)
• G200 (left kick panel)
• G202 (left instrument panel brace)
• Heated oxygen sensor (bank 1 sensor 1) (left front of engine)
• Heated oxygen sensor (bank 1 sensor 2) (under center of vehicle)
• Hot at all times
• Idle air control valve (left side of engine)
• J/c 3 (behind combination meter)
• Main relay
• Malfunction indicator lp.
• O/d main switch a/t
• O/d off ind. lp
• O/d solenoid
• Pnk
• Red
• Vehicle speed sensor

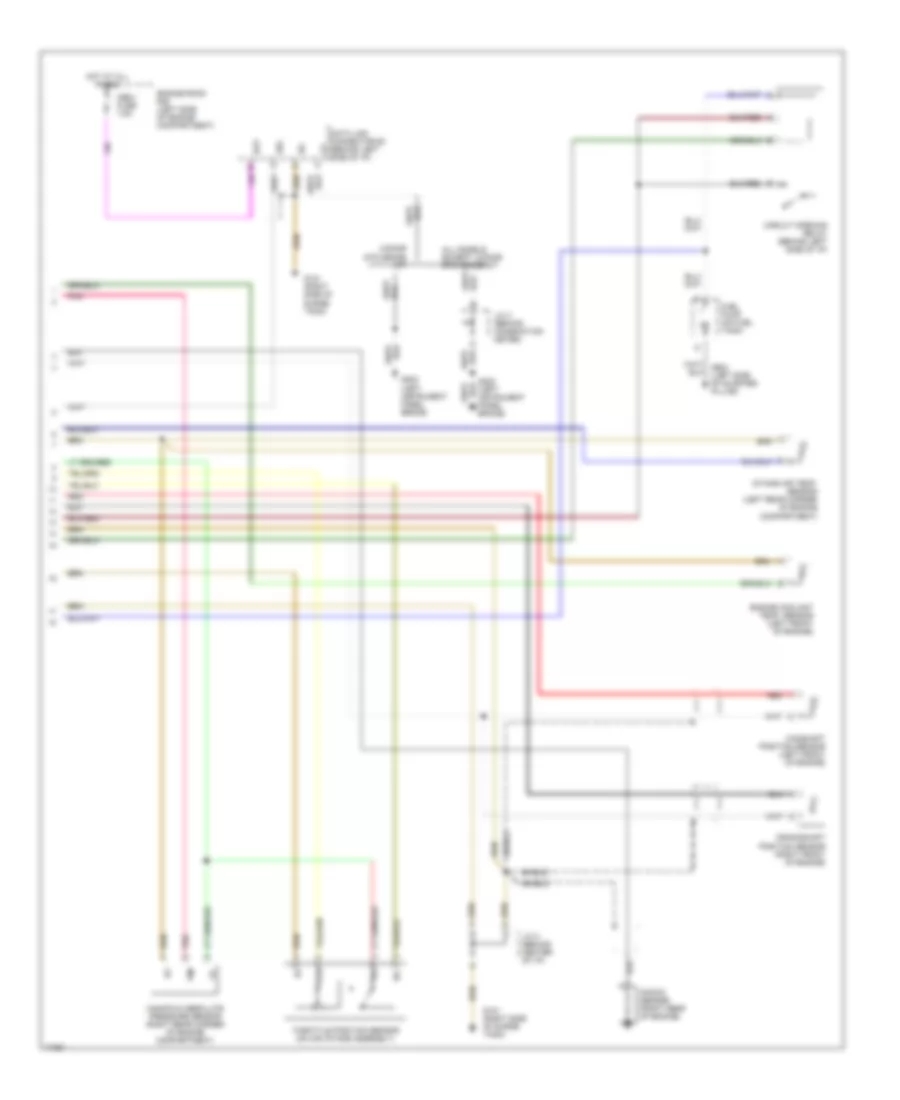

1.5L, Электросхема системы управления двигателя (3 из 3) для Toyota Tercel 1995

1.5L, Электросхема системы управления двигателя (3 из 3) для Toyota Tercel 1995 - Список элементов:

• 2-door std grade m/t
• All models except, 2-door std grade m/t
• Bat
• Camshaft position sensor (left front of engine)
• Circuit opening relay (behind left side of i/p)
• Crankshaft position sensor (right front of engine)
• Data link connector #3 (behind left side of i/p)
• Engine coolant temp. sensor (left front of engine)
• Engine room r/b (left side of engine compartment)
• Fuel pump (on fuel tank)
• G121 (right side of surge tank)
• G202 (left instrument panel brace)
• G904 (left side of quarter pillar)
• Hot at all times
• Idl
• Intake air temp. sensor (left rear corner of engine compartment)
• J/c 2 (behind center of i/p)
• J/c 3 (behind combination meter)
• Knock sensor (right rear of engine)
• Manifold absolute pressure sensor (right rear corner of engine compartment)
• Obd-i fuse 7.5a
• Pim
• Pnk
• Red
• Sdl
• Shield
• Throttle position sensor (on air intake assembly)
• Vta
