Электросхемы СИСТЕМЫ ПАМЯТИ Toyota Land Cruiser 2009

СИСТЕМЫ ПАМЯТИ

Электросхем памяти регулировки зеркал заднего вида для Toyota Land Cruiser 2009

Электросхем памяти регулировки зеркал заднего вида для Toyota Land Cruiser 2009 - Список элементов:

• (behind left kick panel) i2
• Acc
• Acc fuse 7.5a
• Altb
• Am1
• Am2
• Am2 fuse 5a
• B20
• Batb
• Cann
• Canp
• Computer data lines system
• D54
• D62
• Defogger system
• Door 1 fuse 25a
• Door 2 fuse 25a
• E1 (left side of dash)
• E2 (center of dash)
• Ecu
• Ecu-ig2 fuse 10a
• Engine room r/b
• Gnd
• Gnd2
• Gnd3
• Heater mirror
• Hot at all times
• Hot in acc or on
• Hot in on or acc
• Hot in on or start
• Hslr
• Hsrr
• I17
• I18
• I2 (behind left kick panel)
• Interior lights system
• J/c e59
• J/c e60
• J/c e61
• J/c e62
• J/c e67
• Le1
• Left cowl side j/b
• Left outer rear
• Left seat memory switch
• Lvc
• M+l
• M+r
• Main body
• Mhl
• Mhr
• Mir fuse 15a
• Mirb
• Mire
• Mirror heater
• Mirrors system
• Mirs
• Mry
• Msw
• Mswe
• Mvl
• Mvr
• Outer mirror control ecu assembly
• Outer mirror switch assembly
• Re1
• Red
• Ret
• Right outer rear view mirror assembly
• Rvc
• Set
• View mirror assembly
• Vr1
• Vsr
• Vssr

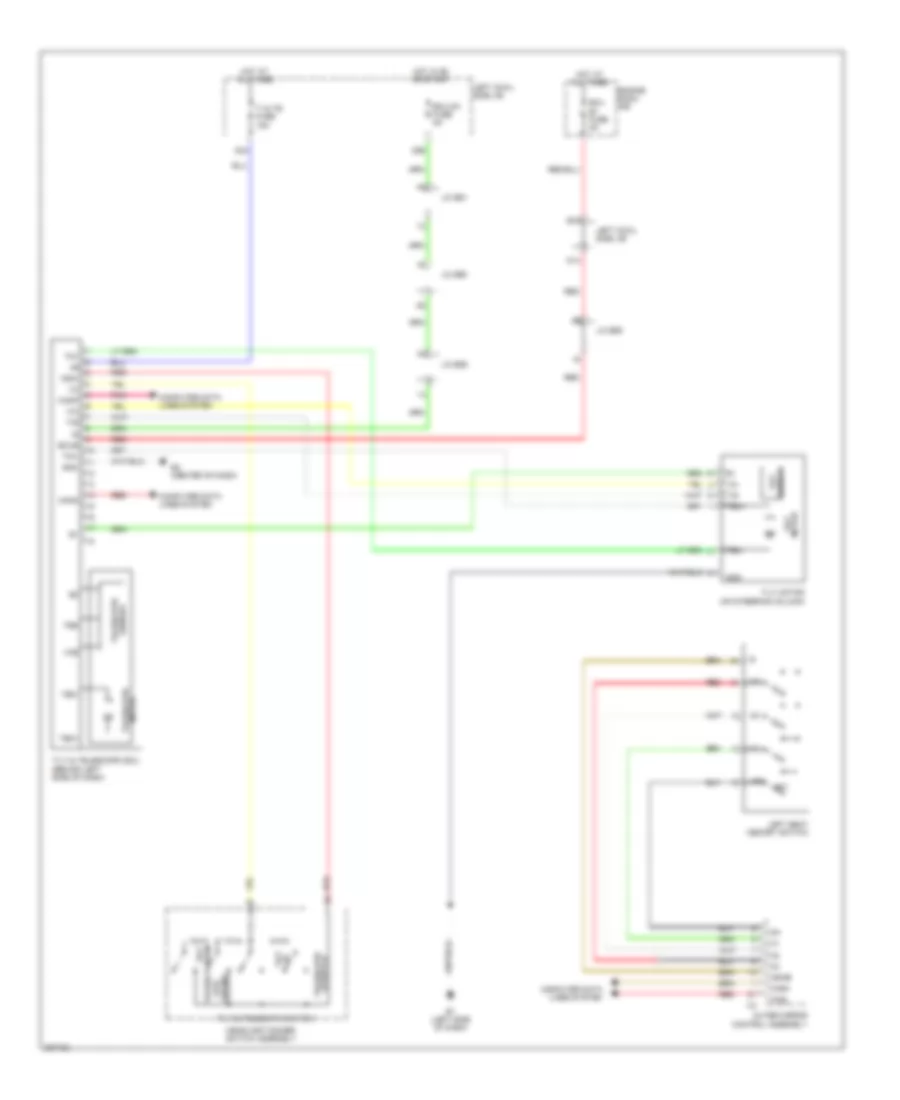

Электросхема памяти Power Tilt & Power Telescopic для Toyota Land Cruiser 2009

Электросхема памяти Power Tilt & Power Telescopic для Toyota Land Cruiser 2009 - Список элементов:

• B13
• Canh
• Canl
• Cann
• Canp
• Computer data lines system
• D14
• D34
• D56
• E1 (left side of dash)
• E2 (center of dash)
• Ecu b1 fuse 5a
• Ecu-ig1 fuse 5a
• Ecub
• Engine room r/b
• Gnd
• Headlight dimmer switch assembly
• Hot at all times
• Hot in on or start
• I18
• J/c e59
• J/c e60
• J/c e61
• Left cowl side j/b
• Left seat memory switch
• Mry
• Msw
• Mswe
• Outer mirror control assembly
• Pnk
• Red
• Sensor telescopic
• Sensor tilt
• Set
• Shrink opic telesc-
• Stretch telescopic
• Telescopic motor
• Tem+
• Tem-
• Tes
• Ti & te fuse 15a
• Tilt & telescopic ecu (behind left side of dash)
• Tilt & telesopic switch
• Tilt down
• Tilt motor
• Tilt motor (on steering column)
• Tilt up
• Tim+
• Tim-
• Tis
• Vce
• Vci

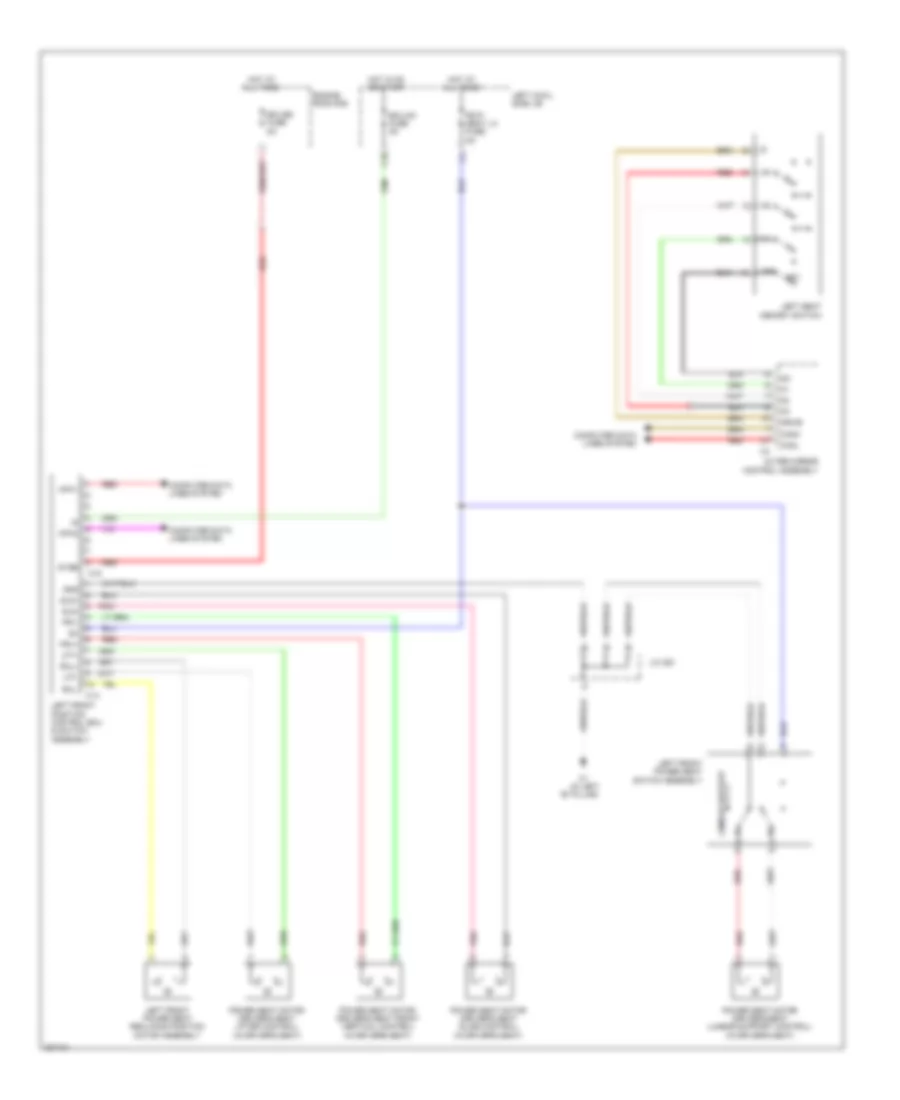

Электросхема памяти сидений для Toyota Land Cruiser 2009

Электросхема памяти сидений для Toyota Land Cruiser 2009 - Список элементов:

• "b" pillar)
• (in left
• C10
• C14
• C15
• Canh
• Canl
• Computer data lines system
• Ecu-b2 fuse 5a
• Ecu-ig1 fuse 5a
• Engine room r/b
• Fe p/ seat lh fuse 5a
• Frv+
• Frv-
• Gnd
• Hot at all times
• Hot in on or start
• I18
• J/c c23
• Left cowl side j/b
• Left front position control ecu & switch assembly
• Left front power seat reclining position motor assembly
• Left front power seat switch assembly
• Left seat memory switch
• Lft+
• Lft-
• Lumbar support
• Mpx1
• Mpx2
• Mry
• Mswe
• Outer mirror control assembly
• Pnk
• Power seat motor (driver's seat front vertical control) (in driver's seat)
• Power seat motor (driver's seat lifter control) (in driver's seat)
• Power seat motor (driver's seat lumbar support control) (in driver's seat)
• Power seat motor (driver's seat slide control) (in driver's seat)
• Rcl+
• Rcl-
• Red
• Set
• Sld+
• Sld-
• Sysb
