Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Audi 200 Quattro 1990 Электросхема звукового сигнал Гудка для Audi 200 Quattro 1990 - Список элементов: 11 1995 vftc c E87h Fuse 25a Fuse/ relay panel G100 (left side of engine compt) G71 Horn Horn button Horn relay Hot at all times Hot in run
Магнитола Мультимедия Электросхема магнитолы, кроме Универсала С CD-плеер для Audi 200 Quattro 1990 Электросхема магнитолы, кроме Универсала С CD-плеер для Audi 200 Quattro 1990 - Список элементов: 27 (not used) Antenna diversity switch (except models with rear mast antenna) Anti-theft system Cd changer controller Cd changer unit Cd remote control Cruise control system F30al Front antenna lead Fuse 15a Fuse 1a Fuse 3a Fuse/ relay panel G206 (center of dash) Hot at all times Instrument cluster system Interior lights system Left front speaker Left rear speaker Nca Radio Rear antenna lead Red Right front speaker Right rear speaker Speaker relay Warning system (auto check system) Электросхема магнитолы, кроме Универсала для Audi 200 Quattro 1990 Электросхема магнитолы, кроме Универсала для Audi 200 Quattro 1990 - Список элементов: 37 (not used) 10f 31l 31r 58d Anti-theft system Clock Cruise control unit (behind right side of dash) Data Defogger system Differential lock control unit Differential lock indicator Enable F30al Front window antenna amplifier Fuse 15a Fuse/ relay panel (left side of engine compt) G202 (behind left side of dash) Headphone unit High frequency left rear speaker High frequency right rear speaker Hot at all times Instrument cluster system (speedometer) Interior lights system Left front speaker Left rear low frequency speaker unit Low frequency right rear speaker Nca Nf(+) Nf(-) Radio Rear window antenna amplifier Red Right front speaker Right rear low frequency speaker unit Seat belt warning relay Warning system (auto check control unit, instrument cluster) Электросхема магнитолы, Универсал для Audi 200 Quattro 1990 Электросхема магнитолы, Универсал для Audi 200 Quattro 1990 - Список элементов: 31 (not used) 10f 1995 vftc c 58d Antenna amplifier Clock Cruise control unit (behind right side of dash) Data Differential lock control unit Enable F30al Fuse 15a Fuse/ relay panel (left side of engine compt) G202 (behind left side of dash) Hot at all times Instrument cluster system (speedometer) Interior lights system Left front speaker Left rear high tone speaker Left rear low frequency speaker unit Left rear low tone speaker Nca Nf(+) Nf(-) Radio Red Right front speaker Right rear high tone speaker Right rear low tone speaker Seat belt warning relay Warning system (auto check control unit, instrument cluster)
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Audi 200 Quattro 1990 Электросхема подогрева стекол и зеркал для Audi 200 Quattro 1990 - Список элементов: 18 1995 vftc c 75h Fuse 30a Fuse/ relay panel G202 (behind left side of dash) Heat element Hot in run Instrument cluster Interior lights system J75ah Left mirror Nca Rear antenna amplifier Rear window defogger heater Rear window defogger switch Right mirror W/ rear antenna amplifier W/o rear antenna amplifier
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Audi 200 Quattro 1990 Электросхема привода зеркал для Audi 200 Quattro 1990 - Список элементов: 14 1995 vftc c Defogger system Driver's mirror Fuse 5a Fuse/ relay panel (left side of engine compt) G202 (behind left side of dash) Hot in run or start In/out control Mirror heat element Passenger's mirror Power mirror switch Red Select control Up/down control
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Audi 200 Quattro 1990 Электросхема стеклоподъемников для Audi 200 Quattro 1990 - Список элементов: 30 Auxiliary relay panel (under dash, to left of steering column) C 1995 vftc Driver's left rear window switch Driver's right front window switch Driver's right rear window switch F30al Fuse 15a Fuse/ relay panel (left side of engine compartment) G202 (behind left dash) G31 Hot at all times Hot in run Left front door contact switch Left front window motor Left front window switch Left rear door window switch Left rear window motor Load reduction relay M75s Power window/ sunroof control unit Rear cigar lighter Right front door contact switch Right front door window switch Right front window motor Right rear door window switch Right rear window motor Seat belt warning relay Sunroof switch Window circuit breaker Window lockout switch
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Audi 200 Quattro 1990 Электросхема системы охлаждения для Audi 200 Quattro 1990 - Список элементов: 39 (not used) 1995 vftc c 87a 87k A/c refrigeration high pressure switch A30k A85k A86k Air conditioning system Control pressure regulator Cooling fan D75a D85l E87l Engine controls system Fuel pump Fuse 15a Fuse 25a Fuse/ relay panel (left side of engine compt) G100 (left engine compartment) G31 G901 (on right "a" pillar, lower part) Hot at all times Hot in run Injector cooling fan Injector cooling fan relay Injector cooling fan thermo- switch L30 M30ac Radiator Radiator cooling fan after run relay (behind left kick panel) Radiator cooling fan relay first stage Radiator cooling fan relay second stage Radiator cooling fan relay third stage Radiator cooling fan resistors Radiator cooling fan thermo-switches Red Turbo coolant pump Turbo coolant pump thermo- switch
СИСТЕМЫ ПАМЯТИ Электросхема системы памяти для Audi 200 Quattro 1990 Электросхема системы памяти для Audi 200 Quattro 1990 - Список элементов: 23 87a Back rest Circuit breaker 20a Driver seat adjustment switches Driver seat backrest adjust motor Driver seat backrest adjust switch Driver seat fore/ aft adjust motor Driver seat front height adjust motor Driver seat rear height adjust motor Fore/ aft height Front height Fuse 30a Fuse 5a Fuse/ relay panel (left side of dash) G202 (behind left side of dash) Hot at all times Hot in on or start Memory control indicator light Memory program switch Memory seat control module Rear height Red Warning systems
СИСТЕМЫ СИДЕНИЙ Электросхема подогрева сидений для Audi 200 Quattro 1990 Электросхема подогрева сидений для Audi 200 Quattro 1990 - Список элементов: 28 30as 58b Driver back rest element Driver heated seat relay (auxiliary relay panel, left side of dash) Driver heated seat switch Driver seat element Driver seat temper- ature sensor Fuse 30a Fuse/ relay panel (left side of dash) G202 (behind left dash) G31 Hot at all times Hot in run Left rear back rest element Left rear heated seat switch Left rear seat element Load reduction relay M75s Nca Passenger back rest element Passenger heated seat relay (auxiliary relay panel, left side of dash) Passenger heated seat switch Passenger seat heat element Passenger seat temper- ature sensor Right rear back rest element Right rear heated seat switch Right rear seat element Solid state Электросхема привода пассажирского сиденья для Audi 200 Quattro 1990 Электросхема привода пассажирского сиденья для Audi 200 Quattro 1990 - Список элементов: 17 Back rest Fore/ aft Front height Fuse 30a Fuse/ relay panel (left side of dash) G202 (behind left side of dash) Hot at all times L30 Passenger fore/aft adjust switch Passenger seat backrest adjust motor Passenger seat backrest adjustment Passenger seat fore/aft adjust motor Passenger seat front height adjust motor Passenger seat rear height adjust motor Rear height Red Switch
Стартер Генератор Электросхема Генератора для Audi 200 Quattro 1990 Электросхема Генератора для Audi 200 Quattro 1990 - Список элементов: 14 Air conditioning, antilock brakes systems Alternator Alternator warning indicator Battery Brake fluid level & park brake warning ind Fuse 5a Fuse/ relay panel (left side of engine compt) G111 (near battery) Hot in on or start Instrument cluster Nca Starter T26/5 T26a/11 Электросхема стартера для Audi 200 Quattro 1990 Электросхема стартера для Audi 200 Quattro 1990 - Список элементов: 27 12/1 15a 3/1 8/50a 9/50 Acc Anti-theft alarm control unit Automatic transmission relay (a/t) Battery Charging system E50a F50z Fuse/ relay panel (left side of engine compt) G111 (near battery) G201 (behind left dash) H50w Hot at all times Ignition switch Manual transmission jumper (m/t) Nca Neutral safety switch (a/t) (on gearshift selector bracket) Off Positive battery jump start post Red Shift interlock system Start Starter

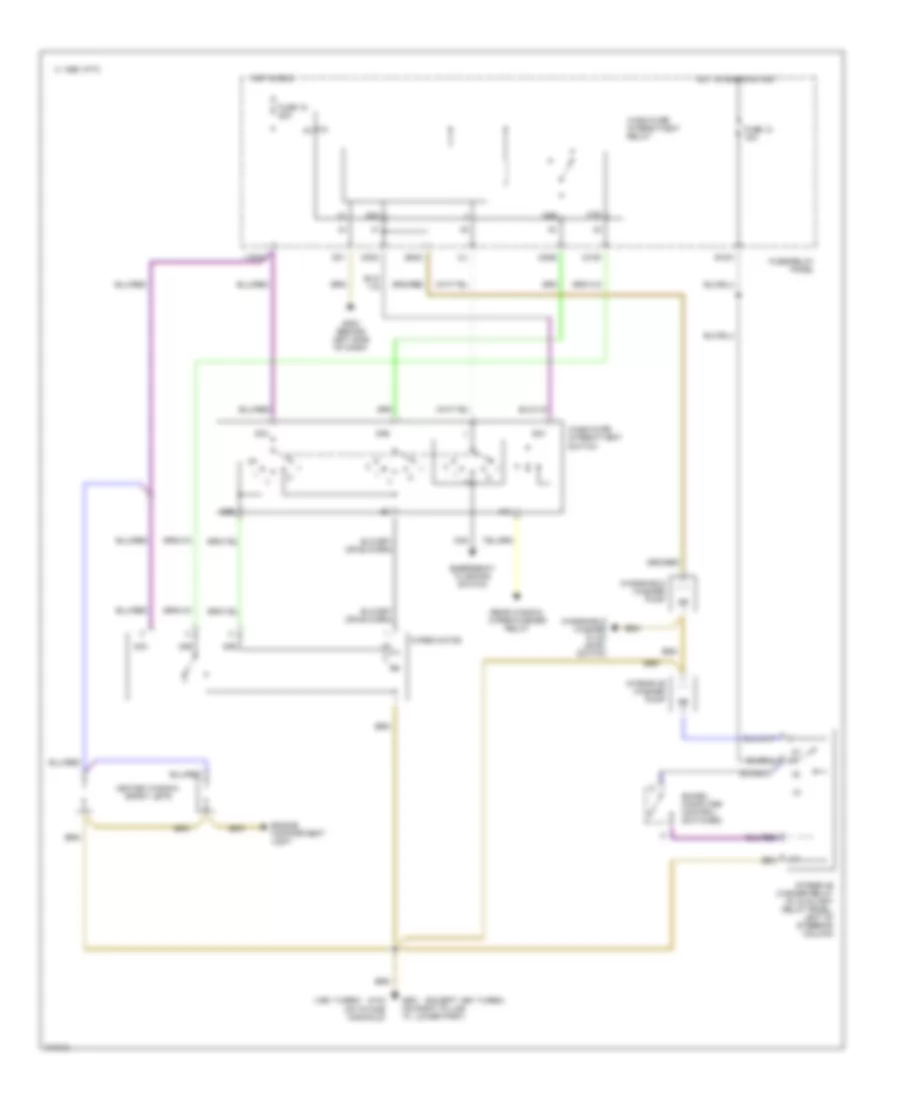

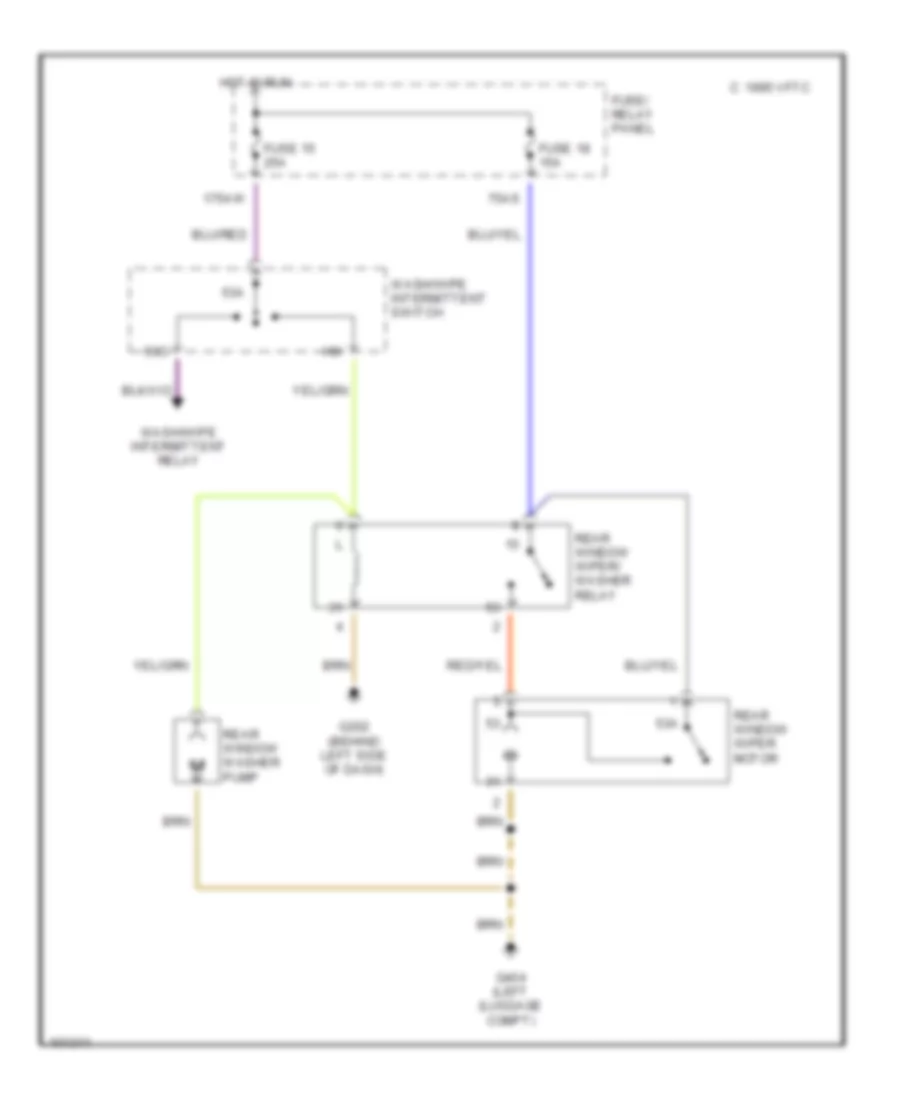

Стеклоочистители и Стеклоомыватели Дворники Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Audi 200 Quattro 1990 Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Audi 200 Quattro 1990 - Список элементов: 36 (1991 turbo) (except 1991 turbo) 175aw 1995 vftc c 31b 53a 53b 53c 53e B15a B53c Board computer control switches C31b C53c C53e Emergency flashing switch Engine compartment light Fuse 12 15a Fuse 15 25a Fuse/relay panel G133 (on intake manifold) G202 (behind left side of dash) G31 G901 (on right pillar "a", lower part) Heated window spray jets Hot in run Hot in run or start Intensive washer pump Intensive washer relay (in auxiliary relay panel, left of steering column) Nca Rear window wiper/washer relay Wash/wipe intermittent relay Wash/wipe intermittent switch Windshield washer fluid level switch Windshield washer pump Wiper motor Электросхема заднего стеклоочистителя дворника и омывателя для Audi 200 Quattro 1990 Электросхема заднего стеклоочистителя дворника и омывателя для Audi 200 Quattro 1990 - Список элементов: 16 175aw 1995 vftc c 53a 53c 75as Fuse 15 25a Fuse 18 15a Fuse/ relay panel G202 (behind left side of dash) G404 (left (luggage compt) Hot in run Rear window washer pump Rear window wiper motor Rear window wiper/ washer relay Wash/wipe intermittent relay Wash/wipe intermittent switch
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Audi 200 Quattro 1990 Электросхема центрального замка для Audi 200 Quattro 1990 - Список элементов: 24 1995 vftc c 86s Central lock system motor Fuse 10a Fuse/relay panel G202 (left side of dash) Hot at all times Ignition/ start switch Interior light delay control unit Left central lock system switch Left door lock cylinder heating element Left door lock heater control unit Left outside door handle switch M30az Nca Off Red Right central lock system switch Right door lock cylinder heating element Right door lock heater control unit Right outside door handle switch Seat belt warning control unit Start Trunk lid switch
