Все схемы для электропроводки Ford Ranger 2005

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

Электросхема Полного привода 4WD для Ford Ranger 2005

Электросхема Полного привода 4WD для Ford Ranger 2005 - Список элементов:

82

(at left front of vehicle floor) g205
(in dash to headlight junction harness, near breakout for g102)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module) g106 (at top rear of engine compt)
(in main harness, near breakout for smart junction box) s236
(in main harness, near breakout for instrument cluster) s213
(in main harness, near breakout for power point)
(in main harness, near breakout for steering column air bag sliding contact)
(left side of transmission) digital transmission range (dtr) sensor
2.3l
4wd hi
4wd hi ind
4wd lo
4wd lo ind
4wd switch
A/t
Battery junction box (bjb) (at left rear side of engine compt)
Bpp switch
Brake pedal position switch (behind left side of dash, on brake pedal support)
C220a
C2280a
C2280b
C2280c
C281a
C281b
Clutch pedal position switch (behind left side of dash, top of brake pedal support)
Computer data lines system
Cruise control system
Data link connector (dlc) (at bottom of steering column)
Except 2.3l
Four-wheel drive control module (behind left center of dash)
Four-wheel drive switch
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 5a
G204 (under front of center console)
G205 (at left front of vehicle floor)
Gearmotor encoder assembly (on transfer case)
Ground
Head
Hot at all times
Hot in run
Hot in run or start
Hot in start
Ign (run)
Ign (st/run)
Illum
Instrument cluster
Instrument cluster system
Interior lights system
Interior lights system (dimmer)
Iso bus
M/t
Main light switch
Micro- processor
Motor 1
Motor 2
Motor 3
Motor 4
Motor 5
Neutral sens
Off
Park
Pnk
Powertrain control module (pcm) (right rear of engine compt, through firewall)
S116
S145
S200 (in main harness, near breakout for center of dash)
S203
S208 (in main harness, near breakout for audio unit)
S209
S216
S223 (in main harness, near breakout for left side of dash)
S227
S258 (in main harness, near breakout for smart junction box)
Sig return
Smart junction box (sjb) (behind right side of dash)
Starter relay
Tan/ red
Tan/red
Transfer case
Vss input

2.3L

2.3L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005

2.3L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005 - Список элементов:

92

(dlc) (at bottom of steering column)
(in dash to headlight junction harness, at breakout to battery junction box)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for fuel injector 4)
(in engine control sensor & fuel charge harness, near breakout for transmission)
(in engine control sensor & fuel charge harness, near breakout to swirl control solenoid valve)
5r44e transmission control solenoids (at left side of transmission)
Anti-lock brakes system
Battery junction box (bjb) (at left rear side of engine compt)
Bpp
Brake pedal position switch (behind left side of dash, on brake pedal support)
C220a
C220b
C2280a
C2280b
C2280c
Check engine ind
Cht
Data link connector
Dlc
Dlc (+)
Dlc (-)
Electronic pressure control (epc) solenoid
Engine controls system
Epc
Exterior lights system
Fuse 10a
Fuse 15a
Fuse 30a
Fuse 5a
G104 (at left front of engine compt)
G205 (at left front of vehicle floor)
Ground
Harness, near breakout for smart junction box) nca
Head
Hot at all times
Hot in run
Hot in run or start
Hot in start or run
Instrument cluster
Interior lights system
Intermediate shaft speed (iss) sensor (on left side of transmission)
Iss
Junction box)
Junction harness, near breakout to abs control module)
Main light switch
Micro-
Mil
Nca
O/d off ind
Off
Oss
Output shaft speed (oss) sensor (on left rear of transmission)
Park
Pcm power diode
Power
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Prndl
Processor
Ptc 1a
Red
S107
S113
S143
S148
S149
S150
S153
S154
S236 (in main harness, near breakout for smart junction box)
Shift solenoids
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Ss a
Ss b
Ss c
Ss d
Tcc
Tcil
Tcs
Tft
Torque converter clutch (tcc) solenoid
Tr1
Tr2
Tr3a
Tr4
Transmission control switch (tcs) (on steering column)
Transmission fluid temperature (tft) sensor
Tss
Turbine shaft speed (tss) sensor
Vbatt
Vref

2.3L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005

2.3L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005 - Список элементов:

15

(in dash to headlight junction harness, near breakout for g102) s118
(in engine control sensor & fuel charge harness, near breakout for idle air valve)
(in engine control sensor & fuel charge harness, near breakout for swirl control monitor)
(left side of transmission) digital transmission range (dtr) sensor
Battery junction box (bjb) (left rear side of engine compt)
Cylinder head temperature (cht) sensor (on right side of cylinder head)
Engine controls system
G104 (at left front of engine compt)
Pcm power relay
R p
Red
S137
S151
S152 (in engine control sensor & fuel charge harness, near breakout for transmission)
Throttle position (tp) sensor (top right side of engine, on throttle body)

3.0L

3.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005

3.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005 - Список элементов:

92

(dlc) (bottom of steering column)
(in dash to headlight junction harness, at breakout to battery junction box)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for heated oxygen sensor 21)
(in engine control sensor & fuel charge harness, near breakout for transmission)
(in engine control sensor & fuel charge harness, near breakout to fuel injector 3)
(main harness, near breakout for smart junction box)
5r44e transmission control solenoids (at left side of transmission)
Anti-lock brakes system
Battery junction box (bjb) (at left rear side of engine compt)
Bpp
Brake pedal position switch (behind left side of dash, on brake pedal support)
C220a
C220b
C2280a
C2280b
C2280c
Check engine ind
Data link connector
Dlc
Dlc (+)
Dlc (-)
Ect
Electronic pressure control (epc) solenoid
Engine controls system
Epc
Exterior lights system
Fuse 10a
Fuse 15a
Fuse 30a
Fuse 5a
G104 (at left front of engine compt)
G205 (at left front of vehicle floor)
Ground
Head
Hot at all times
Hot in run
Hot in run or start
Hot in start or run
Instrument cluster
Interior lights system
Intermediate shaft speed (iss) sensor (on left side of transmission)
Iss
Junction box)
Junction harness, near breakout to abs control module)
Main light switch
Micro-
Mil
Nca
O/d off ind
Off
Oss
Output shaft speed (oss) sensor (on left rear of transmission)
Park
Pcm power diode
Power
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Prndl
Processor
Ptc 1a
Red
S100
S104
S106
S107
S113
S129 (in engine control sensor & fuel charge harness, at breakout for powertrain control module)
S143
S236
S237 (in main harness, near breakout for smart junction box)
Shift solenoids
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Ss a
Ss b
Ss c
Ss d
Tcc
Tcil
Tcs
Tft
Torque converter clutch (tcc) solenoid
Tr1
Tr2
Tr3a
Tr4
Transmission control switch (tcs) (on steering column)
Transmission fluid temperature (tft) sensor
Tss
Turbine shaft speed (tss) sensor
Vbatt
Vref

3.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005

3.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005 - Список элементов:

14

(in dash to headlight junction harness, near breakout for g102) s118
(in engine control sensor & fuel charge harness, near breakout for fuel injector 5)
(in engine control sensor & fuel charge harness, near breakout for fuel injector 6)
(left side of transmission) digital transmission range (dtr) sensor
Battery junction box (bjb) (at left rear side of engine compt)
Engine controls system
Engine coolant temperature (ect) sensor (on top front of engine)
G104 (at left front of engine compt)
Pcm power relay
R p
Red
S137
S139
Throttle position (tp) sensor (top left front of engine, on throttle body)

4.0L

4.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005

4.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2005 - Список элементов:

92

(dlc) (at bottom of steering column)
(in dash to headlight junction harness, at breakout to battery junction box)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for ignition coil)
(in engine control sensor & fuel charge harness, near breakout for transmission)
(in engine control sensor & fuel charge harness, near breakout to heated oxygen sensor 11)
(in engine control sensor & fuel charge harness, near breakout to heated oxygen sensor 12)
5r55e transmission control solenoids (at left side of transmission)
Anti-lock brakes system
Battery junction box (bjb) (at left rear side of engine compt)
Bpp
Brake pedal position switch (behind left side of dash, on brake pedal support)
C220a
C220b
C2280a
C2280b
C2280c
Check engine ind
Data link connector
Dlc
Dlc (+)
Dlc (-)
Ect
Electronic pressure control (epc) solenoid
Engine controls system
Epc
Exterior lights system
Fuse 10a
Fuse 15a
Fuse 30a
Fuse 5a
G104 (at left front of engine compt)
G205 (at left front of vehicle floor)
Ground
Harness, near breakout for smart junction box) nca
Head
Hot at all times
Hot in run
Hot in run or start
Hot in start or run
Instrument cluster
Interior lights system
Intermediate shaft speed (iss) sensor (on left rear of transmission)
Iss
Junction box)
Junction harness, near breakout to abs control module)
Main light switch
Micro-
Mil
Nca
O/d off ind
Off
Oss
Output shaft speed (oss) sensor (on left rear of transmission)
Park
Pcm power diode
Power
Powertrain control module (pcm) (right rear of engine compart through firewall)
Prndl
Processor
Ptc 1a
Red
S104
S107 (in engine control sensor & fuel charge harness, at breakout for powertrain control module)
S113
S129
S140
S141
S143
S144
Shift solenoids
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Ss a
Ss b
Ss c
Ss d
Tcc
Tcil
Tcs
Tft
Torque converter clutch (tcc) solenoid
Tr1
Tr2
Tr3a
Tr4
Transmission control switch (tcs) (on steering column)
Transmission fluid temperature (tft) sensor
Tss
Turbine shaft speed (tss) sensor
Vbatt
Vref

4.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005

4.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2005 - Список элементов:

15

(in dash to headlight junction harness, near breakout for g102) s118
(in engine control sensor & fuel charge harness, near breakout for engine coolant temperature sender) s133
(in engine control sensor & fuel charge harness, near breakout for fuel injector 4)
(in engine control sensor & fuel charge harness, near breakout for transmission)
(left side of transmission) digital transmission range (dtr) sensor
Battery junction box (bjb) (left rear side of engine compt)
Engine controls system
Engine coolant temperature (ect) sensor (on top right front of engine)
G104 (at left front of engine compt)
Pcm power relay
R p
Red
S135
S137
Throttle position (tp) sensor (top front of engine, on throttle body)

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

Электросхема блока предохранителей и реле (1 из 2) для Ford Ranger 2005

Электросхема блока предохранителей и реле (1 из 2) для Ford Ranger 2005 - Список элементов:

78

(at left rear side of engine compartment) battery junction box (bjb)
(behind right side of dash) smart junction box (sjb)
(in dash to headlight junction harness, near breakout for p93) s127
(in radio speaker jumper harness, at breakout for c314) s301
(not used)
A/c clutch relay
Abs control module
Acc
Accessory relay
Audio unit
Battery
Battery junction box (bjb) (at left rear side of engine compartment)
Battery junction box (bjb) (at left rear side of engine compt)
Blower motor relay
C102a
C197a
C220b
C2280a
C2280b
C2280c
C281a
C281b
C290a
C3154a
Door lock/ unlock relay
Driver door unlock relay
Drl driver
Engine cooling fan relay
Exterior rear view mirror switch
Fog lamp relay
Four- wheel drive control module
Four-wheel drive control module
Fuel pump relay
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 20a (2.3l)
Fuse 30a
Fuse 40a
Fuse 50a
Fuse 5a
G205 (at left front of vehicle floor)
Generator
Ignition switch
Instrument cluster
Lock
Low current board
Main light switch
Multi-function switch
Off
Park lamp relay
Passenger air bag deactivation (pad) switch
Pcm power relay
Power point
Powertrain control module (pcm)
Radio amplifier (tremor)
Red
Restraints control module
Run
S130 (in battery cable assembly, at breakout for fusible link a)
S131 (in battery cable assembly, at breakout for fusible link b)
S201 (in main harness, near breakout for center of dash)
S203
S223 (in main harness, near breakout for left side of dash)
S228 (in main harness, near breakout for ignition switch)
Smart junction box (sjb) (behind right side of dash)
Start
Starter motor
Starter relay
To fuse 17 (diagram 2 of 2)
To fuse 22 (diagram 2 of 2)
To fuse 27 (diagram 2 of 2)
To fuse 33 (diagram 2 of 2)
To ptc circuit breaker (diagram 2 of 2)
Windshield washer relay
Windshield wiper motor
Wiper high/low relay
Wiper run/park relay

Электросхема блока предохранителей и реле (2 из 2) для Ford Ranger 2005

Электросхема блока предохранителей и реле (2 из 2) для Ford Ranger 2005 - Список элементов:

66

(at left front of vehicle floor) g205
(behind right side of dash) smart junction box (sjb)
(in main harness, near breakout for smart junction box (sjb)) s216
(not used)
4x2
4x4
A/t
Abs control module
Accessory relay
Audio unit
Battery junction box (bjb) (at left rear side of engine compartment)
Blend door actuator
Brake pedal position switch
Brake shift interlock
C2031a
C2031b
C220b
C2280a
C2280b
C2280c
C2280d
C281a
C290a
C294a
C2982a
Clutch pedal position switch
Data link connector (dlc)
Deactivator switch
Digital transmission range (dtr) sensor
Four-wheel drive control module
Four-wheel drive control module (m/t)
From fuse 3 (diagram 1 of 2)
From fuse 5 (diagram 1 of 2)
From fuse 10 (diagram 1 of 2)
From ignition switch (diagram 1 of 2)
Front cigar lighter
Front function selector switch assembly
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 2a
Fuse 30a
Fuse 5a
Horn relay
Indicator flasher relay
Instrument cluster
Interior lamp/battery saver relay
Low current board
M/t
Nca
Off
Pcm power diode
Pcm power relay
Pnk
Ptc circuit breaker 1a
Red
Reversing lamps switch
S200 (in main harness, near breakout for center of dash)
S203
S221 (in main harness, near breakout for left side of engine compt)
S231 (in main harness, near breakout for audio unit)
S237 (in main harness, near breakout for smart junction box (sjb))
Smart junction box (sjb) (behind right side of dash)
Speed control servo
Subwoofer amplifier (w/ audiophile sound system)
Transmission control switch

БЛОКИ УПРАВЛЕНИЯ КУЗОВОМ

Электросхема блоков управления кузовом (1 из 2) для Ford Ranger 2005

Электросхема блоков управления кузовом (1 из 2) для Ford Ranger 2005 - Список элементов:

55

Acc
Air conditioning & transmissions systems
Air conditioning system
Anti-lock brakes & shift interlock systems
Battery junction box (bjb) (at left rear side of engine compartment)
C2280a
C2280b
Computer data lines system
Cruise control system
Door locks & anti-theft systems
Driver door lock output
Emer warning flasher
Engine controls system
Exterior lights system
Fuse 40a
Fuse 50a
Headlights system
High beam indicator feed
Horn relay switch
Horns system
Hot at all times
Hot with high beams on
Ignition switch
Instrument cluster & transmissions systems
Instrument cluster system
Interior lamp relay
Interior lamp/batt relay
Interior lights system
L headlamp fused feed
Lock
Mirrors system
Off
On off
Pass door lock output
Power distribution system
Power exterior lamps
R headlamp fused feed
Red
Smart junction box (sjb) (behind right side of dash)
Sound systems
Start
Starting/charging system
Tan/red
Transmissions & exterior lights systems
Transmissions & sound systems
Transmissions system
Volt in run or acc
Volt sply at all times
Volt sply in start
Volt sply in start & run
Voltage sply in start
Windshield washer relay
Wiper high/low relay
Wiper run/park relay
Wiper/washer system

Электросхема блоков управления кузовом (2 из 2) для Ford Ranger 2005

Электросхема блоков управления кузовом (2 из 2) для Ford Ranger 2005 - Список элементов:

54

(under front of center console) g204
Accessory relay out
Anti-theft & door locks systems
Brake indicator ctrl
Brake pedal position sw in
C2280c
C2280d
Computer data lines system
Door ajar switch
Door locks system
Drv door lock sw unlock
Drv door unlock
Drv side door lock switch
Engine controls system
Exterior lights system
Feed
Fog lamp relay sw pwr
G205 (at left front of vehicle floor)
Ground
Headlights system
Horn relay ctrl
Horns system
Hot with low beams on
Instrument cluster system
Instrument cluster system power windows system
Interior lights system
Iso bus
Lf door ajar switch
Master window adj sw
Park lamp relay
Park lamp relay ctrl
Park lamp relay out
Parking brake switch sig
Pass door unlock out
Passenger door lock sw
Power windows system
Red
Rf door ajar switch
S203
S209
Smart junction box (sjb) (behind right side of dash)
Sound systems
Volt in run & acc
Volt sply at all times
Volt sply in start & run
Voltage in run or acc
Window adjust sw feed
Window motor
Wiper switch circuit a
Wiper switch circuit b
Wiper switch circuit c
Wiper switch circuit high
Wiper switch circuit washer
Wiper/washer system

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

Электросхема блокировки селектора для Ford Ranger 2005

Электросхема блокировки селектора для Ford Ranger 2005 - Список элементов:

13

Brake pedal position switch (behind left side of dash, on brake pedal support)
Brake shift interlock (on steering column)
C2280b
Fuse 20 10a
Fuse 32 5a
G205 (at left front of vehicle floor)
Hot at all times
Hot in run
Red
S221
S227 (in main harness, near breakout for smart junction box (sjb))
S236
Smart junction box (cjb) (behind right side of dash)

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Ford Ranger 2005

Электросхема заднего хода для Ford Ranger 2005 - Список элементов:

14

(at left side of engine compartment) g103
A/t
C2280b
Digital transmission range (dtr) sensor (left side of transmission)
Fuse 10a
Hot in run
Left reversing lamp
M/t
Reversing lamps switch (top left side of transmission)
Right reversing lamp
S237
S406
S408 (near breakout for right rear park/ stop/turn light)
Smart junction box (sjb) (behind right side of dash)

Электросхема внешнего освещения (1 из 2) для Ford Ranger 2005

Электросхема внешнего освещения (1 из 2) для Ford Ranger 2005 - Список элементов:

50

(at left front of vehicle floor) g205
(at left side of engine compartment) g103
(behind left side of dash) indicator flasher relay
(in main harness, near breakout for left side of dash) s214
(in main harness, near breakout for smart junction box (sjb)) s211
(in rear light con- nector harness, near breakout for c421)
(near breakout for smart junction box (sjb)) s207
87a
Battery junction box (bjb) (at left rear side of engine compt)
Brake pedal position switch (behind left side of dash, on brake pedal support)
C202a
C202b
C220a
C220b
C2280b
Except stx
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 7.5a
Hazard
High mounted stoplamp
Hot at all times
Hot in run
Instrument cluster
Left license plate lamp
Left rear park/stop lamp
Left rear park/stop/ turn lamp
Left turn
Left turn indicator
Microprocessor
Multi-function switch
Off
Right license plate lamp
Right rear park/ stop lamp
Right rear park/stop/ turn lamp
Right turn
Right turn indicator
S203
S206
S206 (except four- door model)
S404 (in taillight harness, near breakout for c421)
S405
S406
S407
S409 (four-door model)
S411
Smart junction box (sjb) (behind right side of dash)
Stx
Trailer tow connector (at center of rear bumper)

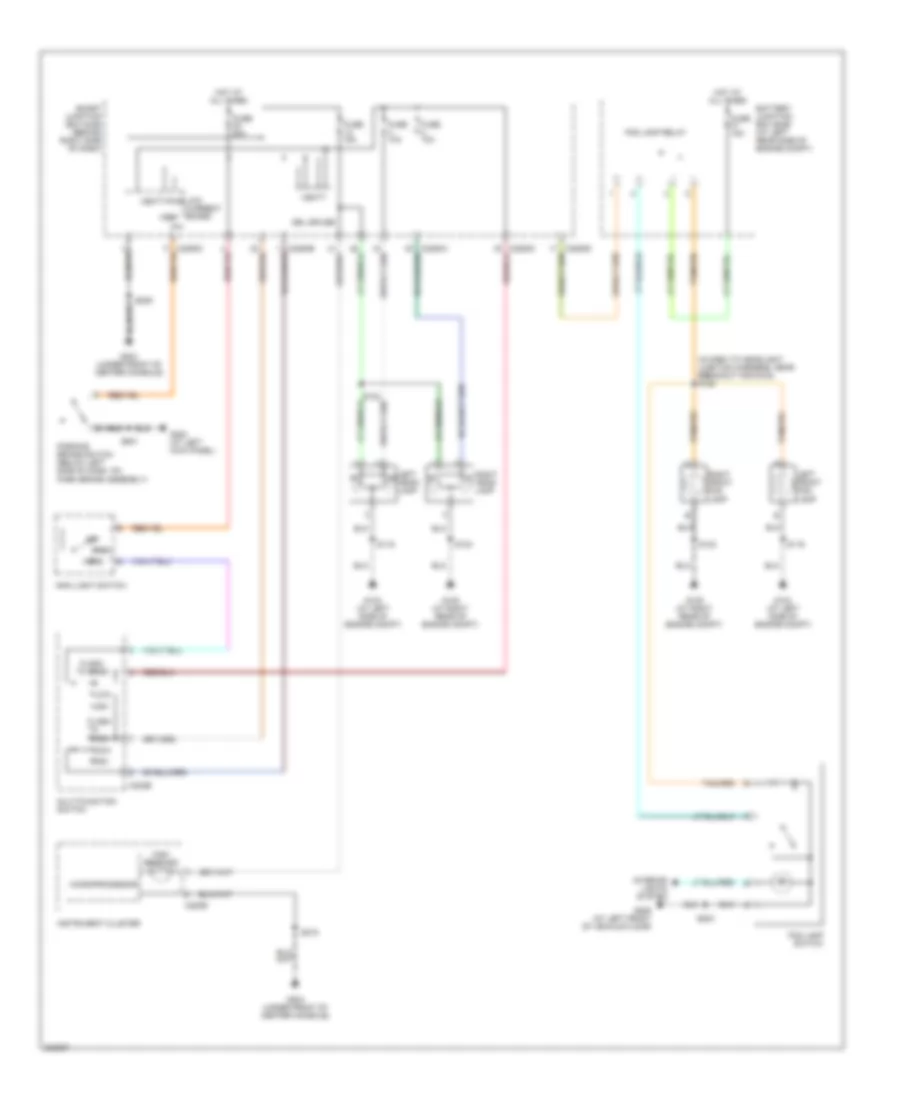

Электросхема внешнего освещения (2 из 2) для Ford Ranger 2005

Электросхема внешнего освещения (2 из 2) для Ford Ranger 2005 - Список элементов:

34

(at left side of engine compt) g103
(at right rear of engine compt) g105
(in dash to headlight junction harness, at breakout for left front wheel speed sensor) s121
C2280a
C2280c
C2280d
Fuse 10a
Fuse 20a
Fuse 5a
G204 (under front of center console)
G205 (at left front of vehicle floor)
Head
Hot at all times
Interior lights system
Left front park/turn lamp
Left front side lamp
Left rear turn lamp (w/ stx)
Low current board
Main light switch
Off
Park
Park lamp relay
Right front park/turn lamp
Right front side lamp
Right rear turn lamp (w/ stx)
S119
S123
S162
S163
S209
S236
S406
Smart junction box (sjb) (behind right side of dash)
Trailer/ camper adapter circuit

Электросхема розетки подключения прицепа для Ford Ranger 2005

Электросхема розетки подключения прицепа для Ford Ranger 2005 - Список элементов:

23

(at left front of vehicle floor) g205
C2280a
C2280c
C2280d
Exterior lamps circuit
Fuse 10a
Fuse 20a
Fuse 5a
G103 (at left side of engine compartment)
G204 (under front of center console)
Head
Hot at all times
Interior lights system
Low current board
Main light switch
Off
Park
Park lamp relay
S209
S236
S405
Smart junction box (sjb) (behind right side of dash)
Trailer tow connector (at center of rear bumper)

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

Электросхема подсветки для Ford Ranger 2005

Электросхема подсветки для Ford Ranger 2005 - Список элементов:

27

(at left front of vehicle floor) g205
(in main harness, near breakout for audio unit) s234
(near breakout for c710) s410
4 door
C2280b
C2280c
C2280d
Driver side rear door ajar switch (at bottom rear of left rear door)
Front interior/ map lamps assembly
Fuse 13 15a
G200 (at left kick panel)
G204 (under front of center console)
Hot at all times
Instrument cluster system
Instrument panel dimming module (behind left side of dash)
Interior lamp
Interior lamp/ battery saver relay
Left front door ajar switch (at rear of left front door)
Low current board
Passenger side rear door ajar switch (at bottom rear of right rear door)
Right front door ajar switch (at rear of right front door)
S206 (w/o power equipment)
S209
S409
S501
S600 (w/ power equipment)
Smart junction box (sjb) (behind right side of dash)

Электросхема подсветки приборов для Ford Ranger 2005

Электросхема подсветки приборов для Ford Ranger 2005 - Список элементов:

40

(in main harness, near breakout for smart junction box (sjb)) s217
Air bag sliding contact (at bottom of steering column)
Audio unit
C218a
C220a
C2280c
C290a
C294b
Courtesy lamps circuit
Dimmer
Exterior lights system
Fog lamp switch
Four- wheel drive switch
Front function selector switch assembly
Fuse
Fuse 1 5a
Fuse 20a
G204 (under front of center console)
G205 (at left front of vehicle floor)
Ground, steering wheel assembly
Head
Hot at all times
Hot in start or run
Illumination
Illumination (6 bulbs)
Instrument cluster
Instrument panel dimming module (behind left side of dash)
Low current board
Main light switch
Micro- processor
Off
Park
Park lamp relay
S203
S209
S236
Smart junction box (sjb) (behind right side of dash)
Speed control on/off switch
Speed control set/ resume switch
Switch

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

Электросхема подключение массы заземления (1 из 2) для Ford Ranger 2005

Электросхема подключение массы заземления (1 из 2) для Ford Ranger 2005 - Список элементов:

73

(2.3l) engine cooling fan motor
(at left rear side of engine compt) battery junction box (bjb)
(behind right side of dash) smart junction box (sjb)
(except stx) left rear park/stop turn lamp (stx) left rear park/stop lamp
(except stx) right rear park/stop/ turn lamp (stx) right rear park/stop lamp
(not used)
(stx) left rear turn lamp
(stx) right rear turn lamp
A/c clutch field coil
A/c high pressure switch
Abs control module
Air bag sliding contact
Audio unit
Battery
Blower motor relay
Brake fluid level switch
C218a
C220b
C2280c
C281b
C290a
C294c
C2982a
Data link connector (dlc)
Driver side door lock switch
Engine coolant temperature (ect) sender
Except tremor
Exterior rear view mirror switch
For fuel tank unit)
Four- wheel drive control module
Front function selector switch assembly
Fuel tank unit
G100 (at left front of engine compt)
G101 (at left rear of engine)
G102 (at left side of engine compartment)
G103 (at left side of engine compartment)
G104 (at left front of engine compt)
G200 (at left kick panel)
G202 (at right kick panel)
G203 (at right kick panel)
G204 (under front of center console)
Instrument cluster
Junction harness, near breakout for abs control module)
Left front door ajar switch
Left front fog lamp
Left front park/turn lamp
Left front side lamp
Left headlamp
Left license plate lamp
Left reversing lamp
Low current board
Mass air flow (maf) sensor
Master window adjust switch
Nca
Parking brake switch
Passenger air bag deactivation (pad) switch
Pcm power relay
Powertrain control module (pcm)
Restraints control module
Right license plate lamp
Right reversing lamp
S107 (in engine control sensor & fuel charge harness, at breakout for powertrain control module)
S108 (in dash to headlight junction harness, at breakout for c144)
S118 (in dash to headlight junction harness, near breakout for g102)
S119 (in dash to headlight junction harness, at breakout for left front side light)
S209 (in main harness, near breakout for steering column air bag sliding contact)
S215
S230 (in main harness, near breakout for audio unit)
S406 (in rear light connector harness, near breakout for c421)
Subwoofer amplifier
Trailer tow connector
W/ power equipment
Windshield wiper motor

Электросхема подключение массы заземления (2 из 2) для Ford Ranger 2005

Электросхема подключение массы заземления (2 из 2) для Ford Ranger 2005 - Список элементов:

59

(3.0l) heated positive crankcase ventilation valve
(behind right side of dash) smart junction box (sjb)
(w/ four-wheel drive) digital transmission range (dtr) sensor
Accessory relay
Audio unit
Blend door actuator
Brake pedal position switch
Brake shift interlock
C202a
C2031b
C220a
C2280c
C281a
C290a
C294b
C3154a
Data link connector (dlc)
Door lock/unlock relay
Driver door unlock relay
Driver safety belt retractor pretensioner
Driver side rear door ajar switch
Fog lamp switch
Four- wheel drive control module
Four- wheel drive switch
Four-door
Front cigar lighter
Front function selector switch assembly
Front heater blower motor resistor
G105 (at right rear of engine compt)
G106 (at top rear of engine compt)
G205 (at left front of vehicle floor)
G300 (center of floor, behind front seats)
High mounted stop lamp
Horn
Indicator flasher relay
Instrument cluster
Main light switch
Multifunction switch
Nca
Passenger side door lock switch
Passenger side rear door ajar switch
Power point
Powertrain control module (pcm)
Radio amplifier
Right front door ajar switch
Right front fog lamp
Right front park/turn lamp
Right front side lamp
Right headlamp
S145 (in engine control sensor & fuel charge harness, at breakout for powertrain control module)
S203 (in main harness, near breakout power point)
S206 (in main harness, near breakout for audio unit)
S300 (in radio speaker jumper harness, at breakout for c314)
S409 (w/ four-door) (in interior light harness, near breakout for c710)
S600 (w/ power equipment) (in right front door window regulator harness, near breakout for power window motor)
Shield
Speed control servo
W/ power equipment
Windshield washer pump motor

Звуковой сигнал Гудок

Электросхема звукового сигнал Гудка для Ford Ranger 2005

Электросхема звукового сигнал Гудка для Ford Ranger 2005 - Список элементов:

19

Air bag sliding contact (at bottom of steering column)
C218a
C2280a
C2280c
C2280d
Fuse 13 15a
G105 (at right rear
G204 (under front of center console)
Horn (at right front of engine compt)
Horn relay
Horn switch
Hot at all times
Low current board
Of engine compt)
Off
S123
S209
Smart junction box (sjb) (behind right side of dash)
Speed control on/off switch

Магнитола Мультимедия

Электросхема магнитолы звука аудиофила для Ford Ranger 2005

Электросхема магнитолы звука аудиофила для Ford Ranger 2005 - Список элементов:

50

(+)
(-)
(left front of vehicle floor) g205
Antenna
Audio unit
C2280b
C2280c
C290a
C290b
C2982a
C2982b
Enable
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 5a
Fused ignition
G202 (at right kick panel)
G203 (at right kick panel)
Gnd
Hot at all times
Hot in run or acc
Hot in start
Illumination
Interior lights system
L front spkr (+)
L front spkr (-)
L rear spkr (+)
L rear spkr (-)
Left front speaker
Left rear speaker
Nca
R front spkr (+)
R front spkr (-)
R rear spkr (+)
R rear spkr (-)
Red
Right front speaker
Right rear speaker
S200
S203
S230
S231
Sig(+)
Sig(-)
Smart junction box (sjb) (behind right side of dash)
Subwoofer
Subwoofer amplifier (in center console)
Vbatt
Vpwr

Эдектросхема магнитолы. Базовая комплектация. для Ford Ranger 2005

Эдектросхема магнитолы. Базовая комплектация. для Ford Ranger 2005 - Список элементов:

34

(at left front of vehicle floor) g205
Antenna
Audio unit
C2280b
C2280c
C290a
Fuse 10a
Fuse 20a
Fuse 5a
Fused ignition
G203 (at right kick panel)
Ground
Hot at all times
Hot in run or acc
Hot in start
Illumination
Interior lights system
L front spkr (+)
L front spkr (-)
L rear spkr (+)
L rear spkr (-)
Left front speaker
Left rear speaker
Nca
Power
R front spkr (+)
R front spkr (-)
R rear spkr (+)
R rear spkr (-)
Right front speaker
Right rear speaker
S200
S203
Smart junction box (sjb) (behind right side of dash)

Электросхема магнитолы аудио дрожи для Ford Ranger 2005

Электросхема магнитолы аудио дрожи для Ford Ranger 2005 - Список элементов:

60

(+)
(-)
(at left front of vehicle floor) g205
Antenna
Audio unit
Battery junction box (bjb) (at left rear side of engine compartment)
C2280b
C2280c
C290a
C290b
C3154a
C3154b
Enable
Fuse 10a
Fuse 20a
Fuse 40a
Fuse 5a
G203 (at right kick panel)
G300 (center of floor, behind front seats)
Gnd
Hot at all times
Hot in run or acc
Hot in start
Illumination
Interior lights system
L front (+)
L front (-)
L front spkr (+)
L front spkr (-)
L rear (+)
L rear (-)
L rear spkr (+)
L rear spkr (-)
Left front speaker
Left rear speaker
Nca
R front (+)
R front (-)
R front spkr (+)
R front spkr (-)
R rear (+)
R rear (-)
R rear audio (+)
R rear audio (-)
R rear spkr (+)
R rear spkr (-)
Radio amplifier (behind front seats)
Right front speaker
Right rear speaker
S200
S203
S300
S301
Shield
Sig(+)
Sig(-)
Smart junction box (sjb) (behind right side of dash)
Subwoofer
Vbatt
Vpwr

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

Электросхема подушек безопасности SRS AirBag для Ford Ranger 2005

Электросхема подушек безопасности SRS AirBag для Ford Ranger 2005 - Список элементов:

51

(under front of center console) g204
Air bag ind ctrl
Air bag indicator
Air bag sliding contact (at bottom of steering column)
Air bag tone driver
Buckled
C218b
C220a
C220b
C2280c
Computer data lines system
Data link connector (dlc) (at bottom of steering column)
Dedicated ground
Driver air bag feed
Driver air bag return
Driver air bag unit (in steering wheel)
Driver safety belt feed
Driver safety belt retractor pretensioner (at left rear of vehicle floor)
Driver safety belt rtn
Fuse 10a
Fuse 5a
G205 (at left front of vehicle floor)
Hot in run or start
Ignition
Instrument cluster
Iso bus
Microprocessor
Nca
Near breakout for center of dash) s201
Off
Pad switch ind ctrl
Pad switch input
Pass air bag feed
Pass air bag return
Pass safety belt feed
Pass safety belt rtn
Passenger air bag deactivation (pad) switch
Passenger air bag module (behind right side of dash)
Passenger safety belt retractor pretensioner (at right rear of vehicle floor)
Pin shorting bars engaged when module connector is disconnected from harness: (shorting bars are connected between following pins: 3-4, 6-7 & 20-21)
Pretensioner
Restraints control module (under front of center console)
S206 (in main harness, near breakout for audio unit)
S208 (in main harness, near breakout for audio unit)
Safety belt ind
Shorting bar
Smart junction box (sjb) (behind right side of dash)
Steering column air bag sliding contact)
Tone sig
Unbuckled
Warning chime

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

Электросхема предупреждающей системы для Ford Ranger 2005

Электросхема предупреждающей системы для Ford Ranger 2005 - Список элементов:

43

Air bag sliding contact (at bottom of steering column)
C218a
C220a
C220b
C2280b
C2280c
Can+
Can-
Computer data lines system
Door ajar ind
Driver safety belt retractor pretensioner (at left rear of vehicle floor)
Fuse 10a
Fuse 5a
G200 (at left kick panel)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Ground
Head
Hot at all times
Hot in start or run
Ignition key switch
Instrument cluster
Interior lights system
Left front door ajar switch (at rear of left front door)
Low current board
Main light switch
Microprocessor
Nca
Off
Park
Restraints control module (under front of center console)
S203
S206
S215
S223
S501
Safety belt ind
Smart junction box (sjb) (behind right side of dash)
Sw in
Tone sig
Vbatt
Vpwr
Warning chime

ПРИБОРНАЯ ПАНЕЛЬ

Электросхема панели приборов для Ford Ranger 2005

Электросхема панели приборов для Ford Ranger 2005 - Список элементов:

111

(at left front of vehicle floor) g205
(conn "a")
(conn "b")
(in dash to headlight junction harness, near breakout for p93)
(in main harness, near breakout for audio unit) s234
(in main harness, near breakout for instrument cluster)
(under front of center console) g204
(w/ power equipment) s600
2.3l
4wd ind
4wd low ind
4x4 status
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
Abs ind
Air bag ind
Anti-lock brakes system
B10
B11
B12
B13
B14
B15
B16
B18
B20
C220a
C220b
C2280b
C2280c
C2280d
Can +
Can -
Charge ind
Check engine ind
Check fuel cap ind
Computer data lines system
Cruise control system
Door ajar ind
Driver side rear door ajar switch (four-door model) (at bottom rear of left rear door)
Ect sig
Engine controls system
Engine coolant temperature (ect) sender (2.3l: on top rear of engine) (3.0l: on front left of engine, near thermostat housing) (4.0l: on top right front of engine)
Engine coolant temperature gauge
Exterior lights system
Failsafe cooling ind
Fuel gauge
Fuel lvl sig
Fuel tank unit (in fuel tank assembly)
Fuse 10a
Fuse 5a
G200 (at left kick panel)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Gnd
Headlights system
High beam ind
Hot at all times
Hot in start or run
Illumination (6 bulbs)
Instrument cluster
Interior lights system
Left front door ajar switch (at rear of left front door)
Left turn signal ind
Low brake fluid level/park brake ind
Low current board
Low fuel ind
Low oil pressure ind
Microprocessor
O/d off ind
Odometer/ tripmeter
Oil pressure switch (2.3l: on left rear of cylinder head) (3.0l: on right rear of engine) (4.0l: on lower left front of engine)
Park lmp rly out
Parking brake switch (below left side of dash, on park brake assembly)
Passenger side rear door ajar switch (four-door model) (at bottom rear of right rear door)
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Prndl
Right front door ajar switch (at rear of right front door)
Right turn signal ind
S125
S203
S206 (w/o power equipment)
S209
S213
S215
S223
S410 (four-door model) (in interior light harness, near breakout for c710)
S501
Safety belt ind
Smart junction box (sjb) (behind right side of dash)
Speed control ind
Speedometer
Starting/ charging system
Tach sig
Tachometer
Tone sig
Transmissions system
Vbatt
Vpwr
Vref
Vss
Warning chime
Warning system

ПРИВОД ЗЕРКАЛ

Электросхема привода зеркал для Ford Ranger 2005

Электросхема привода зеркал для Ford Ranger 2005 - Список элементов:

19

(at left kick panel) g200
C2280b
Down
Exterior rear view mirror switch
Fuse 5a
Hot at all times
Left
Left exterior rear view mirror
Left mirror
Left/right
Nca
Red
Right
Right exterior rear view mirror
Right mirror
S501
S502 (near breakout for left front speaker)
Smart junction box (sjb) (behind right side of dash)
Up/down

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

Электросхема стеклоподъемников для Ford Ranger 2005

Электросхема стеклоподъемников для Ford Ranger 2005 - Список элементов:

31

(in left front door window regulator harness, near breakout for exterior rearview mirror) s500
(w/ power equipment: at center of left front door) driver side front power window motor
(w/ power equipment: at center of right front door)
11a
Accessory relay
C2280c
C2280d
Down
Driver
Fuse 10a
Fuse 30a
G200 (at left kick panel)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Hot at all times
Hot in run or acc
Low current board
Master window adjust switch
Off
One-touch window relay
Passenger
Passenger side front power window motor
Passenger side window adjust switch
Ptc circuit breaker
Red
Resistor
Rest
S203
S209
S501
Smart junction box (sjb) (behind right side of dash)

Противоугонная система Сигнализация

Электросхема противоугонной сигнализации для Ford Ranger 2005

Электросхема противоугонной сигнализации для Ford Ranger 2005 - Список элементов:

46

(at left front of vehicle floor)
C2280a
C2280b
C2280c
C2280d
Data link connector (dlc) (at bottom of steering column)
Door lock/
Driver door unlock relay
Driver side door lock switch
Driver side rear door ajar switch (4 door) (at bottom rear of left rear door)
Exterior lights system
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 5a
G200 (at left kick panel)
G204 (under front of center console)
G205
G205 (at left front of vehicle floor)
Horn relay
Horns system
Hot at all times
Instrument cluster system
Interior lights system
Left front door ajar switch (at rear of left front door)
Left front door lock actuator (w/ power equipment: at rear of left front door)
Lock
Low current board
Main light switch
Park lamp relay
Passenger side door lock switch
Passenger side rear door ajar switch (4 door) (at bottom rear right rear door)
Red
Right front door ajar switch (at rear of right front door)
Right front door lock actuator (w/ power equipment: at rear of right front door)
S203
S209
S234 (in main harness, near breakout for audio unit)
S409
S410 (w/ 4 door) (in interior light harness, near breakout for c710)
S501
S600
S600 (w/ power equipment)
Smart junction box (sjb) (behind right side of dash)
Unlock
Unlock relay

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

Электросхема антиблокировочной тормозной системы АБС (ABS) для Ford Ranger 2005

Электросхема антиблокировочной тормозной системы АБС (ABS) для Ford Ranger 2005 - Список элементов:

38

(at left front of vehicle floor) g205
(at right front wheel) right front wheel speed sensor
4wd
4x4 sta
Abs control module (on left front of engine compt)
Abs ind
Abs pump motor (at left front side of engine compt)
Battery junction box (bjb) (at left rear side of engine compartment)
Brake fluid level switch (at left rear of engine compartment, brake fluid reservoir)
Brake pedal position switch (behind left side of dash, on brake pedal support)
C220b
C2280b
Computer data lines system
Fuse 10a
Fuse 17 40a
Fuse 33 30a
Fuse 5a
G102 (at left side of engine compt)
G103 (at left side of engine compartment)
Ground
Hot at all times
Hot in run
Instrument cluster
Iso
Left front wheel speed sensor (at left front wheel)
Low brake fluid level/ park brake
Nca
Pwr
Rear axle speed sensor (top of rear differential)
Red
Red red
Red/pnk
S110
S117 (in dash to headlight junction harness, near breakout for abs control module)
S221
Smart junction box (sjb) (behind right side of dash)
Vbatt
Vpwr

СИСТЕМА КОНДИЦИОНЕРА

схема нагревателя для Ford Ranger 2005

схема нагревателя для Ford Ranger 2005 - Список элементов:

45

(at left front of vehicle floor) g205
(at left side of engine compt) g103
(at right rear of engine compartment) g105
(in dash to headlight junction harness, at breakout for c144) s108
(in dash to headlight junction harness, near breakout for heater blower motor) s123
(in main harness, near breakout for power point) s203
(in main harness, near breakout for smart junction box (sjb))
Battery junction box (bjb) (at left rear side of engine compartment)
Blend door actuator (behind right side of dash)
Blower motor relay
Blower motor switch
C2280b
C294a
C294b
C294c
C294d
Defrost
Floor
Front function selector switch assembly
Front heater blower motor resistor (right rear of engine compt, near blower motor)
Fuse 10a
Fuse 30a
G205 (at left front of vehicle floor)
Heater blower motor (right rear of engine compartment, on firewall)
High
Hot at all times
Hot in run
Illumination
Interior lights system
Low
Max
Medium high
Medium low
Microprocessor
Mix
Mode switch
Normal
Off
Powertrain control module (pcm) (right rear of engine compt, through firewall)
S108 (in dash to headlight junction harness, at breakout for c144)
S206 (in main harness, near breakout for audio unit)
S216
Smart junction box (sjb) (behind right side of dash)
Temperature control potentiometer
Vent

Электросхема кондиционера с ручный управлением для Ford Ranger 2005

Электросхема кондиционера с ручный управлением для Ford Ranger 2005 - Список элементов:

84

(3.0l: near breakout for fuel injector 6) (4.0l: near breakout for engine coolant temperature sender)
(at breakout for c144) s108
(at left front of vehicle floor)
(at left side of engine compartment) g103
(behind right side of dash) blend door actuator
(in dash to headlight junction harness, at breakout for c144) s108
(left front of engine compartment) g104
(near breakout for abs control module) s110
(near breakout for g102) s118
(near breakout for idle air control valve) s151
(near breakout for smart junction box (sjb))
A/c clutch field coil (right front of engine)
A/c clutch relay
A/c clutch relay ctrl
A/c clutch relay output
A/c compressor cycling switch (at right rear of engine compartment)
A/c demand signal
A/c high pressure switch (at left front side of engine)
Battery junction box (bjb) (at left rear side of engine compartment)
Battery junction box (bjb) (at left rear side of engine compt)
Blower motor relay
Blower motor switch
C2280a
C2280b
C294a
C294b
C294c
C294d
Cooling fan relay ctrl
Cylinder sensor input
Cylinder-head temperature sensor (2.3l) (right side of cylinder head)
Defrost
Ect sensor input
Engine controls system
Engine coolant temperature (ect) sensor (except 2.3l) (3.0l: on top front of engine) (4.0l: on top right front of engine)
Engine cooling fan motor (at right front of engine compt)
Engine cooling fan relay (2.3l)
Floor
Front function selector switch assembly
Front heater blower motor resistor (right rear of engine compt, near blower motor)
Fuse 10a
Fuse 20a
Fuse 30a
G103 (at left side of engine compt)
G103 (left side of engine compt)
G105 (at right rear of engine compt)
G205
G205 (at left front of vehicle floor)
Heater blower motor (right rear of engine compt, on firewall)
High
Hot at all times
Hot in run
Hot in start or run
Illumination
Interior lights system
Low
Max
Medium high
Medium low
Microprocessor
Mix
Mode switch
Nca
Normal
Of engine compartment) g104
Off
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right rear of engine compartment)
Ptc 1a
Red
S108 (at breakout for c144)
S113 (at breakout for battery junction box (bjb))
S123 (near breakout for heater blower motor)
S124 (near breakout for heater blower motor)
S133 (4.0l) s139 (3.0l)
S143 (breakout for pcm)
S203 (near breakout for power point)
S206 (in main harness, near breakout for audio unit)
S216
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Temperature control potentiometer
Vent

СИСТЕМА КРУИЗКОНТРОЛЯ

Электросхема системы круизконтроля для Ford Ranger 2005

Электросхема системы круизконтроля для Ford Ranger 2005 - Список элементов:

53

10a
A/t
Air bag sliding contact (at bottom of steering column)
Brake pedal position switch (behind left side of dash, on brake pedal support)
C218a
C220a
C2280b
C2280c
Clutch pedal position switch (behind left side of dash, top of brake pedal support)
Coast(-)
Cruise ctrl ind
Deactivator switch (at left rear of engine compt)
Fuse 20
Fuse 26
Fuse 32
Fuse 7
G105 (at right rear of engine compartment)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Gnd
Ground steering wheel assembly
Harness, near breakout for smart junction box (sjb))
Head
Horns system
Hot at all times
Hot in run
Hot in start or run
Illumination
In put
Instrument cluster
Interior lights system
M/t
Main light switch
Micro- processor
Off
Park
Powertrain control module (pcm) (right rear of engine compartment, through firewall)
Rest
Resume
S116 (in dash to headlight junction harness, near breakout for g102)
S123
S209
S236
Set(+)
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Speed control servo (in right rear of engine compartment)
Speed control indicator
Speed control on/off switch
Speed control set/ resume switch
Vpwr
Vref
Vss

СИСТЕМА ОХЛАЖДЕНИЯ

2.3L

2.3L, Электросхема системы охлаждения для Ford Ranger 2005

2.3L, Электросхема системы охлаждения для Ford Ranger 2005 - Список элементов:

27

(at left front of engine compartment) g104
(at left side of engine compartment) g103
(in dash to headlight junction harness, at breakout for battery junction box (bjb))
(in engine control sensor & fuel charge harness, near breakout for idle air control valve)
Battery junction box (bjb) (at left rear side of engine compartment)
C2280a
Cylinder head temperature sensor (on right side of cylinder head)
Engine cooling fan motor (at right front of engine compartment)
Engine cooling fan relay
Fuse 20a
Fuse 30a
Hot at all times
Hot in start or run
Nca
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Ptc 1a
Red
Relay ctrl
S108
S113
S118
S151
Sig rtn
Smart junction box (sjb) (behind right side of dash)
Vref

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

Электросхема линии передачи данных CAN для Ford Ranger 2005

Электросхема линии передачи данных CAN для Ford Ranger 2005 - Список элементов:

25

Abs control module (on left front of engine compt)
C220b
C2280b
C2280d
C281a
Can+
Can-
Data link connector (dlc) (at bottom of steering column)
Feps
Four-wheel drive control module (behind left center of dash)
Fuse 29 20a
G204 (under front of center console)
G205 (at left front of vehicle floor)
Hot at all times
Instrument cluster
Iso
Low current board
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Restraints control module (under front of center console)
S208 (in main harness, near breakout for audio unit)
S209
S236
Scp +
Scp -
Smart junction box (sjb) (behind right side of dash)

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

2.3L

2.3L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005

2.3L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005 - Список элементов:

59

(at bottom of steering column)
(at breakout for powertrain control module)
(left front of engine compt)
(right rear of engine compt, through firewall) powertrain control module (pcm)
A/c demand sig
Act sens in
Air conditioning system
Battery junction box (bjb) (left rear side of engine compt)
Ccs
Ckp sens +
Ckp sens -
Cool fan rly
Cooling fans system
Crankshaft position (ckp) sensor (on lower right front of engine)
Data link connector (dlc)
Digital transmission range (dtr) sensor (left side of transmission)
Fail safe cool in
Fuel pump rly
Fuel pump/gauge
Fuse 11 30a
G104
G106 (at top rear of engine compt)
Gnd
Ho2s 11 in
Hot at all times
Hot in run or start
Ignition coil
Ignition coil (on top right side of engine)
Ignition transformer capacitor
Knock sens
Knock sensor (at left front of engine)
Maf sig
Mil
Mod prog sig
Nca
Pcm power diode
Pcm power relay
Psp sw
Ptc 1a
Red
S107
S118
S145
S147
Scp bus+
Scp bus-
Sensor tr1
Sensor tr2
Sensor tr4
Shift sol a
Shift sol b
Smart junction box (sjb) (behind right side of dash)
Spark plugs
Start rly cntl
Starting/charging system
Tachometer
Tft sens in
Trans cntl sw
Tss

2.3L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005

2.3L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005 - Список элементов:

27

(in dash to headlight junction harness, at breakout for battery junction box) s113
(in dash to headlight junction harness, at breakout for c144)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for swirl control monitor)
(in engine control sensor & fuel charge harness, near breakout for transmission) s152
A/c clutch relay
A/t
Battery junction box (bjb) (left rear side of engine compt)
Clutch pedal position (cpp) switch (behind left side of dash, top of brake pedal support)
Cooling fans system (engine cooling fan relay)
Cylinder head temperature (cht) sensor (right side of cylinder head)
Evap canister purge valve (in left front of engine compt)
Fuel pump relay
Fuse 23 20a
Fuse 41 15a
Hot at all times
Intermediate shaft speed (iss) sensor (a/t) (left side of transmission)
M/t
Manifold absolute pressure (map) sensor (at top of engine)
Output shaft speed (oss) sensor (left rear of transmission)
Power steering pressure (psp) switch (left front of engine)
Red
S111
S137
S143
S151 (in engine control sensor & fuel charge harness, near breakout for idle air control valve)
Throttle position (tp) sensor (top right side of engine, on throttle body)

2.3L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005

2.3L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005 - Список элементов:

44

(at left side of engine compt) g103
(in dash to headlight junction harness, near breakout for p93)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for swirl control solenoid valve)
(in main harness, near breakout for instrument cluster) s213
(under front of center console) g204
A/t
C220a
C220b
C281b
Check fuel cap ind
Egr stepper motor (on rear of engine)
Evap emissions canister vent valve (at fuel tank)
Fail- safe cool ind
Four-wheel drive control module (behind left center of dash)
Fuel injectors (at top left side of engine)
Fuel lev sig
Fuel tank pressure transducer sensor (at fuel tank assembly)
Fuel tank unit (in fuel tank assembly)
Fuse 10a
Hot in run
Inertia fuel shut-off (ifs) switch (in right kick panel)
Instrument cluster
M/t
Malfunction indicator lamp (mil)
Microprocessor
Nca
O/d off ind
Red
Red/pnk
S125
S148
S149 (in engine control red sensor & fuel charge harness, near breakout for fuel injector 4)
S150
S153
S215
S237
S405
Smart junction box (sjb) (behind right side of dash)
Speed control servo (in right rear of engine compt)
Tach sig
Tan
Tan/red
Transmission control switch (on steering column)

2.3L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005

2.3L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005 - Список элементов:

69

(a/t)
(at left front of vehicle floor) g205
(b+) power
(behind left side of dash, on brake pedal support) brake pedal position switch (bpp)
(m/t)
(near breakout for transmission)
5r44e transmission control solenoids (at left side of transmission)
A/c clutch rly
Air conditioning system
Battery junction box (bjb) (at left rear side of engine compartment)
Bpp sw
C2280b
Camshaft position (cmp) sensor (on rear of engine)
Canister vent
Check cap ind
Cht sensor
Cmp sens in
Egr step motor
Electronic pressure control (epc) solenoid
Epc sol
Evap purge
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel pump rly
Fuel tank press
Fuse 21 10a
Fuse 5a
G104 (at left front of engine compt)
Gnd
Heated oxygen sensor (ho2s) 11 (in rear of engine compt, in exhaust)
Heated oxygen sensor (ho2s) 12 (near right rear of transmission, in exhaust)
Ho2s 11 heater
Ho2s 11 in
Ho2s 12 heater
Hot at all times
Iac valve
Idle air control (iac) valve (on top right of engine)
Iss sens
Knock sensor
M/t
Maf sensor
Map sens
Mass air flow (maf) sensor (right side of engine compt, within air cleaner assembly)
Oss sensor
Pcm rly power
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Red
Red/pnk
Ref voltage
S107
S117 (in dash to headlight junction harness, near breakout for abs control module)
S154
S236
Shift sol c
Shift solenoids
Sig return
Smart junction box (sjb) (behind right side of dash)
Tan
Tan/red
Tcc sol
Tcil
Torque converter clutch (tcc) solenoid
Tps in
Tr sensor
Transmission fluid temperature (tft) sensor
Turbine shaft speed sensor (tss)
Vss +

3.0L

3.0L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005

3.0L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005 - Список элементов:

55

(at left front of engine compt) g104
(ckp) sensor (+)
(ckp) sensor (-)
(dlc) (at bottom of steering column)
(ect) sensor
(ho2s) 12
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(maf) sensor rtn
(mil)
(pwr) ground
(tft) sensor
4wd low ind
A/c demand sig
Act sens in
Air conditioning system
Battery junction box (bjb) (left rear side of engine compt)
Connector
Crankshaft position (ckp) sensor (on lower front of engine)
Data link
Digital transmission range (dtr) sensor (left side of transmission)
Dlc bus (+)
Dlc bus (-)
Eprom power
Fuel gauge
Fuel pmp mon
Fuse 11 30a
G106 (at top rear of engine compt)
Ground
Hot at all times
Hot in run or start
Ignition coil
Ignition coil (on top right side of engine)
Ks input
Nca
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Ptc 1a
Red
S107
S118
S145
Sensor tr1
Sensor tr2
Sensor tr4
Shift sol a
Shift sol b
Shift sol d
Smart junction box (sjb) (behind right side of dash)
Spark plugs
Start rly cntl
Starting/charging system
Tachometer
Trans ctrl (tcs)
Tss

3.0L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005

3.0L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005 - Список элементов:

27

(a/t)
(in dash to headlight junction harness, at breakout for battery junction box) s113
(in dash to headlight junction harness, at breakout for c144)
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for fuel injector 6)
(m/t)
A/c clutch relay
A/t
Battery junction box (bjb) (at left rear side of engine compt)
Cooling fans system (engine cooling fan relay)
Engine coolant temperature (ect) sensor (on top front of engine)
Evap canister purge valve (in left front of engine compt)
Evap emissions canister vent valve (at fuel tank)
Fuel pump relay
Fuse 23 20a
Fuse 41 15a
Hot at all times
Intermediate shaft speed (iss) sensor (a/t) (on left side of transmission)
Knock sensor (on right side of engine)
M/t
Nca
Output shaft speed (oss) sensor (on left rear of transmission)
Red
S111
S139
S143
Throttle position (tp) sensor (top left front of engine, on throttle body)

3.0L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005

3.0L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005 - Список элементов:

41

(at left side of engine compt) g103
(in dash to headlight junction harness, near breakout for p93) s125
(in engine control sensor & fuel charge harness, near breakout for fuel injector 3) s101
(in engine control sensor & fuel charge harness, near breakout for heated oxygen sensor 21)
(in main harness, near breakout for smart junction box)
(under front of center console) g204
4wd low ind
A/t
C220a
C220b
C2280b
C281b
Check fuel cap ind
Four wheel drive control module (behind left center of dash)
Fuel injectors (at top right of engine)
Fuel lev sig
Fuel tank pressure transducer sensor (at fuel tank assembly)
Fuel tank unit (in fuel tank assembly)
Fuse 10a
Heated oxygen sensor (ho2s) 22 (at right rear of engine, in exhaust)
Hot in run
Inertia fuel shut-off (ifs) switch (in right kick panel)
Instrument cluster
M/t
Malfunction indicator lamp (mil)
Microprocessor
Nca
O/d off ind
Red
Red/pnk
S104 red
S213 (in main harness, near breakout for instrument cluster)
S215
S237
S258
S405
Smart junction box (sjb) (behind right side of dash)
Speed control servo (in right rear of engine compt)
Tach sig
Tan
Transmission control switch (on steering column)

3.0L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005

3.0L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005 - Список элементов:

84

(a/t)
(at left front of vehicle floor) g205
(at pcm breakout)
(b+) power
(behind left side of dash, on brake pedal support) brake pedal position switch (bpp)
(bpp) switch
(cmp) sensor
(epc) solenoid
(evap) purge
(evap) vent
(ho2s) 11
(ho2s) 11 htr
(ho2s) 12 htr
(ho2s) 21
(ho2s) 21 htr
(ho2s) 22
(ho2s) 22 htr
(iac) solenoid
(m/t)
(maf) sensor
(near breakout for camshaft position sensor)
(near breakout for transmission)
(near trans breakout)
(pcm relay) pwr
(pwr) ground
(tcc) solenoid
(tcil) lp output
(tp) sensor
(tr) sensor
(vss) input
5r44e transmission control solenoids (at left side of transmission)
A/c cycling
A/c relay
A/t
Air conditioning system
Battery junction box (bjb) (at left rear side of engine compt)
C2280b
Camshaft position (cmp) sensor (on top rear of engine)
Check cap ind
Electronic pressure control (epc) solenoid
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel inj 5
Fuel inj 6
Fuel pmp rly
Fuel pressure
Fuse 21 10a
Fuse 5a
G104 (at left front of engine compt)
Heated oxygen sensor (ho2s) 11 (in right rear of engine compt, in exhaust)
Heated oxygen sensor (ho2s) 12 (near right rear of trans- mission, in exhaust)
Heated oxygen sensor (ho2s) 21 (in left rear of engine compt, in exhaust)
Heated positive crankcase ventilation valve
Hot at all times
Idle air control (iac) valve (on top left front of engine)
Ignition coil
Iss sensor
Ks 1 rtn
M/t
Mass air flow (maf) sensor (right side of engine compt, within air cleaner assembly)
Nca
Oss sensor
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Red
Red/pnk
Ref volt
S100
S106
S107
S117 (in dash to headlight junction harness, near breakout for abs control module)
S129
S141
S145 (at top rear of engine compt) g106
S236
Shift sol c
Shift solenoids
Signal rtn
Smart junction box (sjb) (behind right side of dash)
Tan
Torque converter clutch (tcc) solenoid
Transmission fluid temperature (tft) sensor
Turbine shaft speed (tss) sensor

4.0L

4.0L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005

4.0L, Электросхема системы управления двигателем (1 из 4) для Ford Ranger 2005 - Список элементов:

55

(act) sensor
(at bottom of steering column)
(ckp) sensor (+)
(ckp) sensor (-)
(ect) sensor
(ho2s) 12
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(left front of engine compt) g104
(maf) sensor rtn
(mil)
(pwr) ground
(tft) sensor
(tss) sensor
4wd low ind
A/c demand sig
Air conditioning system
Battery junction box (bjb) (left rear side of engine compt)
Crankshaft position (ckp) sensor (on lower front of engine)
Data link connector (dlc)
Digital transmission range (dtr) sensor (left side of transmission)
Dlc bus (+)
Dlc bus (-)
Egr valve
Eprom power
Fuel gauge
Fuel pmp mon
Fuse 11 30a
G106 (at top rear of engine compt)
Ground
Hot at all times
Hot in run or start
Ignition coil
Ignition coil (on top left rear of engine)
Knock sensor
Nca
Pcm power diode
Pcm power relay
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Ptc 1a
Red
S107
S118
S145
Sensor tr1
Sensor tr2
Sensor tr4
Shift sol a
Shift sol b
Shift sol d
Smart junction box (sjb) (behind right side of dash)
Spark plugs
Start rly cntl
Starting/charging system
Tachometer
Trans ctrl (tcs)

4.0L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005

4.0L, Электросхема системы управления двигателем (2 из 4) для Ford Ranger 2005 - Список элементов:

31

(a/t)
(dash to headlight harness, at breakout for c144)
(engine control sensor & fuel charge harness, near breakout for fuel injector 4)
(in dash to headlight junction harness, at breakout for battery junction box) s113
(in engine control sensor & fuel charge harness, at breakout for powertrain control module)
(in engine control sensor & fuel charge harness, near breakout for oxygen sensor 12)
(in engine control sensor & fuel charge harness, near breakout for trans- mission
(m/t)
A/c clutch relay
Battery junction box (bjb) (at left rear side of engine compt)
Cooling fans system (engine cooling fan relay)
Egr pressure transducer (at top left of engine)
Egr valve actuator (at top left of engine)
Engine coolant temperature (ect) sensor (on top right front of engine)
Evap canister purge valve (in left front of engine compt)
Fuel pump relay
Fuse 23 20a
Fuse 41 15a
Hot at all times
Intermediate shaft speed (iss) sensor (a/t) (on left side of transmission)
Knock sensor (on top center of engine)
Nca
Output shaft speed (oss) sensor (on left rear of transmission)
Red
S111
S133 (in engine control sensor & fuel charge harness, near breakout for engine coolant temperature sender)
S135
S137
S143
S144
Throttle position (tp) sensor (top front of engine, on throttle body)

4.0L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005

4.0L, Электросхема системы управления двигателем (3 из 4) для Ford Ranger 2005 - Список элементов:

44

(at left side of engine compt) g103
(dash to headlight junction harness, near breakout for g102)
(in dash to headlight junction harness, near breakout for p93)
(in main harness, near breakout for smart junction box)
(main harness, s213
(near fuel injector 3 breakout) s101
(near ignition coil breakout) s104 red
(under front of center console) g204
4wd low ind
C220a
C220b
C2280b
C281b
Check fuel cap ind
Evap emissions canister vent valve (at fuel tank)
Four wheel drive control module (behind left center of dash)
Fuel injectors
Fuel lev sig
Fuel tank pressure transducer sensor (at fuel tank assembly)
Fuel tank unit (in fuel tank assembly)
Fuse 10a
Heated oxygen sensor (ho2s) 22 (at right rear of engine, in exhaust)
Hot in run
Ignition trans- former capacitor (on top center of engine)
Inertia fuel shut-off (ifs) switch (in right kick panel)
Instrument cluster
Malfunction indicator lamp (mil)
Microprocessor
Nca
Near breakout for instrument cluster)
O/d off ind
Red
Red/pnk
S116
S125
S215
S237
S258
S405
Smart junction box (sjb) (behind right side of dash)
Speed control servo (in right rear of engine compt)
Tach sig
Tan
Transmission control switch (on steering column)

4.0L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005

4.0L, Электросхема системы управления двигателем (4 из 4) для Ford Ranger 2005 - Список элементов:

79

(at pcm breakout)
(b+) power
(behind left side of dash, on brake pedal support) brake pedal position switch (bpp)
(bpp) switch
(cmp) sensor
(epc) solenoid
(evap) purge
(evap) vent
(ho2s) 11
(ho2s) 11 htr
(ho2s) 12 htr
(ho2s) 21
(ho2s) 21 htr
(ho2s) 22
(ho2s) 22 htr
(iac) solenoid
(iss) sensor
(left front of vehicle floor) g205
(maf) sensor
(near hos2 11 breakout)
(near trans break- out)
(oss) sensor
(pcm relay) pwr
(pwr) ground
(tcc) solenoid
(tcil) lp output
(tp) sensor
(tr) sensor
(vss) input
5r55e transmission control solenoids (at left side of transmission)
A/c cycling
A/c relay
A/t
Air conditioning
Battery junction box (bjb) (at left rear side of engine compartment)
C2280b
Camshaft position (cmp) sensor (at top left of engine)
Check cap ind
Egr prssr trans
Electronic pressure control (epc) solenoid
Fuel inj 1
Fuel inj 2
Fuel inj 3
Fuel inj 4
Fuel inj 5
Fuel inj 6
Fuel pmp rly
Fuel pressure
Fuse 21 10a
Fuse 5a
G104 (at left front of engine compt)
Heated oxygen sensor (ho2s) 11 (in right rear of engine, in exhaust)
Heated oxygen sensor (ho2s) 12 (near right rear of trans- mission, in exhaust)
Heated oxygen sensor (ho2s) 21 (near right rear of trans- mission, in exhaust)
Hot at all times
Idle air control (iac) valve (on top front of engine)
Ignition coil
Ignition coil 4
Knock sensor
Mass air flow (maf) sensor (right side of engine compt, within air cleaner assembly)
Powertrain control module (pcm) (right rear of engine compt, through firewall)
Red
Red/pnk
Ref volt
S107
S117 (dash to headlight junction harness, near breakout for abs control module)
S129
S140
S141
S236
Shift sol c
Shift solenoids
Signal rtn
Smart junction box (sjb) (behind right side of dash)
System
Tan
Torque converter clutch (tcc) solenoid
Transmission fluid temperature (tft) sensor
Turbine shaft speed (tss) sensor

Система Фар

Электросхема фар, С DRL для Ford Ranger 2005

Электросхема фар, С DRL для Ford Ranger 2005 - Список элементов:

48

(in dash to headlight junction harness, near breakout for g102) s122
Battery junction box (bjb) (at left rear side of engine compt)
C202b
C220b
C2280a
C2280c
Drl driver
Flash to pass
Fog lamp relay
Fog lamp switch
Fuse 10a
Fuse 15a
Fuse 30a
G103 (at left side of engine compt)
G105 (at right rear of engine compt)
G200 (at left kick panel)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Head
High
High beam ind
Hot at all times
Instrument cluster
Interior lights system
Left front fog lamp
Left head- lamp
Low
Low current board
Main light switch
Microprocessor
Multi-function switch
Off
Park
Parking brake switch (below left side of dash, on park brake assembly)
Pwr
Right front fog lamp
Right head- lamp
S102
S119
S123
S203
S209
S215
S501
Smart junction box (sjb) (behind right side of dash)
Tan/orh
Vbatt
Vref

Электросхема фар, без DRL для Ford Ranger 2005

Электросхема фар, без DRL для Ford Ranger 2005 - Список элементов:

41

(in dash to headlight junction harness, near breakout for g102) s122
Battery junction box (bjb) (at left rear side of engine compt)
C202b
C220b
C2280a
C2280c
Flash to pass
Fog lamp relay
Fog lamp switch
Fuse 10a
Fuse 15a
Fuse 30a
G103 (at left side of engine compt)
G105 (at right rear of engine compt)
G204 (under front of center console)
G205 (at left front of vehicle floor)
Head
High
High beam ind
Hot at all times
Instrument cluster
Interior lights system
Left front fog lamp
Left head- lamp
Low
Low current board
Main light switch
Microprocessor
Multi-function switch
Off
Park
Pwr
Right front fog lamp
Right head- lamp
S119
S123
S203
S209
S215
Smart junction box (sjb) (behind right side of dash)
Vbatt

Стартер Генератор

Электросхема Генератора для Ford Ranger 2005

Электросхема Генератора для Ford Ranger 2005 - Список элементов:

24

3.0l, 4.0l
Battery
Battery junction box (bjb) (at left rear side of engine compt)
C102a
C102c
C220a
C220b
C2280b
C2280c
Charge indicator
Fuse 10a
Fuse 5a
G100 (at left front of engine compt)
G101 (at left rear of engine)
Generator
Hot in run or start
Instrument cluster
Microprocessor
Red
S130
S131
S223
Smart junction box (sjb) (behind right side of dash)
Starter motor

Электросхема стартера для Ford Ranger 2005

Электросхема стартера для Ford Ranger 2005 - Список элементов:

29

2.3l except 2.3l
A/t
Acc
Battery
Battery junction box (bjb) (at left rear side of engine compt)
C2280a
C2280b
Charging circuit
Clutch pedal position switch (behind left side of dash, top of brake pedal support)
Digital transmission range (dtr) sensor (left side of transmission)
Fuse 40a
Fuse 5a
G100 (at left front of engine compt)
G101 (at left rear of engine)
Ignition switch
Lock
M/t
Off
Pnk
Pnk (or tan/red)
Powertrain control module (pcm) (right rear of engine compt through firewall)
Red
Run
S228
Smart junction box (sjb) (behind right side of dash)
Start
Starter motor
Starter relay
Tan/red

Стеклоочистители и Стеклоомыватели Дворники

Электросхема стеклоочистителя, дворников и омывателя для Ford Ranger 2005

Электросхема стеклоочистителя, дворников и омывателя для Ford Ranger 2005 - Список элементов:

30

(at left front of vehicle floor) g205
0. off 1. high 2. low 6. wash 7. mist 21. interval 1 22. interval 2 23. interval 3 24. interval 4 25. interval 5
Battery junction box (bjb) (at left rear side of engine compartment)
C2280a
Circuit breaker
Fuse 5 30a
G103 (at left side of engine compartment)
G105 (at right rear of engine compartment)
Hot in run or acc
Multi-function switch
Park
Park sense
Red
Run
Run/park relay control
S109 (in dash to headlight junction harness, at breakout for c100)
S110
S123
S127
S236
Smart junction box (sjb) (behind right side of dash)
Tan/red
Vref
Washer pump relay control
Windshield washer pump motor (right rear of engine compartment, on washer fluid reservoir)
Windshield washer relay
Windshield wiper motor (top left center of firewall)
Wiper high/low relay
Wiper high/low relay control
Wiper run/ park relay

ЦЕНТРАЛЬНЫЙ ЗАМОК

Электросхема центрального замка для Ford Ranger 2005

Электросхема центрального замка для Ford Ranger 2005 - Список элементов:

46

(at left front of vehicle floor)
C2280a
C2280b
C2280c
C2280d
Data link connector (dlc) (at bottom of steering column)
Door lock/
Driver door unlock relay
Driver side door lock switch
Driver side rear door ajar switch (4 door) (at bottom rear of left rear door)
Exterior lights system
Fuse 10a
Fuse 15a
Fuse 20a
Fuse 5a
G200 (at left kick panel)
G204 (under front of center console)
G205
G205 (at left front of vehicle floor)
Horn relay
Horns system
Hot at all times
Instrument cluster system
Interior lights system
Left front door ajar switch (at rear of left front door)
Left front door lock actuator (w/ power equipment: at rear of left front door)
Lock
Low current board
Main light switch
Park lamp relay
Passenger side door lock switch
Passenger side rear door ajar switch (4 door) (at bottom rear right rear door)
Red
Right front door ajar switch (at rear of right front door)
Right front door lock actuator (w/ power equipment: at rear of right front door)
S203
S209
S234 (in main harness, near breakout for audio unit)
S409
S410 (w/ 4 door) (in interior light harness, near breakout for c710)
S501
S600
S600 (w/ power equipment)
Smart junction box (sjb) (behind right side of dash)
Unlock
Unlock relay
