4.9L 4.9L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 4.9L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 - Список элементов: 93 dlc (+) gnd (1993 models) (1994 models) (4.9 & 7.5l) (5.8l) (engine (engine compartment (i/p assembly (interior (left front corner of vehicle) (left front of engine compartment, near park/turn lamp) (left rear side of engine compartment, near master cylinder) (left side of engine compartment near battery) (partial) (partial) 4.9l 4.9l & 5.8l 5.8l & 5.8l & 7.5l 7.5l A/c clutch cycling A/c cutout pressure switch Accs Assembly) Behind cluster) Boo Brake on/off switch Ccs Coast clutch sol Compartment Converter clutch control sol Data link connector Distributor Dlc Dlc (-) E40d transmission Egr valve position sensor Elect pressure control sol Engine compartment fuse panel (left front of engine compartment) Engine coolant temperature sensor (top front of Engine) Epc Fuel injectors Fuel pump relay Fuse Fuse #5 Fuse #7 (interior fuse panel) Fuse c Fuse panel) Fuse u G100 G201 Gnd Ho2s gnd Iat Icm Ignition control module Intake air temperature sensor (right side of engine near fuel injector; #1 (4.9l engine) #6 (5.8l & 7.5l engines) Kapwr Mal ind Malfunction ind (inst clstr) Manifold absolute pressure (map) sensor (right side of engine near blower motor) Manual lever position sensor (mlps) (left side of transmission) Map Mlp Nca Off Or, Panel) Pcm power relay Powertrain control module (pcm) (4.9l, 5.8l, & 7.5l w/e4od transmission) Pressure switch Programmable speedometer odometer module (psom) Red Shift sol #1 Shift sol #2 Sig rtn Speed control servo/amplifier assembly Ss1 Ss2 Tccs Tcil Tcsi Tfti Throttle position sensor (top left side of engine) (top right front of engine) Trans oil temp sensor Transmission control switch (steering column Vip data link connector Vpwr Vref Vss (+) Vss (-)
5.0L 5.0L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 5.0L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 - Список элементов: 84 (1993 models) (1993 models) (1994 models) (5.0l w/4r70w transmission) (center of engine compartment) (center of engine compartment) (engine (engine compartment (left front of engine compartment, near park/turn lamp) (left rear side of engine compartment, near master cylinder) (left side of engine compartment near battery) (partial) (steering column assembly) 4r70w transmission A/c clutch cycling pressure switch A/c cutout pressure switch (1994 models) Accs Boo Brake on/off switch Clutch control Compartment Converter Data link connector Distributor Dlc Dlc (+) Dlc (-) Egr valve position sensor Elect Engine compartment fuse panel (left front of engine compartment) Epc Fuel injectors Fuel pump relay Fuse # 7 (interior fuse panel) Fuse #5 (interior Fuse c Fuse panel) Fuse u G100 G201 (i/p assembly behind cluster) Gnd Iat Icm Ignition control module Intake air temperature sensor Kapwr Maf Mafs Mal ind Malfunction ind (inst clstr) Manual lever position sensor (mlps) (left side of transmission) Mass air flow (maf) sensor Mlps Nca Off Oil temp sensor Oss Output shaft speed sensor (left rear of Pcm power relay Powertrain control module (pcm) Pressure control Programmable speedometer odometer module (psom) Red Shift Sig rtn Sol Sol #1 Sol #2 Speed control servo/amplifier assembly Ss1 Ss2 Tcc Tcil Tcs Tfti Throttle position sensor (top right front of engine) Trans Transmission control switch Transmission) Vip data link connector Vpwr Vref Vss (+) Vss (-)
5.8L 5.8L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 5.8L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 - Список элементов: 93 dlc (+) gnd (1993 models) (1994 models) (4.9 & 7.5l) (5.8l) (engine (engine compartment (i/p assembly (interior (left front corner of vehicle) (left front of engine compartment, near park/turn lamp) (left rear side of engine compartment, near master cylinder) (left side of engine compartment near battery) (partial) (partial) 4.9l 4.9l & 5.8l 5.8l & 5.8l & 7.5l 7.5l A/c clutch cycling A/c cutout pressure switch Accs Assembly) Behind cluster) Boo Brake on/off switch Ccs Coast clutch sol Compartment Converter clutch control sol Data link connector Distributor Dlc Dlc (-) E40d transmission Egr valve position sensor Elect pressure control sol Engine compartment fuse panel (left front of engine compartment) Engine coolant temperature sensor (top front of Engine) Epc Fuel injectors Fuel pump relay Fuse Fuse #5 Fuse #7 (interior fuse panel) Fuse c Fuse panel) Fuse u G100 G201 Gnd Ho2s gnd Iat Icm Ignition control module Intake air temperature sensor (right side of engine near fuel injector; #1 (4.9l engine) #6 (5.8l & 7.5l engines) Kapwr Mal ind Malfunction ind (inst clstr) Manifold absolute pressure (map) sensor (right side of engine near blower motor) Manual lever position sensor (mlps) (left side of transmission) Map Mlp Nca Off Or, Panel) Pcm power relay Powertrain control module (pcm) (4.9l, 5.8l, & 7.5l w/e4od transmission) Pressure switch Programmable speedometer odometer module (psom) Red Shift sol #1 Shift sol #2 Sig rtn Speed control servo/amplifier assembly Ss1 Ss2 Tccs Tcil Tcsi Tfti Throttle position sensor (top left side of engine) (top right front of engine) Trans oil temp sensor Transmission control switch (steering column Vip data link connector Vpwr Vref Vss (+) Vss (-)
7.3L 7.3L дизель, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 7.3L дизель, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 - Список элементов: 83 (engine (engine compartment (left front of engine compartment, near park/turn lamp) (left front of engine compartment) (left rear of engine compt near master cyl) (left side of (left side of transmission) (mlps) (psom) 1448 ohms 1993 1994 211 ohms 401 ohms 4189 ohms 733 ohms 86 ohms A/c clutch A/c press cut Accs Barometric pressure (bp) sensor (right side of engine near blower motor) Behind cluster) Boo Brake on/off sw Case gnd Ccc Ccs Coast clutch sol Compartment Converter clutch control sol Cycling press Data link connector E40d transmission Elect pressure control sol Eng compt near batt) Engine compartment fuse panel Engine rpm sensor (ctr frt of eng near tps) Epc Epcpwr Fipl Fuse #5 (interior f/b) Fuse 7 (interior fuse block) Fuse c Fuse link f Fuse panel) Fuse u (via power diode) G111 G201 (i/p assembly Kapwr Malfuction ind (inst clstr) Manual lever position sensor Mlp Module (pcm) (7.3l diesel) Ocil & tmil Ocs Odometer module Off Out sw Pcm power relay Powertrain control Programmable speedometer/ Pwr gnd Red Rpms+ Rpms- Shift sol #1 Shift sol #2 Sig rtn Speed control servo / amplifier assy Ss1 Ss2 Sti Sto Throttle position sensor (tps) (top left side of engine) Tot Trans oil temp sensor Transmission control switch (steering column) Via power diode (engine compartment fuse block) Vip data link connector (left front of engine compartment, near park/turn lamp) Vpwr Vref Vss dif + Vss dif -
7.5L 7.5L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 7.5L, Электросхема коробки передач АКПП для Ford RV Cutaway E350 1993 - Список элементов: 93 dlc (+) gnd (1993 models) (1994 models) (4.9 & 7.5l) (5.8l) (engine (engine compartment (i/p assembly (interior (left front corner of vehicle) (left front of engine compartment, near park/turn lamp) (left rear side of engine compartment, near master cylinder) (left side of engine compartment near battery) (partial) (partial) 4.9l 4.9l & 5.8l 5.8l & 5.8l & 7.5l 7.5l A/c clutch cycling A/c cutout pressure switch Accs Assembly) Behind cluster) Boo Brake on/off switch Ccs Coast clutch sol Compartment Converter clutch control sol Data link connector Distributor Dlc Dlc (-) E40d transmission Egr valve position sensor Elect pressure control sol Engine compartment fuse panel (left front of engine compartment) Engine coolant temperature sensor (top front of Engine) Epc Fuel injectors Fuel pump relay Fuse Fuse #5 Fuse #7 (interior fuse panel) Fuse c Fuse panel) Fuse u G100 G201 Gnd Ho2s gnd Iat Icm Ignition control module Intake air temperature sensor (right side of engine near fuel injector; #1 (4.9l engine) #6 (5.8l & 7.5l engines) Kapwr Mal ind Malfunction ind (inst clstr) Manifold absolute pressure (map) sensor (right side of engine near blower motor) Manual lever position sensor (mlps) (left side of transmission) Map Mlp Nca Off Or, Panel) Pcm power relay Powertrain control module (pcm) (4.9l, 5.8l, & 7.5l w/e4od transmission) Pressure switch Programmable speedometer odometer module (psom) Red Shift sol #1 Shift sol #2 Sig rtn Speed control servo/amplifier assembly Ss1 Ss2 Tccs Tcil Tcsi Tfti Throttle position sensor (top left side of engine) (top right front of engine) Trans oil temp sensor Transmission control switch (steering column Vip data link connector Vpwr Vref Vss (+) Vss (-)
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Ford RV Cutaway E350 1993 Электросхема звукового сигнал Гудка для Ford RV Cutaway E350 1993 - Список элементов: 18 clock spring (behind left side of cowl) g200 Anti- theft module (behind left "b" pillar) Clock spring Cruise control system Engine compartment fuse panel Fuse r 15a High pitch horn (left front of engine) Horn relay Horn switch Hot at all times Low pitch horn (right front of engine) Nca Speed control/ horn switch assembly W/ speed control W/o speed control With anti- theft only
Магнитола Мультимедия Электросхемы магнитолы для Ford RV Cutaway E350 1993 Электросхемы магнитолы для Ford RV Cutaway E350 1993 - Список элементов: 31 Batt (b+) C224 C225 Common Fuse 11 15a Fuse 8 15a G202 (left side of dash) Ground Hinged side doors Hot at all times Hot in accy or run Ignition Illum Interior fuse panel Interior lights system Lcd illum Left front Left front door speaker Left rear Left rear speaker Left side speaker Modified vehicle power tap Not used Radio Right front Right front door speaker Right rear Right rear speaker Right side door speaker Sliding door plunger contacts Sliding side door Электросхемы магнитолы, радио AM для Ford RV Cutaway E350 1993 Электросхемы магнитолы, радио AM для Ford RV Cutaway E350 1993 - Список элементов: 24 (1992 only) Batt (b+) C224 C225 Common Fuse 11 15a Fuse 8 15a G202 (left side of dash, behind cluster assy) Ground Hot at all times Hot in accy or run Ignition Illum Interior fuse panel Interior lights system Lcd illum Left front door speaker Left speaker Modified vehicle power tap (1992 only) Not used Radio Right front door speaker Right speaker Tan Электросхемы магнитолы, С Кассетная дека для Ford RV Cutaway E350 1993 Электросхемы магнитолы, С Кассетная дека для Ford RV Cutaway E350 1993 - Список элементов: 34 (left side of dash) (not used) Batt (b+) C224 C225 Common Fuse 11 15a Fuse 8 15a G202 Ground Hinged side doors Hot at all times Hot in accy or run Ignition Illum Interior fuse panel Interior lights system Lcd illum Left front Left front door speaker Left rear Left rear speaker Left side speaker Modified vehicle power tap Not used Radio Right front Right front door speaker Right rear Right rear speaker Right side door speaker Sliding door plunger contacts Sliding side door Tan Электросхемы магнитолы, С Система дистанционного управления для Ford RV Cutaway E350 1993 Электросхемы магнитолы, С Система дистанционного управления для Ford RV Cutaway E350 1993 - Список элементов: 42 Batt (b+) C224 C225 C332 Common Fuse 11 15a Fuse 8 15a G200 (left kick panel) Ground Hinged side doors Hot at all times Hot in accy or run Ignition Illum Illumination Interior fuse panel Interior lights system Lcd illum Left front Left front door speaker Left rear Left rear in Left rear out Left rear speaker Left side speaker Memory Modified vehicle power tap Not used Radio Remote radio control Right front Right front door speaker Right rear Right rear in Right rear out Right rear speaker Right side door speaker Seek down Seek up Sliding door plunger contacts Sliding side door Tan
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Ford RV Cutaway E350 1993 Электросхема привода зеркал для Ford RV Cutaway E350 1993 - Список элементов: 14 (1993 models only equipped with jumper harness) Direct- tional switch Fuse 15a G200 (behind left side of cowl) Hot at all times Interior fuse panel L/r motor Left power mirror Left/ right switch Nca Power mirror switch Red Right power mirror Up/dn motor
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Ford RV Cutaway E350 1993 Электросхема стеклоподъемников для Ford RV Cutaway E350 1993 - Список элементов: 9 (behind left side of cowl) g200 Circuit breaker 14 20a Down Hot in accy or run Interior fuse panel Left power window motor Left power window switch or master window/ door lock switch Right power window motor Right power window switch or right power door lock/ window switch
Противоугонная система Сигнализация Электросхема противоугонной сигнализации для Ford RV Cutaway E350 1993 Электросхема противоугонной сигнализации для Ford RV Cutaway E350 1993 - Список элементов: 66 starter interrupt out (right rear corner of engine compartment) hood anti-theft switch 1994 vftc c Acc Alarm indicator Anti-theft controller module (behind left side of i/p) Anti-theft indicator Arming output Battery Breaker 20a C238 C333 C334 C335 Circuit Courtesy lamps input Diode Disarm switch Door lock output Door locks system (remote keyless entry) Exterior lights system Fuse 15a Fuse 20a G106 (left side of engine compartment, near battery) G200 (behind bottom of left kick panel) G200 (behind left side of cowl) Ground Headlamps output Headlights system Hood detection input Horn relay output Horns system Hot at all times Hot in accy or run Ignition key cylinder sensor Ignition switch Instrument cluster Interior fuse panel Interior lights system (courtesy lights) Key cylinder input Key cylinder switch Left courtesy lamp switch (in left door jamb) Left door lock cylinder switch (in left front door) Lock Lock all doors Nca Off Panic activate Panic alarm input Parking lamps output Rear courtesy lamp switch (right rear door jamb) Rear door lock cylinder switch (in right front door) Red/ pnk Remote keyless entry module (behind left side of i/p) Right courtesy lamp switch (in right door jamb) Right door key cylinder switch Run Run/accy input Side door courtesy lamp switch (behind right "b" pillar) Side door unlock Start Starter interrupt in Starter interrupt out Starting system Unlock driver's door Unlock sense
СИСТЕМЫ СИДЕНИЙ Электросхема регулировки поясницы для Ford RV Cutaway E350 1993 Электросхема регулировки поясницы для Ford RV Cutaway E350 1993 - Список элементов: 14 30a 50a Driver's lumbar pump (under driver's seat) Driver's power lumbar switch (outer lower side of driver's seat) Engine compartment fuse panel Fuse 16 Fuse e G200 (behind left side of cowl) Hot at all times Interior fuse panel Passenger's lumbar pump (under passenger's seat) Passenger's power lumbar switch (outer lower side of passenger's seat) Power seats system Red Электросхема привода сидений для Ford RV Cutaway E350 1993 Электросхема привода сидений для Ford RV Cutaway E350 1993 - Список элементов: 17 (under driver's seat) Driver's seat motor assembly (under driver's seat) Driver's seat regulator control switch Engine compartment fuse panel Entire Front height motor Front of seat Fuse e 50a Fwd rwd Fwd/ rwd motor G200 (behind left side of cowl) Hot at all times Power lumbar seats system Rear height motor Rear of seat Seat Up down
Стартер Генератор
4.9L 4.9L, Электросхема Генератора для Ford RV Cutaway E350 1993 4.9L, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 25 11b 12b Accy Auxiliary battery Auxiliary battery relay (left side of engine, below headlamp) Battery Charging indicator Engine compt fuse panel Fuse 15a Fuse 30a Fuse link a Fuse link b Fuse link c Fuse t 60a Hot at all times Hot in run Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Lock Off Red Run Start 4.9L, Электросхема стартера для Ford RV Cutaway E350 1993 4.9L, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 19 * backup/neutral safety switch w/ c6 or aod trans- missions only * manual lever position sensor (left side of transmission) Accy Anti- theft module (left side of vehicle, behind "b" pillar) Battery C6 or aod only Engine controls system Except 5.0l sfi Hot at all times Ignition switch Lock Off Red Run Start Starter motor Starter motor relay (left corner of engine compt) W/ anti- theft W/o anti- theft
5.0L 5.0L MFI, Электросхема Генератора для Ford RV Cutaway E350 1993 5.0L MFI, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 25 11b 12b Accy Auxiliary battery Auxiliary battery relay (left side of engine, below headlamp) Battery Charging indicator Engine compt fuse panel Fuse 15a Fuse 30a Fuse link a Fuse link b Fuse link c Fuse t 60a Hot at all times Hot in run Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Lock Off Red Run Start 5.0L MFI, Электросхема стартера для Ford RV Cutaway E350 1993 5.0L MFI, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 19 * backup/neutral safety switch w/ c6 or aod trans- missions only * manual lever position sensor (left side of transmission) Accy Anti- theft module (left side of vehicle, behind "b" pillar) Battery C6 or aod only Engine controls system Except 5.0l sfi Hot at all times Ignition switch Lock Off Red Run Start Starter motor Starter motor relay (left corner of engine compt) W/ anti- theft W/o anti- theft 5.0L SFI, Электросхема Генератора для Ford RV Cutaway E350 1993 5.0L SFI, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 25 11b 12b Accy Auxiliary battery Auxiliary battery relay (left side of engine, below headlamp) Battery Charging indicator Engine compt fuse panel Fuse 15a Fuse 30a Fuse link a Fuse link b Fuse link c Fuse t 60a Hot at all times Hot in run Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Lock Off Red Run Start 5.0L SFI, Электросхема стартера для Ford RV Cutaway E350 1993 5.0L SFI, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 19 * backup/neutral safety switch w/ c6 or aod trans- missions only * manual lever position sensor (left side of transmission) Accy Anti- theft module (left side of vehicle, behind "b" pillar) Battery C6 or aod only Engine controls system Except 5.0l sfi Hot at all times Ignition switch Lock Off Red Run Start Starter motor Starter motor relay (left corner of engine compt) W/ anti- theft W/o anti- theft
5.8L 5.8L, Электросхема Генератора для Ford RV Cutaway E350 1993 5.8L, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 25 11b 12b Accy Auxiliary battery Auxiliary battery relay (left side of engine, below headlamp) Battery Charging indicator Engine compt fuse panel Fuse 15a Fuse 30a Fuse link a Fuse link b Fuse link c Fuse t 60a Hot at all times Hot in run Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Lock Off Red Run Start 5.8L, Электросхема стартера для Ford RV Cutaway E350 1993 5.8L, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 19 * backup/neutral safety switch w/ c6 or aod trans- missions only * manual lever position sensor (left side of transmission) Accy Anti- theft module (left side of vehicle, behind "b" pillar) Battery C6 or aod only Engine controls system Except 5.0l sfi Hot at all times Ignition switch Lock Off Red Run Start Starter motor Starter motor relay (left corner of engine compt) W/ anti- theft W/o anti- theft
7.3L 7.3L, Электросхема Генератора для Ford RV Cutaway E350 1993 7.3L, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 18 Accy Charging indicator Fuse 30a Fuse link a Fuse link b Fuse link c Hot at all times Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Left battery Lock Off Red Right battery Run Start 7.3L, Электросхема стартера для Ford RV Cutaway E350 1993 7.3L, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 16 1992 & 1993 e40d 1993 c6 Accy Hot at all times Ignition switch Left battery Lock Manual lever position sensor (left side of transmission) Off Park/ neutral position switch (center left side of transmission) Red Right battery Run Start Starter motor Starter motor relay (left corner of engine compt)
7.5L 7.5L, Электросхема Генератора для Ford RV Cutaway E350 1993 7.5L, Электросхема Генератора для Ford RV Cutaway E350 1993 - Список элементов: 25 11b 12b Accy Auxiliary battery Auxiliary battery relay (left side of engine, below headlamp) Battery Charging indicator Engine compt fuse panel Fuse 15a Fuse 30a Fuse link a Fuse link b Fuse link c Fuse t 60a Hot at all times Hot in run Ignition switch Instrument cluster Integral alternator regulator Interior fuse panel Lock Off Red Run Start 7.5L, Электросхема стартера для Ford RV Cutaway E350 1993 7.5L, Электросхема стартера для Ford RV Cutaway E350 1993 - Список элементов: 19 * backup/neutral safety switch w/ c6 or aod trans- missions only * manual lever position sensor (left side of transmission) Accy Anti- theft module (left side of vehicle, behind "b" pillar) Battery C6 or aod only Engine controls system Except 5.0l sfi Hot at all times Ignition switch Lock Off Red Run Start Starter motor Starter motor relay (left corner of engine compt) W/ anti- theft W/o anti- theft

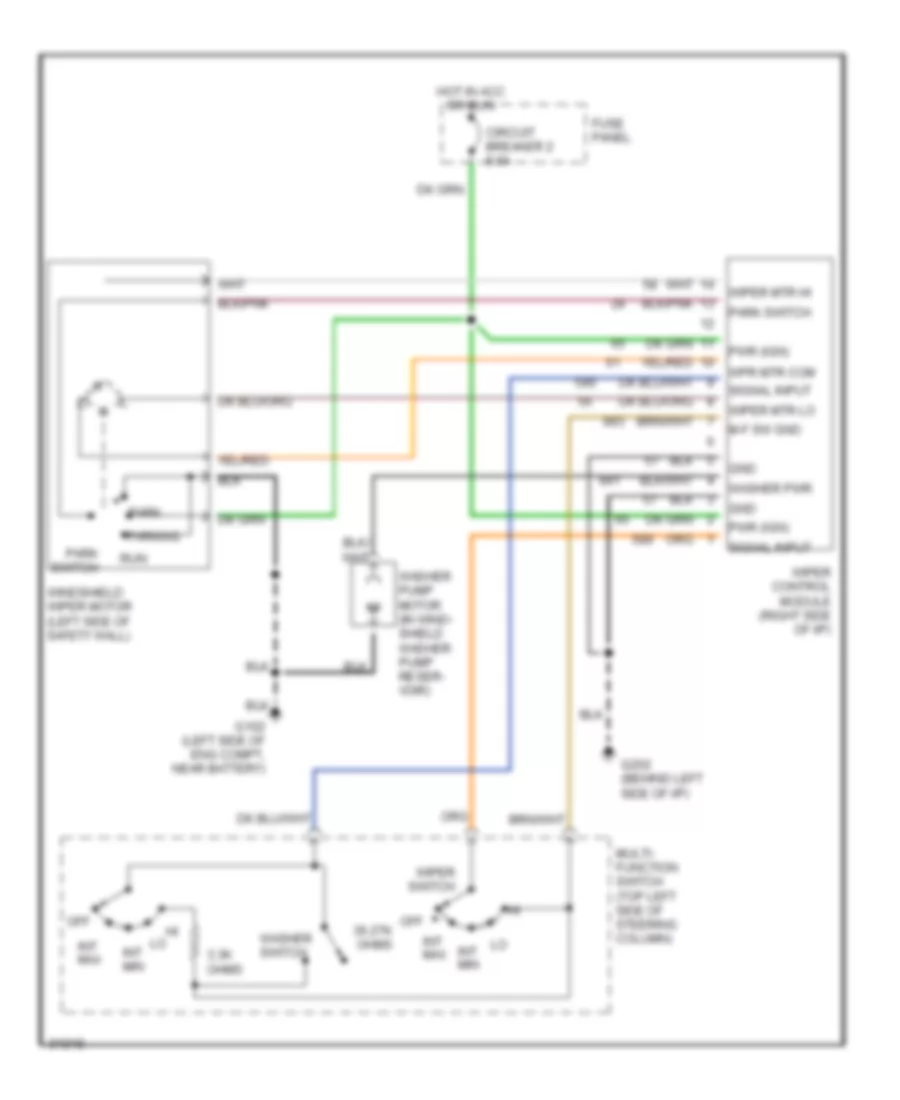

Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя для Ford RV Cutaway E350 1993 Электросхема стеклоочистителя, дворников и омывателя для Ford RV Cutaway E350 1993 - Список элементов: 28 3.3k ohms Circuit breaker 2 8.5a Fuse panel G102 (left side of eng compt, near battery) G202 (behind left side of i/p) Gnd Hot in acc or run Int max Int min M-f sw gnd Multi- function switch (top left side of steering column) Off Off 36.27k ohms Park Park switch Parking Pwr (ign) Run Signal input Washer pump motor (in wind- shield washer pump reser- voir) Washer pwr Washer switch Windshield wiper motor (left side of safety wall) Wiper control module (right side of i/p) Wiper mtr hi Wiper mtr lo Wiper switch Wpr mtr com
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка, С Замок Памяти для Ford RV Cutaway E350 1993 Электросхема центрального замка, С Замок Памяти для Ford RV Cutaway E350 1993 - Список элементов: 28 (sliding door) ** * ** master window/ door lock switch or left power door lock switch 20a Button Circuit breaker 12 Contact Dr lk (lock) Dr lk (unlock) G200 (behind left side of cowl) Ground Hot at all times Interior fuse panel Left front door Lock Lock motor Memory lock module (behind left "b" pillar) Pnk/ Power (battery) Rear door lock motor Red Right front door lock motor Right power door lock/ window switch or right power door lock switch Side door lock motor Side dr (lock) Unlock With combination power door lock/ * window switch Without combination ** power door lock/ window switch Электросхема центрального замка, без Замок Памяти для Ford RV Cutaway E350 1993 Электросхема центрального замка, без Замок Памяти для Ford RV Cutaway E350 1993 - Список элементов: 18 ** master window/ door lock switch or left power door lock switch 20a Circuit breaker 12 G200 (behind left side of cowl) Hot at all times Interior fuse panel Jumper wire Left front door lock motor Lock Pnk/ Red Right front door lock motor Right power door lock/ window switch or right power door lock switch Right rear door lock motor Side door lock motor (hinged door) Unlock With combination power door lock/ * window switch Without combination ** power door lock/ window switch Электросхема системы безключевого доступа для Ford RV Cutaway E350 1993 Электросхема системы безключевого доступа для Ford RV Cutaway E350 1993 - Список элементов: 53 (side door courtesy * w/ combination power door lock/ window switch only Anti theft module (behind left "b" pillar) Anti-theft arming output Anti-theft system Button contact (sliding door only) C333 C334 C335 C336 Door handle switch input Door lock output Driver,s door unlock Electronic power Engine compartment fuse panel Fuse 15a Fuse 20a Fuse a 50a G200 (behind left side of cowl panel) Ground Hinged door only Hot at all times Interior fuse panel Interior lamps Interior lights Interior lights system (courtesy lamp switches) Lamp switch) Left door handle switch Left front door lock motor Left power door lock switch Lock Lock input Panic activate Power Program a Program b Rear door lock motor Rear door unlock Remote keyless entry module (behind left "b" pillar) Right door disarm switch Right door handle switch Right door key cylinder switch Right front door lock motor Right power door lock switch Rke data link connector (behind left "b" pillar) Side door courtesy switch Side door lock Side door lock motor Side door unlock Switched power System Unlock Unlock input Электросхема центрального замка, С замок памяти для Ford RV Cutaway E350 1993 Электросхема центрального замка, С замок памяти для Ford RV Cutaway E350 1993 - Список элементов: 28 (sliding door) ** * ** master window/ door lock switch or left power door lock switch 20a Button Circuit breaker 12 Contact Dr lk (lock) Dr lk (unlock) G200 (behind left side of cowl) Ground Hot at all times Interior fuse panel Left front door Lock Lock motor Memory lock module (behind left "b" pillar) Pnk/ Power (battery) Rear door lock motor Red Right front door lock motor Right power door lock/ window switch or right power door lock switch Side door lock motor Side dr (lock) Unlock With combination power door lock/ * window switch Without combination ** power door lock/ window switch Электросхема центрального замка, без Вход Без ключа для Ford RV Cutaway E350 1993 Электросхема центрального замка, без Вход Без ключа для Ford RV Cutaway E350 1993 - Список элементов: 18 ** master window/ door lock switch or left power door lock switch 20a Circuit breaker 12 G200 (behind left side of cowl) Hot at all times Interior fuse panel Jumper wire Left front door lock motor Lock Pnk/ Red Right front door lock motor Right power door lock/ window switch or right power door lock switch Right rear door lock motor Side door lock motor (hinged door) Unlock With combination power door lock/ * window switch Without combination ** power door lock/ window switch
