АНТЕННА ПИТАНИЯ Электросхема антенны для Honda Civic del Sol S 1993 Электросхема антенны для Honda Civic del Sol S 1993 - Список элементов: 15 (below left side of i/p) 1995 vftc c Anti-theft system C202 C433 C915 Fuse 36 50a G200 (left kick panel) Hot at all times In-line fuse holder a 10a (below left side of i/p) Power antenna control Power antenna motor Power antenna relay Stereo radio/ cassette player or stereo radio/cd player Under-hood fuse/relay box
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка, С безопасность для Honda Civic del Sol S 1993 Электросхема звукового сигнал Гудка, С безопасность для Honda Civic del Sol S 1993 - Список элементов: 20 (w/ security system) C201 C447 Cruise control set/ resume switch Fuse 42 stop, horn 15a G200 High horn Horn con- trol Horn relay (under- dash fuse/ relay box) Hot at all times Junction connector (left kick panel) Left horn switch Low horn Nca Right horn switch Security control unit (below driver's seat) Si only Srs cable reel Steering wheel Under-hood fuse/ relay box Электросхема звукового сигнал Гудка, без безопасность для Honda Civic del Sol S 1993 Электросхема звукового сигнал Гудка, без безопасность для Honda Civic del Sol S 1993 - Список элементов: 18 C201 Cruise control jumper Cruise control set/ resume switch Fuse 42 stop, horn 15a G200 High horn (si only) Horn relay (under- dash fuse/ relay box) Hot at all times Junction connector (left kick panel) Left horn switch Low horn Nca Right horn switch Srs cable reel Steering wheel Under-hood fuse/ relay box W/ cruise W/o cruise
Магнитола Мультимедия Электросхемы магнитолы для Honda Civic del Sol S 1993 Электросхемы магнитолы для Honda Civic del Sol S 1993 - Список элементов: 31 (right side of steering column) 1995 vftc c Antenna Battery C204 C431 C441 C501 Clock Fuse 15a Fuse 7.5a G205 Ground Hot at all times Hot in accy or run Ignition Illum input Interior lights system Left front door speaker Left front door tweeter Left rear speaker Nca Power antenna system Pwr ant ctrl Red Right front door speaker Right front door tweeter Right rear speaker Stereo radio/ cassette player or stereo radio/cd player Under-dash fuse/relay box Under-hood fuse/relay box
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Honda Civic del Sol S 1993 Электросхема подогрева стекол и зеркал для Honda Civic del Sol S 1993 - Список элементов: 22 C205 C433 C501 Fuse 34 rr defroster 15a Fuse 7.5a G101 G200 G308 Hot at all times Hot in run Interior system lights Joint connector (front of right front fender) Joint connector (left "b" pillar) Joint connector (left kick panel) Off Rear window defogger Rear window defogger relay Rear window defogger switch Red Timer unit Under-dash fuse/relay box Under-hood fuse/relay box
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Honda Civic del Sol S 1993 Электросхема привода зеркал для Honda Civic del Sol S 1993 - Список элементов: 18 C432 Down Driver's power mirror Fuse 7.5a G200 Hot in on Junction connector (left kick panel) Left Left/right Left/right switch Mirror selector switch Power mirror switch Power window master switch Right Right power mirror Switch Under-dash fuse/relay box Up/down
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Honda Civic del Sol S 1993 Электросхема стеклоподъемников для Honda Civic del Sol S 1993 - Список элементов: 40 20a 50a Auto dn C412 C413 C431 C432 C433 Driver's motor control Driver's window motor Driver's window switch Driver's window switch input Fuse Fuse 15 10a Fuse 5 20a Fuse 7 20a Fuse 8 20a G200 Ground Hot at all times Hot in on or start Junction connector (left kick panel) Main switch Off Option fuse 36 Passenger's motor control Passenger's switch input Passenger's window motor Passenger's window switch Power input Power window control unit (behind center of i/p) Power window master switch Power window relay Pulser Pulser input Rear power window motor Rear window motor control Rear window switch Rear window switch input Under-dash fuse/relay box
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Honda Civic del Sol S 1993 Электросхема системы охлаждения для Honda Civic del Sol S 1993 - Список элементов: 21 (civic del sol) (civic) (civic) (civic del sol) C206 c205 C404 C406 C441 c431 Cooling fan fuse 33 15a Engine control module (right kick panel) Engine coolant temperature switch (right side of engine) Fuse 13 7.5a G101 G117 (right rear of engine) Hot at all times Hot in run Junction connector (front of right front fender) Radiator fan motor (right front of engine compt) Radiator fan motor noise filter (right front of engine compt) Radiator fan relay Under-dash fuse/relay box Under-hood fuse/relay box
Стартер Генератор Электросхема Генератора для Honda Civic del Sol S 1993 Электросхема Генератора для Honda Civic del Sol S 1993 - Список элементов: 24 Alternator Alternator fr signal Alternator output signal Battery Battery fuse 41 80a C404 C406 C431 C501 C509 C928 Charging system light Engine control module (ecm) (right kick panel) Fuse 15a G103 (right front shock tower) Gauge assembly Hot in on or start Integrated control unit Junction connector (left kick panel) Not used Pnk T102 Under-dash fuse/relay box Under-hood fuse/relay box Электросхема стартера, A/T для Honda Civic del Sol S 1993 Электросхема стартера, A/T для Honda Civic del Sol S 1993 - Список элементов: 25 (1992) shift lever position switch (1993) a/t gear position switch (below center console) (civic) (civic del sol) 1993: security starter relay 1992: starter cut relay b (left kick panel) Acc Battery Battery fuse 41 80a C202 c202 C443 c447 Electric load detector (eld) unit Engine controls system (fuse 18) G103 (right front shock tower) G200 (left kick panel) Ig fuse 39 50a Ignition switch Lock Security control unit (below driver's seat) Start Starter Starter motor Starter solenoid Under- hood fuse/ relay box W/ security system W/o security system Электросхема стартера, M/T для Honda Civic del Sol S 1993 Электросхема стартера, M/T для Honda Civic del Sol S 1993 - Список элементов: 26 (civic) (civic del sol) 1993: security starter relay 1992: starter cut relay b (left kick panel) 1993: starter cut relay 1992: starter cut relay a (left kick panel) Acc Battery Battery fuse 41 80a C202 c202 C443 c447 Clutch interlock switch (top of clutch pedal support) Electric load detector (eld) unit Engine controls system (fuse 18) G103 (right front shock tower) G200 G200 (left kick panel) Ig fuse 39 50a Ignition switch Joint connector (left side of i/p) Lock Security control unit (below driver's seat) Start Starter Starter motor Starter solenoid Under- hood fuse/ relay box W/ security system W/o security system

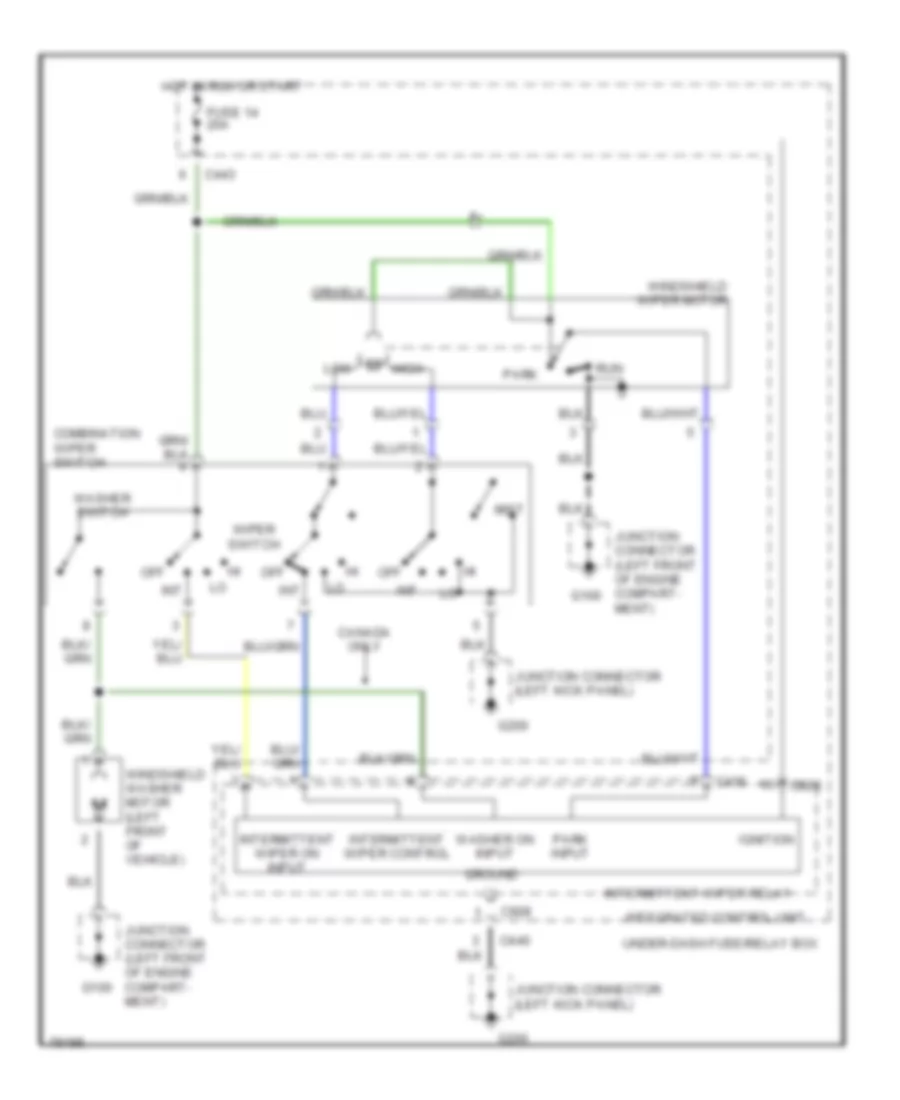

Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя для Honda Civic del Sol S 1993 Электросхема стеклоочистителя, дворников и омывателя для Honda Civic del Sol S 1993 - Список элементов: 32 C436 C440 C443 C928 Canada only Combination wiper switch Fuse 14 20a G100 G200 Ground High Hot in run or start Ignition Int Integrated control unit Intermittent wiper control Intermittent wiper on input Intermittent wiper relay Junction connector (left front of engine compart- ment) Junction connector (left kick panel) Low Mist Off Park Park input Run Under-dash fuse/relay box Washer on input Washer switch Windshield washer motor (left front of vehicle) Windshield wiper motor Wiper switch
