Разделы схем — 31 (всего 67)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала АКТИВНАЯ АЭРОДИНАМИКА АНТЕННА ПИТАНИЯ БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОК УПРАВЛЕНИЯ КУЗОВОМ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия ПАССИВНЫЕ ОГРАНИЧЕНИЯ Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Система Фар СИСТЕМЫ ПОДВЕСКИ СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК ЭЛЕКТРОННЫЙ ГЛУШИТЕЛЬ
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема коробки передач АКПП для Mitsubishi 3000GT VR-4 1994 3000 Электросхема коробки передач АКПП для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 78 (left side of dash) 4 a/t control module (behind center of dash) 4-speed a/t solenoid valve A/c relay sig A/t fluid temp sensor (on valve body) Air conditioning system (thermostat switch) Auto-cruise control unit (right kick panel) Back-up lts C70 C77 C81 Data link connector (below left side of dash) Dedicated fuse 2 (j/b) Dlc mode ctrl Dlc output Ecm pin 71 Economy Eng comm sig Engine controls system (condenser assembly) Engine controls system (ecm) Fuse 18 10a Fuse 19 10a Fuse 7 10a G123 (right side of safety wall) G123 (safety wall behind battery) G206 (below center of dash panel) G302 (right front side of center console) Gnd Hot at all times junction block Hot in run Hot in run or start Ign pulse Ignition switch Illum Instrument cluster Kickdown servo sw Kickdown servo switch (on transaxle) Nca Nca nca O/d sw Off Oil pressure control solenoid Oil temp sen Overdrive and power/economy switch Park/neutral position switch (on transaxle at linkage) Pin 46 Pin 60 Pin 7 Pnk Power nca Press ctrl sol vlv Pulse gen a Pulse gen b Pulse generators (right side of engine, on transaxle) Pwr mode sig Pwr source Pwr source backup R n Red Rheostat Sensor gnd Shift control solenoid a Shift control solenoid b Shift ctrl sol Shift ctrl sol vlv Speed sensor (reed sw) Starter motor Starter relay Storage connector (left side of dash) Tcc sol Throt pos sen Throttle position sensor (throttle body) Torque converter clutch sol valve Veh spd reed sw W/ auto- cruise W/ theft- alarm W/o auto- cruise W/o theft- alarm
АКТИВНАЯ АЭРОДИНАМИКА активная аэродинамическая схема для Mitsubishi 3000GT VR-4 1994 3000 активная аэродинамическая схема для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 35 Active aero control unit (left rear quarter panel) Active aero switch Aero ind. Auto1 Auto2 Centralized junction box (right side engine compartment) Data link connector (below right instrument cluster) Down F27 F28 Flat Front venturi skirt Fuse 10a Fuse 15a Fusible link 11 30a G202 (left side of i/p) G406 (center rear of trunk lid) G407 (center rear of trunk) Hot at all times Hot in run or start Illum. Ind. Instrument cluster Interior lights system Iod or storage connector (right eng. compt.) Junction block (left i/p) Key in Key out Key reminder switch (steering column) Nca Off Rear spoiler Red Slant Speed sensor
АНТЕННА ПИТАНИЯ Электросхема антенны для Mitsubishi 3000GT VR-4 1994 3000 Электросхема антенны для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 18 (1991-92) (1993-95) (left rear of luggage compartment) Antenna feeder cable Antenna motor Antenna motor control unit (left rear of luggage compartment) Down Fuse 10a Fuse 15a G407 (center rear of luggage compartment) Hot at all times Hot in acc or run Hot in run or start Iod or storage connector (right eng. compt.) Junction block (left i/p) Nca Pnk Radio & tape player
БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема блока предохранителей и реле (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 91 (except (left side engine compt) (right side (turbo) 10a 120a 40a 4a/t control module 60a A/c compressor lock controller A/c control unit A/t Abs Abs power relay Alternator Auto a/c Auto- cruise control switch Auto-cruise control unit Backup light switch Battery Blower switch Canada Centralized Centralized junction box (right side engine compt) Clock spring Control Data link connector Dedicated fuse (left side of i/p) Defogger Defogger relay Dohc Door lights Drl Electronic suspension control unit Engine compt) Engine control module Fog light relay Foot lights Fuse Fuse 10a Fuse 15a Fuse 20a Fuse/ relay block Fuse/relay block Fusible link 1 Fusible link 10 40a Fusible link 3 Fusible link 4 30a Fusible link 5 40a Fusible link 6 Fusible link 7 Fusible link 9 30a G117-a/t (right rear of engine) G119-m/t (right front of engine) G123 (right side of safety wall) Head- light relay Headlights Hi speed blower Hi speed condenser fan relay Hi speed radiator fan relay Horn relay Hydraulic unit Instrument cluster Interior & exterior lights systems Junction box Keyless entry control unit Left Light automatic shut-off unit Lo speed condenser fan relay Lo speed radiator fan relay M/t Magnetic clutch relay Manual a/c Mfi relay Motor relay Park/ neutral position switch Power relay Power seat switch Power windows relay Radiator fan motor Radio Rear Red Remote mirror Right remote mirror Sohc Srs diagnosis unit Starter motor Tail light relay Turbo) Unit Электросхема блока предохранителей и реле (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема блока предохранителей и реле (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 41 (left i/p) 4ws fluid level switch A/t Acc Auto-cruise control relay Blower motor relay Canada Cd changer Centralized junction box (right side engine compt) Column switch Dome light assembly Drl control unit Engine control module Etacs unit Front wiper motor Fuse Fuse 10a Fuse 15a Fuse 30a Gauges cluster Generator relay Hazard switch Ignition switch Instrument cluster Iod or storage connector Junction block Keyless entry control unit Lock M/t Main switch Park/ neutral position switch Radio Red Run Sohc & federal dohc w/o turbo only Speed sensor Srs diag- nosis unit Start Starter relay Stop light switch Theft- alarm horn relay Электросхема блока предохранителей и реле (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема блока предохранителей и реле (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 40 (w/keyless entry) * ** *sohc & dohc non-turbo (federal/canada) **turbo & dohc non-turbo (california) 4a/t control module A/t only Accessory Amplifier Antenna motor control unit Auto- cruise control unit Capacitor Cigar Condenser assembly Dohc Door lock relay no.1 Door lock relay no.2 Engine control module Etacs unit G202 (left side of i/p) Ignition coil Ignition coil 1-4 Ignition coil 2-5 Ignition coil 3-6 Ignition key illumination light Ignition power transistor Instrument cluster Key reminder switch Left front seat belt switch Lighter Luggage comptartment light Mfi relay Nca O/d & power/ economy switch Park/ neutral position switch Rear intermittent wiper relay Rear wiper motor Rear wiper/ washer switch Remote controlled mirror switch Right front seat belt switch Socket Sohc
БЛОК УПРАВЛЕНИЯ КУЗОВОМ схема единицы Etacs, С противоугонная для Mitsubishi 3000GT VR-4 1994 3000 схема единицы Etacs, С противоугонная для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 49 (a/t) (m/t) (right of Alternator Connector Data link Defogger relay Defogger switch Diode Door lock switches, door lock power relay Etacs unit (left of steering column) Front washer motor Fuse Fuse 10a Fuse 15a G202 (left side of i/p) Hood switch Hot at all times Hot in acc Hot in run Interior lights system Intermittent wiper switch Iod or storage connector (right eng. compt) Junction block (left i/p) Key reminder switch Keyless entry control unit Left & right door switches, door ind. Left door key cylinder unlock switch Left door lock actuator Left seat belt switch, diode Liftgate cylinder lock switch Liftgate switch Light automatic shut-off unit Or run Or start Power windows relay, seat belt solenoids Red Right door key cylinder unlock switch Right door lock actuator Security ind. Starter relay Steering column) Theft alarm horn relay Theft alarm starter relay Washer switch Wiper relay Wiper switch схема единицы Etacs, без противоугонная для Mitsubishi 3000GT VR-4 1994 3000 схема единицы Etacs, без противоугонная для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (right of Alternator Connector Data link Defogger relay Defogger switch Door lock switches, door lock power relay Etacs unit (left of steering column) Front washer motor washer switch Fuse Fuse 10a Fuse 15a G202 (left side of i/p) Hot at all times Hot in acc Hot in run Interior lights system Intermittent wiper switch Iod or storage connector (right eng. compt.) Junction block (left i/p) Key reminder switch Left door lock actuator Left door switch, left door light Left seat belt switch, diode Light & right door switches, door ind. Or run Or start Power windows relay, seat belt solenoids Red Right door lock actuator Right door switch, right door light Steering column) Wiper relay Wiper switch
ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Mitsubishi 3000GT VR-4 1994 3000 Электросхема заднего хода для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 13 (lh) (on transaxle) (rh) A/t Back up light switch (on transaxle) Back up lights Fuse 10a G407 (center rear of trunk) Hot in start or run Junction block (left i/p) M/t Park/ neutral position switch Red парк, остановка, хвост и схема ламп поворота, большой бампер для Mitsubishi 3000GT VR-4 1994 3000 парк, остановка, хвост и схема ламп поворота, большой бампер для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 58 tail (center rear of trunk) e (right side of engine compt) All times Centralized Column switch (light switch) Column switch (turn- signal Door switch Fuse 10a Fuse 15a Fuse 15a Fuse 2 15a Fuse 6 10a Fusible link 3 40a G100 (left front fender) G101 (right front fender) G202 (left side G406 (center rear of trunk lid) G407 G407 (center rear of trunk) Hazard Hazard switch Head High mounted stop lights Hot at Hot at all times Hot in run or start Hot in run or start Instrument cluster Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left Left Left front park/ turn light Left rear tail/ stop/ turn lights License plate lights Light automatic shut-off unit (forward of left rear wheelwell) Nca Of i/p) Off Red Rheostat Right front park/ turn light Right rear tail/ stop/ turn lights Right turn ind. Solid state Stop light switch Switch) Tail Tail- light relay Turn ind. Turn signal/ hazard flasher unit (left kick panel) парк, остановка, хвост и схема ламп поворота, маленький тип бампера 1 для Mitsubishi 3000GT VR-4 1994 3000 парк, остановка, хвост и схема ламп поворота, маленький тип бампера 1 для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 57 hazard switch tail head light automatic shut-off unit (forward of left rear wheelwell) (center rear of trunk) (right side of engine compt) All times Centralized Column switch (light switch) Column switch (turn- signal Fender) Fuse 15a Fuse 10a Fuse 15a Fuse 2 15a Fuse 6 10a Fusible link 3 40a G100 (left front G101 (right front fender) G202 (left side G202 (left side of i/p) G406 (center rear of trunk lid) G407 G407 (center rear of trunk) Hazard Head High mounted stop lights Hot at Hot at all times Hot in run or start Instrument cluster Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left door switch Left front park/ turn light Left rear tail/ stop/ turn lights Left turn ind. License plate lights Nca Of i/p) Off Red Rheostat Right front park/ turn light Right rear tail/ stop/ turn lights Right turn ind. Solid state Stop light switch Switch) Tail Tail- light relay Turn signal & hazard flasher unit (left kick panel) парк, остановка, хвост и схема ламп поворота, маленький тип бампера 2 для Mitsubishi 3000GT VR-4 1994 3000 парк, остановка, хвост и схема ламп поворота, маленький тип бампера 2 для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 58 rheostat tail (center rear of trunk) off (right side of engine compt) All times Centralized Column switch (light switch) Column switch (turn- signal Fender) Fuse 15a Fuse 10a Fuse 15a Fuse 2 15a Fuse 6 10a Fusible link 3 40a G100 (left front G101 (right front fender) G202 (left side G202 (left side of i/p) G406 (center rear of trunk lid) G407 G407 (center rear of trunk) Hazard Hazard switch Head High mounted stop lights Hot at Hot at all times Hot in run or start Hot in run or start Instrument cluster Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left door switch Left front park/ turn light Left rear tail/ stop/ turn lights Left turn ind. License plate lights Light automatic shut-off unit (forward of left rear wheelwell) Nca Of i/p) Off Red Right front park/ turn light Right rear tail/ stop/ turn lights Right turn ind. Solid state Stop light switch Switch) Tail Tail- light relay Turn signal & hazard flasher unit (left kick panel)
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подсветки для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 35 * ** * ** *w/ anti-theft **w/o anti-theft Data link connector (right of steering column) Dome light assembly Dome lights Door Door ind. Door switch (closed w/door open) Etacs unit (left of steering column) Fuse 10a Fuse 15a G202 (left Hot at all times Hot in run or start Ignition key cylinder illum. light Instrument cluster Iod or storage connector (right eng. compt.) Junction block (left i/p) Left Left door light Left foot light Luggage compt light Luggage compt light switch Map lights Of i/p) Off Red Right Right door light Right foot light Side Timer W/o anti- theft Электросхема подсветки приборов для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подсветки приборов для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 60 (2) (5 bulbs) (light switch) (right side of engine compt) A/c control panel (auto a/c) A/c switch Active aero switch (3000 gt) Active exhaust switch All times Ashtray Centralized Cigar lighter Column switch Defogger switch Ecs switch Fog light switch Fuse 10a Fuse 2 15a Fusible link 3 40a G202 (left side Gauges cluster Glove box illum. light Glove box illum. light switch Hazard switch Head Heater control panel Hot at Hot at all times Hot in run or start Ill. Illumination Inspection light Inspection light switch Instrument cluster Instrument cluster system Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left vanity mirror light Light Light automatic shut-off unit (forward of left rear wheelwell) Main switch Nca O/d & power/ economy switch Od off ind. Of i/p) Off Power ind. Radio Rear wiper/ washer switch Red Rheostat Right vanity mirror light Solid state Sport ind. Tail Tail- light relay Tour ind.
ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подключение массы заземления (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 50 (a/t) (below center console) (california) (dohc) (federal & canada non-turbo) (federal & canada) (left) (right rear (sohc) (turbo & california non-turbo) 4a/t control module (a/t) Battery Cam- shaft position sensor Camshaft & crankshaft position sensor Charging system Condenser assembly shield Crank- shaft position sensor Dohc Dohc non-turbo Engine control module Front washer motor G117-a/t G119-m/t (right front of engine) G123 (right side of safety wall) G302 Heated oxygen sensor Heated oxygen sensor shield Ignition power transistor Knock sensor Left bank heated oxygen sensor (front) Left bank heated oxygen sensor (rear) Left bank heated oxygen sensor shield (front) Left bank heated oxygen sensor shield (rear) M/t Nca Of engine) Pulse generators shield Right bank heated oxygen sensor (front) Right bank heated oxygen sensor (rear) Right bank heated oxygen sensor shield (front) Right bank heated oxygen sensor shield (rear) Right bank heated oxygen sensor shields (front) Right front shock absorber Sohc Sohc (california) Speed sensor Starting system Turbo Turbo (california) Washer fluid level switch Электросхема подключение массы заземления (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подключение массы заземления (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 60 (auto) (man.) (left side of i/p) (small bumper- type 1) (small bumper- type 2 & large bumper) (w/ anti- theft) (w/ power windows) (w/o anti- theft) (w/o power windows) A/c compressor lock controller A/c control panel A/c control unit Accessory Auto Auto- cruise control unit Blower motor relay Blower switch Cigar lighter Clutch pedal position switch (m/t) Column switch Data link connector Defogger switch Dimmer/ passing switch Door lock power relay no.2 (w/ keyless entry) Ecs switch Engine coolant temperature sensor Etacs unit G202 Gauges cluster Hi speed blower motor relay Instrument cluster Junction block Key reminder switch (w/o anti- theft) Left door key cylinder unlock switch Left door lock actuator Left door lock switch Left remote mirror Lh lo beam head- light Light switch Main switch Manual Nca Power seat assembly Power seat switch Power window main switch Red Remote controlled mirror switch Rh lo beam head- light Rheostat Right door key cylinder unlock switch Right door lock actuator Right door lock switch Right remote mirror Socket Srs diagnosis unit Theft alarm starter relay (m/t) Turn signal & hazard flasher unit Upper beam relay W/ drl W/o drl Wiper/ washer switch Электросхема подключение массы заземления (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подключение массы заземления (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 59 (center rear of liftgate lid) (center rear of trunk) (forward of right rear wheelwell) (front left fender) (front right fender) (left front door sill) (not used) 1994 vftc c Abs control unit Active exhaust control module Active exhaust control switch Antenna motor control unit Brake fluid level switch Cd auto changer Con- denser fan motor Diode Door lock power relay no.1 Drl control unit Electronic suspension control unit Fuel pump/ sender G100 G101 G309 G401 G407 Hi speed radiator fan motor relay High mounted stop lights Hood switch Hydraulic unit Keyless entry control unit Left front park/ turn light Left front shock absorber Left horn Left rear shock absorber Left rear tail/ stop/ turn lights Lh backup light Lh fog light Lh hi beam head- light Lh license plate light Lh lo beam head- light Liftgate cylinder lock switch Liftgate switch Lo speed condenser fan motor relay Nca Radiator fan assembly Rear washer motor Resistor Rh backup light Rh fog light Rh hi beam head- light Rh license plate light Rh lo beam head- light Right front park/ turn light Right horn Right rear shock absorber Right rear tail/ stop/ turn lights Theft alarm horn W/ drl W/ fwd
Звуковой сигнал Гудок Электросхема звукового сигнал Гудка, С Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 Электросхема звукового сигнал Гудка, С Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 20 (behind (left front fender) Centralized junction box (right side of engine compt) Clock spring Cluster) Diode Etacs unit (left of steering column) Fuse 10a Fusible link 6 40a G101 (right front fender) G10o Horn relay Horn switch Hot at all times Instrument Junction block (left side of dash) Left horn Right horn Theft alarm horn Theft alarm horn relay Электросхема звукового сигнал Гудка, без Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 Электросхема звукового сигнал Гудка, без Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 10 (right Centralized junction box (right side of engine compt) Clock spring Fuse 10a G101 front fender) Horn relay Horn switch Hot at all times Left horn Right horn
Магнитола Мультимедия Электросхемы магнитолы, С усилитель для Mitsubishi 3000GT VR-4 1994 3000 Электросхемы магнитолы, С усилитель для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 43 1996 vftc c Amplifier Antenna feeder cable C70 C77 C78 C80 C81 C83 Cd auto changer Clock spring (in steering wheel) Criuise control system D36 D47 Din cable G307 (below right rear window) G407 (below trunk latch) Glass antenna Ground Hot at all times Hot in acc & run Hot in run & start Interior lights system Iod or storage connector (in engine compt) relay box) Junction block (under left side of dash) Left door speaker Left front speaker Left rear speaker Motor antenna Motor antenna control unit (behind left rear quarter panel) Multi- purpose fuse 11 15a Multi- purpose fuse 13 15a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multi- purpose fuse 6 10a Nca Pnk Radio & tape player Radio remote control switch Red Right door speaker Right front speaker Right rear speaker Электросхемы магнитолы, без усилитель для Mitsubishi 3000GT VR-4 1994 3000 Электросхемы магнитолы, без усилитель для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 42 1994-1996 1996 vftc c 1997-1999 Antenna feeder cable C70 C77 C78 C80 C81 C83 Cd auto changer Clock spring (in steering wheel) Criuise control system D36 D47 Din cable G307 (below right rear window) G407 (below trunk latch) Glass antenna Hot at all times Hot in acc & run Hot in run & start Interior lights system Iod or storage connector (in engine compt) relay box) Junction block (under left side of dash) Left door speaker Left front speaker Left rear speaker Motor antenna Motor antenna control unit (behind left rear quarter panel) Multi- purpose fuse 11 15a Multi- purpose fuse 19 10a Multi- purpose fuse 4 10a Multi- purpose fuse 6 10a Nca Pnk Radio & tape player Radio remote control switch Red Right door speaker Right front speaker Right rear speaker
ПАССИВНЫЕ ОГРАНИЧЕНИЯ электрическая схема редуктора силы для Mitsubishi 3000GT VR-4 1994 3000 электрическая схема редуктора силы для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (engine compt. relay box) C65 C66 C70 C77 C80 C83 Connector Data Data link connector (partial) (right of steering column) Etacs unit (left of steering column) Fuse 10a Fuse 15a G202 (left side of i/p, on deck crossmember) Gnd Headlights system Hot at all times Hot in 0n or start Interior lights system Iod or storage Junction block (left side of i/p) Left door switch (closed w/door open) Left front seat belt solenoid (inside retractor) Left front seat belt switch Nca Power windows system Pwr Red Right door switch (closed w/door open) Right front seat belt solenoid (inside retractor) Right front seat belt switch Timer W/ anti-theft W/o anti-theft W/o anti-theft only Warning system пассивная схема сдержанности для Mitsubishi 3000GT VR-4 1994 3000 пассивная схема сдержанности для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (engine compt. relay box) C65 C66 C70 C77 C80 C83 Connector Data Data link connector (partial) (right of steering column) Etacs unit (left of steering column) Fuse 10a Fuse 15a G202 (left side of i/p, on deck crossmember) Gnd Headlights system Hot at all times Hot in 0n or start Interior lights system Iod or storage Junction block (left side of i/p) Left door switch (closed w/door open) Left front seat belt solenoid (inside retractor) Left front seat belt switch Nca Power windows system Pwr Red Right door switch (closed w/door open) Right front seat belt solenoid (inside retractor) Right front seat belt switch Timer W/ anti-theft W/o anti-theft W/o anti-theft only Warning system
Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подогрева стекол и зеркал для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 30 (left i/p) (right eng. compt.) * ** *w/ anti-theft **w/o anti-theft Block Centralized junction box (right side engine compt) Connector Data link connector (right of steering column) Dedicated fuse (left side of i/p) Defogger Defogger relay (left i/p) Defogger switch Etacs unit (left of steering column) Fuse 10a Fuse 15a Fusible link 10 40a G202 (left side of dash) Heater Hot at all times Hot in run Hot in run or start Illumination Interior lights system Iod or storage Junction Left remote mirror On ind. Rear Red Right remote mirror
ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag для Mitsubishi 3000GT VR-4 1994 3000 Электросхема подушек безопасности SRS AirBag для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 28 (right of steering column) Air bag module (squib) Clock spring Connector Connector lock switch (incorporated in srs diagnosis connector) Data link Driver's air bag module (squib) Fuse 10a Fuse 15a G202 (left side of i/p) Hot at all times Hot in run or start Hot in start Instrument cluster Iod or storage connector (right eng. compt.) Junction block (left i/p) Left front impact sensor (left front fender) Lock Nca Pass- enger's Red Right front impact sensor (right front fender) Safing impact sensor Srs diagnosis unit (under console) Srs ind. Starting system Unlock
ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Электросхема предупреждающей системы для Mitsubishi 3000GT VR-4 1994 3000 Электросхема предупреждающей системы для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 29 Buzzer (behind center i/p support) C65 C66 C70 C80 C81 C83 Data link connector (partial) (right of steering column) Diode (c8) (behind instrument cluster) Diode (c9) (behind instrument cluster) Etacs unit (left of steering column) G202 (left side of i/p) Hot at all times Hot in on or start Instrument cluster Interior lights system Iod or storage connector Junction block (left side of i/p) Key reminder switch (closed w/ key removed) Left door switch (closed w/ door open) Multi-purpose fuse 11 15a Multi-purpose fuse 19 10a Nca Red Seat belt indicator Seat belt switch (open w/ belt buckled) Timer circuit W/ anti-theft W/o anti-theft
ПРИБОРНАЯ ПАНЕЛЬ схема приборов для Mitsubishi 3000GT VR-4 1994 3000 схема приборов для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 34 (left i/p) (left side of i/p) Block Boost gauge Center console) Centralized junction box (right side Dohc Engine control module (behind Engine coolant Except turbo Fuse 11 15a Fuse 2 15a G202 Gauges cluster Gnd Hot in run or start Hot w/ park lights on Ign Illum. control Illum. lamps Illum. power Junction Junction block (left i/p) Of engine compt) Oil gauge Oil pressure gauge unit Rheostat Sohc Solid state Temp. gauge Temperature gauge unit Turbo Turbo only Volts gauge индикаторы и схема приборов (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 индикаторы и схема приборов (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 65 (behind (below (elc-4a/t (elc-4a/t control (engine control (ex-turbo) (right eng. compt.) (turbo) ** * **w/o anti-theft *w/ anti-theft 4ws fluid level switch Acc C64 Center Centralized junction box (right side engine compt) Cluster) Clutch pedal position switch Condenser assembly Connector Console) Control module) Diode Diode (behind Dohc Eco Engine control Engine controls Engine coolant level switch Etacs unit (left of Fuse 10a G101 (right front fender) G123 (right side of safety wall) G202 (left side of i/p) Glove box) Hot at all times Hot in run Ignition power Ignition switch Instrument Iod or storage Junction block (left i/p) Left door switch (closed w/door open) Lock Module (behind Module) O/d off O/d on Overdrive & power/ economy switch Pwr Red Right door switch (closed w/door open) Run Sir diagnosis Sohc Start Starter relay Starting system (starter motor) Steering column) System Transistor Transmission Unit Warnings system (seat belt switch) Washer fluid level switch
ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Mitsubishi 3000GT VR-4 1994 3000 Электросхема привода зеркал для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 19 * ** *w/o mirror heater **w/ mirror heater Defoggers system Down switch Fuse 15a G202 (left side of dash) Heater Hot in acc Junction block (left dash) Left Left remote mirror Left switch Off Or run Remote controlled mirror switch Right Right remote mirror Right switch Up switch
ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Mitsubishi 3000GT VR-4 1994 3000 Электросхема стеклоподъемников для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 28 * ** *w/ anti-theft **w/o anti-theft Centralized junction box (right side engine compt) Data link connector (right of steering column) Down Down circuit Etacs unit (left of steering column) Fuse 10a Fuse 15a Fusible link 9 30a G202 (left side of i/p) Hot at all times Hot in run or start Iod or storage connector (right engine compt.) Junction block (left i/p) Left door switch (closed w/door open) Left window motor Lock switch One touch Power window main switch Power window sub switch Power windows relay (left i/p) Red Right door switch (closed w/door open) Right window motor Timer W/o anti- theft only
Противоугонная система Сигнализация Электросхема противоугонной сигнализации (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема противоугонной сигнализации (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 32 (right eng. compt.) 1994 vftc c Data link connector (right of steering column) Door switch (closed w/door open) Etacs unit (left of steering column) Fuse 10a Fuse 15a G101 (front right fender) G202 (left side G407 (center rear of trunk) Hood Hot at all times Hot in acc or run Hot in run or start Instrument cluster Iod or storage connector Junction block (left i/p) Key reminder switch Left Left door key cylinder unlock switch Left door lock actuator Liftgate Liftgate cylinder Lock Of i/p) Red Right Right door key cylinder unlock switch Right door lock actuator Security ind. Switch Unlock Электросхема противоугонной сигнализации (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема противоугонной сигнализации (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 53 (behind (right side of engine compt) 1994 vftc c A/t Acc Battery C64 Centralized Centralized junction box (right side engine compt) Centralized junction box (right side of engine compt) Clock spring Cluster) Clutch pedal position switch Column switch (dimmer) Diode Fuse 10a Fusible link 3 40a Fusible link 6 40a G101 (right front fender) G10o (left front fender) G202 (left i/p) G202 (left side of i/p) Head- light relay Horn relay Horn switch Hot at all times Hot in run or start Ignition switch Instrument Junction block (left i/p) Junction box Left high beam head- light Left horn Left low beam head- light Light automatic shut-off unit (forward of left rear wheelwell) Lock M/t Neutral position Park/ Red Relay Right high beam head- light Right horn Right low beam head- light Run Start Starter Starter motor Starter relay (left side of i/p) Switch Theft alarm horn Theft alarm horn relay Theft- alarm
СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема антиблокировочной тормозной системы АБС (ABS) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 48 (awd) (right Abs Abs control Abs ind. All times All- wheel drive only All-wheel Centralized junction box (right side engine compt) Data link connector (right of steering column) Diode (right side engine compt) Drive Drive only Engine control module (pin 44) Front-wheel Front-wheel drive only Fuse 11 15a Fuse 17 15a Fuse 19 10a Fuse 3 10a Fuse 7 10a Fusible link 7 60a G sensor (under center console) G101 (front fender) G202 (left side of i/p) G401 (forward of right rear wheelwell) Hot at Hot at all times Hot in run Hot in run or start Hydraulic unit (right front engine compt) Instrument cluster Junction block (left i/p) Left front wheel speed sensor Left rear wheel speed sensor Motor relay Pnk Power relay Red Resistor Right front wheel speed sensor Right rear wheel speed sensor Solenoid valves Stop light switch Stop lights Twisted pairs Unit (forward of right rear wheelwell) Valve relay
СИСТЕМА КОНДИЦИОНЕРА Электросхема кондиционера A/C, Автоматическая (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема кондиционера A/C, Автоматическая (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 49 (not used) (on compressor) (open above (open above 155 c) (open below (part of radiator fan assembly) ** *** ***dohc non-turbo (calif.) & turbo **dohc non-turbo (fed. & canada) 210 kpa) 2700 kpa) 4a/t control module (behind center console) A/t only All times Centralized junction box (right side engine compt) Condenser fan motor Dual pressure switch (left front engine compt) Engine compt) Engine control module (behind center console) Engine coolant level switch Engine coolant temperature sensor (right side of engine) Fuse 11 15a Fuse 3 10a Fuse 8 20a Fuse 9 10a Fuse/ Fuse/ relay block (left side engine compt) Fusible link 5 40a G100 (left front fender) G101 (right front fender) G123 (right side of safety wall) Hi speed condenser fan motor relay Hi speed radiator fan motor relay Hot at Hot in run Hot in run or start Instrument cluster Junction block (left i/p) Lo speed condenser fan motor relay Lo speed radiator fan motor relay Magnetic clutch (on compressor) Magnetic clutch relay Radiator fan motor Radiator ind. Relay block (left side Resistor Solid state Speed sensor Thermostat Электросхема кондиционера A/C, Автоматическая (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема кондиционера A/C, Автоматическая (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 57 hi speed blower motor relay (behind center (behind center of dash) (below glove box) (left of (on compressor) (on evap- (on plenum) (rheostat) (right i/p) (right of steering column) (taillight A/c A/c compressor lock controller A/c control panel A/c power transistor Air Air inlet Air selection damper control motor Blend air damper Blower motor Blower motor relay Console) Control Control motor Data link connector Engine coolant temperature sensor (left of glove box) Fuse 16 30a Fuse 19 10a Fuse 3 10a G202 (left side of i/p) Glove box) Hot at all times Hot in run Ignition power Interior Iod or storage connector Junction block (left i/p) Lights system Mode selection damper Nca Orator) Photo sensor (right side of dash) Pnk Red Relay) Revolution Roof) Rpm out Sensor Sensor (center rear of Tachometer Temperature Thermo sensor Transistor Unit Электросхема кондиционера A/C, Руководство (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема кондиционера A/C, Руководство (1 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 50 (not used) (on compressor) (open above (open above 155 c) (open below (part of radiator fan assembly) * ** *** ***dohc non-turbo (calif.) & turbo **dohc non-turbo (fed. & canada) *sohc 210 kpa) 2700 kpa) 4a/t control module (behind center console) A/t only All times Centralized junction box (right side engine compt) Condenser fan motor Dual pressure switch (left front engine compt) Engine compt) Engine control module (behind center console) Engine coolant level switch Engine coolant temperature sensor (right side of engine) Fuse 11 15a Fuse 3 10a Fuse 8 20a Fuse 9 10a Fuse/ Fuse/ relay block (left side engine compt) Fusible link 5 40a G100 (left front fender) G101 (right front fender) G123 (right side of safety wall) Hi speed condenser fan motor relay Hi speed radiator fan motor relay Hot at Hot in run Hot in run or start Instrument cluster Junction block (left i/p) Lo speed condenser fan motor relay Lo speed radiator fan motor relay Magnetic clutch (on compressor) Magnetic clutch relay Radiator fan motor Radiator ind. Relay block (left side Resistor Solid state Speed sensor Thermostat Электросхема кондиционера A/C, Руководство (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 Электросхема кондиционера A/C, Руководство (2 из 2) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 47 (behind center (below glove box) (on (on compressor) (on evap- (right i/p) 4a/t A/c A/c compressor lock controller A/c switch Air Air inlet Blower motor Blower motor relay Blower resistors Blower switch Condenser assembly Console) Control Control module Dohc Econo Fuse 16 30a Fuse 3 10a G202 (left side of i/p) Hi speed blower motor relay Hot at all times Hot in run Ignition power Illumination Ind. Interior lights system (rheostat) Interior lights system (taillight relay) Junction block (left i/p) Off Orator) Plenum) Red Revolution Rpm out Sensor Sohc Tacho- meter Thermo sensor Transistor Unit схема нагревателя для Mitsubishi 3000GT VR-4 1994 3000 схема нагревателя для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 15 (right i/p) Blower motor Blower motor relay Blower resistors Blower switch Fuse 16 30a Fuse 3 10a G202 (left side of i/p) Hi speed blower motor relay Hot at all times Hot in run Junction block (left i/p) Off Red
СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля, A/T для Mitsubishi 3000GT VR-4 1994 3000 Электросхема системы круизконтроля, A/T для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 50 (behind center console) (on (right eng. compt.) (right kick panel) (stop * ** *sohc & dohc (federal) w/o turbo engines, 1996 all **dohc (calif.) w/o turbo & turbo engines 4 a/t control module (behind center console) Asc ind. Auto-cruise control relay Auto-cruise control switch Auto-cruise control unit Cancel Clock spring Connector Cruise ind. Data link connector (right of steering column) Engine control module (behind center console) Exterior Fuse 10a Fuse 15a G123 (right side of safety wall) G202 (left side of i/p) Hot at all times Hot in acc Hot in run Hot in run or start Illumination Instrument cluster Interior lights system (rheostat) Interior lights system (taillight relay) Iod or storage Junction block (left i/p) Lights system Lights) Main switch Off Or run Overdrive & power/ economy switch Park/ neutral position switch Red Resume Set Starter Stop light Switch Throttle position sensor (right side of engine) Transaxle) Vacuum pump Vehicle speed sensor Электросхема системы круизконтроля, M/T для Mitsubishi 3000GT VR-4 1994 3000 Электросхема системы круизконтроля, M/T для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 44 (behind center console) (on (right eng. compt.) (right kick panel) (stop lights) * ** *sohc & dohc (federal) w/o turbo engines, 1996 all **dohc (calif.) w/o turbo & turbo engines Asc ind. Auto-cruise control relay Auto-cruise control switch Auto-cruise control unit C63 Cancel Clock spring Clutch pedal position switch Connector Cruise ind. Data link connector (right of steering column) Engine control module (behind center console) Exterior lights Fuse 10a Fuse 15a G123 (right side of safety wall) G202 (left side of i/p) Hot at all times Hot in run Hot in run or start Illumination Instrument cluster Interior lights system (rheostat) Interior lights system (taillight relay) Iod or storage Junction block (left i/p) Main switch Off Red Resume Set Stop light switch System Throttle position sensor (right side of engine) Transaxle) Vacuum pump Vehicle speed sensor
СИСТЕМА ОХЛАЖДЕНИЯ Электросхема системы охлаждения для Mitsubishi 3000GT VR-4 1994 3000 Электросхема системы охлаждения для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 48 (behind (behind center (not used) (part of radiator fan assembly) * ** *** ***dohc non-turbo (calif.) & turbo **dohc non-turbo (fed. & canada) *sohc A/c A/c system (thermostat) All times Centralized junction box (right side engine compt) Compressor Condenser fan motor Console) Control Controller Dohc Dual pressure switch Engine control module (behind center console) Engine coolant level switch Engine coolant temperature sensor (right side of engine) Fuse 11 15a Fuse 3 10a Fuse 8 20a Fuse/ relay block (left side engine compt) Fusible link 5 40a G100 (left front fender) G101 (right front fender) G123 (right side of safety wall) Hi speed Hi speed radiator fan motor relay Hot at Hot in run Hot in run or start Instrument cluster Junction block (left i/p) Lo speed condenser fan motor relay Lo speed radiator fan motor relay Lock Radiator fan motor Radiator indicator Relay Resistor Right i/p) Sohc Speed sensor Unit
СИСТЕМА ПЕРЕДАЧИ ДАННЫХ схема соединителя канала связи для Mitsubishi 3000GT VR-4 1994 3000 схема соединителя канала связи для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 38 (behind center (forward of (on transmission) (right kick (right of steering column) (under center *sohc & dohc (federal) w/o turbo engines **dohc (calif.) w/o turbo & turbo engines 1994 vftc c A/c Abs Auto-cruise Console) Control Control unit Data link connector Diagnosis Elc-4a/t control module (behind center Electronic suspension control unit (rearward of right rear wheelwell) Engine Etacs unit (left of steering column) Fuse 10a Fuse 15a G123 (right side safety wall) G202 (left side of i/p) Hot at all times Hot in run or start Instrument cluster Iod or storage connector Junction block (left i/p) Module (center Panel) Pnk Red Right rear wheelwell) Solid state Speed sensor Srs Unit
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ
3.0L 3.0L турбо DOHC, Электросхема системы управления двигателя (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L турбо DOHC, Электросхема системы управления двигателя (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (right side of safety wall, next to battery) resistor Abs control unit (w/ awd) B21 B22 Boost gauge C52 C53 Capacitor (noise filter) Check engine indicator Cooling fan relay (hi) Cooling fan relay (lo) Dedicated fuse 1 20a Engine speed detection connector (right side of safety wall) near wiper motor) Fuel injectors (top of engine) G123 (right side of firewall, near wiper motor) G206 (center of i/p, Hot at all times Ignition coil 1-4 Ignition coil 2-5 Ignition coil 3-6 Ignition power transistor Instrument cluster Magnetic clutch relay Manual & automatic a/c system Multiport fuel injection relay (under right center of dash) Nca Power Power steering pressure switch left of engine) Powertrain control module (below center of i/p) Red Spark plugs 1 & 4 Spark plugs 2 & 5 Spark plugs 3 & 6 Tachometer Thermostat Under- hood fuse block 3.0L турбо DOHC, Электросхема системы управления двигателя (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L турбо DOHC, Электросхема системы управления двигателя (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 35 (right side of engine compartment) fuel pump relay (right side of engine, below throttle body) idle speed control motor Active exhaust control module (left rear of trunk) Active exhaust switch Actuator assembly (left rear of car) C112 C59 C69 C71 C83 Dedicated fuse 2 15a Defogger relay Diode (left kick panel) Fuel pump Fuel pump check connector (right side of safety wall, near wiper motor) Fuel pump circuit resistor Full close Full open G300 (under left front seat) G407 (center rear of trunk) Hot in on or start Instrument cluster Junction block (left side of i/p) Multi- function fuse 11 15a Multi- function fuse 12 15a Nca Off Power mirror relay Red Sport Stoplight switch Taillight relay Tour Tour indicator Under- hood fuse block 3.0L турбо DOHC, Электросхема системы управления двигателя (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L турбо DOHC, Электросхема системы управления двигателя (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 38 (behind catalytic converter) (center of safety wall) (front of catalytic converter) (left side of engine) crankshaft position sensor * california models only Atmospheric sensor Automatic a/c control unit C54 C90 Camshaft position sensor (left side of engine) Data link connector (partial) (below i/p, right of steering column) Egr solenoid Egr temperature sensor (center rear of engine) Engine coolant temperature sensor (right side of engine) Evaporative emission purge solenoid Fuel pressure solenoid G123 (right side of safety wall, near wiper motor) Hot at all times Ignition timing adjustment connector (right side of safety wall, near wiper motor) Intake air temp sens Iod or storage connector (in underhood fuse block) Junction block (left side of i/p) Knock sensor (front of engine) Left bank heated oxygen sensor (front) Left bank heated oxygen sensor (rear) Multi- purpose fuse 19 10a Nca Off Pnk Powertrain control module (below center of i/p) Red Right bank heated oxygen sensor (front) Right bank heated oxygen sensor (rear) Starter relay Throttle position sensor (right side of engine) Turbocharger waste gate solenoid Vehicle speed sensor (on transaxle) Volume air flow sensor (right center of engine compartment) 3.0L DOHC, Электросхема системы управления двигателя Калифорния (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя Калифорния (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 33 (left of engine) power steering pressure switch B21 B22 C46 C52 C53 Capacitor (noise filter) Check engine indicator Cooling fan relay (hi) Cooling fan relay (lo) Dedicated fuse 1 20a Elec-4at control module (behind radio) Engine control module (below center of i/p) Engine speed detection connector (right side of safety wall) near wiper motor) Fuel injectors (top of engine) G123 (right side of firewall, near wiper motor) G206 (center of i/p, Hot at all times Ignition coil 1-4 Ignition coil 2-5 Ignition coil 3-6 Ignition power transistor Instrument cluster Magnetic clutch relay Multiport fuel injection relay (under right center of dash) Nca Red Spark plugs 1 & 4 Spark plugs 2 & 5 Spark plugs 3 & 6 Tachometer Thermostat (on a/c compressor) Under- hood fuse block 3.0L DOHC, Электросхема системы управления двигателя Калифорния (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя Калифорния (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 34 (right side of engine, below throttle body) idle speed control motor A/t Acc B10 C69 C71 C83 Dedicated fuse 2 15a Defogger relay Diode (left kick panel) Fuel pump & fuel gauge unit Fuel pump check connector (right side of safety wall, near wiper motor) G123 (right side of safety wall, near wiper motor) G407 (center rear of trunk) Hot at all times Hot in on or start Ignition switch Junction block (left side of i/p) Lock M/t Multi- purpose fuse 11 15a Multi- purpose fuse 12 15a Nca Park/neutral position switch (on transaxle) Red Run Start Starter relay Stoplight switch Taillight relay Under- hood fuse block Variable induction control motor (left side of engine) W/ anti- theft W/o anti- theft 3.0L DOHC, Электросхема системы управления двигателя Калифорния (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя Калифорния (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (behind catalytic converter) (center of safety wall) (front of catalytic converter) (left side of engine) crankshaft position sensor A/c control unit (auto a/c) Atmospheric sensor C46 C54 C90 Camshaft position sensor (left side of engine) Data link connector (partial) (below i/p, right of steering column) Egr solenoid Egr temperature sensor (center rear of engine) Elec-4a/t control module (behind radio) Engine control module (below center of i/p) Engine coolant temperature sensor (right side of engine) Evaporative emission purge solenoid G123 (right side of safety wall, near wiper motor) Hot at all times Ignition timing adjustment connector (right side of safety wall, near wiper motor) Intake air temp sens Iod or storage connector (in underhood fuse block) Junction block (left side of i/p) Knock sensor (front of engine) Left bank heated oxygen sensor (front) Left bank heated oxygen sensor (rear) Multi- purpose fuse 19 10a Nca Off Pnk Red Right bank heated oxygen sensor (front) Right bank heated oxygen sensor (rear) Throttle position sensor (right side of engine) Vehicle speed sensor (reed switch) (behind speedometer) Volume air flow sensor (right center of engine compartment) 3.0L DOHC, Электросхема системы управления двигателя федеральный (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя федеральный (1 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 34 (left of engine) power steering pressure switch (right side of safety wall, near wiper motor) ignition timing adjustment connector B21 B22 C46 C52 C54 Capacitor (noise filter) Check engine indicator Data link connector (partial) (below i/p, right of steering column) Dedicated fuse 1 20a Elec-4at control module (behind radio) Engine control module (below center of i/p) Engine speed detection connector (right side of safety wall) near wiper motor) Fuel injectors (top of engine) G123 (right side of firewall, near wiper motor) G206 (center of i/p, Hot at all times Ignition coil 1-4 Ignition coil 2-5 Ignition coil 3-6 Ignition power transistor Instrument cluster Magnetic clutch relay Multiport fuel injection relay (under right center of dash) Nca Pnk Red Spark plugs 1 & 4 Spark plugs 2 & 5 Spark plugs 3 & 6 Tachometer Thermostat (on a/c compressor) Under- hood fuse block 3.0L DOHC, Электросхема системы управления двигателя федеральный (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя федеральный (2 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 34 (right side of engine, below throttle body) idle speed control motor A/t Acc B10 C69 C71 C83 Dedicated fuse 2 15a Defogger relay Diode (left kick panel) Fuel pump & fuel gauge unit Fuel pump check connector (right side of safety wall, near wiper motor) G123 (right side of safety wall, near wiper motor) G407 (center rear of trunk) Hot at all times Hot in on or start Ignition switch Junction block (left side of i/p) Lock M/t Multi- function fuse 11 15a Multi- function fuse 12 15a Nca Park/neutral position switch (on transaxle) Red Run Start Starter relay Stoplight switch Taillight relay Under- hood fuse block Variable induction control motor (left side of engine) W/ anti- theft W/o anti- theft 3.0L DOHC, Электросхема системы управления двигателя федеральный (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 3.0L DOHC, Электросхема системы управления двигателя федеральный (3 из 3) для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 26 (center of safety wall) (left side of engine) crankshaft position sensor Atmospheric sensor C46 C53 Camshaft position sensor (left side of engine) Cooling fan Egr solenoid Elec-4a/t control module (behind radio) Engine control module (below center of i/p) Engine coolant temperature sensor (right side of engine) Evaporative emission purge solenoid G123 (right side of safety wall, near wiper motor) Heated oxygen sensor Hot at all times Intake air temp sens Iod or storage connector (in underhood fuse block) Junction block (left side of i/p) Knock sensor (front of engine) Multi- purpose fuse 19 10a Nca Off Red Throttle position sensor (right side of engine) Vehicle speed sensor (reed switch) (behind speedometer) Volume air flow sensor (right center of engine compartment)
Система Фар схема противотуманных фар для Mitsubishi 3000GT VR-4 1994 3000 схема противотуманных фар для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 36 (dimmer- passing switch) (etacs unit) (light switch) (rheostat) (right side of engine compt) Anti- theft system Centralized Centralized junction box (right side of engine compt) Column switch Exterior lights system Fender) Fog light relay Fog light switch Fuse 10a Fuse 15a Fusible link 3 40a G100 (left front G202 (left side Head Head- light relay Hot at all times Hot in run or start Illum. Interior lights system Interior lights system (taillight relay) Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left door switch Left fog light Light automatic shut-off unit (forward of left rear wheelwell) Of i/p) Off Red Right fog light Tail Электросхема фар для Mitsubishi 3000GT VR-4 1994 3000 Электросхема фар для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 35 (dimmer- passing switch) (light switch) (right side of engine compt) Centralized Centralized junction box (right side of engine compt) Cluster Column switch Data link connector (right of steering column) Etacs unit (left of steering column) Exterior lights system Fuse 10a Fuse 15a Fusible link 3 40a G202 (left side Head Head- light relay Hi beam ind. High beam head- light Hot at all times Hot in acc or run Hot in run or start Instrument Iod or storage connector (right eng. compt.) Junction block (left i/p) Junction box Left Left door switch Light automatic shut-off unit (forward of left rear wheelwell) Low beam head- light Of i/p) Off Red Right Tail With anti- theft
СИСТЕМЫ ПОДВЕСКИ Электросхема электроники подвески для Mitsubishi 3000GT VR-4 1994 3000 Электросхема электроники подвески для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 54 (auto-cruise control unit) (center rear (left shock (right side of (right side of engine) (under left front seat) * ** **sohc & dohc (federal) w/o turbo engines *dohc (calif.) w/o turbo & turbo engines 1994 vftc c All times Amplifier Connector Control system Cruise Data link connector (right of steering column) Ecs switch Electronic suspension control unit (rearward of right rear wheelwell) Engine control module (behind center console) Fuse 11 15a Fuse 17 15a Fuse 19 10a Fuse 3 10a G sensor G102 G123 G123 (right side of safety wall) G202 (left side of i/p) G407 Hot at Hot in run Hot in run or start Illumination Instrument cluster Interior lights system (rheostat) Interior lights system (taillight relay) Iod or storage Junction block (left i/p) Left front shock absorber Left rear shock absorber Nca Of trunk) Pnk Red Right front shock absorber Right rear shock absorber Safety wall) Solid state Speed sensor Sport ind. Steering wheel angle speed sensor Stop light switch Throttle position sensor Tour ind. Tower)
СИСТЕМЫ СИДЕНИЙ Электросхема привода сидений с 6 путями для Mitsubishi 3000GT VR-4 1994 3000 Электросхема привода сидений с 6 путями для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 18 Centralized junction box (right side engine compt) Down Front Front height Front height motor Fusible link 9 30a G202 (left side of dash) Height motor Hot at all times Junction block (left dash) Limit Motor Power seat switch Rear Rear height Red Slide Switch питание поясничная схема места для Mitsubishi 3000GT VR-4 1994 3000 питание поясничная схема места для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 20 * ** *w/ anti-theft **w/o anti-theft Centralized junction box (right side engine compt) Close Etacs unit (left of steering column) Fuse 15a Fusible link 9 30a G202 (left side of dash) Hot at all times Hot in run or start Junction block (left dash) Lumbar seat switch Lumbar support Lumbar support motor Power windows relay (left dash) Push Release Side support Side support motor Spread
Стартер Генератор Электросхема Генератора, DOHC для Mitsubishi 3000GT VR-4 1994 3000 Электросхема Генератора, DOHC для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 28 (right front of engine) g119-m/t g117-a/t (right rear of engine) (right side of safety wall) 120a 40a Acc Alter- nator Battery Centralized junction box (right side engine compt) Charge Defoggers system (etacs unit) Fuse 15a Fusible link 1 Fusible link 3 Fusible link 4 30a G123 Generator Ig1 Ignition switch Ind. Instrument cluster Junction block (left i/p) Lock Red Relay Run Start Starting system (starter motor) Электросхема Генератора, SOHC для Mitsubishi 3000GT VR-4 1994 3000 Электросхема Генератора, SOHC для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 25 40a Acc Alternator Battery Centralized junction box (right side engine compt) Charge Defoggers system (etacs unit) Fuse 15a Fusible link 3 Fusible link 4 30a G117-a/t (right rear of engine) G119-m/t (right front of engine) G123 (right side of safety wall) Generator Ig1 Ignition switch Ind. Instrument cluster Junction block (left i/p) Lock Red Relay Run Start Starting system (starter motor) Электросхема стартера, A/T, С Противоугонный для Mitsubishi 3000GT VR-4 1994 3000 Электросхема стартера, A/T, С Противоугонный для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 26 (left of steering column) (on transaxle) (right side 30a Acc Battery Centralized junction box Centralized junction box (right side engine compt) Engine compt) Etacs unit Fuse 10a Fusible link 4 G117 (right rear of engine) G123 (right side of safety wall) Hot at all times Ignition switch Iod or storage connector Junction block (left i/p) Key reminder switch (closed w/key in ignition switch) Lock Park/ neutral position switch Red Run Start Starter motor Starter relay Электросхема стартера, M/T, С Противоугонный для Mitsubishi 3000GT VR-4 1994 3000 Электросхема стартера, M/T, С Противоугонный для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 33 (left of steering column) (right side (srs 30a Acc Battery Centralized junction box Centralized junction box (right side engine compt) Clutch pedal position switch Diagnosis Engine compt) Etacs unit Fuse 10a Fusible link 4 G119 (right front of engine) G123 (right side of safety wall) G202 (left side of i/p) Hot at all times Ignition switch Iod or storage connector Junction block (left i/p) Key reminder switch (closed w/key in ignition switch) Lock Red Restraints Run Start Starter motor Starter relay Starter relay (left side of i/p) System Theft- alarm Unit) Электросхема стартера, без Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 Электросхема стартера, без Противоугонная для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 24 (on transaxle) (right side 30a A/t Acc Battery Centralized junction box Centralized junction box (right side engine compt) Clutch pedal position switch Engine compt) Fusible link 4 G117-a/t (right rear of engine) G119-m/t (right front of engine) G123 (right side of safety wall) G202 (left side of i/p) Ignition switch Lock M/t Park/ neutral position switch Run Srs diagnosis unit Start Starter motor Starter relay

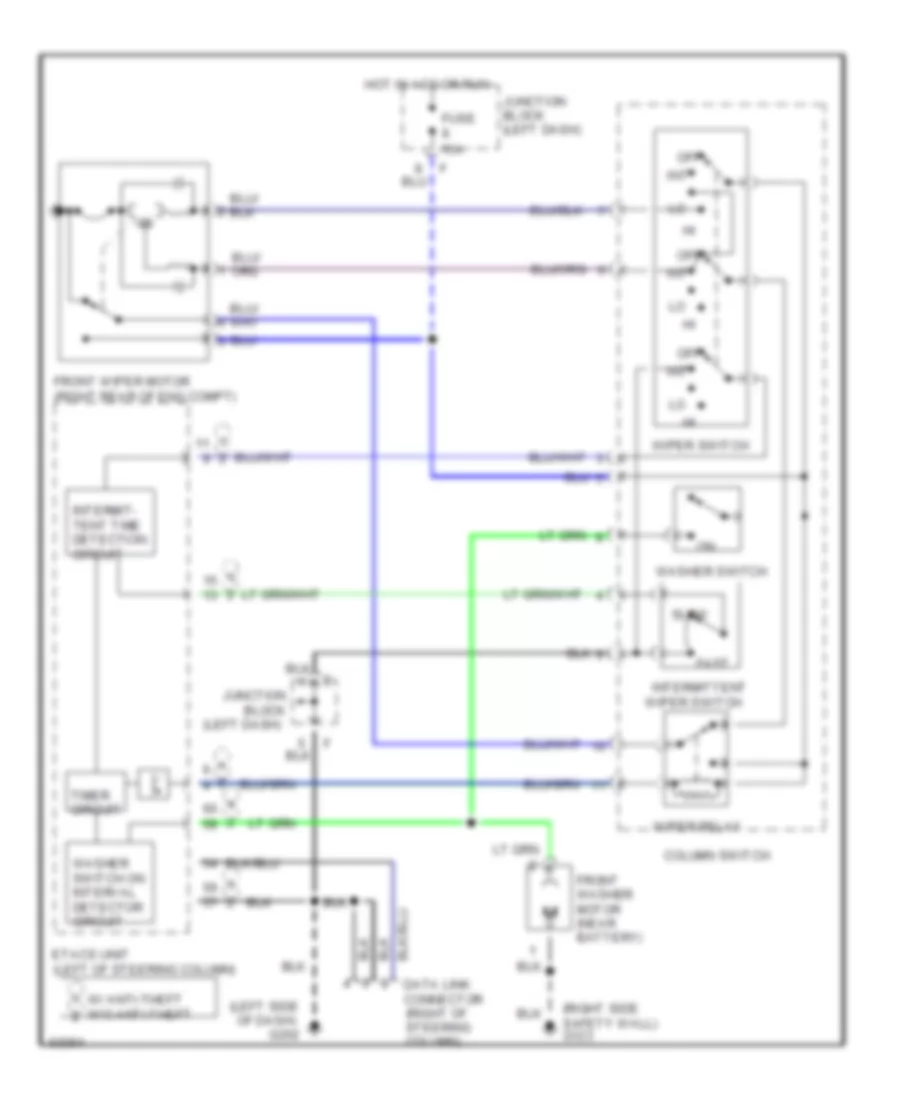

Стеклоочистители и Стеклоомыватели Дворники Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Mitsubishi 3000GT VR-4 1994 3000 Электросхема передних стеклоочистителей дворников и омывателя лобового стекла для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 27 (left dash) (left side (right side safety wall) g123 Block Column switch Data link connector (right of steering column) Etacs unit (left of steering column) Fast Front washer motor (near battery) Front wiper motor (right rear of eng compt) Fuse 15a G202 Hot in acc or run Int Intermit- tent time detection circuit Intermittent Junction Junction block (left dash) Of dash) Off Slow Timer circuit W/ anti-theft w/o anti-theft Washer switch Washer switch on interval detector circuit Wiper relay Wiper switch Электросхема заднего стеклоочистителя дворника и омывателя для Mitsubishi 3000GT VR-4 1994 3000 Электросхема заднего стеклоочистителя дворника и омывателя для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 18 (left side (right rear corner of luggage compt) rear washer motor Fuse 15a G202 G407 (center rear of trunk) Hot in acc Illumination Int Interior lights system Junction block (left i/p) Of i/p) Off Or run Rear intermittent wiper relay (behind left quarter trim panel) Rear wiper motor (behind panel, on rear deck lid) Rear wiper/ Washer switch Wiper switch
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Mitsubishi 3000GT VR-4 1994 3000 Электросхема центрального замка для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 37 (1994) * ** **** *** ***w/ pwr windows ****w/o pwr windows *w/ anti-theft **w/o anti-theft Anti- theft C-65 C-66 C-70 C-77 C-78 C-81 C-83 Data link connector (right of steering column) Door lock power relay 1 (left side of dash) Etacs unit (left of steering column) Fuse 10a G202 (left side of dash) Hot at all times Iod or storage connector (right eng. compt.) Junction block (left side of dash) Key reminder switch Left door key cylinder unlock switch (1994) Left door lock actuator Left door lock switch Left door switch Lock N/a Off Red Right door key cylinder unlock switch (1994) Right door lock actuator Right door lock switch Right door switch Unlock W/o W/o anti- theft Электросхема системы безключевого доступа для Mitsubishi 3000GT VR-4 1994 3000 Электросхема системы безключевого доступа для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 39 (forward of left rear wheelwell) (lh) (rh) * ** **** *** ***w/ pwr windows ****w/o pwr windows *w/ anti-theft **w/o anti-theft Anti- theft C-65 C-66 Data link connector (right of steering column) Dome lights Door lock power relay 1 (left side of dash) Door lock power relay 2 (forward of left rear wheelwell) Etacs unit (left of steering column) Feeder antenna Foot lights Fuse 10a Fuse 15a G202 (left side of dash) G407 (center rear of trunk) Hot at all times Hot in acc or run Iod or storage connector Junction block (left side of dash) Key reminder switch Keyless entry control unit Left door lock actuator Left door lock switch Left door switch Lock Red Right door lock actuator Right door switch Timer Unlock W/o W/o anti- theft With
ЭЛЕКТРОННЫЙ ГЛУШИТЕЛЬ активная выхлопная схема для Mitsubishi 3000GT VR-4 1994 3000 активная выхлопная схема для Mitsubishi 3000GT VR-4 1994 3000 - Список элементов: 29 (left front * ** *w/ anti-theft **w/o anti-theft 1994 vftc c Active exhaust control module (left rear of luggage compartment) Active exhaust switch Actuator assembly (rear of exhaust system) Centralized junction box (right side engine compt) Close Door sill) Engine control module (behind center console) Etacs unit (left of steering column) Fuse 15a Fusible link 9 30a G202 (left side of i/p) G309 Hot at all times Hot in run or start Illumination Instrument cluster Interior lights system (rheostat) Interior lights system (taillight relay) Junction block (left i/p) Open Power windows relay (left i/p) Red Sport Tour Tour ind.
