Разделы схем — 27 (всего 50)
Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ БЛОК УПРАВЛЕНИЯ КУЗОВОМ ВНЕШНЕЕ ОСВЕЩЕНИЕ ВНУТРЕННЕЕ ОСВЕЩЕНИЕ ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Звуковой сигнал Гудок Магнитола Мультимедия Подогрев стекол и зеркал ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ ПРИБОРНАЯ ПАНЕЛЬ ПРИВОД ЗЕРКАЛ ПРИВОД ЛЮКА И КРЫШИ ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Противоугонная система Сигнализация СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS СИСТЕМА КОНДИЦИОНЕРА СИСТЕМА КРУИЗКОНТРОЛЯ СИСТЕМА ОХЛАЖДЕНИЯ СИСТЕМА ПЕРЕДАЧИ ДАННЫХ СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Система Фар СИСТЕМЫ СИДЕНИЙ Стартер Генератор Стеклоочистители и Стеклоомыватели Дворники ЦЕНТРАЛЬНЫЙ ЗАМОК

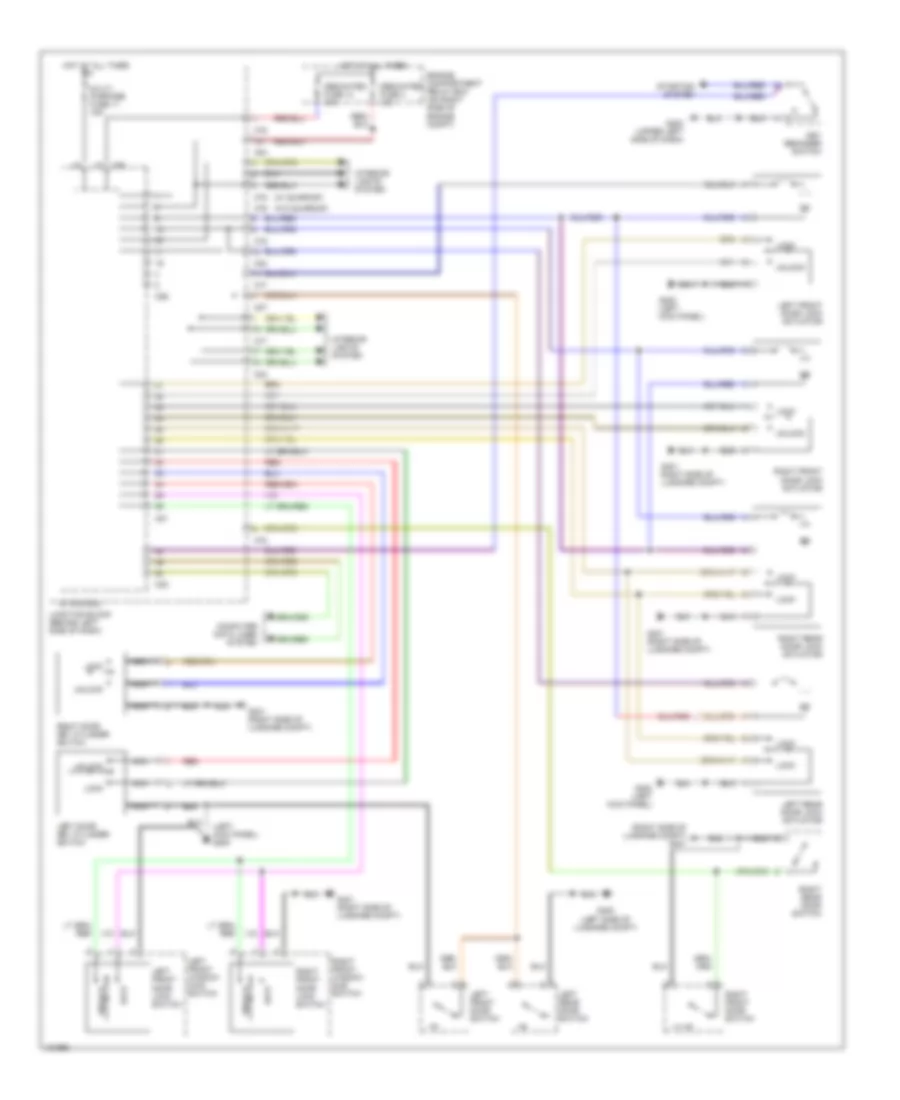

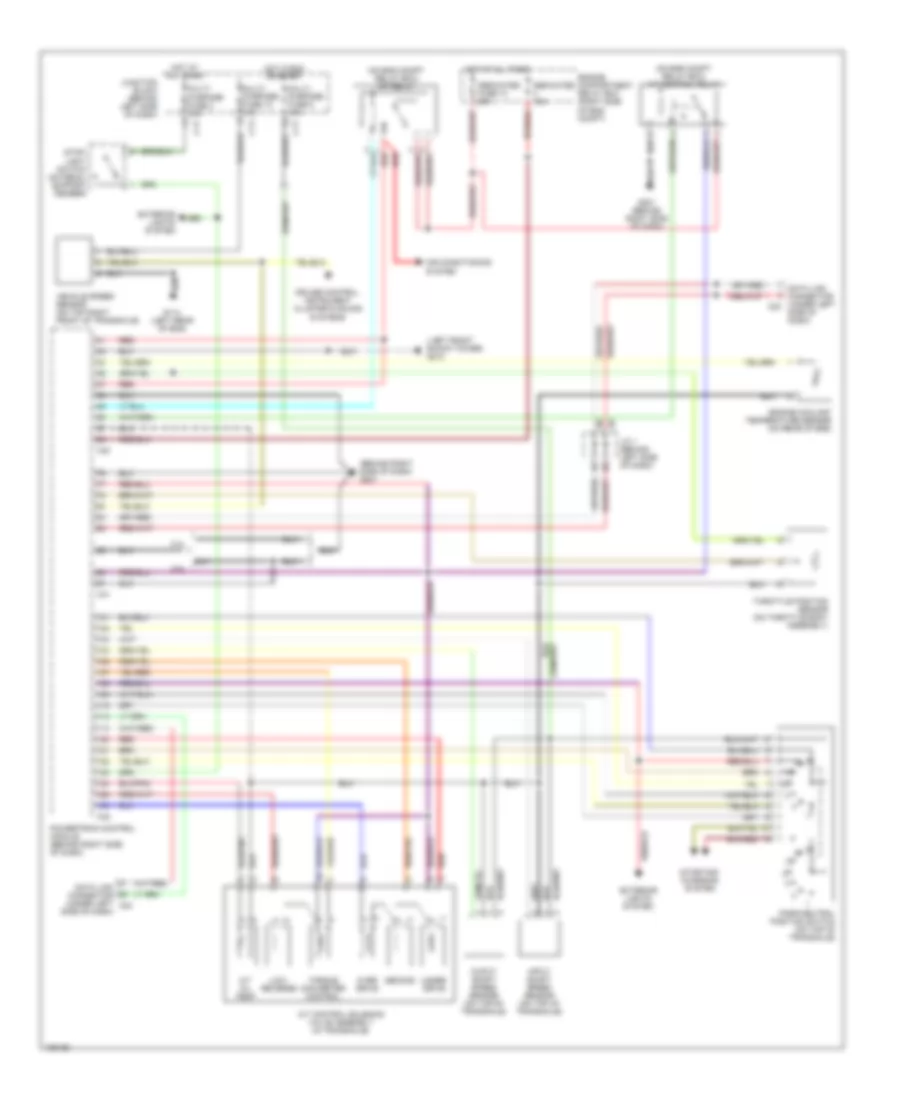

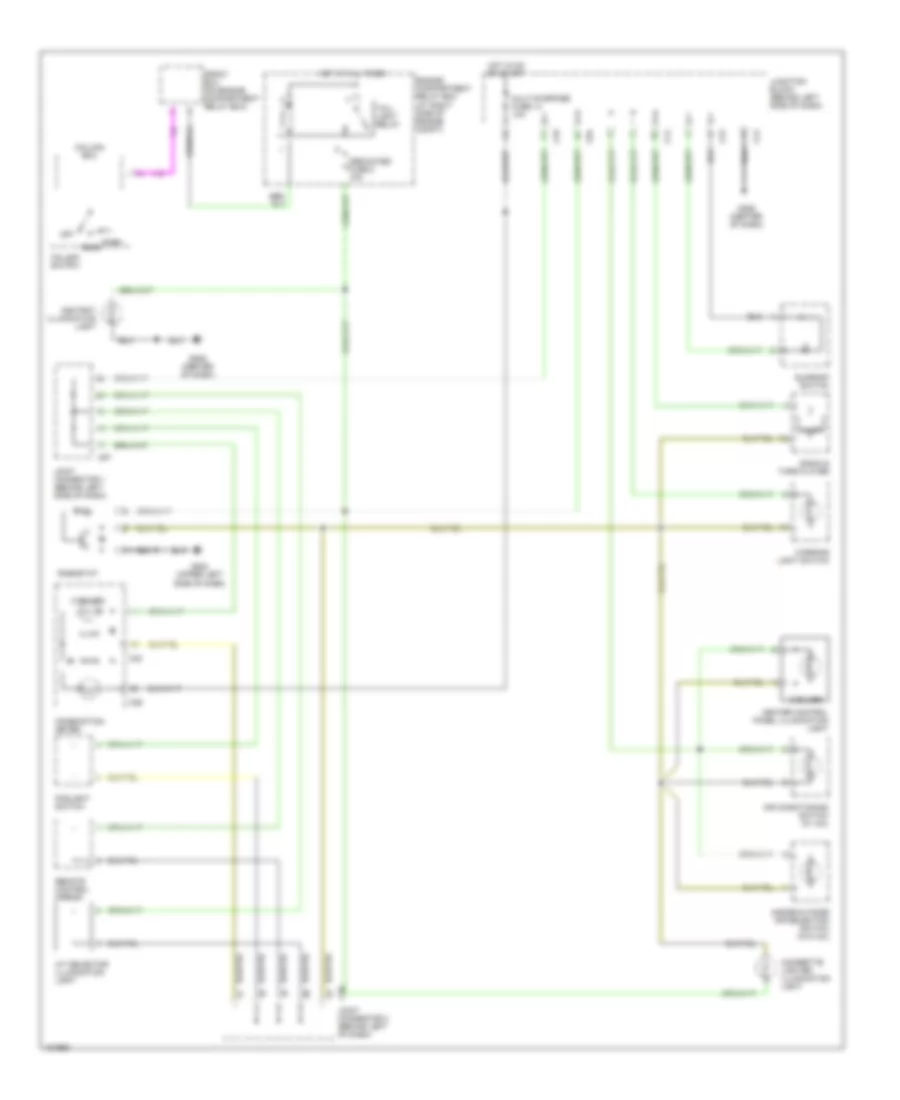

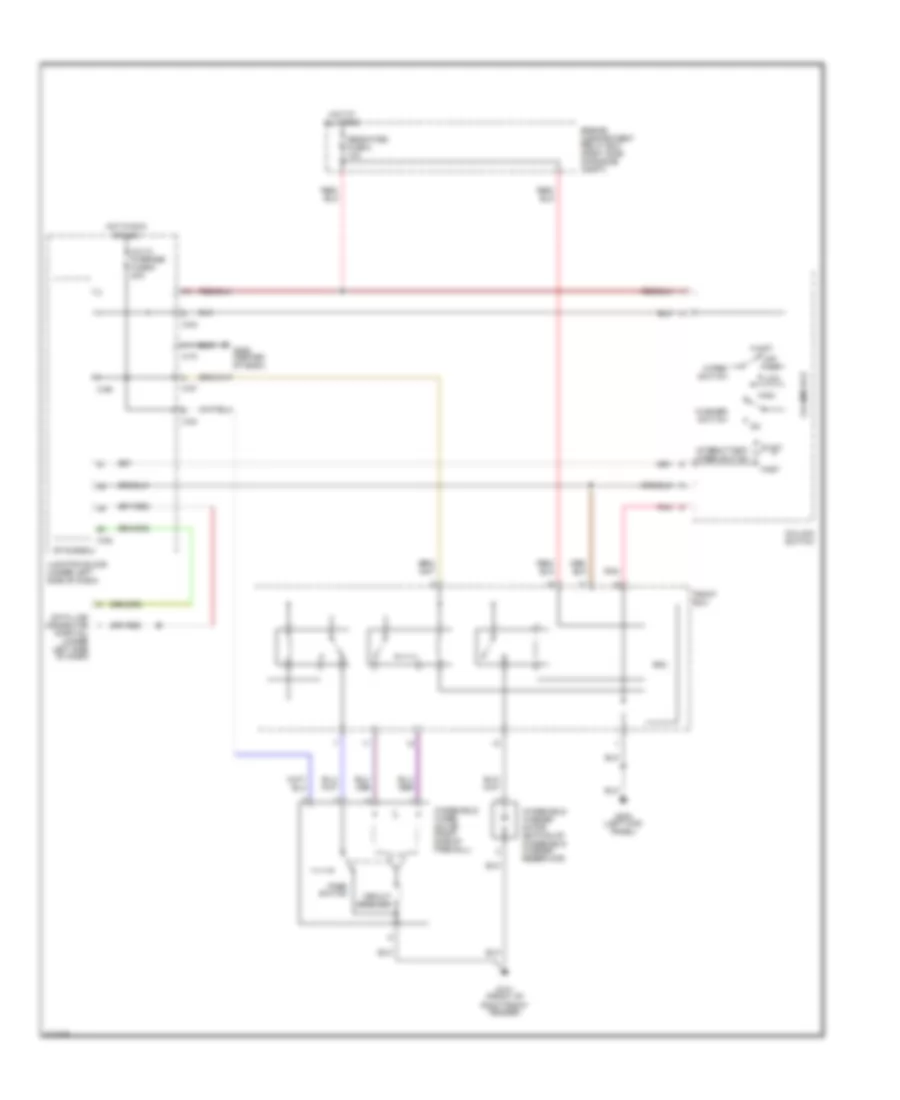

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Электросхема автоматической коробки передач АКПП для Mitsubishi Galant LS 1999 Электросхема автоматической коробки передач АКПП для Mitsubishi Galant LS 1999 - Список элементов: 47 (behind right side of dash) g201 (left front shock tower) g210 (on eng compt relay box) a/t control relay (on eng compt relay box) mfi relay (under left c23 2.4l 3.0l A/t control solenoid valve assembly (in transaxle) A/t oil temp Air conditioning system C-74 C-77 C40 C41 C42 Cruise control, instrument cluster & sound systems Data link connector Data link connector (under left c24 side of dash) Dedicated 10a Dedicated fuse 13 20a Engine compartment relay box (right side of eng compt) Engine coolant temperature sensor (on rear of eng) Exterior lights system G114 (left rear of eng) G201 (behind right sdie of dash) Hot at all times Hot in run or start Input shaft speed sensor (on top of transaxle) J/c 1 (behind left side of dash) Junction block (behind left side of dash) Low/ reverse Multi- purpose fuse 12 10a Multi- purpose fuse 3 15a Multi- purpose fuse 5 10a Ouput shaft speed sensor (on top of transaxle) Over drive Park/neutral position switch (on top of transaxle) Powertrain control module (behind right side of dash) Red Second Side of dash) Starting/ charging system Stop- light switch (on pedal support member) Throttle position sensor (on throttle body assembly) Torque converter control Under drive Vehicle speed sensor (on top right front of transaxle)

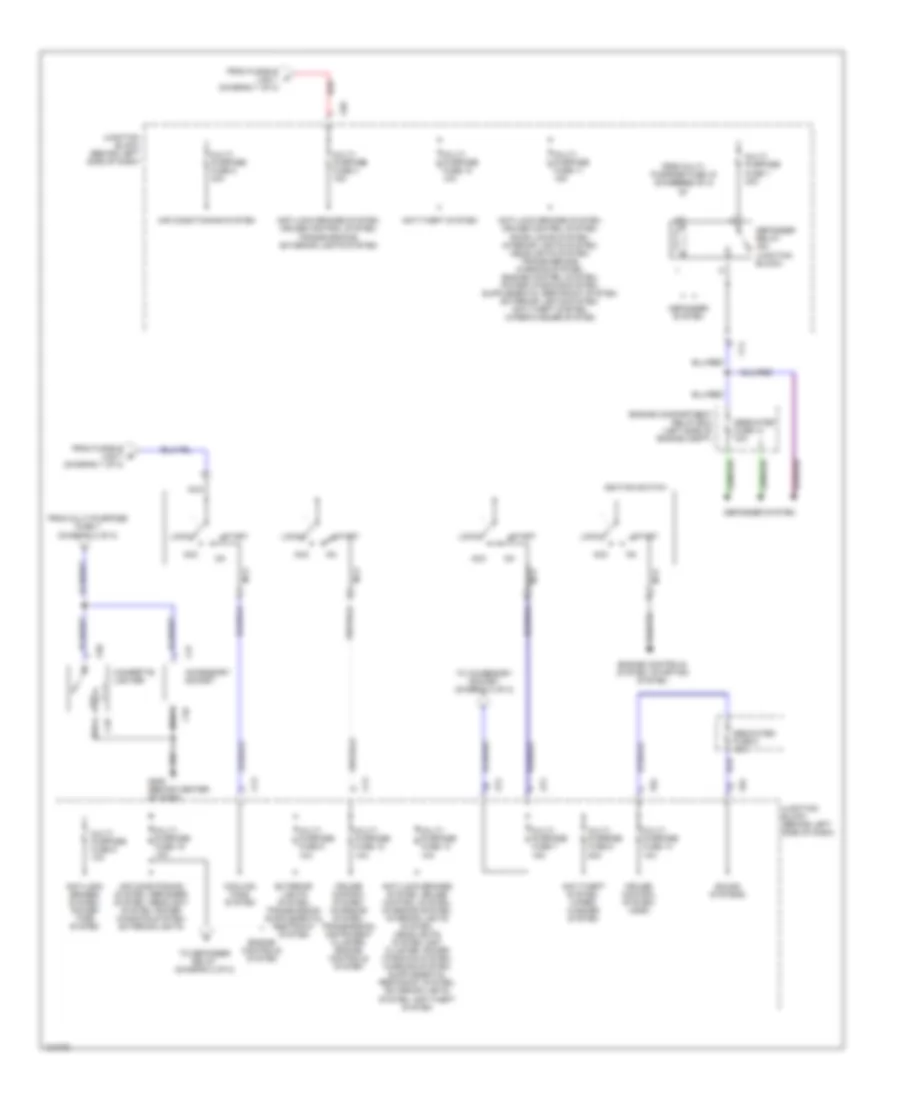

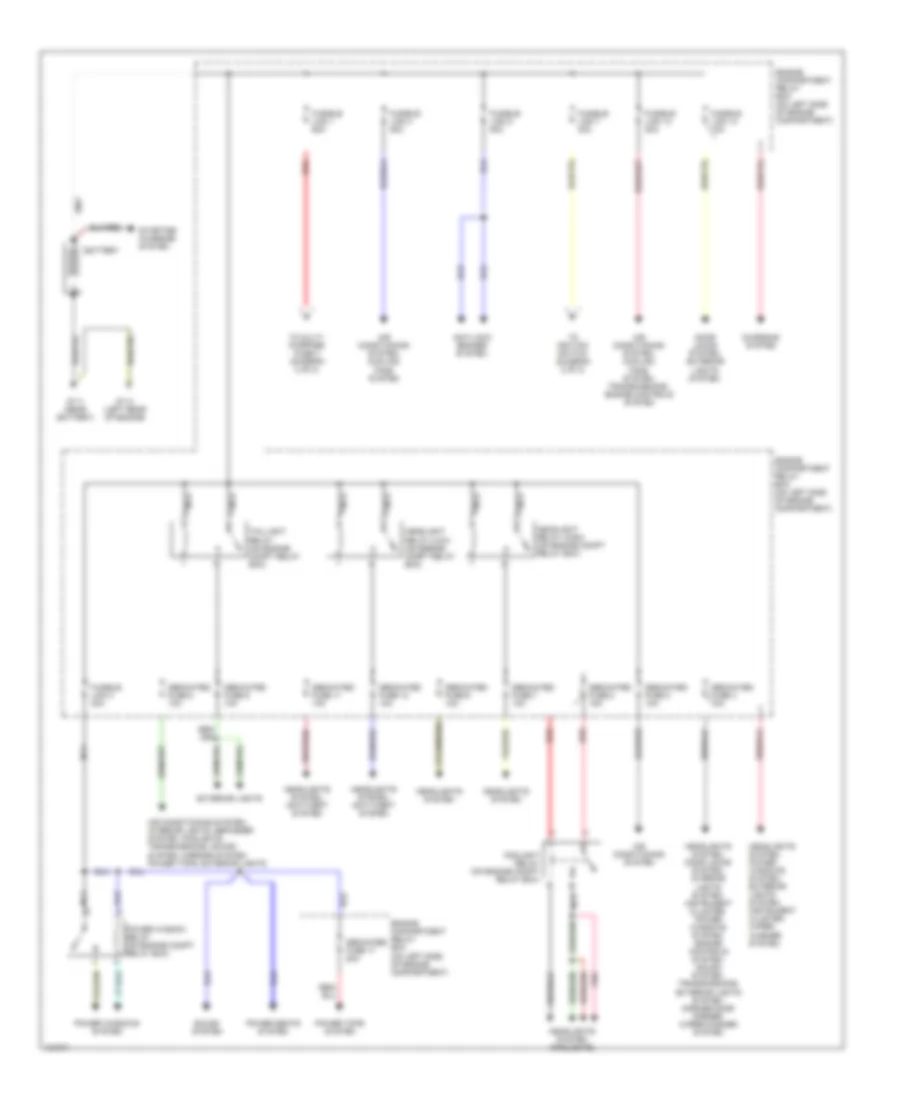

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Электросхема блока предохранителей и реле (1 из 2) для Mitsubishi Galant LS 1999 Электросхема блока предохранителей и реле (1 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 49 Air conditioning system Air conditioning system, cooling fans system Air conditioning system, cooling fans system, transmissions, engine controls system Air conditioning system, interior lights, defogger system, foglights, transmissions, sound system, mirrors system power tops, exterior lights Anti-lock brakes system, Battery Charging system Dedicated fuse 11 10a Dedicated fuse 12 10a Dedicated fuse 17 20a Dedicated fuse 2 15a Dedicated fuse 3 10a Dedicated fuse 4 10a Dedicated fuse 6 10a Dedicated fuse 7 10a Dedicated fuse 8 10a Dedicated fuse 9 10a Door locks system, exterior lights system, Engine compartment relay box (on left side of engine compartment) Exterior lights Foglight relay (on engine compt relay box) Fusible link 1 60a Fusible link 13 20a Fusible link 14 10a Fusible link 3 30a Fusible link 4 50a Fusible link 5 50a Fusible link 7 30a G111 (near battery) G114 (left rear of engine) Headlight relay (high) (on engine compt relay box) Headlight relay (low) (on engine compt relay box) Headlights system Headlights system (foglights) Headlights system, anti-theft system Headlights system, door locks system, interior lights system, instrument cluster, power windows system, engine controls system, sound system, transmissions, exterior lights system, garage door opener, wiper/washer system Headlights system, power windows system, exterior lights system, instrument cluster, wiper/ washer system, Nca Pnk Power seats system Power tops system Power window relay (on engine compt relay box) Power windows system Red Sound system Starting/ charging system Taillight relay (on engine compt relay box) To ignition switch (diagram 2 of 2) To multi- purpose fuse 3 (diagram 2 of 2) Электросхема блока предохранителей и реле (2 из 2) для Mitsubishi Galant LS 1999 Электросхема блока предохранителей и реле (2 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 54 Acc Accessory socket Air conditioning system Air conditioning system, defogger system, headlight system, power windows system, exterior lights Anti-lock brakes system, cruise control system, transmissions, exterior lights system Anti-lock brakes system, power tops system Anti-theft system Anti-theft system, wiper/ washer system C46 C47 C49 C50 C73 C74 C84 C85 Cigarette lighter Cooling fans system Cruise control system, charging system, transmission, instrument cluster, engine controls system Cruise control system, horn Dedicated fuse 18 10a Dedicated fuse 5 10a Defogger relay (on junction block) Defogger system Engine compartment relay box (left side of engine compt) Engine controls system Engine controls system, starting system From fusible link 1 (diagram 1 of 2) From fusible link 7 (diagram 1 of 2) From multi- purpose fuse 16 (diagram 2 of 2) From multi-purpose fuse 7 (diagram 2 of 2) G206 (behind center of dash) Ignition switch Junction block (behind left side of dash) Lock Multi- purpose fuse 1 30a Multi- purpose fuse 10 10a Multi- purpose fuse 11 15a Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Multi- purpose fuse 14 10a Multi- purpose fuse 16 10a Multi- purpose fuse 2 30a Multi- purpose fuse 3 15a Multi- purpose fuse 5 10a Multi- purpose fuse 7 15a Multi- purpose fuse 8 20a Multi- purpose fuse 9 10a Nca Red Sound systems Start To accessory socket (diagram 2 of 2) To defogger relay (diagram 2 of 2)

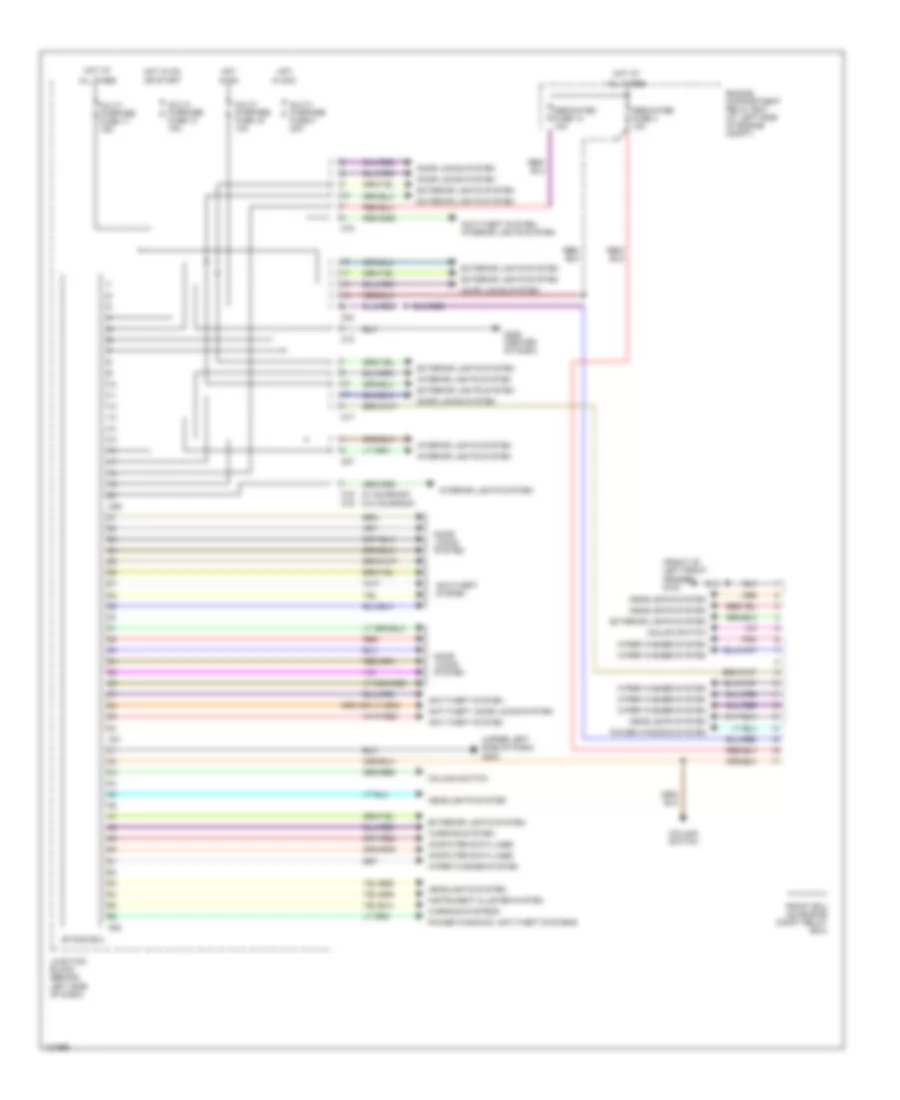

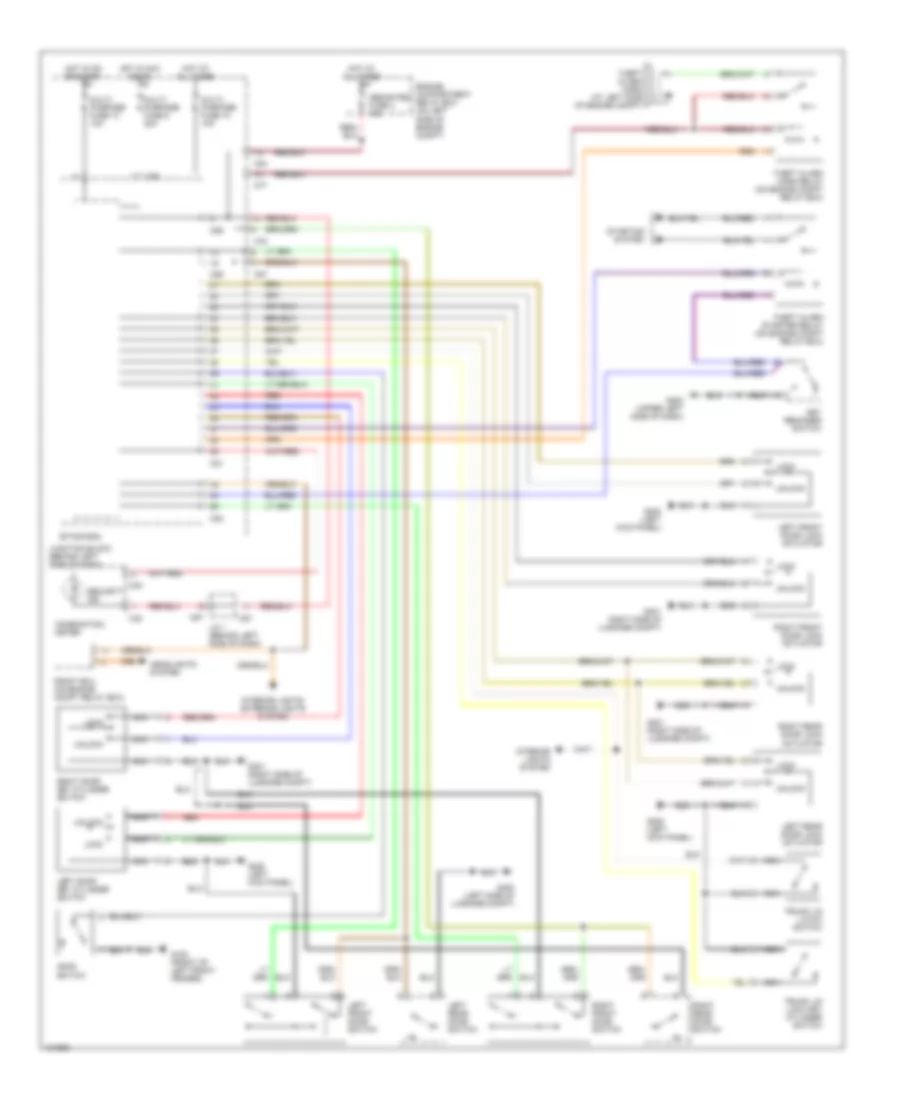

БЛОК УПРАВЛЕНИЯ КУЗОВОМ Электросхема блока управления кузовом для Mitsubishi Galant LS 1999 Электросхема блока управления кузовом для Mitsubishi Galant LS 1999 - Список элементов: 47 (front of left front fender) g100 (upper left side of dash) g202 (w/ sunroof) (w/o sunroof) All times Anti-theft system Anti-theft system, interior lights system Anti-theft, door locks system C73 C75 c76 C77 C78 C81 C82 C84 C86 C87 Column switch Computer data lines Dedicated fuse 14 10a Dedicated fuse 4 10a Door locks system Engine compartment relay box (at left side of engine compt) Etacs ecu Exterior lights system Front ecu (on engine compt relay box) G206 (center of dash) Headlights system Hot Hot at Hot in on In acc In on Instrument cluster system Interior lights system Junction block (behind left side of dash) Multi- purpose fuse 11 15a Multi- purpose fuse 13 10a Multi- purpose fuse 16 10a Multi- purpose fuse 8 20a Or start Pnk Power windows system Power windows, anti-theft systems Red Warning system Warning systems Wiper washer system

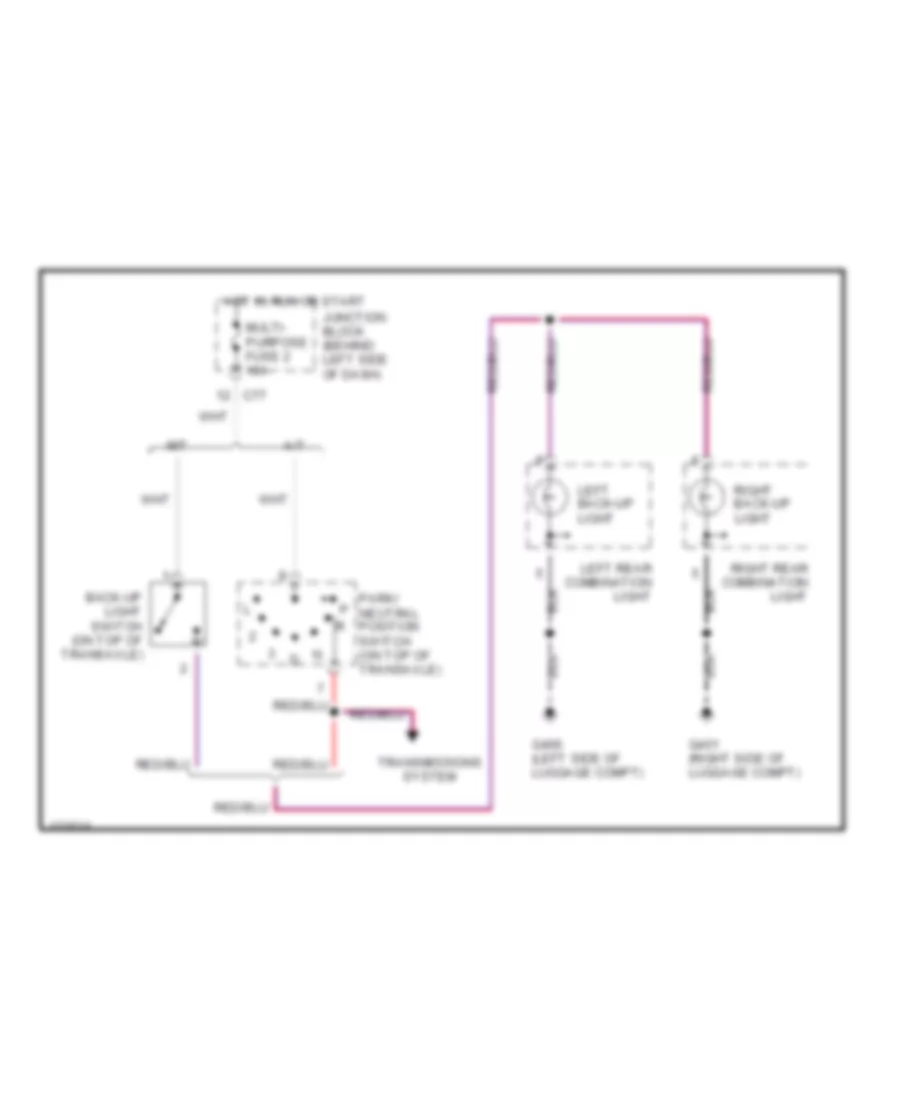

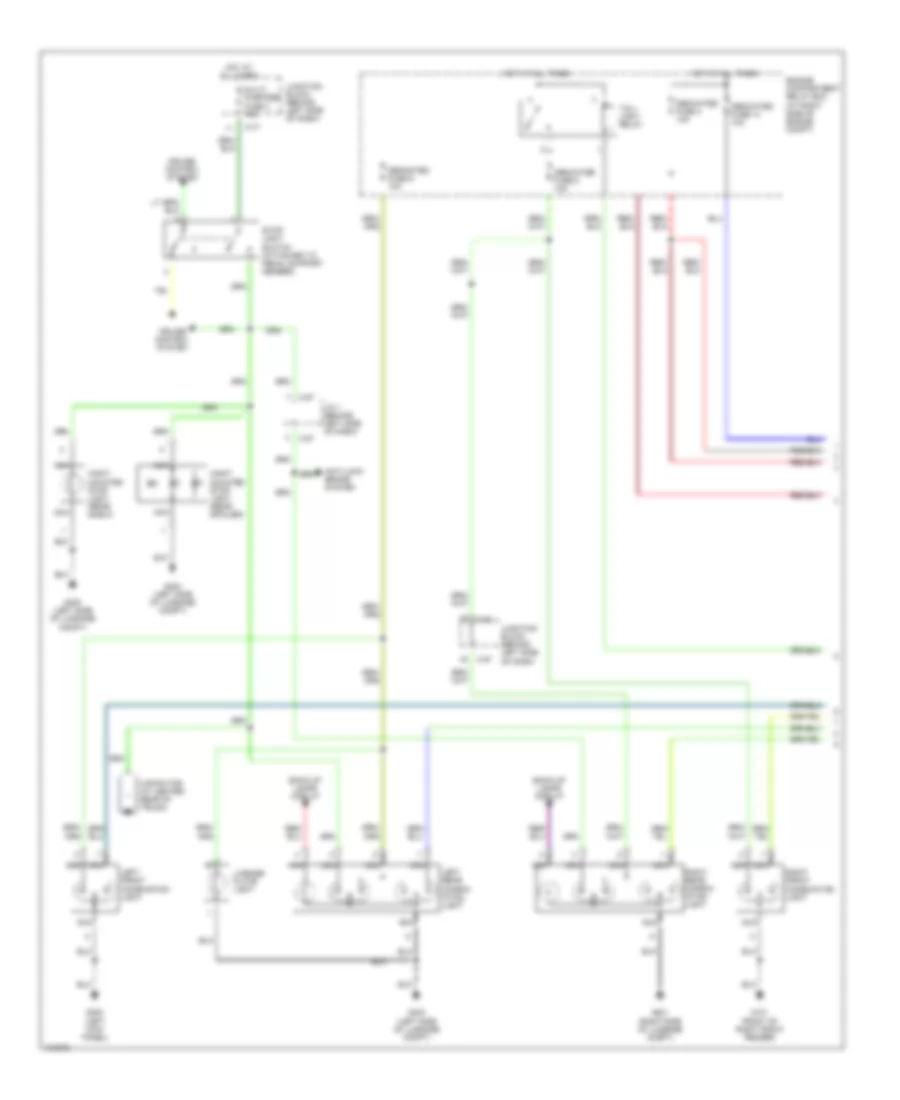

ВНЕШНЕЕ ОСВЕЩЕНИЕ Электросхема заднего хода для Mitsubishi Galant LS 1999 Электросхема заднего хода для Mitsubishi Galant LS 1999 - Список элементов: 15 A/t Back-up light switch (on top of transaxle) C77 G400 (left side of luggage compt) G401 (right side of luggage compt) Hot in run or start Junction block (behind left side of dash) Left back-up light Left rear combination light M/t Multi- purpose fuse 2 10a Park/ neutral position switch (on top of transaxle) Right back-up light Right rear combination light Transmissions system Электросхема внешнего освещения (1 из 2) для Mitsubishi Galant LS 1999 Электросхема внешнего освещения (1 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 31 Anti-lock brake system Back-up lamps circuit C-57 C-77 C-84 C-87 Capacitor (at center rear of trunk) Cruise control system Dedicated fuse 14 10a Dedicated fuse 4 10a Dedicated fuse 8 10a Dedicated fuse 9 10a Engine compartment relay box (at right side of engine compt) G101 front of right front fender) G200 (left kick panel) G400 (left side of luggage compt) G401 (right side of luggage compt) Hight mounted stop light (rear shelf) Hight mounted stop light (rear spoiler) Hot at all times J/c 1 (behind left side of dash) Junction block (behind left side of dash) Left front combination light Left rear combin- ation light License plate light Multi- purpose fuse 3 15a Nca Right front combination light Right rear combin- ation light Stop- light switch (attached to pedal support member) Tail- light relay Электросхема внешнего освещения (2 из 2) для Mitsubishi Galant LS 1999 Электросхема внешнего освещения (2 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 32 (front of left front fender) g100 C-29 C-30 C-73 C-77 C-78 C-82 C-84 C-86 Column switch Combination meter Etacs- ecu Front ecu (on engine compt relay box) G202 (upper left side of dash) G206 (center of dash) Hazard warning light switch Head Hot in on Hot in on or start Interior lights system Junction block (behind left side of dash) Left Left turn ind Lighting switch Multi-purpose fuse 13 10a Multi-purpose fuse 16 10a Off Right Right turn ind Solid state Tail Turn signal switch
ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Электросхема подсветки для Mitsubishi Galant LS 1999 Электросхема подсветки для Mitsubishi Galant LS 1999 - Список элементов: 53 (behind left side of dash (left kick panel) g200 (left side of luggage compartment) g400 (right side of luggage compartment) g401 10a Acc Anti-theft system C29 C30 C57 C73 C75 C76 C77 C78 C81 C82 C84 C86 C87 Capacitor Combination meter Data link connector (partial) (under left side of dash) Dedicated fuse 13 Dedicated fuse 4 Dome light Door Driver's side vanity miirror light Engine compartment relay box (at left side of engine compartment) Etacs ecu Front door lock actuator G202 (upper left side of dash) G400 (left side of luggage compartment) Hot at all times Ignition switch Joint connector 1 Junction block (behind left side of dash) Key reminder switch Left front door switch Left rear door switch Lock Nca Off Passenger's side vanity miirror light Right front door switch Right rear door switch Sound system Start Trunk lid latch switch or trunk light switch (w/o sunroof, w/o anti-theft) Trunk light Unlock W/ sunroof w/o sunroof W/o sunroof Электросхема подсветки приборов для Mitsubishi Galant LS 1999 Электросхема подсветки приборов для Mitsubishi Galant LS 1999 - Список элементов: 41 (2 bulbs) (4 bulbs) A/t selector illumination light Air conditioning switch (w/ a/c) Ashtray illumination light C29 C30 C56 joint connector 2 (behind left of dash) C57 C72 C74 C75 C78 C84 Cigarette lighter illumination light Column ecu Column switch Combination meter Dedicated fuse 8 10a Engine compartment relay box (at right side of engine compt) Foglight switch Front ecu (on engine compartment relay box) G202 (upper left side of dash) G206 (center of dash) Head Heater control panel illumination light Hot at all times Hot in on or start Illum Inside/outside air selection switch (w/o a/c) Joint connector 1 (behind left side of dash) Junction block (behind left side of dash) Multi-purpose fuse 13 10a Off Park Radio & tape player Remote control mirror Rheostat Sunroof switch Tail- light relay Warning light switch

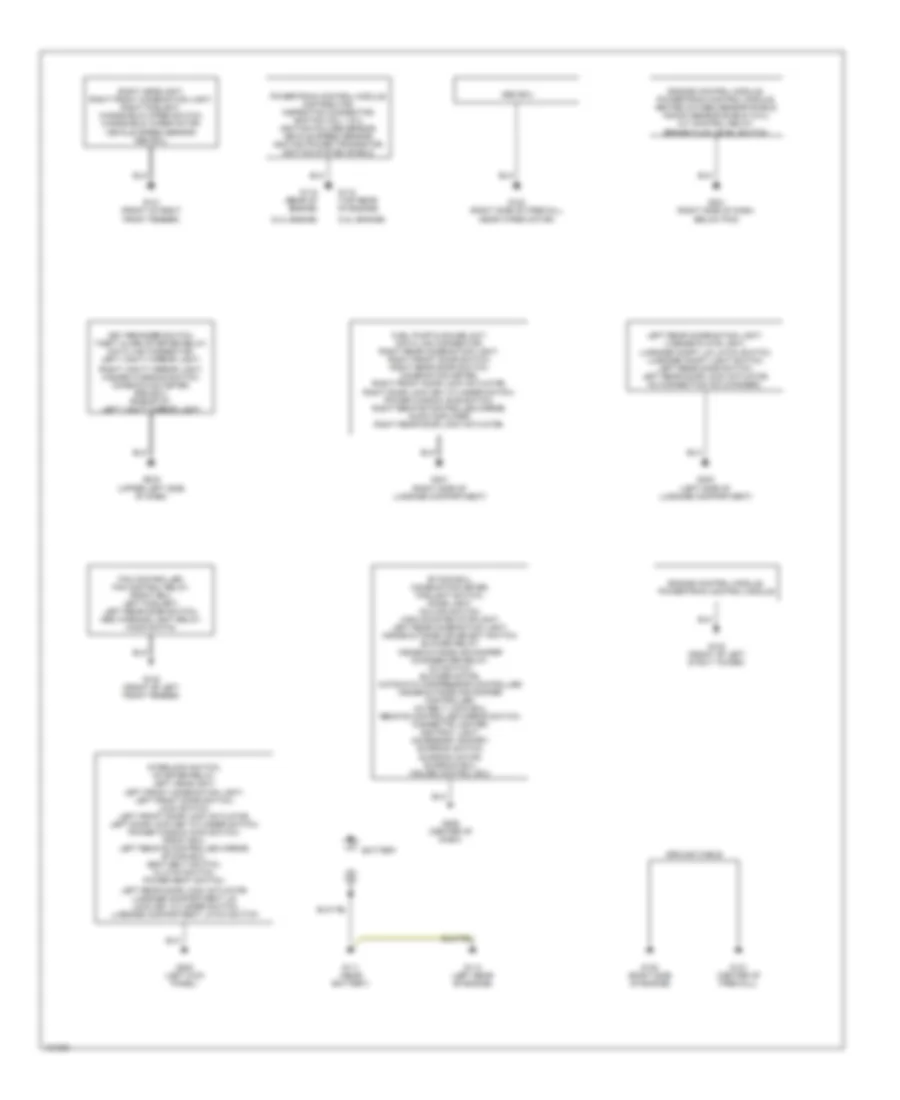

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Электросхема подключение массы заземления для Mitsubishi Galant LS 1999 Электросхема подключение массы заземления для Mitsubishi Galant LS 1999 - Список элементов: 34 (2.4l engine) (3.0l engine) Abs ecu Battery Engine control module, powertrain control module Engine control module, powertrain control module, heated oxygen sensor shield, knock sensor shield (3.0l), a/t control relay, brake fluid level switch, Etacs ecu, combination meter, foglight switch, dome light, column switch, high mounted stoplight, left rear combination light, inside/outside air select switch, blower relay, inside/outside air damper changeover relay, a/c switch, blower motor, automatic compressor controller, inside/outside air damper controller, a/c belt lock ecu, remote controlled mirror switch, cigarette lighter, ashtray light, accessory socket, sunroof switch, sunroof motor, sunroof ecu, cruise control ecu Fan controller, fan control relay, front ecu, left foglight, left rear door switch, abs warning light relay, hood switch Fuel pump & gauge unit, data link connector, right rear combination light, right front door switch, right rear door switch, combination meter, right front door lock actuator, right door lock key cylinder switch, power window sub switch, right remote controlled mirror, audio amplifier, right rear door lock actuator, G100 (front of left front fender) G101 (front of right front fender) G102 (front of left strut tower) G111 (near battery) G114 (left rear of engine) G115 (rear of engine) G115 (top rear of engine) G120 (right side of engine) G121 (center of firewall) G123 (right side of firewall, near wiper motor) G200 (left kick panel) G201 (right side of dash, below pcm) G202 (upper left side of dash) G206 (center of dash) G400 (left side of luggage compartment) G401 (right side of luggage compartment) Ground cable Interlock switch, starter relay, left headlight, left front combination light, left front door switch, lock switch, left front door lock actuator, left door lock key cylinder switch, power window main switch, front ecu, left remote controlled mirror, etacs ecu, seat belt switch, clutch switch, power seat switch, Key reminder switch, theft alarm starter relay, data link connector, left vanity mirror light, Left rear combination light, license plate light, Left rear door lock actuator, luggage compartment lid lock key cylinder switch, luggage compartment latch switch Luggage compt lid latch switch, luggage compt light switch, left rear door switch, left rear door lock actuator, no connection (cd changer), Powertrain control module, distributor, inspection connector, ignition coil 1 & 2, ignition failure sensor, vehicle speed sensor, ignition power transistor, ignition system shield, Right headlight, right front combination light, right foglight, windshield wiper switch, windshield wiper motor, vehicle speed sensor, abs ecu, Right vanity mirror light, hazard warning switch, combination meter, srs ecu, rheostat, left vanity mirror light

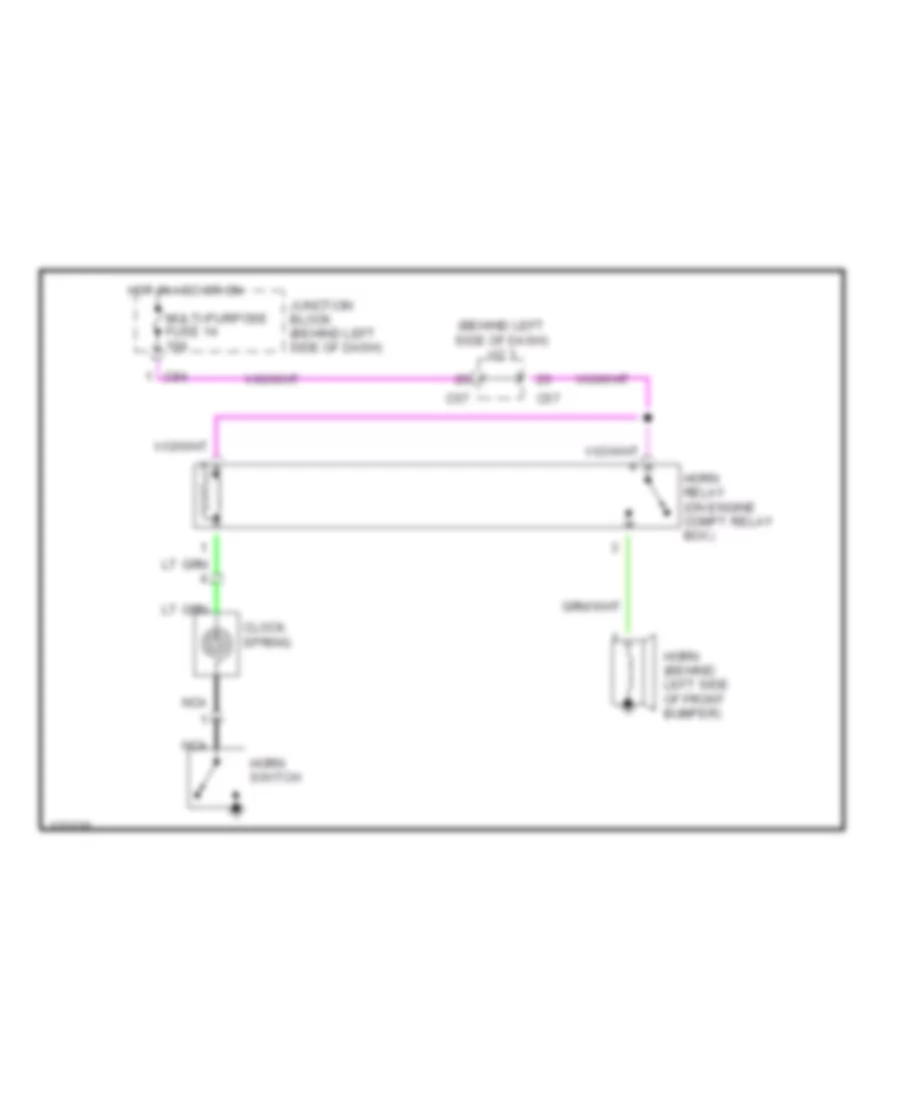

Звуковой сигнал Гудок Электросхема звукового сигнал Гудка для Mitsubishi Galant LS 1999 Электросхема звукового сигнал Гудка для Mitsubishi Galant LS 1999 - Список элементов: 11 (behind left side of dash) j/c 1 C57 C84 Clock spring Horn (behind left side of front bumper) Horn relay (on engine compt relay box) Horn switch Hot in acc or on Junction block (behind left side of dash) Multi-purpose fuse 14 10a Nca

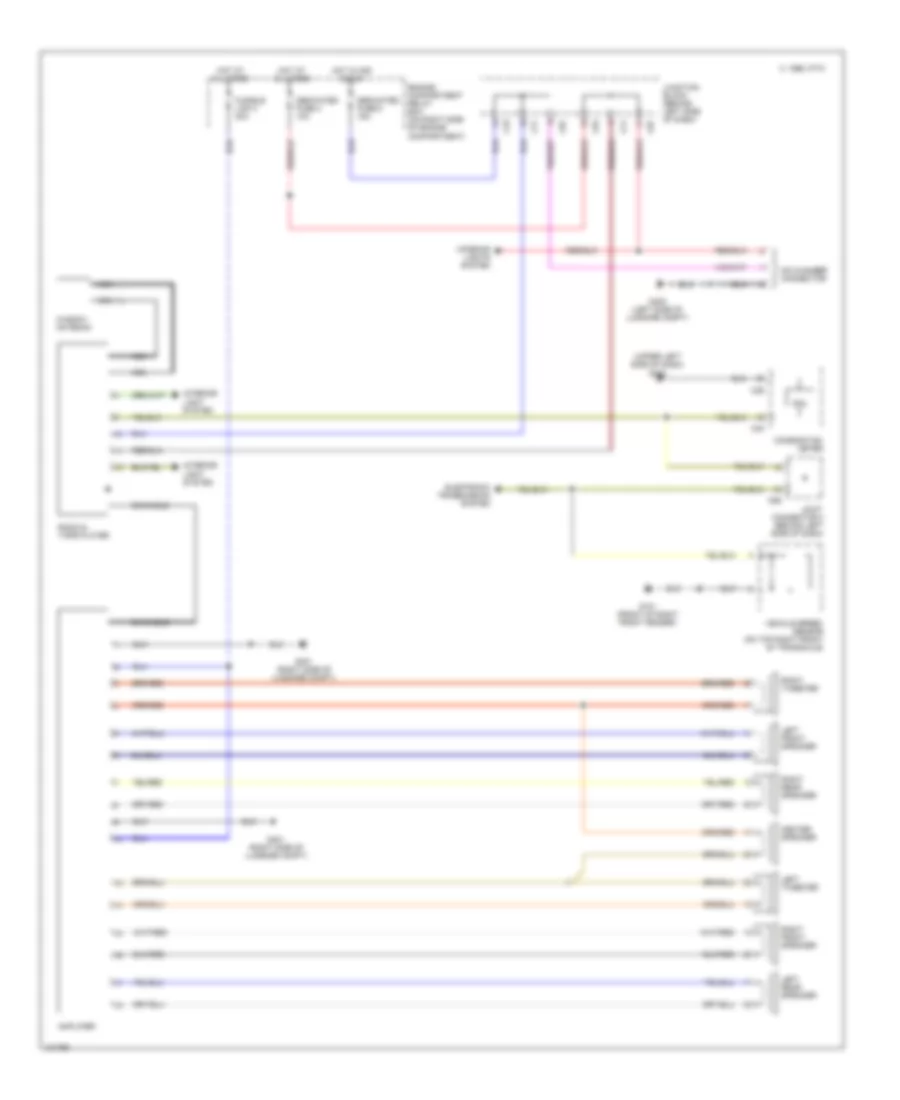

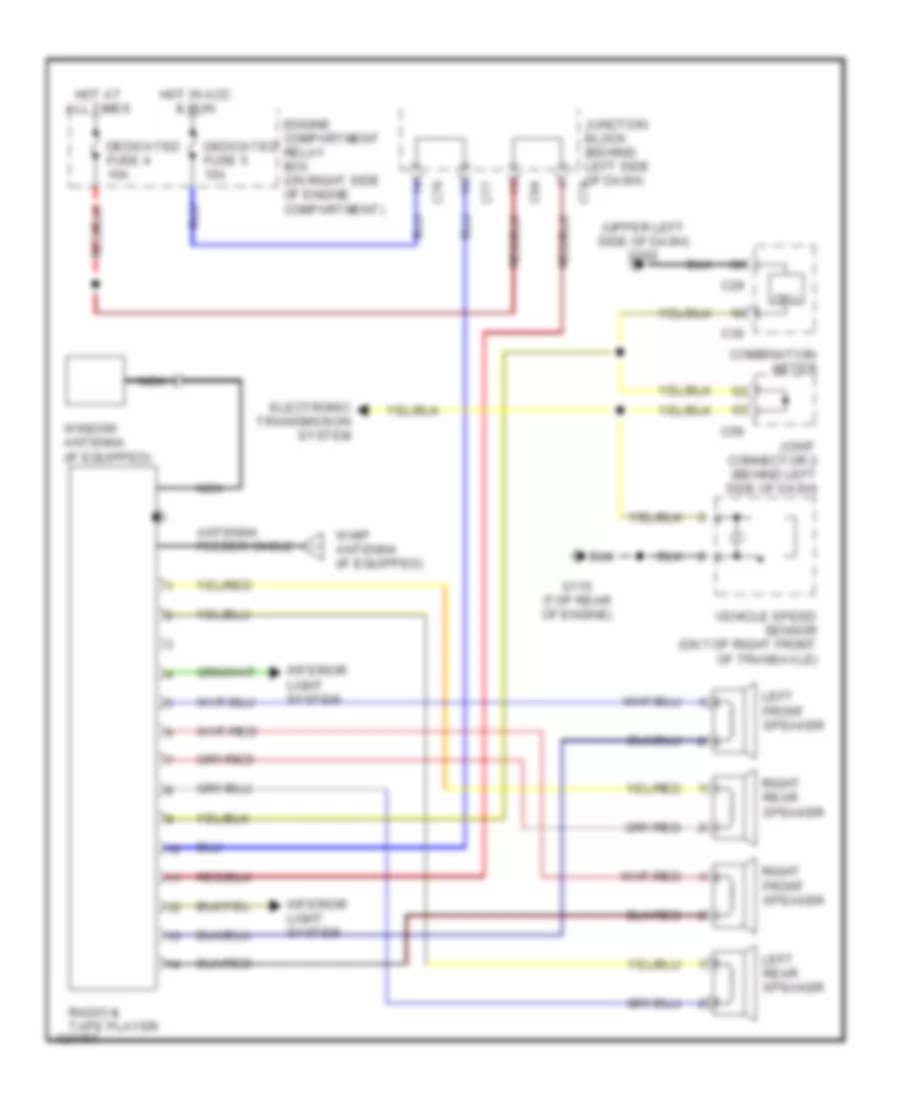

Магнитола Мультимедия Электросхемы магнитолы, С усилитель для Mitsubishi Galant LS 1999 Электросхемы магнитолы, С усилитель для Mitsubishi Galant LS 1999 - Список элементов: 40 (upper left side of dash) g202 1996 vftc c Amplifier C29 C30 C56 C74 C77 C78 C84 C87 Cd changer connector Center speaker Combination meter Cpu Dedicated fuse 4 10a Dedicated fuse 5 15a Din cable Electronic transmission system Engine compartment relay box (on right side of engine compartment) Fusible link 3 30a G101 (front of right front fender) G400 (left side of luggage compt) G401 (right side of luggage compt) Hot at all times Hot in acc & run Interior light system Interior lights system Joint connector 2 (behind left side of dash) Junction block (behind left side of dash) Left front speaker Left rear speaker Left tweeter Nca Radio & tape player Right front speaker Right rear speaker Right tweeter Vehicle speed sensor (on top right front of transaxle) Window antenna Электросхемы магнитолы, без усилитель для Mitsubishi Galant LS 1999 Электросхемы магнитолы, без усилитель для Mitsubishi Galant LS 1999 - Список элементов: 29 (upper left side of dash) g202 Antenna feeder cable C29 C30 C56 C77 C78 C84 Combination meter Cpu Dedicated fuse 4 10a Dedicated fuse 5 15a Electronic transmission system Engine compartment relay box (on right side of engine compartment) G115 (top rear of engine) Hot at all times Hot in acc & run Interior light system Joint connector 2 (behind left side of dash) Junction block (behind left side of dash) c74 Left front speaker Left rear speaker Nca Radio & tape player Right front speaker Right rear speaker Vehicle speed sensor (on top right front of transaxle) Whip antenna (if equipped) Window antenna (if equipped)

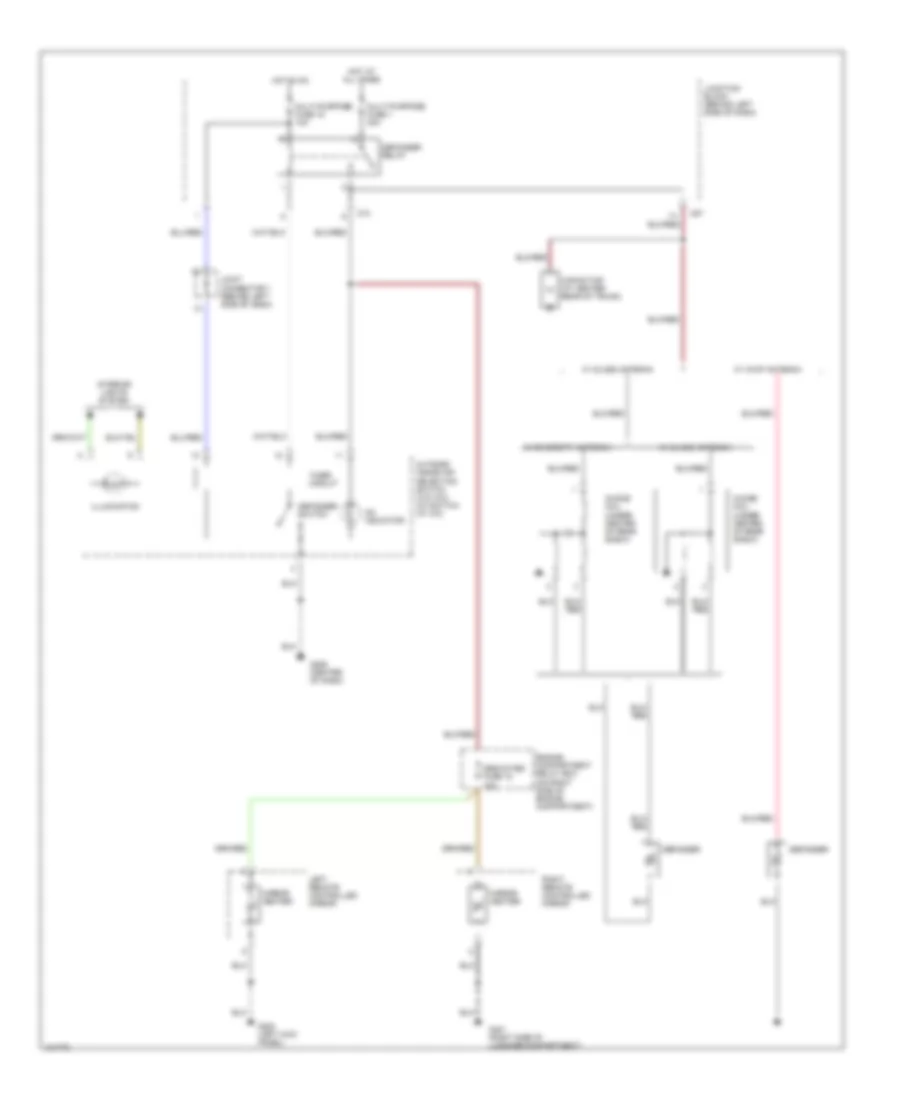

Подогрев стекол и зеркал Электросхема подогрева стекол и зеркал для Mitsubishi Galant LS 1999 Электросхема подогрева стекол и зеркал для Mitsubishi Galant LS 1999 - Список элементов: 29 C74 C87 Capacitor (at center rear of trunk) Choke coil (under center of rear shelf) Dedicated fuse 18 10a Defogger Defogger relay Defogger switch Engine compartment relay box (on right side of engine compartment) G200 (left kick panel) G206 (center of dash) G401 (right side of luggage compartment) Hot at all times Hot in on Illumination Interior lights system Joint connector 1 (behind left side of dash) Junction block (behind left side of dash) Left remote controlled mirror Mirror heater Multi-purpose fuse 1 30a Multi-purpose fuse 16 10a On indicator Outside/ inside air selection switch (w/o a/c) a/c switch (w/ a/c) Right remote controlled mirror Timer circuit W/ diversity antenna W/ glass antenna W/ whip antenna

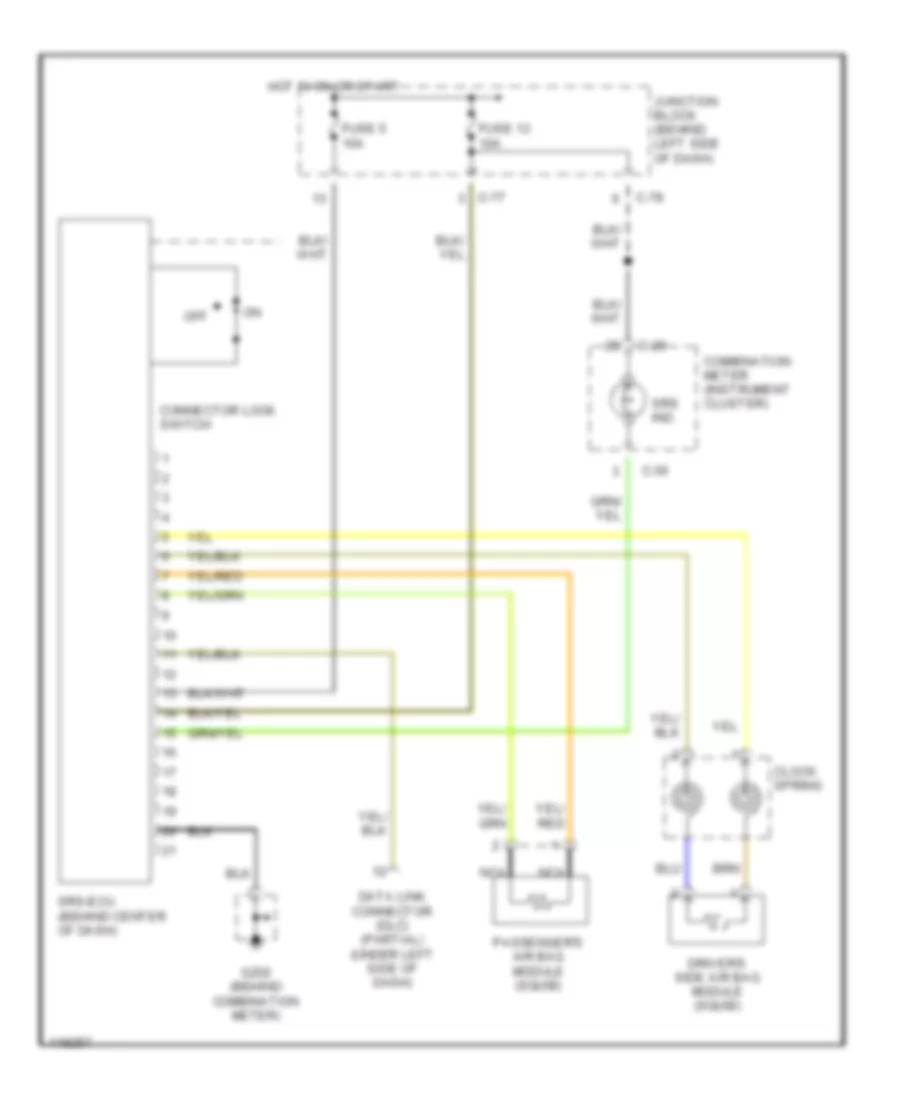

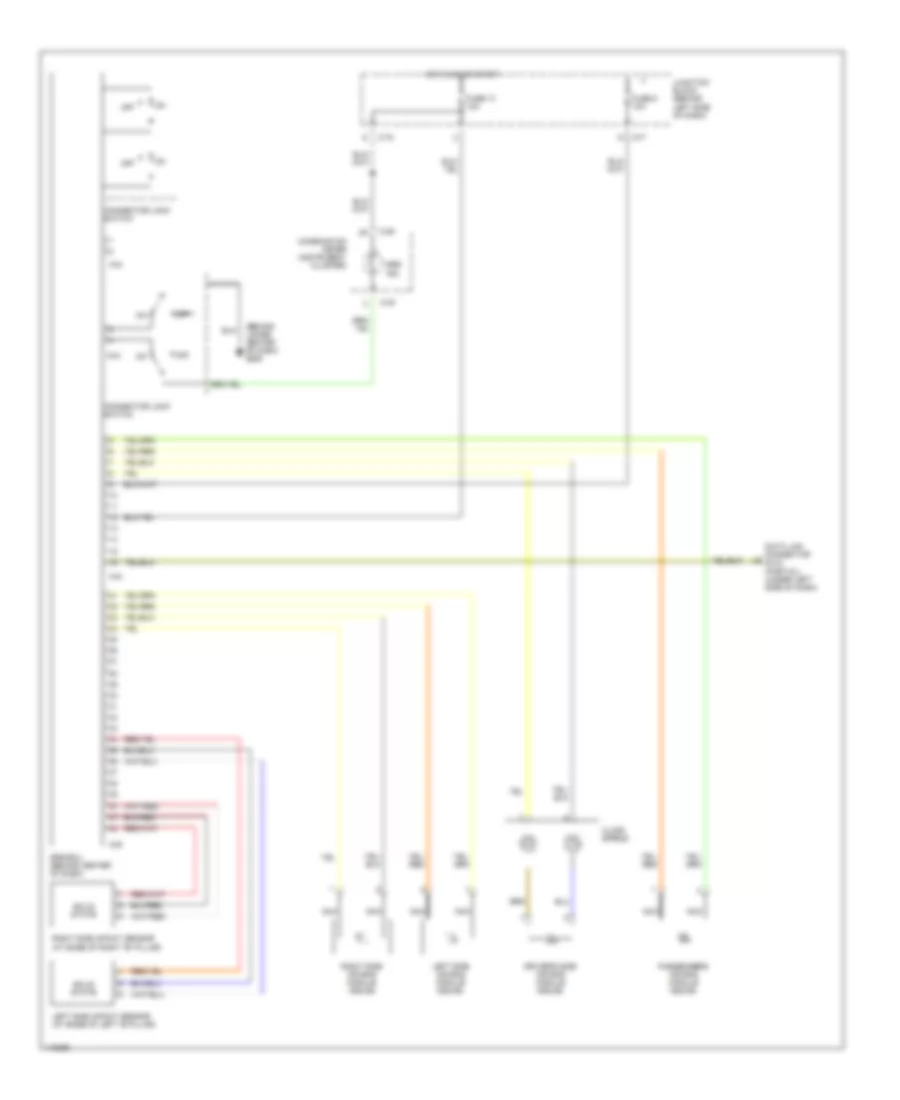

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Электросхема подушек безопасности SRS AirBag, С боковая подушка безопасности для Mitsubishi Galant LS 1999 Электросхема подушек безопасности SRS AirBag, С боковая подушка безопасности для Mitsubishi Galant LS 1999 - Список элементов: 26 (behind lower center of dash) g206 C-29 C-30 C-77 C-78 C44 C45 Clock spring Combination meter (instrument cluster) Connector lock switch Data link connector (dlc) (partial) (under left side of dash) Driver's side air bag module (squib) Fuse 13 10a Fuse 5 10a Hot in on or start Junction block (behind left side of dash) Left side air bag module (squib) Left side impact sensor (at base of left "b pillar) Nca Off Passenger's air bag module (squib) Right side air bag module (squib) Right side impact sensor (at base of right "b" pillar) Solid state Srs ind. Srs-ecu (behind center of dash) Электросхема подушек безопасности SRS AirBag, без боковая подушка безопасности для Mitsubishi Galant LS 1999 Электросхема подушек безопасности SRS AirBag, без боковая подушка безопасности для Mitsubishi Galant LS 1999 - Список элементов: 19 C-29 C-30 C-77 C-78 Clock spring Combination meter (instrument cluster) Connector lock switch Data link connector (dlc) (partial) (under left side of dash) Driver's side air bag module (squib) Fuse 13 10a Fuse 5 10a G202 (behind combination meter) Hot in on or start Junction block (behind left side of dash) Nca Off Passenger's air bag module (squib) Srs ind. Srs-ecu (behind center of dash)

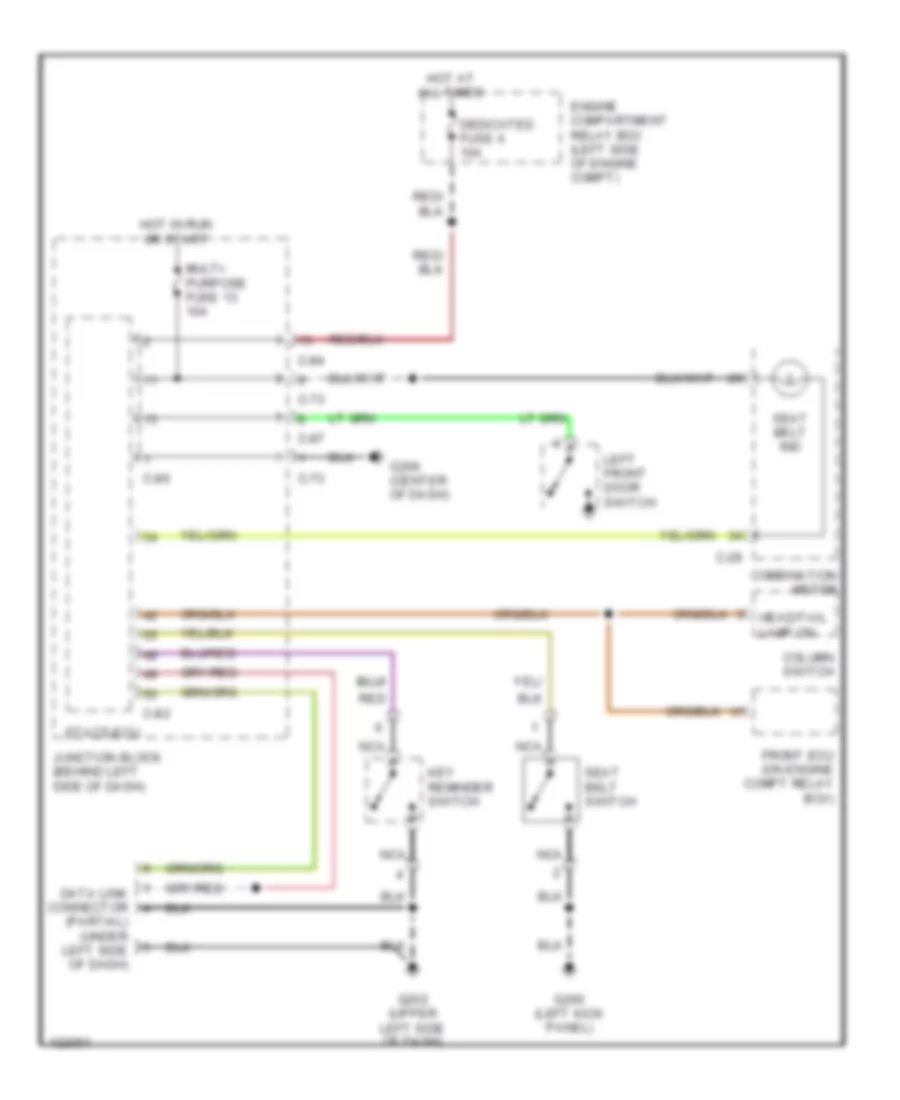

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Электросхема предупреждающей системы для Mitsubishi Galant LS 1999 Электросхема предупреждающей системы для Mitsubishi Galant LS 1999 - Список элементов: 28 (partial) (under left side of dash) C-29 C-73 C-82 C-84 C-86 C-87 Column switch Combination meter Data link connector Dedicated fuse 4 10a Engine compartment relay box (left side of engine compt) Etacs-ecu Front ecu (on engine compt relay box) G200 (left kick panel) G202 (upper left side of dash) G206 (center of dash) Head/tail lamp on Hot at all times Hot in run or start Junction block (behind left side of dash) Key reminder switch Left front door switch Multi- purpose fuse 13 10a Nca Red Seat belt ind Seat belt switch

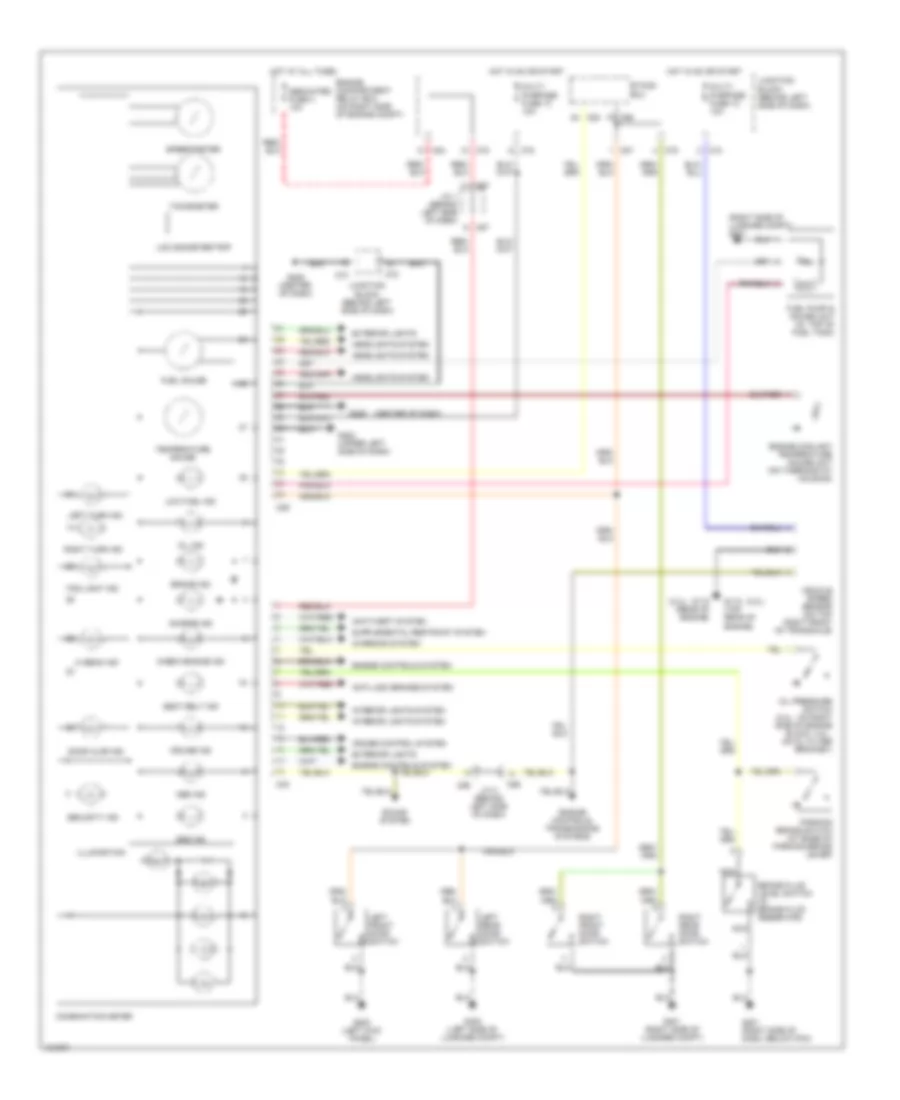

ПРИБОРНАЯ ПАНЕЛЬ Электросхема панели приборов для Mitsubishi Galant LS 1999 Электросхема панели приборов для Mitsubishi Galant LS 1999 - Список элементов: 79 (2.4l) (3.0l) (center of dash) (right side of luggage compt) g401 Abs ind Anti-lock brakes system Anti-theft system Brake fluid level switch (in brake fluid reservoir) Brake ind C29 C30 C56 C57 C73 C74 C78 C82 C84 C86 C87 Charge ind Charging system Check engine ind Combination meter Cruise control system Cruise ind Dedicated fuse 4 10a Door ajar ind Ecu Engine compartment relay box (on right side of engine compt) Engine controls system Engine controls, transmisions systems Engine coolant temperature gauge unit (on thermostat housing) Etacs- Exterior lights Fog light ind Fuel gauge Fuel pump & gauge unit (in top of fuel tank) G115 (rear of engine) G115 (top rear of engine) G200 (left kick panel) G201 (right side of dash, below pcm) G202 (upper left side of dash) G206 G206 (center of dash) G400 (left side of luggage compt) G401 (right side of luggage compt) Headlights system Hi beam ind Hot at all times Hot in on or start Illumination Interior lights system J/c 1 (behind left side of dash) J/c 2 (behind left side of dash) Junction block (behind left side of dash) Lcd odometer/trip Left front door switch Left rear door switch Left turn ind Low fuel ind Multi- Nca Oil ind Oil pressure switch (2.4l : on right side of engine block, 3.0l : on oil filter bracket) Parking brake switch (at base of parking brake lever) Purpose fuse 12 10a Purpose fuse 13 10a Right front door switch Right rear door switch Right turn ind Seat belt ind Security ind Sound system Speedometer Srs ind Tachometer Temperature gauge Vehicle speed sensor (on top right front of transaxle)

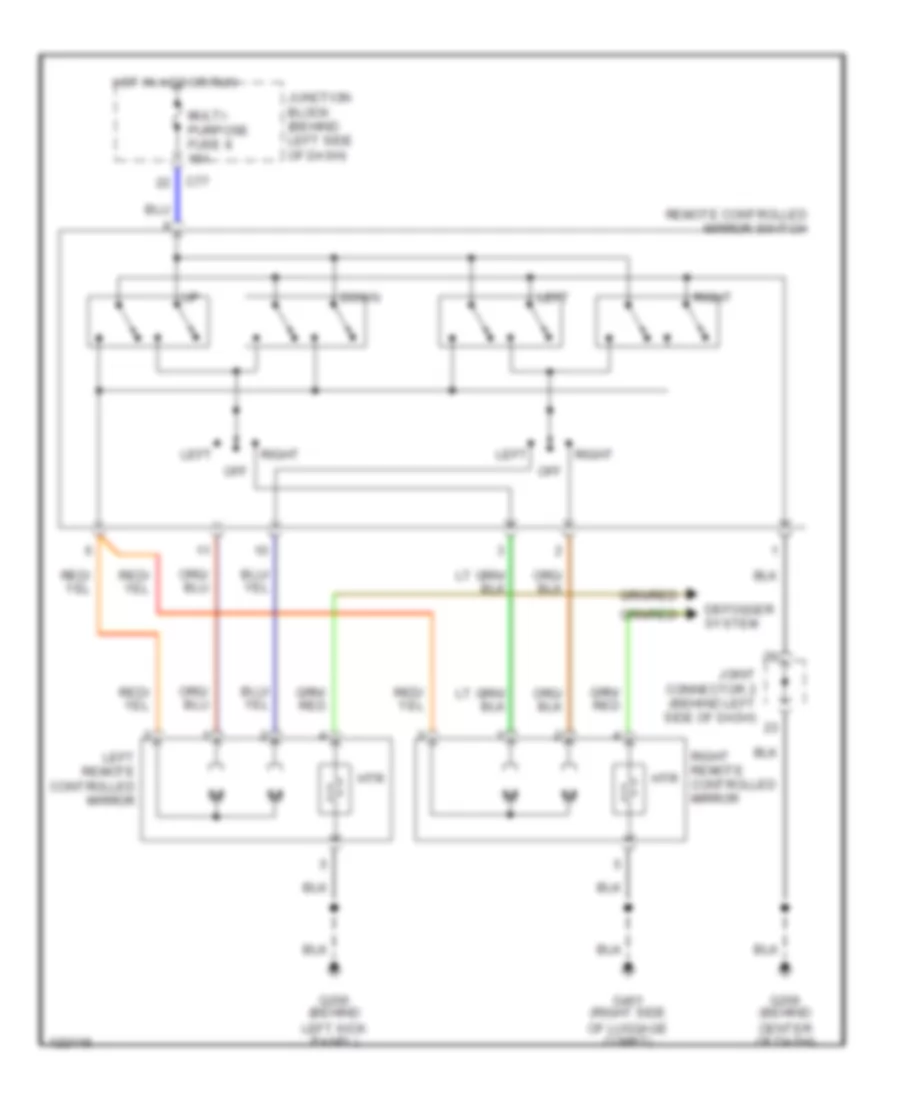

ПРИВОД ЗЕРКАЛ Электросхема привода зеркал для Mitsubishi Galant LS 1999 Электросхема привода зеркал для Mitsubishi Galant LS 1999 - Список элементов: 20 C77 Center of dash) Defogger system Down G200 (behind G206 (behind G401 (right side Hot in acc or run Htr Joint connector 2 (behind left side of dash) Junction block (behind left side of dash) Left Left kick panel) Left remote controlled mirror Multi- purpose fuse 8 15a Of luggage compt) Off Remote controlled mirror switch Right Right remote controlled mirror

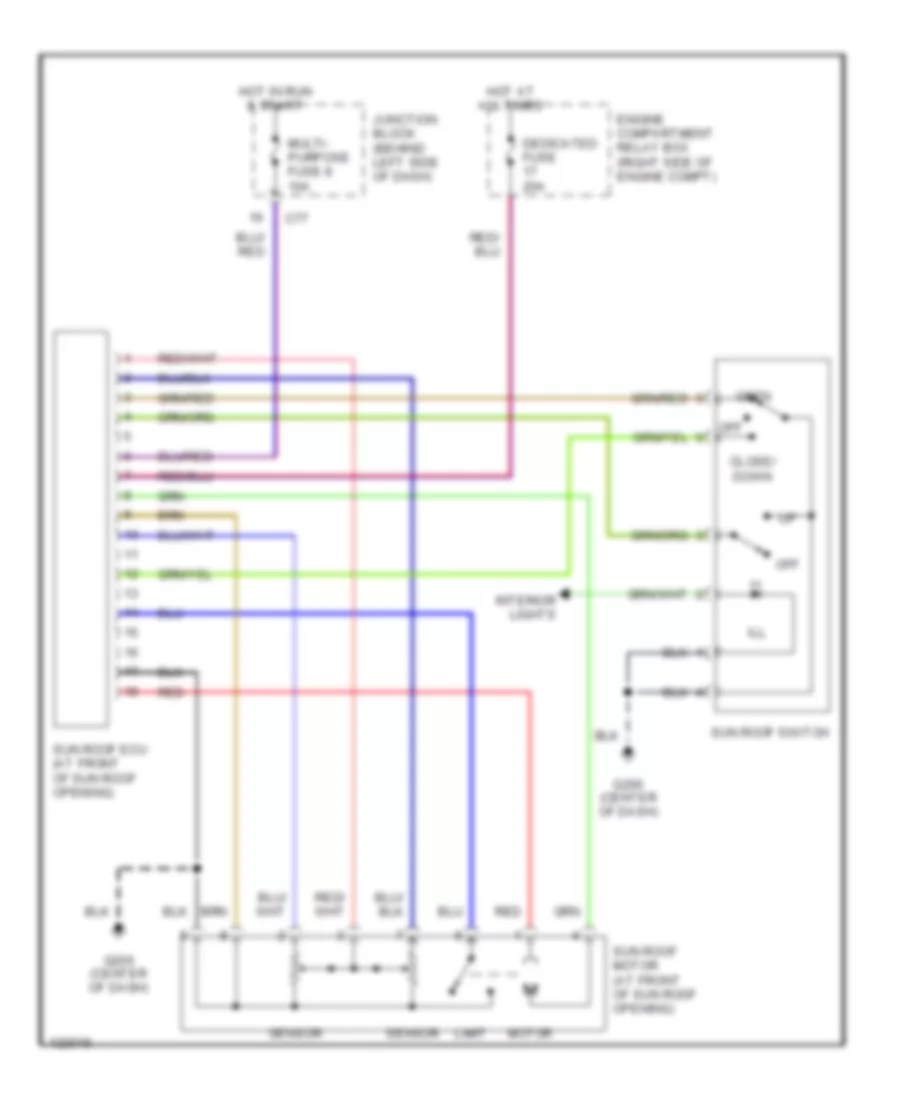

ПРИВОД ЛЮКА И КРЫШИ Электросхемы привода люка или крыши для Mitsubishi Galant LS 1999 Электросхемы привода люка или крыши для Mitsubishi Galant LS 1999 - Список элементов: 20 C77 Close/ down Dedicated fuse 20a Engine compartment relay box (right side of engine compt) G206 (center of dash) Hot at all times Hot in run & start Ill Interior lights Junction block (behind left side of dash) Limit Motor Multi- purpose fuse 8 10a Off Open Red Sensor Sun roof ecu (at front of sun roof opening) Sun roof motor (at front of sun roof opening) Sun roof switch

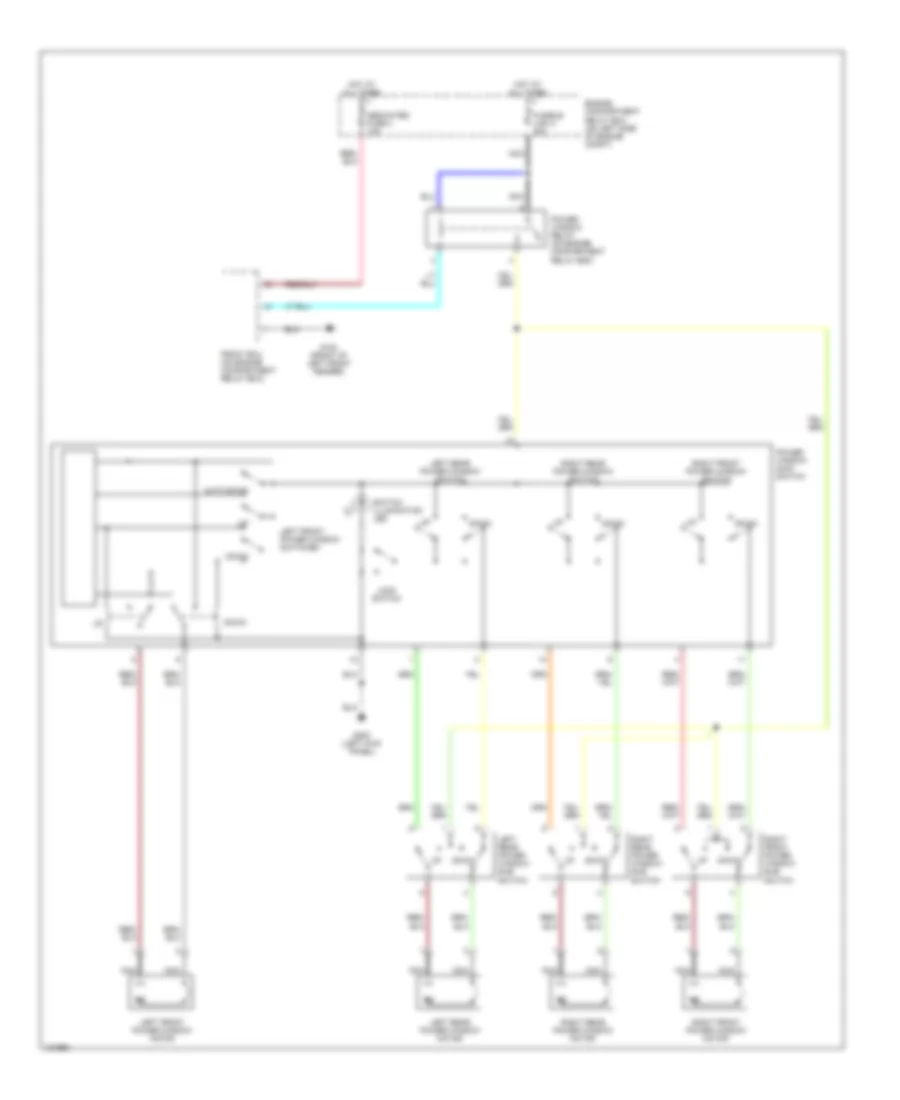

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Электросхема стеклоподъемников для Mitsubishi Galant LS 1999 Электросхема стеклоподъемников для Mitsubishi Galant LS 1999 - Список элементов: 25 Auto down Dedicated fuse 4 10a Down Engine compartment relay box (on left side of engine compt) Front ecu (on engine compartment relay box) Fusible link 3 30a G100 (front of left front fender) G200 (left kick panel) Hot at all times Left front power window motor Left front power window switches Left rear power window motor Left rear power window sub switch Left rear power window switch Lock switch Nca Power window main switch Power window relay (on engine compartment relay box) Right front power window motor Right front power window sub switch Right front power window switch Right rear power window motor Right rear power window sub switch Right rear power window switch Switch illumination led

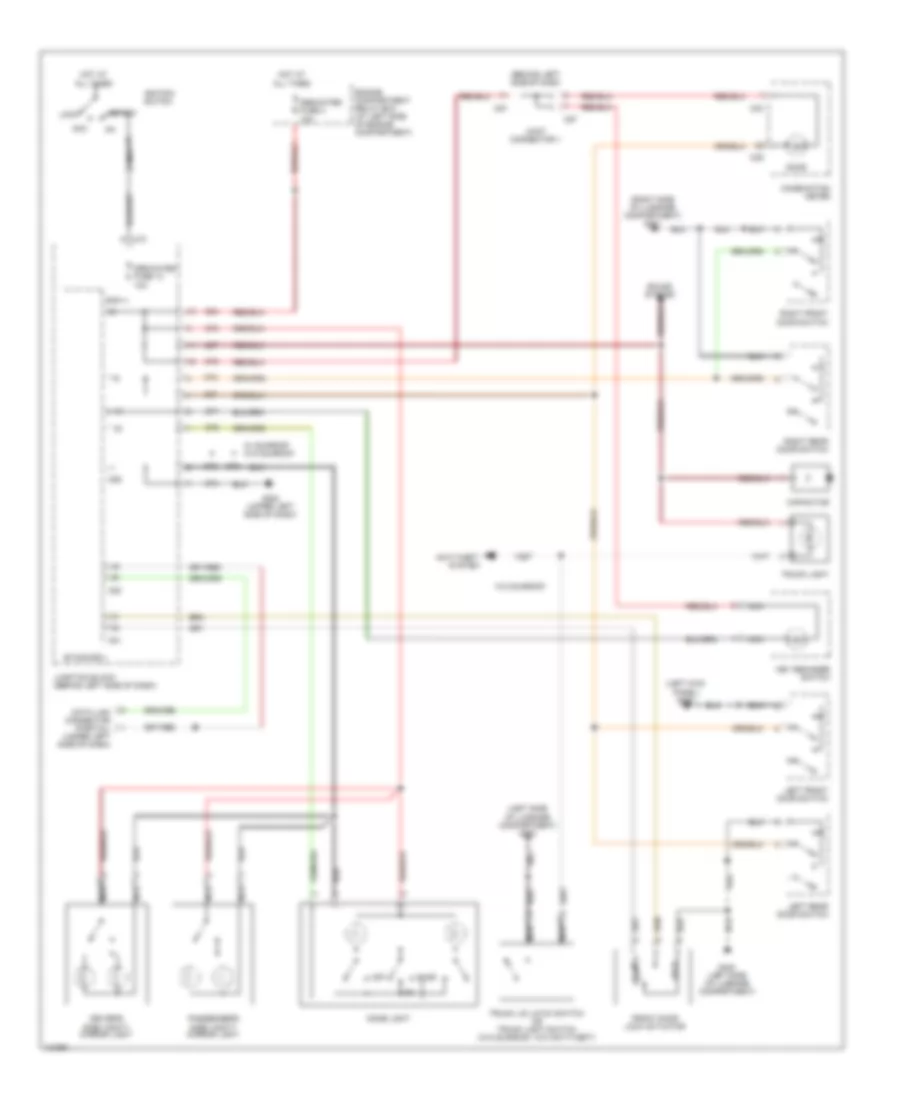

Противоугонная система Сигнализация Электросхема противоугонной сигнализации для Mitsubishi Galant LS 1999 Электросхема противоугонной сигнализации для Mitsubishi Galant LS 1999 - Список элементов: 54 C30 C57 C77 C78 C81 C82 C84 C86 C87 Combination meter Dedicated fuse 4 15a Engine compartment relay box (on left side of engine compt) Etacs ecu Front ecu (on engine compt relay box) G100 (front of left front fender) G200 (left kick panel) G202 (upper left side of dash) G400 (left side of luggage compt) G401 (right side of luggage compt) G401 right side of luggage compt) Headlights system Hood switch Hot at all times Hot in acc or on Hot in on or start Interior lights system Interior lights, exterior lights system J/c 1 (behind left side of dash) Junction block (behind left side of dash) Key reminder switch Left door key cylinder switch Left front door lock actuator Left front door switch Left rear door lock actuator Left rear door switch Lock Multi- purpose fuse 10 10a Multi- purpose fuse 13 10a Multi- purpose fuse 8 20a Nca Red Right door key cylinder switch Right front door lock actuator Right front door switch Right rear door lock actuator Right rear door switch Security ind Starting system Theft alarm horn (at left side of engine compt) Theft alarm horn relay (on engine compt relay box) Theft alarm starter relay (on engine compt relay box) Trunk lid latch switch Trunk lid lock key cylinder switch Unlock

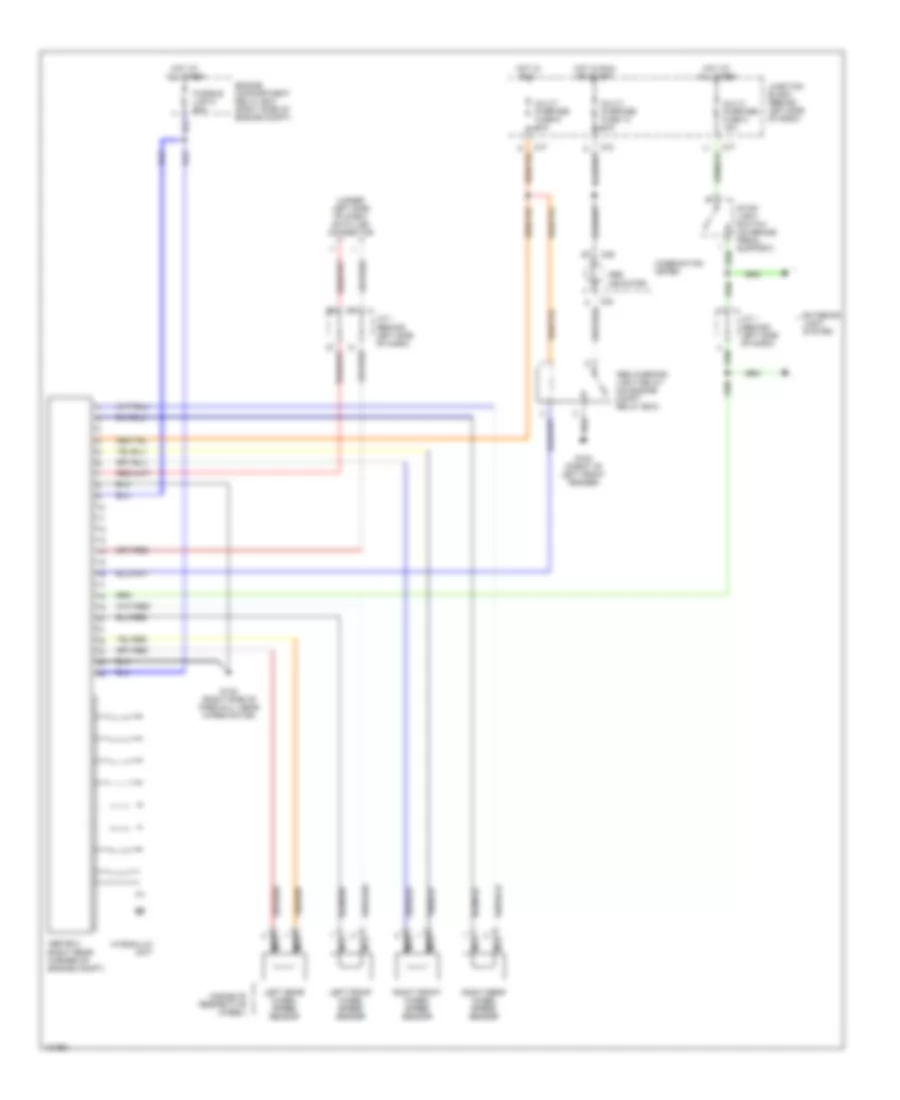

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Электросхема антиблокировочной тормозной системы АБС (ABS) для Mitsubishi Galant LS 1999 Электросхема антиблокировочной тормозной системы АБС (ABS) для Mitsubishi Galant LS 1999 - Список элементов: 30 (inside of respective wheel) (under left side of dash) data link connector Abs ecu (right rear corner of engine compt) Abs indicator Abs warning light relay (on engine compt relay box) C29 C30 C77 C78 Combination meter Engine compartment relay box (right side of engine compt) Exterior light system Fusible link 5 50a G100 (fornt of left front fender) G123 (right side of firewall, near wiper motor) Hot at all times Hot in run Hot in run or start Hydraulic unit J/c 1 (behind left side of dash) Junction block (behind left side of dash) Left front wheel speed sensor Left rear wheel speed sensor Multi- purpose fuse 13 10a Multi- purpose fuse 3 15a Multi- purpose fuse 9 10a Nca Right front wheel speed sensor Right rear wheel speed sensor Stop- light switch (on brake pedal support)
СИСТЕМА КОНДИЦИОНЕРА

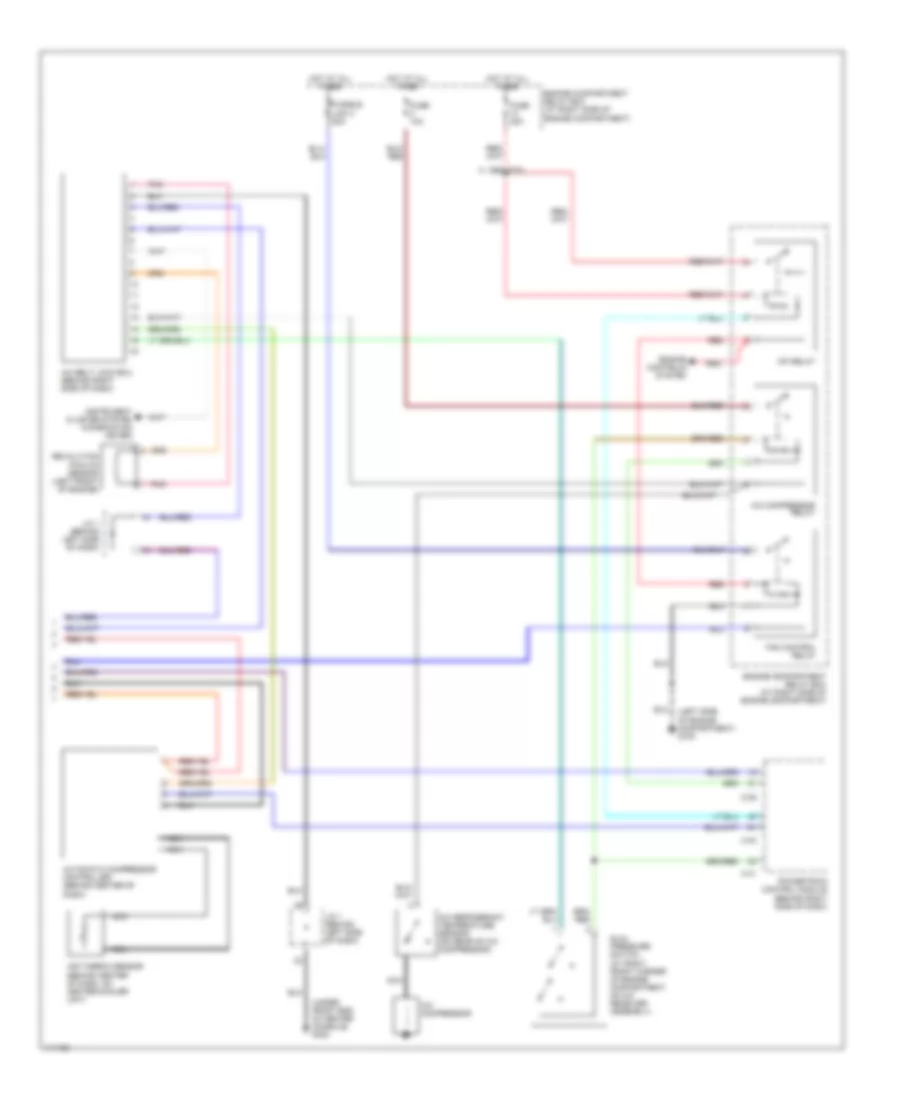

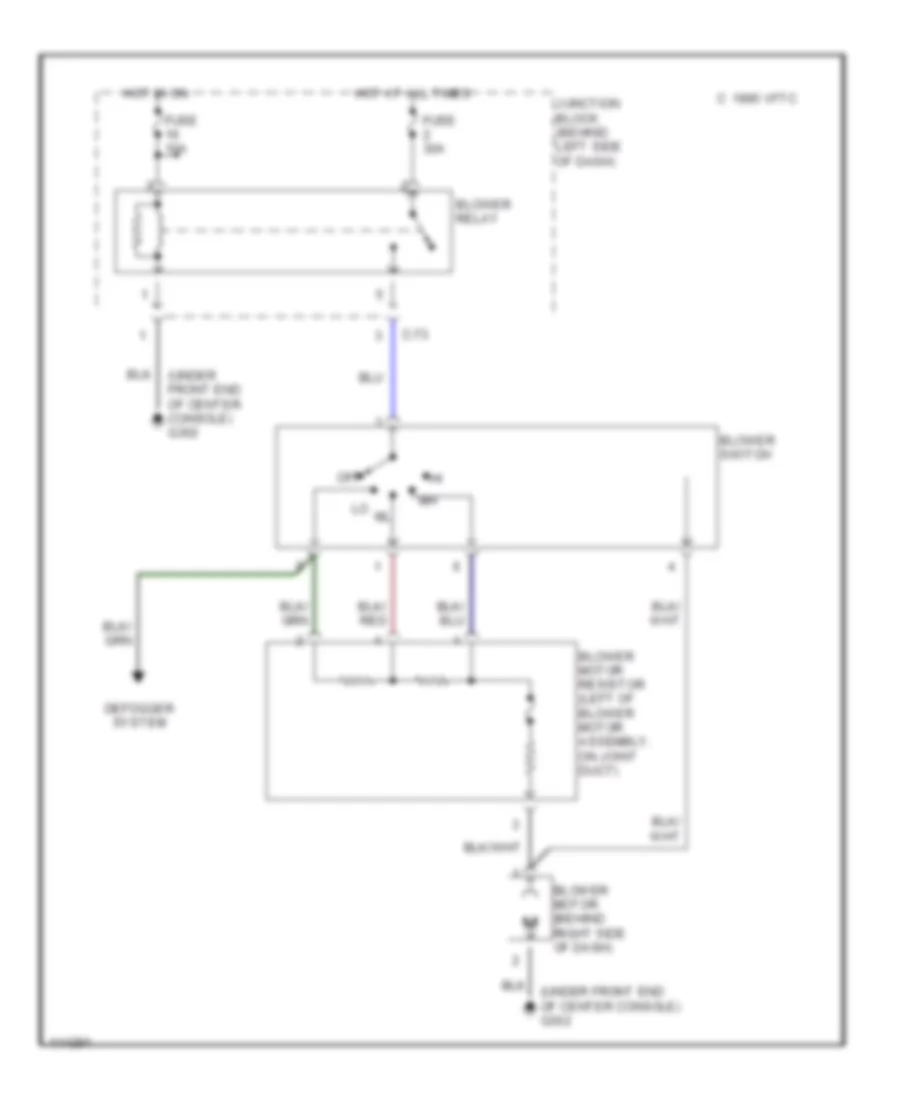

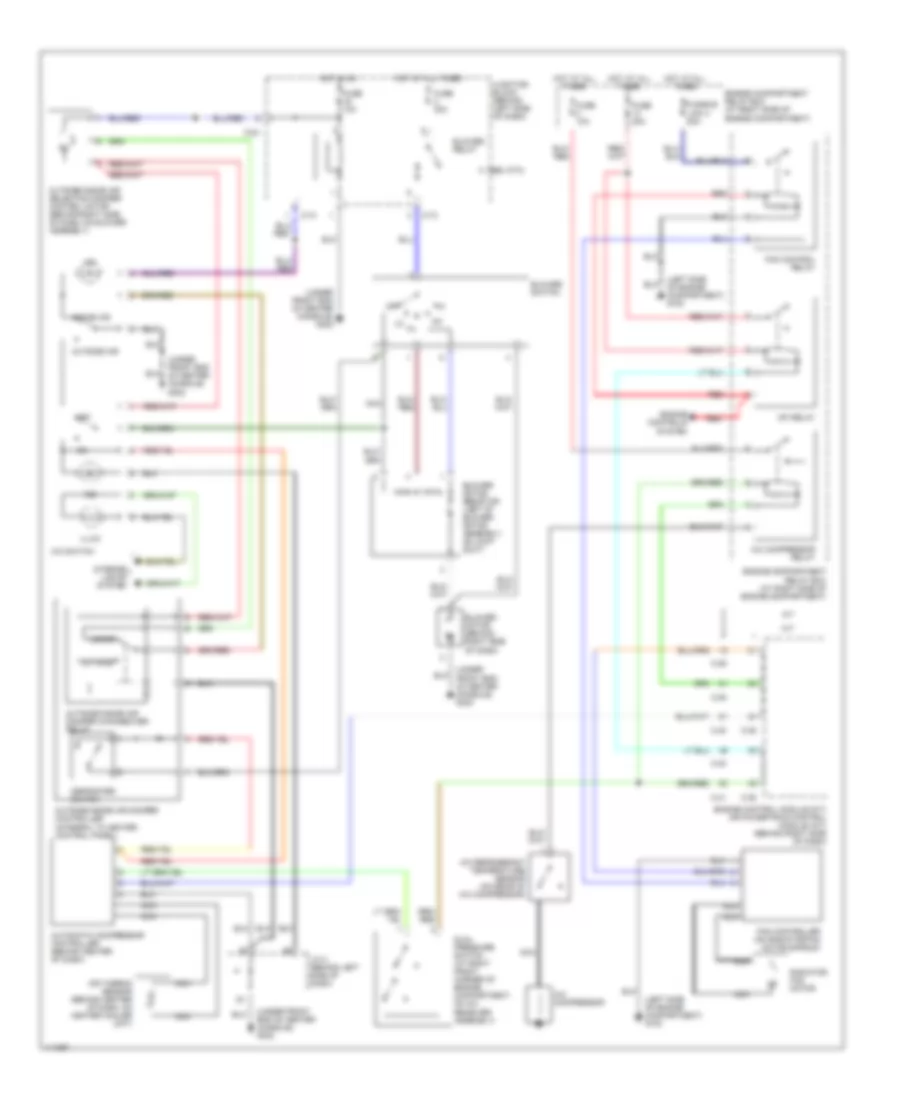

2.4L 2.4L, Электросхема кондиционера с ручный управлением для Mitsubishi Galant LS 1999 2.4L, Электросхема кондиционера с ручный управлением для Mitsubishi Galant LS 1999 - Список элементов: 53 (left side of engine compartment) g100 (under front end of center console) g302 A/c compressor A/c compressor relay A/c refrigerant temperature sensor (on rear of a/c compressor) A/c switch A/t Air thermo sensor (behind center of dash, on heater cooler unit) Automatic compressor controller (behind center of dash) Blower motor (behind right side of dash) Blower motor resistor (left of blower motor assembly, on joint duct) Blower relay Blower switch C 1995 vftc C-35 C-36 C-39 C-40 C-41 C-73 C-74 C-84 Defroster switch Dual pressure switch (at right front corner of engine compartment, on a/c receiver assembly) Engine compartment relay box (at right side of engine compartment) Engine control module (m/t) or powertrain control module (a/t) (behind right side of dash) Engine controls system Fan control relay Fan controller (on radiator fan motor shroud) Fuse 10a Fuse 20a Fuse 30a Fusible link 4 50a Hot at all times Hot in on Illum Ind Inside Inside air Interior lights system J/c 2 (behind left side of dash) Junction block (behind left side of dash) M/t Mfi relay Nca Off Outside Outside air Outside/inside air damper changeover relay Outside/inside air damper controller (integral to heater control panel) Outside/inside air selection damper control motor (behind right side of dash, on blower assembly) Radiator fan motor Red схема нагревателя для Mitsubishi Galant LS 1999 схема нагревателя для Mitsubishi Galant LS 1999 - Список элементов: 14 (under front end of center console) g302 Blower motor (behind right side of dash) Blower motor resistor (left of blower motor assembly, on joint duct) Blower relay Blower switch C 1995 vftc C-73 Defogger system Fuse 10a Fuse 30a Hot at all times Hot in on Junction block (behind left side of dash) Off

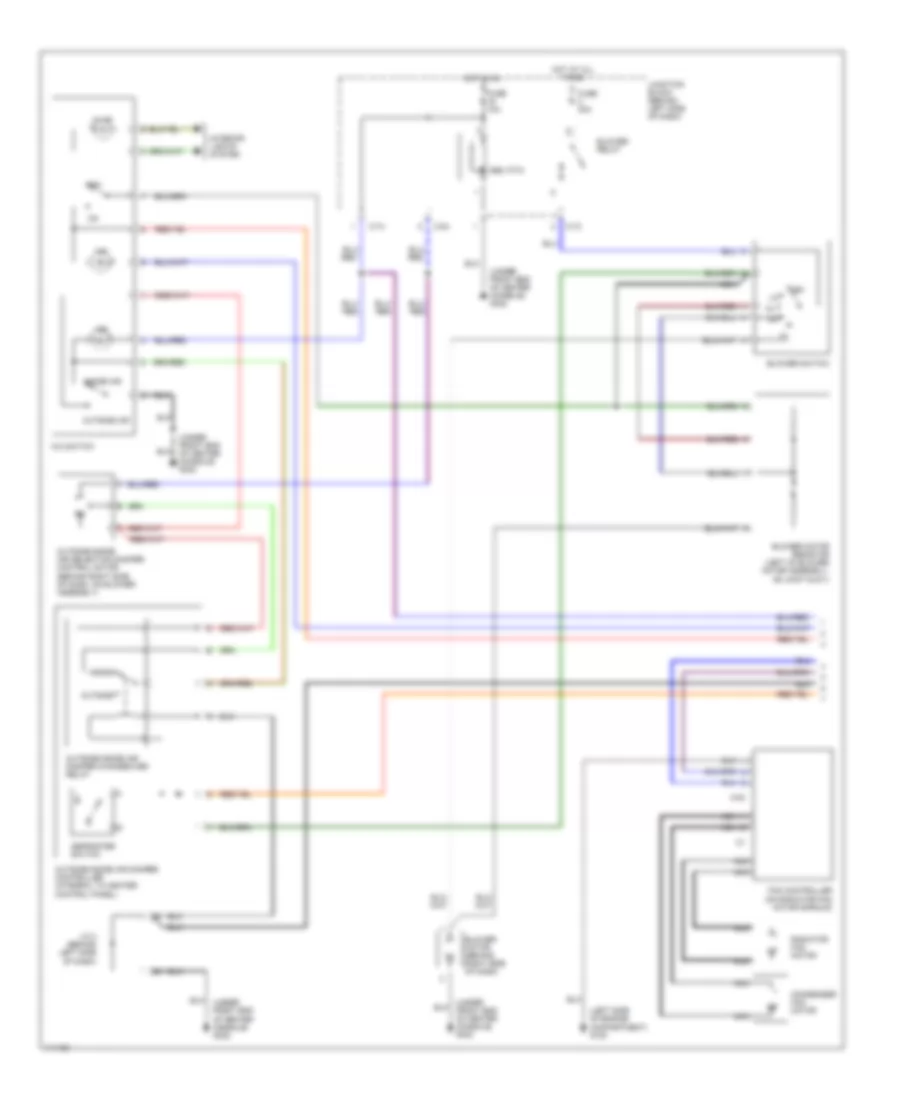

3.0L 3.0L, Электросхема кондиционера с ручный управлением (1 из 2) для Mitsubishi Galant LS 1999 3.0L, Электросхема кондиционера с ручный управлением (1 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 34 (left side of engine compartment) g100 (under front end of center console) g302 A-30 A/c switch Blower motor (behind right side of dash) Blower motor resistor (left of blower motor assembly, on joint duct) Blower relay Blower switch C 1995 vftc C-73 C-74 C-84 Condenser fan motor Defroster switch Fan controller (on radiator fan motor shroud) Fuse 10a Fuse 30a Hot at all times Hot in on Illum Ind Inside Inside air Interior lights system J/c 2 (behind left side of dash) Junction block (behind left side of dash) Nca Off Outside Outside air Outside/inside air damper changeover relay Outside/inside air damper controller (integral to heater control panel) Outside/inside air selection damper control motor (behind right side of dash, on blower assembly) Radiator fan motor 3.0L, Электросхема кондиционера с ручный управлением (2 из 2) для Mitsubishi Galant LS 1999 3.0L, Электросхема кондиционера с ручный управлением (2 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 28 (left side of engine compartment) g100 (under front end of center console) g302 A/c belt lock ecu (behind right side of dash) A/c compressor A/c compressor relay A/c refrigerant temperature sensor (on rear of a/c compressor) Air thermo sensor (behind center of dash, on heater/cooler unit) Automatic compressor controller (behind center of dash) C 1995 vftc C-39 C-40 C-41 Dual pressure switch (at right front corner of engine compartment, on a/c receiver assembly) Engine compartment relay box (at right side of engine compartment) Engine controls system Fan control relay Fuse 10a Fuse 20a Fusible link 4 50a Hot at all times Instrument cluster system (combination meter) J/c 1 (behind left side of dash) Mfi relay Nca Pnk Powertrain control module (behind right side of dash) Red Revolution pick-up sensor (left front of engine) схема нагревателя для Mitsubishi Galant LS 1999 схема нагревателя для Mitsubishi Galant LS 1999 - Список элементов: 14 (under front end of center console) g302 Blower motor (behind right side of dash) Blower motor resistor (left of blower motor assembly, on joint duct) Blower relay Blower switch C 1995 vftc C-73 Defogger system Fuse 10a Fuse 30a Hot at all times Hot in on Junction block (behind left side of dash) Off

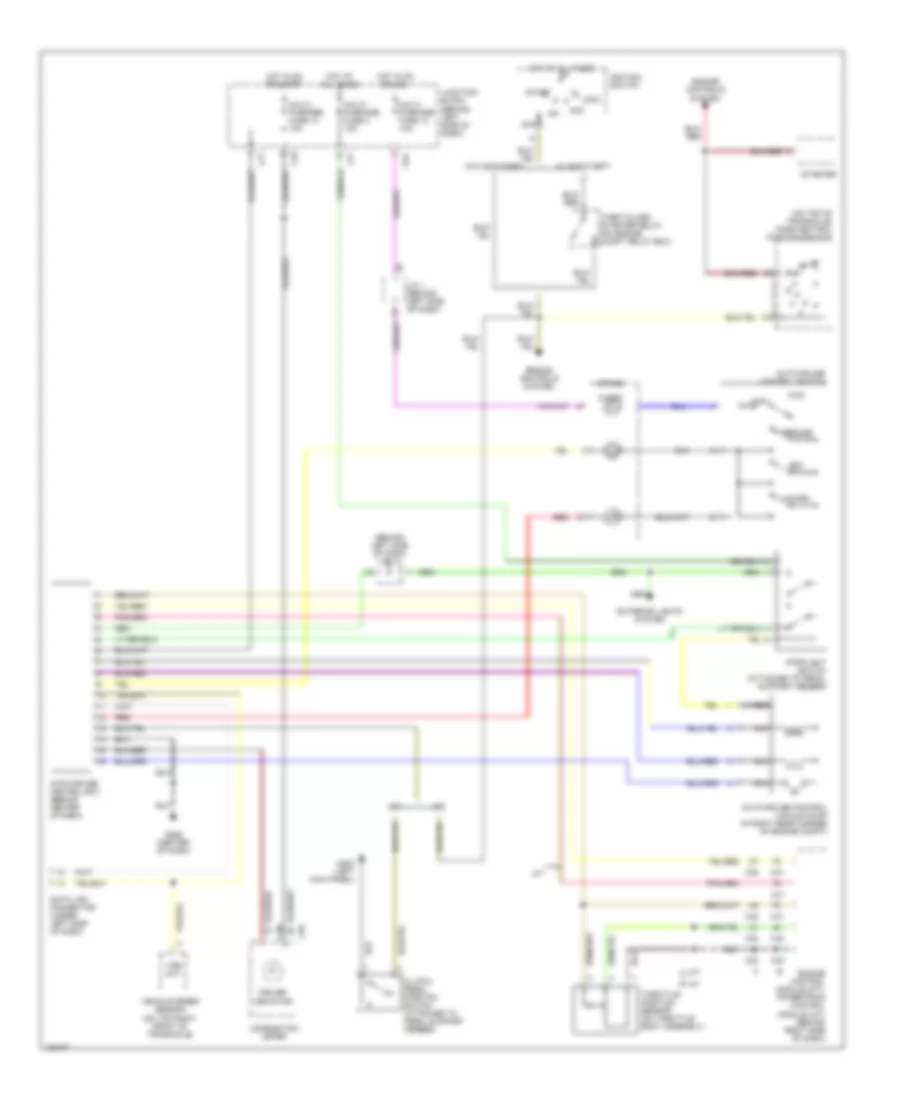

СИСТЕМА КРУИЗКОНТРОЛЯ Электросхема системы круизконтроля для Mitsubishi Galant LS 1999 Электросхема системы круизконтроля для Mitsubishi Galant LS 1999 - Список элементов: 54 (behind left side of dash) j/c 1 (on top of transaxle) park/neutral position switch A/t Acc Auto-cruise control ecu (behind center of dash) Auto-cruise control switch Auto-cruise control vacuum pump (in right rear corner of engine compt) B a/t C29 C30 C38 C40 C41 C77 C78 C84 Cancel Clock Clutch pedal position switch (attached to pedal support member) Combination meter Cruise indicator Data link connector (under left side of dash) Engine control module (m/t), powertrain control module (a/t) (behind right side of dash) Engine controls system Exterior lights system G200 (left kick panel) G206 (center of dash) Hot at all times Hot in on or acc Hot in on or start Ignition switch J/c 1 (behind left side of dash) Junction block (behind left side of dash) Lock M/t M/t a Main Multi- purpose fuse 13 10a Multi- purpose fuse 14 10a Multi- purpose fuse 3 10a Nca Red Resume Set Spring Start Starter Stoplight switch (attached to pedal support member) Theft-alarm starter relay (on engine compt relay box) Throttle position sensor (on throttle body assembly) Vehicle speed sensor (on top right front of transaxle) Vss out W/ anti-theft W/o anti-theft
СИСТЕМА ОХЛАЖДЕНИЯ

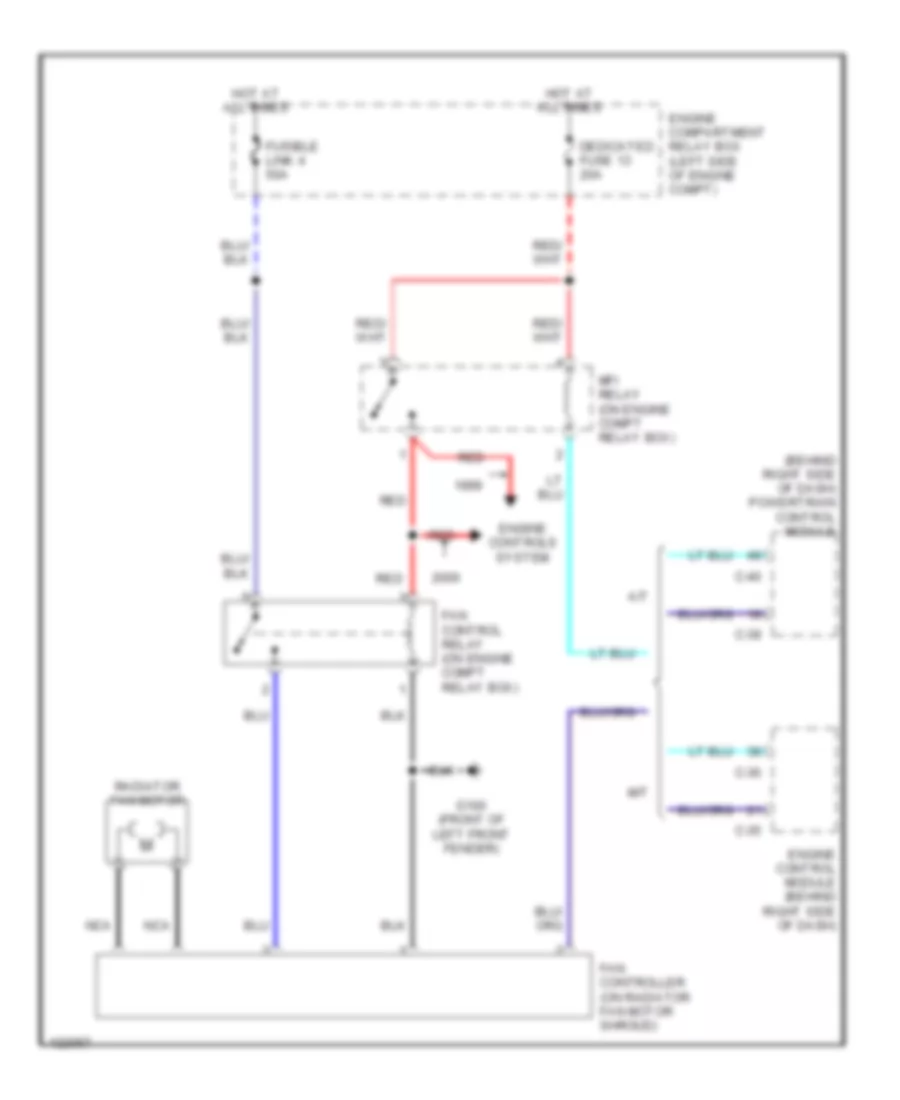

2.4L 2.4L, Электросхема системы охлаждения для Mitsubishi Galant LS 1999 2.4L, Электросхема системы охлаждения для Mitsubishi Galant LS 1999 - Список элементов: 20 (behind right side of dash) powertrain control module A/t C-35 C-36 C-39 C-40 Dedicated fuse 13 20a Engine compartment relay box (left side of engine compt) Engine control module (behind right side of dash) Engine controls system Fan control relay (on engine compt relay box) Fan controller (on radiator fan motor shroud) Fusible link 4 50a G100 (front of left front fender) Hot at all times M/t Mfi relay (on engine compt relay box) Nca Radiator fan motor Red

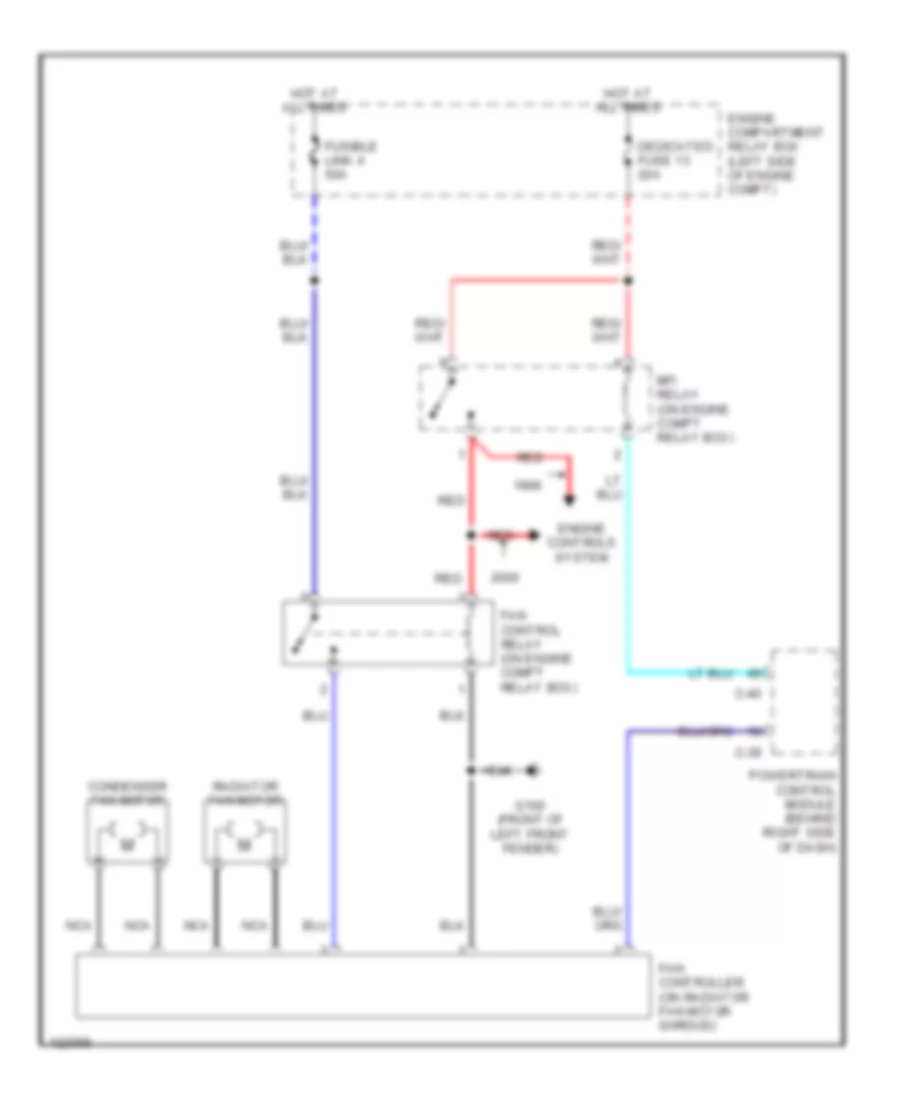

3.0L 3.0L, Электросхема системы охлаждения для Mitsubishi Galant LS 1999 3.0L, Электросхема системы охлаждения для Mitsubishi Galant LS 1999 - Список элементов: 16 C-39 C-40 Condenser fan motor Dedicated fuse 13 20a Engine compartment relay box (left side of engine compt) Engine controls system Fan control relay (on engine compt relay box) Fan controller (on radiator fan motor shroud) Fusible link 4 50a G100 (front of left front fender) Hot at all times Mfi relay (on engine compt relay box) Nca Powertrain control module (behind right side of dash) Radiator fan motor Red

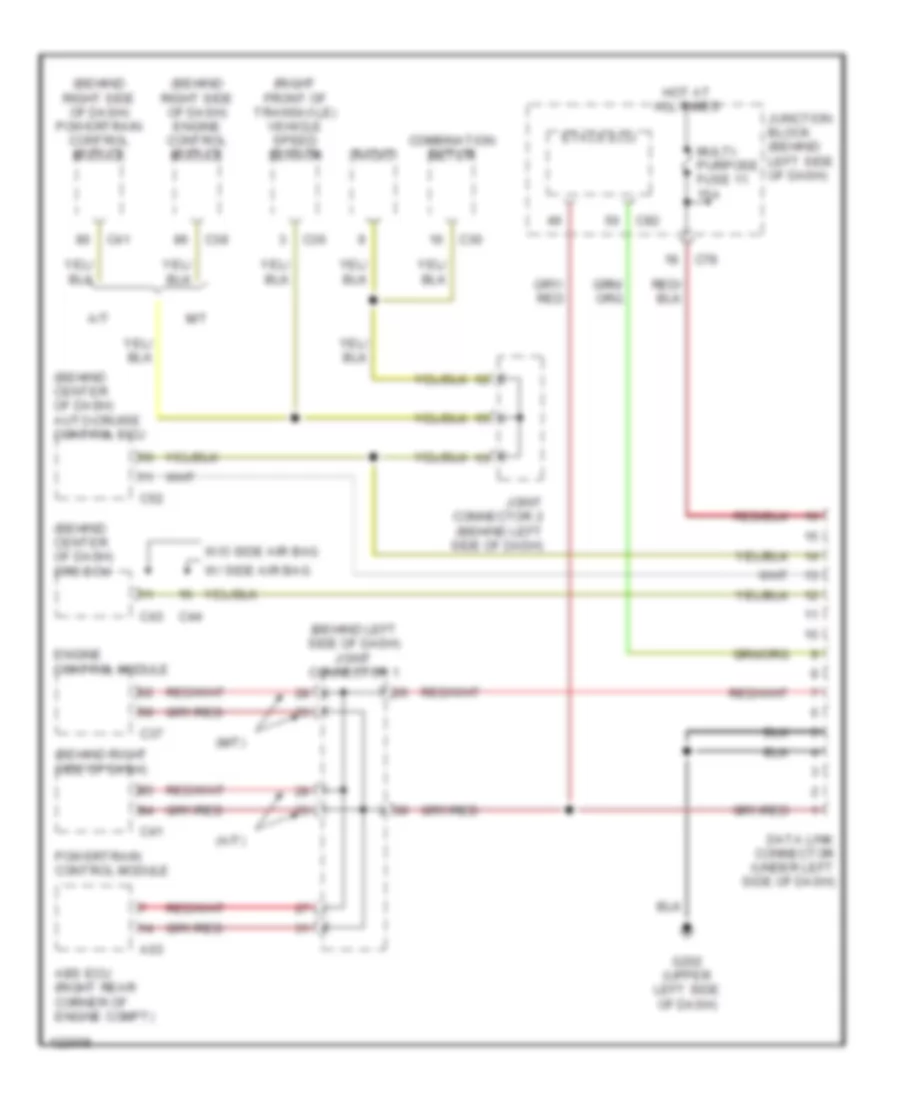

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Электросхема компьютерной линии передачи данных CAN для Mitsubishi Galant LS 1999 Электросхема компьютерной линии передачи данных CAN для Mitsubishi Galant LS 1999 - Список элементов: 36 (a/t) (behind center of dash) auto-cruise control ecu (behind center of dash) srs ecu (behind left side of dash) joint connector 1 (behind right side of dash) (behind right side of dash) engine control module (behind right side of dash) powertrain control module (m/t) (right front of transaxle) vehicle speed sensor A/t A03 Abs ecu (right rear corner of engine compt) C30 C36 C37 C38 C41 C43 C44 C52 C78 C82 Combination meter Data link connector (under left side of dash) Engine control module Etacs ecu G202 (upper left side of dash) Hot at all times Joint connector 2 (behind left side of dash) Junction block (behind left side of dash) M/t Multi- purpose fuse 11 15a Powertrain control module Radio W/ side air bag W/o side air bag
СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

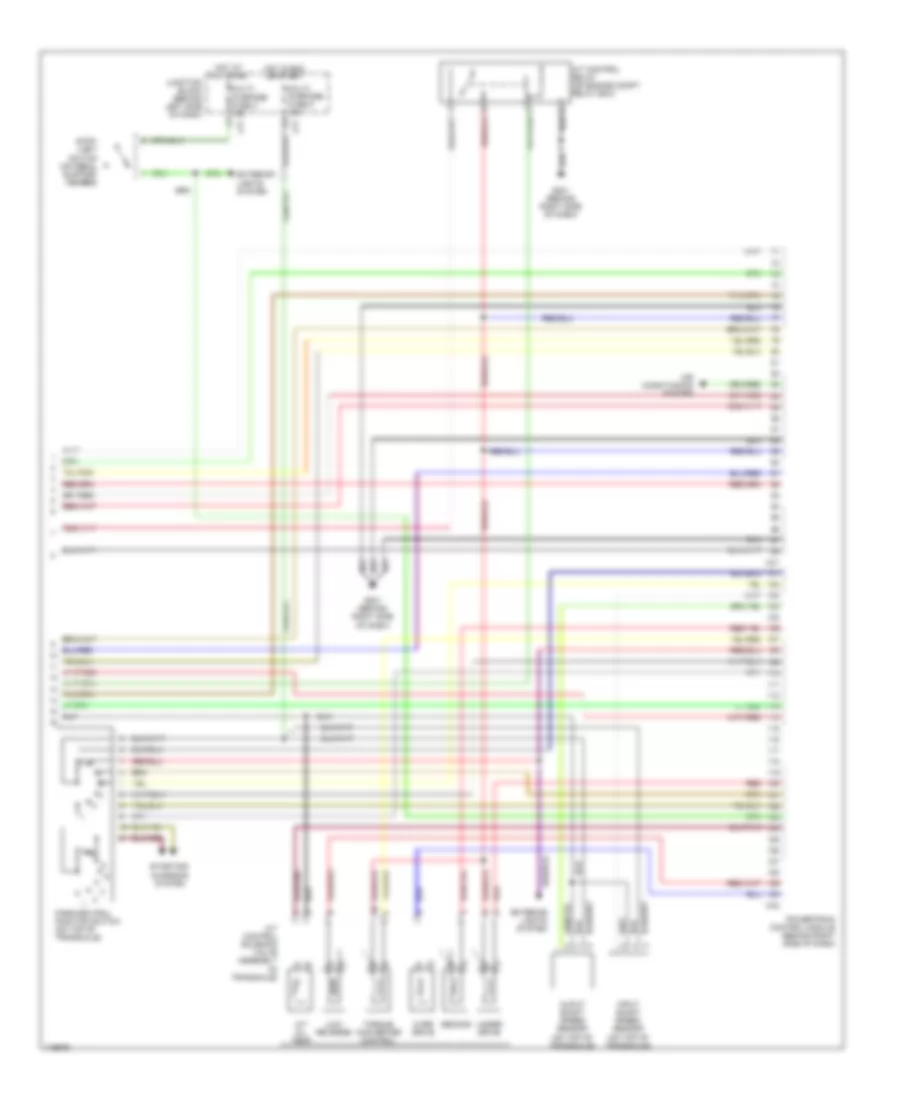

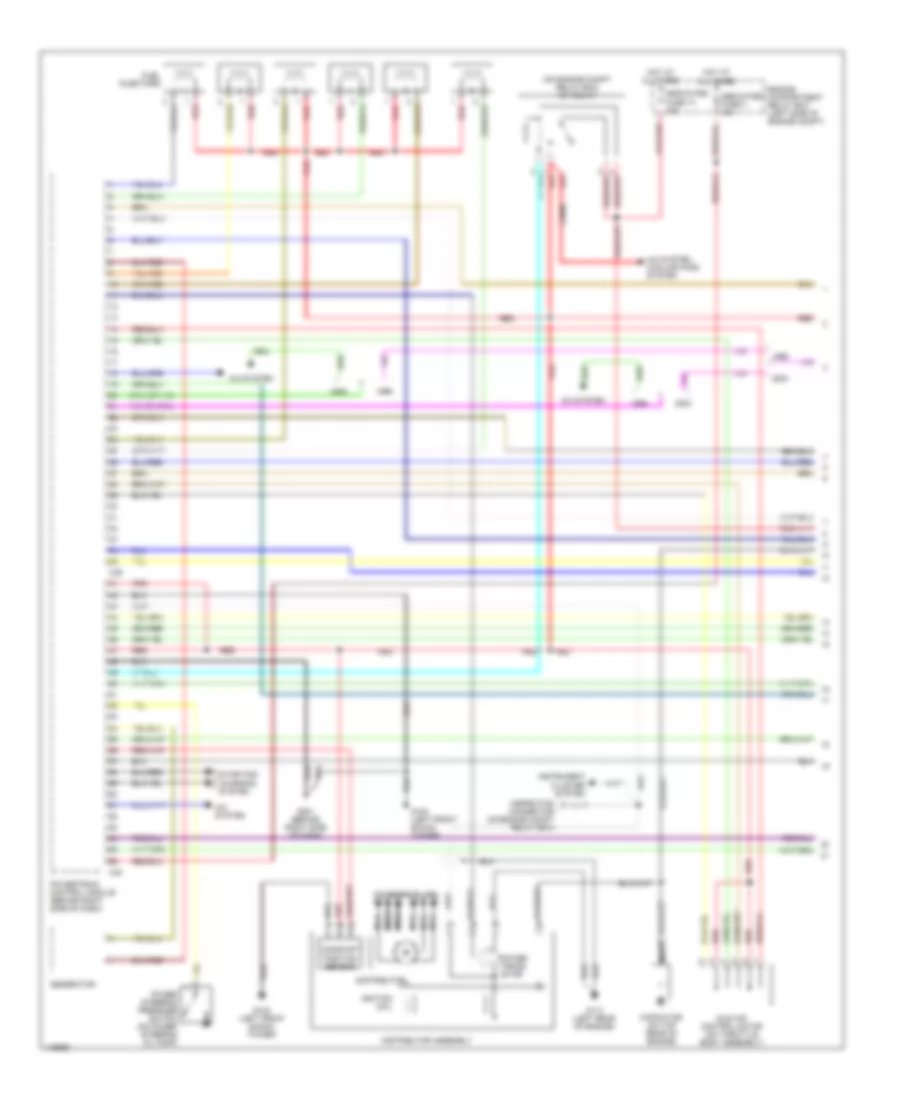

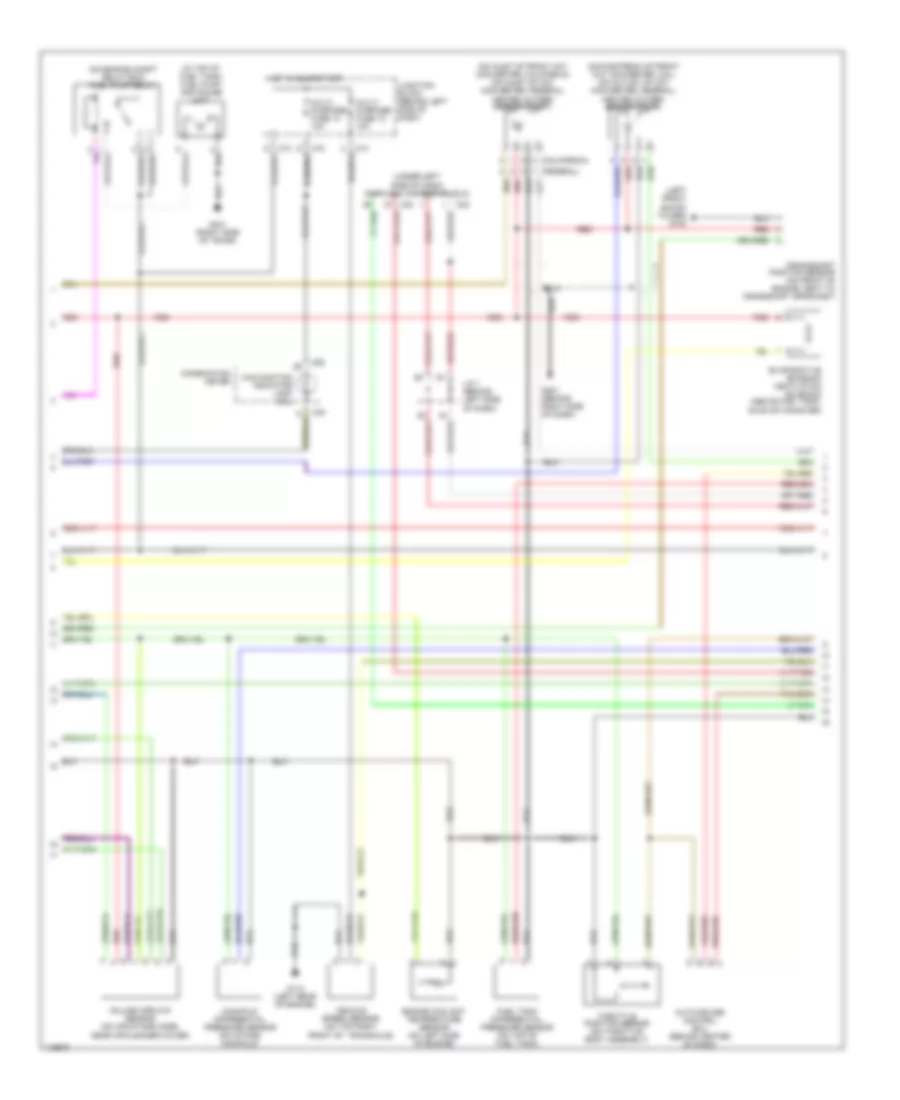

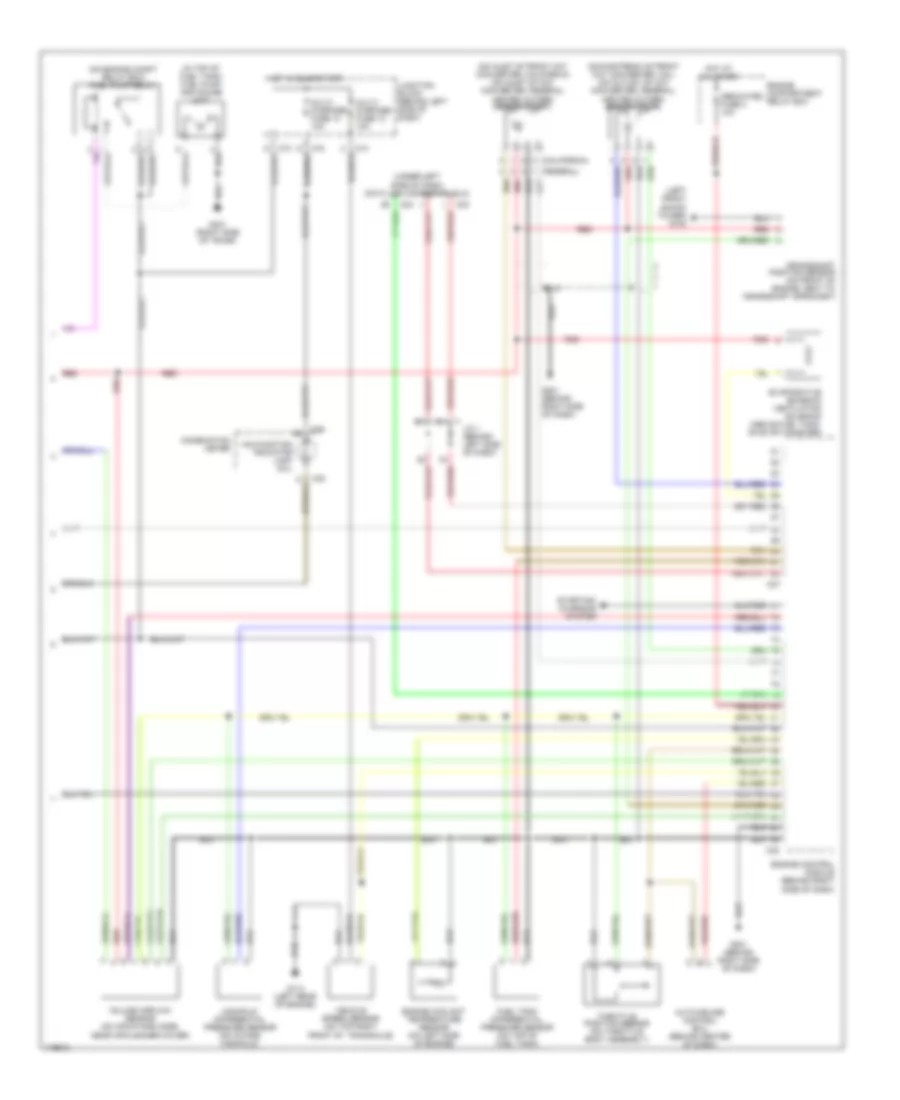

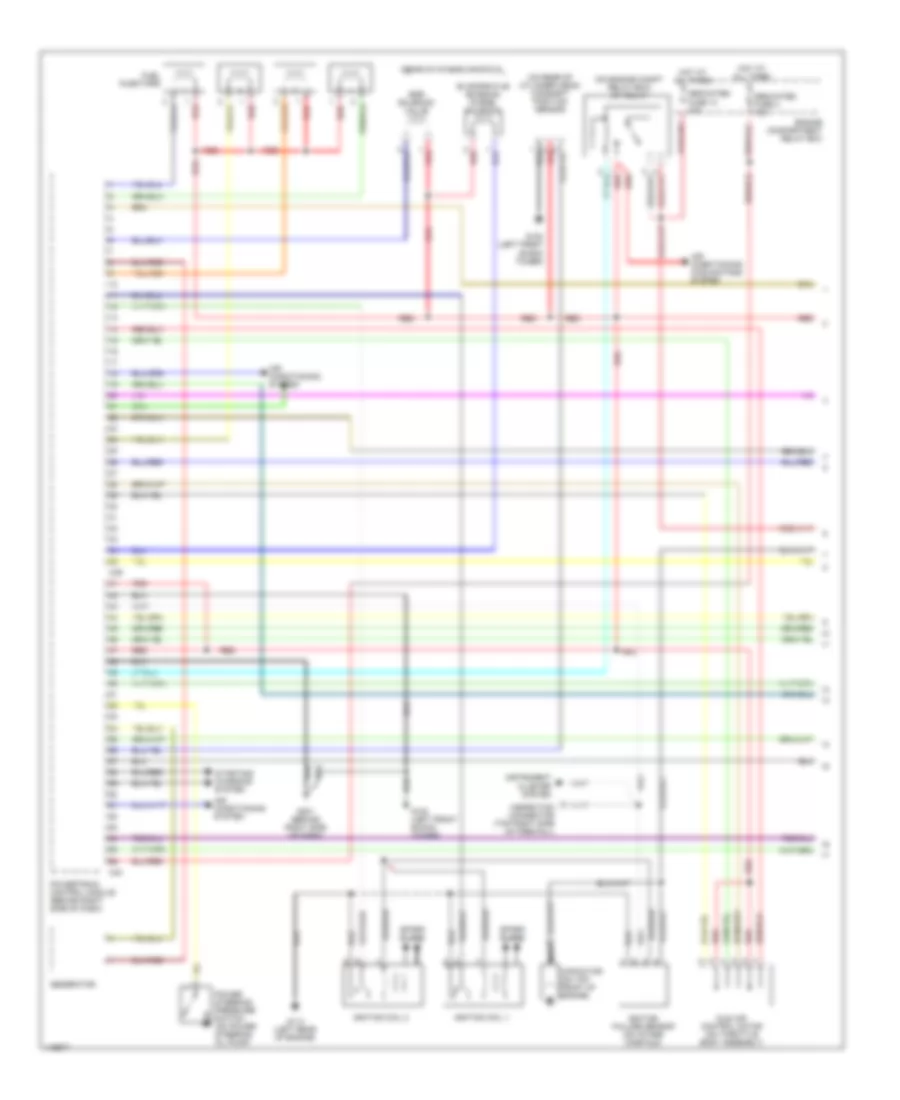

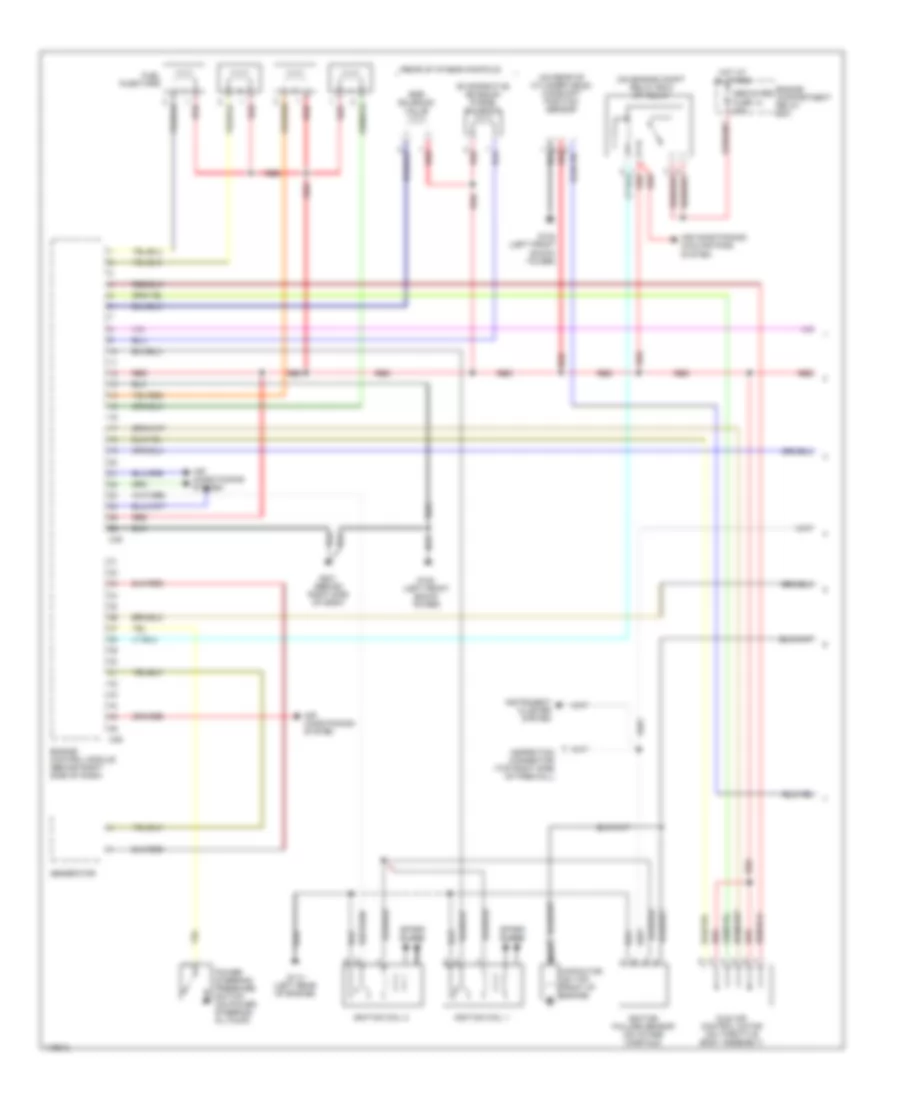

2.4L 2.4L, Электросхема системы управления двигателя A/T (1 из 3) для Mitsubishi Galant LS 1999 2.4L, Электросхема системы управления двигателя A/T (1 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 31 (on engine compt relay box) mfi relay (on rear of cylinder head) camshaft position sensor (rear of intake manifold) Air conditioning system Air conditioning/ cooling fans system C39 C40 Capacitor (on top front of engine) Dedicated fuse 13 20a Dedicated fuse 4 10a Egr solenoid valve Engine compartment relay box Evaporative emission purge solenoid Fuel injectors G102 (left front shock tower) G114 (left rear of engine) G201 (behind right side of dash) Generator Hot at all times Idle air control motor (on throttle body assembly) Ignition coil 1 Ignition coil 2 Ignition failure sensor (on intake manifold) Inspection connector (top right side of firewall) Instrument cluster system Nca Power steering pressure switch (on power steering oil pump) Powertrain control module (behind right side of dash) Red Spark plugs Starting/ charging system 2.4L, Электросхема системы управления двигателя A/T (2 из 3) для Mitsubishi Galant LS 1999 2.4L, Электросхема системы управления двигателя A/T (2 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 33 (california) (downstream of front cat converter; cal) (on outlet of cat converter; federal) heated oxygen sensor (rear) (in top of fuel tank) fuel pump and gauge unit (left front shock tower) g102 (on engine compt relay box) fuel pump relay (on inlet of front cat converter; california) (on inlet of cat converter: federal) heated oxygen sensor (front) (under left side of dash) data link connector (dlc) Auto-cruise control ecu (behind center of dash) C23 C24 C29 C30 C74 C78 Combination meter Crankshaft position sensor (on front of engine, next to crankshaft sprocket) Engine coolant temperature sensor (on left side of engine) Evaporative emission ventilation solenoid (above fuel tank, on evap canister) Fuel tank differential pressure sensor (on top of fuel tank) G114 (left rear of engine) G201 (behind right side of dash) G401 (right side of trunk) Hot in on or start J/c 1 (behind left side of dash) Junction block (behind left side of dash) Malfunction indicator lamp (mil) Manifold differential pressure sensor (on intake manifold) Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Red Throttle position sensor (on throttle body assembly) Vehicle speed sensor (on top right front of transaxle) Volume airflow sensor (on air intake hose, near air cleaner cover) 2.4L, Электросхема системы управления двигателя A/T (3 из 3) для Mitsubishi Galant LS 1999 2.4L, Электросхема системы управления двигателя A/T (3 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 27 A/t control relay (on engine compt relay box) A/t control solenoid valve assembly (in transaxle) A/t oil temp Air conditioning system C41 C42 C77 Exterior lights system G201 (behind right side of dash) Hot at all times Hot in run or start Input shaft speed sensor (on top of transaxle) Junction block (behind left side of dash) Low/ reverse Multi- purpose fuse 3 15a Multi- purpose fuse 5 10a Ouput shaft speed sensor (on top of transaxle) Over drive P r Park/neutral position switch (on top of transaxle) Powertrain control module (behind right side of dash) Red Second Starting/ charging system Stop- light switch (on pedal support member) Torque converter control Under drive 2.4L, Электросхема системы управления двигателя M/T (1 из 2) для Mitsubishi Galant LS 1999 2.4L, Электросхема системы управления двигателя M/T (1 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 29 (on engine compt relay box) mfi relay (on rear of cylinder head) camshaft position sensor (rear of intake manifold) Air conditioning system Air conditioning/ cooling fans system C35 C36 Capacitor (on top front of engine) Dedicated fuse 13 20a Egr solenoid valve Engine compartment relay box Engine control module (behind right side of dash) Evaporative emission purge solenoid Fuel injectors G102 (left front shock tower) G114 (left rear of engine) G201 (behind right side of dash) Generator Hot at all times Idle air control motor (on throttle body assembly) Ignition coil 1 Ignition coil 2 Ignition failure sensor (on intake manifold) Inspection connector (top right side of firewall) Instrument cluster system Nca Power steering pressure switch (on power steering oil pump) Red Spark plugs 2.4L, Электросхема системы управления двигателя M/T (2 из 2) для Mitsubishi Galant LS 1999 2.4L, Электросхема системы управления двигателя M/T (2 из 2) для Mitsubishi Galant LS 1999 - Список элементов: 40 (california) (downstream of front cat converter; cal) (on outlet of cat converter; federal) heated oxygen sensor (rear) (in top of fuel tank) fuel pump and gauge unit (left front shock tower) g102 (on engine compt relay box) fuel pump relay (on inlet of front cat converter; california) (on inlet of cat converter: federal) heated oxygen sensor (front) (under left side of dash) data link connector (dlc) Auto-cruise control ecu (behind center of dash) C23 C24 C29 C30 C37 C38 C74 C78 Combination meter Crankshaft position sensor (on front of engine, next to crankshaft sprocket) Dedicated fuse 4 10a Engine compartment relay box Engine control module (behind right side of dash) Engine coolant temperature sensor (on left side of engine) Evaporative emission ventilation solenoid (above fuel tank, on evap canister) Fuel tank differential pressure sensor (on top of fuel tank) G114 (left rear of engine) G201 (behind right side of dash) G401 (right side of trunk) Hot at all times Hot in on or start J/c 1 (behind left side of dash) Junction block (behind left side of dash) Malfunction indicator lamp (mil) Manifold differential pressure sensor (on intake manifold) Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Red Starting/ charging system Throttle position sensor (on throttle body assembly) Vehicle speed sensor (on top right front of transaxle) Volume airflow sensor (on air intake hose, near air cleaner cover)

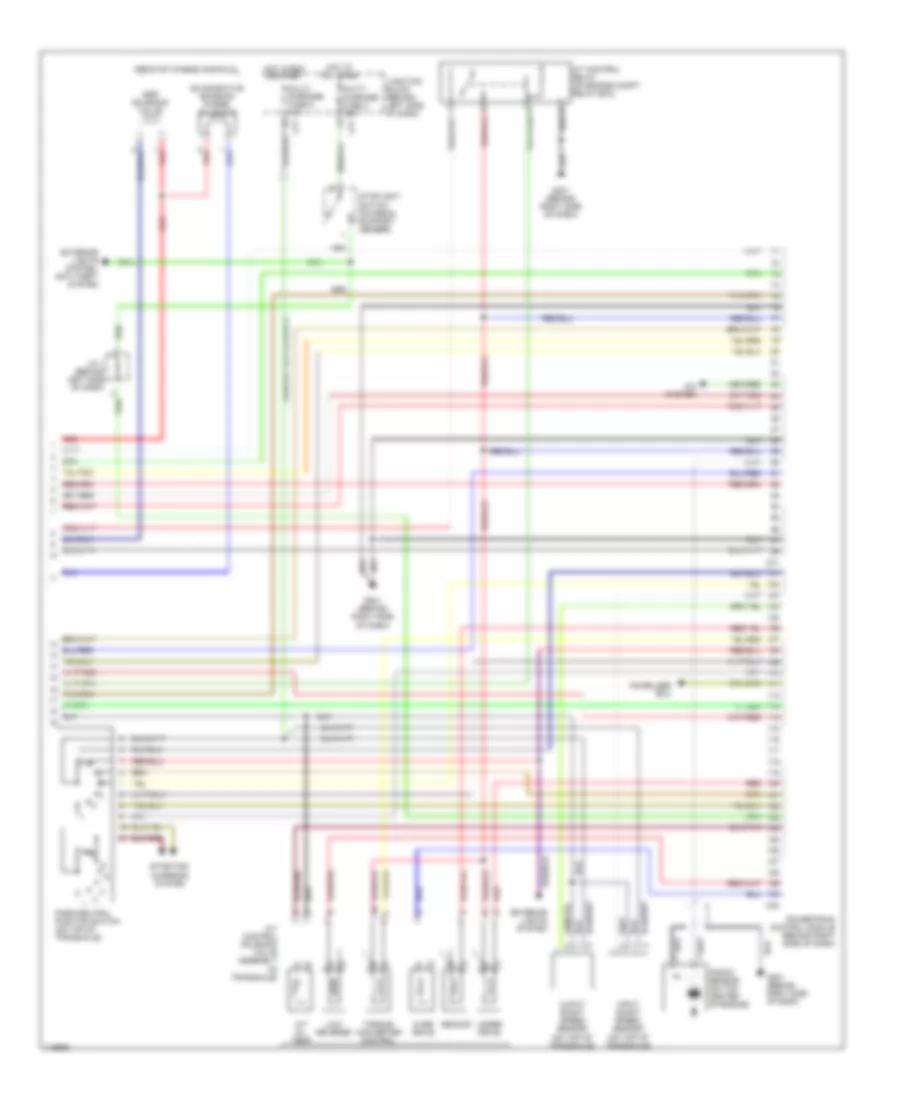

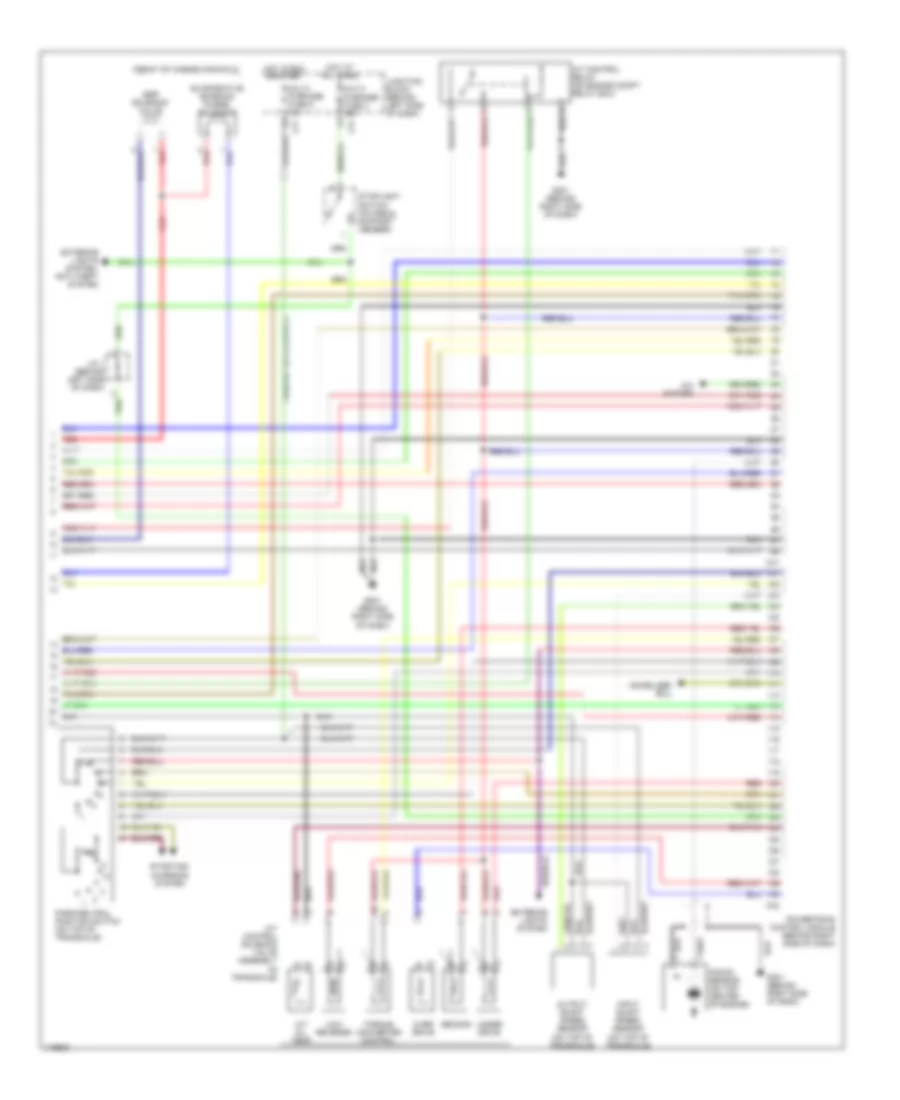

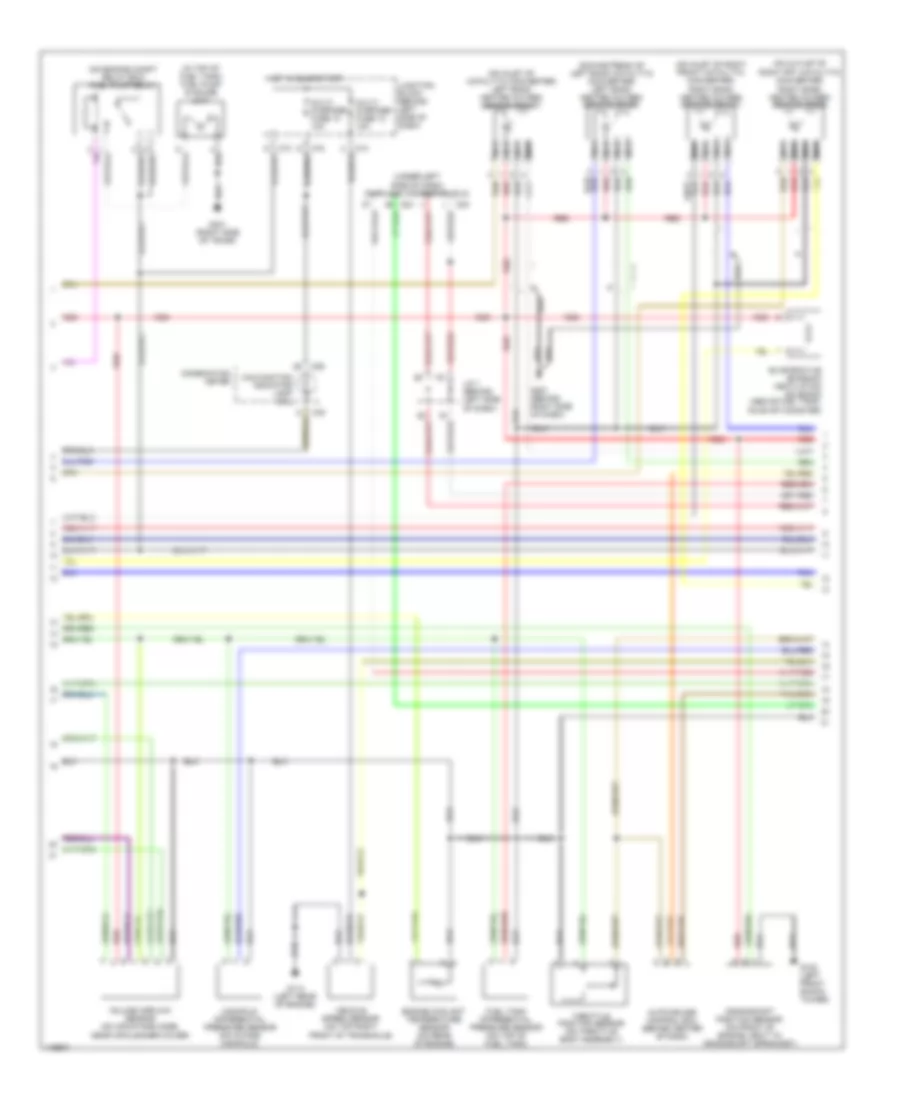

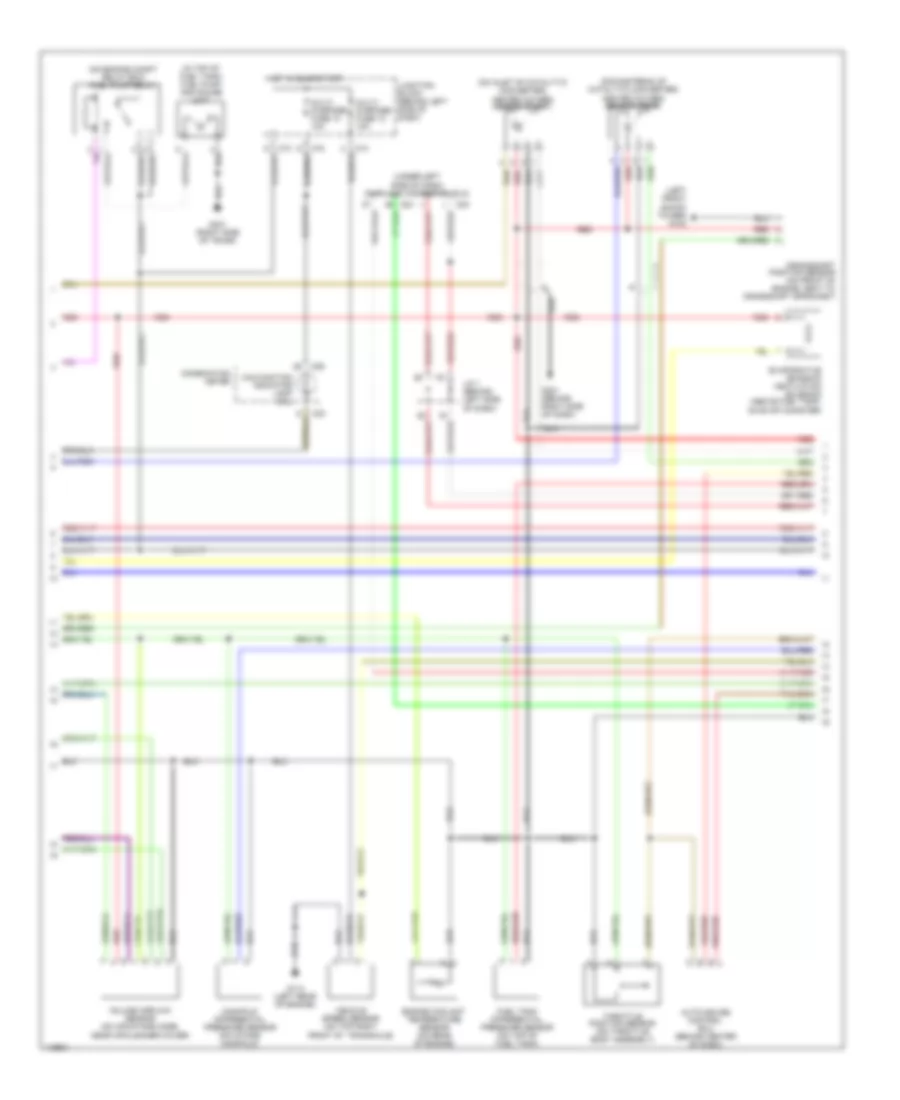

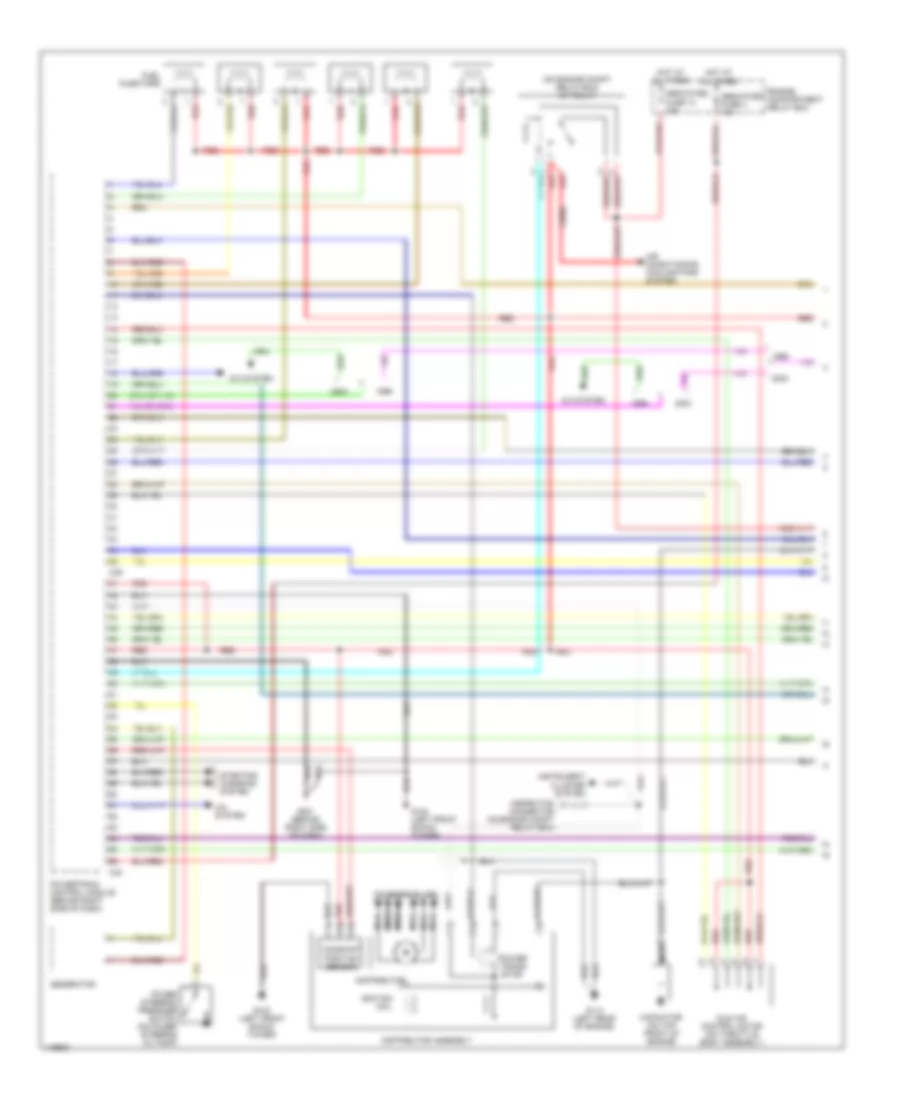

3.0L 3.0L, Электросхема системы управления двигателя Калифорния (1 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя Калифорния (1 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 31 (1999) (on engine compt relay box) mfi relay A/c system A/c system, cooling fans system C39 C40 Camshaft position sensor Capacitor (on top rear of engine) Connector (on engine compt relay box) Dedicated fuse 13 20a Dedicated fuse 4 10a Distributor Distributor assembly Engine compartment relay box (left side of engine compt) Fuel injectors G102 (left front shock tower) G114 (left rear of engine) G201 (behind right side of dash) Generator Hot at all times Idle air control motor (on throttle body assembly) Ignition coil Inspection Instrument cluster system Nca Power steering pressure switch (on power steering oil pump) Power trans- istor Powertrain control module (behind right side of dash) Red Starting/ charging system To spark plugs 3.0L, Электросхема системы управления двигателя Калифорния (2 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя Калифорния (2 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 35 (downstream of left bank catalytic converter) left bank heated oxygen sensor (rear) (in top of fuel tank) fuel pump & gauge unit (on engine compt relay box) fuel pump relay (on inlet of catalytic converter) left bank heated oxygen sensor (front) (on inlet of right front catalytic converter) right bank heated oxygen sensor (front) (on outlet of right frt catalytic converter) right bank heated oxygen sensor (rear) (under left side of dash) data link connector (dlc) Auto-cruise control ecu (behind center of dash) C23 C24 C29 C30 C74 C78 Combination meter Crankshaft position sensor (on front of engine, next to crankshaft sprocket) Engine coolant temperature sensor (on rear of engine) Evaporative emission ventilation solenoid (above fuel tank, on evap canister) Fuel tank differential pressure sensor (on top of fuel tank) G102 (left front shock tower) G114 (left rear of engine) G201 (behind right side of dash) G401 (right side of trunk) Hot in on or start J/c 1 (behind left side of dash) Junction block (behind left side of dash) Malfunction indicator lamp (mil) Manifold differential pressure sensor (on intake manifold) Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Nca Red Throttle position sensor (on throttle body assembly) Vehicle speed sensor (on top right front of transaxle) Volume airflow sensor (on air intake hose, near air cleaner cover) 3.0L, Электросхема системы управления двигателя Калифорния (3 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя Калифорния (3 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 34 (front of intake manifold) A/c system A/t control relay (on engine compt relay box) A/t control solenoid valve assembly (in transaxle) A/t oil temp C41 C42 C77 Egr solenoid valve Evaporative emission purge solenoid Exterior lights system Exterior lights system, anti-theft system G201 (behind right side of dash) Hot at all times Hot in run or start Immobilzer ecu Input shaft speed sensor (on top of transaxle) J/c 1 (behind left side of dash) Junction block (behind left side of dash) Knock sensor (on top center of engine) Low/ reverse Multi- purpose fuse 3 15a Multi- purpose fuse 5 10a Output shaft speed sensor (on top of transaxle) Over drive P r Park/neutral position switch (on top of transaxle) Powertrain control module (behind right side of dash) Red Second Starting/ charging system Stoplight switch (on pedal support member) Torque converter control Under drive 3.0L, Электросхема системы управления двигателя федеральный (1 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя федеральный (1 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 31 (1999) (on engine compt relay box) mfi relay A/c system Air conditioning/ cooling fans system C39 C40 Camshaft position sensor Capacitor (on top front of engine) Connector (on engine compt relay box) Dedicated fuse 13 20a Dedicated fuse 4 10a Distributor Distributor assembly Engine compartment relay box Fuel injectors G102 (left front shock tower) G114 (left rear of engine) G201 (behind right side of dash) Generator Hot at all times Idle air control motor (on throttle body assembly) Ignition coil Inspection Instrument cluster system Nca Power steering pressure switch (on power steering oil pump) Power trans- istor Powertrain control module (behind right side of dash) Red Starting/ charging system To spark plugs 3.0L, Электросхема системы управления двигателя федеральный (2 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя федеральный (2 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 32 (downstream of catalytic converter) heated oxygen sensor (rear) (in top of fuel tank) fuel pump and gauge unit (left front shock tower) g102 (on engine compt relay box) fuel pump relay (on inlet of catalytic converter) heated oxygen sensor (front) (under left side of dash) data link connector (dlc) Auto-cruise control ecu (behind center of dash) C23 C24 C29 C30 C74 C78 Combination meter Crankshaft position sensor (on front of engine, next to crankshaft sprocket) Engine coolant temperature sensor (on rear of engine) Evaporative emission ventilation solenoid (above fuel tank, on evap canister) Fuel tank differential pressure sensor (on top of fuel tank) G114 (left rear of engine) G201 (behind right side of dash) G401 (right side of trunk) Hot in on or start J/c 1 (behind left side of dash) Junction block (behind left side of dash) Malfunction indicator lamp (mil) Manifold differential pressure sensor (on intake manifold) Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Red Throttle position sensor (on throttle body assembly) Vehicle speed sensor (on top right front of transaxle) Volume airflow sensor (on air intake hose, near air cleaner cover) 3.0L, Электросхема системы управления двигателя федеральный (3 из 3) для Mitsubishi Galant LS 1999 3.0L, Электросхема системы управления двигателя федеральный (3 из 3) для Mitsubishi Galant LS 1999 - Список элементов: 34 (frontof intake manifold) A/c system A/t control relay (on engine compt relay box) A/t control solenoid valve assembly (in transaxle) A/t oil temp C41 C42 C77 Egr solenoid valve Evaporative emission purge solenoid Exterior lights system Exterior lights system, anti-theft system G201 (behind right side of dash) Hot at all times Hot in run or start Immobilzer ecu Input shaft speed sensor (on top of transaxle) J/c 1 (behind left side of dash) Junction block (behind left side of dash) Knock sensor (on top center of engine) Low/ reverse Multi- purpose fuse 3 15a Multi- purpose fuse 5 10a Ouput shaft speed sensor (on top of transaxle) Over drive P r Park/neutral position switch (on top of transaxle) Powertrain control module (behind right side of dash) Red Second Starting/ charging system Stoplight switch (on pedal support member) Torque converter control Under drive

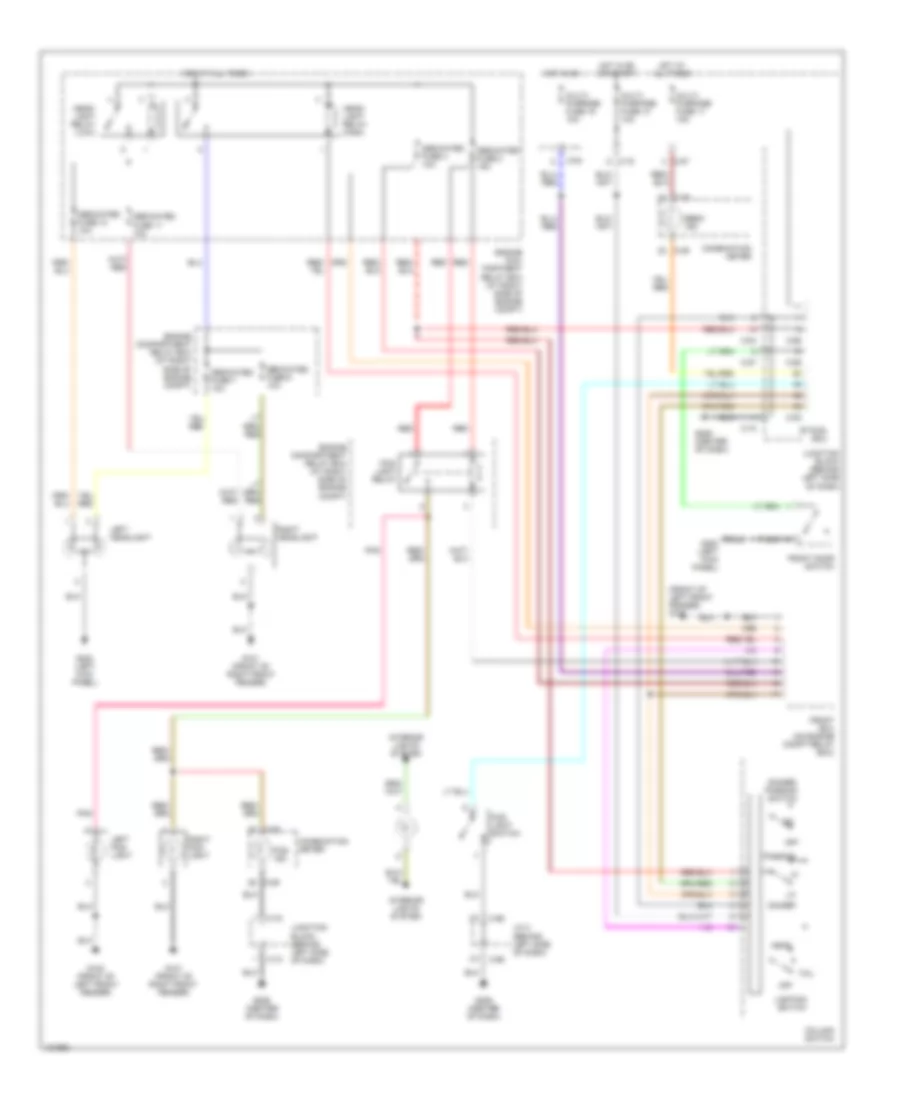

Система Фар Электросхема фар для Mitsubishi Galant LS 1999 Электросхема фар для Mitsubishi Galant LS 1999 - Список элементов: 54 (front of left front fender) g100 Beam ind C-29 C-56 C-73 C-78 C-82 C-84 C-86 C-87 Column switch Combination meter Dedicated fuse 11 10a Dedicated fuse 12 10a Dedicated fuse 2 15a Dedicated fuse 4 10a Dedicated fuse 6 10a Dedicated fuse 7 10a Dimmer Dimmer- passing switch Engine com- partment relay box (at right side of engine compt) Engine compartment relay box (at right side of engine compt) Etacs- ecu Fog ind Fog- light relay Fog- light switch Front door switch Front ecu (on engine compt relay box) G100 (front of left front fender) G101 (front of right front fender) G200 (left kick panel) G206 (center of dash) Head Head- light relay (high) Head- light relay (low) Hot at all times Hot in on Hot in on or start Interior lights system J/c 2 (behind left side of dash) Junction block (behind left side of dash) Left fog- light Left headlight Lighting switch Multi- purpose fuse 11 15a Multi- purpose fuse 13 10a Multi- purpose fuse 16 10a Off Passing Pnk Red Right fog- light Right headlight Tail

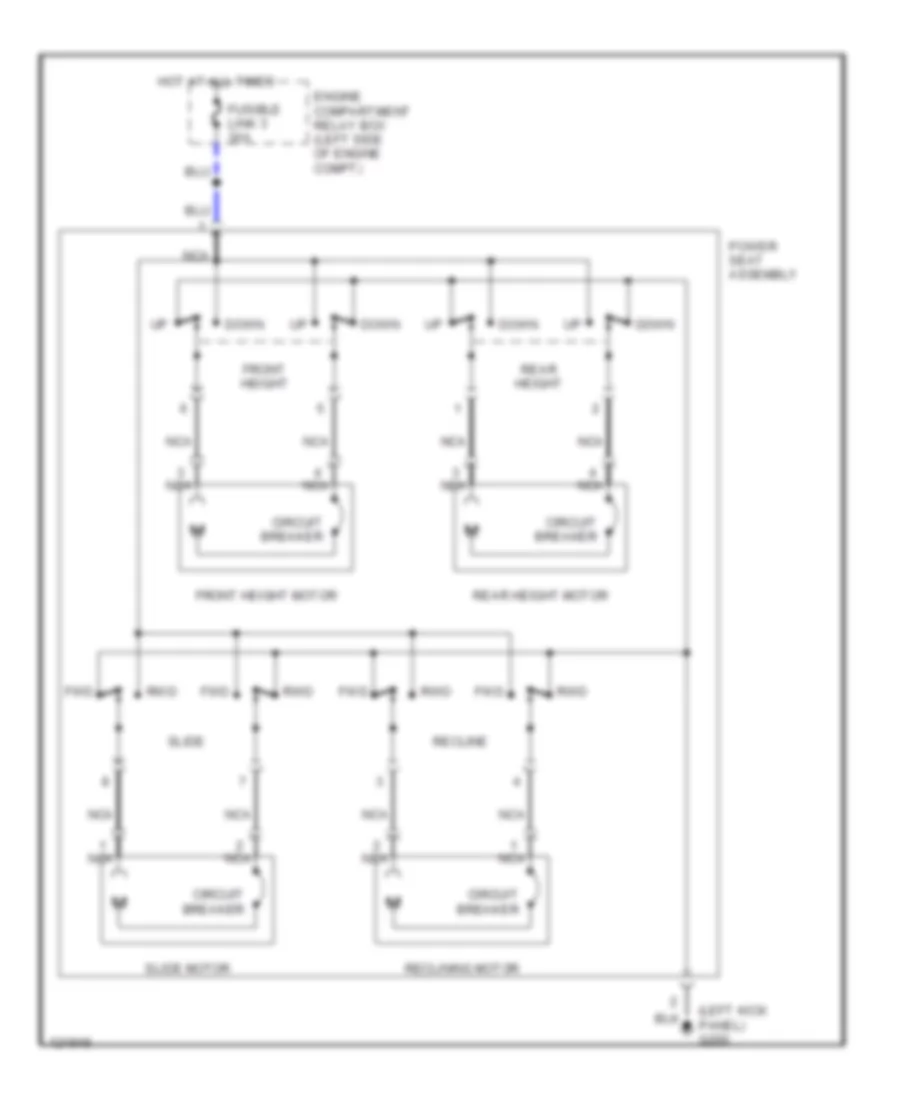

СИСТЕМЫ СИДЕНИЙ Электросхема привода сидений для Mitsubishi Galant LS 1999 Электросхема привода сидений для Mitsubishi Galant LS 1999 - Список элементов: 18 (left kick panel) g200 Circuit breaker Down Engine compartment relay box (left side of engine compt) Front height Front height motor Fusible link 3 30a Fwd Hot at all times Nca Power seat assembly Rear height Rear height motor Recline Reclining motor Rwd Slide Slide motor

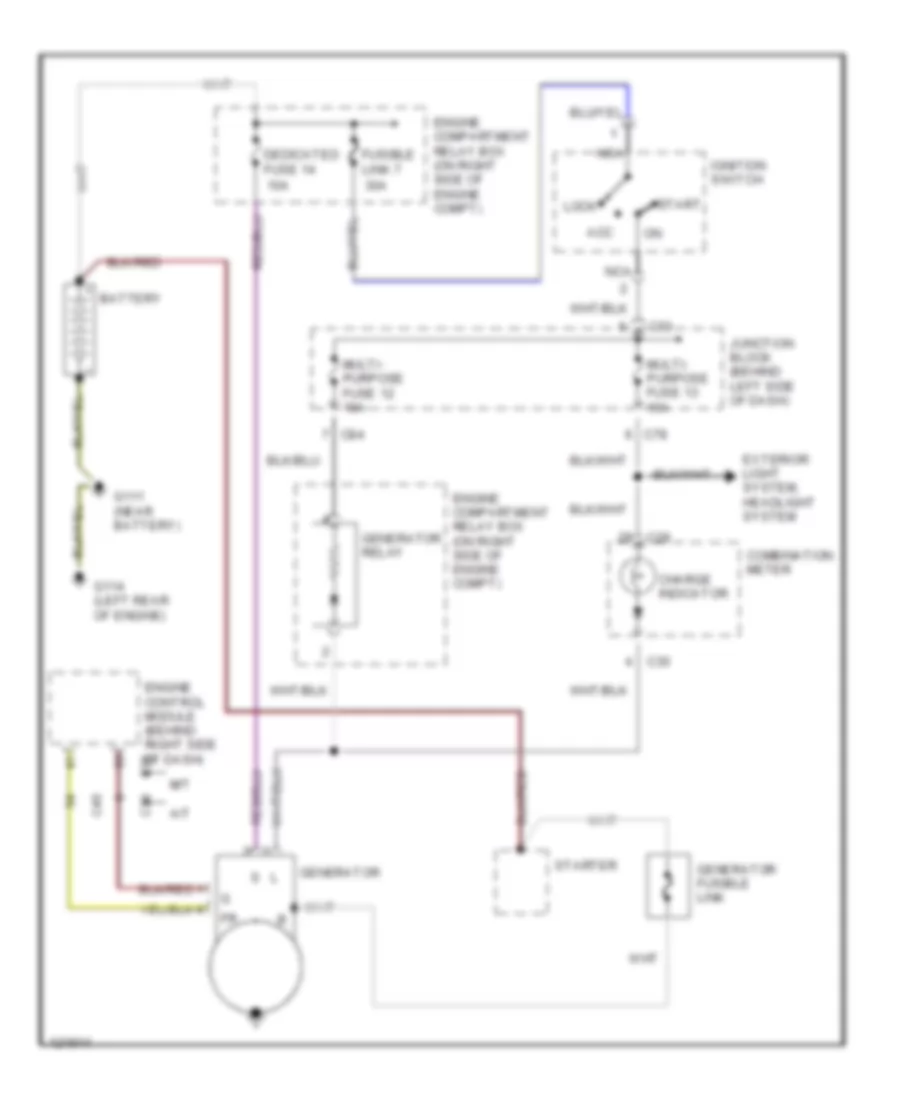

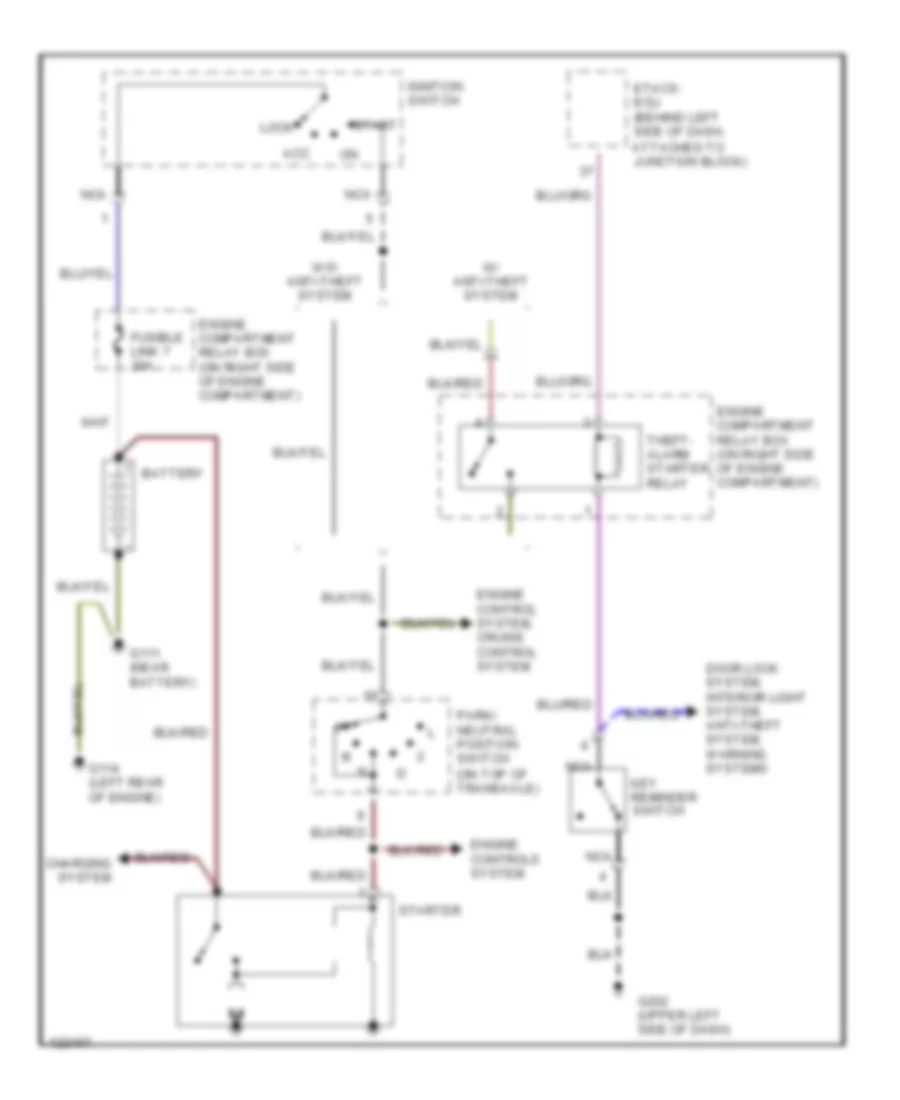

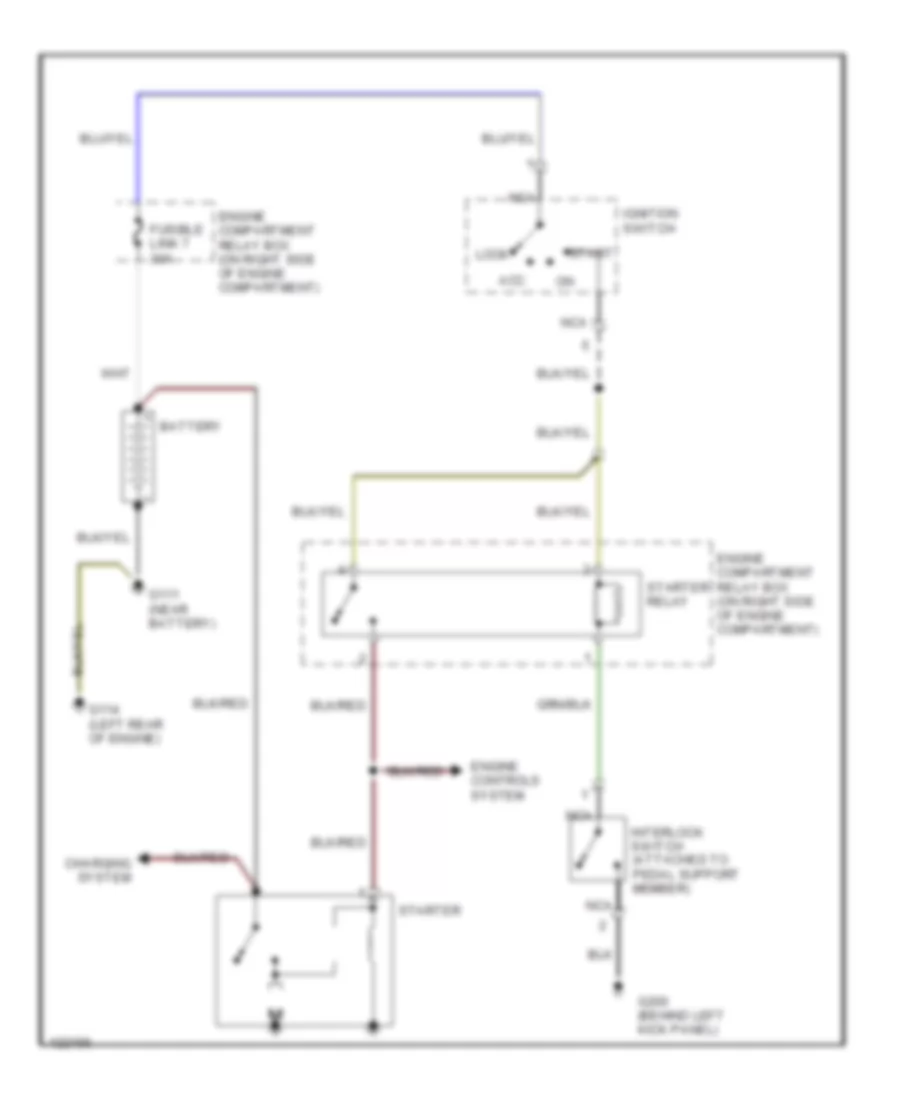

Стартер Генератор Электросхема Генератора для Mitsubishi Galant LS 1999 Электросхема Генератора для Mitsubishi Galant LS 1999 - Список элементов: 34 10a 30a A/t Acc Battery C29 C30 C36 C39 C40 C73 C78 C84 Charge indicator Combination meter Dedicated fuse 14 Engine compartment relay box (on right side of engine compt) Engine control module (behind right side of dash) Exterior light system, headlight system Fusible link 7 G111 (near battery) G114 (left rear of engine) Generator Generator fusible link Generator relay Ignition switch Junction block (behind left side of dash) Lock M/t Multi- purpose fuse 12 10a Multi- purpose fuse 13 10a Nca Start Starter Электросхема стартера, A/T для Mitsubishi Galant LS 1999 Электросхема стартера, A/T для Mitsubishi Galant LS 1999 - Список элементов: 24 (on top of transaxle) Acc Attached to junction block) Battery Charging system Door lock system, interior light system, anti-theft system, warning systems Engine compartment relay box (on right side of engine compartment) Engine control system, cruise control system Engine controls system Etacs- ecu (behind left side of dash, Fusible link 7 30a G111 (near battery) G114 (left rear of engine) G202 (upper left side of dash) Ignition switch Key reminder switch Lock Nca Park/ neutral position switch Start Starter Theft- alarm starter relay W/ anti-theft system W/o anti-theft system Электросхема стартера, M/T для Mitsubishi Galant LS 1999 Электросхема стартера, M/T для Mitsubishi Galant LS 1999 - Список элементов: 16 Acc Battery Charging system Engine compartment relay box (on right side of engine compartment) Engine controls system Fusible link 7 30a G111 (near battery) G114 (left rear of engine) G200 (behind left kick panel) Ignition switch Interlock switch (attached to pedal support member) Lock Nca Start Starter Starter relay
Стеклоочистители и Стеклоомыватели Дворники Электросхема стеклоочистителя, дворников и омывателя для Mitsubishi Galant LS 1999 Электросхема стеклоочистителя, дворников и омывателя для Mitsubishi Galant LS 1999 - Список элементов: 37 (partial) (under left side of dash) C-73 C-82 C-84 C-86 C-87 Circuit breaker Column ecu Column switch Data link connector Dedicated fuse 4 10a Ecu Engine compartment relay box (right side of engine compt) Etacs-ecu Fast Front ecu G101 (front of right front fender) G200 (left kick panel) G206 (center of dash) High Hot at all times Hot in run Int Intermittent wiper switch Junction block (under left side of dash) Low Mist Multi- purpose fuse 8 20a Off Or acc Park switch Pnk Slow Washer switch Windshield washer motor (bottom of windshield washer reservoir) Windshield wiper motor (right side of firewall) Wiper switch
ЦЕНТРАЛЬНЫЙ ЗАМОК Электросхема центрального замка для Mitsubishi Galant LS 1999 Электросхема центрального замка для Mitsubishi Galant LS 1999 - Список элементов: 47 (left kick panel) g200 (right side of luggage compt) g401 (w/ sunroof) (w/o sunroof) C75 C76 C77 C78 C81 C82 C84 C86 C87 Computer data lines system Dedicated fuse 14 10a Dedicated fuse 4 15a Engine compartment relay box (on right side of engine compt) Etacs ecu G200 (left kick panel) G202 (upper left side of dash) G400 (left side of luggage compt) G401 (right side of luggage compt) G401 right side of luggage compt) Hot at all times Interior lights system Junction block (behind left side of dash) Key reminder switch Left door key cylinder switch Left front door lock actuator Left front door lock switch Left front door switch Left front window main switch Left rear door lock actuator Left rear door switch Lock Multi- purpose fuse 11 15a Nca Red Right door key cylinder switch Right front door lock actuator Right front door lock switch Right front door switch Right front window sub switch Right rear door lock actuator Right rear door switch Starting system Unlock
