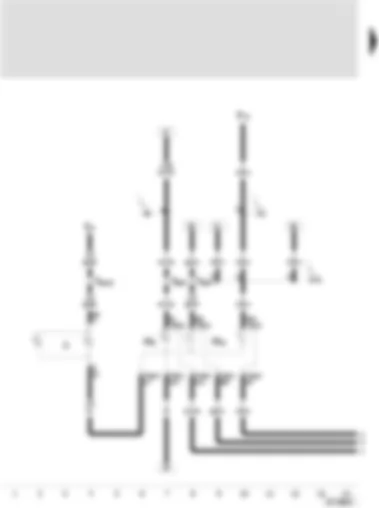

Wiring Diagram SEAT LEON 2002 - Turn signal bulb - rear left - brake and tail light bulb - left - number plate light
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
| F | Brake light switch |
| M6 | Turn signal bulb, rear left |
| M21 | Brake and tail light bulb, left |
| S4 | Fuse in fuse box/relay plate |
| X | Number plate light |
| T5d | 5-pin connector, brown, connector point left C-pillar |
| T5na | 5-pin connector, in left luggage compartment |
| A6 | Positive (+) connection (left turn signal), in dash panel wiring harness |
| B131 | Connection (54), in interior wiring harness |
| W1 | Positive (+) connection -1- (54), in rear wiring harness |
Wiring Diagram SEAT LEON 2002 - Trailer socket
| E1 | Lighting switch |
| U10 | Trailer socket |
| T5c | 5-pin connector |
| T5na | 5-pin connector, in left luggage compartment |
| T6i | 6-pin connector, in right luggage compartment |
| T8i | 8-pin connector, trailer coupling |
| 57 | Earth point, left rear pillar |
| A88 | Connection (rear fog light), in dash panel wiring harness |
| W25 | Connection -2- (rear fog lights), in rear wiring harness |
Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - rear fog light warning lamp - trailer operation warning lamp - left turn signal warning lamp
| J1 | Turn signal relay |
| J285 | Control unit with display in dash panel insert |
| K13 | Rear fog light warning lamp |
| K18 | Trailer operation warning lamp |
| K65 | Left turn signal warning lamp |
| K94 | Right turn signal warning lamp |
| M8 | Turn signal bulb, rear right |
| M22 | Brake and tail light bulb, right |
| S22 | Fuse in fuse box/relay plate |
| S223 | Fuse in fuse box |
| T5c | 5-pin connector |
| 52 | Earth connection, in tailgate/bootlid, left |
| 219 | Earth connection -2-, in tailgate/bootlid wiring harness |
| A5 | Positive (+) connection (right turn signal), in dash panel wiring harness |
| A84 | Connection (58L), in dash panel wiring harness |
| A85 | Connection (58R), in dash panel wiring harness |
Wiring Diagram SEAT LEON 2002 - Rear fog light cut-out - contact switch - rear fog light bulb - left - rear fog light bulb - right - reversing light bulb - left
| F4 | Reversing light switch |
| F216 | Rear fog light cut-out, contact switch |
| L46 | Rear fog light bulb, left |
| L47 | Rear fog light bulb, right |
| M16 | Reversing light bulb, left |
| M17 | Reversing light bulb, right |
| M25 | High level brake light bulb |
| T5a | 5-pin connector |
| T5na | 5-pin connector, in left luggage compartment |
| T5nb | 5-pin connector, in left luggage compartment |
| T5s | 5-pin connector |
| 98 | Earth connection, in tailgate/bootlid wiring harness |
| 218 | Earth connection, in tailgate/bootlid wiring harness |
| W3 | Connection, in rear wiring harness |
| W4 | Connection -1- (rear fog light), in rear wiring harness |
| W33 | Connection (reversing light), in tailgate/bootlid wiring harness |
Wiring Diagram SEAT LEON 2002 - Tailgate/bootlid release switch - luggage compartment light switch - luggage compartment light
| E165 | Tailgate/bootlid release switch |
| F5 | Luggage compartment light switch |
| J393 | Convenience system central control unit |
| W3 | Luggage compartment light |
| T5a | 5-pin connector |
| T5na | 5-pin connector, in left luggage compartment |
| T5nb | 5-pin connector, in left luggage compartment |
| 98 | Earth connection, in tailgate/bootlid wiring harness |
| A29 | Connection (interior light), in dash panel wiring harness |
| R6 | Positive (+) connection -1-, in interior light wiring harness |
| W15 | Connection -1- (luggage compartment light), in rear wiring harness |
SEAT LEON 2002 Overview of earth points in engine compartment
Overview of earth points in engine compartment | | | | 1 - | Earth point, in centre of plenum chamber -608- |
| 2 - | Earth point, in plenum chamber -10- |
| 3 - | Earth point, on right in plenum chamber -609- |
| 4 - | Earth strap, battery - body -1- |
| 5 - | Earth points, in left engine compartment -12- |
| 6 - | Earth strap, gearbox - body -2- |
| Toledo/León | Fitting Locations | No. 801 / 2 |
|
| 608 | Earth point, in centre of plenum chamber ⇒ -arrow- | | | |
| 10 | Earth point, in plenum chamber ⇒ -arrow- | | | |
| Toledo/León | Fitting Locations | No. 801 / 3 |
|
| 609 | Earth point, on right in plenum chamber ⇒ -arrow- | | | |
| 1 | Earth strap, battery - body | | | |
| Toledo/León | Fitting Locations | No. 801 / 4 |
|
| 12 | Earth points, on left in engine compartment ⇒ -arrow B- | | | |
| 2 | Earth strap, gearbox - body ⇒ -arrow- | | | |
| Toledo/León | Fitting Locations | No. 801 / 5 |
|
| Overview of earth points in vehicle interior |
| 1 - | Earth point, lower part of right A-pillar -43- |
| 2 - | Earth point, right B-pillar -78- |
| 3 - | Earth point, left B-pillar -77- |
| 4 - | Earth point, lower part of left A-pillar -44- |
| 5 - | Earth point, on right behind dash panel -42- |
| 6 - | Earth point, on right behind dash panel -33- |
| Toledo/León | Fitting Locations | No. 801 / 6 |
|
| 7 - | Earth point, on left behind dash panel insert -32- |
| 8 - | Earth point, behind dash panel -45- |
| Toledo/León | Fitting Locations | No. 801 / 7 |
|
| 43 | Earth point, lower part of right A-pillar ⇒ -arrow- | | | |
| 78 | Earth point on right B-pillar ⇒ -arrow- | | | |
| Toledo/León | Fitting Locations | No. 801 / 8 |
|
| 77 | Earth point on left B-pillar ⇒ -arrow- | | | |
| 44 | Earth point, lower part of left A-pillar ⇒ -arrow- | | | |
| Toledo/León | Fitting Locations | No. 801 / 9 |
|
| 33 | Earth point behind dash panel on right ⇒ -arrow- | | 42 | Same earth point as ⇒ -arrow- | | | |
| Toledo/León | Fitting Locations | No. 801 / 10 |
|
| 32 | Earth point behind dash panel on left ⇒ -arrow- | | | |
| 45 | Earth point, behind dash panel | | | |
| Toledo/León | Fitting Locations | No. 801 / 11 |
|
SEAT LEON 2002 Overview of earth points in luggage compartment (Toledo)
Overview of earth points in luggage compartment (Toledo) |
| 1 - | Earth point, on left in luggage compartment -50- |
| Toledo/León | Fitting Locations | No. 801 / 12 |
|
| 50 | Earth point, on left in luggage compartment | | | |
| Toledo/León | Fitting Locations | No. 801 / 13 |
|
SEAT LEON 2002 Overview of earth points in luggage compartment (León)
Overview of earth points in luggage compartment (León) |
| 1 - | Earth point, left rear pillar -57- |
| Toledo/León | Fitting Locations | No. 801 / 14 |
|
| 57 | Earth point, left rear pillar | | | |
