Электросхемы Стартер Генератор Dodge Ram 50 1990

  1. Home
  2. >DODGE
  3. >Dodge 1990
  4. >Dodge Ram 50 1990
  5. >Dodge Ram 50 1990 - Список всех электросхем

Download PDF file

Стартер Генератор

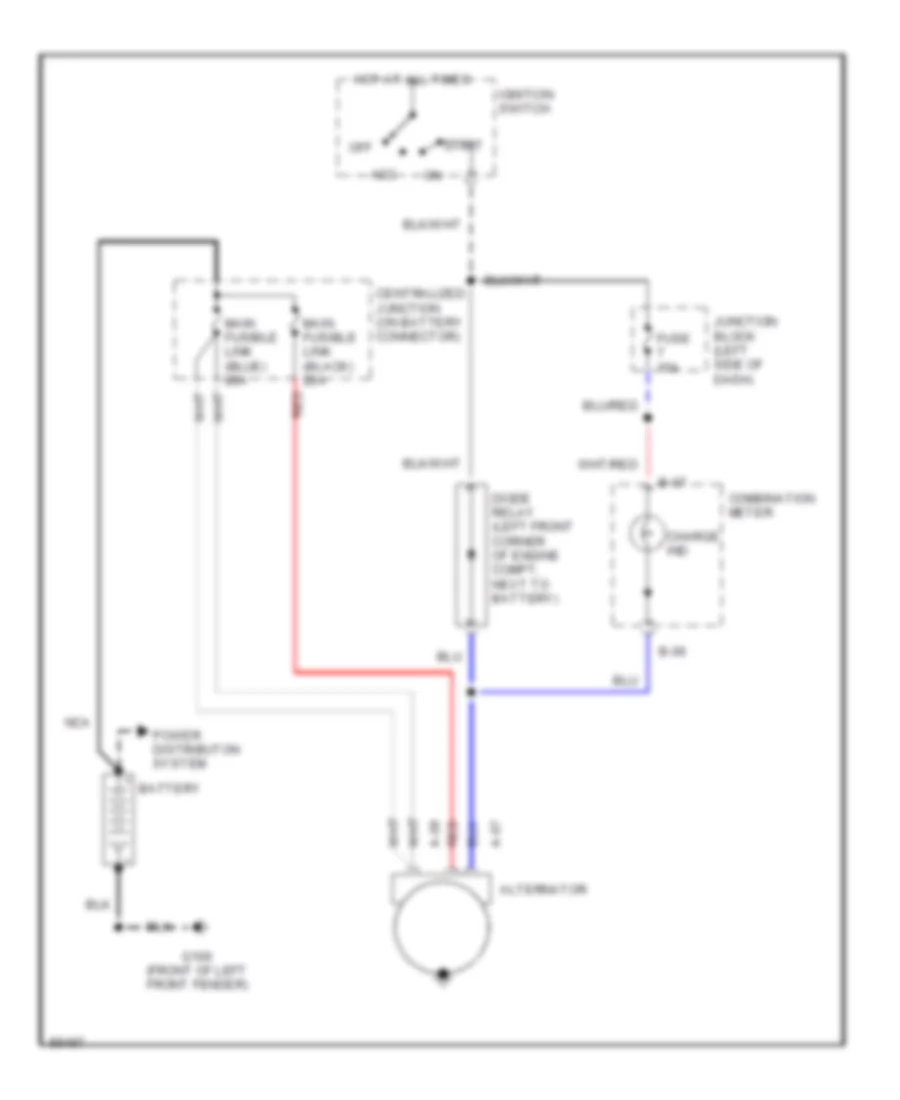

Электросхема Генератора для Dodge Ram 50 1990

Электросхема Генератора для Dodge Ram 50 1990 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Tüm kablolama şemalarına erişin arabaDownload PDF file

Электросхема Генератора для Dodge Ram 50 1990 - Список элементов:

  • A-07
  • A-08
  • Acc
  • Alternator
  • B-06
  • B-07
  • Battery
  • Centralized junction (on battery connector)
  • Charge ind
  • Combination meter
  • Diode relay (left front corner of engine compt, next to battery)
  • Fuse 15a
  • G100 (front of left front fender)
  • Hot at all times
  • Ignition switch
  • Junction block (left side of dash)
  • Main fusible link (black) 20a
  • Nca
  • Off
  • Power distributon system
  • Red
  • Start

Электросхема стартера, С A/T для Dodge Ram 50 1990

Электросхема стартера, С AT для Dodge Ram 50 1990 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Tüm kablolama şemalarına erişin arabaDownload PDF file

Электросхема стартера, С A/T для Dodge Ram 50 1990 - Список элементов:

  • Acc
  • Battery
  • Engine control system
  • G100 (front of left front fender)
  • Hot at all times
  • Ignition switch
  • Inhibitor switch
  • Off
  • Power distribution system
  • Start
  • Starter
  • Starter relay (left side of dash)
  • Sub fusible link (left rear corner of engine compt)

Электросхема стартера, С M/T для Dodge Ram 50 1990

Электросхема стартера, С MT для Dodge Ram 50 1990 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Tüm kablolama şemalarına erişin arabaDownload PDF file

Электросхема стартера, С M/T для Dodge Ram 50 1990 - Список элементов:

  • 1990-91
  • 1992-93
  • Acc
  • Battery
  • Clutch switch (left side of dash)
  • Fuse 15a
  • Fuse block (left side of dash)
  • G100 (front of left front fender)
  • G202 (behind left side of dash)
  • Hot at all times
  • Hot in start and run
  • Ignition switch
  • Illumination
  • Interior lights system
  • Nca
  • Off
  • Power distribution system
  • Start
  • Starter
  • Starter interlock relay (left side of dash)
  • Starter relay (left side of dash)
  • Starter unlock switch
  • W/ 4wd
  • W/o 4wd
