ВНЕШНЕЕ ОСВЕЩЕНИЕ

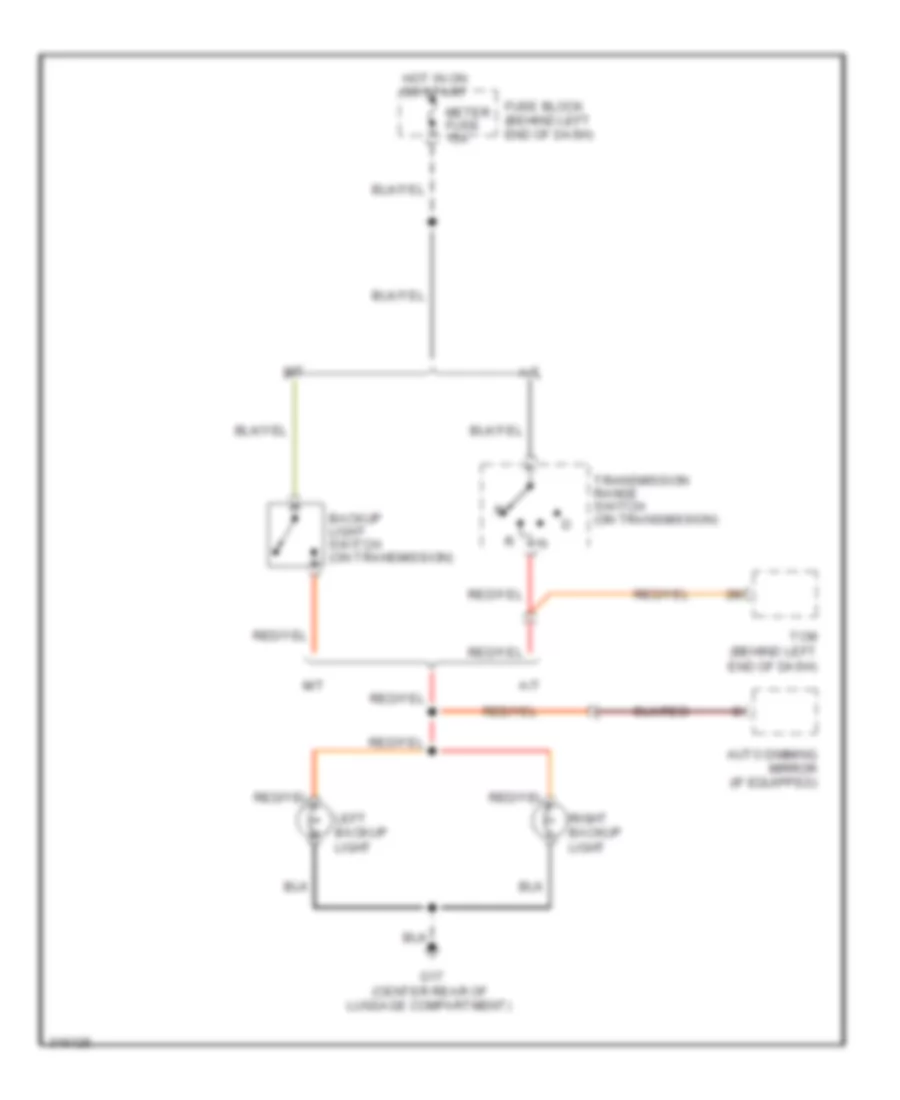

Электросхема заднего хода для Mazda MX-5 Miata SV 2009

Электросхема заднего хода для Mazda MX-5 Miata SV 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Tüm kablolama şemalarına erişin arabaDownload PDF file

Электросхема заднего хода для Mazda MX-5 Miata SV 2009 - Список элементов:

  • A/t
  • Auto dimming mirror (if equipped)
  • Backup light switch (on transmission)
  • Fuse block (behind left end of dash)
  • G17 (center rear of luggage compartment)
  • Hot in on or start
  • Left backup light
  • M/t
  • Meter fuse 15a
  • Right backup light
  • Tcm (behind left end of dash)
  • Transmission range switch (on transmission)

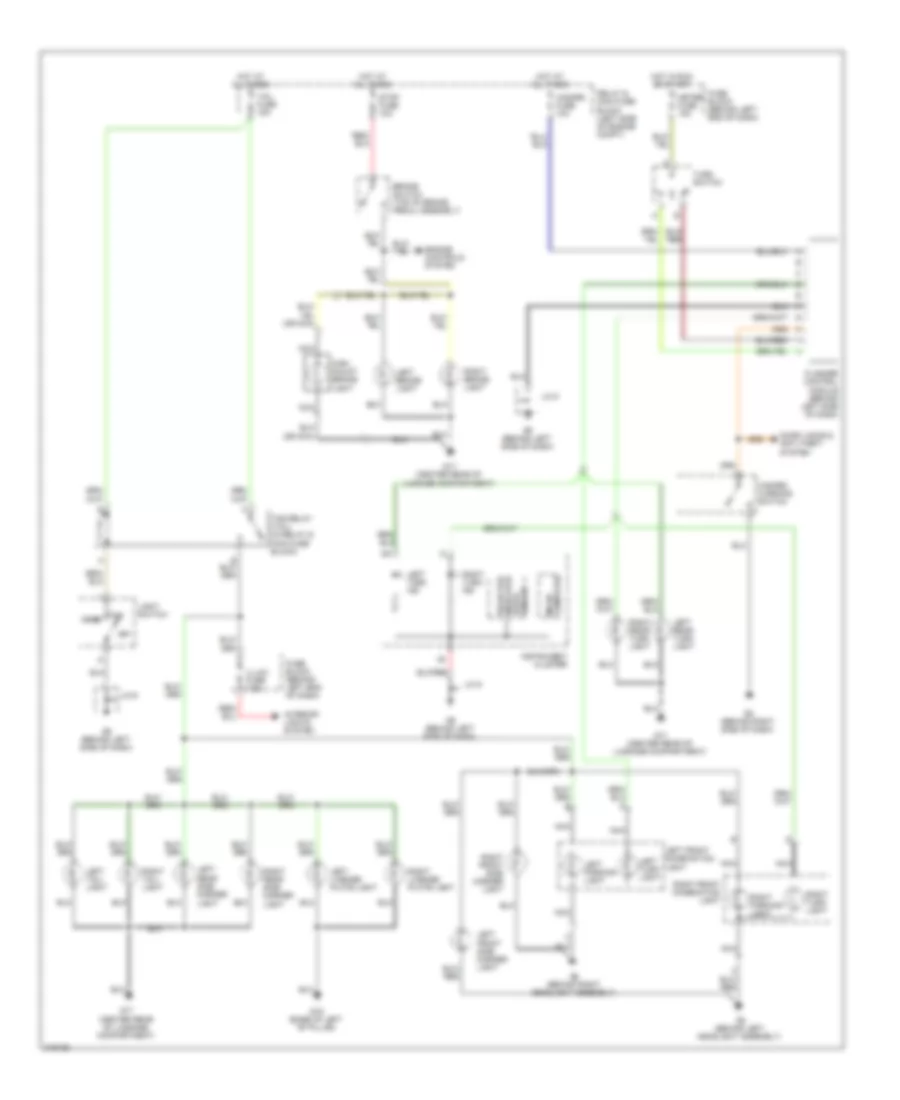

Электросхема внешнего освещения для Mazda MX-5 Miata SV 2009

Электросхема внешнего освещения для Mazda MX-5 Miata SV 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Tüm kablolama şemalarına erişin arabaDownload PDF file

Электросхема внешнего освещения для Mazda MX-5 Miata SV 2009 - Список элементов:

  • Brake switch (top of brake pedal assembly)
  • Computer micro
  • Door locks & anti-theft system
  • Drive circuit
  • Engine controls system
  • Flasher control module (behind left side of dash)
  • Fuse block (behind left end of dash)
  • G16 (base of left "b" pillar)
  • G17 (center rear of luggage compartment)
  • G5 (behind left headlight assembly)
  • G6 (behind right headlight assembly)
  • G8 (behind right side of dash)
  • G9 (behind left side of dash)
  • Hazard fuse 10a
  • Hazard warning switch
  • High mount brake light
  • Hot at all times
  • Hot in run or start
  • Illumi fuse 7.5a
  • Indicator selector
  • Instrument cluster
  • Interior lights system
  • J/c 9
  • J/c-9
  • Left brake light
  • Left front combination light
  • Left front side marker light
  • Left license plate light
  • Left parking light
  • Left rear side marker light
  • Left rear turn light
  • Left tail- light
  • Left turn ind
  • Left turn light
  • Light switch
  • Meter fuse 15a
  • Nca
  • Off
  • Relay & main fuse block (left side of engine compt)
  • Right brake light
  • Right front combination light
  • Right front side marker light
  • Right license plate light
  • Right parking light
  • Right rear side marker light
  • Right rear turn light
  • Right tail- light
  • Right turn ind
  • Right turn light
  • Stop fuse 10a
  • Tail fuse 15a
  • Tns head
  • Tns relay (tail) (in relay & main fuse block)
  • Turn switch
