Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Isuzu Rodeo S 2001

  1. Home
  2. >ISUZU
  3. >Isuzu 2001
  4. >Isuzu Rodeo S 2001
  5. >Isuzu Rodeo S 2001 - Список всех электросхем

Download PDF file

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

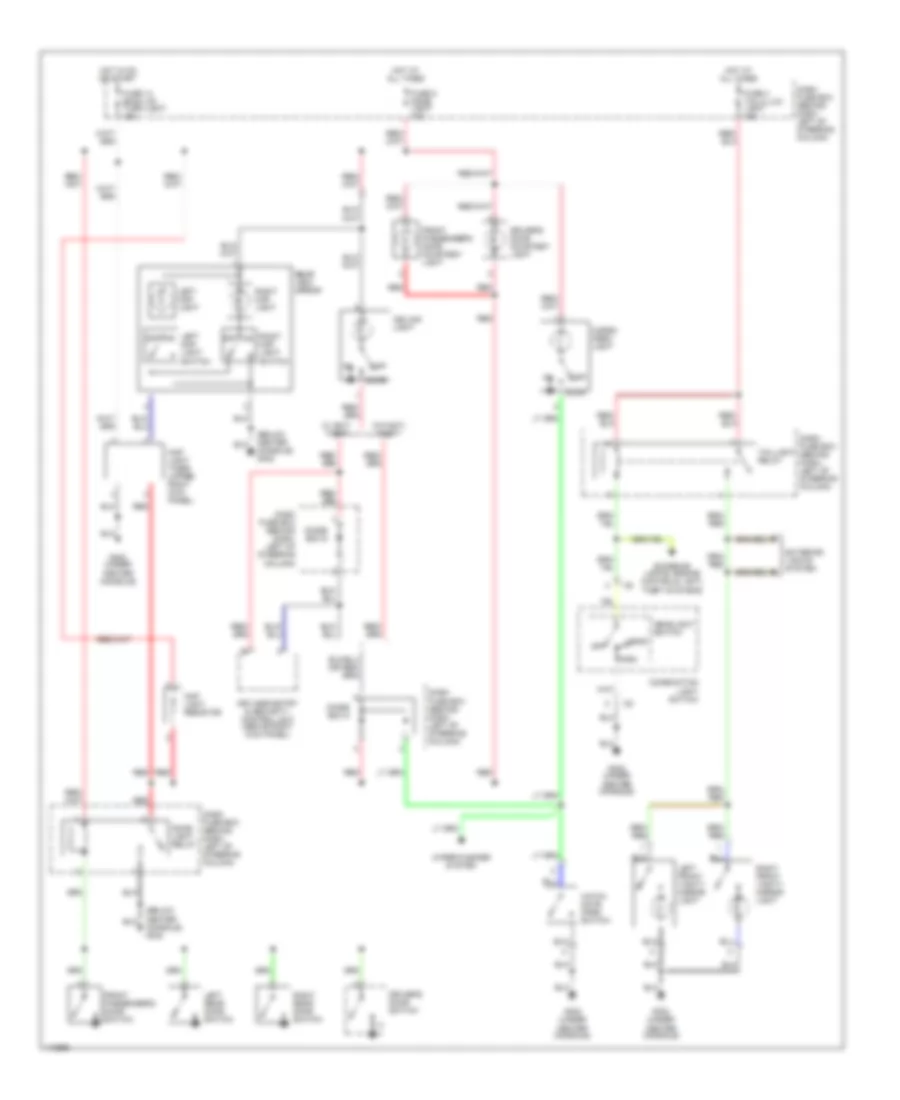

Электросхема подсветки для Isuzu Rodeo S 2001

Электросхема подсветки для Isuzu Rodeo S 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
获取访问所有汽车的接线图Download PDF file

Электросхема подсветки для Isuzu Rodeo S 2001 - Список элементов:

  • (below center console) g302
  • Cargo area light
  • Ceiling light
  • Combination light swtich
  • Dash fuse box (behind dash, left of steering column)
  • Diode box 5
  • Diode box 6
  • Dome light relay
  • Door
  • Driver's door courtesy light
  • Driver's door switch
  • Exterior lights system
  • Exterior lights, engine controls, anti- theft systems
  • Front passenger's door courtesy light
  • Front passenger's door switch
  • Fuse 14 back up/ turn light 15a
  • Fuse 4 tail/illum light 15a
  • Fuse 5 dome light 10a
  • G302 (under center console)
  • Hatch gate open switch
  • Head
  • Headlight switch
  • Hot at all times
  • Hot in on or start
  • I32
  • Keyless entry & security control unit (above right kick panel)
  • Left front vanity mirror light
  • Left map light
  • Left map light switch
  • Left rear door switch
  • Map light resistor
  • Map light timer (upper right kick panel)
  • Off
  • Park
  • Rear view mirror
  • Red
  • Right front vanity mirror light
  • Right map light
  • Right map light switch
  • Right rear door switch
  • Taillight relay
  • W/ anti- theft
  • W/o anti- theft
  • Wiper/washer system

Электросхема подсветки приборов для Isuzu Rodeo S 2001

Электросхема подсветки приборов для Isuzu Rodeo S 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
获取访问所有汽车的接线图Download PDF file

Электросхема подсветки приборов для Isuzu Rodeo S 2001 - Список элементов:

  • (2 bulbs)
  • 4wd switch
  • Ashtray light
  • Center console)
  • Clock
  • Combination swtich
  • Cruise control main switch
  • Dash fuse box (left side of dash)
  • Engine controls system
  • Exterior lights system
  • Fog light switch
  • G302 (under
  • Hazard warning switch
  • Head
  • Headlight switch
  • Heater- a/c control panel
  • Hot at all times
  • I-2
  • I32
  • Illumination controller
  • Illumination controller light
  • Intelligent suspension mode switch
  • Meter assembly
  • Off
  • Park
  • Power/ winter switch (2 bulbs)
  • Radio or radio/ cd changer
  • Rear window defogger switch
  • Rear wiper switch
  • Red
  • Shift lock controller
  • Solid state
  • Tail/illum light fuse 4 15a
  • Taillight relay
