Электросхемы Стартер Генератор Mercury Mountaineer 2001

Стартер Генератор

Электросхема Генератора для Mercury Mountaineer 2001

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Электросхема Генератора для Mercury Mountaineer 2001 - Список элементов:

• 4.0l pushrod
• Alt sys fuse 30a
• Battery
• Battery junction box (left side of engine compt)
• C114
• C120
• C121
• C288
• Central junction box (behind left side of dash)
• Charge warning lamp
• Fuse 7.5a
• G111 (near battery)
• Generator
• Hot in start or run
• Instrument cluster
• Mega fuse 175a
• Nca
• Ohms
• Red
• Starter motor

Электросхема стартера для Mercury Mountaineer 2001

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

获取访问所有汽车的接线图

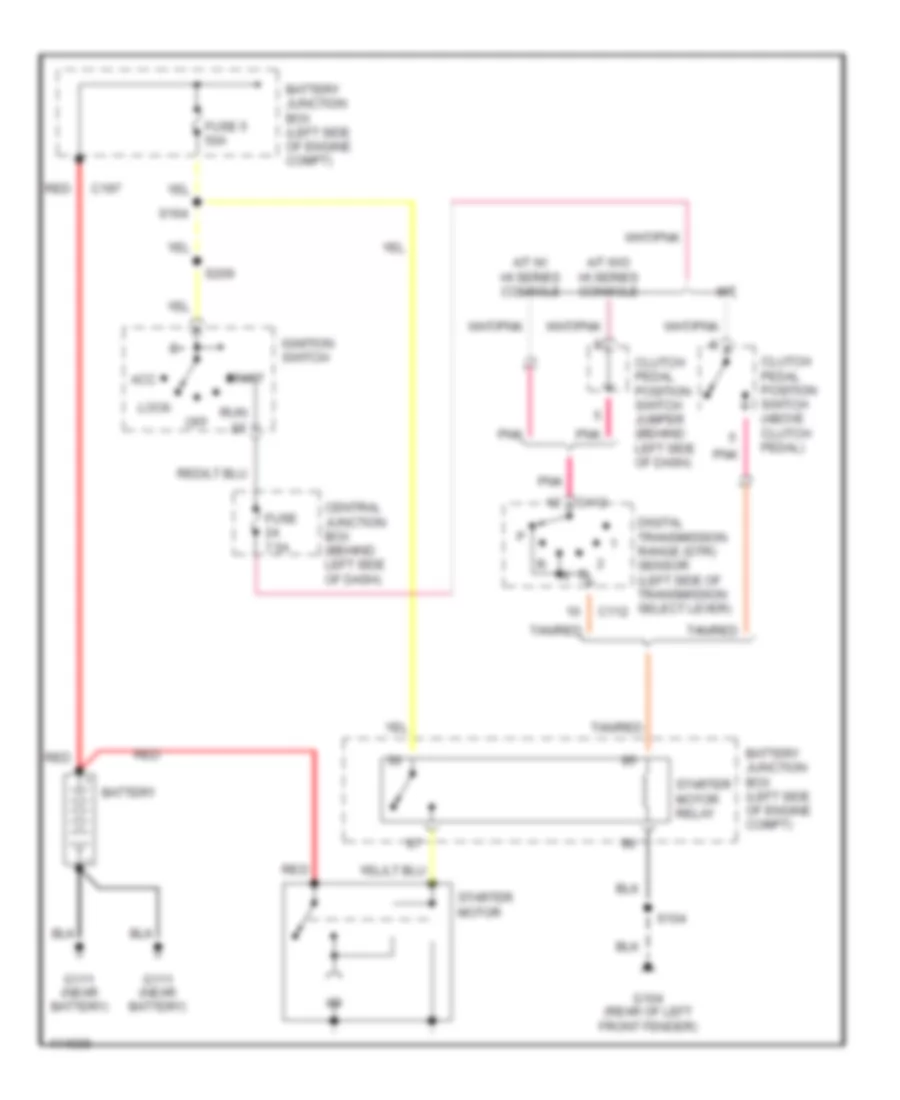

Электросхема стартера для Mercury Mountaineer 2001 - Список элементов:

• A/t w/ hi series console
• A/t w/o hi series console
• Acc
• Battery
• Battery junction box (left side of engine compt)
• C112
• C197
• Central junction box (behind left side of dash)
• Clutch pedal position switch (above clutch pedal)
• Clutch pedal position switch jumper (behind left side of dash)
• Digital transmission range (dtr) sensor (left side of transmission select lever)
• Fuse 5 50a
• Fuse 7.5a
• G104 (rear of left front fender)
• G111 (near battery)
• Ignition switch
• Lock
• M/t
• Off
• Pnk
• Red
• Run
• S104
• S164
• S209
• Start
• Starter motor
• Starter motor relay
• Tan/red
