Стартер Генератор

Электросхема Генератора для Mercury Villager 2001

Электросхема Генератора для Mercury Villager 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема Генератора для Mercury Villager 2001 - Список элементов:

  • (behind top left side of dash, right of cluster) joint connector 2
  • Analog cluster
  • Battery
  • Battery junction box (left front of engine compt)
  • C117
  • C266a
  • C267c
  • Central junction box (behind left side of dash)
  • Charge indicator
  • Digital cluster
  • Fuse 10a
  • Fuse 140a
  • G106 (left front of engine compt)
  • G112 (left side of engine compt)
  • Generator
  • Hot in start or run
  • Instrument cluster
  • S260 s259
  • Starter motor

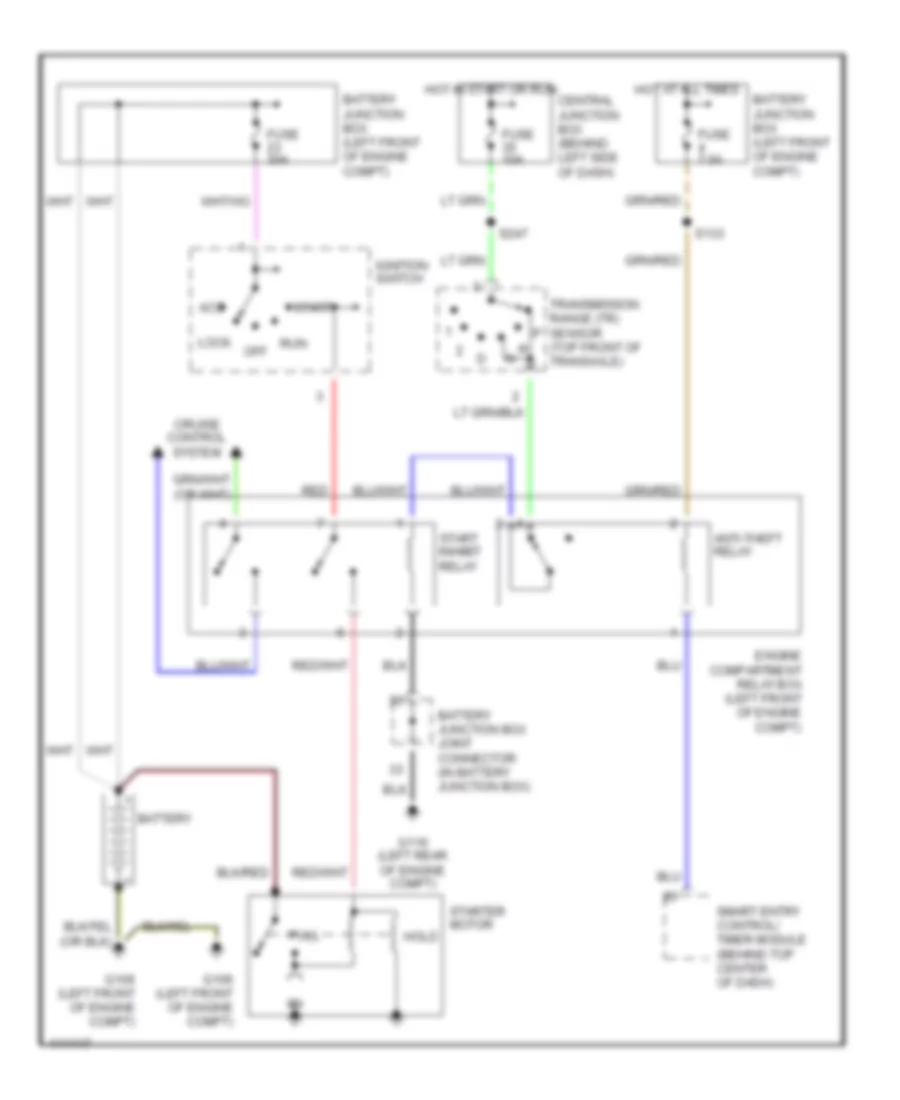

Электросхема стартера, С противоугонная для Mercury Villager 2001

Электросхема стартера, С противоугонная для Mercury Villager 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
获取访问所有汽车的接线图Download PDF file

Электросхема стартера, С противоугонная для Mercury Villager 2001 - Список элементов:

  • Acc
  • Anti-theft relay
  • Battery
  • Battery junction box (left front of engine compt)
  • Battery junction box joint connector (in battery junction box)
  • Central junction box (behind left side of dash)
  • Cruise control system
  • Engine compartment relay box (left front of engine compt)
  • Fuse 10a
  • Fuse 30a
  • Fuse 7.5a
  • G106 (left front of engine compt)
  • G116 (left rear of engine compt)
  • Hold
  • Hot at all times
  • Hot in start or run
  • Ignition switch
  • Lock
  • Off
  • Pull
  • Red
  • Run
  • S133
  • S247
  • Smart entry control/ timer module (behind top center of dash)
  • Start
  • Start inhibit relay
  • Starter motor
  • Transmission range (tr) sensor (top front of transaxle)

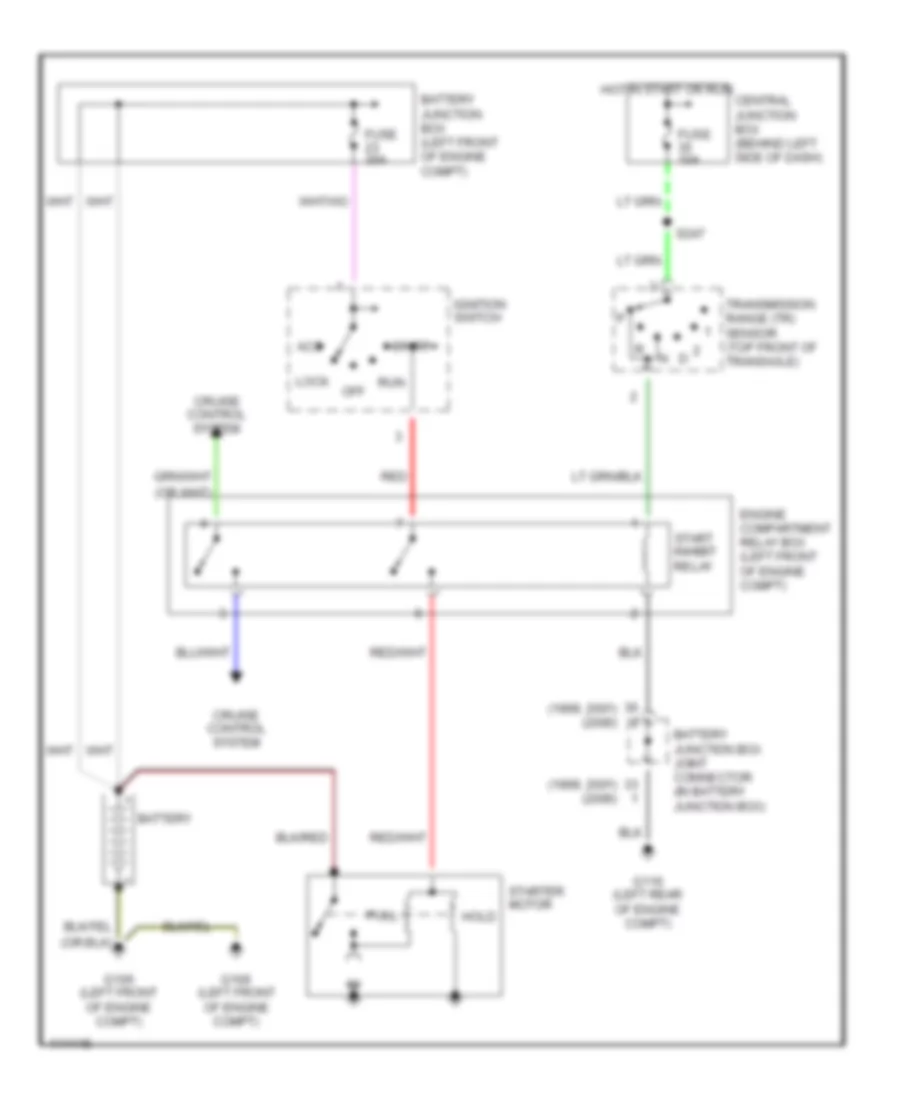

Электросхема стартера, без Противоугонная для Mercury Villager 2001

Электросхема стартера, без Противоугонная для Mercury Villager 2001 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
获取访问所有汽车的接线图Download PDF file

Электросхема стартера, без Противоугонная для Mercury Villager 2001 - Список элементов:

  • (1999, 2001) (2000)
  • Acc
  • Battery
  • Battery junction box (left front of engine compt)
  • Battery junction box joint connector (in battery junction box)
  • Central junction box (behind left side of dash)
  • Cruise control system
  • Engine compartment relay box (left front of engine compt)
  • Fuse 10a
  • Fuse 30a
  • G106 (left front of engine compt)
  • G116 (left rear of engine compt)
  • Hold
  • Hot in start or run
  • Ignition switch
  • Lock
  • Off
  • Pull
  • Red
  • Run
  • S247
  • Start
  • Start inhibit relay
  • Starter motor
  • Transmission range (tr) sensor (top front of transaxle)
