Электросхемы СИСТЕМА КОНДИЦИОНЕРА Volvo XC70 T-6 2012

СИСТЕМА КОНДИЦИОНЕРА

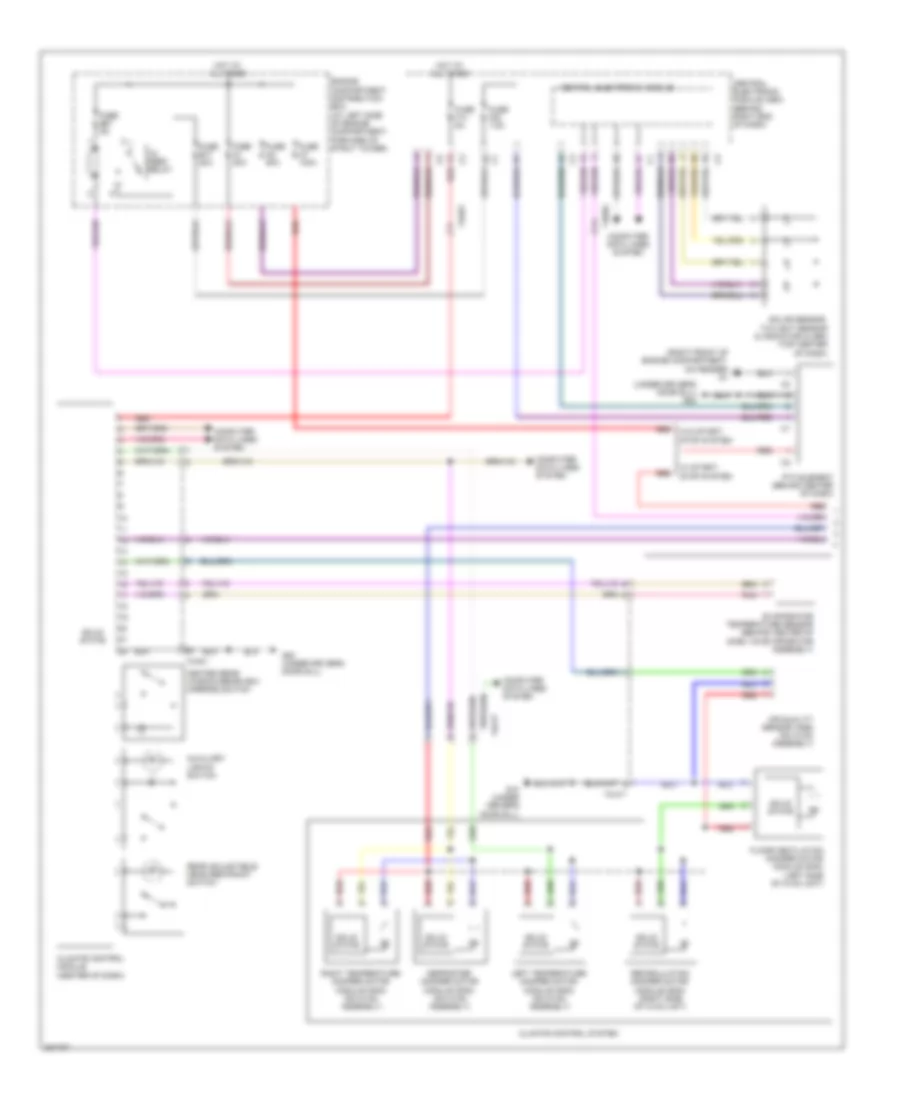

Электросхема кондиционера (1 из 2) для Volvo XC70 T-6 2012

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

获取访问所有汽车的接线图

Электросхема кондиционера (1 из 2) для Volvo XC70 T-6 2012 - Список элементов:

• (right front of engine compartment, on fender) g1
• (under driver's door sill) g83
• 15- feed relay
• 74/401
• 74/417
• 74/504
• Air quality sensor (aqs) (on hvac assembly)
• Auxiliary lights switch
• Central electronic module
• Central electronic module (cem) (behind right end of dash)
• Climate control module (center of dash)
• Climate control system
• Computer data lines system
• Defroster damper motor module (dmm) (on hvac assembly)
• Engine compartment distribution box (at left side of engine compartment, forward of strut tower)
• Evaporator temperature sensor (behind center of dash, on evaporator assembly)
• Floor/ventilation damper motor module (dmm) (left side of hvac unit)
• Fuse a1 50a
• Fuse a2 50a
• Fuse a7 100a
• Fuse b17 20a
• Fuse b27 5a
• Fuse f14 5a
• Fuse f20 7.5a
• G10 (under driver's door sill)
• G83 (under driver's door sill)
• Heated rear window/rearview mirrors switch
• Hot at all times
• Left temperature damper motor module (dmm) (on hvac assembly)
• Pnk
• Ptc element (behind center of dash)
• Rear adjustable head restraint switch
• Recirculation damper motor module (dmm) (right side of hvac unit)
• Red
• Right temperature damper motor module (dmm) (on hvac assembly)
• Solar sensor, twilight sensor & indicator alarm (top center of dash)
• Solid state
• W/ start/ stop system
• W/o start/ stop system

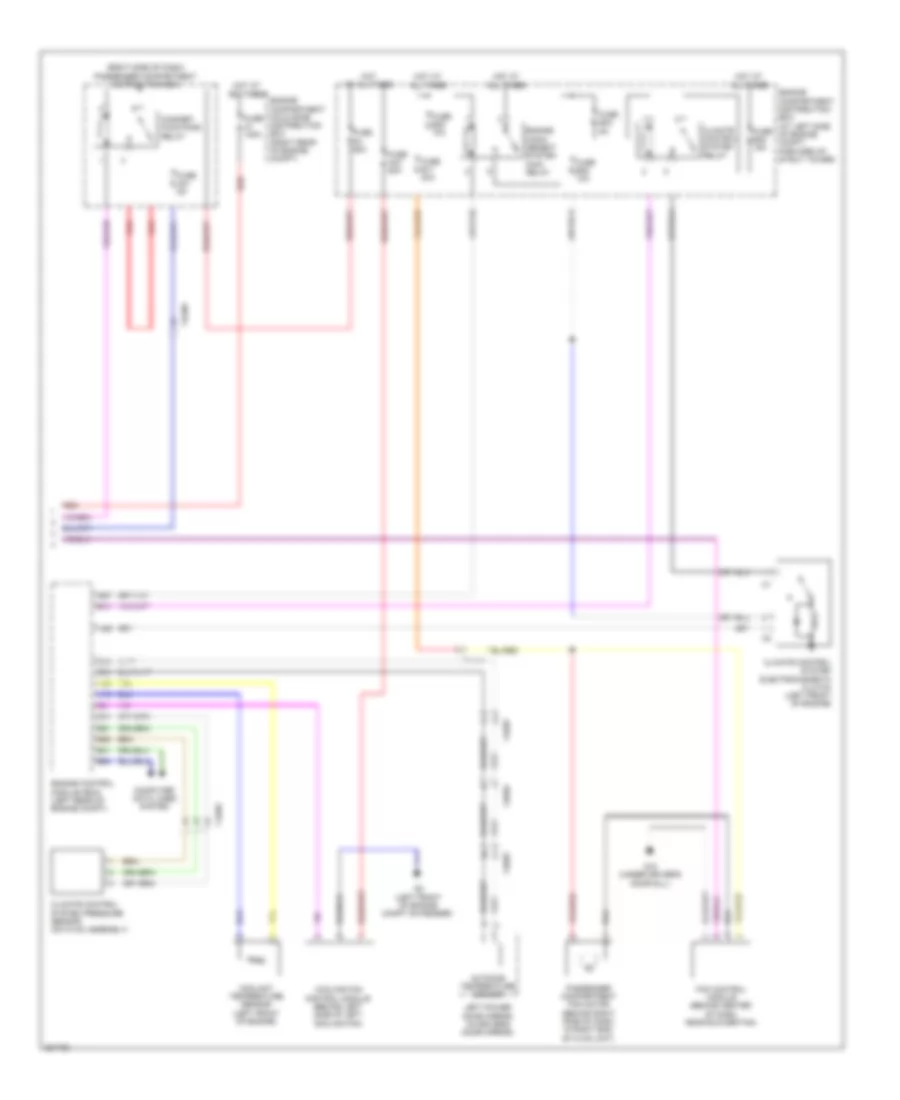

Электросхема кондиционера (2 из 2) для Volvo XC70 T-6 2012

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

获取访问所有汽车的接线图

Электросхема кондиционера (2 из 2) для Volvo XC70 T-6 2012 - Список элементов:

• (right side of dash) passenger compartment distribution box
• 74/301
• 74/409
• 74/411
• 74/504
• 74/507
• A13
• A68
• A85
• B10
• B27
• B31
• B34
• B35
• B41
• B51
• B53
• B54
• Climate control system electromagnetic clutch (left front of engine)
• Climate control system pressure sensor (on hvac assembly)
• Climate control system relay
• Comfort functions relay
• Computer data lines system
• Coolant temperature sensor (left front of engine)
• Cooling fan control module (behind left side of left cooling fan)
• Engine compartment cold zone distribution box (right rear of engine compt)
• Engine compartment distribution box (at left side of engine compt, forward of strut tower)
• Engine control module (ecm) (left rear of engine compt)
• Engine mana- gement system main relay
• Fan control module (behind center of dash, near blower fan)
• Fuse a1 100a
• Fuse a4 60a
• Fuse a43 80a
• Fuse b11 40a
• Fuse b30 10a
• Fuse b32 15a
• Fuse b33 5a
• Fuse b38 10a
• Fuse c21 5a
• G10 (under driver's door sill)
• G2 (left front of engine compt on fender)
• Hot at all times
• Left power door mirror (in driver's door mirror)
• Outdoor temperature sensor
• Passenger compartment fan motor (behind right side of dash, in right end of hvac unit)
• Red
