AIR CONDITIONING
Automatic A/C Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram, Convertible for BMW 323i 1999:
- (4 cyl) (6 cyl)
- (6 cyl)
- (not used)
- (right side of ihka plenum)
- 4- cyl
- 4-cyl
- 4-cyl 6-cyl
- 4-cyl only
- 6- cyl
- 6-cyl
- Acc
- Air conditioning compressor
- Automatic climate control module (behind center console)
- Auxiliary fan motor (4-cyl)
- Auxiliary fan motor (6-cyl)
- Auxiliary fuse box (left side of dash)
- Blower motor (on rear of engine compartment, behind right fresh air intake)
- Blower relay (in front power distribution box)
- Compressor control relay (in front pwr dist box)
- Data link connector (dlc) (partial) (on right rear of engine compartment)
- Defogger & power antenna systems
- Defroster flap motor
- Double temperature switch temperature switch
- Engine control module (on right rear corner of engine compartment)
- Evaporator temp sensor (right side of left footwell)
- Final stage unit (behind left side of dash)
- Fresh air flap motor (below left side of dash, right side of ihka plenum)
- Front power distribution box (in left rear corner of engine compartment)
- Fuse 16 5a
- Fuse 20 30a
- Fuse 23 5a
- Fuse 31 5a
- Fuse 39 7.5a
- Fuse 41 30a
- Fuse 48 40a
- G100 (left front of engine compt)
- G201 (behind right footwell trim)
- G202 (below left side of dash)
- High speed relay (in front power dist box)
- Hot at all times
- Hot in run & start
- If equipped
- Ignition switch
- Instrument cluster
- Interior lights system
- Left heat exchanger temp sensor (center console)
- Left valve
- Nca
- Normal speed relay (in front power dist box)
- Off
- Outside temp sensor (rear of engine compt)
- Park ventilation circuit
- Pressure switch
- Rear recirculation flap motor
- Recirculation flap motor
- Red
- Regulation flap motor
- Right heat exchanger temp sensor (center console)
- Right valve
- Run
- Start
- Starting & charging system
- Transmisiion controls system
- Veh speed
- Ventilation w/park ventilation
- W/o park
- Water valve assembly (on left rear of engine compartment)
- X10016
- X10017
- X10018
- X1588
- X17
Automatic A/C Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Automatic A/C Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (left side of right footwell)
- A/c press sens
- A/c sens gnd
- Auxiliary heater
- Batt
- Blower motor (front of air conditioning unit)
- Blower output stage (left side of right footwell)
- Defogger system
- Defroster flap motor
- Evaporator temp
- Evaporator temperature sensor (right side of left footwell)
- Footwell flap motor
- Fuse 28 5a
- Fuse 37 50a
- Fuse 62 7.5a
- Fuse holder (glove box)
- Gnd
- Heated exchanger
- Heated exchanger sensor (behind center console)
- Heating & a/c control module (center console)
- Hot at all times
- Hot in run & start
- Ign run/st
- Interior lights sig
- Interior lights system
- K-bus sig
- Left fresh air/ recirculated air flap motor
- Park ventilation circuit (dde only)
- Pollutant sens
- Pollutant sensor (front of eng compt)
- Pressure sensor, air conditioning system (right front wheelwell)
- Rear defogger sig
- Red
- Right fresh air/ recirculated air flap motor
- Sig
- Vent flap mtr
- Ventilation flap motor
- Water valve sig
- Water valves (left side of eng compt)
- X18341
- X490 (under passenger's seat)
- X608
- X610
- X613
Automatic A/C Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Automatic A/C Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- A/c comp rly sig
- Can bus hi
- Can bus hi sig
- Can bus lo
- Can bus lo sig
- Compressor control relay (in front pwr dist box)
- Computer data lines system
- Coolant outlet gnd
- Coolant outlet sig
- Coolant outlet temperature sensor (right engine compt)
- Data link mfl
- Digital motor electronic control unit (left rear of eng compt)
- Electric fan (front of eng compt)
- Electric fan sig
- Fuse 3 20a
- Fuse 34 5a
- Fuse 63 7.5a
- Fuse 9 5a
- Fuse holder (glove box
- Gnd
- Hot at all times
- Hot in accy, run & start
- Hot in run & start
- Hot w/ dme rly energized
- Ign
- Instrument cluster control module (in instrument panel)
- K bus sig
- Nca
- Outside temp gnd
- Outside temp sig
- Red
- Right button pad (in steering wheel)
- Solenoid clutch (left side of right footwell)
- Temperature sensor (under front left of vehicle)
- Volute spring
- X01002
- X01003
- X010170
- X10015
- X10016
- X1108 (under driver's seat)
- X11175
- X11176
- X166 (right front of eng compt)
- X60004
- X8680
Park Ventilation Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Park Ventilation Wiring Diagram, Convertible for BMW 323i 1999:
- (behind right footwell trim) g201
- (below left side of dash) g202
- Acc
- Automatic climate control module (behind center console)
- Blower motor (on rear of engine compartment, behind fresh air intake)
- Blower relay (in front power distribution box)
- Final stage unit (behind left side of dash)
- Front power distribution box (in left rear corner of engine compartment)
- Fuse 20 30a
- G201 (behind right footwell trim)
- Hot at all times
- Ignition switch
- Nca
- Off
- On-board computer (on center console)
- Park ventilation relay (on relay panel, under left side of dash)
- Run
- Start
- Uncoupling diode (in front power distribution box)
- Vent
- X10016
Park Ventilation Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Park Ventilation Wiring Diagram, Except Convertible for BMW 323i 1999:
- (right front of eng compt)
- Computer data lines system
- Fuse 20 20a
- Fuse holder (glove box)
- Heater plug/ flame monitor
- Heating & a/c control module (center console)
- Hot at all times
- Independent park heating control unit (right rear of eng compt)
- Instrument cluster control module (in instrument panel)
- Metering pump, independent park heating
- Motor, circulation pump
- Motor, combustion air blower
- X01047
- X01049
- X01050
- X10015
- X11175
- X166
- X166 (right front of eng compt)
- X608
- X642
- X764
ANTI-LOCK BRAKES
Anti-lock Brakes Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Anti-lock Brakes Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999:
- (behind right kick panel) g203
- Abs brake pedal travel sensor (m3) (right side of brake master cylinder)
- Abs lp ctrl
- Abs pump motor relay, timed (in front power distribution box)
- Abs pump mtr rly
- Abs pwr protect rly
- Abs relay (in front power distribution box)
- Abs travel sens sig
- Ads step motor
- Asc lp ctrl
- Asc sw sig
- Asc throt flap pot
- Battery volt
- Brake light switch (on bracket, above brake pedal)
- Brake sig
- Data link connector (on right rear of engine compartment)
- Eml-signal
- Exterior lights system
- Front power distribution box (left rear corner of engine compartment)
- Fuse f10 30a
- Fuse f21 5a
- Fuse f38 30a
- Fuse f46 15a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G203 (right kick panel)
- Ground
- Ground, module
- Hot at all times
- Hot in accy, run and start
- Hot in run and start
- Idle spd sig
- Ign sig
- L fnt sol vlv sig
- L rear sol vlv sig
- Left front abs speed sensor
- Left rear abs speed sensor
- Lf speed sens signal
- Lr speed sens signal
- Nca
- Pump mtr sens shield
- Pump mtr sens signal
- Rf speed sens signal
- Right front abs speed sensor
- Right rear abs speed sensor
- Rr speed sens signal
- Rt fnt sol vlv sig
- Rxd sig
- Sens gnd
- Signal
- Signal abs travel sens
- Slip control module (abs) (right side of dash, behind glove box)
- Sol vlv
- Spd sig
- Speed signal
- Throt flap postn
- Trans influence
- Txd sig
- X10015
- X10017
- X10018
Anti-lock Brakes Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Anti-lock Brakes Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999:
- Abs hydraulic unit (on left rear of engine compt)
- Abs warn ind
- Asc diode (in front power distribution box)
- Asc switch
- Asc warn ind
- Auxiliary throttle position motor (on front of engine compt)
- Auxiliary throttle position sensor
- Engine control module (dme) (right rear corner of engine compartment)
- Front power distribution box (left rear corner of engine compartment)
- Fuse f27 5a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- Hot in run and start
- Instrument cluster
- Interior lights system
- Left front inlet valve
- Left front outlet valve
- Left rear inlet valve
- Left rear outlet valve
- Nca
- Pump motor sensor
- Right front inlet valve
- Right front outlet valve
- Right rear inlet valve
- Right rear outlet valve
- Separator valve
- Transmission control module (egs) (right rear corner of engine compartment)
- X10017
Anti-lock Brakes Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Anti-lock Brakes Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left front of engine compartment) x165
- (left front of engine compt) x165
- (right front of engine compartment) x166
- Abs/asc unit
- Asc switch
- Can high data
- Can low data
- Digital motor electronics control unit (left rear side of engine compartment in e-box)
- Fuse f33 5a
- Fuse f34 5a
- Fuse f53 30a
- Fuse f56 30a
- Fuse holder (glove box)
- Hot at all times
- Hot in run or start
- Instrument cluster control unit (in instrument panel)
- Left front speed sensor (inside left front wheel hub)
- Left rear speed sensor (inside left rear wheel hub)
- Light switching center control unit
- Navigation computer
- Nca
- Right front speed sensor (inside right front wheel hub)
- Right rear speed sensor (inside right rear wheel hub)
- Solid state
- Switch center
- Transmission control unit (left rear side of engine compartment in e-box)
- X10015
- X10016
- X11175
- X1170
- X12
- X1312
- X219 (behind glove box)
- X60002
- X60004
- X70004
ANTI-THEFT
Drive-Away Protection Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Drive-Away Protection Wiring Diagram, Convertible for BMW 323i 1999:
- (below left side of dash) g202
- (w/ egs
- (w/ egs)
- (w/o egs)
- Acc
- Anti-theft control module (alpine) (behind glove box)
- Automatic transmission range switch (w/ egs) starter immobilization switch (w/o egs)
- Body electronics control module (zke iv) (behind glove box)
- Data link connector (on right rear of engine compt)
- Electronic immobilizer control module (behind glove box)
- Engine control module (dme) (right rear corner of engine compt)
- Front power distribution box (left rear corner of engine compt)
- Fuse f28 5a
- Fuse f31 5a
- Fuse f45 7.5a
- G203 (behind right kick panel)
- Hot at all times
- Hot in accy, run and start
- Hot in run and start
- Ignition switch
- Lock
- Nca
- On-board computer (on center console)
- Run
- Start
- Starting system
- Transmissions system (w/ egs)
- Transmitter module (ews ii) (on right side of steering column)
- W/ egs
- W/o egs
- X10017
- X10018
- X10182
- X13253
- X1659
- X1660
- X90260
Drive-Away Protection Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Drive-Away Protection Wiring Diagram, Except Convertible for BMW 323i 1999:
- A/t switch sig
- Acc
- Batt
- Computer data lines system
- Digital motor electronic control unit (left rear eng compt)
- Electronic immobilizer control unit (under left side of dash)
- Ews enable for eng
- Ews toroidal coil
- Ews toroidal coil sig
- Fuse f14 5a
- Fuse f31 5a
- Fuse holder (glove box)
- Gearshift lock
- Gnd
- Hot at all times
- Hot in accy, run & start
- Ign (acc/run/start)
- Ignition switch
- K-bus sig
- Lock
- Red
- Run
- Ssg starter sig
- Start
- Start lock sw m/t sig
- Starter
- Starter sig
- Starting/ charging system
- Trans sw sig
- Transmission control unit (left rear eng compt)
- X10
- X10012 (left side of right footwell
- X10015
- X10016
- X1108 (under driver's seat)
- X1659
- X60003
- X60004
- X6510
- X6511
- X6512
- X70003
Forced Entry Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram, Convertible for BMW 323i 1999:
- (convertible)
- (except convertible)
- Antenna
- Anti- theft horn
- Anti-theft control module (behind glove box)
- Auxiliary fuse box (left side of dash)
- Body electronics control module (zke iv) (behind glove box)
- Crash control module (under left side of dash)
- Driver's door handle switch (usa)
- Drivers door jamb switch
- Electronic immobilizer control module (behind glove box)
- Engine hood switch
- Exterior lights system
- Front power distribution box (left rear corner of engine compt)
- Fuse f43 5a
- Fuse f47 15a
- G100 (front left side of engine compt)
- G203 (behind right kick panel)
- G312 (behind upper left rear seat back)
- G312 (behind upper left rear seatback)
- Horn relay (in front power distribution box)
- Hot at all times
- Hot in run, accy and start
- Instrument cluster
- Kick panel) (behind right g203
- Led
- Low-noise microphone
- Nca
- Passenger's door jamb switch
- Trunk light switch
- W/ ccm
- W/o ccm
- X10018
- X10182
- X10244
- X10250
- X13025
- X13253
- X13254
- X17
Forced Entry Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- Battery
- Centerlock button sig
- Control module, interior protection i (under center console)
- Driver door's contact sig
- Dwa led sig
- Dwa siren alarm control sig
- Electrochromatic interior rearview mirror
- Front passenger door contact sig
- Fuse f49 5a
- Fuse f67 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Gnd
- Horn for anti-theft alarm system (rear eng compt)
- Hot at all times
- Interior protection signal
- Lift gate lock sw sig
- Rear driver's side door contac sig
- Rear passenger's door contact sig
- Status of anti-theft alarm system sig
- Tilt alarm sensor sig
- Tilt monitoring (right side of luggage compt)
- Tire pressure control system control unit (behind glove box)
- Trunk lid contact switch
- Unlock driver's sig
- X10012 (left side of right footwell)
- X10015
- X253
- X254
- X490
- X490 (under passenger's seat)
Forced Entry Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (right rear side of eng compt) underhood light switch
- Central locking drive, trunk lid/ tailgate
- Lift gate lock switch
- System lock, driver's door
- System lock, passenger's door
- System lock, rear driver's side
- System lock, rear passenger's side
- X10012 (left side of right footwell)
- X151 (behind left rear seat)
- X173 (under driver's seat)
- X490 (under passenger's seat)
- X494 (behind right rear seat)
- X498 (behind right kick panel)
BODY CONTROL MODULES
Body Computer Module Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Body Computer Module Wiring Diagram, Convertible for BMW 323i 1999:
- (behind glove box) (partial) body electronics control module (zke iv)
- Anti-theft
- Computer data lines
- Door locks
- Exterior lights
- Front power distribution box (left rear corner of engine compartment)
- Fuse f14 30a
- Fuse f33 10a
- Fuse f35 25a
- Fuse f43 5a
- G203 (behind right kick panel)
- Hot at all times
- Hot in accy, run and start
- Interior lights
- Power tops
- Power windows
- Red
- Starting/charging
- X10182
- X13252
- X13253
- X13254
- X13255
General Module Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for General Module Wiring Diagram, Convertible for BMW 323i 1999:
- (2000-2002)
- (2003-2005)
- Anti-theft status
- Anti-theft system
- Central lck ground
- Central lck pwr
- Child safety lck wndw reg
- Cut-off sig
- Cut-off signal
- Door locks system
- Drvr pwr wndw mtr
- Dwa led
- Dwa siren alarm
- Fr pass pwr wnd mtr
- Fr pass pwr wndw mtr
- Frnt lid sw
- Frnt wndw reg pwr
- Fuse f48 30a
- Fuse f52
- Fuse f52 30a
- Fuse f60 25a
- Fuse f71 30a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Int protection
- Interior lights system
- Mirrors system
- Power windows system
- Rr drvr pwr wndw closed
- Rr drvr pwr wndw mtr
- Rr drvr pwr wndw open
- Rr pass pwr wndw closed
- Rr pass pwr wndw mtr
- Rr pass pwr wndw open
- Rr wndw red pwr
- Tilt alarm sens
- Transmissions system
- Unlck trunk lid
- W/o convertible top module
- Washer pump
- Wiper/washer system
- Wndw reg closed
- X254
- X332
- X490 (under passenger's seat)
General Module Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for General Module Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (2004)
- (except 2004 & 2005)
- 1999-2002 sedan & wagon
- Centerlock button
- Central lck mtr unlck
- Computer data lines system
- Data line zv remote
- Door locks system
- Driver pwr wndw sw
- Drvr dr anti-trap strip
- Drvr dr sw sig
- Drvr pwr wndw sw closed
- Except coupe & 2004-05 wagon
- Except wagon
- Frnt pass dr lck
- Frnt pass dr sw sig
- Frnt pass pwr wndw sw
- Fuse f49 5a
- Fuse f9 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Ground
- Hdlght washer pump rly
- Hot at all times
- Hot in accy, run and start
- Int light sw
- Interior lights system
- Interval time pot
- K-bus sig
- Lin-bus
- Lock drvr dr sig
- Mirrors system
- Mult res system
- Pass dr anti-trap strip
- Pass wndw reg closed
- Power windows system
- Rear drvr door sw sig
- Rear pass dr sw sig
- Rear window drive
- Rear wndw pushbutton
- Sedan & wagon
- Sig int light
- Sound systems
- Term 30
- Term r
- Trunk lid button
- Trunk lid lock
- Trunk lid rel sw
- Trunk lid sw sig
- Trunk, tailgate, fuel doors system
- Unlck drvr dr sig
- Unlock frnt pass dr sig
- Unlock trunk lid
- Wagon only
- Wash sw sig
- Wiper rest pos
- Wiper rly spd 2 sig
- Wiper sig relay
- Wiper sw 1 sig
- Wiper sw 2 sig
- Wiper/washer system
- X10012 (left side of right footwell)
- X253
- Zv unit central arrest
- Zv unit lck
- Zv unit lock drvr dr
- Zv unit unlck
General Module Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for General Module Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (2004-2005)
- (coupe)
- (ex coupe)
- 10a
- 1999-2002 sedan & wagon
- Anti-theft status
- Anti-theft system
- Central lck ground
- Central lck pwr
- Child safety lck wndw reg
- Cut-off sig
- Cut-off signal
- Door locks system
- Drvr pwr wndw mtr
- Dwa led
- Dwa siren alarm
- Except coupe & 2004-05 wagon
- Except wagon
- Fr pass pwr wnd mtr
- Fr pass pwr wndw mtr
- Frnt lid sw
- Frnt wndw reg pwr
- Fuse f48 30a
- Fuse f52
- Fuse f52 30a
- Fuse f60 25a
- Fuse f71 30a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Int protection
- Interior lights system
- Mirrors system
- Power windows system
- Rr drvr anti-trap strip
- Rr drvr pwr wndw closed
- Rr drvr pwr wndw mtr
- Rr drvr pwr wndw open
- Rr pass anti-trap strip
- Rr pass pwr wndw closed
- Rr pass pwr wndw mtr
- Rr pass pwr wndw open
- Rr wndw red pwr
- Sedan & wagon
- Tilt alarm sens
- Tire pressure cntrl unit
- Transmissions system
- Unlck trunk lid
- Wagon only
- Warning systems
- Washer pump
- Wiper/washer system
- Wndw reg closed
- X254
- X332
- X490 (under passenger's seat)
On-Board Computer Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for On-Board Computer Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left side of luggage compt)
- Computer data lines system
- Fuse f41 30a
- Fuse f45 7.5a
- Fuse holder (glove box)
- Gnd
- Hot at all times
- Hot in acc, run or start
- Interior lights system
- K-bus
- Nav cpu
- Navigation system
- On-board monitor control unit
- Radio
- Sig lght loc
- Sound systems
- Term 30
- Term r
- X10015
- X10016
- X13016
- X18801
COMPUTER DATA LINES
Computer Data Lines Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Computer Data Lines Wiring Diagram, Convertible for BMW 323i 1999:
- (below left side of dash) g202
- (right rear of engine compartment) data link connector
- Automatic climate control module (behind center console)
- Battery
- Body electronics control module (zke iv) (behind glove box)
- Convertible top control module (in lower left "c" pillar, behind side panel)
- Cruise control module (behind glove box)
- Electronic immobilizer control module (ews ii) (behind glove box)
- Engine control module (dme) (right rear corner of engine compartment)
- Front power distribution box (left rear corner of engine compartment)
- Fuse 10a
- Fuse f26 10a
- Fuse f46 15a
- G103 (rear of right front shock tower)
- G203 (behind right kick panel)
- Generator
- Hot at all times
- Hot in accy, start and run
- Hot in run and start
- Instrument cluster
- Obd ii connector (under left side of dash)
- Ohms
- On-board computer module (center console)
- Red
- Rollover sensor (in lower left "c' pillar, behind side panel)
- Slip control module (behind glove box)
- Telephone connector (center console)
- Transmission control module (egs) (right rear corner of engine compartment)
- X16
- X17
Computer Data Lines Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Computer Data Lines Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (under driver's seat)
- Abs/dsc unit (awd)
- Abs/dsc unit (except awd)
- Can (+)
- Can (-)
- Diag txd
- Digital motor electronics control unit (a6000)
- Driver seat memory control unit
- Driver side mirror memory control unit
- Dsc steering angle sensor
- Electronic immobilizer control unit
- Fuse f30 7.5a
- Fuse f43 5a
- Fuse holder (glove compt)
- General module control unit
- Heating & a/c control module
- Hot at all times
- Hot in run or start
- Instrument cluster
- K- bus
- K-bus
- Left xenon headlight (w/ xenon lights)
- Light switching center control unit
- Multiple restraint system control unit
- Nca
- Obd socket (left footwell)
- Park distance control unit
- Rain sensor control unit
- Right xenon headlight (w/ xenon lights)
- Rollover sensor (convertible)
- Rpm sig
- Sunroof module control unit
- Switch center
- Tire pressure system control unit
- Transmission control unit
- Volute spring
- W/ fixed mounting siemens cordless handset w/ on-board monitor,
- W/ fixed mounting siemens cordless handset w/o on-board monitor,
- W/ motorola v-series cellular phone w/ on-board monitor
- W/ motorola v-series cellular phone w/o on-board monitor
- W/ nokia cellular phone, w/ telephone provisions, w/ fixed mounting motorola (phase v+),
- W/o tel telephone provisions
- X10015
- X10016
- X10106
- X10107
- X1108
- X11175
- X12
- X13084
- X1465
- X1658
- X1659
- X173
- X18034
- X18171
- X18303
- X1869
- X253
- X300
- X60002
- X60004
- X70004
- X74
- X810
- X916
Computer Data Lines Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Computer Data Lines Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (w/ motorola v-series cellular phone)
- (w/ on-
- (w/ siemens cordless handset)
- (w/o on-
- Basic interface telephone
- Basic interface telephone (w/ nokia cellular phone
- Basic interface telephone w/ siemens cordless handset)
- Board monitor)
- Cd changer
- Cd changer (w/ on- board monitor)
- Interface
- Interface (w/ motorola v-series cellular phone)
- K- bus
- Navigation computer
- Nca
- On-board monitor control unit
- Radio control unit
- Radio control unit (w/ on- board monitor)
- Radio control unit (w/o on- board monitor)
- Tranceiver/ charging electronics (w/ tele- phone provisions)
- Video module control unit
- Voice input
- W/ fixed mounting motorola (phase v+)
- W/ fixed mounting motorola (phase v+),
- W/ navigation
- W/ nokia cellular phone,
- W/o navigation
- X10390
- X1313
- X13324
- X13599
- X13646
- X18126
- X18180
- X18618
- X18801
- X18804
- X4545
COOLING FAN
Cooling Fan Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cooling Fan Wiring Diagram, Convertible for BMW 323i 1999:
- (behind center console)
- (right rear corner of engine compt)
- Above 18 bar
- Above 2.6 bar
- Above 30 bar
- Auto climate control module
- Auxiliary fan motor
- Below 1.5 bar
- Below 15 bar
- Below 21 bar nca
- Closed above 91 deg celsius
- Closed above 99 deg celsius
- Engine control module
- Front power distribution box (left rear of engine compt)
- Fuse 30a
- Fuse 5a
- G100 (front of left front fender)
- High speed relay (in front power distribution box)
- Hot at all times
- Hot in run & start
- Nca
- Normal speed relay (in front power distribution box)
- Pressure switch (near right headlight)
- Temperature switch (right front of engine compt)
Cooling Fan Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cooling Fan Wiring Diagram, Except Convertible for BMW 323i 1999:
- Coolant outlet temperature gnd
- Coolant outlet temperature sensor (right front of eng compt)
- Coolant outlet temperature sig
- Digital motor electronics control unit (left rear eng compt)
- Electric fan
- Electric fan sig
- Fuse 50a
- Fuse holder (glove box)
- Hot at all times
- X166 (right front eng compt)
CRUISE CONTROL
Cruise Control Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cruise Control Wiring Diagram, Convertible for BMW 323i 1999:
- Acccelerate/ set
- Automatic transmission range switch (under center console at shifter)
- Brake- light switch (on bracket above brake pedal)
- Clutch switch (on clutch pedal support bracket)
- Computer data lines system
- Cruise control actuator (on left front side of engine compartment)
- Cruise control module (behind glove box)
- Cruise control switch
- Decelerate/ set
- Engine speed
- Exterior lights system
- Front power distribution box (left rear corner of engine compartment)
- Fuse f28 5a
- Fuse f46 15a
- G201 (right side of glove box)
- Hot in accy, run and start
- Hot in run and start
- Instrument cluster
- Nca
- Normal
- Off
- On right rear corner of engine compt) transmission control module
- Resume
- Tach out
- Transmission controls system
- W/ egs
- W/o egs
- X10017
- X10018
- X16
- X17
- X8500
Cruise Control Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cruise Control Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left rear of engine compt) x6454
- Brake light
- Brakelight switch (on bracket, above brake pedal)
- Can (+)
- Can (-)
- Clutch pedal position switch (if equipped)
- Computer data lines system
- Cpp sw sig
- Diag txd
- Digital motor electronics (dme) control unit (left rear of engine compt)
- Drvrs wish 1 pot 1
- Drvrs wish 1 sig
- Drvrs wish 2 sig
- E-box (left rear of engine compt)
- Exterior lights system
- Fuse 30a
- Fuse 5a
- Fuse holder (glove box)
- Ground
- Hot at all times
- Hot in acc, run or start
- Instrument cluster control module
- K-bus
- Left button paid (in steering wheel)
- Nca
- Pwr throttle pot 1
- Red
- Right button paid (in steering wheel)
- Strg whl ctrls
- Term 87
- Throttle actuator
- Throttle pos sen 2
- Throttle pos sens 1
- Throttle valve
- Transmission control unit (left rear of engine compt)
- Volute spring
- X01000
- X01001
- X01002
- X01003
- X010170
- X10016
- X1108 (under driver's seat)
- X217 (under left side of dash)
- X60001
- X60002
- X60003
- X60004
- X70004
- X8680
DEFOGGERS
Defoggers Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Defoggers Wiring Diagram, Convertible for BMW 323i 1999:
- (in convertible top compartment) hard top connector 2
- Antenna amplifier (in upper left "c" pillar)
- Automatic climate control module (behind center console)
- Convertible top control module (lower left "c" pillar)
- Diversity (w/ 3 antenna diversity) (in upper left "c" pillar)
- Front power distribution box (left rear corner of engine compt)
- Fuse f23 5a
- Fuse f43 5a
- Fuse f6 30a
- G312 (behind upper left rear seatback)
- Hifi amplifier (below right side of rear seat)
- Hot at all times
- Hot in run and start
- Hot in run, accy and start
- Nca
- Radio
- Rear defogger relay (in front power distribution box)
- Rear defogger/ antenna
- Rear window blower (behind rear seats)
- Rear window blower micro switch (in convertible top compt)
- Rear window blower relay (under right side of dash)
- Spatial sound relay (behind left kick panel)
- Suppression filter (in upper right "c" pillar)
- Thermostat
- W/ automatic climate control
- W/o automatic climate control
- X10015
- X10017
- X10018
- X10266
- X605
Defoggers Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Defoggers Wiring Diagram, Except Convertible for BMW 323i 1999:
- Digital motor electronics control unit (left rear of engine compt)
- Fuse f68 30a
- Fuse holder (glove box)
- Generator
- Heating & a/c control module
- Hot at all times
- Nca
- Rear window
- Rear window defogger relay (right side of luggage compt)
- Sedan, coupe
- Wagon
- Wave trap 1
- Wave trap 2
- Wave trap 3
- X01051
- X01052
- X10015
- X379
- X60003
- X60004
- X608
- X6524
ENGINE PERFORMANCE
2.5L
2.5L, Engine Performance Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 2.5L, Engine Performance Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999:
- (left rear corner of engine compt) front power distribution box
- (top center of engine) fuel injection valves
- (top center of engine) variable camshaft control valve 1
- (under left side of dash) unloader relay terminal 15
- A/c on sig
- A/c system
- Acc
- Activate a/c
- Activate relay
- Activate valve
- Anti- theft system
- B+ jump start junction point (right rear of engine compt)
- Battery
- Camshaft ctrl
- Camshaft pos
- Chekc eng ind
- Crnkshft rpm
- Cyl 1
- Cyl 1 ign coil
- Cyl 1 inj
- Cyl 1-6 fuel pump relay
- Cyl 2
- Cyl 2 ign coil
- Cyl 2 inj
- Cyl 3
- Cyl 3 ign coil
- Cyl 3 inj
- Cyl 4
- Cyl 4 ign coil
- Cyl 4 inj
- Cyl 5
- Cyl 5 ign coil
- Cyl 5 inj
- Cyl 6
- Cyl 6 ign coil
- Cyl 6 inj
- Drive-away sig
- Dual temperature sensor (coolant temperature) (right front of engine)
- Eng cool temp
- Engine control module (dme) (right rear corner of engine compt)
- Engine control module relay
- Fuel cons
- Fuel pump (below right side of rear seat)
- Fuel tank pressure sensor (right rear wheelwell)
- Fuel tnk press
- Fuse f18 15a
- G103 (rear of right front shock tower)
- G103 (rear of right front shock twr)
- G125 (front of engine, on cyl head)
- Ground
- Hot at all times
- Hot fam mtr
- Hot film air mass meter (on intake fresh air duct)
- Idle speed control valve (front of engine)
- Ignition coils (top right side of engine)
- Ignition switch
- Instru- ment cluster system
- Instrument cluster
- Intake air temperature sensor (left side of engine compt)
- Intk air temp
- Left rear seatback) g312
- Nca
- Off
- Red
- Resistor (240 ohm)
- Run
- Speed sig rr
- Start
- Terminal 15
- Throt pos sig
- Throttle pos
- Throttle position sensor (on throttle body)
- X10016
- X16
- X17
2.5L, Engine Performance Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 2.5L, Engine Performance Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999:
- (below left side of dash) obd ii connector
- (in spare wheelwell) carbon canister valve
- (left rear corner of engine compt) front power distribution box
- (left rear of trunk) exhaust gas flap valve
- (near left shock tower) evaporative emission valve
- (on front of engine) camshaft position sensor (cylinder id)
- (right side of engine) secondary air pump valve
- (top front of engine) knock sensor
- (under left center of car) solenoid valve (running losses)
- 02s htg gnd
- 02s sig gnd
- A/c system
- Activate relay
- Activate valve
- Actv a/c comp
- Air pump (front of engine compt)
- And m3 only
- Asc-sig msr
- Asc-sig za
- Asc-sig zwv
- Auxiliary fuse box (left side of dash)
- Battery
- Camshaft pos
- Can high
- Can low
- Computer data lines system
- Crankshaft position/ rpm sensor (on front of engine)
- Cyl 1-3
- Cyl 1-3 ks
- Cyl 4-6
- Cyl 4-6 ks
- Data link connector (dlc) (right rear of engine compt)
- Engine control module (dme) (right rear corner of engine compt)
- Fuse f50 5a
- G103 (rear of right front shock tower)
- G125 (front of engine, on cyl head)
- Ground
- Nca
- Oxygen sensor i (behind catalytic converter)
- Oxygen sensor i (in front of catalytic converter)
- Oxygen sensor ii (328 and m3) (behind catalytic converter)
- Oxygen sensor ii (328 and m3) (in front of catalytic converter)
- Program volt
- Red
- Running loss
- Secondary air pump relay
- Sensor signal
- Sig exhst flap
- Slip control module (abs/asc) (behind glove box)
- Transmission control module (egs) (right rear corner of engine compt)
- Txd
2.5L, Engine Performance Wiring Diagram, Except Convertible (1 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 2.5L, Engine Performance Wiring Diagram, Except Convertible (1 of 3) for BMW 323i 1999:
- (left rear of engine compt) x6454
- (on cyl head) vanos valve 1
- B+ potential distributor
- Cam pos sens
- Camshaft sensor grd
- Characteristic map cooling thermostat (on cylinder head)
- Ckp sens ground
- Crankshaft position sensor (left side of engine)
- Crankshaft sen sig
- Digital motor electronics (dme) control unit (left rear of engine compt)
- Dme relay
- Drvrs wish 1 pot 1
- Drvrs wish 1 sig
- Drvrs wish 2 sig
- Dual temp sens sig
- Dual temp sw grd
- E-box (left rear of engine compt)
- Emission valve
- Engine coolant temperature sensor (rear of engine)
- Fuel inj 1
- Fuel inj 2
- Fuel inj 3
- Fuel inj 4
- Fuel inj 5
- Fuel inj 6
- Fuel injection valves
- Fuse 20a
- Fuse 30a
- Ground
- Hot at all times
- Iat sens grd
- Idle spd cntrl
- Idle speed control valve
- Individual control intake system valve
- Inj sig valve
- Intake air temperature sensor (top center of engine)
- Jet pump
- Knock sens 1 grd
- Knock sens 1 sig
- Knock sens 2 grd
- Knock sens 2 sig
- Knock sens shield
- Knock sensor (rear of engine)
- Maf sens grd
- Maf sens sig
- Mass air flow sensor (front of engine)
- Nca
- Oil pressure sens
- Oil pressure switch
- Oil temp sens grd
- Oil temp sens sig
- Oil temperature sensor (front of engine, under intake)
- Pwr throttle pot 1
- Red
- Sec air inj pmp vlv
- Starting/ charging system
- Temp sens sig
- Term 30 volt
- Term 30h volt sig
- Term 87
- Thermostat sig
- Throttle actuator
- Throttle pos sen 2
- Throttle pos sens 1
- Unload relay act
- Vanos inj sig vlv
- Vanos inj sig vlv 2
- Vanos valve 2 (on cyl head)
- X60001
- X60003
- X64101
- X64102

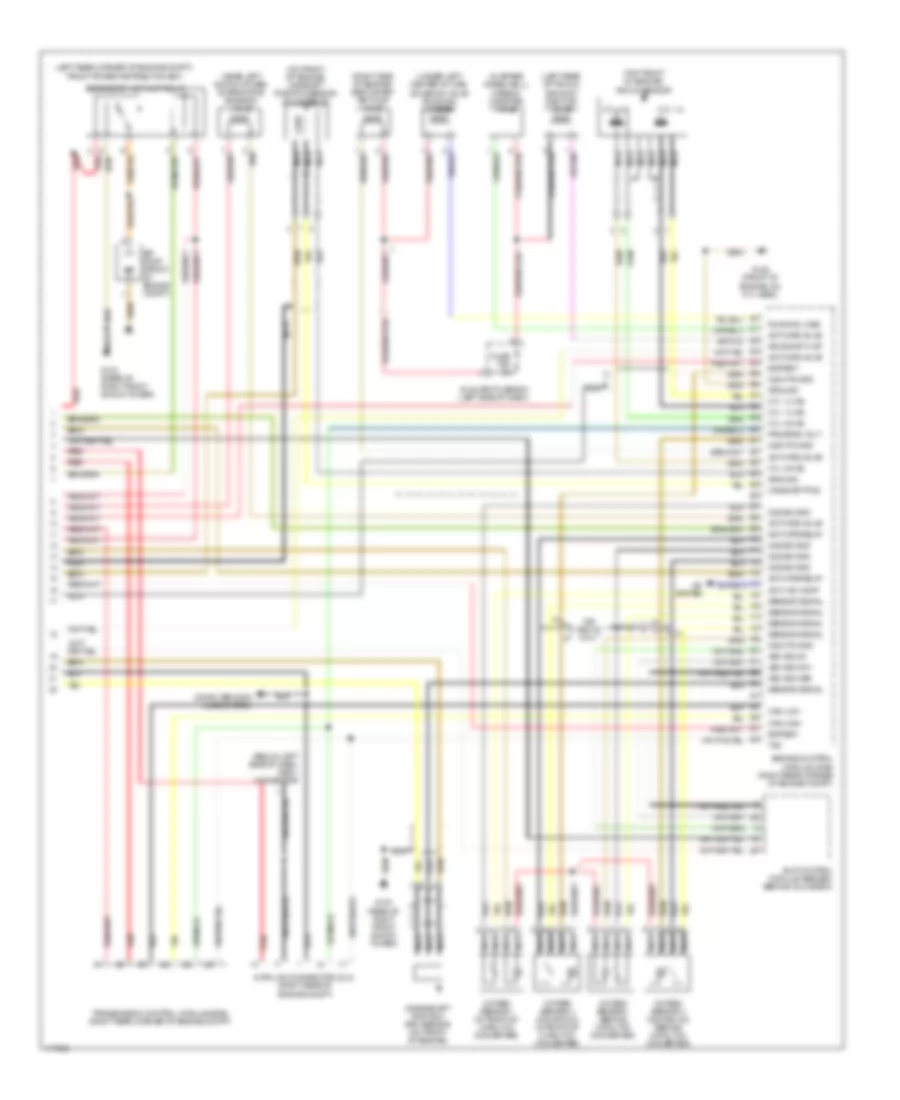

2.5L, Engine Performance Wiring Diagram, Except Convertible (2 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 2.5L, Engine Performance Wiring Diagram, Except Convertible (2 of 3) for BMW 323i 1999:
- (left rear wheelwell) leakage diagnosis pump
- (left side of engine compt) evaporative emission valve
- A/c relay
- Camshaft position sensor 1
- Camshaft position sensor 2
- Fuel pump
- Fuel pump relay
- Fuel tank ventilation solenoid valve
- Fuse 15a
- Fuse holder (glove box)
- Heated oxygen sensor i (behind cat conv)
- Heated oxygen sensor i (front of cat conv)
- Heated oxygen sensor ii (behind cat conv)
- Heated oxygen sensor ii (front of cat conv)
- Hot at all times
- Nca
- Secondary air injection pump valve
- Sucking jet pump valve
- Throttle valve
- X494 (behind right rear seat)
2.5L, Engine Performance Wiring Diagram, Except Convertible (3 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 2.5L, Engine Performance Wiring Diagram, Except Convertible (3 of 3) for BMW 323i 1999:
- (left rear of engine compt)
- (left rear of engine compt) transmission control module
- (ter 12-16 not used)
- (ter 5-9 not used)
- (ter 8-11 not used)
- A/c comp sig
- A/c system
- Anti-lock brakes system
- Brake light
- Brakelight switch (on bracket, above brake pedal)
- Can h
- Can l
- Clutch pedal position switch
- Computer data lines system
- Cool out temp
- Coolant outlet temperature sensor
- Cooling fans system
- Cpp sw sig
- Cruise control
- Data link
- Data link txd
- Diagnosis sig txd
- Digital motor electronics (dme) control unit (left rear of engine compt)
- E-box (left rear of engine compt)
- Exhaust flap
- Exhaust flap valve (left rear of luggage compt)
- Exterior lights system
- Fan
- Fuel pump rly act
- Fuse 30a
- Fuse 50a
- Fuse 5a
- Fuse holder (glove box)
- Ground
- Ho2s grd
- Ho2s ground
- Ho2s htr grd
- Ho2s signal
- Hot at all times
- Hot in acc, run or start
- Hot in run or start
- Ign coil 1 sig
- Ign coil 2 sig
- Ign coil 3 sig
- Ign coil 4 sig
- Ign coil 5 sig
- Ign coil 6 sig
- Ignition coils
- Instrument cluster
- Leak diag pump sig
- Nca
- Obd socket
- Oil press ind
- Plug
- Red
- Rr eng spd sig
- Sec air pmp rly act
- Secondary air injection pump (right front wheelwell)
- Secondary air injection pump relay
- Signal running loss
- Strg whl ctrls
- Term 30h volt sig
- Unloader relay
- X10016
- X11175
- X166 (right front of engine compt)
- X217 (under left side of dash)
- X60002
- X60004
- X60005
- X6454
- X6456 (right side of engine)
- X8680
EXTERIOR LIGHTS
Backup Lamps Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Backup Lamps Wiring Diagram, Convertible for BMW 323i 1999:
- A/t
- Automatic transmission range switch (center console, on shifter mechanism)
- Front power distribution box (left rear corner of engine compartment)
- Fuse 10a
- G312 (behind upper left rear seat back)
- Hot in run and start
- Left back up light
- Left trunk light assembly
- M/t
- Reversing light switch (left side of transmission)
- Right back up light
- Right trunk light assembly
- X10017

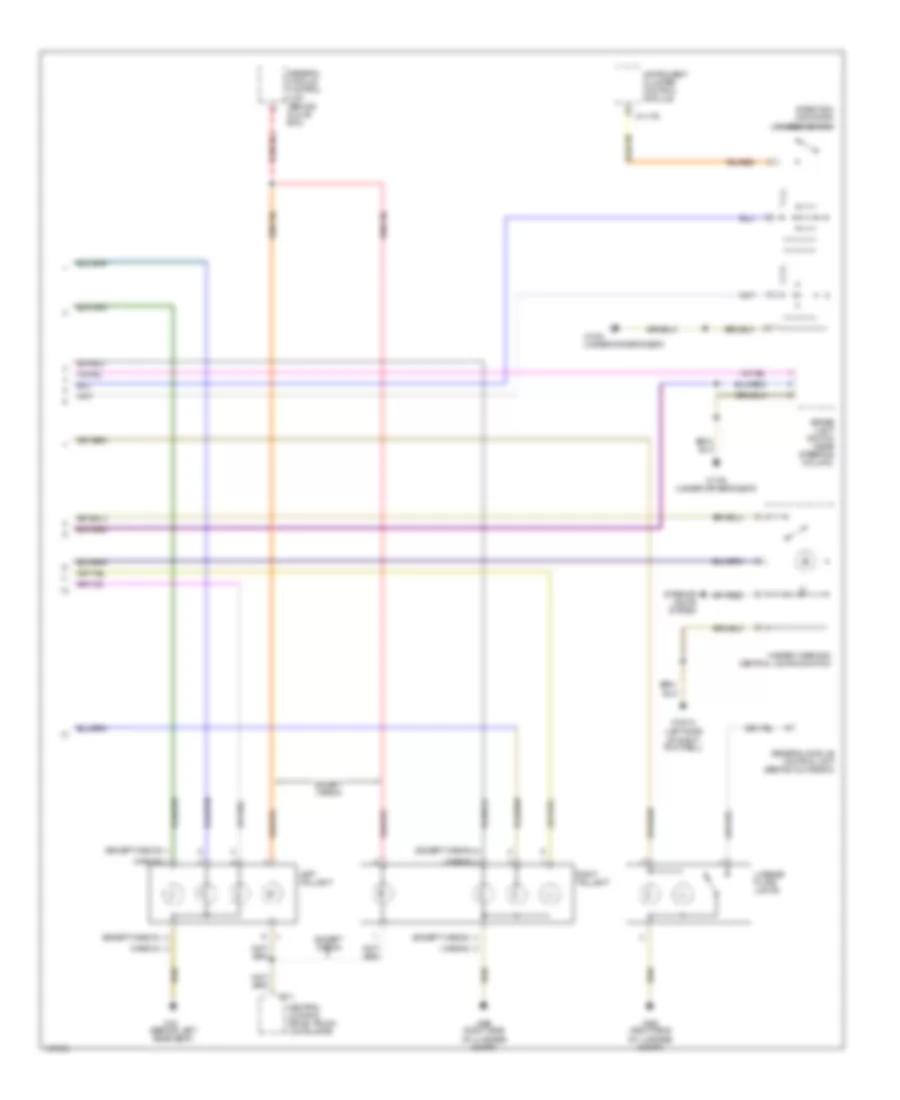

Backup Lamps Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Backup Lamps Wiring Diagram, Except Convertible for BMW 323i 1999:
- A/t
- Adaptive headlight control module (if equipped)
- E-box (left rear of engine compt)
- Electrochromic interior rear view mirror
- Fuse f27 10a
- Fuse f3 20a
- Fuse holder (glove box)
- Hot at all times
- Hot in run and start
- Instrument cluster control module
- Left back up light
- Left trunk lid lamp
- M/t
- Navigation computer
- Park distance control unit
- Reversing light relay (left rear of engine compt)
- Reversing light switch (right side of transmission)
- Right back up light
- Right trunk lid lamp
- Transmission control unit (left rear of engine compt)
- X10016
- X10513
- X11176
- X1312
- X18246
- X300
- X498 (right side of luggage compt)
- X70004
- X8680
Exterior Lights Wiring Diagram, Convertible (1 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lights Wiring Diagram, Convertible (1 of 3) for BMW 323i 1999:
- (2 door)
- (behind right kick panel)
- (not
- Anti-theft control module (behind glove box)
- Body electronics control module (behind glove box)
- Combination switch
- Crash control module (under left side of dash)
- Front power distribution box (left rear corner of engine compt)
- Fuse f23 5a
- Fuse f34 15a
- G100 (front left side of engine compt)
- G202 (left side of dash)
- G203
- G203 (behind right kick panel)
- G312 (behind upper left rear seat back)
- G312 (behind upper left rear seat back)
- Hazard flasher relay (in power distribution box)
- Hazard indicator
- Hazard switch
- Hot at all times
- Hot in run and start
- Instrument cluster
- Interior lights system
- Left
- Left front auxiliary turn light
- Left front turn lamp
- Left headlight
- Left rear turn lamp
- Left trunk light assembly
- Left turn indicator
- Off
- Right
- Right front auxiliary turn light
- Right front turn lamp
- Right headlight
- Right rear turn lamp
- Right trunk light assembly
- Right turn indicator
- Turn signal switch
- Used)
- X10017
- X10018
- X10182
- X13025
- X16
- X17
Exterior Lights Wiring Diagram, Convertible (2 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lights Wiring Diagram, Convertible (2 of 3) for BMW 323i 1999:
- Check control module (left side of dash)
- Front power distribution box (left rear corner of engine compartment)
- Fuse 10a
- G100 (front left side of engine compt)
- G312 (behind upper left rear seat back)
- Head
- Hot at all times
- Interior lights system
- Left headlight
- Left license plate light
- Left park light
- Left tail light
- Left trunk light assembly
- Light switch
- Off
- Park
- Right headlight
- Right license plate light
- Right park light
- Right tail light
- Right trunk light assembly
- W/ check control module
- W/o check control module
- X10018
- X1074
- X1075
Exterior Lights Wiring Diagram, Convertible (3 of 3) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lights Wiring Diagram, Convertible (3 of 3) for BMW 323i 1999:
- A/t
- Automatic transmission range switch (center console, on shifter mechanism)
- Brakelight switch (on bracket, above brake pedal)
- Check control module (left side of dash)
- Cruise control module (right side of dash)
- Front power distribution box (left rear corner of engine compartment)
- Fuse 10a
- Fuse 15a
- G312 (behind upper left rear seat back)
- High level stop light
- Hot in accy, run and start
- Hot in run and start
- Left back up light
- Left brake light
- Left trunk light assembly
- M/t
- Nca
- On-board computer (on center console)
- Reversing light switch (left side of transmission)
- Right back up light
- Right brake light
- Right trunk light assembly
- Slip control module (right side of dash)
- Transmission control module (right rear of engine compt)
- W/ check control module
- W/check ctrl mod
- W/o check control module
- W/o check red control module
- X10018
- X1074
- X1075
Exterior Lights Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lights Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (2 door)
- (4 door)
- (w/ xenon headlights)
- (w/o xenon headlights)
- Brake light
- Center brake light
- Cntr brk lght
- Computer data lines system
- Fog lght rly act sig
- Frnt load sens +5v
- Frnt load sens gnd
- Frnt load sens sig
- Fuse f106 50a
- Fuse f107 50a
- Fuse f32 5a
- Fuse f9 5a
- Fuse holder (glove box)
- Ground
- Haz warn sw
- Headlights system
- Hi bm/flash sw
- Hot at all times
- Hot in acc run and start
- Hot in run and start
- Interference suppression filter
- Interior lights system
- K-bus sig
- Left front auxiliary flasher unit
- Left front turn signal lamp
- Left parking light
- Lf prk lght
- Lf trn sig lmp
- Lic plt lght
- Light switching center control unit
- Lmp in haz warn sw
- Lt aux trn sig
- Lt brk lght sig
- Lt hdlt vert aim mtr
- Lt hi bm sig
- Lt lo beam sig
- Lt trn sig
- Lt xenon hl act
- Outer lt tail lght
- Outer rt tail lght
- Rear load sens
- Rear load sens +5v
- Rear load sens gnd
- Rf prk lght
- Rf trn sig lmp
- Right front auxiliary flasher unit
- Right front turn signal lamp
- Right parking light
- Rr trn sig lmp
- Rt aux trn sig
- Rt brk lght sig
- Rt hdlt vert aim mtr
- Rt hi beam sig
- Rt lo bm sig
- Rt xenon hl act
- Sig locator lghting
- Term 15
- Term 30
- Term r
- Trn sig sw
- X10012 (left side of right footwell)
- X10016
- X165 (left front of engine compt)
- X166 (right front of engine compt)
- X173 (under driver's seat)
- X217 (under left side of dash)
- X490 (under passenger's seat)
- X494 (behind right rear seat)
Exterior Lights Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lights Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (behind left rear seat)
- (except wagon)
- (left side of right footwell)
- (wagon)
- Brake light switch (near steering column)
- Central locking drive, trunk lid/tailgate
- Direction indicator/ low beam switch
- Except wagon
- General module control unit (behind glove box)
- Hazard warning/ central locking switch
- Instrument cluster control module
- Interior lights system
- Left taillight
- License plate lights
- Right taillight
- X10012
- X1108 (under driver's seat)
- X11176
- X151
- X311
- X498 (right side of luggage compt)
GROUND DISTRIBUTION
Ground Distribution Wiring Diagram, Convertible (1 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Convertible (1 of 4) for BMW 323i 1999:
- Abs relay
- Anti- theft horn
- Auxiliary fan motor
- Blower relay
- Brake fluid level switch
- Brake- light switch
- Central power window switch
- Chime module
- Combi- nation switch
- Convertible top control module
- Dimmer
- Driver's power window switch
- Electronic immobilizer control module
- Engine coolant level switch
- Front fog- light relay
- G100 (front left side of engine compartment)
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G300 (under left front seat)
- G303 (under right rear seat)
- G904 (lower left "c" pillar)
- Gear shift lever indicator
- Hazard flasher relay
- Headlight/ foglight washer pump
- High beam light relay
- Horn switch
- Ignition switch
- Instrument cluster
- Inter- mediate pressure switch
- Left fog- light
- Left front auxiliary turn light
- Left front speed sensor
- Left front turn light
- Left headlamp
- Left high beam light
- Left horn
- Left low beam light
- Left park light
- Left washer jet heater
- Light switch
- Low beam light relay
- Nca
- Obd ii connector
- Passenger's power window switch
- Right fog- light
- Right front auxiliary turn light
- Right front speed sensor
- Right front turn light
- Right headlamp
- Right high beam light
- Right horn
- Right low beam light
- Right park light
- Right washer jet heater
- Slip control module (abs/asc)
- Starter immobilizer switch
- Temperature switch
- Unloader relay
- Washer fluid level switch
- Wiper motor
- Wiper/ washer module (low ii)
- Wiper/ washer switch
Ground Distribution Wiring Diagram, Convertible (2 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Convertible (2 of 4) for BMW 323i 1999:
- (w/ zke)
- Abs hydraulic unit
- Abs pump motor relay
- Anti- theft control module
- Body electronics control module
- Body electronics control module (zke iv)
- Check control module
- Clutch switch
- Convertible top storage lid lock motor
- Crash control module
- Cruise control actuator
- Cruise control module
- Door lock heater
- Driver's door handle switch
- Driver's makeup mirror switch
- Driver's seat belt switch
- Driver's seat heater switch
- Driver's side impact sensor
- Driver's side mirror
- Driver's window motor
- Front dome light/ map reading assembly
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G300 (under left front seat)
- Instrument cluster
- Left footwell light
- Mirror control switch
- Nca
- Obd ii connector
- On-board computer temp sensor
- Passenger's door jamb switch
- Passenger's makeup mirror switch
- Passenger's seat belt switch
- Passenger's seat control switch
- Passenger's seat heater
- Passenger's seatback heater
- Passenger's side impact sensor
- Passenger's side mirror
- Passenger's window motor
- Relay module
- Right footwell light
- Seat occupancy detector
- Sunroof control assembly
- Thermostat
- Top hifi switch
- Transmitter module
- Trunk lid micro switch
- Washer fluid level switch
- Wiper/ washer module (low ii)
Ground Distribution Wiring Diagram, Convertible (3 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Convertible (3 of 4) for BMW 323i 1999:
- Air pump
- Convertible top actuating switch
- Convertible top control module
- Convertible top position micro- switch
- Convertible top-end position micro- switch
- Crankshaft position/ rpm sensor shield
- Cyl 1 ignition coil
- Cyl 2 ignition coil
- Cyl 3 ignition coil
- Cyl 4 ignition coil
- Cyl 5 ignition coil
- Cyl 6 ignition coil
- Data link connector
- Engine control module (dme)
- G103 (rear of right front shock tower)
- G125 (front of engine, on cylinder head)
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G310 (behind upper right rear seat back)
- Ground
- Hifi amplifier
- Hot film air mass meter
- Ignition coil shield
- Nca
- Passenger's door jamb switch
- Passenger's seat control switch
- Passenger's seat heater
- Passenger's seatback heater
- Radio
- Rear defogger
- Resistor 240 ohm
- Right rear interior light
- Rollover sensor
- Secondary air pump relay
- Suppression filter
- Transmission control module (egs)
- Unloader relay
- Windscreen cowl panel lock micro- switch
Ground Distribution Wiring Diagram, Convertible (4 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Convertible (4 of 4) for BMW 323i 1999:
- 318, 323, 328 m3
- All others
- Analog clock
- Asc switch
- Automatic climate control module
- Blower motor
- Cassette box light
- Cd changer
- Center console telephone connector
- Central locking switch
- Charging socket
- Convertible top control module
- Convertible top storage lid micro switch
- Driver's door jamb switch
- Driver's seat control switch
- Driver's seat heater
- Driver's seat lumbar support motor/valve
- Driver's seatback heater
- Engine hood switch
- Final stage unit
- Front ashtray light
- Front cigar lighter
- Front cigar lighter light
- Fuel pump
- G203 (behind right kick panel)
- G312 (behind upper left rear seatback)
- Glove box light
- Hard top connector 1
- Hazard switch
- High level stop light
- Left back-up light
- Left brake light
- Left license light
- Left rear fog light
- Left rear interior light
- Left rear turn light
- Left tail light
- Left trunk light assembly
- Luggage compartment telephone connector
- Multi- function clock
- Nca
- On-board computer module
- Passenger's door jamb switch
- Program switch (w/ egs)
- Rear ashtray light
- Rear defogger
- Rear window blower
- Rear window blower micro switch
- Right back-up light
- Right brake light
- Right license light
- Right rear brake pad sensor
- Right rear fog light
- Right rear interior light
- Right rear turn light
- Right tail light
- Right trunk light assembly
- Supression filter
- Transmission position indicator light
- W/ auto climate control
- W/o auto climate control
- Wiper/ washer module
- Wiper/ washer switch
- With convertible
Ground Distribution Wiring Diagram, Except Convertible (1 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Except Convertible (1 of 4) for BMW 323i 1999:
- (others)
- (wagon)
- 12v socket
- Abs/acs unit
- Convertible soft top control module
- Convertible top drive
- Digital motor electronics control unit
- E-box fan
- Front left speed sensor
- Front left turn signal lamp
- Hall sensor, driver seat belt buckle
- Hall sensor, passenger seat belt buckle
- Left fog light
- Left high beam
- Left horn
- Left low beam
- Left parking light
- Left rear window pressure sensitive finger guard
- Multiple restraint system control unit
- Nca
- Oil level sensor
- Power window switch, left rear
- Rear left indicator light
- Relay, convertible top drive
- Seat load assembly
- Sedan & coupe
- Sensor for left side airbag (satellite)
- Sensor for right side airbag (satellite)
- System lock, rear driver's side
- Taillight, left
- Transmission control unit
- Unloader relay terminal 15
- Valve, convertible top cover
- Valve, emergency release
- W/ xenon headlight
- W/o xenon headlight
- Wagon
- X151 (behind left rear seat)
- X165 (left front of eng compt)
- X46 (under center console)
- X6454 (left rear of eng compt)
- Xenon headlight, left
Ground Distribution Wiring Diagram, Except Convertible (2 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Except Convertible (2 of 4) for BMW 323i 1999:
- (4wd)
- (left footwell) obd socket
- (others)
- (rear of eng compt, right) diagnostic plug
- (w/mk20 dsc: right rear eng compt, w/mk60 dsc: behind brake booster)
- Abs/ asc unit
- Chime module
- Driver's backrest heating
- Driver's lumbar support switch
- Driver's seat adjustment switch
- Driver's seat heating
- Driver's seat memory control unit
- Driver's side footwell, light
- Driver's side pressure sensitive finger guard
- E-box fan
- Electric fan
- Except early 1999 model
- Front left auxiliary flasher unit
- Front right speed sensor
- Front right turn signal lamp
- Headlight washer pump
- Lumbar support only
- Mirror adjustment switch
- Mirror control unit, driver's side
- Nca
- Precharge pump
- Right fog light
- Right high beam
- Right horn
- Right low beam
- Right parking light
- Secondary air injection pump
- Secondary air injection pump relay
- System lock, driver's door
- Valve block, driver's lumbar support
- W/ dsc
- W/ memory
- W/ seat memory
- W/ xenon headlight
- W/o memory
- W/o seat memory
- W/o xenon headlight
- Washer pump
- Wiper motor
- Wiper relay
- X1465
- X166 (right front eng compt)
- X170
- X173 (under driver's seat)
- X18303
- X18840
- Xenon headlight, right
Ground Distribution Wiring Diagram, Except Convertible (3 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Except Convertible (3 of 4) for BMW 323i 1999:
- (convertible: right rear passenger's compt, others: behind right rear seat) x494
- Abs/dsc unit
- Blower output stage
- Charging socket
- Driver's backrest heating
- Dual-function switch recirculate air/rear window defogger
- Electric fuel pump
- Except early model
- Fresh air/ recirculated air motor
- Front cigar lighter
- Front cigar lighter light
- Front right auxiliary flasher unit
- Garage door opener
- General module control unit
- Glove box light
- Heating and a/c control module
- Heating blower relay
- Horn for anti-theft alarm system
- Interior/ reading lamp, front
- Late production
- Left windshield washer jet heater
- Make-up mirror switch, driver's side
- Make-up mirror switch, passenger's side
- Microswitch, temperature selector
- Mirror memory control unit, front passenger's side
- Nca
- Oddments compartment, left
- Oddments compartment, right
- Outside mirror fold, in control unit
- Outside mirror, passenger's side
- Passenger's backrest heating
- Passenger's lumbar support switch
- Passenger's seat heating
- Passenger's side footwell light
- Passenger's side pressure- sensitive finger guard
- Power window switch, rear right
- Rear defroster relay
- Rear right brake pad sensor
- Rear right interior light
- Right rear window pressure- sensitive finger guard
- Right windshield washer jet heater
- Sun shade switch
- Sunroof module control unit
- Switch center
- Switch, glove box central locking
- System lock, passenger's door
- System lock, rear passenger's side
- Valve block, passenger's lumbar support
- W/ heater control
- W/ memory
- W/o memory seat
- X490 (under passenger's seat) (partial)
Ground Distribution Wiring Diagram, Except Convertible (4 of 4) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram, Except Convertible (4 of 4) for BMW 323i 1999:
- (2 door)
- (4 door)
- (center console) telephone connector
- (left side of right footwell) x10012
- Amplifier
- Antenna amplifier am/fm
- Asc/dsc button
- Brake fluid level switch
- Brake light switch
- Cd changer
- Center brake light
- Central locking drive, trunk lid/ tailgate
- Clutch pedal position switch
- Control module, interior protection i
- Convertible
- Digital motor electronics control unit
- Direction indicator/ low beam switch
- Driver's seat heating switch
- Driver, convertible top cover
- Electrochromic interior rearview mirror
- Engine coolant level switch
- Except wagon
- Fog light relay
- Gear indicator light
- Gearshift lock
- General module control unit
- Gps receiver
- Hazard warning/ central locking switch
- Ignition coil 1
- Ignition coil 2
- Ignition coil 3
- Ignition coil 4
- Ignition coil 5
- Ignition coil 6
- Instrument cluster control module
- Intermittent wiper/washer control unit, rear
- License plate lights
- Lift gate lock switch
- Light switching center control unit
- Manual convertible top only
- Navigation computer
- Nca
- Onboard monitor control unit
- Park distance control unit
- Passenger's door power window switch
- Passenger's seat heating switch
- Radio control unit
- Rain sensor
- Rear ashtray light
- Rear washer pump
- Rear window opening switch
- Spatial sound switch
- Steering angle sensor
- Steptronic switch
- Sub woofer box
- Switch block, driver's door
- Switch convertible top cover locked, right
- Switch, convertible top compart- ment floor
- Switch, convertible top cover drive
- Switch, convertible top cover locked, left
- Taillight, right
- Tire pressure control system control unit
- Trailer module
- Trailer socket
- Trunk lid lamp, left
- Trunk lid lamp, right
- Trunk lid release switch (interior)
- Underhood light switch
- Volute spring
- Wagon only
- Washer fluid level switch
- Windscreen wiper switch
- X1108 (under driver's seat)
- X13016 (left side of luggage compt)
- X498 (right side of luggage compt)
- X6456 (right side of eng)
HEADLIGHTS
Headlights Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram, Convertible for BMW 323i 1999:
- (below left side of dash) g202
- (front left side of engine compt) g100
- (not used)
- (used canada only)
- (w/ccm) (w/o ccm)
- 87b
- Canada
- Check control module (under left side of dash)
- Combination switch
- Flash
- Fog lights indicator
- Fog- light switch
- Front fog- light relay (in front power distribution box)
- Front power distribution box (in left rear corner of engine compt)
- Fuse f11 7.5a
- Fuse f12 7.5a
- Fuse f15 7.5a 15a
- Fuse f22 5a
- Fuse f23 5a
- Fuse f25 5a
- Fuse f29 7.5a
- Fuse f30 7.5a
- G202 (below left side of dash)
- Head
- High
- High beam indicator
- High beam light relay (in front power distribution box)
- Hot at all times
- Hot in run and start
- Instrument cluster
- Left fog- light
- Left high beam light
- Left low beam light
- Light switch
- Low beam light relay (in front power distribution box)
- Normal
- Off
- Park
- Red
- Right fog- light
- Right high beam light
- Right low beam light
- W/ ccm
- W/o ccm
- X10016
- X10017
- X10035
- X10036
- X16
- X17
Headlights Wiring Diagram, Except Convertible without Xenon Lamps (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram, Except Convertible without Xenon Lamps (1 of 2) for BMW 323i 1999:
- (left side of right footwell)
- Brake light
- Cntr brk lght
- Computer data lines system
- Exterior lights system
- Fog lght rly act sig
- Fuse f106 50a
- Fuse f107 50a
- Fuse f32 5a
- Fuse f9 5a
- Fuse f9 f15
- Fuse holder (glove box)
- Ground
- Haz warn sw
- Hi bm/flash sw
- Hot at all times
- Hot in acc run and start
- Hot in run and start
- Interior lights system
- K-bus sig
- Left high beam
- Left low beam
- Lf prk lght
- Lf trn sig lmp
- Lic plt lght
- Light switching center control unit
- Lmp in haz warn sw
- Lt aux trn sig
- Lt brk lght sig
- Lt hi bm sig
- Lt lo beam sig
- Lt trn sig
- Of engine compt)
- Outer lt tail lght
- Outer rt tail lght
- Rain/driving light sensor (behind interior rearview mirror)
- Rf prk lght
- Rf trn sig lmp
- Right high beam
- Right low beam
- Rr trn sig lmp
- Rt aux trn sig
- Rt brk lght sig
- Rt hi beam sig
- Rt lo bm sig
- Sig locator lghting
- Term 15
- Term 30
- Term r
- Trn sig sw
- Wiper/washer system
- X10012
- X10012 (left side of right footwell)
- X10016
- X165 (left front
- X166 (right front
- X217 (under left side of dash)
Headlights Wiring Diagram, Except Convertible without Xenon Lamps (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram, Except Convertible without Xenon Lamps (2 of 2) for BMW 323i 1999:
- Direction indicator/ low beam switch
- Fog light relay (behind glove box)
- Fuse f38 15a
- Fuse holder (glove box)
- Hot at all times
- Instrument cluster control module
- Left fog light
- Of engine compt)
- Right fog light
- X10012 (left side of right footwell)
- X10015
- X1108 (under driver's seat)
- X11175
- X11176
- X165 (left front
- X166 (right front
Headlights Wiring Diagram, Except Convertible withXenon Lamps (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram, Except Convertible withXenon Lamps (1 of 2) for BMW 323i 1999:
- (left side of right footwell)
- Brake light
- Cntr brk lght
- Computer data lines system
- Exterior lights system
- Fog lght rly act sig
- Frnt load sens +5v
- Frnt load sens gnd
- Frnt load sens sig
- Fuse f106 50a
- Fuse f107 50a
- Fuse f32 5a
- Fuse f9 5a
- Fuse f9 f15
- Fuse holder (glove box)
- Ground
- Haz warn sw
- Headlight vertical aim control front load sensor
- Headlight vertical aim control rear load sensor
- Hi bm/flash sw
- Hot at all times
- Hot in acc run and start
- Hot in run and start
- Interior lights system
- K-bus sig
- Left headlight vertical aim control motor
- Lf prk lght
- Lf trn sig lmp
- Lic plt lght
- Light switching center control unit
- Lmp in haz warn sw
- Lt aux trn sig
- Lt brk lght sig
- Lt hdlt vert aim mtr
- Lt high beam sig
- Lt lo beam sig
- Lt trn sig
- Lt xenon hl act
- Outer lt tail lght
- Outer rt tail lght
- Rain/driving light sensor (behind interior rearview mirror)
- Rear load sens
- Rear load sens +5v
- Rear load sens gnd
- Rf prk lght
- Rf trn sig lmp
- Right headlight vertical aim control motor
- Rr trn sig lmp
- Rt aux trn sig
- Rt brk lght sig
- Rt hdlt vert aim mtr
- Rt high beam sig
- Rt lo bm sig
- Rt xenon hl act
- Sig locator lghting
- Term 15
- Term 30
- Term r
- Trn sig sw
- Wiper/washer system
- X10012
- X10016
- X217 (under left side of dash)
Headlights Wiring Diagram, Except Convertible withXenon Lamps (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram, Except Convertible withXenon Lamps (2 of 2) for BMW 323i 1999:
- Computer data lines system
- Direction indicator/ low beam switch
- Fog light relay (behind glove box)
- Fuse f32 5a
- Fuse f38 15a
- Fuse holder (glove box)
- Hot at all times
- Hot in run and start
- Instrument cluster control module
- Left fog light
- Left high beam
- Left xenon headlight
- Of engine compt)
- Right fog light
- Right high beam
- Right xenon headlight
- X10012 (left side of right footwell)
- X10015
- X10016
- X10106
- X10107
- X1108 (under driver's seat)
- X11175
- X11176
- X130
- X135
- X165 (left front
- X166 (right front
HORN
Horn Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Horn Wiring Diagram, Convertible for BMW 323i 1999:
- Acc
- Front power distribution box (left rear corner of engine compt)
- Fuse f8 15a
- G100 (front of left front fender)
- G202 (below left side of dash)
- Horn relay (in front power distribution box)
- Horn switch
- Hot at all times
- Ignition switch
- Left horn
- Off
- Power distribution
- Right horn
- Run
- Start
Horn Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Horn Wiring Diagram, Except Convertible for BMW 323i 1999:
- (under driver's seat) x1108
- 2004-2006 coupe & convertible
- Except 2004-2006 coupe & convertible
- Fuse f5 5a
- Fuse f55 15a
- Fuse holder (glove box)
- Horn relay (behind glove box)
- Horn switch
- Hot at all times
- Hot in acc, run or start
- Left horn
- Nca
- Right horn
- Volute spring
- X01004
- X01008
- X01009
- X10015
- X10016
- X10170
- X14249
- X14250
- X165 (left front engine compt)
- X166 (right front engine compt)
INSTRUMENT CLUSTER
Instrument Cluster Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999:
- (below left side of dash) g202
- (on front of engine, below intake manifold)
- (right rear of engine compt) data link connector
- 323i, 328i, m3
- A10
- A11
- A12
- A13
- A14
- A16
- A17
- A18
- A19
- A20
- A21
- A22
- A23
- A24
- Abs ind
- Acc
- Air bag ind
- Anti-lock brakes system
- B11
- B12
- B13
- B14
- B15
- B16
- B17
- B18
- B19
- B22
- B23
- B26
- Body computer system
- Brake fluid ind
- Brake fluid level switch (in brake fluid reservoir cap)
- Brake warning ind
- Charge ind
- Check engine ind
- Check ind
- Driver's seat belt switch
- Engine controls system
- Engine coolant temperature sensor (on front of engine, below intake mainfiold)
- Exterior lights system
- Front fog lt ind
- Front power distribution box (in left rear side of engine compartment)
- Fuel consumption meter
- Fuel gauge
- Fuse f23 5a
- Fuse f27 5a
- Fuse f46 15a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- Ground
- Hazard ind
- Headlights system
- High beam ind
- Hot at all times
- Hot in acc, run and start
- Hot in run and start
- Ignition switch
- Illum (3 used)
- Instrument cluster
- Interior lights system
- Left turn ind
- Lock
- Nca
- Oil ind
- Oil pressure switch 1) normal 2) 0.2-0.5 bar
- Park brake ind
- Power tops
- Right turn ind
- Rollover protection warning light
- Run
- Seat belt ind
- Slip control module (abs/asc) (behind glove box)
- Solid state
- Speedometer
- Start
- Starting/ charging system
- Tachometer
- Temp gauge
- Traction control ind
- Transmission malfunction ind
- Transmission system
- X10017
- X10018
- X1170
- X16 conn a
- X17 conn b
- X271 conn c
Instrument Cluster Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999:
- (at base of parking brake lever) park brake switch
- (behind right rear wheel) right rear brake pad sensor
- (on left front wheel, above brake caliper) left front brake pad sensor
- (on left side of engine) oil temperatur sensor
- (under left side of dash) check control module
- Automatic climate control module (behind center console)
- Chime module (below left side of dash)
- Clc
- Convertible
- Convertible top control module (lower left "c" pillar)
- Coupe
- Cruise control module (behind glove box)
- Data
- Drivers door jamb switch
- Except multi- function clock
- Exterior lights system
- Front power distribution box (in left rear side of engine compartment)
- Fuel level sensor (under left side of rear seat)
- Fuel tank sensor ii (on top of fuel tank)
- Fuse f31 5a
- Fuse f45 7.5a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G312 (behind upper left rear seat back)
- Ground
- Hifi amplifier
- Hifi amplifier (convertible w/top hifi)
- Hot at all times
- Hot in acc, run and start
- Lac
- Multi-function clock (or) on-board display
- Nca
- On-board computer temperature sensor (in engine compt, near right headlamp)
- Pins used w/ on-board display
- Power windows system
- Radio
- Starting/ charging system
- Vehicle speed sensor (under rear of vehicle, on differential)
- Wiper/washer module (behind glove box)
- X10018
- X518
- X522
Instrument Cluster Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- Abs/asc or abs/dsc warning lamp sig
- Airbag warning sig
- Anti-lock brakes & navigation systems
- Anti-lock brakes system
- Battery
- Brake fluid level sig
- Brake fluid level switch (left rear eng compt)
- Brake wear sensor sig
- Can bus high
- Can bus low
- Chime module (in cover of left footwell)
- Computer data lines system
- Coolant level too low sig
- Cruise control on sig
- Cruise control system
- Diagnosis plug (right rear of eng compt)
- Driver's seat belt buckle hall sensor (driver's seat)
- Driver's seat belt contact sig
- Engine start sig feedback
- Front left brake pad sensor (front left wheel brake)
- Front right brake pad sensor (front right wheel brake)
- Fuse f10 5a
- Fuse f34 5a
- Fuse f43 5a
- Fuse holder (glove box)
- Gnd
- Gong t3 sig
- Hand brake switch (under rear center console)
- Hot at all times
- Hot in acc, run & start
- Hot in run & start
- Ign (accy/run/start)
- Ign (start/run)
- Instrument cluster control module
- Interior lights system
- K-bus sig
- Left fuel tank sensor sig
- Left fuel tank sensor sig gnd
- Left rear sig processed wheel speed
- Nca
- Oil level sensor sig
- Oil pressure sig
- Outside temperature gnd
- Outside temperature sig
- Park distance control unit (conv: right rear passenger compt, coupe: right side of luggage compt, wagon: behind rear seat backrest in luggage compt)
- Parking brake sig
- Right fuel tank sensor sig
- Right fuel tank sensor sig gnd
- Service interval ind reset sig
- Sig battery charge ind
- Sig locator lighting
- Speedometer (a) output sig
- Steering column switch sig
- Txd diagnostic sig
- W/ park distance control only
- Washer fluid level low sig
- X10015
- X10016
- X1108 (under driver's seat)
- X11175
- X11176
- X173 (under driver's seat)
- X300
- X363
- X46 (under center console)
- X494 (conv: right rear passenger compt, coupe & wagon: behind right rear seat)
- X522
Instrument Cluster Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (conv: left rear passenger compt, coupe & sedan: left side of luggage compt) amplifier
- (left side of instrument panel) light switching control unit
- C60003
- C60004
- Digital motor electronic control unit (left rear of eng compt)
- Direction indicator/ low beam switch
- Electric fuel pump (under right side of rear seat)
- Engine controls system
- Engine coolant level switch (lower left side of eng)
- Fuel level sensor (under left side of rear seat)
- Fuse f30 7.5a
- Fuse holder (glove box)
- Generator
- Hot in acc, run & start
- Interior lights system
- Nca
- Oil level sensor (underside of oil pan)
- Temperature sensor (under front left of vehicle)
- Washer fluid level switch (right front of eng compt)
- X10016
- X12
- X6454 (left rear eng compt)
On-Board Computer Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for On-Board Computer Wiring Diagram, Convertible for BMW 323i 1999:
- A/c system
- Anti-theft system
- Computer data lines system
- Engine controls system
- Exterior lights system
- Front power distribution box (left rear corner of engine compt)
- Fuse f23 5a
- Fuse f31 5a
- Fuse f45 7.5a
- G203 (behind right kick panel)
- Hot at all times
- Hot in run or start
- Instrument cluster system
- Interior lights system
- On-board computer module (center console)
- On-board computer temperature sensor (in engine compt, near right headlamp)
- Starting/charging system
- Warning system
- X1070
- X1071
INTERIOR LIGHTS
Courtesy Lamps Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Courtesy Lamps Wiring Diagram, Convertible for BMW 323i 1999:
- Anti-theft control module (behind glove box)
- Body electronics control module (behind glove box)
- Driver's makeup mirror light
- Driver's makeup mirror switch
- Front dome light/ map reading assembly
- Front power distribution box (left rear corner of engine compartment)
- Fuse f33 10a
- Fuse f43 5a
- G203 (behind right kick panel)
- G203 (right kick panel)
- G312 (behind upper left rear seatback)
- Glove box light
- Hard top connector
- Hot at all times
- Hot in run, accy and start
- Left front footwell light
- Left rear interior light
- Left trunk compartment light
- Nca
- Passenger's makeup mirror light
- Passenger's makeup mirror switch
- Red
- Right front footwell light
- Right rear interior light
- Right trunk compartment light
- Trunk lid microswitch (left side of trunk lid)
- X10018
- X10182
- X13252
- X13253
- X13254
Courtesy Lamps Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Courtesy Lamps Wiring Diagram, Except Convertible for BMW 323i 1999:
- Central locking drive/ trunk lid tailgate
- Driver's makeup mirror switch
- Driver's side front footwell light
- Driver's side makeup mirror light
- Front interior reading lamp
- Fuse f47 20a
- Fuse f52 30a
- Fuse f6 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Glove box light
- Hot at all times
- Hot in accy, run and start
- Instrument illumination circuit
- Left oddments compartment light
- Left rear interior light
- Left tail- light
- Light switching center control unit
- Pass- enger's side front footwell light
- Passenger's makeup mirror switch
- Passenger's side makeup mirror light
- Rear ashtray light
- Right oddments compartment light
- Right rear interior light
- Right tail- light
- X10012 (left side of right footwell)
- X10015
- X10016
- X151 (behind left rear seat)
- X173 (under driver's seat)
- X253
- X332
- X490 (under passenger's seat)
- X494 (behind right rear seat)
- X498 (right side of luggage compt)
Instrument Illumination Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Illumination Wiring Diagram, Convertible for BMW 323i 1999:
- Analog clock
- Asc switch
- Automatic climate control module (behind center console)
- Body electronics control module (zke iv) (behind glove box)
- Cassette box light
- Central locking switch
- Central power window switch (2 door)
- Check control module (under left side of dash)
- Convertible top actuating switch
- Dimmer
- Driver's power window switch
- Driver's seat heater switch
- Exterior lights (license plate lights)
- Exterior lights system (turn/hazard lights)
- Front ashtray light
- Front cigar lighter light
- Front power distribution box (left rear corner engine compartment)
- Fuse f22 5a
- Fuse f37 10a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- G300 (under left front seat)
- G310 (behind upper right rear seat back)
- Gear shift lever indicator
- Hazard switch
- Head
- Hot at all times
- Hot in run and start
- Instrument cluster
- Left rear power window switch
- Left rear power window switch (console)
- Light switch
- Off
- On-board computer module (on center console)
- Park
- Passenger's power window switch
- Passenger's seat heater switch
- Radio
- Rear ashtray light
- Right rear power window switch
- Right rear power window switch (console)
- Sunroof switch
- Thermo- stat
- Top hifi switch
- Transmission position indicator light
- W/ auto climate control
- W/o auto climate control
- Wiper/ washer module (behind glove box)
- X10017
- X10018
- X16
Instrument Illumination Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Illumination Wiring Diagram, Except Convertible for BMW 323i 1999:
- (a/t)
- (left side of right footwell)
- (smg)
- (under left side of dash)
- Courtesy lamps circuit
- Driver's door switch block
- Eject box
- Front cigar lighter light
- Front interior reading lamp
- Fuse f106 50a
- Fuse f107 50a
- Fuse f32 5a
- Fuse holder (glove box)
- Gear indicator light
- Gnd
- Hazard warning/ central locking switch
- Heating & a/c control module
- Hot at all times
- Hot in run and start
- Instrument cluster control module
- Light switching center control unit
- Mayday switch
- Nca
- On-board monitor control unit
- Passenger's door power window switch
- Program button (smg)
- Radio control unit
- Rear ashtray light
- Sig loc lght
- Sunroof control switch
- Sunroof module control unit
- Switch center
- Term
- Term 58g
- Trunk release switch (interior)
- W/ on-board monitor
- W/o on-board monitor
- X10012
- X10012 (left side of right footwell)
- X10016
- X1108 (under driver's seat)
- X11175
- X1193
- X13016 (left side of luggage compt)
- X13822
- X18126
- X18801
- X217
- X490 (under passenger's seat)
- X521
- X608
- X9343
MEMORY SYSTEMS
Driver"s Memory Seat Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Driver"s Memory Seat Wiring Diagram, Except Convertible for BMW 323i 1999:
- (under driver's seat)
- Adjustment switches
- Computer data lines system
- Data
- Driver's seat backrest adjustment motor
- Driver's seat forward/ backward adjustment motor
- Driver's seat height adjustment motor
- Driver's seat memory control unit
- Driver's seat tilt adjustment motor
- Fuse f65 30a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Illum
- Instrument cluster control module
- Lumbar sw +
- Lumbar sw -
- Program switches (3)
- Seat backrest
- Seat fwd/back
- Seat height
- Seat tilt
- Seats system (lumbar circuit, if equipped)
- Set switch
- Term 30
- Term 31
- X10015
- X1175
- X1465
- X173
- X18840
- X253
- X650
Memory Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Memory Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999:
- Adjust sw
- Computer data lines system
- Data
- Driver's outside mirror
- Driver's seat memory control unit
- Driver's side mirror memory control unit
- Fold
- Folding motor
- Fuse f57 5a
- Fuse holder (glove box)
- General module control unit
- Heater +
- Heater -
- Heating element
- Horizontal motor
- Horizontal motor & positional sensor
- Horizontal sens
- Hot at all times
- Instrument cluster control module
- Mirror adjustment switch
- Motor common
- Passenger's outside mirror
- Passenger's side mirror memory control unit
- Pnk
- Position sens +
- Position sens -
- Program switches (3)
- Red
- Set switch
- Term 30
- Term 31
- Vertical motor
- Vertical motor & positional sensor
- Vertical sens
- X10015
- X1175
- X1465
- X173 (under driver's seat)
- X18171
- X18172
- X253
- X490 (under passenger's seat)
- X623
- X624
NAVIGATION
Navigation Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Navigation Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left rear of engine compt) abs/asc unit
- (left rear of engine compt) reversing light relay
- (left side of x13016
- (right side of transmission) reversing light switch
- A/t
- Abs/dsc unit (right rear of engine compt)
- Af sig act+
- Af sig act-
- Af sig+
- Af sig-
- Anti-lock brakes system
- Audio l+
- Audio l-
- Audio r+
- Audio r-
- Audio sig l+
- Audio sig l-
- Audio sig r+
- Audio sig r-
- Computer data lines system
- Exterior lights system
- Fuse f41 30a
- Fuse f7 5a
- Fuse holder (glove box)
- Gps antenna
- Gps receiver
- Gps rxd
- Gps rxdn
- Gps sig
- Gps txd
- Gps txdn
- Ground
- Hot at all times
- Hot in run, accy or start
- Instrument cluster control module
- Interior lights system
- K-bus sig
- Lighting
- Luggage compt)
- M/t
- Nav bus
- Navigation computer (left side of luggage compt)
- Nca
- On-board monitor control unit (if equipped)
- Radio control unit
- Reverse sig
- Shield
- Sig antenna
- Sig nav bus
- Speed sig
- Term 30
- Term r
- W/ dsc
- W/o asc
- X10015
- X10016
- X11175
- X1170
- X1312
- X1313
- X1746
- X18801
- X18805
- X3372
- X6325
- X8511

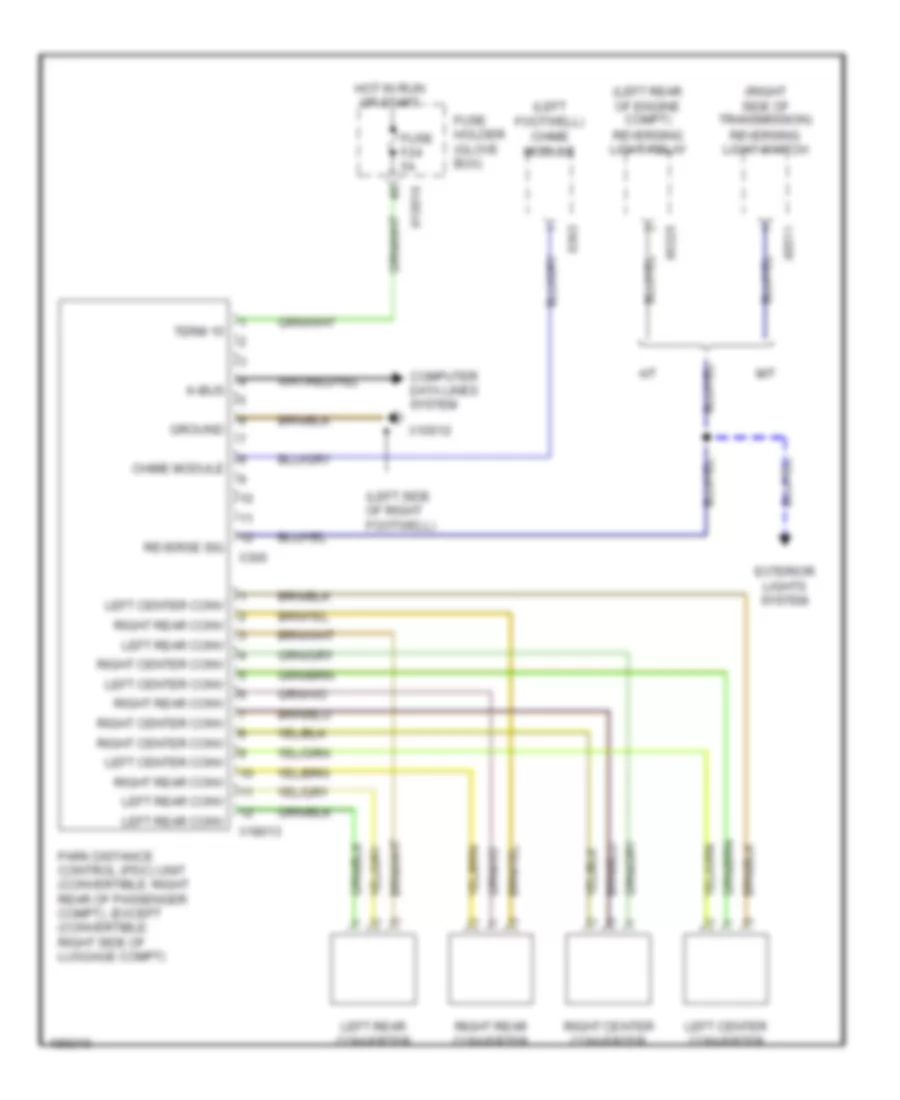

Parking Assistant Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Parking Assistant Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left footwell) chime module
- (left rear of engine compt) reversing light relay
- (left side of right footwell)
- (right side of transmission) reversing light switch
- A/t
- Chime module
- Computer data lines system
- Exterior lights system
- Fuse f24 5a
- Fuse holder (glove box)
- Ground
- Hot in run or start
- K-bus
- Left center conv
- Left center converter
- Left rear conv
- Left rear converter
- M/t
- Park distance control (pdc) unit (convertible: right rear of passenger compt), (except (convertible: right side of luggage compt)
- Reverse sig
- Right center conv
- Right center converter
- Right rear conv
- Right rear converter
- Term 15
- X10012
- X10016
- X18013
- X300
- X363
- X6325
- X8511
POWER DISTRIBUTION
Power Distribution Wiring Diagram, Convertible (1 of 5) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Convertible (1 of 5) for BMW 323i 1999:
- Auxiliary fuse box (behind trim panel, on right side of luggage compartment)
- B+ jump start junction point
- Battery
- Carbon canister valve
- Convertible top control module
- Cylinder fuel injector
- Data link connector
- Engine control module
- Engine control module relay
- Evap emiss valve
- Exhaust gas flap valve
- Front power distribution box (left rear corner of engine compartment)
- Fuel pump
- Fuel pump relay
- Fuse f18 15a
- Fuse f49 20a
- Fuse f50 5a
- Fuse link 80a
- Generator
- Idle speed ctrl valve
- Mass air flow sensor
- Oxygen sensor (front & rear)
- Red
- Running loss solenoid valve
- Second air pump relay
- Second air pump valve
- Starter
- To front power distribution box (diagram 2 of 5)
- Trans control module
- Transmission control module (egs)
- Unloader relay
- Variable cam control valve
- X10016
- X10273
- X19564
- X19564 red
Power Distribution Wiring Diagram, Convertible (2 of 5) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Convertible (2 of 5) for BMW 323i 1999:
- (not used)
- (w/o ccm) (w/ ccm)
- Body electronics control module
- Body electronics control module (zke iv)
- Check control module
- Compressor control relay
- From b+ jump start junction point (diagram 1 of 5)
- Front fog- light relay
- Front power distribution box (left rear corner of engine compartment)
- Fuse f1 30a
- Fuse f11 7.5a
- Fuse f12 7.5a
- Fuse f14 30a
- Fuse f15 15a 7.5a
- Fuse f19 30a
- Fuse f29 7.5a
- Fuse f3 30a
- Fuse f30 7.5a
- Fuse f39 7.5a
- Fuse f4 15a
- Fuse f40 30a
- Fuse f41 30a
- Fuse f5 30a
- Fuse f6 30a
- High beam light relay
- High speed relay
- Instrument cluster
- Left foglight
- Left front seat control switch
- Left front seat lumbar switch
- Left high beam light
- Left low beam headlight
- Low beam light relay
- Rear defogger relay
- Red
- Relay module
- Right foglight
- Right front seat control switch
- Right high beam light
- Right low beam headlight
- Secondary air pump relay
- Sunroof control assembly
- To fuse f20 (diagram 4 of 5)
- To fuse f35 (diagram 5 of 5)
- To fuse f47 (diagram 4 of 5)
- To fuse f8 (diagram 5 of 5)
- To ignition switch (diagram 3 of 5)
- Unloader relay
- W/ ccm
- W/o ccm
- Wiper/ washer module
- X10015
- X10016
- X10018
- X10035
- X10036
Power Distribution Wiring Diagram, Convertible (3 of 5) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Convertible (3 of 5) for BMW 323i 1999:
- (diagram 3 of 5)
- Acc
- Anti-theft control module
- Blower relay
- Body electronics control module (zke iv)
- Brakelight switch
- Center console telephone connector
- Check control module
- Convertible top control module
- Cruise control module
- Cruise control switch
- Data link connector
- Electronic immoblizer control module (ews ii)
- Engine control module (dme)
- From front power distribution box (diagram 2 of 5)
- From fuse f43 j (diagram 3 of 5)
- Front dome/ map light assembly
- Front power distribution box (left rear corner of engine compartment)
- Fuse f42 7.5a
- Fuse f43 5a
- Fuse f44 15a
- Fuse f45 7.5a
- Fuse f46 15a
- Glove box light
- Horn relay
- Ignition switch
- Instrument cluster
- Left front seat belt switch
- Left makeup mirror light
- Left rear interior
- Left side impact sensor
- Luggage compartment telephone connector
- Nca
- Not used
- Off
- On-board computer module
- Radio
- Red
- Right front seat belt switch
- Right makeup mirror light
- Right rear interior
- Right side impact sensor
- Rollover sensor
- Run
- Seat occupancy detector
- Spatial sound relay
- Start
- Starter immobilization switch
- To fuse f16 (diagram 4 of 5)
- To fuse f24 (diagram 4 of 5)
- To fuse f28 (diagram 4 of 5)
- To fuse f45
- Top hifi switch
- Transmitter module
- Uncoupling diode
- Unloader relay
- Washer pump
- Wiper/ washer module
- X10018
- X10259
Power Distribution Wiring Diagram, Convertible (4 of 5) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Convertible (4 of 5) for BMW 323i 1999:
- 323, 328
- Abs control module/ hydraulic unit
- Abs relay
- Anti-theft control module
- Asc switch
- Automatic climate control module
- Automatic transmission range switch
- Auxiliary fuse box (left side of dash)
- Blower relay
- Combination switch
- Compressor control relay
- Data link connector
- Daytime running lamps module
- From front power distribution box (diagram 2 of 5)
- From ignition g switch (diagram 3 of 5)
- From ignition h switch (diagram 3 of 5)
- From ignition switch (diagram 3 of 5)
- From k fuse f24 (diagram 4 of 5)
- Front power distribution box (left rear corner of engine compartment)
- Fuse f16 5a
- Fuse f20 30a
- Fuse f21 5a
- Fuse f22 5a
- Fuse f23 5a
- Fuse f24 10a
- Fuse f25 5a
- Fuse f26 10a
- Fuse f27 5a
- Fuse f28 5a
- Fuse f47 15a
- High speed relay
- Horn relay
- Instrument cluster
- Jet heater thermoswitch
- Light switch
- Mirror control switch
- Multi- function clock
- Normal speed relay
- On-board computer module
- Park heating ventilation relay box (w/ park ventilation)
- Program switch
- Rear defogger relay
- Red
- Reversing light switch (w/o egs)
- Rollover sensor
- Slip control module
- Thermostat
- To fuse f23 (diagram 4 of 5)
- Unloader relay
- W/ asc
- W/ auto climate control
- W/o asc
- W/o auto climate control
- Water valve assembly
- X10016
- X10017
- X10026
- X10250
Power Distribution Wiring Diagram, Convertible (5 of 5) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Convertible (5 of 5) for BMW 323i 1999:
- Abs pump motor relay
- Abs relay
- Analog clock
- Automatic climate control module
- Body electronics control module (zke iv)
- Cd changer
- Center console telephone connector
- Central lcoking switch
- Charging socket
- Chime module
- Convertible top control module
- Convertible top storage lid lock motor
- Crash control module
- Electronic immobilizer control module
- From d front power distribution box (diagram 2 of 5)
- From front power distribution box (diagram 2 of 5)
- From fuse f34 (diagram 5 of 5)
- Front cigar lighter
- Front dome/map light assembly
- Front power distribution box (left rear corner of engine compartment)
- Fuse f10 30a
- Fuse f31 5a
- Fuse f32 30a
- Fuse f33 10a
- Fuse f34 15a
- Fuse f35 25a
- Fuse f36 30a
- Fuse f37 10a
- Fuse f38 30a
- Fuse f7 5a
- Fuse f8 15a
- Fuse f9 20a
- G203 (right kick panel)
- Hazard flasher relay
- Hifi amplifier
- Horn relay
- Ignition switch
- Instrument cluster
- Left front door lock motor
- Left front door lock switch
- Light switch
- Luggage compartment telephone connector
- Multi- function clock
- Nca
- Obd ii connector
- On-board computer module
- Radio
- Red
- Right front door lock motor
- Right front door lock switch
- Slip control module
- To fuse f33 (diagram 5 of 5)
- Trunk lid micro- switch
- Trunk lid relay
- Trunk light
- Trunk lock motor
- W/ hifi, ten speaker system
- Water valve asssembly
- Wiper/ washer module
- X10015
- X10016
- X10018
Power Distribution Wiring Diagram, Except Convertible (1 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (1 of 6) for BMW 323i 1999:
- (behind left rear seat) x151
- (under passenger's seat x490
- 12 volt socket (wagon)
- B+ potential distributor (diagram 2 of 6)
- Battery
- Blower output stage
- Cigar lighter
- Convertible soft top control module
- Convertible top drive relay
- Convertible top relay 1
- Diagnostic plug
- Dsc steering angle sensor
- Electric fan
- Fog light relay
- From a fuse f106 (diagram 1 of 6)
- Fuse 200a
- Fuse f102 80a
- Fuse f105 50a
- Fuse f106 50a
- Fuse f35 50a
- Fuse f36 50a
- Fuse f37 50a
- Fuse f38 10a
- Fuse f40 5a
- Fuse f42 30a
- Fuse f43 5a
- Fuse f44 20a
- Fuse f45 20a
- Fuse f46 20a
- Fuse f47 20a
- Fuse holder (glove box)
- Gear indicator light
- Generator
- Instrument cluster control module
- Left oddments compartment (except wagon)
- Light switching center control unit
- Nca
- Obd socket
- Rear intermittent wipe/wash control unit (wagon)
- Red
- Right oddments compartment (except wagon)
- Secondary air injection pump relay
- Starter
- Sunroof module control unit
- Switch center
- To fuse f42 (diagram 1 of 6)
- To fuse f48 (diagram 3 of 6)
- To ignition switch (diagram 5 of 6)
- Trailer socket
- W/ front battery
- W/ rear battery
- X10
- X10015
- X10016
- X10209
- X11175
- X12
- X13020
- X13038
- X916
Power Distribution Wiring Diagram, Except Convertible (2 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (2 of 6) for BMW 323i 1999:
- (left rear of engine compt)
- A/c compressor relay
- B+ potential distributor
- Camshaft position sensor 1
- Camshaft position sensor 2
- Characteristic map cooling thermostat
- Crankshaft position sensor
- Digital motor electronics control unit
- Dme relay (in e-box)
- E-box
- Exhaust flap valve
- From fuse f102 (diagram 1 of 6)
- Fuel pump relay
- Fuse f2 30a
- Fuse f3 20a
- Fuse f4 30a
- Fuse f5 30a
- Leakage diagnosis pump
- Mass air flow sensor
- Nca
- Red
- Secondary air injection pump relay
- Transmission control module
- Unloader relay
- Valve 2 switch (diagram 4 of 6)
- X18326
- X60001
- X60002
- X64101
- X64102
- X70001
- X8680
Power Distribution Wiring Diagram, Except Convertible (3 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (3 of 6) for BMW 323i 1999:
- (2-door)
- (4-door)
- 10a
- A/c compressor relay
- Abs/asc unit
- Antenna amplifier am/fm
- Blower output stage (w/o heater control)
- Blower switch (w/ heater control)
- Driver's lumbar support switch (convertible)
- Driver's seat adjustment switch (except convertible)
- Driver's seat memory control unit (convertible)
- Driver's side mirror memory control unit
- From d fuse f47 (diagram 1 of 6)
- From g fuse f54 (diagram 3 of 6)
- From h fuse f59 (diagram 3 of 6)
- Front passenger's side mirror memory control unit
- Fuel pump relay
- Fuse f48 30a
- Fuse f49 5a
- Fuse f50 40a
- Fuse f51 30a
- Fuse f52 30a
- Fuse f53 30a
- Fuse f54 30a
- Fuse f55 15a
- Fuse f56 30a
- Fuse f57 5a
- Fuse f59 30a
- Fuse f60 25a
- Fuse f62 5a
- Fuse f63 7.5a
- Fuse f64 20a
- Fuse f65 30a
- Fuse f71 30a
- Fuse holder (glove box)
- General module control unit
- Headlight washer module
- Horn relay
- Independent park heating control unit
- Outside mirror fold-in control unit
- To fuse f55 (diagram 3 of 6)
- To fuse f60 (diagram 3 of 6)
- To fuse f67 (diagram 4 of 6)
- Water valves
- Wiper relay
- X10015
- X10313
- X1170
- X1465
- X18171
- X18172
- X253
- X332
- X61
- X642
Power Distribution Wiring Diagram, Except Convertible (4 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (4 of 6) for BMW 323i 1999:
- (if equipped)
- Anti-theft alarm system horn
- Cd changer
- Convertible
- Coupe
- Digital motor electronics control unit
- Electro- chromic interior rear-view mirror
- Electronic immobilizer control unit
- Evaporative emission valve
- From fuse f2 (diagram 2 of 6)
- From i fuse f71 (diagram 3 of 6)
- From j fuse f70 (diagram 4 of 6)
- Front passenger's seat adjustment switch
- Front passenger's seat control memory unit
- Fuel injector valve 1
- Fuel injector valve 2
- Fuel injector valve 3
- Fuel injector valve 4
- Fuel injector valve 5
- Fuel injector valve 6
- Fuse f41 30a
- Fuse f67 5a
- Fuse f68 30a
- Fuse f69 5a
- Fuse f70 30a
- Fuse holder (glove box)
- Gps receiver (if equipped)
- Hifi amplifier
- Individual control intake system valve
- Interior protection 1 control module
- Interior protection 2 control module (convertible)
- Navigation computer
- On-board monitor control unit (if equipped)
- Passenger's lumbar support switch
- Radio control unit
- Rear window defogger relay
- Secondary air injection pump valve
- Sedan or wagon w/ memory
- Sedan or wagon w/o memory
- Sub- woofer
- Sucking jet pump valve
- Tilt monitoring
- Tire pressure control system control unit
- To fuse f41 (diagram 4 of 6)
- Vanos valve 1
- Vanos valve 2
- X10015
- X1313
- X1582
- X1644
- X1659
- X18034
- X18126
- X18180
- X18774
- X18801
- X3372
- X60001
- X604
- X605
Power Distribution Wiring Diagram, Except Convertible (5 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (5 of 6) for BMW 323i 1999:
- A/t
- Abs/asc unit
- Acc
- Adaptive headlight control unit
- Auxiliary water pump
- Digital motor electronics control unit
- Dual function switch recirculated air/rear window defogger
- Electrochromic interior rear view mirror
- Electronic immoblizer control unit
- From fuse f105 (diagram 1 of 6)
- From fuse f106 (diagram 1 of 6)
- From l fuse f28 (diagram 5 of 6)
- Fuse f23 5a
- Fuse f24 5a
- Fuse f25 5a
- Fuse f26 5a
- Fuse f27 10a
- Fuse f28 5a
- Fuse f29 5a
- Fuse f30 7.5a
- Fuse f31 5a
- Fuse f32 5a
- Fuse f33 5a
- Fuse f34 5a
- Fuse holder (glove box)
- Garage door opener
- Generator
- Heated spray nozzles thermal switch
- Heating & a/c control module
- Ignition switch
- Instrument cluster control module
- Light switching center control unit
- M/t
- Mirror adjustment switch
- Nca
- Obd socket
- Off
- Oil level sensor
- Park distance control unit
- Passenger's side outside mirror
- Rear window defogger relay (convertible)
- Reversing light relay
- Reversing light switch
- Run
- Start
- Switch center
- Temperature switch
- Tire pressure control system control unit
- To fuse f29 (diagram 5 of 6)
- To fuse f5 (diagram 6 of 6)
- Transmission control unit
- W/ heater control
- W/o heater control
- X10016
- X10200
- X1175
- X60004
- X70001
Power Distribution Wiring Diagram, Except Convertible (6 of 6) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram, Except Convertible (6 of 6) for BMW 323i 1999:
- Antenna amplifier (if equipped)
- Brake light switch
- Clutch pedal position switch
- Convertible soft top control module
- Driver's seat belt buckle hall sensor
- Driver's side make-up mirror light
- Electronic immobilizer control unit
- From ignition switch (diagram 5 of 6)
- From m fuse f11 (diagram 6 of 6)
- Fuse f10 5a
- Fuse f11 5a
- Fuse f12 7.5a
- Fuse f13 7.5a
- Fuse f14 5a
- Fuse f15 5a
- Fuse f5 5a
- Fuse f6 5a
- Fuse f7 5a
- Fuse f9 5a
- Fuse holder (glove box)
- Gearshift lock
- General module control unit
- Gps receiver (if equipped)
- Horn relay
- Instrument cluster control module
- Left side airbag sensor (satellite) (if equipped)
- Light switching center control unit
- Multiple restraint system control unit
- Navigation computer
- Nca
- On-board monitor control unit (if equipped)
- Passenger's seat belt buckle hall sensor
- Passenger's side make-up mirror light
- Radio control unit
- Rain sensor
- Rear intermittent wipe/wash control unit (wagon)
- Right side airbag sensor (satellite) (if equipped)
- Rollover sensor
- Seat load sensor
- Switch center
- To fuse f12 (diagram 6 of 6)
- Volute spring
- X10016
- X10170
- X10202
- X11175
- X13037
- X1312
- X1659
- X18126
- X1869
- X18801
- X253
- X3372
- X424
- X74
POWER DOOR LOCKS
Power Door Locks Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Door Locks Wiring Diagram, Convertible for BMW 323i 1999:
- Body electronics control module (zke iv) (behind glove box)
- Central locking switch
- Convertible
- Convertible top storage lid microswitch
- Coupe
- Data link connector (on right rear of engine compt)
- Drivers door lock motor
- Drivers door lock switch
- Electronic immobilizer control module (behind glove box)
- Front power distribution box (in left rear corner of engine compt)
- Fuse f35 25a
- Fuse f7 5a
- G203 (behind right kick panel)
- G312 (behind upper left rear seatback)
- Gas filler lock motor
- Glove box lock motor
- Hot at all times
- Interior lights system
- Nca
- Passengers door lock motor
- Passengers door lock switch
- Trunk lid relay (convertible) (behind right side of glove box)
- Trunk lock motor (on rear of luggage compt, in liftgate)
- X10015
- X10018
- X10182
- X13252
- X13253
- X13254
- X311
- X315
Power Door Locks Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Door Locks Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- Central locking fuel filter flap (right side of luggage compt)
- Central locking remote control
- Electronic interior rear-view mirror
- Fuse f49 5a
- Fuse f60 25a
- Fuse f67 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- N/a
- Nca
- System lock, driver's door
- System lock, passenger's door
- W/ infrared remote control
- W/ radio remote control
- X10015
- X173 (under driver's seat)
- X253
- X254
- X332
- X490 (under passenger seat)
- X490 (under passenger's seat)
Power Door Locks Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Door Locks Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- (under left side of dash) electronic immobilizer control unit
- Central locking drive, trunk lid/tailgate (rear luggage compt)
- Computer data lines system
- Exterior lights system
- Hazard warning/ central locking switch
- Interior lights system
- Lift gate lock switch (in luggage compt lid right)
- System lock, rear driver's door
- System lock, rear passenger's door
- Trunk lid release solenoid switch
- X10012 (left side of right footwell)
- X1108 (under driver's seat)
- X173 (under driver's seat)
- X494 (behind right rear seat)
- X498 (behind right rear seat)
- X498 (right side of luggage compt)
POWER MIRRORS
Electrochromic Mirror Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Electrochromic Mirror Wiring Diagram, Except Convertible for BMW 323i 1999:
- Electrochromic interior rear- view mirror
- Exterior lights system (backup lamps)
- Fuse f24 5a
- Fuse f67 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Hot in run or start
- Infrared rec
- Reverse sig
- Security
- Term 15
- Term 31
- X10015
- X10016
- X1108 (under driver's seat)
- X18246
- X253
- X254
Fold-back Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Fold-back Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999:
- Anti-lock brakes system
- D motor
- Driver's side mirror fold-in motor
- Fuse f31 5a
- Fuse f57 5a
- Fuse holder (glove box)
- Hot at all times
- Hot in run or start
- Mirror adjustment switch
- Mirror fold-in switch
- Nca
- Outside mirror fold-in control unit (behind glove box)
- P motor
- Passenger's side mirror fold-in motor
- Speed sig
- Switch
- Term 30
- Term 31
- X10015
- X10016
- X10313
- X490 (under passenger's seat)
Power Mirrors Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Mirrors Wiring Diagram, Convertible for BMW 323i 1999:
- Down
- Driver's
- Driver's side mirror
- Front power distribution box (left rear corner of engine compartment)
- Fuse f24 10a
- G203 (behind right kick panel)
- Hot in run and start
- Left
- Mirror control switch
- Nca
- Passenger's
- Passenger's side mirror
- Right
- X10017
Power Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Mirrors Wiring Diagram, Except Convertible for BMW 323i 1999:
- (under passenger's
- Driver's side outside mirror
- Fuse f25 5a
- Fuse f31 5a
- Fuse holder (glove box)
- Hot in run or start
- Mirror adjustment switch
- Passenger's side outside mirror
- Seat) x490
- X10016
- X173 (under driver's seat)
POWER SEATS
Driver"s Lumbar Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Driver"s Lumbar Wiring Diagram, Convertible for BMW 323i 1999:
- Driver's seat lumbar support motor/ valve
- Driver's seat lumbar switch
- Front power distribution box (left rear corner of of engine compt)
- Fuse f40 30a
- G312 (behind upper left rear seat back)
- Hot at all times
- Nca
- X10018
Heated Seats Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Heated Seats Wiring Diagram, Convertible for BMW 323i 1999:
- Driver's seat heater
- Driver's seat heater switch
- Driver's seatback heater
- Front power distribution box (left rear corner of engine compartment)
- Fuse f23 5a
- Fuse f4 15a
- G202 (below left side of dash)
- G300 (under left front seat)
- G310 (behind upper right rear seat back)
- G312 (behind upper left rear seatback)
- Hot at all times
- Hot in run and start
- Interior lights system
- Max
- Min
- Nca
- Passenger's seat heater
- Passenger's seat heater switch
- Passenger's seatback heater
- Test
- Unloader relay, terminal 15 (on splice panel, under left side of dash)
- X10015
- X10017
Heated Seats Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Heated Seats Wiring Diagram, Except Convertible for BMW 323i 1999:
- Driver's backrest heater
- Driver's seat heater
- Fuse f12 7.5a
- Fuse f42 30a
- Fuse holder (glove box)
- Hot at all times
- Hot in start, run or acc
- Instrument cluster control module
- Passenger's backrest heater
- Switch center
- X10012 (left side of right footwell)
- X10015
- X10016
- X11175
- X173 (under driver's seat)
- X1869
- X494 (under passenger's seat)
- X521
Lumbar Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Lumbar Wiring Diagram, Except Convertible for BMW 323i 1999:
- Convertible
- Driver's lumbar support switch
- Driver's lumbar support valve block
- Driver's seat adjustment switch (w/o memory)
- Driver's seat lumbar support motor
- Driver's seat memory control unit (w/ memory)
- Except convertible
- Fuse f65 30a
- Fuse f70 30a
- Fuse holder (glove box)
- Hot at all times
- Nca
- Passenger's lumbar support switch
- Passenger's lumbar support valve block
- Passenger's seat adjustment switch (w/o memory)
- Passenger's seat lumbar support motor
- Passenger's seat memory control unit (w/ memory)
- X10015
- X1465
- X173 (under driver's seat)
- X18840
- X18841
- X494 (right rear of passenger compt)
- X604
- X652
- X659

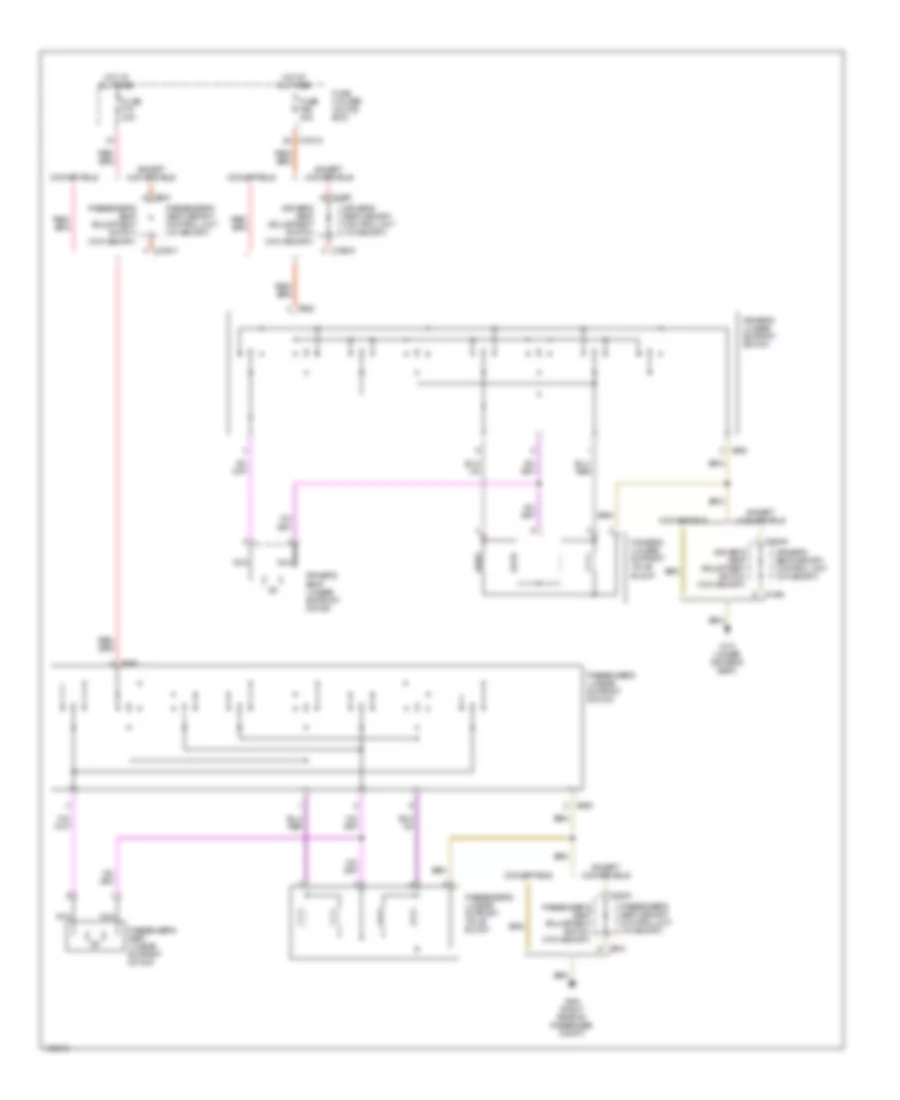

Power Seats Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Seats Wiring Diagram, Convertible for BMW 323i 1999:
- Back
- Cushion tilt
- Driver's seat control switch
- Driver's seat cushion tilt motor
- Driver's seat height motor
- Driver's seat movement motor
- Driver's seatback recliner motor
- Front
- Front power distribution box (left rear corner of of engine compt)
- Fuse f40 30a
- Fuse f5 30a
- G203 (behind right kick panel)
- G312 (behind upper left rear seatback)
- Height
- Hot at all times
- Passenger's seat control switch
- Passenger's seat cushion tilt motor
- Passenger's seat height motor
- Passenger's seat movement motor
- Passenger's seatback recliner motor
- Position
- Seatback
- X10015
- X10018
Power Seats Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Seats Wiring Diagram, Except Convertible for BMW 323i 1999:
- Back
- Backrest
- Cushion tilt
- Driver's backrest adjustment motor
- Driver's forward/ backward adjustment motor
- Driver's height adjustment motor
- Driver's seat adjustment switch
- Driver's tilt adjustment motor
- Front
- Fuse f65 30a
- Fuse f70 30a
- Fuse holder (glove box)
- Fwd/bwd
- Height
- Hot at all times
- Lumbar circuit (if equipped)
- Nca
- Passenger's backrest adjustment motor
- Passenger's forward/ backward adjustment motor
- Passenger's height adjustment motor
- Passenger's seat adjustment switch
- Passenger's tilt adjustment motor
- X10015
- X1465
- X173 (under driver's seat)
- X18840
- X18841
- X494 (behind right rear seat)
- X604
POWER TOP/SUNROOF

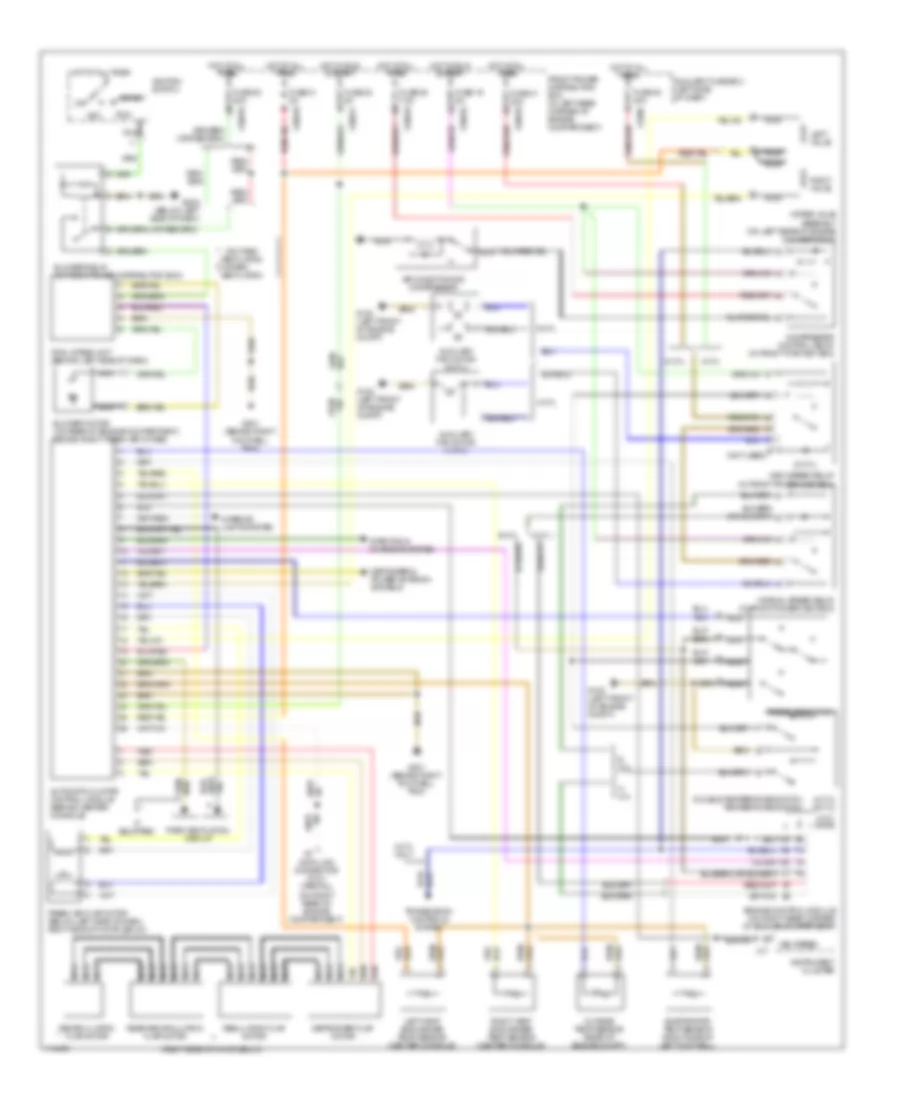

Convertible Top Wiring Diagram for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Convertible Top Wiring Diagram for BMW 323i 1999:
- (behind right kick panel)
- (lower left "c" pillar)
- (right rear of engine compt) data link connector
- 12v
- Auxiliary fuse box (behind trim panel, right side of luggage compt)
- Body electronics control module (zke iv) (behind glove box)
- Body mod sig
- Close
- Convertible top actuating switch
- Convertible top control module (in lower left "c" pillar)
- Convertible top end position microswitch (at conv. top linkage)
- Convertible top motor (left side of luggage compt)
- Convertible top position microswitch (at convertible top linkage)
- Convertible top storage lid lock motor (left side of convertible top compt)
- Convertible top storage motor (left side of luggage compt)
- Ctrl sig
- Data sig
- Defogger system
- Front power distribution box (left rear corner of engine compartment)
- Fuse f24 10a
- Fuse f27 5a
- Fuse f42 7.5a
- Fuse f43 5a
- Fuse f49 20a
- Fuse f7 5a
- G203
- G203 (behind
- G312 (behind upper left rear seat back)
- G904
- Gnd
- Hard top connector 1 (in convertible top compartment)
- Hot at all times
- Hot in run and start
- Hot in run, accy and start
- Instrument cluster
- Interior lights system
- Led
- Left rollover protection actuator (behind rear seats)
- Lock
- Lock ctrl
- Lock sig
- Nca
- Off
- Open
- Position sig
- Rear blower
- Rear window blower microswitch (in convertible top compartment)
- Red
- Right kick panel)
- Right rollover protection actuator (behind rear seats)
- Rollover protection warning ind
- Rollover sensor (in lower left "c" pillar)
- Speed sig
- Top close sig
- Top open sig
- Trunk lid microswitch (underside of trunk lid)
- Trunk lid sig
- Unlock
- Unlock sig
- Vss output
- W/ automatic convertible top
- W/ electrical convertible top
- W/ mechanical convertible top
- Windscreen cowl panel lock microswitch (top of windshield)
- X10015
- X10017
- X10018
- X11390
- X13156
- X13157
- X13159
- X13254
- X13255
Sunroof Wiring Diagram for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Sunroof Wiring Diagram for BMW 323i 1999:
- Computer data lines system
- Exterior lights system
- Fuse f46 30a
- Fuse holder (glove box)
- Hot at all times
- Instrument cluster control module
- Light switching center control unit (left side of instrument panel)
- Sunroof control switch
- Sunroof module control unit (front headliner)
- X11175
- X12
- X490 (under passenger's seat)
POWER WINDOWS
Power Windows Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Windows Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999:
- (behind right kick panel) (ex convertible) g203
- (behind upper left rear seat back)
- (console)
- 2 door or conv
- 4 door
- Anti-theft control module (behind glove box)
- Body electronics control module (zke iv) (behind glove box)
- Child protect sig
- Child protection control (4 door)
- Close
- Close auto
- Close sig
- Data sig
- Data sig (conv) close sig (4 door)
- Data sig (conv) open sig (4 door)
- Door sig
- Driver's door jamb switch
- Driver's power window motor
- Driver's power window switch
- Front power distribution box (rear left side of engine compartment)
- Fuse f14 30a
- G203 (behind right kick panel)
- G300 (under left front seat)
- G312 (behind upper
- G312 (convertible)
- Hot at all times
- Instrument cluster system
- Interior lights system
- Left rear seat back)
- Mtr sig
- Off
- Open
- Open auto
- Open sig
- Passenger's door jamb switch
- Passenger's power window motor
- Passenger's power window switch
- Revolution sig
- Starter sig
- Starting/charging system
- X10182
- X13252
- X13253
- X13254
- X13255
Power Windows Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Windows Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999:
- 4 door
- Auto open
- Central power window switch (convertible only)
- Close
- Convertible
- Front power distribution box (rear left side of engine compartment)
- Fuse f19 30a
- G203 (behind right kick panel)
- G300 (under left front seat)
- G310 (behind upper right rear seat back)
- Hot at all times
- Interior lights system
- Left rear door (console) power window switch (4 door) left rear power window switch (convertible)
- Left rear door (door) power window switch (4 door only)
- Left rear window motor
- Off
- Open
- Relay module (behind glove box)
- Right rear door (console) power window switch (4 door) right rear power window switch (convertible)
- Right rear door (door) power window switch (4 door only)
- Right rear window motor
Power Windows Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Windows Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (under passenger's seat) x490
- Central lck ground
- Child safety lck wndw reg
- Driver pwr wndw sw
- Driver's side pressure sensitive finger guard
- Driver's window motor
- Drvr dr anti-trap strip
- Drvr pwr wndw mtr
- Drvr pwr wndw sw closed
- Fr pass pwr wnd mtr
- Fr pass pwr wndw mtr
- Frnt pass pwr wndw sw
- Frnt wndw reg pwr
- Fuse f48 30a
- Fuse f71 30a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Left rear power window switch
- Pass dr anti-trap strip
- Pass wndw reg closed
- Passenger's side pressure sensitive finger guard
- Passenger's window motor
- Right rear power window switch
- Rr drvr anti-trap strip
- Rr drvr pwr wndw closed
- Rr drvr pwr wndw mtr
- Rr drvr pwr wndw open
- Rr pass anti-trap strip
- Rr pass pwr wndw closed
- Rr pass pwr wndw mtr
- Rr pass pwr wndw open
- Rr wndw red pwr
- Wndw reg closed
- X151 (behind left rear seat)
- X173 (under driver's seat)
- X253
- X254
- X332
- X490 (under passenger's seat)
- X494 (behind right rear seat)
Power Windows Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Windows Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- Driver's door switch block
- Interior lights system
- Left rear window motor
- Left rear window pressure sensitive finger guard
- Passenger's door power window switch
- Right rear window motor
- Right rear window pressure sensitive finger guard
- X10012 (left side of right footwell)
- X151 (behind left rear seat)
- X494 (behind right rear seat)
RADIO
Radio Wiring Diagram, Convertible with Base Radio for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Convertible with Base Radio for BMW 323i 1999:
- (behind upper left rear seatback) g312
- (canada) (luggage compt)
- (center console)
- Antenna amplifier
- Cd changer
- Front power distribution box (in left rear corner of engine compt)
- Fuse 10a
- Fuse f44 15a
- Fuse f9 20a
- G202 (below left side of dash)
- Hot at all times
- Hot in accy, run and start
- Instrument cluster
- Interior lights system
- Left front high range speaker
- Left front low range speaker
- Left rear speaker
- Mute
- Radio
- Right front high range speaker
- Right front low range speaker
- Right rear speaker
- Telephone connector x13305
- Telephone connector x400
- Vss output
- X10015
- X10018
- X17
Radio Wiring Diagram, Convertible with HIFI Radio for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Convertible with HIFI Radio for BMW 323i 1999:
- (canada) (luggage compt)
- (center console)
- (on lower left c-pillar behind side panel) convertible top control module
- Antenna amplifier
- Cd changer
- Front power distribution box (in left rear corner of engine compt)
- Fuse f33 10a
- Fuse f43 5a
- Fuse f44 15a
- Fuse f9 20a
- G202 (below left side of dash)
- G312 (behind upper left rear seatback)
- Hifi amplifier
- Hot at all times
- Hot in accy, run and start
- Instrument cluster
- Interior lights system
- Left front high range speaker
- Left front low range speaker
- Left front midrange speaker
- Left mid-high range speaker
- Left rear high range speaker
- Left rear low range speaker
- Left rear speaker
- Nca
- Radio
- Rear window blower micro switch (in left side of convertible top compt)
- Rear window blower relay
- Red
- Right front high range speaker
- Right front low range speaker
- Right front midrange speaker
- Right mid-high range speaker
- Right rear high range speaker
- Right rear low range speaker
- Right rear speaker
- Spatial sound relay (behind left kick panel)
- Telephone connector x13305
- Telephone connector x400
- Vss output
- X10015
- X10018
- X10266
- X17
- X18126
- X18520
- X605
- X606
Radio Wiring Diagram, Convertible with Top HIFI Radio for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Convertible with Top HIFI Radio for BMW 323i 1999:
- (canada) (luggage compt)
- (center console)
- (on lower left c-pillar behind side panel) convertible top control module
- Antenna amplifier
- Cd changer
- Front power distribution box (in left rear corner of engine compt)
- Fuse f33 10a
- Fuse f43 5a
- Fuse f44 15a
- Fuse f9 20a
- G202 (below left side of dash)
- G312 (behind upper left rear seatback)
- Hifi amplifier
- Hot at all times
- Hot in accy, run and start
- Instrument cluster
- Instrument cluster system
- Interior lights system
- Left front high range speaker
- Left front midrange speaker
- Left mid-high range speaker
- Left rear high range speaker
- Left rear low range speaker
- Left rear speaker
- Nca
- Radio
- Rear window blower micro switch (in left side of convertible top compt)
- Rear window blower relay
- Red
- Right front high range speaker
- Right front midrange speaker
- Right mid-high range speaker
- Right rear high range speaker
- Right rear low range speaker
- Right rear speaker
- Spatial sound relay (behind left kick panel)
- Subwoofer
- Telephone connector x13305
- Telephone connector x400
- Vss output
- X10015
- X10018
- X10266
- X17
- X18126
- X18520
- X605
- X606
Radio Wiring Diagram, Except Convertible with Base Radio for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Except Convertible with Base Radio for BMW 323i 1999:
- Antenna amplifier
- Cd changer
- Fuse f41 30a
- Fuse f7 5a
- Fuse holder (glove box)
- Hot at all times
- Hot in run, acc or start
- Instrument cluster control module
- Interior lights
- K-bus
- Left front speaker
- Left front tweeter
- Left rear speaker
- Navigation computer (if equipped)
- Nca
- On-board monitor control unit (if equipped)
- Radio control unit
- Rear window
- Red
- Right front speaker
- Right front tweeter
- Right rear speaker
- Telephone provision
- X01019
- X01021
- X01025
- X10015
- X10016
- X101026
- X11175
- X13016 (left side of luggage compt)
- X1313
- X18126
- X18180
- X18805
- X403
- X404
- X424
- X4545
Radio Wiring Diagram, Except Convertible with HIFI Radio (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Except Convertible with HIFI Radio (1 of 2) for BMW 323i 1999:
- (left side of luggage compt)
- (left side of luggage compt) x13016
- Antenna amplifier
- Cd changer
- Fuse f41 30a
- Fuse f7 5a
- Fuse holder (glove box)
- Hot at all times
- Hot in run, acc or start
- Instrument cluster control module
- Interior lights
- K-bus
- Navigation computer (if equipped)
- Nca
- On-board monitor control unit (if equipped)
- Radio control unit
- Rear window
- Red
- Telephone provision
- X01019
- X01021
- X01025
- X10015
- X10016
- X101026
- X11175
- X13016
- X1313
- X18126
- X18180
- X18805
- X424
- X4545
Radio Wiring Diagram, Except Convertible with HIFI Radio (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Except Convertible with HIFI Radio (2 of 2) for BMW 323i 1999:
- Ant
- Hifi amplifier (on right side of luggage compt)
- Left front mid-range speaker
- Left front tweeter speaker
- Left front woofer speaker
- Left rear mid-range speaker
- Left rear speaker
- Lf af+
- Lf af-
- Lf mr+
- Lf mr-
- Lft+
- Lft-
- Lfw+
- Lfw-
- Lr af+
- Lr af-
- Lr mr+
- Lr mr-
- Lr+
- Lr-
- Rf af+
- Rf af-
- Rf mr+
- Rf mr-
- Rft+
- Rft-
- Rfw+
- Rfw-
- Right front mid-range speaker
- Right front tweeter speaker
- Right front woofer speaker
- Right rear mid-range speaker
- Right rear speaker
- Rr af+
- Rr af-
- Rr mr+
- Rr mr-
- Rr+
- Rr-
- X13016 (left side of luggage compt)
- X605
Radio Wiring Diagram, Except Convertible with Top HIFI Radio (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Except Convertible with Top HIFI Radio (1 of 2) for BMW 323i 1999:
- (left side of luggage compt)
- (left side of luggage compt) x13016
- Antenna amplifier
- Cd changer
- Fuse f41 30a
- Fuse f7 5a
- Fuse holder (glove box)
- Hot at all times
- Hot in run, acc or start
- Instrument cluster control module
- Interior lights
- K-bus
- Navigation computer (if equipped)
- Nca
- On-board monitor control unit (if equipped)
- Radio control unit
- Rear window
- Red
- Speed
- Telephone provision
- X01019
- X01021
- X01025
- X10015
- X10016
- X101026
- X11175
- X13016
- X1313
- X18126
- X18180
- X18805
- X424
- X4545
Radio Wiring Diagram, Except Convertible with Top HIFI Radio (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram, Except Convertible with Top HIFI Radio (2 of 2) for BMW 323i 1999:
- (left side of luggage compt)
- Act+
- Act-
- Ant
- Fuse f12 7.5a
- Fuse holder (glove box)
- Hot in run, acc or start
- L sub
- Left front mid-range speaker
- Left front tweeter speaker
- Left front woofer speaker
- Left rear mid-range speaker
- Left rear woofer speaker
- Left sub- woofer speaker
- Lf af+
- Lf af-
- Lf mr+
- Lf mr-
- Lft+
- Lft-
- Lfw+
- Lfw-
- Lr af+
- Lr af-
- Lr mr+
- Lr mr-
- Lrw+
- Lrw-
- Nca
- R sub
- Rf af+
- Rf af-
- Rf mr+
- Rf mr-
- Rft+
- Rft-
- Rfw+
- Rfw-
- Right front mid-range speaker
- Right front tweeter speaker
- Right front woofer speaker
- Right rear mid-range speaker
- Right rear woofer speaker
- Right sub- woofer speaker
- Rr af+
- Rr af-
- Rr mr+
- Rr mr-
- Rrw+
- Rrw-
- Spatial
- Spatial sound switch
- Spd sig
- Sub act+
- Sub act-
- Sub sw
- Sub- woofer box
- Switch
- Switch center
- Top hifi amplifier (on right side of luggage compt)
- X01027
- X10012 (left side of right footwell)
- X10016
- X13016
- X1869
- X18774
- X521
- X605
SHIFT INTERLOCK
Shift Interlock Wiring Diagram for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Shift Interlock Wiring Diagram for BMW 323i 1999:
- (left rear of engine compt) x6454
- Automatic transmission range switch 0 off 1 on
- B+ potential distributor
- Battery
- Brake light
- Brakelight switch (on bracket, above brake pedal)
- Can (+)
- Can (-)
- Diag txd
- Digital motor electronics (dme) control unit (left rear of engine compt)
- E-box (left rear of engine compt)
- Exterior lights system
- Fuse f30 7.5a
- Fuse f4 30a
- Fuse f9 5a
- Fuse holder (glove box)
- Ground
- Hot at all times
- Hot in acc, run or start
- Hot in run & start
- Ign
- Nca
- Red
- Shift lock
- Shift lock selector lever lock (under center console)
- Transmission control unit (left rear of engine compt)
- Transmission range position switch (right side of transmission)
- Trp sens
- X10016
- X60002
- X60004
- X64101
- X70001
- X70003
- X70004
- X8680
Shift Interlock Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Shift Interlock Wiring Diagram, Convertible for BMW 323i 1999:
- Automatic transmission range switch (in center console, at shifter)
- B+ junction point
- Battery voltage
- Brake pdl position
- Brake- light switch (on bracket, above brake pedal)
- Exterior lights
- Front power distribution box (left rear corner of engine compt)
- Fuse f28 5a
- Fuse f46 15a
- G103 (rear of right front shock tower)
- Gear range signal l1
- Gear range signal l2
- Gear range signal l3
- Gear range signal l4
- Ground
- Hot at all times
- Hot in run and start
- Hot in run, acc and start
- Nca
- Red
- Shift lock solenoid
- Shift-lock (under center console, at shifter)
- Transmission control module (right rear corner of engine compt)
- X10017
- X10018
STARTING/CHARGING
Charging Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Charging Wiring Diagram, Convertible for BMW 323i 1999:
- Acc
- B+ jump start junction point
- Battery
- Charge ind
- Data link connector (rear right side of engine compt)
- Generator
- Hot at all times
- Ignition switch
- Instrument cluster
- Lock
- Red
- Run
- Start
- Starter
- Telephone connector (center console)
Charging Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Charging Wiring Diagram, Except Convertible for BMW 323i 1999:
- B+ jump start junction point
- Charge warning indicator
- Digital motor electronics control unit (left rear of engine compt)
- Fuse f30 7.5a
- Fuse f34 5a
- Fuse holder (glove box)
- Generator
- Hot at all times
- Hot in run or start
- Instrument cluster
- Red
- Starter
- X10016
- X11175
- X60003
- X60004
- X6524
Starting Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Starting Wiring Diagram, Convertible for BMW 323i 1999:
- Acc
- Automatic climate control module (behind center console)
- Automatic transmission range switch (center console)
- B+ jump start junction point
- Body electronics control module (behind glove box)
- Electronic immobilizer control module (ews ii) (behind glove box)
- Front power distribution box (left rear corner of eng compt)
- Fuse f28 5a
- Fuse f31 5a
- Fuse f45 7.5a
- G202 (below left side of dash)
- Generator
- Hot at all times
- Hot in run or start
- Ignition switch
- Lock
- On-board computer (on center console)
- Red
- Run
- Start
- Starter
- Starter immobilization switch
- Transmission system
- W/ egs
- W/o egs
Starting Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Starting Wiring Diagram, Except Convertible for BMW 323i 1999:
- (m/t)
- (under left side of dash) x217
- Acc
- B+ jump start junction point
- Clutch pedal position switch (w/ m/t)
- Digital motor electronics control unit (left rear of engine compt)
- E-box fan
- Electronic immobilizer control (under left side of dash)
- Fuse 5a
- Fuse holder (glove box)
- Generator
- Hot at all times
- Hot in acc, run or start
- Ignition switch
- Instrument cluster control module
- Lock
- Red
- Run
- Start
- Starter
- Transmission control unit (w/ a/t) (left rear of engine compt)
- X10016
- X11175
- X60003
- X60004
- X70003
SUPPLEMENTAL RESTRAINTS
Supplemental Restraints Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Supplemental Restraints Wiring Diagram, Convertible for BMW 323i 1999:
- (behind right footwell trim) g201
- Air bag indicator
- Body electronics control module (behind glove box)
- Contact rings
- Data link connector (dlc) (on right rear of engine compartment)
- Driver's airbag gas generator
- Driver's seat belt switch
- Driver's side impact sensor
- Driver's side pyrotechnical belt tensioner (right side of driver's seat)
- Front power distribution box (in left rear corner of engine compartment)
- Fuse f27 5a
- Fuse f42 7.5a
- G201 (behind right footwell trim)
- G303 (under right rear seat)
- Hot in accy, run & start
- Hot in run & start
- Instrument cluster
- Left side air bag gas generator
- Nca
- Passenger's airbag gas generator
- Passenger's seat belt switch
- Passenger's side impact sensor
- Passenger's side pyrotechnical belt tensioner (left side of passenger's seat)
- Right side air bag gas generator
- Seat belt indicator
- Seat mat
- Seat occupancy detector (under right front seat)
- Solid state
- X10017
- X10018
- X16
- X17
Supplemental Restraints Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Supplemental Restraints Wiring Diagram, Except Convertible for BMW 323i 1999:
- (under right
- Air bag indicator
- Battery safety terminal generator
- Coil spring
- Data link connector (dlc) (on right rear of eng compartment)
- Detector
- Driver's airbag inflator assembly
- Driver's belt tensioner (right side of driver's seat)
- Driver's door side airbag inflator assembly
- Driver's head area airbag inflator assembly
- Driver's seat belt buckle hall-effect sensor
- Driver's side
- Front power distribution box (in left rear corner of engine compartment)
- Front seat)
- Fuse f11 5a
- Fuse f34 5a
- General control module unit (behind glove box)
- Hot in accy, run & start
- Hot in run & start
- Impact sensor
- Instrument cluster control module (a2)
- Left rear door side airbag inflator assembly
- Multiple restraint system control unit (under center console)
- Nca
- Passenger's airbag inflator assembly
- Passenger's belt tensioner (left side of passenger's seat)
- Passenger's door side airbag inflator assembly
- Passenger's head area airbag inflator assembly
- Passenger's seat belt buckle hall-effect sensor
- Passenger's side impact
- Red
- Right rear door side airbag inflator assembly
- Seat belt indicator
- Seat mat
- Seat occupancy
- Sensor
- X10016
- X11175
- X11176
- X293
- X46 (under center console)
TRANSMISSION
A/T Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for A/T Wiring Diagram, Convertible (1 of 2) for BMW 323i 1999:
- (1.9l only)
- (behind right kick panel)
- (not used)
- (rear of right front shock tower) g103
- Asc sig
- Auto
- Auto mode sig
- Automatic transmission range switch (under center console, at shifter)
- B+ junction point
- Band sol ctrl
- Battery volt
- Brake pdl posit
- Brakelight switch (on bracket, above brake pedal)
- Closed in reverse position
- Cruise control module (tempomat) (under right side of dash, behind glove box)
- Egs a4s 310r
- Egs warning lp
- Electronic immobilizer control module (below left side of dash)
- Exterior lights system
- Fault ind sig
- Front power distribution box (in left rear corner of engine compartment)
- Fuse f26 10a
- Fuse f28 5a
- Fuse f46 15a
- G203
- Gnd
- Gr rng sig l1
- Gr rng sig l2
- Gr rng sig l3
- Gr rng sig l4
- Hot at all times
- Hot in accy, run & start
- Hot in run & start
- Hyd ctrl (-)
- Instrument cluster
- Kick down switch (left footwell)
- Kick-down sig
- M-prog ind
- Man
- Man mode sig
- Nca
- Off
- Oil temp sig
- Oil temp sig (+)
- Ouput speed (-)
- Output speed (+)
- Program switch
- Red
- Rpm speed sig
- S-prog ind
- Shift-lock sol
- Sol val 1 ctrl
- Sol val 2 ctrl
- Speed sens shd
- Sport mode sig
- Tcc sol ctrl
- Transmission control module (egs) (on right rear corner of engine compt)
- X10017
- X10018
- X16
- X69
A/T Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for A/T Wiring Diagram, Convertible (2 of 2) for BMW 323i 1999:
- (1.9l only)
- (1.9l)
- (2.5/ 2.8l)
- (2.5l/2.8l only)
- (below left side of dash)
- 1.9l
- 2.5/ 2.8l
- 2.5/2.8l
- 87a
- A-prog ind
- A/c comp ctrl
- A/c comp on sig
- Band solenoid
- Bk sw test sig
- Brakelight switch (on bracket, above brake pedal)
- Can-high
- Can-low
- Clr
- Compressor control relay
- Computer data lines system
- Cruise control module (tempomat) (under right side of dash, behind glove box)
- Cruise ctrl sig
- Data link connector (on right rear of eng compt)
- Engine control module (dme) (on right rear corner of engine compartment)
- Engine control module relay
- Engine controls system
- Front power distribution box (in left rear corner of engine compt)
- G202
- Hydraulic pressure regulator
- Instrument cluster system
- Nca
- Not used
- Oil temperature sensor
- On-board computer (multi-function clock)
- Prog voltage
- Red
- Rpm speed sig
- Rxd data link
- Shift lock (in center console)
- Slip control module (behind glove box)
- Solenoid valve 1
- Solenoid valve 2
- Speed sensor
- Torque converter clutch solenoid valve
- Transmission control module (egs) (on right rear corner of engine compt)
- Transmission valve unit
- Txd data link
- Volt press reg
- X1070
- X1170
- X1171
- X8505
- X8516
A/T Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for A/T Wiring Diagram, Except Convertible (1 of 2) for BMW 323i 1999:
- (left rear of engine compt) x6454
- B+ potential distributor
- Battery
- E-box (left rear of engine compt)
- Fuse f30 7.5a
- Fuse f4 30a
- Fuse f40 5a
- Fuse holder (glove box)
- Gear indicator light (center console, near selector lever)
- General module control unit (behind glove box)
- Ground
- Hot at all times
- Hot in run & start
- Ign
- Kick down
- Kick down switch
- Light switching center control unit
- Manual gate
- Red
- Selector lever position switch
- Shift lock
- Shift lock selector lever lock (under center console)
- Steptronic switch (under center console near selector lever)
- Tip down
- Tip up
- Transmission control unit (left rear of engine compt)
- X10015
- X10016
- X1193
- X12
- X1599
- X1600
- X218 (right side of trans range switch)
- X332
- X64101
- X70001
- X70003
- X8680
A/T Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for A/T Wiring Diagram, Except Convertible (2 of 2) for BMW 323i 1999:
- Automatic transmission range switch 0 off 1 on
- Backup lghts
- Can-high
- Can-low
- Computer data lines system
- Digital motor electronics (dme) control unit (left rear of engine compt)
- Nca
- Oil temp
- Oil temperature sensor
- Oss
- Output shaft speed sensor
- Pnk
- Press reg
- Pressure regulators
- Red
- Reversing light relay (left rear of engine compt)
- Shield
- Sol valve
- Solenoid valves
- Transmission control unit
- Transmission control unit (right rear of engine compt)
- Transmission range position switch (right side of transmission)
- Trp sens
- Tss
- Turbine shaft speed sensor
- Txd
- X6002
- X6004
- X70004
- X8505
TRUNK, TAILGATE, FUEL DOOR
Trunk, Tailgate, Fuel Door Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Trunk, Tailgate, Fuel Door Wiring Diagram, Except Convertible for BMW 323i 1999:
- (right side of luggage compt) x498
- Central locking drive, trunk lid/tailgate (rear luggage compt)
- Central locking remote control
- Electronic interior rear-view mirror
- Exterior lights system
- Fuse f49 5a
- Fuse f60 30a
- Fuse f67 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Hot at all times
- Interior lights system
- Lift gate lock switch (in luggage compt lid right)
- N/a
- Nca
- Trunk lid release solenoid switch
- W/ infrared remote control
- W/ radio remote control
- X10015
- X1108 (under driver's seat)
- X253
- X254
- X332
- X490 (under passenger seat)
- X498 (right side of luggage compt)
WARNING SYSTEMS
Chime Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Chime Wiring Diagram, Convertible for BMW 323i 1999:
- Chime module (below left side of dash)
- Front power distribution box left rear corner of engine compt)
- Fuse f31 5a
- G202 (below left side of dash)
- Hot at all times
- Instrument cluster
- On-board computer module (on center console)
- Sound tone signal
- X10018
- X1070
- X17
- X518
- X522
Chime Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Chime Wiring Diagram, Except Convertible for BMW 323i 1999:
- (under driver's seat) x173
- Chime module (left footwell)
- General module control unit (behind glove box)
- Instrument cluster control unit (in instrument panel)
- Interior lights system
- X11176
- X332
Tire Pressure Monitoring Wiring Diagram for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Tire Pressure Monitoring Wiring Diagram for BMW 323i 1999:
- Anti-theft system
- Computer data lines system
- Front left tire pressure sensor
- Front right tire pressure sensor
- Fuse f31 5a
- Fuse f67 5a
- Fuse f69 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Horn for antitheft alarm system
- Hot at all times
- Hot in run and start
- Instrument cluster control module (in instrument panel)
- Nca
- Rear left tire pressure sensor
- Rear right tire pressure sensor
- Red
- Switch center
- Tire pressure system control unit (behind glove box)
- X10012 (left side of right footwell)
- X10015
- X10016
- X11175
- X1869
- X254
- X490 (under passenger's seat)
- X490 under passenger's seat)
- X521
WIPER/WASHER
Rear Wiper/Washer Wiring Diagram, Wagon for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Rear Wiper/Washer Wiring Diagram, Wagon for BMW 323i 1999:
- A/t
- Exterior lights system
- Fuse f15 5a
- Fuse f45 20a
- Fuse holder (glove box)
- Gen mod
- General module control unit (behind glove box)
- Ground
- Hot at all times
- Hot in accy, run and start
- M/t
- Rear intermittent wiper/washer control unit (at liftgate)
- Rear open
- Rear washer pump
- Rear window opening switch
- Reverse sig
- Reversing light relay
- Reversing light switch
- Term 30
- Term r
- Wash pump
- Wash sig
- Wind- screen wiper switch
- Wipe sig
- X1108 (under driver's seat)
- X13057
- X13268
- X254
- X498 (right side of luggage compt)
- X6325
- X8511
Washer Jet Heater Wiring Diagram, Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Washer Jet Heater Wiring Diagram, Convertible for BMW 323i 1999:
- Front power distribution box (left rear corner of engine compt)
- Fuse f24 10a
- G202 (below left side of dash)
- Hot in run and start
- Jet heater thermoswitch (left front side of engne compt)
- Left washer jet heater (on underside of engine hood)
- Nca
- Right washer jet heater (on underside of engine hood)
Wiper/Washer Wiring Diagram, Canada Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Wiper/Washer Wiring Diagram, Canada Convertible for BMW 323i 1999:
- (not used)
- Fast
- Front power distribution box (left rear corner of engine compt)
- Fuse f3 30a
- Fuse f36 30a
- Fuse f44 15a
- G202 (below left side of dash)
- G203 (behind right kick panel)
- Headlight/fog light washer pump (front right side of engine compt, on washer fluid reservoir)
- Hot at all times
- Hot in accy, run and start
- Instrument cluster
- Inter
- Interior lights system
- Nca
- Norml
- Off
- Park
- Run
- Single
- Vehicle speed signal
- Wash
- Washer pump (front right side of engine compt, on washer fluid reservoir)
- Wiper motor (rear of engine compartment)
- Wiper/washer module (behind glove box)
- Wiper/washer switch
- X10015
- X10018
- X17
Wiper/Washer Wiring Diagram, Except Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Wiper/Washer Wiring Diagram, Except Convertible for BMW 323i 1999:
- (left side of right footwell)
- Computer data lines system
- Except coupe coupe
- Fuse f15 5a
- Fuse f25 5a
- Fuse f48 30a
- Fuse f49 5a
- Fuse f51 30a
- Fuse f52 30a
- Fuse f59 30a
- Fuse f60 25a
- Fuse f71 30a 10a
- Fuse f9 5a
- Fuse holder (glove box)
- General module control unit (behind glove box)
- Ground
- Headlight washer
- Headlight washer module
- Headlight washer pump
- Heated spray nozzles thermal switch
- Heated spray washer nozzles
- Hot at all times
- Hot in run or start
- Hot in run, accy and start
- Interval time pot
- K-bus sig
- Rain sensor (if equipped) (behind interior rear view mirro)
- Rear int unit
- Rear wiper circuit (if equipped)
- Term 30
- Term r
- Washer pump
- Washer sw sig
- Wind- screen wiper switch
- Wiper motor
- Wiper relay
- Wiper relay spd
- Wiper rest pos
- Wiper sig relay
- Wiper sw 1 sig
- Wiper sw 2 sig
- X10012
- X10012 (left side of right footwell)
- X1108 (under driver's seat)
- X166 (sedan, wagon) x14250 (coupe, convertible) (right front of engine compt)
- X173 (under driver's seat)
- X219 (behind glove box)
- X253
- X254
- X332
- X490 (under passenger's seat)

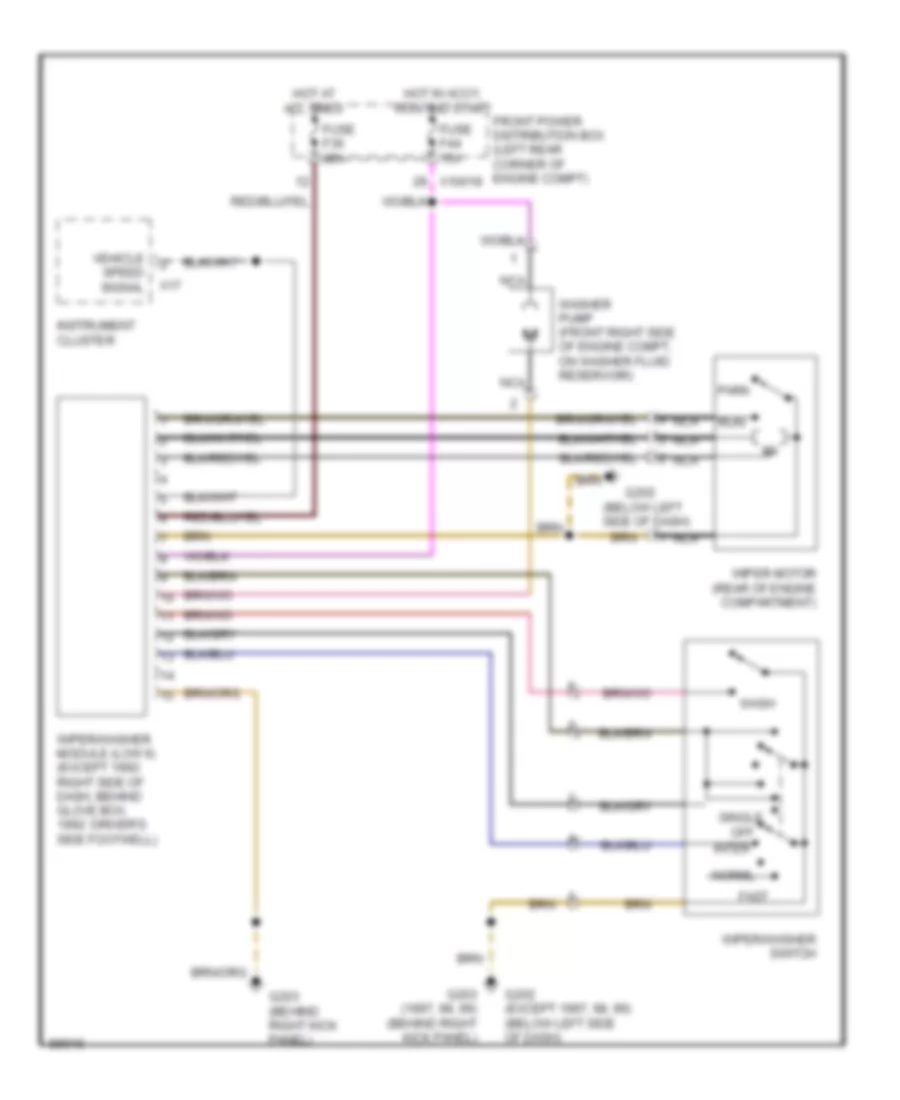

Wiper/Washer Wiring Diagram, USA Convertible for BMW 323i 1999
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Wiper/Washer Wiring Diagram, USA Convertible for BMW 323i 1999:
- (below left side of dash)
- Fast
- Front power distribution box (left rear corner of engine compt)
- Fuse f36 30a
- Fuse f44 15a
- G202
- G202 (except 1997, 98, 99) (below left side of dash)
- G203 (1997, 98, 99) (behind right kick panel)
- G203 (behind right kick panel)
- Hot at all times
- Hot in accy, run and start
- Instrument cluster
- Inter
- Nca
- Norml
- Off
- Park
- Run
- Single
- Vehicle speed signal
- Wash
- Washer pump (front right side of engine compt, on washer fluid reservoir)
- Wiper motor (rear of engine compartment)
- Wiper/washer module (low ii) (except 1992: right side of dash, behind glove box; 1992: driver's side footwell)
- Wiper/washer switch
- X10018
- X17
