AIR CONDITIONING

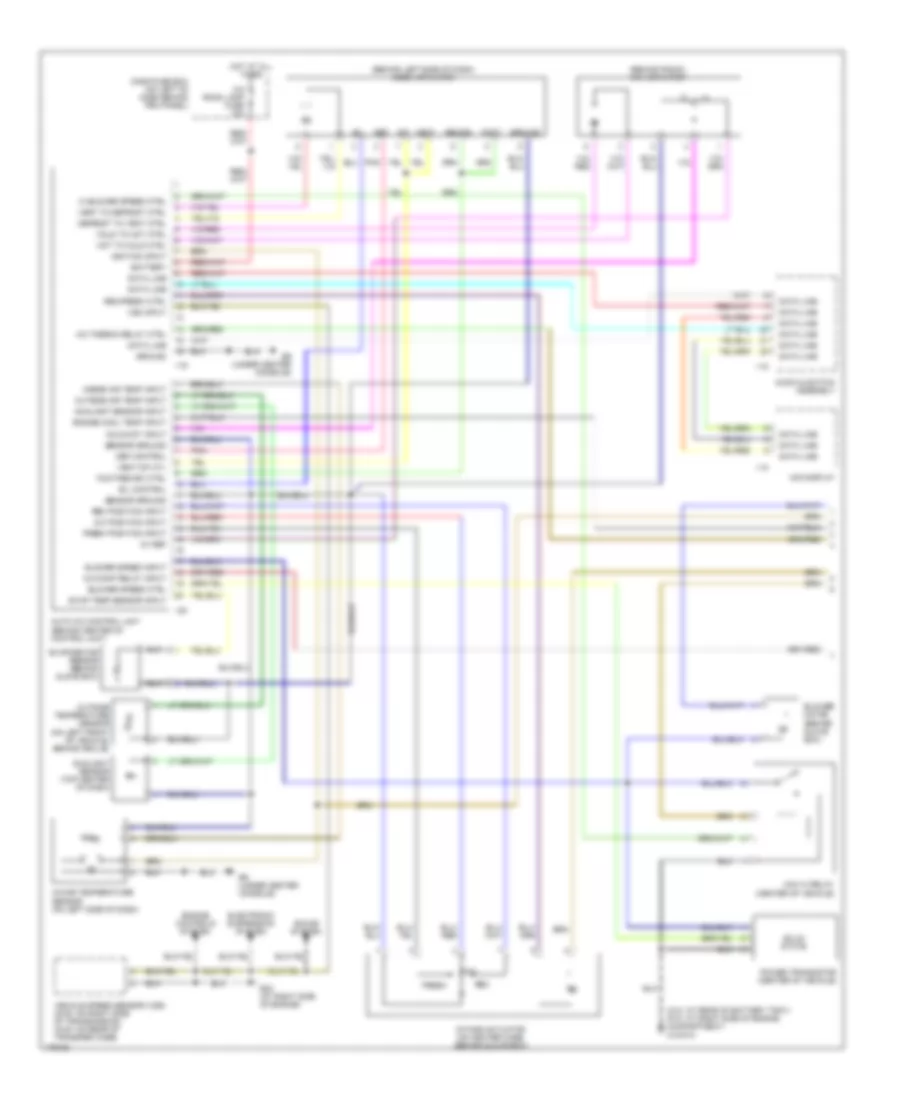

Automatic A/C Wiring Diagram (1 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram (1 of 2) for Isuzu Axiom 2003:
- (behind left side of dash) mode actuator
- (behind radio) mix actuator
- (c10: at rear of battery tray) (p10: at right side of engine compartment) c10/p10
- 5v ref
- A/c comp relay input
- A/c thermo relay ctrl
- Audio & switch assembly
- Auto a/c control unit (behind center of control unit)
- B/l
- B/l control
- B9 (under center console)
- Battery
- Blower motor (behind glove box)
- Blower speed ctrl
- Blower speed input
- C-5 room lamp fuse 10a
- Cold to hot ctrl
- Cold/hot input
- D/f
- Dash fuse box (on left of dash behind trim panel)
- Data line
- Def
- Def control
- Defrost to vent ctrl
- E23 (at right side of engine)
- Electronic suspension system
- Engine controls system
- Engine cool temp input
- Evap temp sensor input
- Evaporator sensor (behind glove box)
- Foot
- Foot/recirc ctrl
- Fresh
- Fresh position input
- Ground
- Hi blower speed ctrl
- Hot at all times
- Hot to cold ctrl
- I-12
- I-18
- I-19
- I-20
- Ignition input
- In-car temperature sensor (on left side of dash)
- Inside air temp input
- Intake actuator (on heater case, behind glove box)
- Max hi relay (center of vehicle)
- Mid display
- Mix
- Mix position input
- Outside air temp input
- Outside temperature sensor (on left front of vehicle, behind grille)
- Pnk
- Power transistor (center of vehicle)
- Rec
- Rec position input
- Rec/fresh ctrl
- Recirc
- Sensor ground
- Solid state
- Sound system
- Sunlight sensor (top center of dash)
- Sunlight sensor input
- Vehicle speed sensor (vss) (2wd: on right side of transmission) (4wd: on rear of transfer case)
- Vent
- Vent d/f ctl
- Vent to defrost ctrl
- Vss input
Automatic A/C Wiring Diagram (2 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Automatic A/C Wiring Diagram (2 of 2) for Isuzu Axiom 2003:
- (c10: at rear of battery tray) (p10: at right side of engine compartment) c10/p10
- A/c comp relay ctrl
- A/c compressor
- A/c compressor relay
- A/c on input
- A/c thermo relay
- A/c triple pressure switch (behind left side of radiator grille)
- C-15 elec ig fuse 15a
- Clutch
- Condenser fan (on front of vehicle, behind grille)
- Condenser fan relay
- Cycling switch
- Dash fuse box (on left of dash behind trim panel)
- Dual pressure switch
- E-34
- E-35
- Eb-16 main fuse 100a
- Eb-20 cond fan fuse 30a
- Eb-5 blower fuse 15a
- Eb-6 blower fuse 15a
- Eb-7 a/c fuse 10a
- Ect input
- Ect output
- Engine controls system
- Engine coolant temperature (ect) sensor (on right front of engine)
- Fuse/relay box (on right side of engine compt)
- Heater- a/c relay
- Hot at all times
- Hot in on
- Instrument cluster system
- J/c a
- Option fuse box (on right side of engine compt)
- Powertrain control module (pcm) (left side of engine compartment)
- Sensor ground
ANTI-LOCK BRAKES
Anti-lock Brakes Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Anti-lock Brakes Wiring Diagram for Isuzu Axiom 2003:
- 4wd engaged input
- Abs ind light ctrl
- Abs indicator light
- Abs output
- Battery
- Braided
- Brake fluid level in
- Brake fluid level switch (at left rear of engine compt, in brake fluid reservoir)
- Brake input
- Brake switch (behind dash, on brake pedal support)
- C-10/p-10 (c10: at rear of battery tray) (p10: at right side of engine compt)
- C-26 (at left rear side of engine compt)
- C-5
- C-6
- Class 2 serial data
- Dash fuse box (on left of dash, behind trim panel)
- Data link connector (dlc) (on lower left side of dash, near engine hood release lever)
- Dlc output
- Electronic hydraulic control unit (ehcu) (right rear corner of engine compt)
- Fuse c-11 meter 15a
- Fuse c-6 stop light 15a
- Fuse eb-18 abs 50a
- Fuse/relay box (on right side of engine compartment)
- Ground
- Hot at all times
- Hot in on or start
- I-24
- Ignition
- Instrument cluster system
- Left front speed sensor (on inside of left front wheel)
- Lf speed sens input
- Meter assembly
- Pnk
- Rear spd sens input
- Rear speed sensor (beneath rear of vehicle, on top of differential)
- Red
- Rf speed sens input
- Right front speed sensor (on inside of right front wheel)
- Tod control unit (below left side of dash)
ANTI-THEFT
Forced Entry Wiring Diagram (1 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram (1 of 2) for Isuzu Axiom 2003:
- (at rear of battery tray) c10 p10 (at right side of engine compt)
- (under front passenger's seat) door switch diode
- Act pos locked
- Act pos unlocked
- Alarm & relay control unit (on right side of dash)
- Anti-theft fuse 20 10a
- Anti-theft horn (at right rear of engine compartment)
- Anti-theft horn ctrl
- Anti-theft ind
- B9 (under center console)
- Battery input
- Dash fuse box (on left of dash behind trim panel)
- Diode box 5
- Diode box 6
- Disarm unlock input
- Door lock fuse 7 20a
- Door locks system
- Door open in
- Door/hatch open in
- Dr door act ctrl
- Engine hood input
- Engine hood switch (at right rear corner of engine compt)
- Exterior lights system
- Fuse/relay box (on right side of engine compt)
- Gps receiver unit (top center of dash)
- Ground
- Headlight rly ctrl
- Headlights system
- Horn fuse 2 10a
- Hot at all times
- Hot in acc or on
- I-41
- Ignition input
- Ignition switch
- Interior lights system
- J/c b
- Key in ignition in
- Key reminder switch
- Key rod act posit
- Keyless entry & anti-theft control unit (on right side of dash, behind glove box)
- Left front door switch
- Left rear door switch
- Lf door open in
- Lock input
- Lock/unlock
- Red
- Right front door switch
- Right rear door switch
- Tailgate door lock assembly
- Tailgate open in
- Tailgate open switch
- Taillight relay
- Unlock input
- Warning system
- Wiper/ washer system
Forced Entry Wiring Diagram (2 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram (2 of 2) for Isuzu Axiom 2003:
- (momentary)
- B9 (under center console)
- Driver's door key detect & actuator position switches
- Left front door lock assembly
- Left rear door actuator position switch
- Left rear door lock assembly
- Lock
- Right front door actuator position switch
- Right front door lock assembly
- Right rear door actuator position switch
- Right rear door lock assembly
- Tailgate actuator position switch
- Tailgate door lock assembly
- Unlock
Immobilizer Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Immobilizer Wiring Diagram for Isuzu Axiom 2003:
- (4.2l)
- (5.3l)
- 12v ref
- 4.2l
- 5.3l
- A11
- B10
- B11
- Battery
- Body control module (bcm) (beneath left rear seat, on rear fuse block)
- Computer data lines system
- Data
- Data link connector (below dash, above accelerator pedal)
- E12
- F14
- G102 (at left side of engine compartment)
- G302 (on lower left "b" pillar)
- Ground
- Hot at all times
- Hot in run or start
- Ign e fuse 22 10a
- Instrument panel cluster
- Nca
- Passlock sensor (in steering column)
- Pnk
- Powertrain control module (pcm) (4.2l: on left front of engine) (5.3l: on left front of engine compartment)
- Rear fuse block (below left rear seat)
- Rtn
- Security ind
- Sensor ret
- Sensor sig
- Serial data
- Splice pack sp205
- Tbc 1 fuse 31 10a
- Underhood fuse block (on left side of engine compartment)
BODY CONTROL MODULES
Body Control Modules Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Body Control Modules Wiring Diagram for Isuzu Axiom 2003:
- A/t oil temp indicator
- A/t shift indicator (2)
- A/t shift indicator (3)
- A/t shift indicator (d)
- A/t shift indicator (l)
- A/t shift indicator (n)
- A/t shift indicator (p)
- A/t shift indicator (r)
- A/t shift indicator power
- Alarm & relay control unit (on right side of dash)
- Anti-theft system
- B9 (under center console)
- Battery power
- Beeper
- Check trans indicator
- Computer data lines system
- Dash fuse box (on left of dash, behind trim panel)
- Door open input
- Exterior lights system
- Exterior, interior lights systems
- Fuse c-11 meter 15a
- Fuse c-16 rear wiper 10a
- Fuse c-17 front wiper 20a
- Fuse c-5 room light 10a
- Fuse c-7 door lock 20a
- Fuse eb-2 horn 10a
- Fuse/ relay box (on right side of engine compt)
- Ground
- Horn output
- Horn relay control
- Horns system
- Hot at all times
- Hot in on
- Hot in on or start
- I41
- I42
- Ignition input
- Ignition switch
- Instrument cluster system
- Interior lights system
- Key in ignition input
- Key reminder switch
- Left front door open in
- Left front door switch
- Lights on input
- Low fuel indicator
- Multi-plexed indicator control unit (under rear of center console)
- Off input
- Pcm communication
- Pnk
- Power drive indicator
- Rear washer control
- Rear washer on input
- Rear wiper motor control
- Rear wiper on input
- Red
- Reduce power indicator
- Room light trigger
- Seat belt unbuckled input
- Tailgate open input
- Unlock position
- Warning system
- Washer input
- Winter drive indicator
- Wiper intermittent input
- Wiper run/park input
- Wiper variable intermittent
- Wiper/ washer system
- Wiper/washer system
COMPUTER DATA LINES
Computer Data Lines Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Computer Data Lines Wiring Diagram for Isuzu Axiom 2003:
- (dlc) (on lower left side of dash, near engine hood release lever)
- B-16
- C-37
- C-38
- C-44
- C-6
- Data
- Data link connector
- E-34
- E-35
- E23 (at right side of engine)
- Electronic hydraulic control unit (ehcu) (right rear corner of engine compt)
- Fuse 2 horn 10a
- Fuse/relay box (on right side of engine compt)
- Hot at all times
- I-2
- I-43
- Immobilizer control unit (in right side of steering column)
- Intelligent suspension control unit (below center of dash)
- Multi-plexed indicator control unit (under rear of center console)
- P10/c10 (c10: at rear of battery tray) (p10: at right side of engine compt)
- Powertrain control module (pcm) (left side of engine compt)
- Red
- Sensing & diagnostic module (sdm) (under front of center console)
- Tod control unit (below left side of dash)
CRUISE CONTROL
Cruise Control Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cruise Control Wiring Diagram for Isuzu Axiom 2003:
- (at left side of engine) e21
- Acceleration position sensor (above accelerator pedal)
- Acceleration sensors
- Air conditioning system
- Ap sen1 gnd
- Ap sen2 gnd
- Ap sensor 1
- Ap sensor 2
- Ap sensor 3
- Aps3 gnd
- Automatic transmission mode switch (beneath center of vehicle, on left side of transmission)
- Brake sw in
- Brake switch (behind dash, on brake pedal support)
- Brake tcc in
- C-11 meter fuse 15a
- C-12 engine fuse 15a
- C-14 back-up/ turn light fuse 15a
- C-44
- C-6 stop light fuse 15a
- C26 (at left rear side of engine compartment)
- Cancel
- Combination switch
- Cruise control main switch
- Cruise control res/acc switch
- Cruise lmp
- Cruise on/off ind
- Cruise set ind light
- Dash fuse box (on left of dash behind trim panel)
- Drive input
- E-34
- E-35
- E21 (at left side of engine)
- E23 (at right side of engine)
- Eb-15 pcm fuse 30a
- Fuse relay box (on right side of engine compt)
- Gnd
- Hot at all times
- Hot in on or start
- I-22
- Ign
- Ign feed
- Illum
- Immobilizer control unit (in right side of steering column)
- Immobilizer in
- Intelligent suspension control unit (below center of dash)
- Interior lights system
- Meter assembly
- On in
- On switch
- Pcm main relay
- Pcm out i-43
- Powertrain control module (pcm) (left side of engine compartment)
- Red
- Ref volt
- Res/acc in
- Set/coast in
- Set/cst
- Solid state sensor
- Speedometer
- Th val mtr
- Throttle position sensor 1
- Throttle position sensor 2
- Throttle val
- Throttle valve assembly
- Throttle valve motor
- Tps 1 sign
- Tps1 gnd
- Tps2 gnd
- Tps2 sign
- Transmissions system
- Vehicle speed sensor (2wd: on right side of transmission) (4wd: on rear of transfer case)
- Vss in
DEFOGGERS
Defoggers Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Defoggers Wiring Diagram for Isuzu Axiom 2003:
- Audio & switch assembly
- B9 (under center console)
- Dash fuse box (on left of dash, behind trim panel)
- Defogger
- Defogger on input
- Defogger relay control
- Defogger request
- Defogger request input e-35
- Fuse c-10 rear defogger 15a
- Fuse c-16 rear wiper 10a
- Fuse c-8 mirror defogger 10a
- Fuse c-9 rear defogger 15a
- Fuse eb-19 ign b2 50a
- Fuse/relay box (on right side of engine compartment)
- G-2
- G-8
- Hot at all times
- Hot in on
- Left power mirror
- Powertrain control module (pcm) (left side of engine compt)
- Rear defogger
- Rear window defogger relay
- Right power mirror
ELECTRONIC SUSPENSION
Electronic Suspension Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Electronic Suspension Wiring Diagram for Isuzu Axiom 2003:
- "g" sensor (below left rear of vehicle)
- (on lower left side of dash, near engine hood release lever) data link
- Actuator g-sensor
- Brake switch (behind dash, on brake pedal support)
- C-44
- C-45
- C-46
- C10 (at rear of battery tray) p10 (at right side of engine compt)
- C26 (at left rear side of engine compt)
- Connector (dlc)
- Dash fuse box (on left of dash behind trim panel)
- E-34
- Fuse 11 meter 15a
- Fuse 14 back up/ turn 15a
- Fuse 21 active ride 30a
- Fuse 6 stop lamp 15a
- Hot at all times
- Hot in on or start
- I-22
- I-24
- Illumination
- Instrument cluster system
- Intelligent suspension control unit (below center of dash)
- Intelligent suspension warning system light
- Interior lights system
- Left front actuator (on top of left front shock)
- Left rear actuator (on top of left rear shock)
- Meter assembly
- Navigation system
- Off
- Option fuse box (on right side of engine compt)
- Pnk
- Powertrain control module (pcm) (left side of engine compt)
- Red
- Right front actuator (on top of right front shock)
- Right rear actuator (on top of right rear shock)
- Sport mode indicator light
- Switch unit
- Vehicle speed sensor (vss) (2wd: on right side of transmission) (4wd: on rear of transfer case)
- Vertical g-sensor
ENGINE PERFORMANCE
3.5L
3.5L, Engine Performance Wiring Diagram (1 of 4) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.5L, Engine Performance Wiring Diagram (1 of 4) for Isuzu Axiom 2003:
- (left side of engine compt) c-26
- (left side of engine)
- (on engine)
- (right side of engine) e-23
- (under center console) b-9
- A/c clutch
- A/c req
- A/c system
- Ap sen1 gnd
- Ap sen2 gnd
- B1s1
- B1s2
- B2s1
- B2s2
- Bat feed
- Braided wires
- Brake sw in
- C.q. sign in
- Ckp in
- Clutch/mode
- Crankshaft position sensor (lower right side of eng)
- Cruise brake
- Cruise control
- E-21
- E-21 (left side)
- E-23 (right side of engine)
- E-23 (right side)
- E-34
- Ect in
- Engine coolant temperature sensor (right front of eng)
- Etc gnd
- Fuel injectors
- Fuel pump
- Fuel pump fuse 20a
- Fuel pump relay
- Fuel tank unit (top of fuel tank)
- Fuse/ relay box (right side of engine compt)
- Gnd
- Headlights system
- Ho2s b1s2 -
- Ho2s2 h gnd
- Hot at all times
- Iat in
- Ig coil2 ctrl
- Ig coil3 ctrl
- Ign b1 fuse 60a
- Ign feed
- Knock sig in
- Lights on
- Maf in
- Map in
- Mode sw
- N01 fuel inj
- N02 fuel inj
- N03 fuel inj
- N04 fuel inj
- N05 inj ctrl
- O2 sens fuse 10a
- Pcm backup fuse 10a
- Pcm fuse 30a
- Pcm main relay
- Pins not used: f30-f36
- Pnk
- Powertrain control module (left side of engine compt)
- Psp sw in
- Red
- Ref volt
- Res/acc in
- Serial data
- Shift sol a
- Sol +
- Sol -
- Starter feed
- Starting system
- Tach
- Throttle position sensor 1
- Throttle position sensor 2
- Throttle val
- Throttle valve assembly (on throttle body assembly)
- Throttle valve motor
- Tps out
- Tps1 gnd
- Tps2 gnd
- Tps2 sign
- Trans- mission system
- Vapor sen
3.5L, Engine Performance Wiring Diagram (2 of 4) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.5L, Engine Performance Wiring Diagram (2 of 4) for Isuzu Axiom 2003:
- (left side of transmission) automatic transmission mode switch
- 1,3,5 coil in
- 2,4,6 coil in
- Back up/ turn fuse 15a
- Brake switch (on brake pedal support)
- Coil 1 ctrl
- Coil 2 ctrl
- Coil 3 ctrl
- Coil 4 ctrl
- Coil 5 ctrl
- Coil 6 ctrl
- Con- denser (right front of eng)
- Dash fuse box (left side of dash)
- E-19 (left side of engine)
- E-20
- E-24
- E-25
- Engine fuse 15a
- Est 11
- Est 12
- Est 13
- Est 21
- Est 22
- Est 23
- Exterior lights, abs
- Gnd
- Hot at all times
- Hot in on or start
- Ig coil fuse 15a
- Ign
- Ignition coils
- Ion sensing module (top of engine intake manifold)
- Ioncq1
- Ionk1
- Meter fuse 15a
- Pnk
- Power steering pressure switch (on power steering pump)
- Red
- Stop light fuse 15a
- Transmission system
3.5L, Engine Performance Wiring Diagram (3 of 4) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.5L, Engine Performance Wiring Diagram (3 of 4) for Isuzu Axiom 2003:
- (above right side of rear axle) evap canister cut valve
- (front of engine) evap canister purge valve
- (in air duct assembly) intake air temperature sensor
- (in air duct assembly) mass air flow sensor
- (left side of engine)
- (right side of engine)
- (top left rear of eng) variable intake manifold vacuum switching valve
- (top of fuel tank) fuel vapor pressure sensor
- (top rear of intake manifold) manifold absolute pressure sensor
- (top right rear of engine) exhaust gas recirculation solenoid valve
- (under center console)
- (under rear of center console) multiplexed indicator control unit
- Automatic transmission
- B-16
- B-9
- C-6
- Data link connector (on lower left side of dash)
- E-21
- E-23
- E-40
- E-42
- Electronic hydraulic control unit (right rear corner of engine compt)
- Interior lights system
- Power
- Pressure control solenoid
- Red
- Serial data
- Shift solenoid a
- Shift solenoid b
- Switch unit
- Torque converter clutch solenoid
- Trans- mission fluid temper- ature sensor
- Winter
3.5L, Engine Performance Wiring Diagram (4 of 4) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.5L, Engine Performance Wiring Diagram (4 of 4) for Isuzu Axiom 2003:
- (left side of engine)
- (on accelerator pedal bracket)
- (right side of engine)
- A/c system
- Acceleration position sensor assembly
- Acceleration sensors
- Anti-theft system
- Ap sensor 1
- Ap sensor 2
- Ap sensor 3
- Aps3 gnd
- B1s1
- B1s2
- B2s1
- B2s2
- Braided wires
- Can cut val
- Cruise cancel
- Cruise control
- Cruise lmp
- Cruise sw
- Defog req
- Defog rly
- Defogger system
- Dlc
- E-21
- E-21 (left side of engine)
- E-23
- E-23 (right side of engine)
- E-35
- Ect out
- Egr ctrl lo
- Egr in
- Electronic suspension system
- Eng coolant temp gauge
- Engine or powertrain control module (left side of engine compt)
- Evap purge
- Fuel gage
- Fuel gauge
- Fuel sen
- Fuel sender
- Fuel tank sender
- Fuel tank unit (on top of fuel tank)
- Gnd
- Heated oxygen sensor (b1s1) (right exhaust downpipe)
- Heated oxygen sensor (b1s2) (rear of right cat converter)
- Heated oxygen sensor (b2s1) (left exhaust downpipe)
- Heated oxygen sensor (b2s2) (rear of left cat converter)
- Ho2s b1s1 +
- Ho2s b1s1 -
- Ho2s b1s2 +
- Ho2s b2s1 +
- Ho2s b2s1 -
- Ho2s b2s2 +
- Ho2s b2s2 -
- Ho2s1 h gnd
- Ho2s1h gnd
- I-22
- I-23
- I-24
- Iat sen
- Ig coil1 ctrl
- Ig coil4 ctrl
- Ig coil5 ctrl
- Ig coil6 ctrl
- Ign feed
- Immobi in
- Inj pul sig
- Malfunction indicator light (mil)
- Map
- Meter assembly
- Mil ind ctrl
- Navigation system
- No6 fuel inj
- Pnk
- Pwr sw
- Red
- Ref volt
- Shift hi
- St relay ctrl
- Starter system
- Tach- ometer
- Tcc sol
- Tft sen
- Tft sen gnd
- Th val mtr
- Tps 1 sign
- Tr 1-2, 3-4
- Tr sign 2-3
- Trans spd
- Transmission speed sensor (a/t) (top of transmission)
- Vapor press
- Via vsv ctrl
- Winter sw
EXTERIOR LIGHTS
Back-up Lamps Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Back-up Lamps Wiring Diagram for Isuzu Axiom 2003:
- (under center console) b9
- Automatic transmission mode switch (beneath center of vehicle, on left side of transmission)
- Back-up light
- Dash fuse box (on left of dash behind trim panel)
- Fuse 14 back up/ turn 15a
- Hot in on or start
- Left taillight assembly
- Right taillight assembly
Exterior Lamps Wiring Diagram (1 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Isuzu Axiom 2003:
- (at left rear side of engine compt) c26
- (under center console) b9
- Combination switch
- Dash fuse box (on left of dash behind trim panel)
- Flasher unit (behind left kick panel)
- Fuse 1 hazard 15a
- Fuse 14 back up/ turn 15a
- Fuse/ relay box (on right side of engine compartment)
- Gnd
- Hazard
- Hazard warning switch
- Hazard warning switch light
- Hot at all times
- Hot in on
- I-23
- Ignition
- Interior lights system
- Left
- Left front combination light
- Left turn indicator light
- Meter assembly
- Off
- Output
- Pnk
- Red
- Right
- Right front combination light
- Right turn indicator light
- Trailer lighting connector (in left rear cargo compartment, taped to harness)
- Turn signal switch
Exterior Lamps Wiring Diagram (2 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Isuzu Axiom 2003:
- (under center console) b9
- Brake switch (behind dash, on brake pedal support)
- Combination switch
- Dash fuse box (on left of dash behind trim panel)
- Engine controls system
- Fuse 4 tail 15a
- Fuse 6 stop lamp 15a
- Head
- High mounted stop light
- Hot at all times
- Interior lights system
- Keyless entry & anti-theft control unit (on right side of dash, behind glove box)
- Lamp switch
- Left license light
- Left taillight assembly
- Off
- Park
- Pnk
- Red
- Right license light
- Right taillight assembly
- Shift interlock system
- Stop
- Tail
- Tail/stop light
- Taillight relay
- Turn light
GROUND DISTRIBUTION
Ground Distribution Wiring Diagram (1 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (1 of 3) for Isuzu Axiom 2003:
- (on right side of engine compt) fuse/relay box
- (on right side of engine compt) option fuse box
- 1-18
- 4 h/l transfer switch assembly
- Alarm & relay control unit
- Audio & switch assembly
- Auto a/c control unit
- B9 (under center console)
- Battery
- Brake fluid level switch
- C-35
- C-37
- C-38
- C-46
- C-5
- C-6
- C26 (at left rear side of engine compt)
- Coil
- Condenser fan
- Condenser fan relay
- Data link connector (dlc)
- Driver's seat belt switch
- Electronic hydraulic control unit (ehcu)
- Engine hood switch
- Front axle motor actuator
- Fuel pump relay
- Heater- a/c relay
- I-10
- I-19
- I-23
- I-24
- I-41
- I36 (behind left kick panel)
- Intelligent suspension control unit
- Left foglamp
- Left front combination lamp
- Left low beam headlamp
- Max hi relay
- Meter assembly
- Mid control unit
- Mid display
- Multi-plexed indicator control unit
- P10/c10 (p10: at right side of engine compt) (c10: at rear of battery tray)
- P9 (at right side of engine compt)
- Pcm main relay
- Power transistor
- Rear washer motor
- Red
- Right fog lamp
- Right front combination lamp
- Right low beam headlamp
- Sensing & diagnostic module (sdm)
- Shift-on- the-fly controller
- Switch unit
- To b9 (diagram 2 of 3)
- Tod control unit
- Windshield washer motor
- Windshield wiper motor
Ground Distribution Wiring Diagram (2 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (2 of 3) for Isuzu Axiom 2003:
- (on left of dash behind trim panel) dash fuse box
- Accessory socket relay
- Ashtray lamp
- B-6
- B9 (under center console)
- Back up
- Back- up
- Cigar lighter
- Coil
- Combination switch
- D-17
- Driver's lumbar switch
- Driver's power seat switch
- Driver's seat back
- Driver's seat heater switch
- Flasher unit
- From b9 (diagram 1 of 3)
- Front accessory socket
- Fuel tank unit
- G-8
- Glove box lamp
- High mounted stoplamp
- Homelink unit
- I-17
- I-23
- I-5
- I-8
- Illumination controller
- In car temperature sensor
- Keyless entry & anti-theft control unit
- Left front door key detect & actuator position switches
- Left front door lock assembly
- Left front door power window & lock switch
- Left front door switch
- Left front vanity mirror lamp
- Left license lamp
- Left power mirror
- Left rear door actuator position switch
- Left rear door lock assembly
- Left rear power window switch
- Left taillamp assembly
- Map lamps
- Meter assembly
- Mirror control switch
- Power window relay
- Rear accessory socket
- Rear defogger
- Rear view mirror
- Rear wiper motor
- Right front door actuator position switch
- Right front door lock assembly
- Right front door power window & lock switch
- Right front door switch
- Right front power seat switch
- Right front seat back
- Right front seat heater switch
- Right front vanity mirror lamp
- Right license lamp
- Right power mirror
- Right rear door actuator position switch
- Right rear door lock assembly
- Right rear power window switch
- Right taillamp assembly
- Shift lock controller
- Sun roof control unit/motor
- T-18
- Tail gate open switch
- Tail/ stop
- Tailgate actuator position switch
- Tailgate door lock assembly
- Trailer connector
- Turn
Ground Distribution Wiring Diagram (3 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (3 of 3) for Isuzu Axiom 2003:
- Acceleration position sensor assembly shield
- Crankshaft position sensor (ckp) shield
- Data link connector (dlc)
- E-20
- E-34
- E-35
- E19 (at left side of engine)
- E21 (at left side of engine)
- E23 (at right side of engine)
- Exhaust gas recirculation (egr) solenoid valve
- Heated oxygen sensor (bank 1 sensors 1 & 2) shield
- Heated oxygen sensor (bank 2 sensors 1 & 2) shield
- I-43
- Ignition coils 1, 3 & 5 shield
- Ignition coils 2, 4 & 6 shield
- Immobilizer control unit (icu)
- Ion sensing module
- Mass air flow (maf) sensor shield
- Mass airflow (maf) sensor
- Powertrain control module (pcm)
- Throttle valve assembly assembly shield
- Throttle valve assembly shield
- Transmission speed sensor shield
- Vehicle speed sensor (vss)
HEADLIGHTS
Headlights Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlights Wiring Diagram for Isuzu Axiom 2003:
- Anti-theft, door locks systems
- B9 (under center console)
- C26 (at left rear side of engine compt)
- Combination switch
- Dimmer passing switch
- Dimming
- Fog- lamp switch
- Foglight relay
- Fuse 10 fog lamp 15a
- Fuse 8 lh h/lamp 20a
- Fuse 9 rh h/lamp 20a
- Fuse/ relay box (on right side of engine compartment)
- Head
- High beam ind
- Hot at all times
- I-23
- Illum
- Interior lights system
- J/c b
- Lamp switch
- Left foglight
- Left headlamp relay
- Left high beam headlight
- Left low beam headlight
- Meter assembly
- Off
- On ind
- Park
- Parking lamps
- Passing
- Red
- Right foglight
- Right headlamp relay
- Right high beam headlight
- Right low beam headlight
HORN
Horn Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Horn Wiring Diagram for Isuzu Axiom 2003:
- Alarm & relay control unit (on right side of dash)
- Driver's inflator module
- Fuse 2 horn 10a
- Fuse/ relay box (on right side of engine compartment)
- Horn relay
- Horn switch
- Hot at all times
- I-41
- Left horn (behind left side of radiator grille)
- Right horn (behind right side of radiator grille)
- Srs coil assembly
- Steering wheel
INSTRUMENT CLUSTER
Instrument Cluster Wiring Diagram (1 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Isuzu Axiom 2003:
- A/t shift indicator
- Air conditioning system
- Anti-lock brakes system
- Anti-theft system
- B9 (under center console)
- C26 (at left rear side of engine compt)
- Cruise control system
- Cruise control, anti-theft systems
- Cruise set indicator light
- Dash fuse box (on left of dash, behind trim panel)
- Data link connector (dlc) (on lower left side of dash, near engine hood release lever)
- Driver's seat belt switch
- Electronic suspension system
- Exterior lights system
- Fuse 11 meter 15a
- Fuse 13 pcm back-up 10a
- Fuse 14 back-up/ turn 15a
- Fuse/ relay box (on right side of engine compartment)
- Headlights system
- High beam indicator light
- Hot at all times
- Hot in on or start
- I-22
- I-23
- I-24
- Illumination
- Immobilizer ind
- Interior lights system
- Left turn indicator light
- Low fuel warning light
- Meter assembly
- Mid control unit (behind center of dash)
- Multi-plexed indicator control unit (under rear of center console)
- Oil pressure switch (on lower front of engine, near oil filter)
- Pnk
- Power drive indicator light
- Right turn indicator light
- Sport mode indicator light
- Starting/charging system
- To reduced power indicator light (diagram 2 of 2)
- Tod auto indicator light
- Tod check indicator light
- Tod front indicator light
- Tod rear indicator light
- Transmissions system
- Warning system
- Winter drive indicator light
Instrument Cluster Wiring Diagram (2 of 2) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Isuzu Axiom 2003:
- (beneath center console, on parking brake lever) parking brake switch
- A/t fluid indicator light
- Abs indicator light
- Air bag readiness indicator light
- Automatic transmission mode switch (beneath center of vehicle, on left side of transmission)
- Brake fluid level switch (at left rear of engine compt, in brake fluid reservoir)
- Brake system warning light
- C26 (at left rear side of engine compt)
- Charging system warning light
- Check trans indicator light
- Cpu
- Diode box b
- E34
- E35
- Electronic hydraulic control unit (ehcu) (right rear corner of engine compt)
- Electronic suspension system
- Engine controls system
- Engine coolant temperature (ect) sensor (on right front of engine)
- Engine coolant temperature gauge
- From tod check indicator light (diagram 1 of 2)
- Fuel gauge
- Fuel tank sender
- Fuel tank unit (beneath rear of vehicle, in top of fuel tank)
- Fuse/ relay box (on right side of engine compt)
- I-22
- I-23
- I-24
- Intelligent suspension system warning light
- Malfunction indicator light
- Meter assembly
- Odo/trip meter
- Oil pressure indicator light
- Pnk
- Powertrain control module (pcm) (left side of engine compt)
- Reduced power indicator light
- Seat belt reminder light
- Speedometer
- Tachometer
- Transmissions system
INTERIOR LIGHTS
Courtesy Lamps Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Courtesy Lamps Wiring Diagram for Isuzu Axiom 2003:
- Alarm & relay control unit (on right side of dash)
- B9 (under center console)
- Combination swtich
- Dash fuse box (on left of dash behind trim panel)
- Dash fuse box (on left of dash behind trim panel)
- Diode box 5
- Diode box 6
- Door
- Door switch diode (under front passenger's seat)
- Engine controls, anti-theft systems
- Exterior lights system
- Fuse 4 tail light 15a
- Fuse 5 room lamp 10a
- Head
- Hot at all times
- I-41
- Keyless entry & anti-theft control unit (on right side of dash, behind glove box)
- Lamp switch
- Left front door courtesy light
- Left front door switch
- Left front vanity mirror light
- Left rear door courtesy light
- Left rear door switch
- Luggage room light
- Map lamps
- Mirrors system
- Off
- Park
- Red
- Right front door courtesy light
- Right front door switch
- Right front vanity mirror light
- Right rear door courtesy light
- Right rear door switch
- Room lamp
- Tail- gate open switch
- Tailgate door lock assembly
- Taillamp relay
- Wiper/washer system
Instrument Illumination Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Illumination Wiring Diagram for Isuzu Axiom 2003:
- (3 bulbs)
- (4 bulbs)
- Ashtray light
- Audio & switch assembly
- B9 (under center console)
- Cigar lighter
- Combination swtich
- Cruise control main switch
- Dash fuse box (on left of dash behind trim panel)
- Driver's seat heater switch
- Engine controls, door locks systems
- Exterior lights system
- Fog light switch
- Glove box lamp
- Hazard warning switch
- Head
- Hot at all times
- I-23
- Illumination controller
- Illumination controller light
- Lamp switch
- Meter assembly
- Mid display
- Off
- Park
- Rear wiper switch
- Red
- Right front seat heater switch
- Shift lock controller
- Solid state
- Switch unit
- Tail fuse 4 15a
- Taillamp relay
- Tod switch
NAVIGATION
Navigation Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Navigation Wiring Diagram for Isuzu Axiom 2003:
- (on left of dash behind trim panel)
- (under center console) b9
- Air conditioning system
- Audio & switch assembly
- Auto a/c control unit
- B9 (under center console)
- C-15 elec ig fuse 15a
- C-18 audio mirror fuse 10a
- C-2 audio fuse 15a
- C-7 door lock fuse 20a
- Dash fuse box
- Data line
- E23 (at right side of engine)
- Electronic suspension system
- Fuel tank sender
- Fuel tank unit (beneath rear of vehicle, in top of fuel tank)
- Gps receiver unit (top center of dash)
- Hot at all times
- Hot in acc or on
- Hot in on
- I19
- Instrument cluster system
- Interior lights system
- Keyless entry & anti-theft control unit (on right side of dash, behind glove box)
- Mid control unit (behind center of dash)
- Mid display
- Pnk
- Powertrain control module (pcm) (left side of engine compartment)
- Vehicle speed sensor (vss) (2wd: on right side of transmission) (4wd: on rear of transfer case)
POWER DISTRIBUTION
Power Distribution Wiring Diagram (1 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (1 of 3) for Isuzu Axiom 2003:
- (on right side of engine compt) fuse/relay box
- 1-4i
- Alarm & relay control unit
- Anti- theft horn
- Audio & switch assembly
- Auto a/c control unit
- Battery
- Brake switch
- C-37
- C-46
- C-5
- Coil
- Condenser fan relay
- Dash fuse box (on left of dash behind trim panel)
- Data link connector (dlc)
- Driver's lumbar seat switch
- Driver's power seat switch
- E-34
- Electronic hydraulic control unit (ehcu)
- Foglamp relay
- Fuel pump relay
- Fuse 1 acc socket 15a
- Fuse 1 hazard 15a
- Fuse 10 fog lamp 15a
- Fuse 13 pcm back-up 10a
- Fuse 14 tod 15a
- Fuse 15 pcm 30a
- Fuse 16 main 100a
- Fuse 17 ign b1 60a
- Fuse 19 ign b2 50a
- Fuse 2 audio 15a
- Fuse 2 horn 10a
- Fuse 20 con- denser fan 30a
- Fuse 21 power window 30a
- Fuse 21 semi active sus 30a
- Fuse 23 immobilizer 10a
- Fuse 3 acg-s 10a
- Fuse 4 tail 15a
- Fuse 5 room lamp 10a
- Fuse 6 stop lamp 15a
- Fuse 7 door lock 20a
- Fuse abs 50a
- Generator
- Gps receiver unit
- Hazard warning switch
- Heater a/c relay
- I-13
- I-18
- I-19
- I-24
- I-42
- I-43
- Immobilizer control unit
- Intelligent suspension control unit
- J/c a
- J/c b
- Key remind switch
- Keyless entry & anti-theft control unit
- Left front door courtesy light
- Left front power window & door lock switch
- Left headlight relay
- Left rear door courtesy light
- Luggage room light
- Map lamp
- Meter assembly
- Mid control unit
- Mid display
- Option fuse box (on right side of engine compt)
- Pcm main relay
- Pnk
- Power window relay
- Powertrain control module
- Rear defogger relay
- Rear view mirror
- Red
- Right front door courtesy light
- Right front power seat switch
- Right headlight relay
- Right rear door courtesy light
- Room lamp
- Starter
- Starter relay
- Starter solenoid
- Starter switch
- Taillight relay
- To accessory power relay (diagram 2 of 3)
- To ignition switch (diagram 2 of 3)
- Tod control unit
Power Distribution Wiring Diagram (2 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (2 of 3) for Isuzu Axiom 2003:
- (on right side of engine compt) fuse/ relay box
- Acc
- Accessory socket relay
- Alarm & relay control unit
- Audio & switch assembly
- B9 (under center console)
- Cigarette lighter
- Dash fuse box (on left of dash behind trim panel)
- Driver's seat heater switch
- E-34
- From fuse 1 (diagram 1 of 3)
- From fuse 15 (diagram 1 of 3)
- From fuse 19 (diagram 1 of 3)
- Front accessory socket
- Fuse 15 elec ign 15a
- Fuse 16 rear wiper 10a
- Fuse 18 audio mirror 10a
- Fuse 19 cigar 15a
- Fuse 20 anti- theft 10a
- Fuse 3 starter 10a
- Fuse 4 seat heater 15a
- Fuse/ relay box (on right side of engine compt)
- Heater a/c relay
- I-13
- I-18
- I-42
- Ignition switch
- Keyless entry & anti-theft control unit
- Lock
- Mid control unit
- Mid display
- Mirror control switch
- Off
- Passenger's seat heater switch
- Pnk
- Power window relay
- Powertrain control module (pcm)
- Rear accessory socket
- Rear defogger relay
- Rear view mirror
- Rear wiper motor
- Rear wiper switch
- Start
- To dash fuse box (diagram 3 of 3)
Power Distribution Wiring Diagram (3 of 3) for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (3 of 3) for Isuzu Axiom 2003:
- Alarm & relay control unit
- Automatic transmission mode switch
- Brake switch
- C-38
- C-46
- C-6 a1
- Combination switch
- Condenser
- Cruise control main switch
- Cruise control switch
- Dash fuse box (on left of dash behind trim panel)
- E-20
- Electronic hydraulic control unit (ehuc)
- Evap canister cut valve
- Evap canister purge valve
- From ignition switch (diagram 2 of 3)
- Fuse 11 meter 15a
- Fuse 12 engine 15a
- Fuse 13 ign coil 15a
- Fuse 14 back-up/ turn 15a
- Fuse 17 front wiper 20a
- Fuse 22 srs 10a
- Fuse/ relay box
- Hazard warning switch
- I-2
- I-22
- I-24
- I-42
- I-43
- Ignition coil
- Immobilizer control unit
- Intelligent suspension control unit
- Ion sensing module
- Mass airflow (maf) sensor
- Meter assembly
- Multiplexed indicator control unit
- Pcm main relay
- Sensing & diagnostic module (sdm)
- Shift lock relay
- Shift-on- the-fly controller
- Tod control unit
- Torque on demand switch
- Variable intake manifold vacuum switching valve
- Vehicle speed sensor (vss)
- Windshield wiper motor
- Windshield wiper/washer switch
POWER DOOR LOCKS
Power Door Locks Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Door Locks Wiring Diagram for Isuzu Axiom 2003:
- Anti- theft fuse 20 10a
- B9 (under center console)
- Battery
- Battery input
- Dash fuse box (on left of dash, behind trim panel)
- Door lock fuse 7 20a
- Door lock switch
- Front passenger door lock actuator
- Ground
- Hot at all times
- Hot in acc or on
- Ignition input
- Keyless entry & anti-theft control unit (on right side of dash, behind glove box)
- Lck/unlck input
- Lck/unlck out
- Left front door lock actuator
- Left front door lock assembly
- Left front door power window & lock switch
- Left rear door lock actuator
- Left rear door lock assembly
- Lf dr lck ctrl
- Lock
- Lock input
- Right front door lock assembly
- Right front door power window & lock switch
- Right rear door lock actuator
- Right rear door lock assembly
- Tailgate door lock actuator
- Tailgate door lock assembly
- Unlock
- Unlock input
POWER MIRRORS
Automatic Day/Night Mirror Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Automatic Day/Night Mirror Wiring Diagram for Isuzu Axiom 2003:
- (under center console) b9
- Dash fuse box (on left of dash behind trim panel)
- Electrochromatic mirror
- Fuse 15 elec ig 15a
- Fuse 5 room lamp 10a
- Homelink unit
- Hot at all times
- Hot in on
- Rear view mirror
Power Mirrors Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Mirrors Wiring Diagram for Isuzu Axiom 2003:
- (under center console) b9
- Dash fuse box (on left of dash behind trim panel)
- Defogger
- Defogger system
- Down
- Fuse 18 audio mirror 10a
- Hot in acc or on
- Left
- Left power mirror
- Left/right
- Mirror control switch
- Mirror selector switch
- Right
- Right power mirror
- Switch 1
- Switch 2
- Switch 3
- Up/down
POWER SEATS
Heated Seats Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Heated Seats Wiring Diagram for Isuzu Axiom 2003:
- B9 (under center console)
- Driver's seat back
- Driver's seat cushion
- Driver's seat heater switch
- Fuse 4 seat heater 15a
- Fuse/relay box (on right side of engine compartment)
- Hot in on
- Illumination
- Interior lights system
- Low
- On indicators
- Right front seat back
- Right front seat cushion
- Right front seat heater switch
Power Seats Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Seats Wiring Diagram for Isuzu Axiom 2003:
- B9 (under center console)
- C-21 power window 30a
- Dash fuse box (on left of dash, behind trim panel)
- Driver's lumbar support motor
- Driver's lumbar switch
- Driver's power seat switch
- Driver's seat recline motor
- Driver's seat slide motor
- Front
- Hot at all times
- Lumbar support switch
- Rear
- Recliner switch
- Red
- Right front power seat switch
- Right front seat recline motor
- Right front seat slide motor
- Slide switch
- T11
- T12
POWER TOP/SUNROOF
Power Top/Sunroof Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Top/Sunroof Wiring Diagram for Isuzu Axiom 2003:
- (under center console) b9
- Auto open
- Close
- Close relay
- Control unit
- Dash fuse box (on left of dash behind trim panel)
- Elec ig fuse 15 15a
- Hot at all times
- Hot in on
- Limit switches (at front center of roof, beneath headliner)
- Off
- Open
- Open relay
- Power window fuse 21 30a
- Power window relay
- Power window system
- Red
- Safety stop switch
- Sun roof control unit/motor (center front of roof)
- Sun roof motor (center front of roof)
- Sunroof switch
- T-18
- T-19
- Tilt
- Tilt switch
POWER WINDOWS
Power Windows Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Windows Wiring Diagram for Isuzu Axiom 2003:
- (under center console) b9
- B9 (under center console)
- Dash fuse box (on left of dash behind trim panel)
- Fuse 15 elec ig 15a
- Fuse 21 power window 30a
- Ground
- Hot at all times
- Hot in on
- Left front door power window & lock switch
- Left front power window motor
- Left rear power window motor
- Left rear power window switch
- Multiplex in
- Multiplex out
- Power
- Power tops system
- Power window relay
- Right front door power window & lock switch
- Right front power window motor
- Right rear power window motor
- Right rear power window switch
- Win mtr ctrl
RADIO
Radio Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagram for Isuzu Axiom 2003:
- Ant
- Antenna
- Antenna in
- Audio & switch assembly
- Auto a/c control unit (behind center of control unit)
- B9 (under center console)
- Cd player
- Dash fuse box (on left of dash behind trim panel)
- Data
- Defog ctrl
- Defog input
- Defogger system
- Fuse 15 elec ig 15a
- Fuse 18 audio mirror 10a
- Fuse 2 audio 15a
- Ground
- Hot at all times
- Hot in on
- Hot in on or acc
- I-18
- I-19
- I-39
- I-40
- Illumination
- Interior lights system
- Left front speaker
- Left front tweeter
- Left rear speaker
- Left rear tweeter
- Mem power
- Mid display
- Nca
- Nca
- Power
- Right front speaker
- Right front tweeter
- Right rear speaker
- Right rear tweeter
- Vehicle speed sensor (vss) (4wd: on rear of transfer case) (2wd: on right side of transmission)
- Vss input
SHIFT INTERLOCK
Shift Interlock Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Shift Interlock Wiring Diagram for Isuzu Axiom 2003:
- B9 (under center console)
- Brake switch (on brake pedal support)
- C-11 meter fuse 15a
- C-6 stop lamp fuse 15a
- Dash fuse box (on left of dash behind trim panel)
- Hot at all times
- Hot in on or start
- Illum
- Interior lights system
- Parking position detect switch
- Red
- Shift lock controller (under center console)
- Shift lock relay (under center console)
- Shift lock solenoid
STARTING/CHARGING
Charging Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Charging Wiring Diagram for Isuzu Axiom 2003:
- Battery
- C10 (at rear of battery tray)
- Charging system warning light
- Dash fuse box (on left of dash behind trim panel)
- Fuse c-11 meter 15a
- Fuse eb-16 main 100a
- Fuse eb-3 acg-s 10a
- Fuse/ relay box (on right side of engine compt)
- Generator
- Hot in on or start
- I-24
- J/c b
- Meter assembly
- P10 (at right side of engine compt)
- P9 (at right side of engine compt)
- Starting circuit
Starting Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Starting Wiring Diagram for Isuzu Axiom 2003:
- Acc
- Automatic transmission mode switch (beneath center of vehicle, on left side of transmission)
- Battery
- Battery tray)
- Dash fuse box (on left of dash behind trim panel)
- E-34
- E-35
- Fuse c-12 engine 15a
- Fuse c-3 starter 10a
- Fuse eb-16 main 100a
- Fuse eb-19 ign-b2 50a
- Fuse/ relay box (on right side of engine compt)
- Fuse/relay box (on right side of engine compt)
- Hot in on or start
- Ignition switch
- Immo input
- Immobilizer control unit (in right side of steering column)
- J/c a
- Lock
- Off
- P10 (at right side of engine compt) c10 (at rear of
- P9 (at right side of engine compt)
- Pcm out
- Pnk
- Powertrain control module (pcm) (left side of engine compt)
- Red
- Rly ctrl
- Start
- Starter
- Starter motor
- Starter relay
- Starter solenoid
- Str feed
SUPPLEMENTAL RESTRAINTS
Supplemental Restraints Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Supplemental Restraints Wiring Diagram for Isuzu Axiom 2003:
- (behind left kick panel) i36
- (under center console) b9
- Air bag readiness indicator lamp
- C-11 meter fuse 15a
- C-22 srs fuse 10a
- Dash fuse box (on left of dash behind trim panel)
- Data link connector (dlc) (partial) (near engine hood release lever)
- Dlc output
- Driver's inflator module
- Driver's seat belt switch (open with seat belt buckled)
- Ground
- High
- Hot in on or start
- I-24
- Ignition
- Lamp ctrl
- Low
- Meter assembly
- Note: shorting bar connectors are used on sensing & diagnostic module (sdm), when module is disconnected between pins: 3 & 4, 6 & 7, 15 & 16
- Passenger's inflator module
- Red
- Seat input
- Sensing & diagnostic module (sdm) (under front of center console)
- Serial data
- Srs coil assembly
- Steering wheel
- Warning system
TRANSMISSION
4WD Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 4WD Wiring Diagram for Isuzu Axiom 2003:
- (left side of engine compt)
- (right rear corner of eng compt) electronic hydraulic control unit
- (right rear of trans) front speed sensor
- (right rear of trans) rear speed sensor
- +v ref
- 2h in
- 4 h/l transfer switch assembly
- 4h in
- 4l in
- 4wd in
- 4wd out
- A-1
- A/t circuit
- Abs active
- Abs out
- Atm a in
- Atm b in
- Atm c in
- Auto ind
- Automatic transmission mode switch (left side of transmission)
- Axle engage
- Battery
- Brake sw
- Brake switch (on top of brake pedal support)
- C-26
- C-26 (left side of engine compt)
- C-37
- C-38
- Check tod ind
- Clutch sol
- Dash fuse box (left side of dash, behind the trim panel)
- Data
- Datalink connector (lower left side of dash)
- E-34
- Encoder switches
- Eng speed
- Engage ctrl
- Exterior lights system
- Front axle motor actuator (left side of axle)
- Front ind
- Fss sig
- Fuse 11 meter 15a
- Fuse 14 back up/ turn 15a
- Fuse 14 tod 15a
- Fuse 6 stop lamp 15a
- Fuse/ relay box (right side of engine compt)
- Ground
- H-l shift motor
- H-l shift motor assembly
- Hot at all times
- Hot in on or start
- I-24
- Ignition
- Illum
- Instrument cluster system
- Interior lights
- Interior lights system
- Lamps on
- Meter assembly
- Motor h-l
- Motor l-h
- Mtr pos 1
- Mtr pos 2
- Mtr pos 3
- Mtr pos 4
- P-15 (top of transfer case)
- Pnk
- Powertrain control module (left side of engine compt)
- Rear ind
- Red
- Rpm out
- Rss sig
- Shift-on- the-fly controller (behind radio)
- Tod
- Tod ind
- Torque on demand (tod) switch
- Torque-on- demand (tod) control unit (below left side of dash)
- Tps in
- Tps out
- Transfer clutch solenoid (in the transfer case)
A/T Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for A/T Wiring Diagram for Isuzu Axiom 2003:
- (left side of engine) e-21
- (left side of transmission) automatic transmission mode switch
- 4wd circuit
- A/t oil temp ind
- A/t oil temperature sensor
- Automatic transmission
- B-9 (under center console)
- Battery
- Braided
- Brake
- Brake switch (on top of brake pedal support)
- Brake/tcc
- Brk band
- C-26 (left side of engine compt)
- Check trans ind
- Dash fuse box (left side of dash)
- Data
- Data link connector (below left side of dash)
- E-21 (left side of engine)
- E-23 (right side of engine)
- E-34
- E-35
- E-40
- E-42
- Ect in
- Engine controls system
- Engine coolant temperature sensor (right front of engine)
- Etc grd
- Exterior lights system
- Fuse 11 meter 15a
- Fuse 12 engine 15a
- Fuse 13 pcm b/u 10a
- Fuse 14 back up/ turn light 15a
- Fuse 15 pcm 30a
- Fuse 6 stoplamp 15a
- Fuse/ relay box (right side of engine compt)
- Ground
- Hot at all times
- Hot in on or start
- I-22
- I-24
- Ignition
- Interior lights system
- Meter assembly
- Multi-plexed indicator control unit (under rear of center console)
- Pcm main relay
- Pnk
- Power
- Power drive ind
- Power/ winter switch (part of switch unit)
- Powertrain control module (left side of engine compt)
- Pressure control solenoid
- Psc+
- Psc-
- Pwr sw
- Red
- Ref volt
- Shift solenoid a
- Shift solenoid b
- Sol v+
- Ssa
- Ssb
- Tcc +
- Tcc -
- Tft +
- Tft -
- Throttle position sensor 1
- Throttle position sensor 2
- Throttle valve assembly (on throttle body assembly)
- Torque converter clutch solenoid
- Tps1 grd
- Tps1 sig
- Tps2 grd
- Tps2 sig
- Trans pos
- Transmission speed sensor (on top of transmission)
- Tss +
- Tss -
- Winter
- Winter drive ind
- Winter sw
WARNING SYSTEMS
Warning Systems Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Warning Systems Wiring Diagram for Isuzu Axiom 2003:
- Alarm & relay control unit (on right side of dash)
- Anti-theft, door locks systems
- B9 (under center console)
- Battery
- Beeper
- Combination switch
- Dash fuse box (on left of dash behind trim panel)
- Driver's seat belt switch
- Drvr's door open input
- Engine controls, anti-theft systems
- Fuse 11 meter 15a
- Fuse 2 horn 10a
- Fuse 4 tail 15a
- Fuse 7 door lock 20a
- Fuse/ relay box (on right side of engine compt)
- Ground
- Head
- Hot at all times
- Hot in on or start
- I-24
- I-41
- I-42
- Ignition switch
- Interior lights system
- Key in ign input
- Key reminder switch
- Left front door switch
- Light switch
- Lights on input
- Meter assembly
- Off
- Park
- Seat belt reminder light
- Tail light relay
WIPER/WASHER
Front Wiper/Washer Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Front Wiper/Washer Wiring Diagram for Isuzu Axiom 2003:
- Alarm & relay control unit (on right side of dash)
- B9 (under center console)
- C10 (at rear of battery tray)
- Combination switch
- Dash fuse box (on left of dash behind trim panel)
- Ft wiper fuse 17 20a
- Gnd
- Hot in on or start
- I-41
- I-42
- Ignition
- Int
- Int input
- Off
- Off input
- P10 (at right side of engine compt)
- Park
- Ref
- Run
- Run/park in
- Var int input
- Variable intermittent
- Wash
- Wash input
- Windshield washer motor (on right front of engine compartment, in washer fluid reservoir)
- Windshield wiper motor (on right rear corner of engine compartment, on firewall)
- Windshield wiper/washer switch
Rear Wiper/Washer Wiring Diagram for Isuzu Axiom 2003
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Rear Wiper/Washer Wiring Diagram for Isuzu Axiom 2003:
- Alarm & relay control unit (on right side of dash)
- Anti-theft, interior lights systems
- B9 (under center console)
- Battery
- C10 (at rear of battery tray)
- Dash fuse box (on left of dash behind trim panel)
- Hot at all times
- Hot in on
- I-41
- I-42
- Ignition
- Illumi- nation
- Interior lights system
- P10 (at right side of engine compt)
- Rear wash ctrl
- Rear washer motor (on right front of engine compt, in washer fluid reservoir)
- Rear wiper motor (on tailgate door, behind trim panel)
- Rear wiper switch
- Red
- Room lamp fuse 5 10a
- Rr wiper fuse 16 10a
- Tailgate door lock assembly
- Tailgate open in
- Tailgate open switch
- Wash on input
- Washer
- Wipe mtr ctrl
- Wipe on input
- Wiper
