AIR CONDITIONING

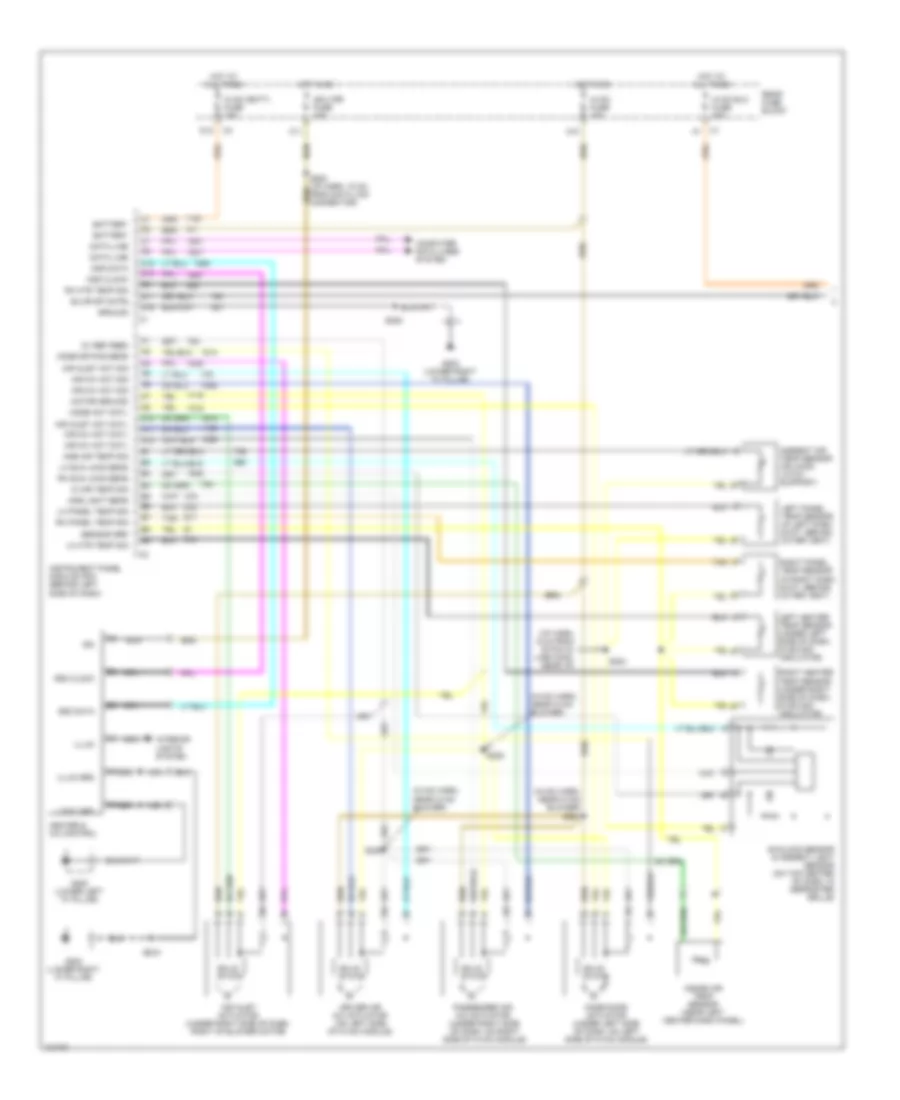

Automatic A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO List of elements for Automatic A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000:
- (hvac harn, near hvac blower)
- (hvac harn, near hvac blower) s221
- (i/p harn, 6 cm from 30 pin in- line conn, near i/p)
- 5v ref feed
- A10
- A11
- A12
- Air inlet act cntl
- Air inlet act sig
- Air inlet actuator (under right side of dash, right of blower motor)
- Air mix act cntl
- Air mix act sig
- Amb air temp sig
- Amb light sens
- Ambient air temp sensor (on hood latch support)
- Battery
- Blwr sp cntrl
- C1 a1
- C11
- C12
- C13
- Computer data lines system
- D11
- D12
- D16
- Data line
- Driver air mix actuator (on left side of hvac module)
- G200 (lower left "a" pillar)
- G203 (lower right "a" pillar)
- Ground
- Heater & a/c control
- Hot at all times
- Hot in on
- Hvac (batt) fuse 15a
- Hvac blo fuse 30a
- Hvac fuse 10a
- Ign
- Ign 3 rr fuse 10a
- Illum
- Illum grd
- In air temp sig
- Inside air temp sensor (near left center dash panel)
- Instrument panel module (ipm) (behind left side of dash)
- Interior lights system
- Kdd clock
- Kdd data
- Left heater temp sensor (under left side of dash, in sound insulator)
- Left panel temp sensor (in left dash duct, behind outer vent)
- Lh htr temp sig
- Lh panel temp sig
- Lh sun load sens
- Logic grd
- Mode act cntl
- Mode door actuator (under left side of dash, on left side of hvac module)
- Mode dr pos sens
- Motor ground
- Nca
- Passenger air mix actuator (under right side of dash, on right side of hvac module)
- Rear fuse block
- Rh htr temp sig
- Rh panel temp sig
- Rh sun load sens
- Right heater temp sensor (under right side of dash, in sound insulator)
- Right panel temp sensor (in right dash duct, behind outer vent)
- S203
- S204
- S205
- S222
- Sensor grd
- Solid state
- Sunload sensor & ambient light sensor (on top center of dash, in defroster grille)
- Tan
Automatic A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Automatic A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000:
- (engine harn, 6.5 cm from iac valve breakout)
- 5 v
- A/c clu fuse 15a
- A/c clu relay
- A/c compressor clutch
- A/c compressor clutch diode
- A/c enable
- A/c pressure sensor (behind a/c compressor, on a/c line)
- B10
- Battery
- Blower control module (under right side of dash, above blower motor)
- Blower motor (under right side of dash, above sound insulator)
- Blwr mtr grd
- Blwr sp input
- Blwr volt
- Computer data lines system
- Cool fan 1 fuse 30a
- Cool fan 1 relay (low speed)
- Cool fan 2 fuse 30a
- Cool fan 2 relay (high speed)
- Cool fan s/p relay (series/parallel)
- D10
- Data line
- E10
- Ect sens grd
- Ect sens sig
- Engine controls system
- Engine coolant temperature sensor (on rear of
- Engine, near thermostat housing)
- F11
- G101 (mounted to inner body panel, forward of underhood fuse block)
- G129 (on top of transmission)
- G203 (lower right "a" pillar)
- Grd
- High spd fan cntrl
- Hot at all times
- Hot in on
- Left cooling fan motor
- Low spd fan cntrl
- Powertrain control module (pcm) (in air cleaner housing)
- Right cooling fan motor
- S106
- S108
- Sensor grd
- Sensor signal
- Speed cntl
- Underhood fuse block (right front side of engine compartment)
Compressor Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Compressor Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (engine harn, 6.5 cm from iac valve breakout)
- 5 v
- A/c clu fuse 15a
- A/c clu relay
- A/c compressor clutch
- A/c compressor clutch diode
- A/c enable
- A/c pressure sensor (behind a/c compressor, on a/c line)
- Computer data lines system
- Data line
- Engine controls system
- G129 (on top of transmission)
- Hot at all times
- Hot in on
- Powertrain control module (pcm) (in air cleaner housing)
- S106
- S108
- Sensor grd
- Sensor signal
- Underhood fuse block (right front side of engine compartment)
Manual A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Manual A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000:
- (hvac harn, near hvac blower)
- (hvac harn, near hvac blower) s221
- 5v ref
- A10
- A11
- A12
- A13
- A14
- A15
- A16
- Air inlet act cntl
- Air inlet actuator (under right side of dash, on right side of hvac module)
- Air mix act cntl
- Air mix actuator (on left side of hvac module)
- Anti-lock brakes system
- B10
- B11
- B12
- B13
- B14
- B15
- B16
- Battery
- Blower control module (under right side of dash, above blower motor)
- Blower motor (under right side of dash, above sound insulator)
- Blwr mtr grd
- Blwr sp cntrl
- Blwr sp input
- Blwr volt
- C1 a10
- C215
- C216
- Computer data lines system
- D12
- Data line
- Dim out
- Dimmer sw out
- Fog lp switch
- G200 (lower left "a" pillar)
- G203 (lower right "a" pillar)
- Grd
- Grd return
- Head- lights system
- Heater & a/c control (behind left side of dash)
- Hot at all times
- Hot in on
- Hvac blo fuse 30a
- Hvac fuse 10a
- Illum grd
- Int lamp sw out
- Interior lights system
- Ipm fuse 10a
- Ipm fuse output
- Key cyl halo lp
- Key reminder sw
- Logic grd
- Mode act cntl
- Mode door actuator (under left side of dash, on left side of hvac module)
- Motor grd
- Nca
- Photocell sig
- Rear fuse block (under left rear seat)
- S203
- S222
- Sensor returns
- Sensors
- Solid state
- Speed cntl
- Trac cntrl sw
- Trunk release sw
- Trunk, tailgate, fuel doors release system
- Twilight sentinel
- Warnings system
Manual A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Manual A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000:
- (engine harn, 6.5 cm from iac valve breakout)
- 5 v
- A/c clu fuse 15a
- A/c clu relay
- A/c compressor clutch
- A/c compressor clutch diode
- A/c enable
- A/c pressure sensor (behind a/c compressor, on a/c line)
- B10
- Computer data lines system
- Cool fan 1 fuse 30a
- Cool fan 1 relay (low speed)
- Cool fan 2 fuse 30a
- Cool fan 2 relay (high speed)
- Cool fan s/p relay (series/parallel)
- D10
- Data line
- E10
- Ect sens grd
- Ect sens sig
- Engine controls system
- Engine coolant temperature sensor (on rear of
- Engine, near thermostat housing)
- F11
- G101 (mounted to inner body panel, forward of underhood fuse block)
- G129 (on top of transmission)
- High spd fan cntrl
- Hot at all times
- Hot in on
- Left cooling fan motor
- Low spd fan cntrl
- Powertrain control module (pcm) (in air cleaner housing)
- Right cooling fan motor
- S106
- S108
- Sensor grd
- Sensor signal
- Underhood fuse block (right front side of engine compartment)
ANTI-LOCK BRAKES
Anti-lock Brake Wiring Diagrams for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Anti-lock Brake Wiring Diagrams for Pontiac Bonneville SSEi 2000:
- (engine harn, near lf wheel speed sensor breakout)
- (engine harn, near rf wheel speed sensor breakout)
- (on top of transmission)
- A1 c2
- Abs fuse 10a
- Abs fuse 50a
- Abs ind lamp
- Abs ind sig
- Antilock indicator
- Auto a/c
- B c4
- Battery
- Brake pressure modulator valve
- C1 c8
- C11
- C12 c1
- C3 f1
- Computer data lines system
- Delivered torque output
- Electronic brake control module (ebcm) (on left front of engine compartment)
- G129
- G901 (on lower right front "a" pillar)
- Ground distribution system
- Ground-module
- Ground-pump motor
- Heater & a/c control
- Hot at all times
- Hot w/ ign-3 relay energized
- Ignition 3
- Instrument cluster
- Instrument panel module (ipm)
- Lateral accelerometer
- Lateral accelerometer sensor (under rear seat)
- Left front wheel speed sensor
- Left rear wheel speed sensor
- Lf wheel spd sens-ret
- Lf wheel spd sens-sig
- Low trac indicator
- Lr wheel spd sens-ret
- Lr wheel spd sens-sig
- Manual a/c
- Nca
- Powertrain control module (pcm) (in air cleaner housing)
- Pump motor
- Rear fuse block
- Red
- Requested torque input
- Rf wheel spd sens-ret
- Rf wheel spd sens-sig
- Right front wheel speed sensor
- Right rear wheel speed sensor
- Rr wheel spd sens-ret
- Rr wheel spd sens-sig
- S101
- S102
- S103
- S104
- S205
- S303
- S305
- Sens feed-5v
- Sensor ret
- Serial data class 2
- Sp301
- Steering wheel pos
- Steering wheel position sensor (swps) (on base of steering column)
- Stop lp fuse 15a
- Stoplight sw
- Stoplight/auto trans shift lock control switch (on brake pedal bracket)
- Tan
- Torque delivered
- Torque desired
- Trac ctrl sw
- Trac off indicator
- Traction control switch
- Traction ready indicator control
- Underhood fuse block
- Var effort steering
- Variable effort steering actuator (on left side of power steering gear)
- Vent tube
- Yaw rate sens
- Yaw rate sensor (under rear shelf)
ANTI-THEFT
Forced Entry Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Forced Entry Wiring Diagram for Pontiac Bonneville SSEi 2000:
- C11
- C12
- Class 2 data line
- Computer data lines system
- Dash integration module (behind right side of dash)
- Door open input
- Driver door lock actuator
- Driver door lock cylinder switch
- Driver door module
- Drv mdl fuse 10a
- Ground
- Headlight system & exterior lights system
- Horn ctrl
- Horns system
- Hot at all times
- Left rear door lock actuator
- Left rear door module
- Lf door ajar in
- Lf door open in
- Lights ctrl
- Lrdr mdl fuse 10a
- Pass mdl fuse 10a
- Passenger door lock actuator
- Passenger door lock cylinder switch
- Passenger door module
- Rear fuse block
- Right rear door lock actuator
- Right rear door module
- Rrdr mdl fuse 10a
- S302 (body harn, near left power seat breakout)
- S602
- Serial data class 2
- Simple bus interface
- Tan
Pass-Key Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Pass-Key Wiring Diagram for Pontiac Bonneville SSEi 2000:
- C11
- C12
- Class 2
- Computer data lines system
- Dash integration module (behind right side of dash)
- Drivers door module (inside drivers door)
- E9 c1
- G203 (on lower right front "a" pillar)
- Gnd
- Ground
- Headlight system & exterior lights system
- Horn ctrl
- Horns system
- Hot at all times
- Ign
- Ign sw fuse 10a
- Ignition switch
- Instrument cluster
- Kek data
- Key data
- Lights ctrl
- Pcm fuse 10a
- Powertrain control module (in air cleaner housing)
- Rear fuse block
- S205
- S208
- Serial data
- Serial data class 2
- Theft deterrent exciter module (right side of steering column)
- Underhood fuse block
- Vehicle theft deterrent module (on right side of steering column, behind shroud at ignition switch)
BODY COMPUTER
Dash Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Dash Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (under right rear seat, right of battery on floor pan) g303
- A10
- A11
- A12
- Acc
- B+ sense input
- B10
- B11
- B12
- Battery
- Battery grd sense in
- Computer data lines system
- Control power out
- Dash integration module (dim) (behind right side of dash, under sound insulator)
- Dim fuse 10a
- Dimming output
- Drl rly ctrl
- E11
- Exterior lights system
- Flash to pass in
- Fog lamp rly ctrl
- G900 (on lower left front "a" pillar)
- Grd
- Headlamp sw in
- Headlamps/wipers input
- Headlights system
- Hi beam sw/rly ctrl
- Hi/low beam rly ctrl
- Horn ctrl
- Horns system
- Hot at all times
- Ign sw fuse 15a
- Ignition positive voltage
- Ignition switch
- Interior lights system
- Lock
- Park lamp input
- Park lamp rly ctrl
- Parklamp sw in
- Pnk
- Power distribution system
- Rear fuse block (under left rear seat)
- Run
- Serial data class 2
- Sound systems
- Start
- Steering ctrls ret
- Steering wheels ctrl feed
- Underhood fuse block
- Unlock
- Wiper/washer system
Instrument Panel Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Panel Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000:
- 5 volt feed
- 5 volt ref
- A10
- A11
- A12
- Air conditioning system
- Air inlet actuator ctrl
- Air inlet sensor sig
- Ambient airtemp sens sig
- Ambient light in
- Anti-lock brakes system
- B10
- B11
- B12
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Computer data lines system
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Front fog lamp sw in
- G304 (under left side of rear seat)
- G901 (on lower right front "a" pillar)
- Grd
- Headlights system
- Hot at all times
- Hot in on
- Hvac batt fuse 10a
- Hvac fuse 10a
- Ign-3 relay
- Ignition positive voltage
- Inside air temp sens sig
- Instrument panel integration module (ipm) (behind left side of dash)
- Interior lamps on sw in
- Interior lights system
- Ip dimmer sw in
- Kdd clock
- Kdd data
- Key cylinder lamp out
- Key in ignition in
- Left temp actuator ctrl
- Left temp sensor sig
- Lt a/c temp sens sig
- Lt heater temp sens sig
- Lt sun load temp sens sig
- Mode actuator ctrl
- Mode sensor sig
- Motor grd
- Pwm blower speed ctrl
- Rear fuse block (under left rear seat)
- Right htr temp sensor sig
- Right temp actuator ctrl
- Right temp sensor sig
- Rt a/c temp sens sig
- Rt sun load temp sens sig
- S205
- Sensor grd
- Serial data signal class 2
- Tan
- Traction ctrl disable in
- Trunk lid release sw in
- Trunk, tailgate, fuel doors system
- Twilight delay in
- Warnings system
Rear Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Rear Integration Module Wiring Diagram for Pontiac Bonneville SSEi 2000:
- 5 volt feed alc
- 5 volt ret alc
- A10
- A11
- A12
- Acc inflator sw in
- Alc exhaust sol out
- Alc position
- B10
- B11
- B12
- Cigar lighter rly ctrl
- Computer data lines system
- Defogger system
- Driver heated seat status
- Electronic level ctrl
- Electronic suspension system
- Exterior lights system
- Fuel door lock ctrl
- Fuel door unlock ctrl
- G304 (under left side of rear seat)
- G404 (on lower left corner of trunk, forward of tail lamp)
- Grd
- Heated seat inhibit ctrl
- Hot at all times
- Hot in run or start
- Ign sw fuse 15a
- Ign-1 fuse 10a
- Ign-1 relay
- Ignition positive voltage
- Inadvertant power input
- Interior lamp ctrl
- Interior lights system
- Overhead courtesy lamp
- Park relay ctrl
- Pnk
- Power distribution system
- Power distribution system (cigar lighter)
- Power distribution system (rap)
- Rap ctrl
- Rear fuse block (under left rear seat)
- Rear integration module (rim) (behind upper left rear seat cushion)
- Relay defogger ctrl
- Reverse lamp
- Seats system
- Serial data signal class 2
- Shift interlock system
- Tan
- Trunk latch sw out
- Trunk lid open input
- Trunk, tailgate, fuel doors system
COMPUTER DATA LINES
Computer Data Lines for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Computer Data Lines for Pontiac Bonneville SSEi 2000:
- (dash harn, 6 cm from instrument panel integration module breakout) s202
- A11
- A12
- Aldl fuse 10a
- B12
- Cd changer-remote playback device
- D14
- D15
- Dash integration module (dim) (behind right side of dash)
- Data class 2
- Data link connector (under lower left side of dash)
- Driver door module (inside left front door)
- Electronic brake control module (on left front of engine compt)
- G203 (on lower right front door pillar)
- Head up display
- Hot at all times
- Hvac control module
- Inflatable restraint sensing & diagnostic module (under rear of center console)
- Instrument cluster
- Instrument panel integration module (behind left side of dash)
- Memory seat module (under driver's seat)
- Powertrain control module (in air cleaner housing)
- Radio
- Rear fuse block
- Rear integration module (rim) (below upper left rear seat cushion)
- Remote control door lock receiver (rcdlr) (behind upper left rear seat cushion)
- S203
- S205
- S217 (body harn, left side of vehicle, 24 cm from pass through)
- S308
- S317 (left seat harn, under left front seat)
- Theft deterrent control module (behind shroud at ignition switch)
- Vehicle interface unit (viu) (2001) (behind right rear seat back)
- W/ automatic temperature controls
- W/ cd changer
- W/ head up display
- W/ manual temperature controls
- W/ memory seats
- W/ theft deterrent system
- W/ theft deterrent,
- W/ theft deterrent, w/ memory seats
- W/ theft deterrent, w/o memory seats
- W/ vehicle interface unit
- W/o vehicle interface unit
- W/o cd changer
- W/o head up display
- W/o memory seats
- W/o theft deterrent system
COOLING FAN
Cooling Fan Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cooling Fan Wiring Diagram for Pontiac Bonneville SSEi 2000:
- B10
- Cool fan 1 fuse 30a
- Cool fan 1 relay (low speed)
- Cool fan 2 fuse 30a
- Cool fan 2 relay (high speed)
- Cool fan s/p relay (series/parallel)
- D10
- E10
- Ect sens grd
- Ect sens sig
- Engine coolant temperature sensor (on rear of
- Engine, near thermostat housing)
- F11
- Fan ctrl
- G101 (mounted to inner body panel, forward of underhood fuse block)
- Hot at all times
- Left cooling fan motor
- Powertrain control module (left front side of engine compt, in air cleaner cleaner assembly)
- Right cooling fan motor
- Underhood fuse block (right front side of engine compartment)
CRUISE CONTROL
Cruise Control Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Cruise Control Wiring Diagram for Pontiac Bonneville SSEi 2000:
- All times
- Cancel input
- Cr cont fuse 10a
- Cruise control module (on left strut tower)
- Cruise control switch
- Cruise inhibit
- Cruise on/off
- Cruise set/coast
- Engage ouput
- Engaged input
- Flatwire
- G102 (near left strut tower, on frame rail)
- Ground
- Heads up display
- Hot at
- Hot in
- Ign 1 fuse 10a
- Ignition
- Inhibit output
- Instrument panel cluster
- Nca
- On & start
- On/off
- Pnk
- Powertrain control module (pcm) (in air cleaner housing)
- Rear fuse block
- Resume/accel
- S215 (body harness, left side of vehicle)
- S216
- Set/coast
- Sp301 (under driver's seat)
- Stop lp fuse 15a
- Stoplamp switch (on brake pedal bracket)
- Stp lp sig input
- Tcc/ cruse release switch (near brake pedal)
- Underhood fuse block
- Vehicle speed input
- Vehicle speed out
- Vehicle speed sensor (vss) (on right front of transaxle, below power steering pump)
- Vss high
- Vss low
DEFOGGERS
Defogger Wiring Diagram, with Auto A/C for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Defogger Wiring Diagram, with Auto A/C for Pontiac Bonneville SSEi 2000:
- (left "c"
- (right "c"
- A12
- B5 nca
- B6 nca
- Bonneville
- C1 a4
- C1 c8
- C12
- C2 b12
- C3 d4
- C4 h
- Class 2 data
- Cntl
- Compass module (under rear package shelf)
- Computer data lines
- Data 2 data
- Data line
- Def
- Door locks system
- Driver door module (in left front door)
- Feed
- G904
- G905
- Heater & a/c control
- Hot at all times
- Hot in on & start
- Instrument panel integration module (behind left side of dash)
- Kdd clock
- Kdd data
- Left outside heated mirror
- Nca
- Passenger door module (in right front door)
- Pillar)
- Rear
- Rear defog control
- Rear defogger
- Rear fuse block (under left rear seat)
- Rear integration module (behind upper left rear seat cushion)
- Return
- Right outside heated mirror
- Rr defog fuse 40a
- Rr defog relay
- S302
- Simple bus interface
- Tan/
Defogger Wiring Diagram, with Manual A/C for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Defogger Wiring Diagram, with Manual A/C for Pontiac Bonneville SSEi 2000:
- (bonneville)
- (le sabre)
- (left "c"
- (right "c"
- A12
- A14
- A15
- Bonneville
- C1 a4
- C2 b12
- C3 c4
- C4 h
- Class 2 data
- Cntl
- Compass module (under rear package shelf)
- Computer data lines
- Data 2 data
- Data line
- Def
- Door locks system
- Driver door module (in left front door)
- Feed
- G904
- G905
- Heater & a/c control
- Hot at all times
- Hot in on & start
- Left outside heated mirror
- Nca
- Passenger door module (in right front door)
- Pillar)
- Rear
- Rear defog control
- Rear defogger
- Rear fuse block (under left rear seat)
- Rear integration module (behind upper left rear seat cushion)
- Return
- Right outside heated mirror
- Rr defog fuse 40a
- Rr defog relay
- S302
- Simple bus interface
- Tan/
ELECTRONIC POWER STEERING
Electronic Power Steering Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Electronic Power Steering Wiring Diagram for Pontiac Bonneville SSEi 2000:
- Abs fuse 10a
- Abs fuse 50a
- Battery
- C12
- Computer data lines system
- Electronic brake control module (ebcm) (on left front of engine compt)
- G129 (on top of transmission)
- Ground-module
- Ground-pump
- Hot at all times
- Hot in run
- Ignition
- Nca
- Rear fuse block (under left rear seat)
- Red
- Serial data
- Underhood fuse block (right front side of engine compt)
- Var effort str
- Variable effort steering actuator (on left side of power steering gear)
ELECTRONIC SUSPENSION
Electronic Suspension Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Electronic Suspension Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (on lower left corner of trunk
- 5 volt reference
- Air inflator switch (bonneville only)
- Alc
- Alc fuse 30a
- Alc relay control
- Automatic level control compressor (under rear of vehicle, near suspension carrier)
- Automatic level control suspension position sensor (under rear of vehicle, near rear suspension)
- B10
- C10
- C11
- Compressor
- Exhaust solenoid
- Exhaust solenoid control
- Forward of taillamp)
- G405
- G405 (on lower left corner of trunk forward of taillamp)
- Ground
- Hot at all times
- Hot in run
- Ign
- Motor
- Rear fuse block (under left rear seat)
- Rear integration module (rim) (behind upper left rear seat cushion)
- Red
- Relay
- Signal
ENGINE PERFORMANCE
3.8L
3.8L VIN 1, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SSEi 2000:
- (not used)
- (on lower front of eng block, near starter) bank 1 knock sensor
- (rear of engine)
- 18x ref
- 18x reference
- 3x ref
- 3x reference
- A/t iss low
- A/t speed sensor high
- Acc
- All times
- Anti-lock brake system
- B c
- Bank 2 knock sensor (on lower rear of eng block, near oil filter)
- Battery
- Bonneville le sabre
- Bypass
- C3i fuse 10a
- Ckp 18x sig
- Ckp sync sig
- Cmp input
- Cmp output
- Cmp signal
- Compiuter data lines system
- Cooling fan system
- Cruise control system
- Cruise disable/inhibit in
- Desired torque input
- E e
- Ect sensor ground
- Egr control ground
- Egr pos sensor ground
- Evap purge valve cont
- Evaporative emissions (evap) purge valve (top of eng, near) generator)
- Fuel inj 1 control
- Fuel inj 2 control
- Fuel inj 4 control
- Fuel inj 5 control
- Fuel inj 6 control
- Fuel pump spd ctrl
- G115
- G115 (rear of engine)
- G125 (lower front of engine)
- Ground
- Hi speed cool fan cont
- Ho2s 1 low
- Ho2s 2 low
- Hot at
- Hot at all times
- Hot in run & start
- Iac coil b high
- Iat sensor ground
- Ign control
- Ign voltage
- Ignition
- Ignition control
- Ignition control (ic) module (on top left front of eng)
- Ignition switch (pigtailed for le sabre)
- Instrument cluster, cruise control system (vehicle speed)
- Ks1 input
- Ks2 input
- Lo speed cool fan cont
- Lock
- Maf sensor input
- Map sensor +5 v
- Map sensor ground
- Mass airflow sensor (top of throttle body)
- Not used
- Off
- Pcm batt fuse 10a
- Pcm ground
- Pnk
- Pnk a
- Pnk c
- Powertrain control module (pcm) (near air cleaner housing)
- Ref low
- Reference low
- Run
- S212
- Sensor return
- Sensor return (eop)
- Serial data (class 2)
- Shift sol a control
- Shift sol b control
- Start
- Tan
- Tcc switch input
- Tp sensor ground
- Trans press sw a input
- Trans range sw b input
- Under- hood fuse block
- Vacuum valve control
- Vehicle speed sensor (vss) (right front of transaxle, below power steering pump)
- Vss high
- Vss low
- Vss output
3.8L VIN 1, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SSEi 2000:
- (ign module harn, near icm)
- (rear of engine)
- 1-2 shift sol
- 2-3 shift sol
- A/t fluid pressure manual valve position switch
- A/t fluid temp sensor
- A/t input shaft speed sensor
- Abs/ tcc switch (near brake pedal)
- Automatic transaxle
- Automatic transaxle internal mode switch
- Camshaft position sensor (cmp) (front of eng, below water pump)
- Crankshaft position sensor (ckp) (front of eng, behind crank pulley)
- Cruise control system
- Fuel injec- tors
- G115
- Hot in run & start
- Ign 1 fuse 10a
- Injr 1 fuse 10a
- Injr 2 fuse 10a
- Pnk
- Pressure control solenoid
- Rear fuse block
- Red
- Red a
- Rev
- S135
- S136
- S216
- Tan
- Tcc pwm sol
- Tcc rel
- Under- hood fuse block
3.8L VIN 1, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SSEi 2000:
- (eng harn, 6.5 cm from iac)
- (in right side of luggage compt)
- (left kick panel) g200
- (right rear of trunk) g405
- A/c pressure sensor (behind a/c comp, on a/c line)
- Bonneville
- Engine oil level switch (in left side of eng oil pan)
- Engine oil pressure sensor
- Exhaust gas recirculation (egr) valve (top rear of eng, near throttle body)
- F/pmp fuse 20a
- Fuel pump
- Fuel pump control module (vin 1)
- Fuel pump feed
- Fuel pump high
- Fuel pump low
- Fuel pump relay
- Fuel tank pressure sensor (top of fuel tank)
- Fuel tank unit
- G115 (rear of engine)
- G904 (left rear "c" pillar)
- Ground
- Hot at all times
- Hot in run & start
- Instrument cluster
- Intake air temperature (iat) sensor (left side of eng compt, in air intake duct)
- Ip fuse 10a
- Le sabre
- Malfunction indicator lamp
- Manifold absolute pressure (map) sensor (top right side of eng, above valve cover)
- Pnk
- Pwm control fuel pump
- Rear fuse block
- Red
- S105 (engine harn, 9.5 cm from pcm connector)
- S106
- S206
- S401
- Stop lamp/ btsi switch
- Tach input
- Tan
- Throttle position (tp) sensor (on throttle body assembly)
- Under- hood fuse block
- Vin 1
- Vin k
3.8L VIN 1, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SSEi 2000:
- (under left rear of car, in front of fuel tank, behind evap canister) evaporative emissions (evap) canister vent valve
- 5 volt reference a
- 5 volt reference b
- A/c comp relay control
- A/c ref pressure
- A/c system
- A/t fluid temp input
- Air pump fuse 30a
- Air pump motor
- Air pump relay
- Air relay coil ctrl
- Air vacuum valve solenoid
- Anti-lock brake system
- B red
- Boost control solenoid (bonneville) (top left rear of eng, near oil fill)
- Boost solenoid control
- Brake pedal sw out
- Cruise control system
- Cruise status
- Delivered torque control
- Ect sensor input
- Egr pintle position input
- Egr valve control
- Eng oil level sw input
- Engine coolant temperature (ect) sensor (on rear of eng, near thermostat housing)
- Evap solenoid control
- Fuel inj 3 control
- Fuel level input
- Fuel pump relay control
- Fuel tank press sensor
- Fuel tank sender
- G115 (rear of engine)
- G129 (top of transmission)
- Gen term f monitor
- Gen term l control
- Heated oxygen sensor 1 (in right exhaust manifold)
- Heated oxygen sensor 2 (near front of catalytic converter)
- Ho2s 1 input
- Ho2s 2 input
- Hot at all times
- Hot in run & start
- Hot in run and start
- Iac coil a high
- Iac coil a low
- Iac coil b low
- Iat sensor input
- Idle air control (iac) valve (on throttle body assembly)
- Ign 1 fuse 10a
- Ignition
- Ignition 1
- Map sensor input
- Mil control
- Nca
- Oil pressure signal
- Oxy sen fuse 10a
- Pcm ign fuse 10a
- Pnk
- Powertrain control module (pcm) (near air cleaner housing)
- Press sol high control
- Press sol low control
- Rear fuse block
- Red
- Sensor ground
- Starter relay output
- Starting/charging system
- Tach signal
- Tan
- Tcc pwm sol control
- Tp sensor input
- Trans range b input
- Trans range c input
- Trans range p
- Trans range sw a input
- Trans range sw c input
- Trans tcc release sw in
- Under- hood fuse block
- Vent sol fuse 10a
3.8L VIN K, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SSEi 2000:
- (not used)
- (on lower front of eng block, near starter) bank 1 knock sensor
- (rear of engine)
- 18x ref
- 18x reference
- 3x ref
- 3x reference
- A/t iss low
- A/t speed sensor high
- Acc
- All times
- Anti-lock brake system
- B c
- Bank 2 knock sensor (on lower rear of eng block, near oil filter)
- Battery
- Bonneville le sabre
- Bypass
- C3i fuse 10a
- Ckp 18x sig
- Ckp sync sig
- Cmp input
- Cmp output
- Cmp signal
- Compiuter data lines system
- Cooling fan system
- Cruise control system
- Cruise disable/inhibit in
- Desired torque input
- E e
- Ect sensor ground
- Egr control ground
- Egr pos sensor ground
- Evap purge valve cont
- Evaporative emissions (evap) purge valve (top of eng, near) generator)
- Fuel inj 1 control
- Fuel inj 2 control
- Fuel inj 4 control
- Fuel inj 5 control
- Fuel inj 6 control
- Fuel pump spd ctrl
- G115
- G115 (rear of engine)
- G125 (lower front of engine)
- Ground
- Hi speed cool fan cont
- Ho2s 1 low
- Ho2s 2 low
- Hot at
- Hot at all times
- Hot in run & start
- Iac coil b high
- Iat sensor ground
- Ign control
- Ign voltage
- Ignition
- Ignition control
- Ignition control (ic) module (on top left front of eng)
- Ignition switch (pigtailed for le sabre)
- Instrument cluster, cruise control system (vehicle speed)
- Ks1 input
- Ks2 input
- Lo speed cool fan cont
- Lock
- Maf sensor input
- Map sensor +5 v
- Map sensor ground
- Mass airflow sensor (top of throttle body)
- Not used
- Off
- Pcm batt fuse 10a
- Pcm ground
- Pnk
- Pnk a
- Pnk c
- Powertrain control module (pcm) (near air cleaner housing)
- Ref low
- Reference low
- Run
- S212
- Sensor return
- Sensor return (eop)
- Serial data (class 2)
- Shift sol a control
- Shift sol b control
- Start
- Tan
- Tcc switch input
- Tp sensor ground
- Trans press sw a input
- Trans range sw b input
- Under- hood fuse block
- Vacuum valve control
- Vehicle speed sensor (vss) (right front of transaxle, below power steering pump)
- Vss high
- Vss low
- Vss output
3.8L VIN K, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SSEi 2000:
- (ign module harn, near icm)
- (rear of engine)
- 1-2 shift sol
- 2-3 shift sol
- A/t fluid pressure manual valve position switch
- A/t fluid temp sensor
- A/t input shaft speed sensor
- Abs/ tcc switch (near brake pedal)
- Automatic transaxle
- Automatic transaxle internal mode switch
- Camshaft position sensor (cmp) (front of eng, below water pump)
- Crankshaft position sensor (ckp) (front of eng, behind crank pulley)
- Cruise control system
- Fuel injec- tors
- G115
- Hot in run & start
- Ign 1 fuse 10a
- Injr 1 fuse 10a
- Injr 2 fuse 10a
- Pnk
- Pressure control solenoid
- Rear fuse block
- Red
- Red a
- Rev
- S135
- S136
- S216
- Tan
- Tcc pwm sol
- Tcc rel
- Under- hood fuse block
3.8L VIN K, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SSEi 2000:
- (eng harn, 6.5 cm from iac)
- (in right side of luggage compt)
- (left kick panel) g200
- (right rear of trunk) g405
- A/c pressure sensor (behind a/c comp, on a/c line)
- Bonneville
- Engine oil level switch (in left side of eng oil pan)
- Engine oil pressure sensor
- Exhaust gas recirculation (egr) valve (top rear of eng, near throttle body)
- F/pmp fuse 20a
- Fuel pump
- Fuel pump control module (vin 1)
- Fuel pump feed
- Fuel pump high
- Fuel pump low
- Fuel pump relay
- Fuel tank pressure sensor (top of fuel tank)
- Fuel tank unit
- G115 (rear of engine)
- G904 (left rear "c" pillar)
- Ground
- Hot at all times
- Hot in run & start
- Instrument cluster
- Intake air temperature (iat) sensor (left side of eng compt, in air intake duct)
- Ip fuse 10a
- Le sabre
- Malfunction indicator lamp
- Manifold absolute pressure (map) sensor (top right side of eng, above valve cover)
- Pnk
- Pwm control fuel pump
- Rear fuse block
- Red
- S105 (engine harn, 9.5 cm from pcm connector)
- S106
- S206
- S401
- Stop lamp/ btsi switch
- Tach input
- Tan
- Throttle position (tp) sensor (on throttle body assembly)
- Under- hood fuse block
- Vin 1
- Vin k
3.8L VIN K, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SSEi 2000:
- (under left rear of car, in front of fuel tank, behind evap canister) evaporative emissions (evap) canister vent valve
- 5 volt reference a
- 5 volt reference b
- A/c comp relay control
- A/c ref pressure
- A/c system
- A/t fluid temp input
- Air pump fuse 30a
- Air pump motor
- Air pump relay
- Air relay coil ctrl
- Air vacuum valve solenoid
- Anti-lock brake system
- B red
- Boost control solenoid (bonneville) (top left rear of eng, near oil fill)
- Boost solenoid control
- Brake pedal sw out
- Cruise control system
- Cruise status
- Delivered torque control
- Ect sensor input
- Egr pintle position input
- Egr valve control
- Eng oil level sw input
- Engine coolant temperature (ect) sensor (on rear of eng, near thermostat housing)
- Evap solenoid control
- Fuel inj 3 control
- Fuel level input
- Fuel pump relay control
- Fuel tank press sensor
- Fuel tank sender
- G115 (rear of engine)
- G129 (top of transmission)
- Gen term f monitor
- Gen term l control
- Heated oxygen sensor 1 (in right exhaust manifold)
- Heated oxygen sensor 2 (near front of catalytic converter)
- Ho2s 1 input
- Ho2s 2 input
- Hot at all times
- Hot in run & start
- Hot in run and start
- Iac coil a high
- Iac coil a low
- Iac coil b low
- Iat sensor input
- Idle air control (iac) valve (on throttle body assembly)
- Ign 1 fuse 10a
- Ignition
- Ignition 1
- Map sensor input
- Mil control
- Nca
- Oil pressure signal
- Oxy sen fuse 10a
- Pcm ign fuse 10a
- Pnk
- Powertrain control module (pcm) (near air cleaner housing)
- Press sol high control
- Press sol low control
- Rear fuse block
- Red
- Sensor ground
- Starter relay output
- Starting/charging system
- Tach signal
- Tan
- Tcc pwm sol control
- Tp sensor input
- Trans range b input
- Trans range c input
- Trans range p
- Trans range sw a input
- Trans range sw c input
- Trans tcc release sw in
- Under- hood fuse block
- Vent sol fuse 10a
EXTERIOR LIGHTS
Back-up Lamps Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Back-up Lamps Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (behind upper left rear cushion) rear integration module
- (rear of eng, below ignition control module)
- A12
- Automatic day/night mirror
- Automatic transaxle
- Automatic transaxle internal mode switch
- B12
- G110
- G404 (on lower left corner of trunk, forward of tail lamp)
- G405 (on lower right corner of trunk, forward of tail lamp)
- Hot at all times
- Left back- up lamp
- Nsbu fuse 10a
- Powertrain control module (in air cleaner housing)
- Rear fuse block (under left rear seat)
- Reverse lamp relay
- Reverse lp rly ctrl
- Right back- up lamp
- S408
- S409
- Serial data
- Tr sw a
- Tr sw b
Exterior Lamps Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Exterior Lamps Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (behind right side of dash) dash integrated module
- (body harn, right side of vehicle, near breakout to rear fuse block)
- (i/p round harn, near breakout to connector behind radio)
- (left taillamp harn, near breakout to grommet at left rear taillamp assembly)
- (not used)
- (on lower right corner of trunk, forward of tail lamp)
- (rear compt lid harn, near grommet at license plate lamps)
- (right taillamp harn, near breakout to grommet at right rear taillamp assembly)
- Batt
- C1 a1
- C1 a5
- C1 b4
- C1 b5
- C1 b7
- C1 b9
- C2 b5
- C2 e6
- C2 e7
- C2 f9
- Center hight mounted stop lamp
- Dimr fuse 10a
- F12
- G101 (mounted to inner body panel, forward of underhood fuse block)
- G404 (on lower left corner of trunk, forward of tail lamp)
- G405
- G405 (on lower right corner of trunk, forward of tail lamp)
- G900 (on lower right front "a" pillar)
- G901 (on lower right front "a" pillar)
- Head-up display module (on top left side of dash)
- Headlamp sw
- Headlamp sw sign
- Headlamp switch
- Hot at all times
- Hot in run & start
- Ign-1 fuse 10a
- Instrument panel cluster
- Interior lights system
- L turn input
- L turn/hazard
- Left front park/ turn signal lamp
- Left license plate lamp
- Left rear park/ stop lamp
- Left rear side marker lamp
- Left rear turn signal lamp
- Left turn
- Left turn ind
- Lh park lp fuse 10a
- Nca
- Park lamp sw sign
- Park lp relay
- Pk lp on input
- Pk lp sw
- Pnk
- Prk lp rly ctrl
- R turn input
- R turn/hazard
- Rear fuse block (under left rear of seat)
- Rh park lp fuse 10a
- Right front park/ turn signal lamp
- Right license plate lamp
- Right rear park/ stop lamp
- Right rear side marker lamp
- Right rear turn signal lamp
- Right turn
- Right turn ind
- S203
- S216 pnk
- S250
- S251
- S309
- S406
- S407
- S408
- S409
- S410
- S411
- Splice pack sp301 (under left front seat)
- Stop lp fuse 15a
- Stoplamp switch (on brake pedal support)
- Tsig/ haz fuse 15a
- Turn signal switch
- Turn signal/hazard flasher module (under left side of dash)
GROUND DISTRIBUTION
Ground Distribution Wiring Diagram (1 of 5) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (1 of 5) for Pontiac Bonneville SSEi 2000:
- 4t65-e
- A/c clutch
- A/c clutch diode
- Accy relay
- Air pump motor
- Automatic transaxle
- Brake fluid level switch
- Coil
- Cool fan s/p relay (series/ parallel)
- Cruise control module
- Drl relay
- Electronic brake & (traction) control module (ebcm/ebtcm)
- Engine oil level switch
- F11
- G101 (mounted to inner body panel, forward of underhood fuse block)
- G101 (on top of frame rail, in front of underhood fuse block)
- G102 (near left strut tower, on frame rail)
- G110 (front of engine, below ignition control module (icm))
- G110 (lower left front of engine, near starter motor)
- G129 (rear of engine, on top of transmission)
- Heated oxygen sensor (ho2s) (b1,s1)
- Heated oxygen sensor (ho2s) (b1,s2)
- Horn assembly
- Ign-1 relay
- Ignition control module (icm)
- Internal mode switch
- Left engine cooling fan motor
- Left front park/turn signal lamp
- Left low beam headlamp
- Mass air- flow (maf) sensor
- Nca
- Powertrain control module (pcm)
- Right front park/turn signal lamp
- S108 (in engine harness 18 cm (7.0 in) from a/c clutch connector breakout)
- Underhood fuse block (right front side of engine compartment)
- W/ california system emissions
- Windshield washer fluid level switch
- Windshield washer motor
- Windshield wiper motor
Ground Distribution Wiring Diagram (2 of 5) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (2 of 5) for Pontiac Bonneville SSEi 2000:
- (if equipped) right front seat lumbar switch
- (if equipped) right heated seat module
- (w/auto a/c
- (w/manual a/c)
- 6 way power seats
- 8 way power seats
- A (or d)
- A18
- Automatic transmission shiftlock control solenoid
- B14
- C (or h)
- Dash integration module (dim)
- Driver's door module (ddm)
- Except vehicles w/2 way power seats
- Flat wire
- G200 (on lower left front "a" pillar)
- G301 (under right front seat, on forward crossmember)
- Heater a/c control
- Inflatable restraint sensing & diagnostic module (sdm)
- Inflatable restraint steering wheel module coil
- Instrument cluster
- Left front door lock actuator
- Left front door lock cylinder switch
- Left front heated seat module
- Left front power door lock switch
- Left front power seat switch
- Left front power window switch
- Left front seat recline switch
- Memory function switch
- Memory seat module (msm)
- Nca
- Right front power seat switch
- Right front seat recline switch
- Right rear door module
- S225 (in steering column harness)
- S315 (in left seat harness, under left front seat 6.5 cm (2.5 in) from left heated seat module connector breakout)
- S316 (in right seat harness under right front seat, 6.5 cm (2.5 in) from right heated seat module connector breakout)
- S321 (in left seat harness, under left front seat, 9.5 cm (3.7 in) from left seat harness clip)
- S322 (in right seat harness, under right front seat, 9.5 cm (3.7 in) from right seat harness clip)
- S500 (in left front door trim harness, in left front door, 19 cm (7.4 in) from black
- Steering wheel controls
- Stop lamp/ tcc switch
- Turn signal multifunction switch
- Vehicles w/2 way power seats
- W/2 way power seats
- W/6 & 8 way power seats
- W/6 way power seats
- W/heated seats
- W/heated seats & lumbar
- W/luxury front bucket seats
- W/luxury front bucket seats, memory seats/ mirrors
- W/o heated seats
- W/o heated seats & lumbar
- W/o luxury front bucket seats, memory seats/ mirrors
Ground Distribution Wiring Diagram (3 of 5) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (3 of 5) for Pontiac Bonneville SSEi 2000:
- A16
- Accessory power receptical
- B16
- Blower control module
- Btsi actuator
- Cigar lighter
- Compact disc (cd) player
- D16
- Data link connector (dlc) (partial)
- Door jumper harness)
- Drivers information center (dic) switch
- Flat wire
- Fog lamp switch
- G203 (on lower right front "a" pillar)
- G300 (under left front seat, on forward crossmember)
- Head up display (hud) module
- Head-up display (hud) dimmer switch
- Hvac & a/c control
- I/p compartment switch
- Ignition switch
- Instrument cluster
- Instrument panel integration module (ipm)
- Left heated seat switch
- Radio
- Radio amplifier
- Rear compartment lid release switch
- Right front door module (rfdm)
- Right front power door lock switch
- Right front power window switch
- Right heated seat switch
- S203 (in instrument panel harness, 6.5 cm (2.5 in) from instrument panel module breakout)
- S205 (in instrument panel wire harness 6.5 cm (2.5 in) from 30 cavity brown in-line connector between ip harness & ip flat wire harness)
- S228 (center console harness, approximately 10 cm (4 in) from auxiliary power outlet harness breakout, towards instrument panel harness)
- Shift indicator
- Traction control switch
- Turn signal hazard lamp control module
- Vehicle theft deterrent module
- W/automatic air conditioning
- W/floor console front compartment
Ground Distribution Wiring Diagram (4 of 5) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (4 of 5) for Pontiac Bonneville SSEi 2000:
- (under left rear seat) rear fuse block
- (under right rear seat, right of battery on floor pan) g303
- A11
- Accessory power receptacle
- B12
- Back-up lamp
- Battery
- Coil
- Contacts
- Dash integration module (dim)
- Electronic compass module
- Fuel door lock relay
- Fuel door unlock relay
- Fuel pump relay
- G304 (under left rear seat)
- G404 (on lower left corner of trunk forward of tail lamp)
- G904 (left "c" pillar)
- G905 (right "c" pillar)
- Garage door opener
- If equipped
- Ign-1 relay
- Ign-3 relay
- Inside rear view mirror
- Left clearance lamp
- Left front reading lamp
- Left rear door lock actuator
- Left rear door module
- Left rear power window switch
- Left rear side marker lamp
- Left tail/stop lamps
- Left turn signal lamp
- Left vanity mirror
- Nca
- Onstar cellular antenna
- Rear integration module (rim)
- Rear window defogger
- Remote function actuator (rfa) module
- Right clearance lamp
- Right front reading lamp
- Right vanity mirror
- S329 (in headliner harness 15.6 cm (6.1 in) from 18 cavity in line connector, behind left "c" pillar)
- S334 (in headliner harness, approx 13.5 cm (5.5 in) from garage door breakout, towards auxiliary power connector breakout)
- S409 (left taillamp jumper harness, approx 23 cm (9 in) from 6 cavity in-line connector, behind left rear tail lamp assembly)
- Vehicle communication unit (vcu)
- W/light sensitive inside rear view mirror
- W/o light sensitive inside rear view mirror
Ground Distribution Wiring Diagram (5 of 5) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Ground Distribution Wiring Diagram (5 of 5) for Pontiac Bonneville SSEi 2000:
- 3.8l non supercharged engine
- 3.8l supercharged engine
- Accessory inflator switch
- Automatic level control compressor
- Back-up lamp
- Center high mounted stop lamp (chmsl)
- Fuel pump control module
- Fuel tank unit
- G405 (on lower right corner of trunk, forward of tail lamp)
- If equipped
- Left fog lamp
- Left license lamp
- Pnk
- Rear compartment lid release actuator
- Right fog lamp
- Right high beam headlamp
- Right license lamp
- Right low beam headlamp
- Right rear side marker lamp
- Right rear tail/stop lamps
- Right rear turn signal lamp
- S100 (in forward lamp harness 4.0 cm (1.6 in) from ground g101 forward of underhood fuse block)
- S360 (in onstar jumper harness, between 22 cavity in-line connector & vehicle interface unit (viu) breakout)
- S408 (right tail lamp jumper harness, approx 23 cm (9 in) from 6 cavity in line connector, behind right rear taillight assembly)
- S410
- Sun roof control module
- Vehicle interface unit (viu)
HEADLIGHTS
Headlight Wiring Diagram, with Auto A/C for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlight Wiring Diagram, with Auto A/C for Pontiac Bonneville SSEi 2000:
- (top center of dash) sunload sensor assembly
- A11
- A12
- B10
- B11
- B12
- C1 f11
- C10
- C11
- Computer data lines system
- Dash integration module (dim) (right side of dash)
- Dimmer switch
- Drl relay
- E11
- Flash- to-pass switch
- Fog lamp switch
- Fog lp relay
- Fog/ drl fuse 15a
- G101 (forward of underhood fuse block)
- G200 (on lower left front "a" pillar)
- G203 (on lower right front "a" pillar)
- G405 (on lower right corner of trunk, forward of taillamp)
- Hdhi- bml fuse 10a
- Hdhi- bmr fuse 10a
- Hdlo- bml fuse 15a
- Hdlo- bmr fuse 15a
- Hdlp hi bm relay
- Hdlp lo bm relay
- Headlamp beam switch
- Headlamp switch
- Headlamp switch off
- Hot at all times
- Hot in on & start
- Instrument panel integration module (behind left side of dash)
- Left front fog lamp
- Left high beam head- lamp
- Left low beam head- lamp
- Nca
- Off
- Pk lp switch
- Pnk
- Prk lp relay
- Rear fuse block (under left rear seat)
- Right front fog lamp
- Right high beam head- lamp
- Right low beam head- lamp
- S100
- S203
- S204 (i/p harn, upper left side of dash)
- S226
- Twilight delay sw
- Underhood fuse block (right front side of engine compt)
- Wiper/ washer system
Headlight Wiring Diagram, with Manual A/C for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Headlight Wiring Diagram, with Manual A/C for Pontiac Bonneville SSEi 2000:
- (top center of dash) sunload sensor assembly
- A11
- A12
- B10
- B11
- C1 f11
- C10
- C11
- Computer data lines system
- Dash integration module (dim) (right side of dash)
- Dimmer switch
- Drl relay
- E11
- Flash- to-pass switch
- Fog lamp switch
- Fog lp relay
- Fog/ drl fuse 15a
- G101 (forward of underhood fuse block)
- G200 (on lower left front "a" pillar)
- G203 (on lower right front "a" pillar)
- G405 (on lower right corner of trunk, forward of taillamp)
- Hdhi- bml fuse 10a
- Hdhi- bmr fuse 10a
- Hdlo- bml fuse 15a
- Hdlo- bmr fuse 15a
- Hdlp hi bm relay
- Hdlp lo bm relay
- Headlamp beam switch
- Headlamp switch
- Headlamp switch off
- Hot at all times
- Hot in on & start
- Hvac control module (2001) climate control panel (ccp) (2000) (behind left side of dash)
- Left front fog lamp
- Left high beam head- lamp
- Left low beam head- lamp
- Nca
- Off
- Pk lp switch
- Pnk
- Prk lp relay
- Rear fuse block (under left rear seat)
- Right front fog lamp
- Right high beam head- lamp
- Right low beam head- lamp
- S100
- S203
- S226
- Twilight delay sw
- Underhood fuse block (right front side of engine compt)
- Wiper/ washer system
HORN
Horn Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Horn Wiring Diagram for Pontiac Bonneville SSEi 2000:
- A12
- B12
- C202
- D10
- Dash integration module (behind right side of dash)
- Dual horn assembly (behind left front fascia)
- G101 (forward of underhood fuse block)
- Horn fuse 15a
- Horn relay
- Horn switch
- Hot at all times
- Inflatable restraint steering wheel module
- Inflatable restraint steering wheel module coil
- Nca
- Underhood fuse block
INSTRUMENT CLUSTER
Head-Up Display Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Head-Up Display Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (buick)
- (pontiac)
- Battery
- C11
- Computer data lines system
- Cruise control system, instrument cluster system
- Data lines
- Dimming
- Dimming signal
- Exterior lights system
- G203 (buick: lower right corner of passenger compt, on right right front door pillar) (pontiac: on lower right front "a" pillar)
- Ground
- Head-up display (hud) dimmer switch
- Head-up display module (hud) (on top left side of dash)
- Hot at all times
- Hot in run or start
- Ign 3 rr fuse 10a
- Ignition
- Image down
- Image up
- Interior lights system
- Ip fuse 10a
- Lf turn signal
- Motor down feed
- Motor up feed
- Powertrain control module (pcm) (in air cleaner housing)
- Rear fuse block (under left rear seat)
- Rf turn signal
- S200
- S203
- S205
- S206 (2000-2001 pontiac, 2001 buick)
- S215 (body harn, left side of vehicle)
- Vehicle speed signal
Instrument Cluster Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000:
- (w/u2f)
- (w/u50)
- 1379 (or 1055)
- Antilock ind
- Antilock ind control
- Battery
- Brake ind
- Brk fluid in
- C11
- C2 r defog
- Check oil level ind
- Clock sig
- Compass clk
- Compass data
- Computer data lines system
- Data lines
- Data sig
- Electronic compass module (under left side of rear shelf)
- Eng/met sig
- Engine coolant temperature gauge
- Engine oil pressure gauge
- Exterior lights system
- Fuel gauge
- G101 (front of underhood fuse block)
- G304 (under left rear seat)
- Ground
- High beam ind
- Hot at all times
- Hot in run
- Hot in run or start
- Ign 1 fuse 10a
- Ign 3 rr fuse 10a
- Ign 3 voltage
- Ignition
- Illumination
- Instrument cluster (ipc)
- Interior lights system
- Ip fuse 10a
- Left turn ind
- Low trac ind
- Lt turn sig
- Malfunction ind lamp
- Mode sig
- Nca
- Not used
- Pnk
- Prk brk in
- R defog
- Rear fuse block (under left rear seat)
- Rear integration module (rim) (behind upper left rear seat cushion)
- Reset sig
- Right turn ind
- Rt turn sig
- S206
- S216
- S307
- Security ind
- Select sig
- Speedometer
- Tachometer
- Tachometer signal
- Theft led control
- Tire inflate
- Trac off ind
- Trac ready ind control
- Trip reset sig
- Under- hood fuse block
- Vehicle speed signal
- Volt gauge (w/u50) boost gauge (w/u2f)
- Washer fluid ind
- Washer level sw signal
- Wind- shield washer fluid level switch
Instrument Cluster Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000:
- Abs ind ctrl
- Airbag ind
- Anti-lock brakes system
- Battery charge ind
- Brake fluid level switch (in master cylinder reservoir)
- Check gauges ind
- Door ajar ind
- Driver information center (dic) switch (w/u2f)
- Driver information center (dic) switch (w/u50)
- Electronic brake control module (ebcm) (on left front of engine compt)
- Eng/ met
- Fasten seat belt ind
- Fog lamp switch
- G102 (near left strut tower, on framerail)
- G200 (on lower left front "a" pillar)
- G203 (on lower right front "a" pillar)
- G205
- Instrument cluster (ipc)
- Interior lights system
- Mil control
- Mode
- Park brake switch (on top of park brake pedal assembly)
- Pnk
- Powertrain control module (pcm) (in air cleaner housing)
- Reset
- S203
- S215 (body harn, left side of vehicle)
- Select
- Service vehicle soon ind
- Tach signal
- Theft led
- Tire press ind
- Tire reset
- Traction control switch
- Trip reset
- Trunk ajar ind
- Vss signal
- W/u2f
- W/u50
INTERIOR LIGHTS
Courtesy Lamps Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000:
- (2000)
- (2001)
- A12
- B12
- Class 2 serial data line
- Computer data lines system
- D12
- D13
- Driver door switch assembly (ddsa)
- E11
- E12
- G405
- Ground
- Hot at all times
- I/p fuse 10a
- Ignition key cylinder lamp
- Ignition key cylinder lamp control
- Instrument panel integration module (ipm) (behind center of dash)
- Int lp fuse 10a
- Int lp relay
- Interior lamp relay control
- J/b (lower right corner of trunk, forward of tail lamp)
- Left front door courtesy lamp (2000 only)
- Left front door lock actuator
- Left front door module (upper right corner of door, behind trim panel)
- Left front door open input
- Left front foot well courtesy lamp
- Left rear door courtesy lamp (2000 only)
- Left rear door lock actuator
- Left rear door module (lrdm) (in left rear door)
- Left rear door open input
- Rear compartment courtesy lamp
- Rear compartment lid release actuator
- Rear fuse block (under rear seat)
- Rear integration module (rim) (behind upper left rear seat cushion)
- Red/
- Right front door lock actuator
- Right front door module (rfdm) (upper right corner of door, behind trim panel)
- Right front door open input
- Right rear door lock actuator
- Right rear door module (rrdm) (in right rear door, behind trim panel)
- Right rear door open input
- S206
- S302
- Simple bus interface (sbi)
- Sp306 (in body harn splicesaver, 8 cm from rear fuse block breakout)
- Tan
- Tan/
- To s333 (diagaram 2 of 2)
- To sp310 (diagaram 2 of 2)
- To sp310 (diagram 2 of 2)
- Trunk lid open input
- Underhood fuse block (right front side of eng compt)
Courtesy Lamps Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000:
- (in headliner, approx 35.5 cm from overhead console connector breakout) s333
- (in headliner, approx 42 cm from overhead console connector breakout) s332
- A10
- B10
- Courtesy lamp ground
- From rear fuse block (diagram 1 of 2)
- From sp306 (diagram 1 of 2)
- G203
- G404
- I/p compartment switch/ lamp
- Inadvertent power input
- J/b (on lower left corner of trunk, forward of tail lamp)
- J/b (on lower right "a" pillar)
- Left front reading courtesy lamp
- Left rear reading courtesy lamp
- Left vanity mirror (w/ dh6)
- Overhead console
- Rear integration module (rim) (behind upper left rear seat cushion)
- Right foot well courtesy lamp
- Right front door courtesy lamp (2000 only)
- Right front reading courtesy lamp
- Right rear door courtesy lamp (2000 only)
- Right rear reading courtesy lamp
- Right vanity mirror (w/ dh6)
- S203
- S329
- Sp310 (in body harn splicesaver, 18 cm from rear fuse block breakout)
Instrument Illumination Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Pontiac Bonneville SSEi 2000:
- (auto hvac) a1
- (auto hvac) b1
- (in steering column harness) s223
- (in steering column harness) s227
- (manual hvac) b14
- (manual hvac) b2
- 6.5 cm from ipm breakout)
- C1 a4
- C1 b8
- C1 d4
- Control power
- Dash integration module (dim) (behind instrument panel, above right dash sound insulator)
- Dimr fuse 14 10a
- Drivers information center (dic)
- Flat wire
- Fog lamp switch
- G200
- G203
- Hazard switch
- Heads up display dimmer switch
- Heater & a/c control
- Hot at all times
- I/p ashtray lamp
- Incadescent dimming output
- Inflatable restraint steering wheel module coil
- Instrument cluster
- J/b (lower left "a" pillar)
- J/b (lower right "a" pillar)
- Left steering wheel controls
- Nca
- Nca b
- Nca h
- Park lamp input
- Park lamp relay control
- Prk lp relay
- Radio
- Rear fuse block (under rear seat)
- Right steering wheel controls
- S203
- S225
- S228 (in steering column harness)
- Shift indicator
- Sp301 (in body harness splicesaver, left side)
- Steering column fuse holder
- Switch fuse 2a
- Traction control switch
Instrument Illumination Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Pontiac Bonneville SSEi 2000:
- (auto hvac) c6 a11
- (left front door trim harn, between door & door trim panel)
- (manual hvac)
- (right front door trim harn, between door & door trim panel)
- 5v ref
- A11
- A12
- B11 a4
- B12 b5
- B8 b6
- C1 a4
- C1 a5
- C1 a6
- C2 a12
- C2 b12
- Class 2 serial data line
- Computer data lines system
- Dash integration module (dim) (behind instrument panel, above right dash sound insulator)
- Flat
- Fog lamp switch
- G203
- Ground
- I/p dimmer switch
- I/p dimmer switch input
- Incadescent dimming output
- Instrument cluster (ipc)
- Instrument panel integration module (ipm) (auto a/c) (behind left side of dash) hvac control module (2001 manual a/c) climate control panel (ccp) (2000 manual a/c)
- Interior lamp switch
- Interior lamp switch input
- J/b (lower right "a" pillar)
- Left front door module (upper right corner of door, behind trim panel)
- Left front power door lock switch
- Left front power window switch
- Memory function switch
- Off
- Radio
- Rear integration module (rim) (behind upper left rear seat cushion)
- Right front door module (rfdm) (upper right corner of door, behind trim panel)
- Right front power door lock switch
- Right front power window switch
- S203
- S204 (i/p harn, approx 8 cm from inst cluster breakout)
- S302
- S500 (left front door trim harn, between door & door trim panel)
- S501
- S604 (right front door trim harn, between door & door trim panel)
- Sensor return
- Simple bus interface (sbi)
- Wire
MEMORY SYSTEMS
Memory Mirrors Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Memory Mirrors Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (in left front door) s500
- (on lower right "a" pillar)
- A up/down motor position input
- B left/right motor position input
- Batt(+)
- Battery
- Driver
- Driver 1 input
- Driver 2 input
- Driver door module (inside driver's door)
- Driver door switch assembly
- Driver outside rearview mirror
- Drvmdl fuse 10a
- E postion sensors return
- Exit
- G200 (on lower left "a) pillar)
- G203
- Gnd
- Heating element feed
- Heating element return
- Hot at all times
- Interior lights system
- J left/right motor control
- K up/down motor control
- Left/ right motor
- Left/ right motor position sensor
- Left/right motor control
- M postion sensors feed
- Memory function switch
- Mirror heating element
- Motor control
- Nca
- Pass mdl fuse 10a
- Passenger door module (inside passenger's door)
- Passenger outside rearview mirror
- Rear fuse block
- S302
- Simple bus interface
- Up/ down motor
- Up/ down motor position sensor
- Up/down l
Memory Seat Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Memory Seat Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (bonneville) (lesabre)
- (in left front door) s500
- (in left front seat harn, below left front seat)
- (lumbar harn, in left front seat back)
- A6 b6
- Batt
- Battery
- C10
- C11
- C12
- C13
- C14
- C15
- C16
- Class 2 data
- D10
- D11
- D12
- D13
- D14
- D15
- D16
- Driver
- Driver 1 input
- Driver 2 input
- Driver door lock switch
- Driver door module (inside driver's door)
- Driver seat adjuster switch
- Driver seat front vertical motor
- Driver seat front vertical position sensor
- Driver seat horizontal motor
- Driver seat horizontal position sensor
- Driver seat lumbar horizontal motor
- Driver seat lumbar horizontal position sensor
- Driver seat lumbar switch
- Driver seat lumbar vertical motor
- Driver seat lumbar vertical position sensor
- Driver seat rear vertical motor
- Driver seat rear vertical position sensor
- Driver seat recline motor
- Driver seat recliner position sensor
- E12
- Exit
- Frnt hgt mtr sens in
- Front
- Front height sw input
- Frt vert dn ctrl
- Frt vert up ctrl
- Fwd
- Fwd-bk mtr sens in
- Fwd/bk sw unput
- G301 (under right front seat)
- Ground
- Horiz backward ctrl
- Horiz forward ctrl
- Hot at all times
- Interior lights system
- Lumbar down ctrl
- Lumbar down in
- Lumbar forward ctrl
- Lumbar in input
- Lumbar in/out sens in
- Lumbar out in
- Lumbar rearward ctrl
- Lumbar up ctrl
- Lumbar up in
- Lumbar up/dn sens in
- Mem fuse 10a
- Memory personalization funciton switch
- Memory seat module (under driver's seat)
- Nca
- Out
- Pnk
- Pnk a
- Position sensors feed
- Pwr seat circuit breaker 30a
- Rear
- Rear fuse block
- Rear height sw input
- Rear hgt mtr sens in
- Rear vert up ctrl
- Recline
- Recline back ctrl
- Recline forward ctrl
- Recline mtr sens in
- Recliner sw input
- Red
- S317
- S317 (left seat harn, under left front seat)
- S319
- S320
- S321 (w/ heated seats)
- S330
- S331
- Simple bus interface
- Solid state
- Tan
POWER DISTRIBUTION
Power Distribution Wiring Diagram (1 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (1 of 4) for Pontiac Bonneville SSEi 2000:
- (lower left corner of trunk) g404
- (upper right side of dash) g201
- A/c clu fuse 30a
- A/c clutch relay
- Abs fuse 50a
- Accy fuse 15a
- Accy relay
- Air fuse 30a
- Air pump relay
- Air pump relay (2001 california)
- Air vacuum valve solenoid (calif)
- Automatic trans- axle
- Aux pwr fuse 20a
- B12
- Battery
- C/ltr fuse
- Cigar lighter
- Cool fan 1 fuse 30a
- Cool fan 1 relay (low speed)
- Cool fan 2 fuse 30a
- Cool fan 2 relay (high) speed)
- Cool fan s/p relay
- Cr cont fuse 10a
- Cruise control module
- D12
- Dis fuse 20a
- Drl relay
- E12
- Electronic brake control module
- Evaporative emissions canister purge solenoid
- Fog lp relay
- Fog/ drl fuse 15a
- From fog/ b drl fuse (diagram 1 of 4)
- From pcm c batt fuse (diagram 1 of 4)
- Fuel injector
- G103 (front of right front fender)
- Generator
- Hdhi bml fuse 10a
- Hdhi bmr fuse 10a
- Hdlo bml fuse 10a
- Hdlo bmr fuse 10a
- Hdlp lo bm relay
- Hdlp hi bm relay
- Heated oxygen sensor bank 1 sensor 2
- Heated oxygen sensor bank 2 sensor 2
- Horn fuse 15a
- Horn relay
- Ign 1 fuse 10a
- Ign-1 relay
- Ignition control module
- Injr 1 fuse 10a
- Injr 2 fuse 10a
- Left high beam headlamp
- Left low beam headlamp
- Mass airflow sensor
- Nca
- Oxy sen fuse 10a
- Pcm batt fuse 10a
- Pcm ign fuse 10a
- Pnk
- Power- train control module
- Powertrain control module
- Rear auxiliary power outlet
- Red
- Right high beam headlamp
- Right low beam headlamp
- S203
- S228
- S329
- Start 2 relay
- Start circuit breaker 30a
- Start relay
- Starter solenoid
- Super- charger boost control solenoid
- Theft deterrent controller module
- To body fuse (diagram 2 of 4)
- To cigar relay (diagram 2 of 4)
- To hdlp lo bm relay (diagram 1 of 4)
- To ign-1 relay (diagram 1 of 4)
- To underhood fuse block (diagram 4 of 4)
- Trans fuse 10a
- Underhood fuse block
- Wind- shield wiper motor
- Wind- shield wiper switch
- Wsw fuse 30a
Power Distribution Wiring Diagram (2 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (2 of 4) for Pontiac Bonneville SSEi 2000:
- (body harn, left side of dash) s216
- (body harn, near rear fuse block breakout) s308
- (body harn, near rear fuse block breakout) s309
- (in trunk lid) s411
- (under left side of rear seat) g304
- A10
- A11
- A12
- Aldl fuse 10a
- Audio fuse 10a
- B12
- Body fuse 15a
- Cd fuse 10a
- Cigar fuse 40a
- Cigar relay
- Cruise control switch (2000)
- D10
- D11
- D12
- Dash integration module
- Data link connector
- Dim fuse 10a
- Dimr fuse 10a
- Driver heated seat module
- Driver's seat lumbar switch
- Driver's seat switch (w/ memory)
- E11
- E16
- Evaporative emissions canister vent solenoid
- F/ pmp relay
- F/ tnkdr rel relay
- F/ trnkdr lock relay
- F/pmp fuse 20a
- F/tnkdr rel relay
- F/trnkdr lock relay
- F16
- From aux/pwr fuse (diagram 1 of 4)
- From battery a (diagram 1 of 4)
- From e cigar fuse (diagram 2 of 4)
- From f aldl fuse (diagram 2 of 4)
- Front passenger's heated seat module
- Garage door opener
- Generator
- Htdst lf fuse 10a
- Htdst rf fuse 10a
- Hvac batt fuse 10a
- Hvac control module
- Ign-1 fuse 10a
- Ign-1 relay
- Inflatable restraint sensing & diagnostic module
- Instrument cluster
- Instrument panel integration module
- Int lamp relay
- Int lp fuse 10a
- Left front turn signal/ park lamp
- Left license plate lamp
- Left rear side marker lamp
- Left tail/ stop lamp
- Lp pkl fuse 10a
- Lp pkr fuse 10a
- Mem fuse 10a
- Memory seat module
- Nca
- Park lp relay
- Pnk
- Prk/rev fuse 10a
- Radio
- Rap fuse 20a
- Rap relay
- Rear fuse block
- Rear integration module
- Red
- Remote compact disk player
- Reverse relay
- Right front turn signal/ park lamp
- Right license plate lamp
- Right rear side marker lamp
- Right tail/ stop lamp
- Rr defog fuse 40a
- Rr defog relay
- S406
- S407
- Seat back) s361
- Sir fuse 15a
- Sun roof control module
- Tcc cruise release switch
- To drv mdl fuse (diagram 3 of 4)
- To ign-1 relay (diagram 2 of 4)
- To park lt relay (diagram 2 of 4)
- To rear fuse block (diagram 4 of 4)
- Trk/ rel relay
- Turn signal multi- function switch
- Under- hood fuse block
- Vehicle interface unit
- Vent sol fuse 10a
- W/ electronic a/c
- W/o electronic a/c
Power Distribution Wiring Diagram (3 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (3 of 4) for Pontiac Bonneville SSEi 2000:
- (1) (2)
- (2000)
- (2001)
- (behind left center of dash) s206
- (inst panel harn, near data link connector) s200
- (under left side of rear seat) g304
- A10
- A11
- Abs fuse 15a
- Air recirc- ulation actuator
- Air temp- erature actuator
- Audio amp fuse 20a
- Audio amplifier
- Automatic level control compressor
- B10
- Blower motor
- C11
- C12
- Dash inte- gration module
- Driver door module
- Driver seat adjuster switch
- Driver's heated seat module
- Drv mdl fuse 10a
- E10
- E12
- Elc fuse 30a
- Elc relay
- Electronic brake control module
- Electronic compass module
- F h
- F12
- From audio i amp fuse (diagram 3 of 4)
- From hvac g batt fuse (diagram 2 of 4)
- From stop h lp fuse (diagram 3 of 4
- Front passenger door module
- Front passenger's seat switch
- Head up display
- Heads up display
- Heads up display dimmer switch
- Hvac blo fuse 30a
- Hvac control module
- Hvac fuse 10a
- Ign sw fuse 15a
- Ign-3 relay
- Ign-3 rr fuse 10a
- Ignition key cylinder lamp
- Inside rear view mirror
- Instrument cluster
- Instrument panel integration module
- Ip fuse 10a
- Left air temp- erature actuator
- Left rear door module
- Memory seat module
- Mode actuator
- Nca
- Pass mdl fuse 10a
- Passenger door module
- Pwr seat circuit breaker 30a
- Pwr wdo circuit breaker 30a
- Rear fuse block
- Rear inte- gration module
- Recir- culation actuator
- Red
- Remote control door lock receiver
- Right air temp- erature actuator
- Right heated seat module
- Right rear door module
- Right seat recline switch
- Rrdrmdl fuse 10a
- S221
- S304 (body harn, near g300 breakout)
- S307 (body harn, near rear fuse block breakout)
- Stop lp fuse 15a
- Stoplamp/ auto trans shift lock control switch
- To ign sw fuse (diagram 3 of 4)
- To ign-3 3 relay (diagram 3 of 4)
- To ignition switch (diagram 4 of 4)
- To rear fuse block (diagram 4 of 4)
- Tsig/haz fuse 15a
- Turn signal/ hazard flasher module
- Underhood fuse block
- W/ 6 way seat
- W/ electronic a/c
- W/ memory seat
- W/ recline seat w/o recline seat
- W/o 6 way seat
- W/o electronic a/c
- W/o memory seat
Power Distribution Wiring Diagram (4 of 4) for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Distribution Wiring Diagram (4 of 4) for Pontiac Bonneville SSEi 2000:
- (inst panel harn, near center console harness breakout) s208
- A/c clutch relay
- A11
- Acc
- Dash integration module
- Elc relay
- Fog lamp relay
- From accy relay (diagram 1 of 4)
- From ign sw fuse (diagram 3 of 4)
- From ign-1 relay (diagram 1 of 4)
- From ign-1 relay (diagram 2 of 4)
- From ign-3 relay (diagram 3 of 4)
- Ignition switch
- Lock
- Park relay
- Pnk
- Powertrain control module
- Rear defog relay
- Rear fuse block
- Run
- S210
- Start
- Theft deterrent module
- Underhood fuse block
- Unlock
POWER DOOR LOCKS
Fuel Door Lock Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Fuel Door Lock Wiring Diagram for Pontiac Bonneville SSEi 2000:
- 87a
- A10 c2
- A11 c2
- Aldl fuse 10a
- B12
- Body fuse 15a
- Computer data lines system
- D9 c2
- E7 c3
- F7 c3
- F9 c2
- Fuel 87a door unlock relay
- Fuel door lock relay
- Fuel door lock relay control
- Fuel door release actuator (center rear of rear compt lid)
- Fuel door release relay control
- G304 (under left rear seat)
- Hot at all times
- Nca
- Pnk b
- Rear fuse block (under left rear seat)
- Rear integration module (rim) (behind right side of rear seat cushion)
- S308
- Tan a
Power Door Lock Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Door Lock Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (in left front door)
- (in right front door)
- (lower right "a" pillar) g203
- (under left rear seat) g304
- Actuator dr
- Air conditioning & seats systems
- Ajar
- Battery
- Class 2 data
- Computer data lines system
- Door ajar
- Door open
- Driver door door lock cylinder switch
- Driver door door module
- Driver door lock actuator
- Driver door switch assembly
- Driver power door lock switch
- Drvmdl fuse 10a
- E10
- G200 (lower left "a" pillar)
- G301 (under right front seat)
- Grd
- Ground
- Hot at all times
- Ign sw fuse 20 15a
- Interior lights system
- Key cyl in
- Left rear door lock actuator
- Left rear door module
- Lock
- Open
- Pass mdl fuse 10a
- Passenger door lock actuator
- Passenger door lock cylinder switch
- Passenger door module
- Passenger power door lock switch
- Pwr wdo circuit breaker 30a
- Rear fuse block
- Remote function actuator module (below rear shelf)
- Right rear door lock actuator
- Right rear door module
- Rrdr mdl fuse 10a
- S302
- S500
- S602
- S604
- Sbi
- Seats system
- Serial data
- Sib
- Tan
- Unlock
- Unlock'
POWER MIRRORS
Power Mirror Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Mirror Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (2000 pont)
- (2000)
- (2001)
- (body harn left side of vehicle, near left power seat breakout)
- (except
- (except pontiac)
- (left front door trim harn, in left front door) s500
- (on lower left corner of trunk, forward of tail lamp)
- (pon: on lower right front "a" pillar, buick: lower right corner passenger compt)
- 2000 pont) (pon: on lower left front "a" pillar, buick: lower front corner of passenger)
- A7 c3
- Automatic day
- B1 c3
- Battery (b+)
- Battery b+
- Bus interface
- C11 c1
- Computer data lines system
- Defogger system (heated mirror)
- Down ctrl
- Driver door lock switch
- Driver door module (ddm)
- Driver door switch asembly
- Drv mdl fuse 10a
- E2 c3
- Ec feed
- Ec rerurn
- Ec return
- Exterior lights system
- F2 c3
- Front passenger door module (fpdm)
- G200
- G404
- G900
- G901 (2000 pont) g203 (except 2000 pont)
- Gnd
- Ground
- Heating element
- Horizontal motor
- Hot at all times
- Hot in on
- Ign 3 rr fuse 10a
- Ign 3 voltage
- Inside rear view mirror
- Interior lights system
- Keypad led
- Keypad pwr
- Keypad signal
- L mirror input
- Left
- Left ctrl
- Left mirror
- Left rear door module
- Mirror dn input
- Mirror l input
- Mirror r input
- Mirror up input
- Nca
- Night input sig
- Pass mdl fuse 10a
- Pnk
- Pwr wdo circuit breaker 30a
- R mirror input
- Rear fuse block (under left rear seat)
- Reverse lamp relay
- Reverse sig
- Right
- Right ctrl
- Right mirror
- Right rear door module
- S302
- S344
- Serial data
- Up ctrl
- Vehicle interface unit (viu) (2001 only)
- Vertical motor
POWER SEATS
6-Way & Recliner Power Seat Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 6-Way & Recliner Power Seat Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (bonneville) (le sabre)
- Driver seat adjuster switch
- Driver seat front vertical motor
- Driver seat horizontal motor
- Driver seat rear vertical motor
- Driver seat recline motor
- E12
- Entire seat backward
- Entire seat forward
- F12
- Front passenger seat adjuster switch
- Front passenger seat front vertical motor
- Front passenger seat horizontal motor
- Front passenger seat rear vertical motor
- Front passenger seat recline motor
- Front vertical down
- Front vertical up
- G301 (under right front seat, on forward crossmember)
- Hot at all times
- Nca
- Pwr seat circuit breaker 30a
- Rear fuse block
- Rear vertical down
- Rear vertical up
- Recline backward
- Recline forward
- S321 s324 (w/ heated seats)
- S322 (w/ heated seats)
- S323 (bonneville)
- Slice pack sp301
- Tan
6-Way Power Seat Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 6-Way Power Seat Wiring Diagram for Pontiac Bonneville SSEi 2000:
- Driver seat adjuster switch
- Driver seat front vertical motor
- Driver seat horizontal motor
- Driver seat rear vertical motor
- E12
- Entire seat backward
- Entire seat forward
- F12
- Front passenger seat adjuster switch
- Front passenger seat front vertical motor
- Front passenger seat rear horizontal motor
- Front passenger seat rear vertical motor
- Front vertical down
- Front vertical up
- G301 (under right front seat, on forward crossmember)
- Hot at all times
- Pwr seat circuit breaker 30a
- Rear fuse block
- Rear vertical down
- Rear vertical up
- S322 (le sabre w/ heated seats)
- S324 (le sabre w/ heated seats)
- Tan
Heated Seats Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Heated Seats Wiring Diagram for Pontiac Bonneville SSEi 2000:
- C11
- Cntrld gnd
- Driver heated seat back
- Driver heated seat cushion
- Driver heated seat module
- Driver heated seat switch
- Front passenger heated seat back
- Front passenger heated seat cushion
- Front passenger heated seat module
- Front passenger heated seat switch
- G301 (under right front seat, on forward crossmember)
- G901 (on lower right front "a" pillar)
- Gnd
- Heater cntrl
- Heating element
- Hi indicator
- Hi/lo
- Hi/lo input
- Hot at all times
- Hot in on
- Htd seat staus
- Htdstlf fuse 10a
- Htdstrf fuse 10a
- Ign
- Ign 3 rr fuse 10a
- Inhibit cntrl
- Inhibit sig
- Interior lights system
- Lo indicator
- Nca
- Off
- Off input
- Pnk
- Rear fuse block
- Rear integration module (rim) (behind upper left rear seat cushion)
- Red
- S228
- S304
- S321
- S322
- Status output
- Temp sense
- Temp senser
- Thermistor
Passenger's Lumbar Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Passenger's Lumbar Wiring Diagram for Pontiac Bonneville SSEi 2000:
- Down
- F12
- G301 (under right front seat, on forward crossmember)
- Hot at all times
- Out
- Pnk
- Pwr seat circuit breaker 30a
- Rear fuse block
- Right lumbar horizontal motor
- Right lumbar switch
- Right lumbar vertical motor
- S322
- S323
Recliner Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Recliner Wiring Diagram for Pontiac Bonneville SSEi 2000:
- Back
- Driver seat recline motor
- Driver seat recline switch
- E12
- F12
- Forward
- Front passenger recline motor
- Front passenger seat recline switch
- G301 (under right front seat, on forward crossmember)
- Hot at all times
- Nca
- Pwr seat circuit breaker 30a
- Rear fuse block
- S315
- S316
- Splice pack g301
POWER TOP/SUNROOF
Power Top/Sunroof Wiring Diagrams for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Top/Sunroof Wiring Diagrams for Pontiac Bonneville SSEi 2000:
- 2001 pontiac b
- A except 2001 pontiac
- Close
- Control
- D10
- Express
- Express inp
- G405 (lower right corner of trunk)
- Ground
- Hot at all times
- Limit sw
- Limit switch
- Motor ctrl
- Open
- Rap
- Rap fuse 20a
- Rap relay
- Rear fuse block (under left rear seat)
- Rear integration module (behind upper left rear seat cushion)
- Red
- Slide input
- Sun roof module (rear of glass assembly, above headliner)
- Sun roof motor (rear of glass assembly, above headliner)
- Sun roof switch (in overhead console)
- Vent input
POWER WINDOWS
Power Window Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Power Window Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (left front door trim harn, in left front door) s500
- A7 c3
- B1 c3
- Battery (b+)
- Battery b+
- Bus interface
- C2 c3
- Computer data lines system
- D2 c3
- Down
- Down input
- Driver door module (ddm)
- Driver door power door lock switch
- Driver door switch asembly
- Drv mdl fuse 10a
- E2 c3
- E3 c1
- Express down
- F2 c3
- F6 c1
- Front passenger door module (pdm)
- G301 (under right front seat)
- G304 (under left rear seat)
- G900 (on lower left front "a" pillar)
- G901 (on lower right front "a" pillar)
- Ground
- Hot at all times
- Interior lights system
- Left front window motor
- Left rear door module (lrdm)
- Left rear power window switch
- Left rear window motor
- Lf win ctrl
- Lock- out
- Lr win ctrl
- Memory function switch
- Pass mdl fuse 10a
- Pwr wdo circuit breaker 30a
- Rear fuse block (under left rear seat)
- Return
- Rf win ctrl
- Right front power window switch
- Right front window motor
- Right rear door module (rrdm)
- Right rear power window switch
- Right rear window motor
- Rr win ctrl
- Rrdrmdl fuse 10a
- S302
- Serial data
- Up input
RADIO
Radio Wiring Diagrams, with Amplifier for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagrams, with Amplifier for Pontiac Bonneville SSEi 2000:
- (on lower right front "a" pillar)
- (under left front seat, forward of crossmember)
- A pnk
- A10
- A11
- A12
- A13
- A14
- A15
- A16
- Amp sns
- Antenna
- Audio amp fuse 20a
- Audio amplifier (behind left rear seat back)
- Audio comm
- Audio fuse 10a
- B10
- B11
- B12
- B13
- B14
- B15
- B16
- Batt
- Battery
- C10
- C11
- C12
- C215
- C216
- C430
- Case gnd
- Cd changer-remote playback device
- Cd fuse 10a
- Com audio in
- Computer data lines system
- Dash integration module
- Data
- Enable
- Flat wire
- Fm comp sig
- Front glass antenna
- G300
- G901
- Gnd
- Grd
- Ground
- Hot at all times
- Ill
- Inflatable restraint steering wheel module coil
- Interior lights system
- L audio in
- L audio out
- Left front door speaker
- Left front door speaker (tweeter)
- Left rear door speaker
- Left rear sub woofer
- Left side steering wheel controls
- Lf spkr
- Lr dr spkr
- Lr spkr
- Lr sub wf
- Nca
- Pnk
- R audio in
- R audio out
- Radio
- Radio antenna module (on center rear of headliner)
- Rear fuse block
- Rear glass antenna
- Red
- Rf spkr
- Right front door speaker
- Right front door speaker (tweeter)
- Right rear door speaker
- Right rear sub woffer
- Right side steering wheel controls
- Rr dr spkr
- Rr spkr
- Rr sub wf
- Serial data
- Shield gnd
- Shield grd
- Steering column fuse holder
- Sw1
- Sw2
- Sw3
- Sw4
- Sw5
- Sw6
- Sw7
- Sw8
- Switch fuse 2a
- Swtchd pwr
- Tan
Radio Wiring Diagrams, without Amplifier for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Radio Wiring Diagrams, without Amplifier for Pontiac Bonneville SSEi 2000:
- (on lower right front "a" pillar)
- (under left front seat, forward of crossmember)
- A pnk
- A10
- A11
- A12
- A13
- A14
- A15
- A16
- Amp sns
- Antenna
- Audio comm
- Audio fuse 10a
- B10
- B11
- B12
- B13
- B14
- B15
- B16
- Batt
- C10
- C11
- C12
- C215
- C216
- C430
- Case gnd
- Cd changer-remote playback device
- Cd fuse 10a
- Com audio in
- Computer data lines system
- Dash integration module
- Data
- Enable
- Flat wire
- Fm comp sig
- Front glass antenna
- G300
- G901
- Gnd
- Grd
- Hot at all times
- Ill
- Inflatable restraint steering wheel module coil
- Interior lights system
- L audio in
- L audio out
- Left front door speaker
- Left front tweeter
- Left rear speaker
- Left side steering wheel controls
- Lf spkr
- Lr spkr
- Nca
- Pnk
- R audio in
- R audio out
- Radio
- Radio antenna module (on center rear of headliner)
- Rear fuse block
- Rear glass antenna
- Red
- Rf spkr
- Right front door speaker
- Right front tweeter
- Right rear speaker
- Right side steering wheel controls
- Rr spkr
- Serial data
- Shield grd
- Steering column fuse holder
- Sw1
- Sw2
- Sw3
- Sw4
- Sw5
- Sw6
- Sw7
- Sw8
- Switch fuse 2a
- Tan
SHIFT INTERLOCKS
Shift Interlock Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Shift Interlock Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (buick)
- (buick) nsbu fuse 10a
- (pontiac)
- (pontiac) prk/rev fuse 10a
- A12
- Auto trans shiftlock control solenoid (beneath center console)
- Auto trans shiftlock control solenoid (on steering column)
- Automatic transaxle
- Automatic transaxle internal mode switch
- B12
- C100
- Computer data lines
- Data line
- G110 (front of engine, below ignition control module)
- G200 g900 (buick: lower left front "a" pillar pontiac: on left front door pillar)
- G901 (on lower right front "a" pillar)
- Hot at all times
- Hot in on
- Park relay
- Park relay control
- Powertrain control module (in air cleaner housing)
- Rear fuse block (under left rear seat)
- Rear integration module (behind upper left rear seat cushion)
- S225
- S228
- Tcc/ cruise release switch (on brake pedal bracket)
- W/center console
- W/o center console
STARTING/CHARGING
Charging Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Charging Wiring Diagram for Pontiac Bonneville SSEi 2000:
- (not used) a
- (under right rear seat, right of battery on floor pan) g303
- A11
- A12
- B12
- Battery
- Battery indicator
- Battery volts high
- Battery volts low
- Check charge system
- Dash integration module (dim) (behind right side of dash, under sound insulator)
- Dim fuse 10a
- Driver's information center
- E11
- Flat wire
- Gen term f mon
- Gen term l ctrl
- Generator l
- Hot at all times
- Instrument panel cluster
- Instrument panel integration module (ipm) (behind left side of dash)
- Nca
- Powertrain control module (pcm) (in air cleaner housing)
- Rear fuse block (under left rear seat)
- Red
- S217 (in body harness, left side of vehicle 24.0 cm (6.7 in) from pass through grommet lower left corner of passenger compartment)
- Serial data class 2
- Starter solenoid
- System voltage measurement
- Underhood fuse block (right front side of engine compartment)
Starting Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Starting Wiring Diagram for Pontiac Bonneville SSEi 2000:
- Acc
- Battery
- Computer data lines system
- G303 (under right rear seat, right of battery on floor pan)
- Ground distribution system (dash integration module (dim))
- Hold in coil
- Hot in run & start
- Ign crank sense
- Ign sw fuse 15a
- Ignition swtch
- Lock
- Note: refer to power distribution system: ign-1 relay
- Pcm ign fuse 10a
- Power distribution system
- Powertrain control module (pcm) (in air cleaner housing)
- Pull in coil
- Rear fuse block (under left rear seat)
- Run
- Serial data class 2
- Start
- Start 1 relay
- Start circuit breaker 30a
- Starter ctrl
- Starter motor
- Starter solenoid
- Starting/ charging system (charging circuit)
- Underhood fuse block (right front side of engine compartment)
- Unlock
SUPPLEMENTAL RESTRAINTS
Supplemental Restraint Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Supplemental Restraint Wiring Diagram for Pontiac Bonneville SSEi 2000:
- A10
- A11
- A12
- A13
- A14
- A15
- A16
- A17
- A18
- A5 (or a6)
- Air bag indicator
- B1 (or b2)
- Buick
- Buick w/heads up display
- Case ground
- Computer data lines system
- Dash integration module (dim) (behind right side of dash, under sound insulator)
- Data link connector (dlc) (partial) (under lower left side of dash)
- Driver frontal high
- Driver frontal low
- Driver inflatable restraint side impact inflator module
- Driver inflatable restraint side impact sensor (sis) (at base of left "b" pillar, behind trim panel)
- Driver side high
- Driver side low
- Driver side sens rtn
- Driver side sensor
- G302 (under center console, near inflatable restraint sensing & diagnostic module (sdm))
- Ground
- Hot in run & start
- Ignition
- Inflatable restraint i/p module
- Inflatable restraint sensing & diagnostic module (sdm) (under rear of center console, mounted to floor pan)
- Inflatable restraint steering wheel module
- Inflatable restraint steering wheel module coil
- Instrument cluster
- Left front seat belt switch (closed w/seat belt unbuckled) in seat belt assembly, near floor)
- Nca
- Pass frontal high
- Pass frontal low
- Pass side sens rtn
- Passenger inflatable restraint side impact inflator module
- Passenger inflatable restraint side impact sensor (sis) (at base of right "b" pillar, behind trim panel)
- Passenger side high
- Passenger side low
- Passenger side sens
- Pontiac
- Pontiac & buick w/o heads ip display
- Pontiac & buick w/o heads up display
- Rear fuse block (under left rear seat)
- S202
- Seat belt sw input
- Seat belt sw return
- Serial data class 2
- Shorting bar
- Sir fuse 15a
- Tan
TRANSMISSION
3.8L
3.8L VIN 1, A/T Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN 1, A/T Wiring Diagram for Pontiac Bonneville SSEi 2000:
- internal mode switch automatic transaxle
- (rear of engine, near thermostat housing) engine coolant temperature (ect) sensor
- (right front of transaxle, below power steering pump) vehicle speed sensor (vss)
- 1-2 shift sol
- 2-3 shift sol
- 5 volt ref
- A/t fluid temp
- A/t iss low
- A/t speed sens
- Abs/ tcc switch (near brake pedal)
- Acc
- Automatic transaxle
- Automatic transaxle (4t40-e/ 4t45-e)
- Automatic transaxle fluid pressure manual valve position switch
- Automatic transaxle fluid temperature sensor
- Automatic transaxle input shaft speed sensor
- B c
- Battery
- Bonneville
- Bonneville le sabre
- Compiuter data lines system
- Cruise control system
- E e
- Ect sensor gnd
- Ect sensor in
- G115 (rear of engine)
- Head up display, ignition key cyl lamp
- Hot at all times
- Hot in run or start
- Ign 1 fuse 10a
- Ignition
- Ignition 1
- Ignition switch (pigtailed for le sabre)
- Instrument cluster
- Instrument cluster, turn siganl switch
- Ip fuse 10a
- Lesabre
- Lock
- Malfunction indicator lamp
- Mil control
- Off
- Pcm batt fuse 10a
- Pcm ground
- Pcm ign fuse 10a
- Pnk
- Powertrain control module (pcm) (near air cleaner housing)
- Press sol high
- Press sol low
- Press sw a
- Pressure control sol
- Rear fuse block (under left rear seat)
- Red
- Rev
- Run
- S212
- S216
- Sensor return
- Serial data
- Shift sol a
- Shift sol b
- Start
- Tan
- Tcc pwm sol
- Tcc rel
- Tcc release sw
- Tcc sw
- Throttle position (tp) sensor (on throttle body assembly)
- Tp sensor gnd
- Tp sensor in
- Trans fuse 10a
- Trans range b
- Trans range c
- Trans sw a
- Trans sw b
- Trans sw c
- Trans sw p
- Underhood fuse block (right front side of engine compt)
- Vss hi (signal)
- Vss lo (ground)
3.8L VIN K, A/T Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for 3.8L VIN K, A/T Wiring Diagram for Pontiac Bonneville SSEi 2000:
- internal mode switch automatic transaxle
- (rear of engine, near thermostat housing) engine coolant temperature (ect) sensor
- (right front of transaxle, below power steering pump) vehicle speed sensor (vss)
- 1-2 shift sol
- 2-3 shift sol
- 5 volt ref
- A/t fluid temp
- A/t iss low
- A/t speed sens
- Abs/ tcc switch (near brake pedal)
- Acc
- Automatic transaxle
- Automatic transaxle (4t40-e/ 4t45-e)
- Automatic transaxle fluid pressure manual valve position switch
- Automatic transaxle fluid temperature sensor
- Automatic transaxle input shaft speed sensor
- B c
- Battery
- Bonneville
- Bonneville le sabre
- Compiuter data lines system
- Cruise control system
- E e
- Ect sensor gnd
- Ect sensor in
- G115 (rear of engine)
- Head up display, ignition key cyl lamp
- Hot at all times
- Hot in run or start
- Ign 1 fuse 10a
- Ignition
- Ignition 1
- Ignition switch (pigtailed for le sabre)
- Instrument cluster
- Instrument cluster, turn siganl switch
- Ip fuse 10a
- Lesabre
- Lock
- Malfunction indicator lamp
- Mil control
- Off
- Pcm batt fuse 10a
- Pcm ground
- Pcm ign fuse 10a
- Pnk
- Powertrain control module (pcm) (near air cleaner housing)
- Press sol high
- Press sol low
- Press sw a
- Pressure control sol
- Rear fuse block (under left rear seat)
- Red
- Rev
- Run
- S212
- S216
- Sensor return
- Serial data
- Shift sol a
- Shift sol b
- Start
- Tan
- Tcc pwm sol
- Tcc rel
- Tcc release sw
- Tcc sw
- Throttle position (tp) sensor (on throttle body assembly)
- Tp sensor gnd
- Tp sensor in
- Trans fuse 10a
- Trans range b
- Trans range c
- Trans sw a
- Trans sw b
- Trans sw c
- Trans sw p
- Underhood fuse block (right front side of engine compt)
- Vss hi (signal)
- Vss lo (ground)
TRUNK, TAILGATE, FUEL DOOR
Trunk Release Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Trunk Release Wiring Diagram for Pontiac Bonneville SSEi 2000:
- A9 c2
- B10
- B12
- Body fuse 15a
- C67
- Cj2
- Class ii data
- Climate control panel
- Computer data lines system
- G405 (lower right corner of trunk)
- G901 (on lower right front "a" pillar)
- Hot at all times
- Instrument panel integration module (behind left side of dash)
- Rear compartment lid release actuator (on center rear of lugggage compt)
- Rear fuse block (under left rear seat)
- Rear integration module (rim) (behind upper left rear seat cushion)
- Rr compt lid release actuator control
- S205
- Sw input
- Trk/ rel relay
- Trunk release switch
WARNING SYSTEMS
Warning System Wiring Diagrams for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Warning System Wiring Diagrams for Pontiac Bonneville SSEi 2000:
- (under left side of dash)
- A11
- A12
- A15
- A16
- B11
- Belt sw input
- Belt sw ret
- Class 2 data
- Computer data lines system
- Dash integration module (behind right side of dash, under sound insulator)
- Dr ajar input
- Dr open input
- Driver door lock actuator c1 (in door)
- Driver door module (inside driver door)
- E c1
- Flasher module
- G900 (on lower left "a" pillar)
- G901 (on lower right front "a" pillar)
- Ground
- Head
- Head sw input
- Headlamp switch
- Ignition switch
- Inflatable restraint sensing & diagnostic module (under rear of center console, mounted to floor pan)
- Instrument cluster
- Instrument panel integration module (behind left side of dash)
- Key in signal
- Key-in ignition switch
- Left front seat belt switch (closed w/belt unbuckled)
- Left turn in
- Nca
- Park
- Park sw input
- Powertrain control module (in air cleaner housing)
- Radio
- Right turn in
- S205
- S226
- S250
- S251
- Tan
- Turn signal/hazard
- W/auto a/c
- W/manual a/c
WIPER/WASHER
Wiper/Washer Wiring Diagram for Pontiac Bonneville SSEi 2000
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO 获取访问所有汽车的接线图List of elements for Wiper/Washer Wiring Diagram for Pontiac Bonneville SSEi 2000:
- 150k
- 24,000 ohms
- 270k
- 39k
- 680k
- 82k
- Acc fuse 15a
- Dash integration module (dim) (behind right side of dash, under sound insulator)
- G101 (mounted to inner body panel, forward of underhood fuse block)
- G102 (near left strut tower, on frame rail)
- Ground
- Headlamps on w/wipers input
- High
- High speed input
- Hot in run & accessory
- Ignition
- Low
- Low min
- Max
- Min
- Mist
- Nca
- Off
- Off max
- Red
- Underhood fuse block (right front side of engine compartment)
- Wash
- Washer switch
- Windshield washer pump motor (in bottom of windshield washer reservoir)
- Windshield wiper motor (behind left front strut tower)
- Windshield wiper/washer switch
- Wiper fuse 30a
- Wiper speed signal
- Wiper switch
