AIR CONDITIONING – Jaguar XJ8 L 1999 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

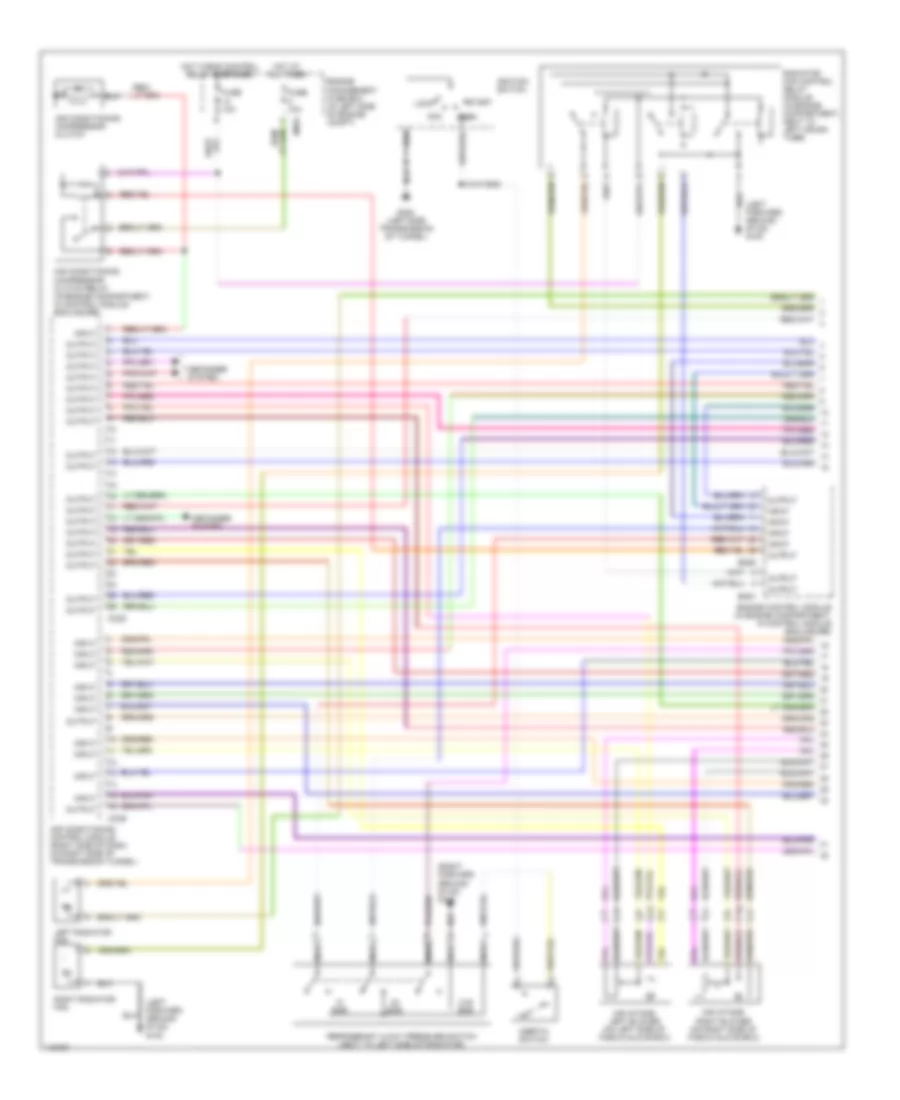

Automatic A/C Wiring Diagram (1 of 3) for Jaguar XJ8 L 1999

List of elements for Automatic A/C Wiring Diagram (1 of 3) for Jaguar XJ8 L 1999:

• (left forward ground stud) g100
• (right forward ground stud) g101
• 2-30 bar
• Acc
• Air conditioning compressor clutch
• Air conditioning compressor clutch relay (in engine compartment, in control module enclosure)
• Air conditioning control module (right side of dash, on right side of transmission tunnel)
• Air intake- left blower (on left side of fascia glove box)
• Air intake- right blower (on right side of fascia glove box)
• Bar
• Cc28
• Cc29
• Defogger system
• Em19
• Em80
• Em81
• Engine control module (in engine compartment, in control module enclosure)
• Engine management fuse box (in left side of engine compt)
• Fuse 10a
• G302 (left side transmission of tunnel)
• Hot at all times
• Hot w/ems control relay energized
• Ignition switch
• Inertia switch
• Input
• Left radiator fan
• Lock
• Nca
• Output
• Radiator fan control relay module (in engine compartment, next to left crush tube)
• Refrigerant 4-way pressure switch (next to left side of radiator)
• Right radiator fan
• Run
• Start

Automatic A/C Wiring Diagram (2 of 3) for Jaguar XJ8 L 1999

List of elements for Automatic A/C Wiring Diagram (2 of 3) for Jaguar XJ8 L 1999:

• (ems left ground stud) g102
• (left bulkhead ground stud: cabin side) g206
• (left drive- shaft tunnel ground stud) g302
• Aspirator assembly (at driver's side knee bolster)
• Aspirator motor
• Ca2
• Ca42
• Engine compartment fuse box (in left front of engine compartment)
• Fuse 10a
• Fuse 20a
• Fuse 30a
• Heater pump (left rear of engine compartment)
• Heater pump relay 1
• Heater valve (in left rear of engine compartment)
• Hot at all times
• Hot in run or start
• In-car temperature sensor
• Left heelboard fuse box (front of left rear seat)
• Left blower motor
• Left blower motor relay (right side of heelboard)
• Ls5
• Ls7
• Ls8
• Nca
• Right blower motor
• Right blower motor relay (right side of heelboard)
• Right heelboard fuse box (front of right rear seat)

Automatic A/C Wiring Diagram (3 of 3) for Jaguar XJ8 L 1999

List of elements for Automatic A/C Wiring Diagram (3 of 3) for Jaguar XJ8 L 1999:

• (right driveshaft tunnel ground stud) g302
• (right front bulkhead stud/ cabin side) g206
• Acc
• Air conditioning control module (right side of dash, on right side of transmisson tunnel)
• Air conditioning isolate relay (left side of heelboard)
• Ambient temperature sensor (in front of radiator)
• Ca2
• Ca41
• Cc30
• Cc31
• Control panel
• Cool air bypass servo
• Data
• Data link connector (dlc) (on
• Defrost servo
• Evapor- ator temp sensor
• Evaporator/heater matrix assembly (behind left side of dash, on left side of transmission tunnel)
• Fc25
• Footwell servo
• Fuse 10a
• G206 (ems bulkhead ground stud)
• Heater matrix temp sensor
• Hot at all times
• Hot in run or start
• Ignition switch
• Input
• Instrument pack
• Left heelboard fuse box (front of left rear seat)
• Lock
• Nca
• Output
• Pnk
• Right heelboard fuse box (front of right rear seat)
• Run
• Solar sensor (in center windshield vent)
• Start
• Transmission tunnel)
• Vent assembly
• Vent servo
