Air Conditioning — Hyundai Santa Fe Gls 2012 Wiring Diagram

AIR CONDITIONING

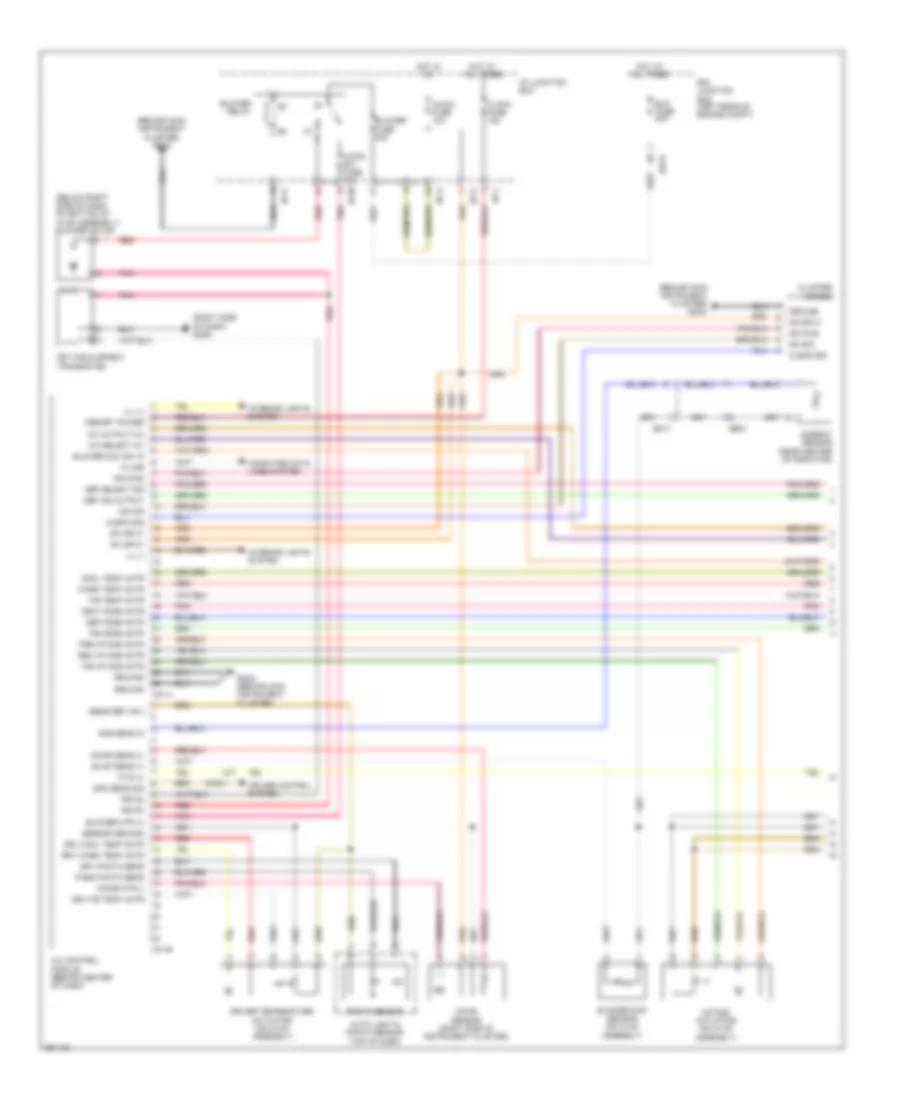

Automatic A/C Wiring Diagram (1 of 2) for Hyundai Santa Fe GLS 2012

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Hyundai Santa Fe GLS 2012:

(behind main instrument cluster)
(behind main instrument cluster) gm02
(below right side of dash, on bottom of hvac assembly) blower motor
(right side of dash) gm05
A/c control module (behind center of dash)
A/c output (hi)
A/c select (hi)
A/con fuse 10a
A/con sw fuse 10a
Amb sens in
Ambient sensor (near center of radiator)
Auto light & photo sensor (top of dash)
Blower fuse 30a
Blower max sw in
Blower mtr (+)
Blower relay
Blr fuse 40a
Clean sig
Clock fuse 15a
Cluster ionizer
Computer data lines system
Cool temp actr
Cruise control system
Def ind output
Def mode actr
Def select sig
Driver temperature actuator (on hvac assembly)
Drv cool temp actr
Drv f/b temp actr
Drv photo sens
Drv warm temp actr
E/r junction box (left rear of engine compt)
Ee01
Em11
Evap sens (+)
Evaporator sensor (on hvac assembly)
F/b intake actr
F/b mode actr
F/b temp actr
Fet (field effect transistor)
Fet(d)
Fet(g)
Fre intake actr
Gm02
Gm02 (behind main instrument cluster)
Ground
Hot at all times
Hot in on
I/p junction box
I/p-a
I/p-j
I/p-k
I/p-m
Ill (+)
Ill (-)
Incar mtr (-)
Incar sens (+)
Incar sensor (right side of instrument cluster)
Intake actuator (on hvac assembly)
Interior lights system
Ion diag
Ion sig
K-line
M41-a
M41-b
Mc241
Memory power
On input
Pass photo sens
Photo sensor
Pnk
Rec intake actr
Red
Sens ref (+5v)
Sensor ground
Spd sens sig
U/h-b
Vent mode actr
Warm temp actr
Wts (+)

Automatic A/C Wiring Diagram (2 of 2) for Hyundai Santa Fe GLS 2012

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Hyundai Santa Fe GLS 2012:

(behind right side of front bumper) ge02
(front of engine compt) condenser fan motor
(or pnk)
2.4l
3.5l
A/c comp sw
A/c compressor (lower front of engine)
A/c pressure transducer (behind right headlamp)
A/c request sw
A/con fuse 10a
A/con relay
A/con rly ctrl
Apt gnd
Apt sig
Blower max sw in
C130-b
C30-b
Chg-a
Chg-k
Clg-a
Clg-b
Con fan fuse 40a
Con fan fuse 50a
Condenser fan relay (high)
Condenser fan relay (low)
Cooling fuse 10a
E/r junction box (left rear of engine compt)
Ects gnd
Ects sig
Ecu main fuse 40a
Engine control relay
Engine controls system
Engine coolant temperature sensor & sender (2.4l: on rear of left cylinder head) (3.5l: rear of engine)
Front deicer switch
Ghg04 (rear of engine)
Gm01 (behind main instrument cluster)
Gm03 (behind center of dash)
Hot at all times
Hot in on or start
Hot w/ engine control relay energized
Ill
Ind
Interior lights system
Mc221
Mc241
Mode actuator (on hvac assembly)
Nca
Pcm (left rear of engine compt)
Pnk
Red
Rly ctrl
Rly ctrl (high)
Rly ctrl (low)
Sender
Sensor
Sensor fuse 10a
Temperature actuator (on hvac assembly)
U/h-c
U/h-d
W/ immo
W/o immo

Manual A/C Wiring Diagram (1 of 2) for Hyundai Santa Fe GLS 2012

List of elements for Manual A/C Wiring Diagram (1 of 2) for Hyundai Santa Fe GLS 2012:

(right side of dash) gm05
2.4l
3.5l
A/c control module (behind center of dash)
A/c output (hi)
A/c select (hi)
A/con fuse 10a
A/con sw fuse 10a
Ambient sensor (near center of radiator)
Blower fuse 30a
Blower motor (below right side of dash, on bottom of hvac assembly)
Blower relay
Blower rly on in
Blr fuse 40a
Chg-k
Clg-b
Clock fuse 15a
Cool temp actuator
Cruise control system
Def ind output
Def mode actuator
Def select sig
E/r junction box (left rear of engine compt)
Ee01
Em11
Evap sens
Evaporator sensor (on hvac assembly)
F/b intake actuator
F/b mode actuator
F/b temp actuator
Fet (field effect transistor)
Fet(d)
Fet(g)
Fre intake actuator
Gm02 (behind main instrument cluster)
Ground
Hot at all times
Hot in on
I/p junction box
I/p-a
I/p-j
I/p-k
I/p-m
Ill (+)
Ill (-)
Instrument cluster
Intake actuator (on hvac assembly)
Interior lights system
M15-b
Mc241
Memory pwr
Mode actuator (on hvac assembly)
On input
Pcm (left rear of engine compt)
Pnk
Rec intake actuator
Red
Sens ground
Temperature actuator (on hvac assembly)
U/h-b
Vent mode actuator
Warm temp actuator

Manual A/C Wiring Diagram (2 of 2) for Hyundai Santa Fe GLS 2012

List of elements for Manual A/C Wiring Diagram (2 of 2) for Hyundai Santa Fe GLS 2012:

(front of engine compt) condenser fan motor
(lower front of engine) a/c compressor
(or pnk)
2.4l
3.5l
A/c pressure transducer (behind right headlamp)
A/c request sw
A/con fuse 10a
A/con relay
A/con rly ctrl
Apt gnd
Apt sig
Chg-a
Chg-k
Clg-a
Clg-b
Con fan fuse 40a
Con fan fuse 50a
Condenser fan relay (high)
Condenser fan relay (low)
Cooling fuse 10a
E/r junction box (left rear of engine compt)
Ects gnd
Ects sig
Ecu main fuse 40a
Engine control relay
Engine controls system
Engine coolant temperature sensor & sender (2.4l: on rear of left cylinder head) (3.5l: rear of engine)
Engine ctrl rly ctrl
Front deicer switch
Ge02 (behind right side of front bumper)
Gm01 (behind main instrument cluster)
Hot at all times
Hot in on or start
Hot w/ engine control relay energized
Ill
Ind
Interior lights system
Mc241
Nca
Pcm (left rear of engine compt)
Rly ctrl (high)
Rly ctrl (low)
Sensor
Sensor fuse 10a
Thermo sw
U/h-c
U/h-d
W/ immo
W/o immo

AIR CONDITIONING – Hyundai Santa Fe GLS 2012 – SYSTEM WIRING DIAGRAMS
