AIR CONDITIONING – Chrysler Sebring Limited 2009 – SYSTEM WIRING DIAGRAMS

  1. Home
  2. >CHRYSLER
  3. >Chrysler 2009
  4. >Chrysler Sebring Limited 2009
  5. >Chrysler Sebring Limited 2009 - ALL WIRING DIAGRAMS

Download PDF file

AIR CONDITIONING

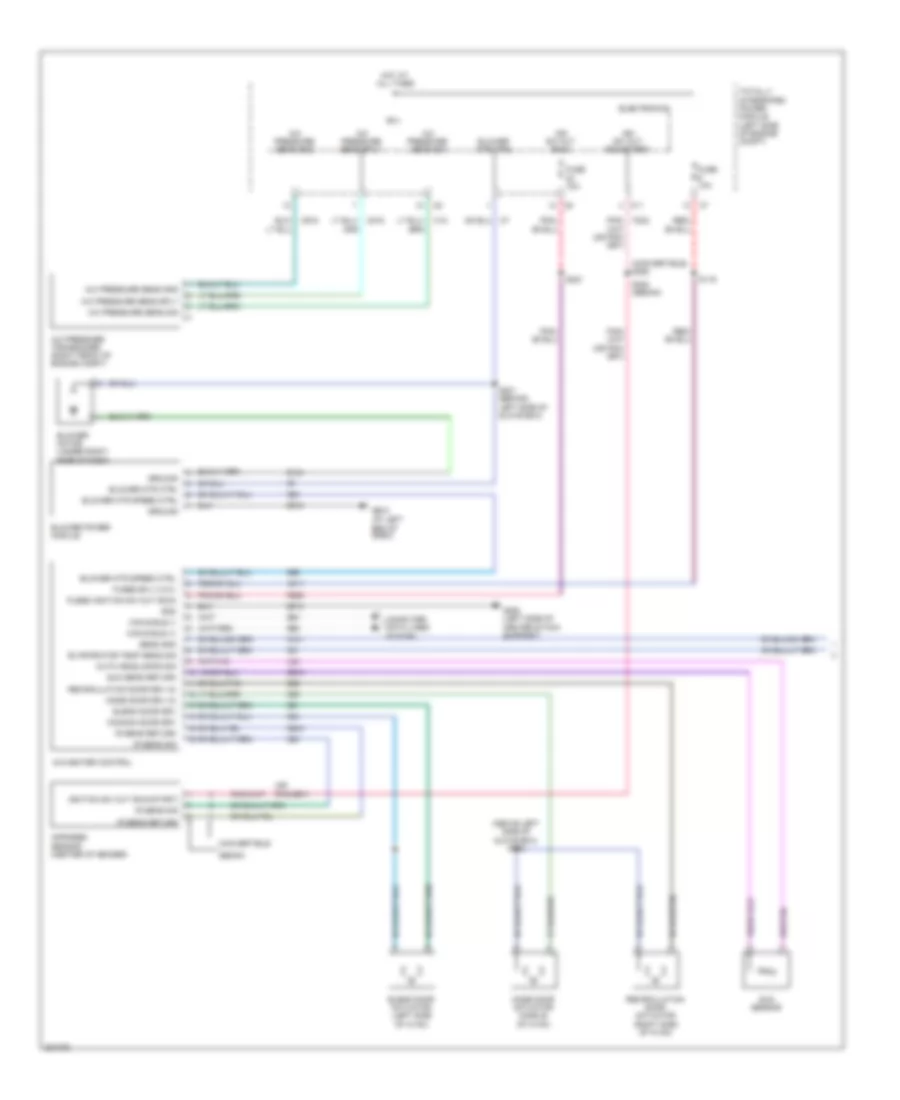

Automatic A/C Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009

Automatic AC Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009:

  • (above left side of glove box) s202
  • (convertible) s355
  • A/c pressure sens gnd
  • A/c pressure sens sig
  • A/c pressure sens sply
  • A/c pressure transducer (right front of engine compt)
  • A/c-heater control
  • A417
  • Auto headlamps sig
  • B(+)
  • Blend door actuator (left side of hvac)
  • Blend door drv
  • Blower motor (under right side of dash)
  • Blower mtr ctrl
  • Blower mtr speed ctrl
  • Blower power module
  • C11
  • C121
  • C18
  • C21
  • C32
  • C34
  • C35
  • C56
  • C61
  • C818
  • C83
  • C830
  • C918
  • Can b bus (+)
  • Can b bus (-)
  • Common door drv
  • Computer data lines system
  • Convertible
  • D54
  • D55
  • Electronics
  • End of dash)
  • Evaporator temp sens sig
  • F202
  • F929
  • Fuse 10a
  • Fused b(+) (i.o.d.)
  • Fused ignition sw out (run)
  • G200 (at left
  • G250 (left side of center stack support)
  • G939
  • Gnd
  • Ground
  • Hot at all times
  • Ign sw out (run)
  • Ign sw out (run-start)
  • Ignition sw out (run-start)
  • Infrared sensor (center of header)
  • Ir sens return
  • Ir sens sig
  • L24
  • Mode door actuator (middle of hvac)
  • Mode door drv (a)
  • Recirculation door actuator (right side of hvac)
  • Recirculation door drv (a)
  • S116
  • S201 (behind left side of glove box)
  • S221
  • S320 (sedan)
  • Sedan
  • Sens gnd
  • Sun sens return
  • Sun sensor
  • Totally integrated power module (left side of engine compt)
  • Z134
  • Z910
  • Z912

Automatic A/C Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009

Automatic AC Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009:

  • (in injector harness, below throttle body) (2.7l/3.5l) s182
  • 2.4l
  • 2.7l
  • 2.7l/3.5l
  • A/c clutch coil
  • A/c comp ctrl
  • A/c compressor clutch (2.7l & 3.5l) (2009 model only)
  • A/c compressor solenoid (lower left front of engine)
  • A10
  • B(+)
  • B10
  • C10
  • C11
  • C27
  • Can c bus (+)
  • Can c bus (-)
  • Computer data lines system
  • D64
  • D65
  • Ect 1 signal
  • Ect 2 signal
  • Ect signal
  • Electronics
  • Engine controls system
  • Engine coolant temperature sensor (2.7l) engine coolant temperature sensor 1 (2.4l) (2.7l: top front of engine) (2.4l: rear of engine)
  • Engine coolant temperature sensor (3.5l) (top left rear of engine)
  • Engine coolant temperature sensor 2 (2.4l) (left front of engine)
  • Evaporator temperature sensor (left side of hvac)
  • Fuse 10a
  • Fuse 50a
  • G102 (at right shock tower)
  • G105 (at right shock tower)
  • G111 (on left shock tower)
  • Gnd
  • Ground
  • Hot at all times
  • K222
  • K900
  • K915
  • Low/high rad fan relay ctrl
  • Low/high rad fan rly out
  • N210
  • N23
  • N24
  • Powertrain control module (left rear of engine compt)
  • Rad fan relay ctrl
  • Rad fan rly out
  • Radiator cooling fan module (rear of radiator)
  • Radiator fan-low/ high relay
  • Radiator fan-medium/ high relay
  • Radiator fan-series/ parallel relay
  • Red
  • Relay block (left side of engine compt)
  • S110
  • S111
  • S125 (wire loom, near relay block)
  • S181 (2.4l) (in breakout to c101 & pcm c2)
  • S184 (in breakout to c101 & pcm c2)
  • S199
  • Sensor ground
  • Series/parallel rad fan rly feed
  • Totally integrated power module (left side of engine compt)
  • Z920

Manual A/C Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009

Manual AC Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram (1 of 2) for Chrysler Sebring Limited 2009:

  • (above left side of glove box) s202
  • (at left
  • (right front of engine compt) a/c pressure transducer
  • A/c pressure sens gnd
  • A/c pressure sens sig
  • A/c pressure sens sply
  • A/c-heater control
  • Auto headlamps sig
  • B(+)
  • Blend door actuator (left side of hvac)
  • Blend door drv
  • Blower motor (under right side of dash)
  • Blower motor resistor (under right side of dash)
  • Blower mtr ctrl
  • Blower mtr high drv
  • Blower mtr low drv
  • Blower mtr m1 drv
  • Blower mtr m2 drv
  • C121
  • C18
  • C21
  • C32
  • C34
  • C35
  • C61
  • C70
  • C71
  • C72
  • C73
  • C818
  • C918
  • Can b bus (+)
  • Can b bus (-)
  • Common door drv
  • Computer data lines system
  • D54
  • D55
  • Electronics
  • End of dash)
  • Evaporator temp sens sig
  • F929
  • Fuse 10a
  • Fused ignition sw out (run)
  • G200
  • G250 (left side of center stack support)
  • G939
  • Gnd
  • High
  • Hot at all times
  • Ign sw out (run)
  • L24
  • Low
  • Mode door actuator (middle of hvac)
  • Mode door drv (a)
  • Recirculation door actuator (right side of hvac)
  • Recirculation door drv (a)
  • S203
  • S221
  • Sens gnd
  • Sun sens return
  • Sun sensor
  • Totally integrated power module (left side of engine compt)
  • Z910
  • Z912

Manual A/C Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009

Manual AC Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Manual A/C Wiring Diagram (2 of 2) for Chrysler Sebring Limited 2009:

  • (in injector harness, below throttle body) (2.7l/3.5l) s182
  • 2.4l
  • 2.7l
  • 2.7l/3.5l
  • A/c comp ctrl
  • A/c compressor solenoid (lower left front of engine)
  • A10
  • B(+)
  • B10
  • C11
  • C27
  • Can c bus (+)
  • Can c bus (-)
  • Computer data lines system
  • D64
  • D65
  • Ect 1 signal
  • Ect 2 signal
  • Ect signal
  • Electronics
  • Engine controls system
  • Engine coolant temperature 2 sensor (2.4l) (left front of engine)
  • Engine coolant temperature sensor (2.7l) engine coolant temperature sensor 1 (2.4l) (2.7l: top front of engine) (2.4l: rear of engine)
  • Engine coolant temperature sensor (3.5l) (top left rear of engine)
  • Evaporator temperature sensor (left side of hvac)
  • Fuse 10a
  • Fuse 50a
  • G102 (at right shock tower)
  • G105 (at right shock tower)
  • G111 (on left shock tower)
  • Ground
  • Hot at all times
  • K222
  • K900
  • K915
  • Low/high rad fan relay ctrl
  • Low/high rad fan rly out
  • N210
  • N23
  • N24
  • Powertrain control module (left rear of engine compt)
  • Rad fan relay ctrl
  • Rad fan rly out
  • Radiator cooling fan module (rear of radiator)
  • Radiator fan-low/ high relay
  • Radiator fan-medium/ high relay
  • Radiator fan-series/ parallel relay
  • Red
  • Relay block (left side of engine compt)
  • S110
  • S111
  • S125 (wire loom, near relay block)
  • S181 (2.4l) (in breakout to c101 & pcm c2)
  • S184 (in breakout to c101 & pcm c2)
  • S199
  • Sensor ground
  • Series/parallel rad fan rly feed
  • Totally integrated power module (left side of engine compt)
  • Z920
