Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Hyundai Accent GLS 2008

ПРИБОРНАЯ ПАНЕЛЬ

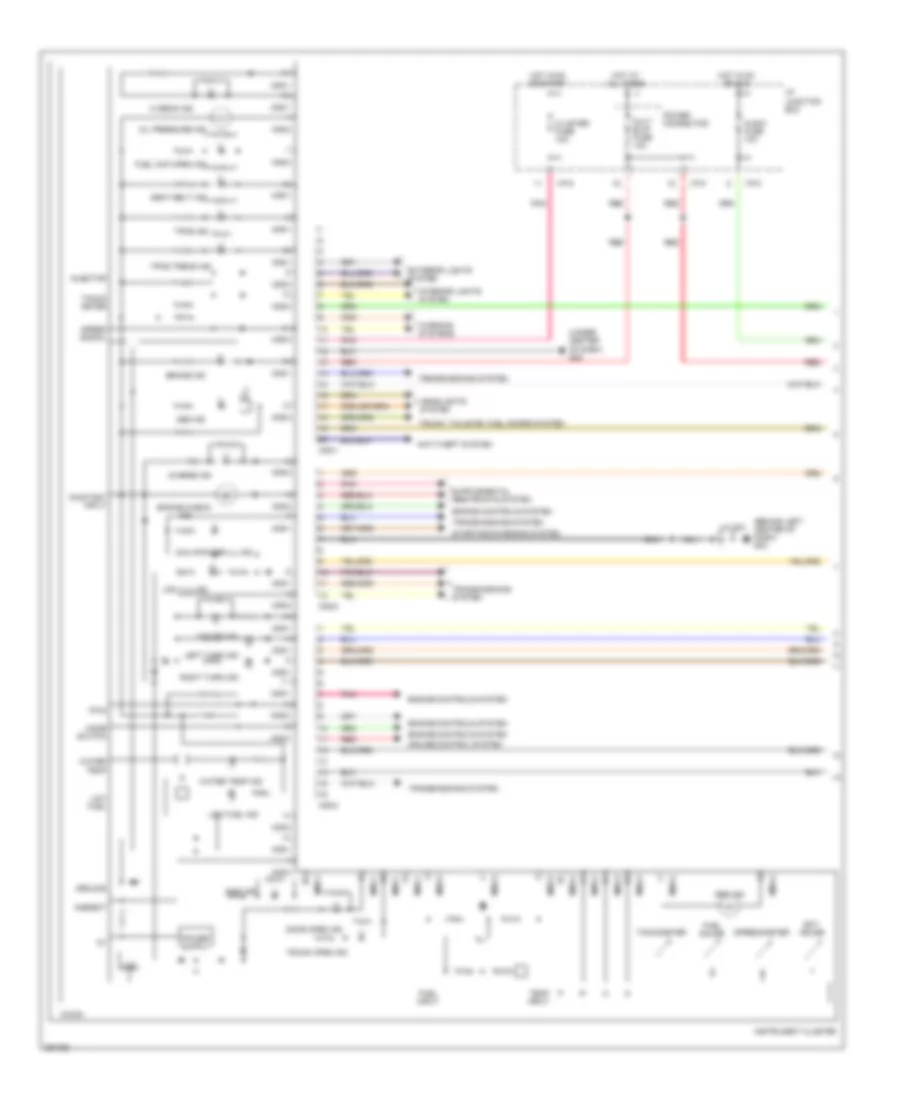

Электросхема панели приборов (1 из 2) для Hyundai Accent GLS 2008

Электросхема панели приборов (1 из 2) для Hyundai Accent GLS 2008 - Список элементов:

70

• (behind left center of dash) g03
• (under center of dash) g05
• Abs ind
• Ambient
• Anti-theft system
• Audio fuse 10a
• Brake ind
• Charge ind
• Cluster fuse 10a
• Cruise control system
• Dial/pointer ill ind
• Door open ind
• Ect gauge
• Engine check
• Engine controls system
• Exterior lights system
• Fuel cap open ind
• Fuel gauge
• Fuel input
• Ground
• Headlights system
• Hi beam ind
• Hot at all times
• Hot in on or acc
• Hot in on or start
• I/p junction box
• I/p-g
• I/p-k
• I/p-m
• Immo ind
• Ind
• Injector
• Instrument cluster
• Interior lights system
• J/c g03
• Lcd
• Lcd illu ind
• Left turn ind
• Low fuel
• Low fuel ind
• M09-1
• M09-2
• M09-3
• Micom
• Mode switch
• Mult b/up fuse 10a
• O/d off ind
• Oil pressure ind
• On/start input
• Pnk
• Power connector
• Pwm
• Red
• Right turn ind
• Seat belt ind
• Speed signal
• Speedometer
• Srs ind
• Starting/charging system
• Tacho meter
• Tachometer
• Temp input
• Tpms ind
• Tpms tread ind
• Transmissions system
• Trunk open ind
• Trunk, tailgate, fuel doors system
• Warning systems
• Water temp
• Water temp ind

Электросхема панели приборов (2 из 2) для Hyundai Accent GLS 2008

Электросхема панели приборов (2 из 2) для Hyundai Accent GLS 2008 - Список элементов:

42

• A/t
• Ambient sensor 2 (right front of engine compt)
• Anti-lock brakes system
• Assist door switch (on right "b" pillar)
• Audio
• Bcm
• Brake fluid level sensor (on side of brake master cylinder)
• C01-1
• Digital clock
• Diode
• Door sw
• Driver door switch (on left "b" pillar)
• Drl control module
• Ecm (left rear of engine compt)
• Engine coolant temperature sensor & sender (on rear of cylinder head, on thermostat housing)
• Fuel sender
• Fuel sender & fuel pump motor (in fuel tank)
• G03 (behind left center of dash)
• G05 (under center of dash)
• G13 (left front corner of engine compt)
• I/p junction box
• I/p-b
• I/p-f
• I/p-g
• Ill
• Interior lights system
• J/c g03
• Left rear door switch (at left "c" pillar)
• M/t
• M14-1
• M14-2
• Mode switch
• Nca
• Oil pressure switch (on left rear side of engine)
• Parking brake switch (at base of parking brake lever)
• Pcm (left rear of engine compt)
• Red
• Right rear door switch (at right "c" pillar)
• Seat belt
• Sender
• W/ abs
• W/o abs
