Электросхемы Противоугонная система Сигнализация Dodge Ram Wagon B1500 1999

Противоугонная система Сигнализация

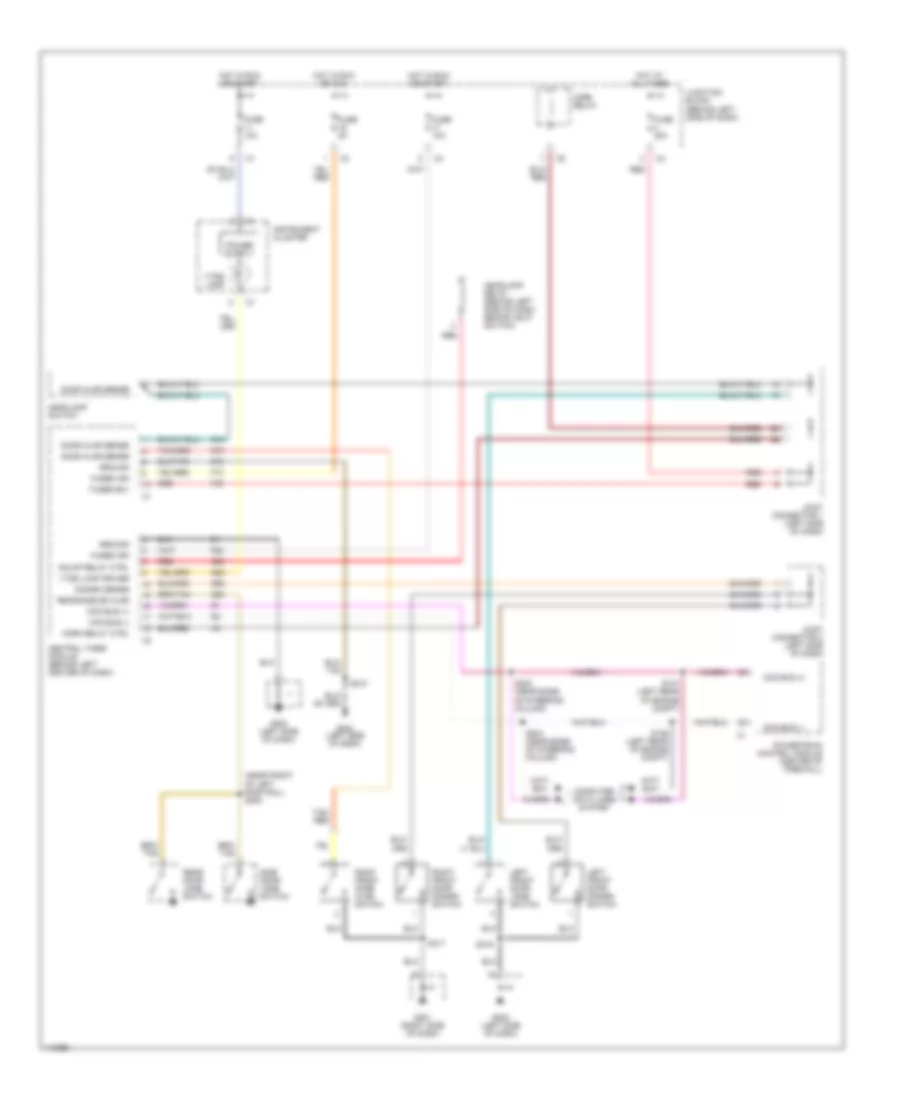

Электросхема противоугонной сигнализации для Dodge Ram Wagon B1500 1999

Электросхема противоугонной сигнализации для Dodge Ram Wagon B1500 1999 - Список элементов:

  • (near front of left roof rail) s300
  • Ccd bus (+)
  • Ccd bus (-)
  • Central timer module (behind left center of dash)
  • Computer data lines system
  • Disarm sense
  • Door ajar sense
  • F10
  • F35
  • F82
  • Fuse 10a
  • Fuse 20a
  • Fuse 5a
  • Fused b(+)
  • Fused ign
  • G16
  • G20
  • G201 (right side of dash)
  • G202 (left side of dash)
  • G50
  • G52
  • G69
  • G74
  • Ground
  • Hdlmp relay ctrl
  • Headlamp relay (behind left side of dash, behind hdlp switch)
  • Headlamp switch
  • Horn relay
  • Horn relay ctrl
  • Hot at all times
  • Hot in run or acc
  • Hot in run or start
  • Instrument cluster
  • Joint connector 1 (left side of dash)
  • Joint connector 3 (left side of dash)
  • Junction block (behind left side of dash)
  • Left front door disarm switch
  • Left front door jamb switch
  • Powertrain control module (center of firewall)
  • Rear door jamb switch
  • Rear/side dr ajar
  • Red
  • Right front door ajar switch
  • Right front door disarm switch
  • S106 (left rear of engine compt)
  • S107 (left rear of engine compt)
  • S203 (near base of steering column)
  • S204 (near base of steering column)
  • S210
  • S316
  • S317
  • Side door jamb switch
  • Tan/ red
  • Tan/red
  • Vtss lamp
  • Vtss lamp driver
  • Z12
