AIR CONDITIONING – Ford Taurus LX 1997 – SYSTEM WIRING DIAGRAMS

AIR CONDITIONING

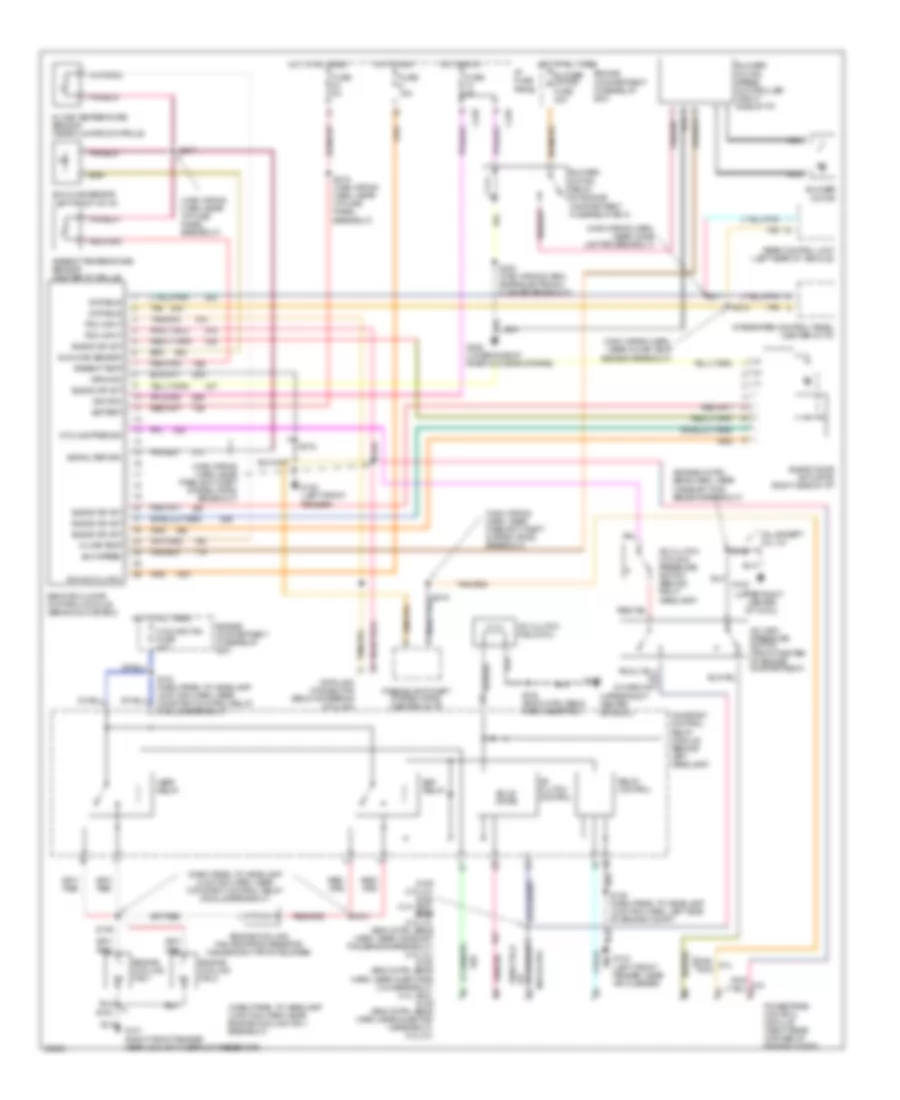

A/C Wiring Diagram, Auto A/C for Ford Taurus LX 1997

List of elements for A/C Wiring Diagram, Auto A/C for Ford Taurus LX 1997:

• (all except 3.0l 4v)
• (dash panel to headlamp junction harn, near constant control relay module breakout)
• (dash panel to headlamp junction harn, near engine cooling fan 1 breakout)
• (engine cntrl sens harn, near camshaft pos sensor breakout)
• (left front of i/p)
• (main wiring harn, near cigar lighter breakout)
• (main wiring harn, near i/p fuse panel breakout)
• (main wiring harn, near in-car temp sensor breakout)
• (main wiring harn, near pass anti-theft system (pats) breakout)
• (upper right
• (upper right center of cowl)
• 883 or 879
• A/c clutch control
• A/c clutch cycling pressure switch (behind right headlamp)
• A/c clutch field coil
• A/c high pressure switch (front center of engine compartment)
• Ambient temp
• Ambient temperature sensor (center of grille)
• Battery
• Blend door actuator (right side of i/p)
• Blend dr act
• Blower motor
• Blower motor fuse 40a
• Blower motor relay (in engine
• Blower motor speed controller (right side of i/p)
• Blw speed
• C225
• C235
• Center of cowl)
• Compartment fuse/relay box
• Compartment fuse/relay box)
• Constant control relay module (behind left headlamp)
• Cooling fan fuse 40a
• Cycling pres sw
• Data bus
• Data link connector (below steering column)
• Edf relay
• Engine
• Engine compartment fuse/relay box
• Engine cooling fan 1
• Engine cooling fan 2
• Engine cooling fan dropping resistor (inside right front bumper)
• Fuse 15a
• Fuse 5a
• G100 (left front fender)
• G101 (right front fender near coolant overflow reservoir)
• G104 (left front fender, near air cleaner)
• G123
• G206 (lower side of inner glove box frame)
• Ground
• Hedf relay
• Hot at all times
• Hot in run
• I/p fuse panel
• Ign-a/c clutch
• Ignition
• In car temp
• In-car temperature sensor (near climate controls)
• Integrated control panel (center of i/p)
• Nca
• Passive anti-theft system (pats) (center of i/p)
• Pcm input
• Powertrain control module (right rear corner of engine compt)
• Rear control unit (left rear of vehicle)
• Relay control
• Remote climate control module (behind glove box)
• S108 (eng cntrl sens harn, near pcm)
• S109 (3.0l 2v) s160 (3.4l sho) s154 s154 (3.0l 4v) (eng cntrl sens harn, near camshaft pos sensor breakout) (3.0l 4v) s160 (eng cntrl sens harn, near injectors 3 & 4 breakout) (3.4l sho) s109 (eng cntrl sens harn, near injector 3 breakout) (3.0l 2v)
• S131
• S132 (dash panel to headlamp junction harn, near constant control relay module breakout)
• S136
• S145
• S156
• S211
• S213
• S215
• S216 (main wiring harn, near i/p fuse panel breakout)
• S217
• S218
• S219
• S223 (main wiring harn, near electronic flasher breakout)
• Signal return
• Solid state
• Sunload sensor
• Tan

A/C Wiring Diagram, Manual A/C for Ford Taurus LX 1997

List of elements for A/C Wiring Diagram, Manual A/C for Ford Taurus LX 1997:

• (3.4l sho)
• (all except 3.0l 4v)
• (dash panel to headlamp junction harn, near constant control relay module breakout)
• (dash panel to headlamp junction harn, near engine cooling fan 1 breakout)
• (lower side of
• (main wiring harn, near glove box switch/ lamp breakout)
• (not used)
• (upper right
• (upper right center of cowl)
• 883 or 879
• A/c clutch control
• A/c clutch cycling pressure switch (right front of engine compartment behind headlamp)
• A/c clutch field coil
• A/c high pressure switch (front center of engine compartment)
• A/c-heater
• Blend door actuator (right side of a/c plenum below i/p)
• Blower motor
• Blower motor fuse 40a
• Blower motor relay (in engine compartment fuse/relay box)
• Blower motor switch
• Blower resistor (behind right side of i/p)
• C225
• C235
• Center of cowl)
• Constant control relay module (behind left headlamp)
• Cooling fan fuse 40a
• Def
• Def/flr
• Edf relay
• Engine compartment fuse/relay box
• Engine cooling fan 1
• Engine cooling fan 2
• Engine cooling fan dropping resistor (inside right front bumper)
• Flr
• Flr/vnt
• Fuse 15a
• Fuse 5a
• G101 (right front fender near coolant overflow reservoir)
• G104 (left front fender, near air cleaner)
• G123
• G206
• Hedf relay
• Hot at all times
• Hot in run
• I/p fuse panel
• Inner glove box frame)
• Max
• Norm
• Off
• Pan/flr
• Panel
• Powertrain control module (right rear corner of engine compt)
• Relay control
• S108 (eng cntrl sens harn, near pcm)
• S109 (3.0l 2v)
• S131
• S132 (dash panel to headlamp junction harn, near constant control relay module breakout)
• S136
• S145
• S154 (3.0l 4v) (eng cntrl sens harn, near camshaft pos sensor breakout) (3.0l 4v) s160 (eng cntrl sens harn, near injectors 3 & 4 breakout) (3.4l sho) s109 (eng cntrl sens harn, near injector 3 breakout) (3.0l 2v)
• S156 (engine cntrl sensor harn, near camshaft g123 pos sensor breakout)
• S160
• S210 (dash panel to headlamp harn, left corner of i/p, near headlamp switch)
• S212 (main wiring harn, near cigar lighter breakout)
• S227 (main wiring harn, left corner of i/p, near headlamp switch) (3.0l 4v 0nly)
• S229 (main wiring harn, near glove box switch/ lamp breakout)
• Selector switch
• Solid state
• Temperature control potentiometer
• Vent
