Электросхемы Навигация GPS Парктроники Ford Explorer Limited 2012

Навигация GPS Парктроники

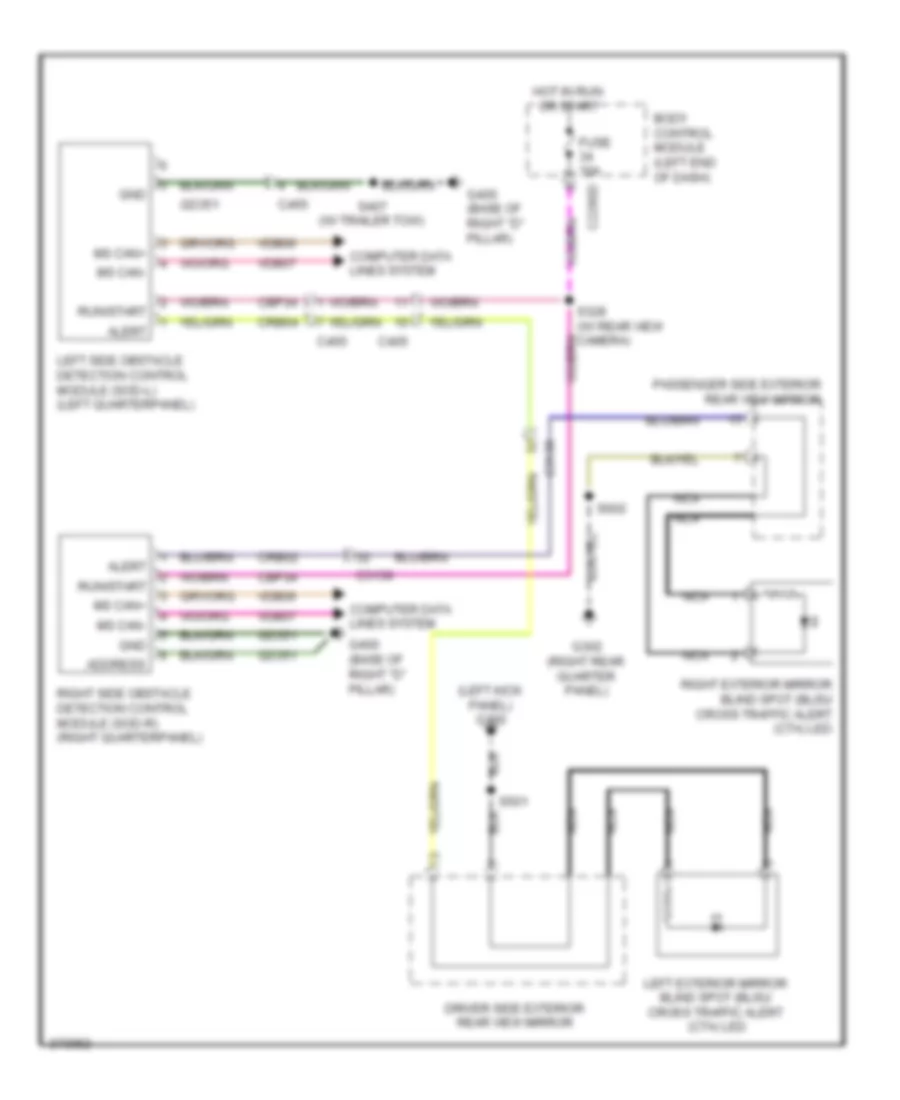

Электросхема системы предупреждения о присутствии объекта в мертвой зоне для Ford Explorer Limited 2012

Электросхема системы предупреждения о присутствии объекта в мертвой зоне для Ford Explorer Limited 2012 - Список элементов:

• (left kick panel) g300
• Address
• Alert
• Body control module (left end of dash)
• C2280d
• C3138
• C3139
• C405
• C465
• Cbp34
• Computer data lines system
• Crb02
• Crb04
• Driver side exterior rear view mirror
• Fuse 10a
• G302 (right rear quarter panel)
• G400 (base of right "d" pillar)
• Gd351
• Gnd
• Hot in run or start
• Left exterior mirror blind spot (blis)/ cross traffic alert (cta) led
• Left side obstacle detection control module (sod-l) (left quarterpanel)
• Ms can+
• Ms can-
• Nca
• Passenger side exterior rear view mirror
• Right exterior mirror blind spot (blis)/ cross traffic alert (cta) led
• Right side obstacle detection control module (sod-r) (right quarterpanel)
• Run/start
• S407 (w/ trailer tow)
• S501
• S602
• Vdb06
• Vdb07

Электросхема навигации GPS, С Sony (1 из 2) для Ford Explorer Limited 2012

Электросхема навигации GPS, С Sony (1 из 2) для Ford Explorer Limited 2012 - Список элементов:

• (center rear of roof) antenna module
• (w/ satellite radio)
• Accessory protocol interface module
• Alert 1+
• Alert 1-
• Alert 2+
• Alert 2-
• Am/fm
• Antenna pwr
• Audio control module
• Audio digital signal processing module (base of right "c" pillar)
• Batt
• Body control module (left end of dash)
• C210
• C2280a
• C2280d
• C237
• C240a
• C240b
• C3138
• C3139
• C3154a
• C3154b
• C3154c
• C316
• C327
• Ce336
• Coaxial cable
• Computer data lines system
• D pillar -
• D pillar+
• Dme17
• Dme45
• Dme80
• Enable
• Fuse 20a
• G201 (under right front of center console)
• G302 (right rear quarter panel)
• Gd214
• Gd348
• Gnd
• Hot at all times
• I can +
• I can -
• Instrument panel speaker
• Ip spkr +
• Ip spkr -
• Left front speaker
• Left front tweeter
• Left rear speaker
• Lf spkr +
• Lf spkr -
• Lf tweeter +
• Lf tweeter -
• Lr spkr +
• Lr spkr -
• Nca
• Rf spkr +
• Rf spkr -
• Rf tweeter +
• Rf tweeter -
• Right front speaker
• Right front tweeter
• Right rear speaker
• Rme01
• Rme02
• Rme06
• Rme07
• Rme08
• Rme09
• Rme10
• Rme11
• Rme12
• Rme17
• Rme18
• Rme39
• Rme46
• Rme80
• Rr spkr +
• Rr spkr -
• S332
• Sbp05
• Sbp29
• Sdars
• Shield
• Sme23
• Solid state
• Start
• Starting/ charging system
• Stereo 2l+
• Stereo 2r+
• Stereo 2r-
• Stereo shield
• Subw 1+
• Subw 1-
• Subw 2+
• Subw 2-
• Subwoofer
• Sync alert+
• Sync alert-
• V batt
• Vdb13
• Vdb14
• Vme01
• Vme02
• Vme06
• Vme07
• Vme08
• Vme09
• Vme10
• Vme11
• Vme12
• Vme17
• Vme18
• Vme39
• Vme43
• Vme45
• Vme46
• Vme80
• Vme92
• Vme93
• Vme94
• Vme95

Электросхема навигации GPS, С Sony (2 из 2) для Ford Explorer Limited 2012

Электросхема навигации GPS, С Sony (2 из 2) для Ford Explorer Limited 2012 - Список элементов:

• (body main wiring assembly, near breakout to joint
• (under right front of center console) g201
• (w/o sync gen2) front controls/ display interface module
• (w/o sync gen2) s203
• A/d channel 2
• A/d channel 3
• A/d channel 4
• A/d return
• Audio input jack
• Body control module (left end of dash)
• C218b
• C218c
• C2280a
• C2280b
• C2414a
• C2414d
• Clockspring (top of steering column)
• Cls32
• Computer data lines system
• Connector 4 (hs-can)) s330
• Front controls interface module
• Fuse 10a
• Fuse 15a
• G201 (under right front of center console)
• Gd214
• Gnd
• Hazard
• Hazard switch
• Hot at all times
• Hs can+
• Hs can-
• I can +
• I can -
• Left rear d-pillar tweeter
• Left steering wheel switch
• Logic gnd
• Media
• Micro
• Mute
• Navigation system
• Nca
• Phone
• Ptt
• Red
• Right rear d-pillar tweeter
• Right steering wheel switch
• Rmp19
• S211
• S331 (body main wiring assembly, near breakout to joint connector 4 (hs-can))
• Sbp09
• Sbp23
• Seek +
• Seek -
• St input 2l+
• St input 2r+
• St input 2r-
• Steering column control module (top of steering column)
• Vbatt
• Vdb04
• Vdb05
• Vdb13
• Vdb14
• Vedio+
• Vedio-
• Vmp19
• Vol +
• Vol -
• W/ sysc
• W/o sysc

Электросхема навигации GPS, без Sony (1 из 2) для Ford Explorer Limited 2012

Электросхема навигации GPS, без Sony (1 из 2) для Ford Explorer Limited 2012 - Список элементов:

• (body main wiring assembly, near breakout
• (body main wiring assembly, near breakout to
• (center rear of roof) antenna module
• (w/ satellite radio)
• (w/o sync) audio input jack
• Accessory protocol interface module
• Alert+
• Alert-
• Am/fm
• Antenna pwr
• Audio control module
• Batt
• Body control module (left end of dash)
• C210
• C211
• C2280a
• C237
• C240a
• C240b
• C3138
• C3139
• C316
• C327
• Ce336
• Coaxial cable
• Computer data lines system
• Dme17
• Dme18
• Dme45
• Dme52
• Dme80
• Driver's safety belt retractor pretensioner)
• Enable
• Fuse 20a
• G201 (under right front of center console)
• Gd214
• Gnd
• Hot at all times
• I can +
• I can -
• Left front tweeter
• Left quarter panel speaker
• Left rear speaker
• Lf spkr +
• Lf spkr -
• Lf tweeter +
• Lf tweeter -
• Lr spkr +
• Lr spkr -
• Nca
• Rf spkr +
• Rf spkr -
• Rf tweeter +
• Rf tweeter -
• Right front tweeter
• Right quarter panel speaker
• Right rear speaker
• Rme08
• Rme09
• Rme11
• Rme12
• Rme17
• Rme18
• Rme46
• Rme52
• Rme53
• Rme80
• Rr spkr +
• Rr spkr -
• S323
• S326
• Sbp29
• Sdars
• Sdl h
• Sdl l
• Shield
• Sme23
• St input 2l+
• St input 2r+
• St input 2r-
• Start
• Starting/ charging system
• State solid
• Stereo 2l+
• Stereo 2r+
• Stereo 2r-
• Stereo l +
• Stereo l -
• Stereo r +
• Stereo r -
• Stereo shield
• To passenger's load limiting retractor)
• Vdb13
• Vdb14
• Vme08
• Vme09
• Vme11
• Vme12
• Vme17
• Vme18
• Vme43
• Vme45
• Vme46
• Vme52
• Vme53
• Vme80
• Vme90
• Vme91
• W/ sync gen 1
• W/ sync gen 2

Электросхема навигации GPS, без Sony (2 из 2) для Ford Explorer Limited 2012

Электросхема навигации GPS, без Sony (2 из 2) для Ford Explorer Limited 2012 - Список элементов:

• (base of right "c" pillar) audio amplifier
• (top of steering column) steering column control module
• (under right front of center console) g201
• (w/o sync gen2) s203
• A/d channel 2
• A/d channel 3
• A/d channel 4
• A/d return
• Body control module (left end of dash)
• C210
• C218b
• C218c
• C2280a
• C2280b
• C2280d
• C2414a
• C2414d
• C3138
• C3139
• C3504a
• C3504b
• Clockspring (top of steering column)
• Cls32
• Computer data lines system
• Computer data lines system navigation system
• Enable
• Front controls interface module
• Front controls/ display interface module (w/o sync gen2)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• G201 (under right front of center console)
• G302 (right rear quarter panel)
• Gd214
• Gd348
• Gnd
• Hazard
• Hazard switch
• Hot at all times
• Hs can+
• Hs can-
• I can +
• I can -
• Left front speaker
• Left steering wheel switch
• Lf spkr +
• Lf spkr -
• Logic gnd
• Media
• Micro
• Mute
• Navigation system
• Nca
• Phone
• Ptt
• Red
• Rf spkr +
• Rf spkr -
• Right front speaker
• Right steering wheel switch
• Rme07
• Rme10
• Rme17
• Rme18
• Rmp19
• S211
• S502 (left front door window regulator wiring harness, near breakout to driver's door side impact sensor)
• S503
• S603 (right front door window regulator wiring harness, near breakout to front passenger's door side impact sensor)
• S605
• Sbp05
• Sbp09
• Sbp23
• Seek +
• Seek -
• Sme23
• Vbatt
• Vdb04
• Vdb05
• Vdb13
• Vdb14
• Vedio+
• Vedio-
• Vme07
• Vme10
• Vme17
• Vme18
• Vmp19
• Vol +
• Vol -
• W/ sysc
• W/o sysc

Электросхема парктроников для Ford Explorer Limited 2012

Электросхема парктроников для Ford Explorer Limited 2012 - Список элементов:

• (backup alarm jumper wiring assembly, near breakout to inner right parking aid sensor) s402
• (body main wiring assembly, near breakout to parking aid module) (if equipped) s339
• (body main wiring assembly, near breakout to parking aid module) (if equipped) s340
• (dash panel to headlamp junction wiring harness, near breakout to g103)
• (under left front of center console) g200
• Auto park
• Autp park
• Body control module (bcm) (left end of dash)
• C210
• C211
• C213
• C2280d
• C406
• Cbp34
• Center stack switch assembly
• Cmp09
• Cmp18
• Computer data lines system
• Fuse 10a
• G400 (base of right "d" pillar)
• Gd351
• Gnd
• Hot in run or start
• Hs can +
• Hs can -
• Interior lights system
• Left active park assist sensor (if equipped) (left side of engine compt)
• Left inner parking aid sensor (left side of rear bumper)
• Left outer parking aid sensor (left side of rear bumper)
• Lf side sn
• Lmp07
• Parking aid module (right quarterpanel)
• Parking aid speaker (left side of dash)
• Rear sounder +
• Rear sounder -
• Rf side sn
• Right active park assist sensor (if equipped) (right side of engine compt)
• Right inner parking aid sensor (right side of rear bumper)
• Right outer parking aid sensor (right side of rear bumper)
• Ril sens
• Rir sens
• Rmp07
• Rmp09
• Rol sens
• Ror sens
• S135 (dash panel to headlamp junction wiring harness, near breakout to battery junction box)
• S139
• S328 (w/ rear view camera)
• S404 (backup alarm jumper wiring assembly, near breakout to liftgate intelligent access antenna)
• Sens gnd
• Sens pwr
• Solid state
• Vdb04
• Vdb05
• Vmp14
• Vmp15
• Vmp16
• Vmp17
• Vmp20
• Vmp21
• Vpwr

Электросхема камеры заднего вида для Ford Explorer Limited 2012

Электросхема камеры заднего вида для Ford Explorer Limited 2012 - Список элементов:

• Accessory protocol interface module
• Body control module (left end of dash)
• C211
• C2280b
• C2280c
• C2280d
• C494
• C935
• Computer data lines system
• Front control/ display interface module (fcdim)
• Fuse 10a
• G201 (under right front of center console)
• G301 (left rear quarter panel)
• Gd214
• Gnd
• Hot at all times
• Hot in run or start
• I can +
• I can -
• Lin 03
• Micro
• Nca
• Red
• Rmp19
• S203
• S328
• S410
• Sbp09
• Shield
• Vbatt
• Vdb13
• Vdb14
• Vdn03
• Video +
• Video -
• Video camera (left side of liftgate)
• Video+
• Video-
• Vmp19
• Vpwr
• W/ sync gen 2
• W/o sync gen 2
