Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Ford Freestar 2005

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

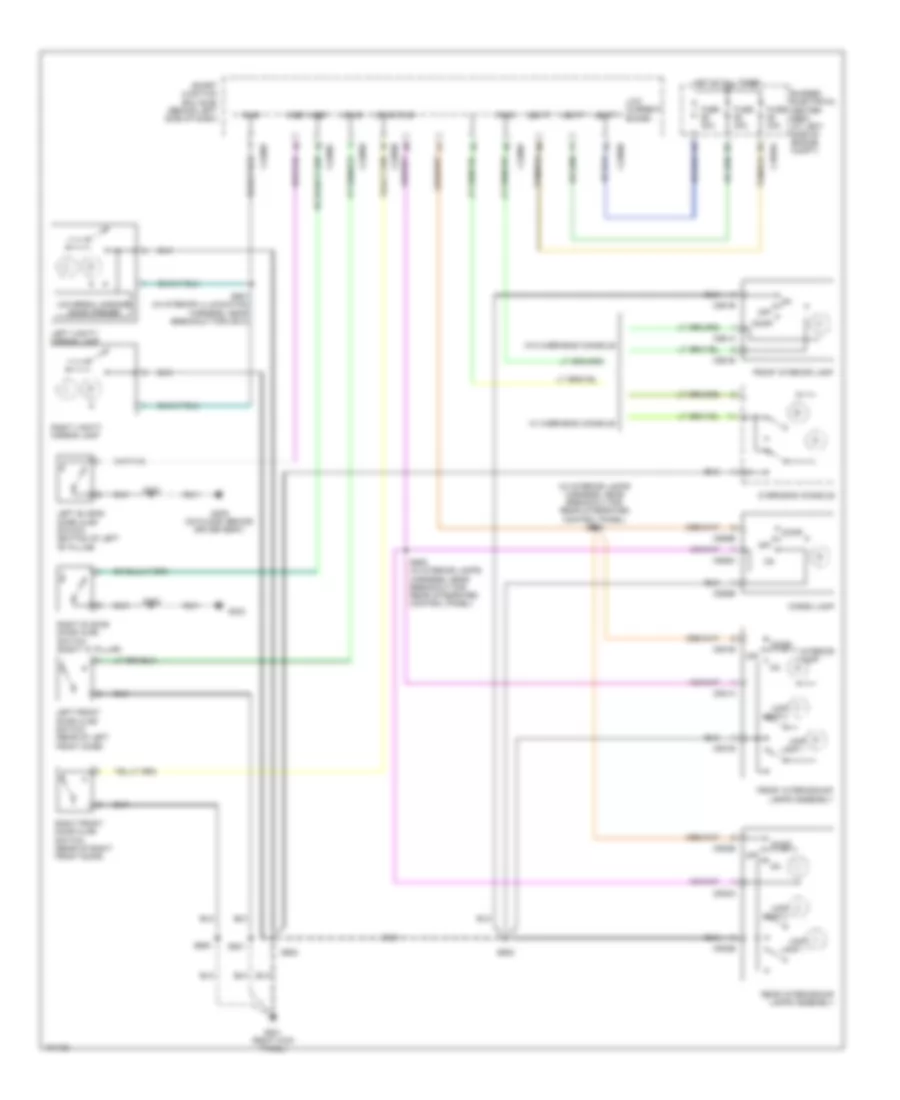

Электросхема подсветки (1 из 2) для Ford Freestar 2005

Электросхема подсветки (1 из 2) для Ford Freestar 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file

Электросхема подсветки (1 из 2) для Ford Freestar 2005 - Список элементов:

  • (in interior lamps harness, near breakout for rear integrated control panel) s906
  • Bussed electrical center (bec) (at left side of engine compt)
  • C1035a
  • C2280b
  • C2280c
  • C2280e
  • C2280f
  • C2280h
  • C926a
  • C926b
  • C931a
  • C931b
  • C932a
  • C932b
  • C981a
  • C981b
  • Cargo lamp
  • Door
  • Front interior lamp
  • Front interior/map lamps assembly
  • Fuse 30a
  • G201 (right kick panel)
  • G303
  • G305 (on floor, behind driver seat)
  • Hot at all times
  • Interior lamp
  • Left front door ajar switch (rear of left front door)
  • Left sliding door ajar switch (bottom of left "b" pillar)
  • Left vanity mirror lamp
  • Low current board
  • Map lamp 1
  • Map lamp 2
  • Off
  • Overhead console
  • Pwr
  • Rear interior/map lamps assembly
  • Right front door ajar switch (rear of right front door)
  • Right sliding door ajar switch (right "c" pillar)
  • Right vanity mirror lamp
  • S302
  • S303
  • S501
  • S600
  • S902
  • S903
  • S905 (in interior lamps harness, near breakout for rear integrated control panel)
  • S907 (in interior illumination harness, near breakout for c913)
  • Smart junction box (sjb) (behind left side of dash)
  • Universal garage door opener
  • Vbatt
  • Vpwr
  • Vref
  • W/ overhead console
  • W/o overhead console

Электросхема подсветки (2 из 2) для Ford Freestar 2005

Электросхема подсветки (2 из 2) для Ford Freestar 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки (2 из 2) для Ford Freestar 2005 - Список элементов:

  • (at right "d" pillar) g904
  • C2280b
  • C2280c
  • C2280d
  • C2280e
  • C2280h
  • C4174a
  • C4174b
  • G201 (right kick panel)
  • G300 (left kick panel)
  • G303
  • G305 (on floor, behind driver seat)
  • G400 (at left "d" pillar)
  • Ground
  • Joint connector 2 (behind center of dash)
  • Left exterior rear view mirror
  • Left footwell courtesy lamp
  • Left sliding door entry lamp
  • Liftgate ajar switch (bottom of liftgate)
  • Low current board
  • Power liftgate module
  • Pwr
  • Right exterior rear view mirror
  • Right footwell courtesy lamp
  • Right sliding door entry lamp
  • S302
  • S303
  • S310
  • S402
  • S501
  • S600
  • Smart junction box (sjb) (behind left side of dash)
  • Tan
  • Vref
  • W/ power liftgate
  • W/o power liftgate

Электросхема подсветки приборов (1 из 2) для Ford Freestar 2005

Электросхема подсветки приборов (1 из 2) для Ford Freestar 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки приборов (1 из 2) для Ford Freestar 2005 - Список элементов:

  • (in interior illumination harness, near breakout for c913) s900
  • (in interior lamps harness, near breakout for rear integrated control panel) s901
  • Air bag sliding contact (behind driver side of dash)
  • C218b
  • C2280a
  • C2280b
  • C2280f
  • C2280h
  • C294a
  • C294b
  • Clock
  • Compass/ thermometer
  • Control panel (ricp)
  • Dimmer
  • Dvd player
  • Electronic manual temperature control (emtc) module (center of dash)
  • G201 (right kick panel)
  • G300 (left kick panel)
  • G301 (left kick panel)
  • G305 (on floor, behind driver seat)
  • Head
  • Illum
  • Illumination
  • Illumination dimmer
  • Interior
  • Interior mode
  • Joint connector 2 (behind center of dash)
  • Logic ground
  • Low current board
  • Main light switch
  • Off
  • Overhead console (front center top of passenger compartment)
  • Park
  • Power ground
  • Power windows system
  • Pwr
  • Rear integrated
  • Right side front power window switch
  • S201
  • S202
  • S303
  • S902
  • Sig rtn
  • Smart junction box (sjb) (behind left side of dash)
  • Steering wheel radio switch
  • Steering wheel/ speed control switch
  • Vref

Электросхема подсветки приборов (2 из 2) для Ford Freestar 2005

Электросхема подсветки приборов (2 из 2) для Ford Freestar 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

Электросхема подсветки приборов (2 из 2) для Ford Freestar 2005 - Список элементов:

  • Accessory delay relay 1
  • Adjustable pedal switch
  • Audio unit
  • Bussed electrical center (bec) (at left side of engine compt)
  • C1035a
  • C1035d
  • C220a
  • C2280a
  • C2280b
  • C2280e
  • C2280h
  • C240a
  • C508a
  • C508b
  • Exterior rear view mirror switch
  • Fuse 30a
  • Fuse 5a
  • G201 (right kick panel)
  • Hot at all times
  • Instrument cluster
  • Joint connector 2 (behind center of dash)
  • Key pad switch assembly
  • Low current board
  • Master window/door lock/unlock switch
  • Memory set
  • Message center switch
  • Passenger side door lock switch
  • Power quarter window switch
  • Power windows system
  • Pwr
  • S500
  • S501
  • S502 (in left front door window regulator harness, near breakout to exterior mirror switch)
  • S600
  • Smart junction box (sjb) (behind left side of dash)
  • Switch
  • Traction assist/ parking aid disable switch
  • Vbatt
