Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Ford Cab amp; Chassis F350 Super Duty 2011

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

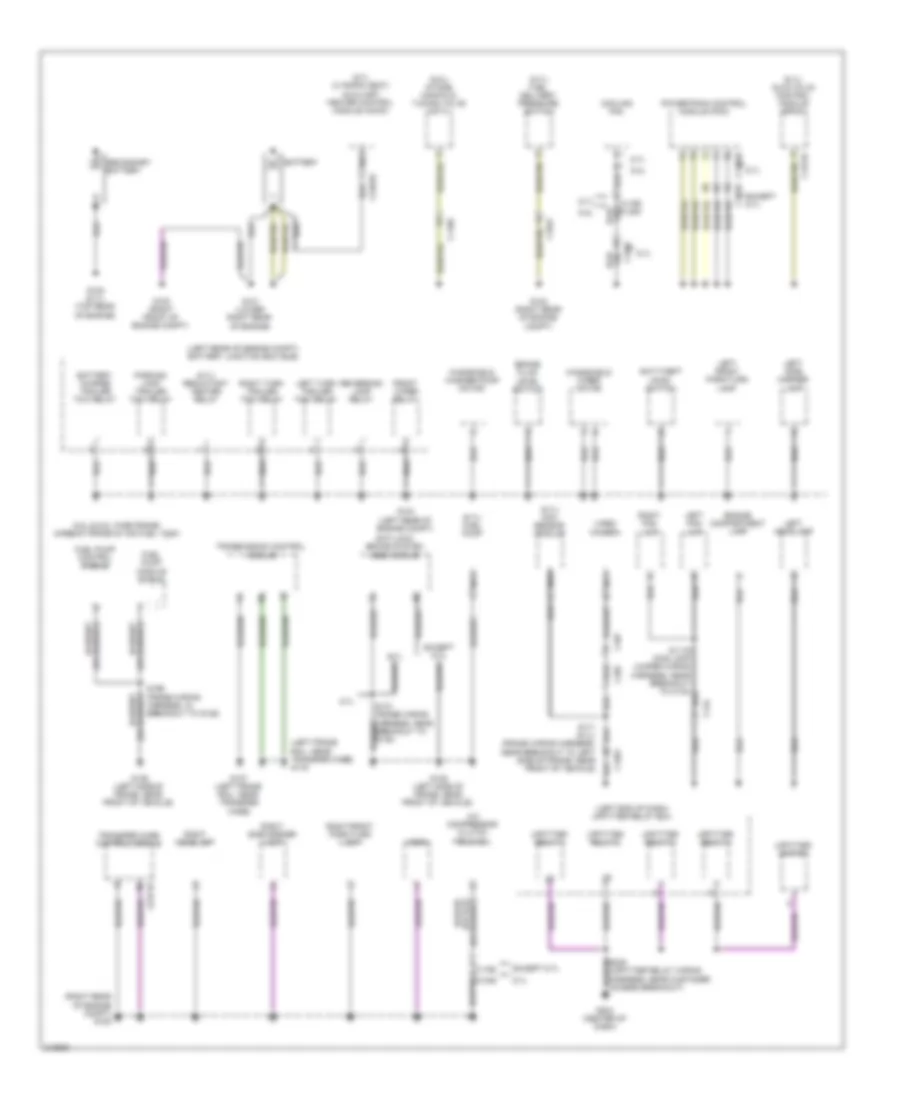

Электросхема подключение массы заземления (1 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011

Электросхема подключение массы заземления (1 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011 - Список элементов:

• (6.7l w/ rapid heat) auxiliary heater control module (ahcm)
• (6.7l) fuel delivery pressure switch
• (6.7l) fuel pump
• (6.7l) glow plug control module (gpcm)
• (6.7l) nox sensor module
• (6.7l) reductant heater relay
• (6.8l) intake manifold tuning valve (imtv)
• (left end of dash) upfitter relay box
• (left frame rail, near transfer case) g116
• (left rear of engine compt) battery junction box (bjb)
• (right rear of engine compt) g108
• 6.2l
• 6.2l & 6.8l wide frame/ narrow frame w/ mid fuel tank
• 6.7l
• A/c compressor clutch field coil
• Anti-lock brake system (abs) module
• Anti-theft hood switch
• Battery
• Battery charge trailer tow relay
• Brake fluid level switch
• C1047
• C1168
• C1232b
• C1273c
• C134
• C1581
• C175b
• C2371b
• C2463a
• C465
• C497
• Cooling fan
• Engine compartment lamp
• Except 6.7l
• Front wiper relay
• Fuel pump control module
• Fuel pump module shield
• G100 (right front of engine compt)
• G101 (lower right rear of engine)
• G102 (6.7l) (top rear of engine)
• G103 (right rear of engine compt)
• G104 (left rear of engine compt)
• G107 (left frame rail, near transfer case)
• G135 (left side of frame, near front of vehicle)
• G136 (left side of frame, near front of vehicle)
• G204 (center of dash)
• Horn
• Left fog lamp
• Left front park/turn lamp
• Left headlamp
• Left side marker lamp
• Left turn trailer tow relay
• Nca
• Parking lamp trailer tow relay
• Powertrain control module (pcm)
• Reversing lamp relay
• Right fog lamp
• Right front park/turn lamp
• Right headlamp
• Right side marker lamp
• Right turn trailer tow relay
• S170 (frame wiring harness, near breakout to g135)
• S196 (frame wiring harness, in breakout to g136)
• Secondary battery
• Side of frame, near front of vehicle)
• Transfer case control module
• Transmission control module
• Upfitter relay 1
• Upfitter relay 2
• Upfitter relay 3
• Upfitter relay 4
• Upfitter switch
• Video camera
• Windshield washer pump motor
• Windshield wiper motor

Электросхема подключение массы заземления (2 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011

Электросхема подключение массы заземления (2 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011 - Список элементов:

• (automatic a/c) autolamp/ sunload sensor
• (crew cab) roof opening panel module
• (crew chief) telematics module
• (early production) satellite digital audio receiver system (sdars) module
• (manual a/c) autolamp sensor
• (not used)
• (pia to steering wheel harness)
• (super cab) subwoofer amplifier
• (w/ cdim) circuit deactivation ignition module
• (w/ navigation) audio amplifier
• (w/ sync & navigation) global positioning system module
• (w/ sync) accessory protocol interface module (apim)
• 6.0l & 6.8l narrow frame w/ aft fuel tank
• Accessory protocol interface module
• Audio control module (acm)
• Blower motor speed control
• Brake shift interlock
• C2108
• C213
• C218a
• C218b
• C238
• C2385b
• C2408a
• C240a
• C2414a
• C2414b
• C248
• C265
• C268
• Center stack switch assembly
• Cigar lighter
• Clock spring (steering column assembly)
• Data link connector
• Data link connector (dlc)
• Fuel pump control module
• Fuel pump module shield
• Fuel tank selector switch
• G201 (center of dash)
• G202 (left side of dash)
• G203 (left side of dash)
• G301 (left "c" pillar)
• G402 (left side of frame, near rear of vehicle)
• Headlamp switch
• Horn switch
• Hvac module
• In-dash computer
• Instrument panel cluster (ipc)
• Instrument panel power point
• Left steering wheel switch
• Microphone
• Mode select switch
• Nca
• Parking aid module (pam)
• Passenger air bag deactivation (pad) switch
• Passive anti-theft transceiver
• Power mirror fold relay
• Regular cab
• Right steering wheel switch
• S214 (instrument panel wiring harness, in breakout to behind right side of dash)
• S219 (except base audio) (instrument panel wiring harness, near breakout to right side of instrument cluster)
• S226 (instrument panel wiring harness, near breakout to g201)
• S237 (instrument panel wiring harness, near breakout to behind left side of dash)
• S239 (instrument panel wiring harness, in breakout to g203)
• S269 (instrument panel wiring harness, near breakout to c265)
• S462 (frame wiring harness, in breakout to g402)
• Steering column control module
• Super cab & crew cab
• Tire pressure monitor module
• Trailer brake control (tbc) module
• W/o cdim
• W/sync

Электросхема подключение массы заземления (3 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011

Электросхема подключение массы заземления (3 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011 - Список элементов:

• (body main wiring harness, near g302) s323
• (crew cab w/ consolette) consolette power point
• (crew cab) rear interior/ map lamps assembly
• (crew cab) subwoofer amplifier
• (early production w/o moonroof) overhead console switch assembly
• (in-dash computer w/ tool link) tool link reader
• (late production w/o moonroof) overhead console switch assembly
• (regular cab) front dome lamp
• (super cab & crew cab) driver side rear door ajar switch
• (super cab & crew cab) front console power point
• (super cab & crew cab) front interior/ map lamps assembly
• (super cab & crew cab) passenger side rear door ajar switch
• (w/ 110v power inverter) dc/ac inverter module
• (w/ memory) exterior rear view mirror switch
• (w/ rear heated power sliding window) rear window defrost grid
• (w/o memory) exterior rear view mirror switch
• (wiring harness console (14b079) near breakout to center of cab floor)
• Auto-dimming interior mirror
• Body control module
• Brake pedal position switch
• C2280d
• C248
• C264
• C268
• C300
• C3052
• C311
• C312
• C3265a
• C3368b
• C3368d
• C341a
• C341b
• C3501a
• C504b
• C555
• C655
• C856 c855
• C913
• Center roof marker lamp
• Crew cab
• Driver safety belt buckle switch/ pretensioner
• Driver seat module (dsm)
• Driver side door lock switch
• Driver side exterior rear view mirror
• Driver side front door ajar switch
• Driver side front seat control switch
• Dual climate controlled seat module
• Front passenger side seat adjust switch
• G300 (left kick panel)
• G302 (right kick panel)
• High mounted stoplamp
• Keyless entry keypad
• Left center roof marker lamp
• Left roof marker lamp
• Left vanity mirror lamp
• Master window adjust switch
• Memory seat switch
• Nca
• Parking brake switch
• Passenger overhead console switch assembly
• Passenger side door lock switch
• Passenger side exterior rear view mirror
• Passenger side front door ajar switch
• Power seat
• Rear console power point
• Regular cab &
• Right center roof marker lamp
• Right roof marker lamp
• Right vanity mirror lamp
• S501 (left front door window regulator wiring harness, in driver's door)
• S505 (w/ power equipment) (left front door window regulator wiring harness, in driver's door)
• S639 (w/ power equipment) (right front door jumper wiring harness, in passenger's door)
• S905 (air curtain & roof markers wiring harness, near breakout to front of roof)
• Super cab
• Telescoping exterior rear view mirror switch
• W/ 10-way
• W/ power sliding rear window
• W/o 10-way power seat

Электросхема подключение массы заземления (4 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011

Электросхема подключение массы заземления (4 из 4) для Ford Cab amp; Chassis F350 Super Duty 2011 - Список элементов:

• (5th wheel) trailer tow connector
• (bumper rear park aid wiring harness, in breakout to c408)
• (if equipped) electronic locking differential (eld) field coil
• (narrow frame) taped to harness near c422
• 6.7l except high fulfur
• All others
• C139
• C3007
• C3047
• C327
• C328
• C3611a
• C4000
• C4002
• C408
• C432
• C465
• G400 (rear of left frame rail)
• Jumper wiring harness, near breakout to front of right running board)
• Late production narrow w/ aft fuel tank
• Left front running board lamp
• Left license plate lamp
• Left rear lamp
• Left rear park/ park/stop/ turn lamp
• Left rear running board lamp
• Left rear side lamp
• Left reversing lamp
• Lh/rh jumper wiring harness, near breakout to front of left running board)
• Narrow frame
• Nca
• Nox sensor module
• Rear marker lamp assembly
• Reductant heater & sensor assembly
• Reductant pressure line heater assembly
• Reductant pump assembly
• Right license plate lamp
• Right rear lamp
• Right rear park/ park/stop/ turn lamp
• Right rear running board lamp
• Right rear side lamp
• Right reversing lamp
• S405 (frame wiring harness, near breakout to g400)
• S411 (rear lamp connector wiring harness, near breakout to rear of vehicle)
• Trailer tow connector
• W/ dual rear wheels
• W/ pickup bed
• W/o pickup bed
• Wide frame
• Wide frame w/ pickup bed
• Wide frame/
