COOLING FAN

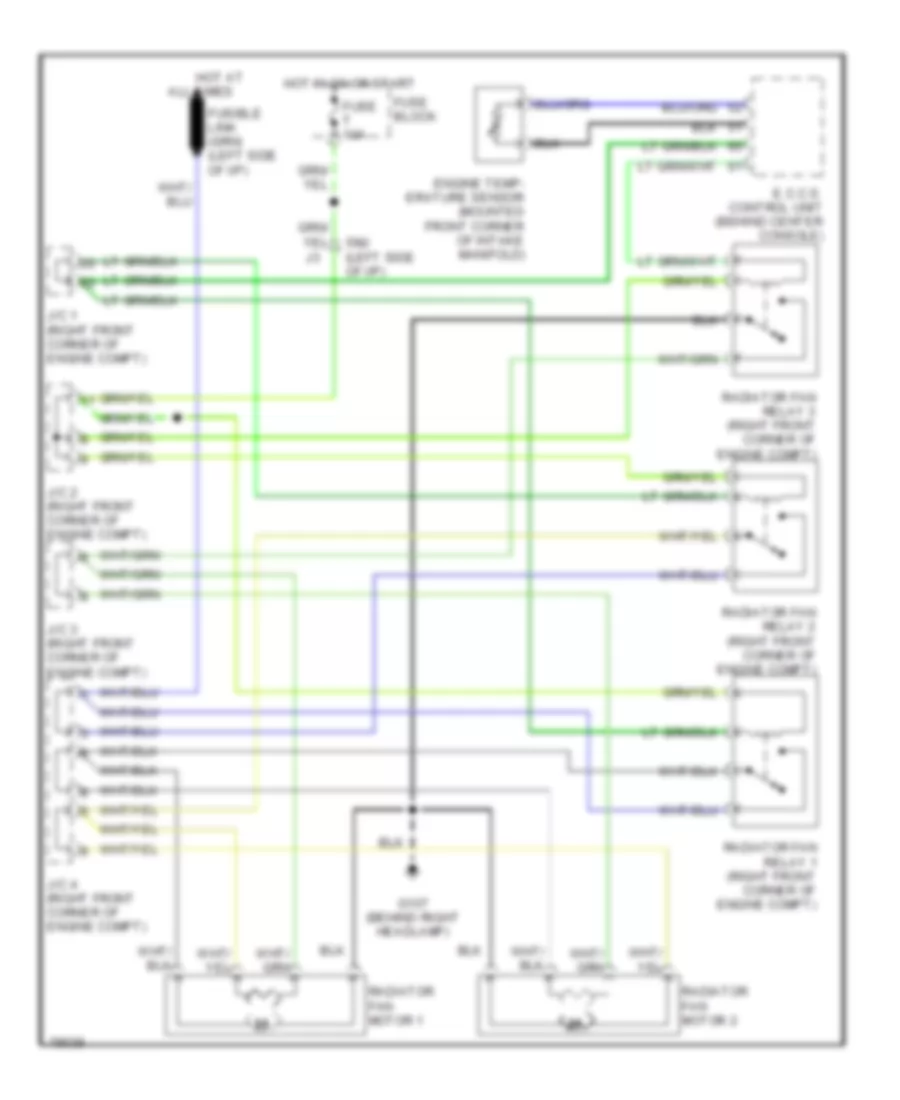

Cooling Fan Wiring Diagram for Nissan Stanza XE 1991

Cooling Fan Wiring Diagram for Nissan Stanza XE 1991 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file

List of elements for Cooling Fan Wiring Diagram for Nissan Stanza XE 1991:

  • All times
  • E.c.c.s. control unit (behind center console)
  • Engine temp- erature sensor (mounted front corner of intake manifold)
  • Fuse block
  • Fuse t 10a
  • G107 (behind right headlamp)
  • Hot at
  • Hot in on or start
  • J/c 1 (right front corner of engine compt)
  • J/c 2 (right front corner of engine compt)
  • J/c 3 (right front corner of engine compt)
  • J/c 4 (right front corner of engine compt)
  • Radiator fan motor 1
  • Radiator fan motor 2
  • Radiator fan relay 1 (right front corner of engine compt)
  • Radiator fan relay 2 (right front corner of engine compt)
  • Radiator fan relay 3 (right front corner of engine compt)
  • Smj (left side of i/p)
