Электросхемы СИСТЕМА КОНДИЦИОНЕРА Nissan Quest S 2007

СИСТЕМА КОНДИЦИОНЕРА

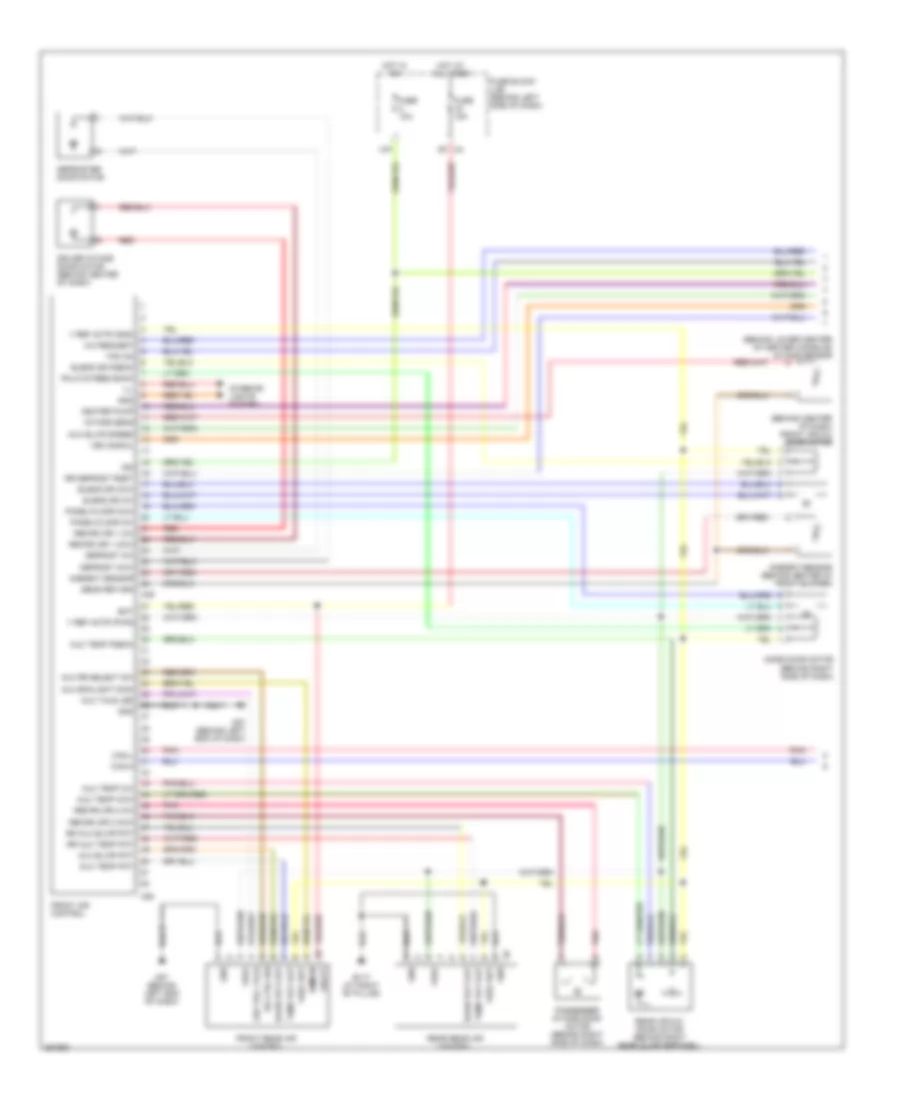

Электросхема кондиционера (1 из 3) для Nissan Quest S 2007

Электросхема кондиционера (1 из 3) для Nissan Quest S 2007 - Список элементов:

• (behind center of dash) driver air mix door motor
• (behind lower center of center console) intake sensor
• (behind right side of dash) mode door motor
• 14p
• 5v ref
• 8p m4
• A/c request
• Ambient sensor
• Ambient sensor (behind center of front bumper)
• As blend dr ccw
• As blend dr cw
• As blnd dr fdbck
• Aux blwr speed
• Aux temp ccw
• Aux temp cw
• Aux temp fdbck
• B117 (at right "b" pillar)
• Bat
• Blend dr ccw
• Blend dr cw
• Blend dr fdbck
• Blwr pot out
• Can-h
• Can-l
• Defrost ccw
• Defrost cw
• Defroster door motor
• Dimm pwm in
• Driver intake door motor (behind center of dash)
• Fan on
• Front air control
• Front rear air control
• Frt aux blwr pot
• Frt aux rr sw
• Frt aux tale led
• Frt aux temp pot
• Frt auz dimm
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (behind left side of dash)
• Gnd
• Heater pump
• Hot at all times
• Hot in on
• Ign
• Ill
• In-car mtr (+)
• In-car sens
• In-vehicle sensor (behind center of dash)
• Intake sens
• Interior lights system
• Led tell tale
• M49
• M50
• M57 (behind left end of dash)
• Optical sensor (under top center of dash)
• Panel/floor ccw
• Panel/floor cw
• Passenger air mix door motor (behind right side of dash)
• Passenger intake door motor (behind right side of dash)
• Pnk
• Pnl/flr feed back
• Rear air mix door motor (behind right rear quarterpanel)
• Rear rear air control
• Recirc dr 1 ccw
• Recirc dr 1 cw
• Recirc dr 2 ccw
• Recirc dr 2 cw
• Red
• Rr aux blwr pot
• Rr aux temp pot
• Rr ctrl sw
• Rr defrost rqst
• Sens return
• Sunload sns lt
• Sunload sns rt
• Temp pot out
• V ref actr (5v)
• V ref actr (gnd)
• Vbc signal
• Vref ret

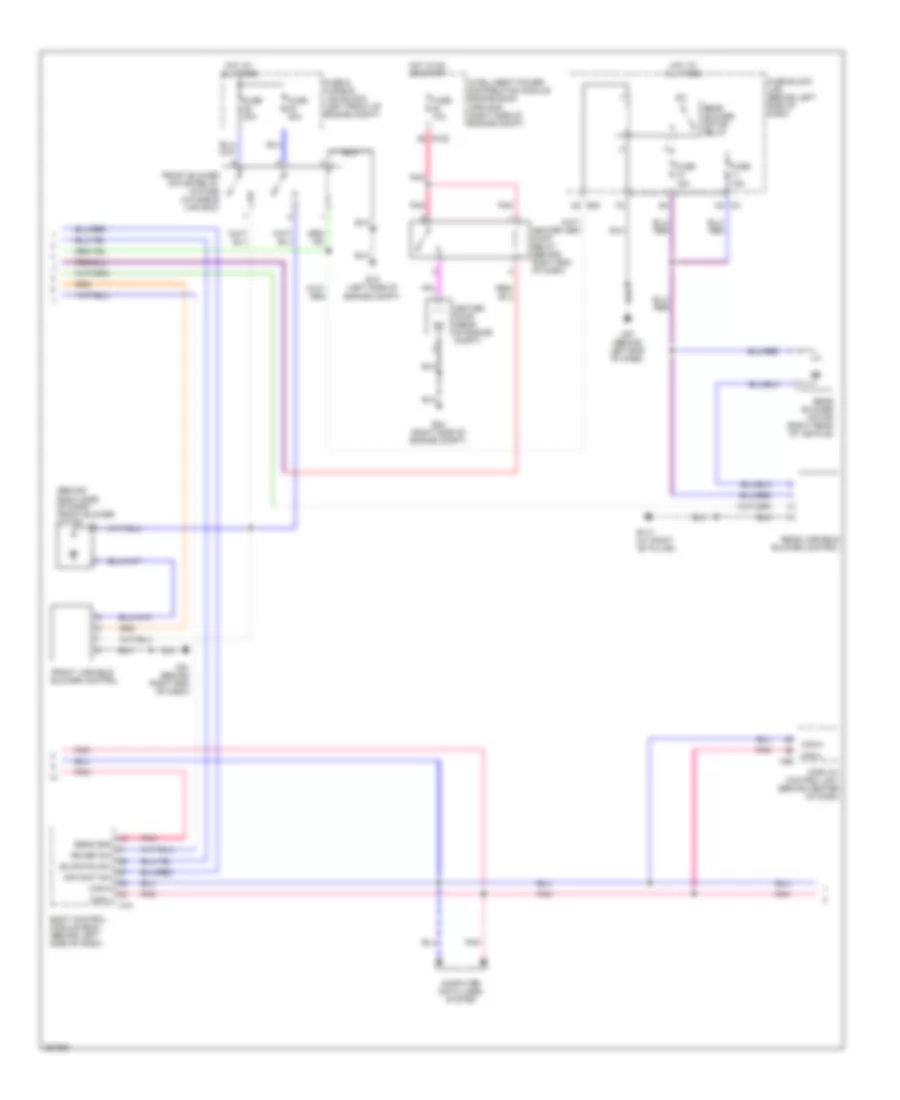

Электросхема кондиционера (2 из 3) для Nissan Quest S 2007

Электросхема кондиционера (2 из 3) для Nissan Quest S 2007 - Список элементов:

• (behind
• 3q e30
• Air cont sw
• B117 (at right "b" pillar)
• Blwr fan sw
• Body control module (bcm) (behind left side of dash)
• Can-h
• Can-l
• Computer data lines system
• Display control unit (behind center of dash)
• E122
• E15 (left side of engine compt)
• E24 (right side of engine compt)
• Front blower motor relay (in fuse & fusible link box)
• Front variable blower control
• Fuse & fusible link block (left front of engine compt)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse block (j/b) (behind left side of dash)
• Heater pump (rear of engine compt)
• Heater pump relay (behind right end of dash)
• Hot at all times
• Hot in on or start
• Intelligent power distribution module engine room (ipdm e/r) (right side of engine compt)
• M18
• M3 3n
• M57 (behind left end of dash)
• M61 (behind right end of dash)
• M95
• Pnk
• Rear blower motor (right rear of vehicle)
• Rear blower motor relay
• Rear variable blower control
• Right side of dash) front blower motor
• Rr def sw
• Sens gnd

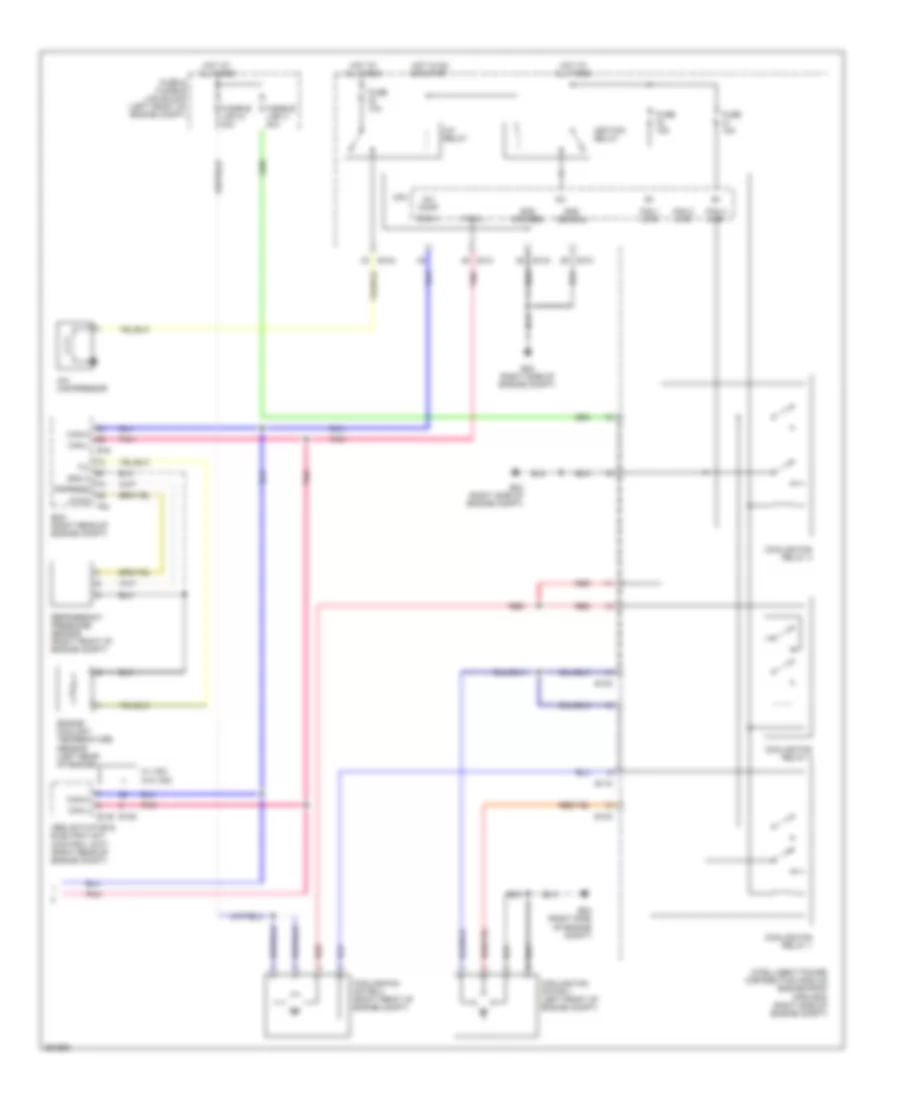

Электросхема кондиционера (3 из 3) для Nissan Quest S 2007

Электросхема кондиционера (3 из 3) для Nissan Quest S 2007 - Список элементов:

• A/c comp
• A/c compressor
• A/c relay
• Abs actuator & electric unit (control unit) (right rear of engine compt)
• Avcc
• Can-h
• Can-l
• Cooling fan motor 1 (left front of engine compt)
• Cooling fan motor 2 (right front of engine compt)
• Cooling fan relay 1
• Cooling fan relay 2
• Cooling fan relay 3
• Cpu
• E118
• E121
• E123
• E124
• E125
• E16
• E24 (right side of engine compt)
• Ecm (right rear of engine compt)
• Engine coolant temperature sensor (left rear of engine)
• F54
• Fan 1 mtr
• Fan 2 mtr
• Fan 3 mtr
• Fuse & fusible link block (left front of engine compt)
• Fuse 10a
• Fuse 15a
• Fusible link g 40a
• Fusible link h 40a
• Gnd (power)
• Gnd (signal)
• Gnd a
• Hot at all times
• Hot in on or start
• Ig+
• Ignition relay
• Intelligent power distribution module engine room (ipdm e/r) (right side of engine compt)
• Pdpress
• Pnk
• Red
• Refrigerant pressure sensor (right front of engine compt)
• W/ vdc w/o vdc

Электросхема кондиционера с ручный управлением (1 из 3) для Nissan Quest S 2007

Электросхема кондиционера с ручный управлением (1 из 3) для Nissan Quest S 2007 - Список элементов:

• (behind center of dash) front air mix door motor
• (behind lower center of center console) intake sensor
• 14p
• 8p m4
• A/c request
• Ambient sensor
• Ambient sensor (behind center of front bumper)
• Aux bcklight dimm
• Aux blwr pot
• Aux blwr speed
• Aux rr select sw
• Aux tale led
• Aux temp ccw
• Aux temp cw
• Aux temp fdbck
• Aux temp pot
• B117 (at right "b" pillar)
• Bat
• Blend dr ccw
• Blend dr cw
• Blend dr fdbck
• Blwr pot out
• Can-h
• Can-l
• Defrost ccw
• Defrost cw
• Defroster door motor
• Dimm in
• Driver intake door motor (behind center of dash)
• Fan on
• Front air control
• Front rear air control
• Fuse 10a
• Fuse 15a
• Fuse block (j/b) (behind left side of dash)
• Gnd
• Heater pump
• Hot at all times
• Hot in on
• Ign
• Ill
• Intake sens
• Interior lights system
• Led tell tale
• M49
• M50
• M57 (behind left end of dash)
• Mode door motor (behind right side of dash)
• Panel/floor ccw
• Panel/floor cw
• Passenger intake door motor (behind right side of dash)
• Pnk
• Pnl/flr feed back
• Rear air mix door motor (behind right rear quarterpanel)
• Rear rear air control
• Recirc dr 1 ccw
• Recirc dr 1 cw
• Recirc dr 2 ccw
• Recirc dr 2 cw
• Red
• Rr aux blwr pot
• Rr aux temp pot
• Rr ctrl sw
• Rr defrost rqst
• Sens return
• Temp pot out
• V ref actr (gnd)
• V ref actr (pwr)
• Vbatt
• Vbc signal
• Vref
• Vref ret

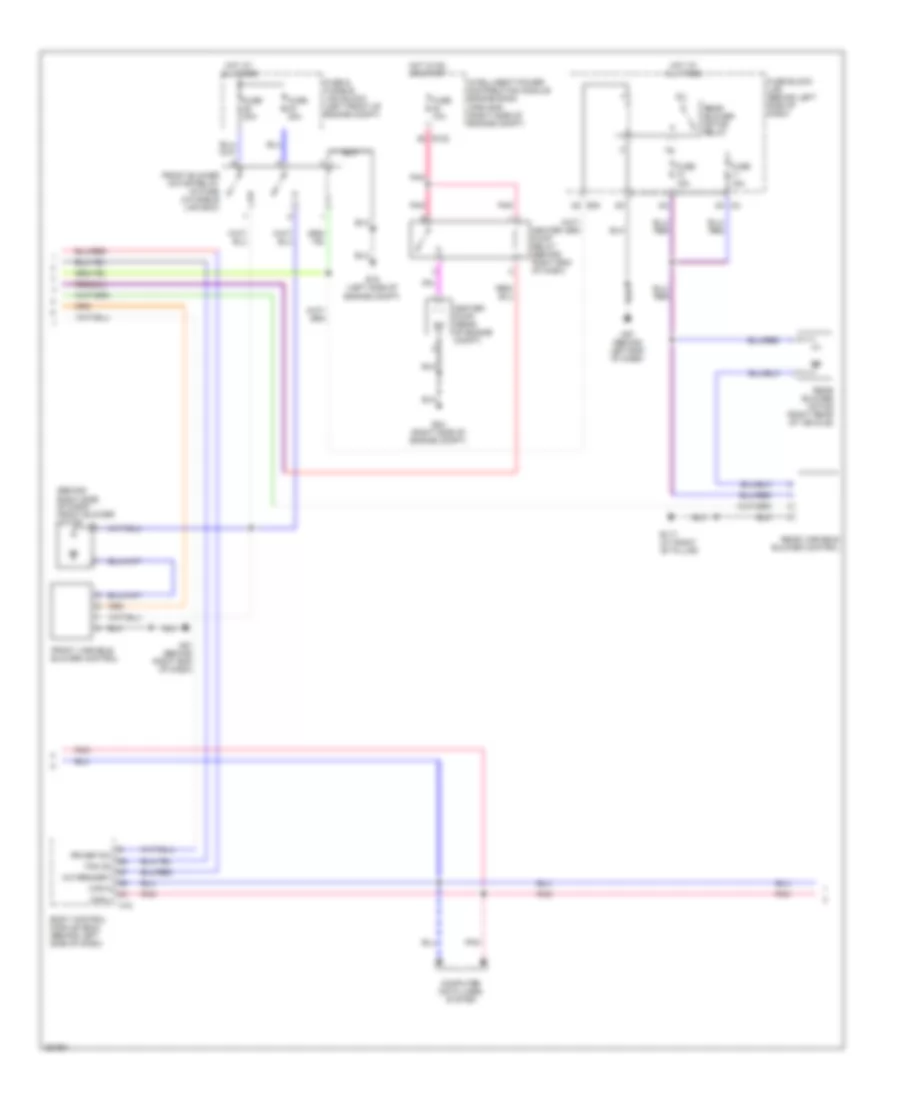

Электросхема кондиционера с ручный управлением (2 из 3) для Nissan Quest S 2007

Электросхема кондиционера с ручный управлением (2 из 3) для Nissan Quest S 2007 - Список элементов:

• (behind
• 3q e30
• A/c request
• B117 (at right "b" pillar)
• Body control module (bcm) (behind left side of dash)
• Can-h
• Can-l
• Computer data lines system
• E122
• E15 (left side of engine compt)
• E24 (right side of engine compt)
• Fan on
• Front blower motor relay (in fuse & fusible link box)
• Front variable blower control
• Fuse & fusible link block (left front of engine compt)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse block (j/b) (behind left side of dash)
• Heater pump (rear of engine compt)
• Heater pump relay (behind right end of dash)
• Hot at all times
• Hot in on or start
• Intelligent power distribution module engine room (ipdm e/r) (right side of engine compt)
• M18
• M3 3n
• M57 (behind left end of dash)
• M61 (behind right end of dash)
• Pnk
• Rear blower motor (right rear of vehicle)
• Rear blower motor relay
• Rear variable blower control
• Right side of dash) front blower motor
• Rr def sw

Электросхема кондиционера с ручный управлением (3 из 3) для Nissan Quest S 2007

Электросхема кондиционера с ручный управлением (3 из 3) для Nissan Quest S 2007 - Список элементов:

• A/c comp
• A/c compressor
• A/c relay
• Abs actuator & electric unit (control unit) (right rear of engine compt)
• Avcc
• Can-h
• Can-l
• Cooling fan motor 1 (left front of engine compt)
• Cooling fan motor 2 (right front of engine compt)
• Cooling fan relay 1
• Cooling fan relay 2
• Cooling fan relay 3
• Cpu
• E118
• E121
• E123
• E124
• E125
• E16
• E24 (right side of engine compt)
• Ecm (right rear of engine compt)
• Engine coolant temperature sensor (left rear of engine)
• F54
• Fan 1 mtr
• Fan 2 mtr
• Fan 3 mtr
• Fuse & fusible link block (left front of engine compt)
• Fuse 10a
• Fuse 15a
• Fusible link g 40a
• Fusible link h 40a
• Gnd (power)
• Gnd (signal)
• Gnd a
• Hot at all times
• Hot in on or start
• Ig+
• Ignition relay
• Intelligent power distribution module engine room (ipdm e/r) (right side of engine compt)
• Pdpress
• Pnk
• Red
• Refrigerant pressure sensor (right front of engine compt)
• W/ vdc w/o vdc
