Radio — Mazda CX-9 Grand Touring 2008 Wiring Diagram

RADIO

Radio Wiring Diagram, with Base Radio for Mazda CX-9 Grand Touring 2008

List of elements for Radio Wiring Diagram, with Base Radio for Mazda CX-9 Grand Touring 2008:

(behind left center of dash) j/c 37
(behind left side of dash) (w/ auto light system) auto light/wiper control module
(center front of roof) (if equipped) sunroof motor
(right rear of luggage compartment) car-navigation unit
0913-201a
0918-101b
0920-201a
0920-201b
0920-401b
0922-201
0922-202
Audio control switch
Audio unit
Auxiliary jack
Clock spring (in steering column)
Computer data lines system
Fuse block (behind right side of dash)
G9 (behind right center of dash)
Hands-free telephone switch
Hands-free telephone unit (if equipped) (behind right side of dash)
Hot in on or acc
Information display
Instrument cluster
Interior lights system
J/c 38 (behind center of dash)
Left front door speaker
Left rear door speaker
Left tweeter
Microphone (front center of roof)
Mirror fuse 7.5a
Mode
Mute
Nca
Position memory control module (w/ memory) (under driver's seat)
Red
Right front door speaker
Right rear door speaker
Right tweeter
Seek+
Seek-
Vol+
Vol-

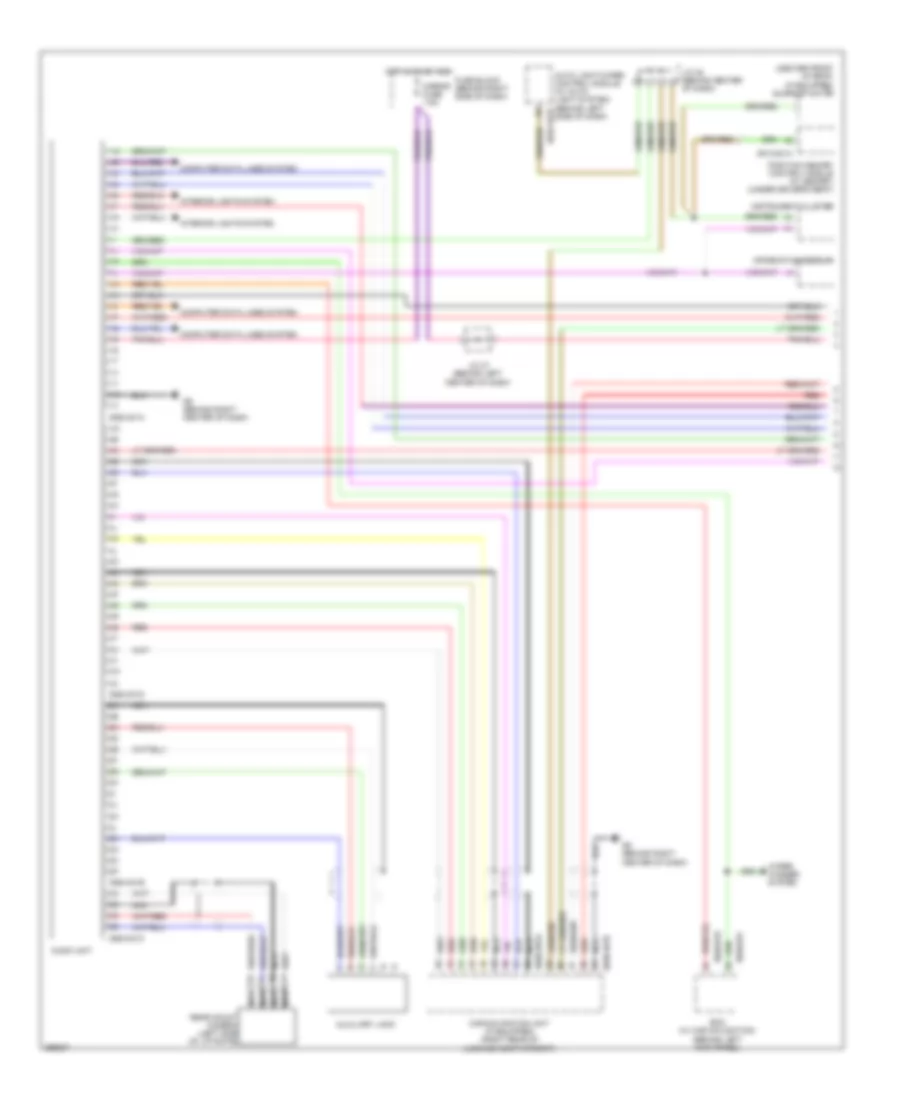

Radio Wiring Diagram, with Bose (1 of 2) for Mazda CX-9 Grand Touring 2008

List of elements for Radio Wiring Diagram, with Bose (1 of 2) for Mazda CX-9 Grand Touring 2008:

(center front of roof) (if equipped) sunroof motor
0913-201a
0920-301a
0920-301b
0920-301c
0920-301d
0920-401a
0920-401b
0940-01c
0940-01e
2f 2i
Audio unit
Auto light/wiper control module (w/ auto light system) (behind left 0918-101b
Auxiliary jack
Bcm (w/ car navigation) (behind left kick panel)
Car-navigation unit (if equipped) (right rear of luggage compartment)
Computer data lines system
Fuse block (behind right side of dash)
G9 (behind right center of dash)
Hot in on or acc
Information display
Instrument cluster
Interior lights system
J/c 37 (behind left center of dash)
J/c 38 (behind center of dash)
Mirror fuse 7.5a
Nca
Position memory control module (w/ memory) (under driver's seat)
Rear mount camera (left side of liftgate)
Red
Side of dash)
Wiper/ washer system

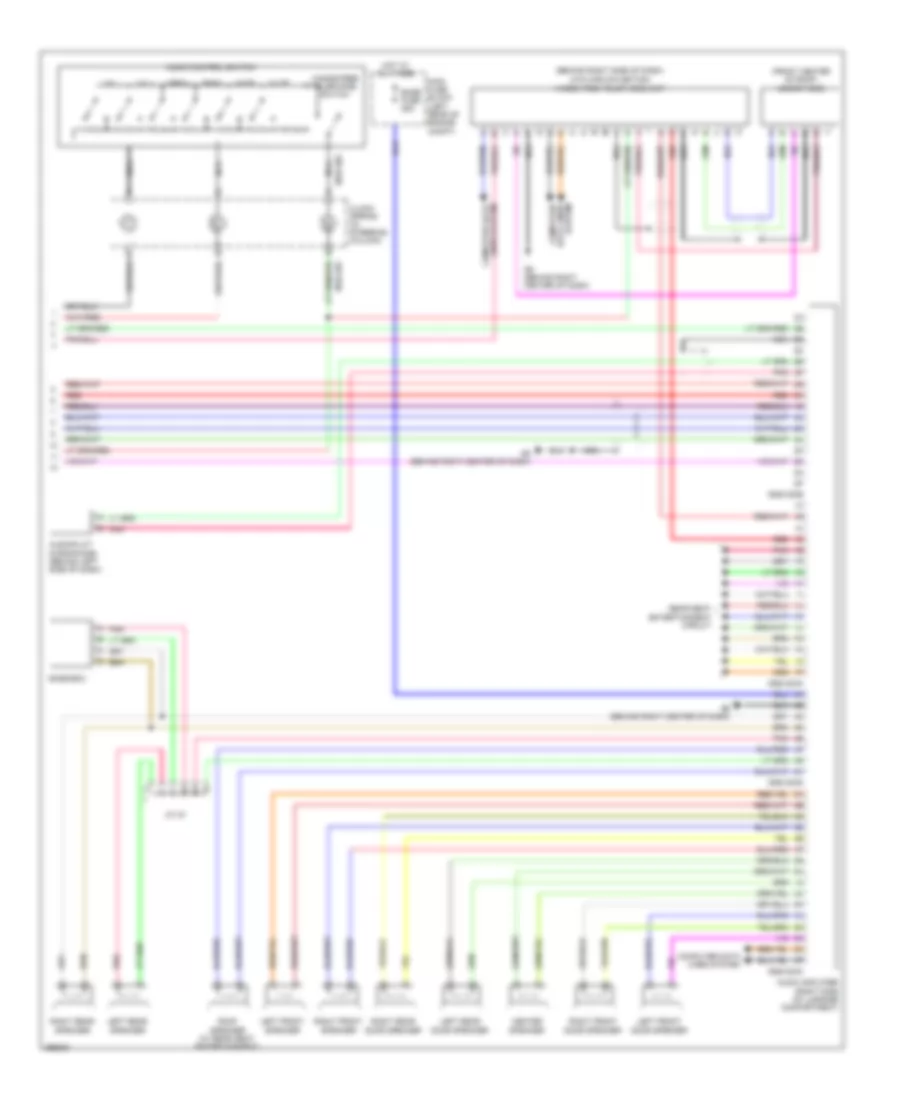

Radio Wiring Diagram, with Bose (2 of 2) for Mazda CX-9 Grand Touring 2008

List of elements for Radio Wiring Diagram, with Bose (2 of 2) for Mazda CX-9 Grand Touring 2008:

(behind right side of dash) (w/o car navigation)
(front center of roof)
0920-303a
0920-303b
0920-303c
0920-303d
0922-201
0922-202
Audio amplifier (right side of luggage compartment)
Audio control switch
Audiopilot microphone (behind left side of dash)
Bass-box
Bose fuse 25a
Center speaker
Clock spring (in steering column)
Computer data lines system
G9 (behind right center of dash)
Hands-free telephone switch
Hands-free telephone unit
Hot at all times
J/c 43
Left front door speaker
Left front speaker
Left rear door speaker
Left rear speaker
Main fuse block (left rear of engine compt)
Microphone
Mode
Mute
Nca
Pnk
Rear seat entertainment circuit
Red
Right front door speaker
Right front speaker
Right rear door speaker
Right rear speaker
Roof speaker (w/ rear seat entertainment)
Seek+
Seek-
Vol+
Vol-

Rear Seat Entertainment Wiring Diagram for Mazda CX-9 Grand Touring 2008

List of elements for Rear Seat Entertainment Wiring Diagram for Mazda CX-9 Grand Touring 2008:

0920-303a
0920-501a
0920-501b
Audio amplifier (right side of luggage compartment)
Audio fuse 10a
Auxiliary terminal unit
Computer data lines system
Fuse block (behind right side of dash)
G9 (behind right center of dash)
Hot at all times
Hot in on or run
Interior lights system
J/c 37 (behind left center of dash)
Mirror fuse 7.5a
Nca
Pnk
Red
Res unit (center of roof)

RADIO – Mazda CX-9 Grand Touring 2008 – SYSTEM WIRING DIAGRAMS
