All Wiring Diagrams for Chevrolet Equinox LT 2006

  1. Home
  2. >CHEVROLET
  3. >Chevrolet 2006
  4. >Chevrolet Equinox LT 2006

Download PDF file

AIR CONDITIONING


Compressor Wiring Diagram for Chevrolet Equinox LT 2006Download PDF file

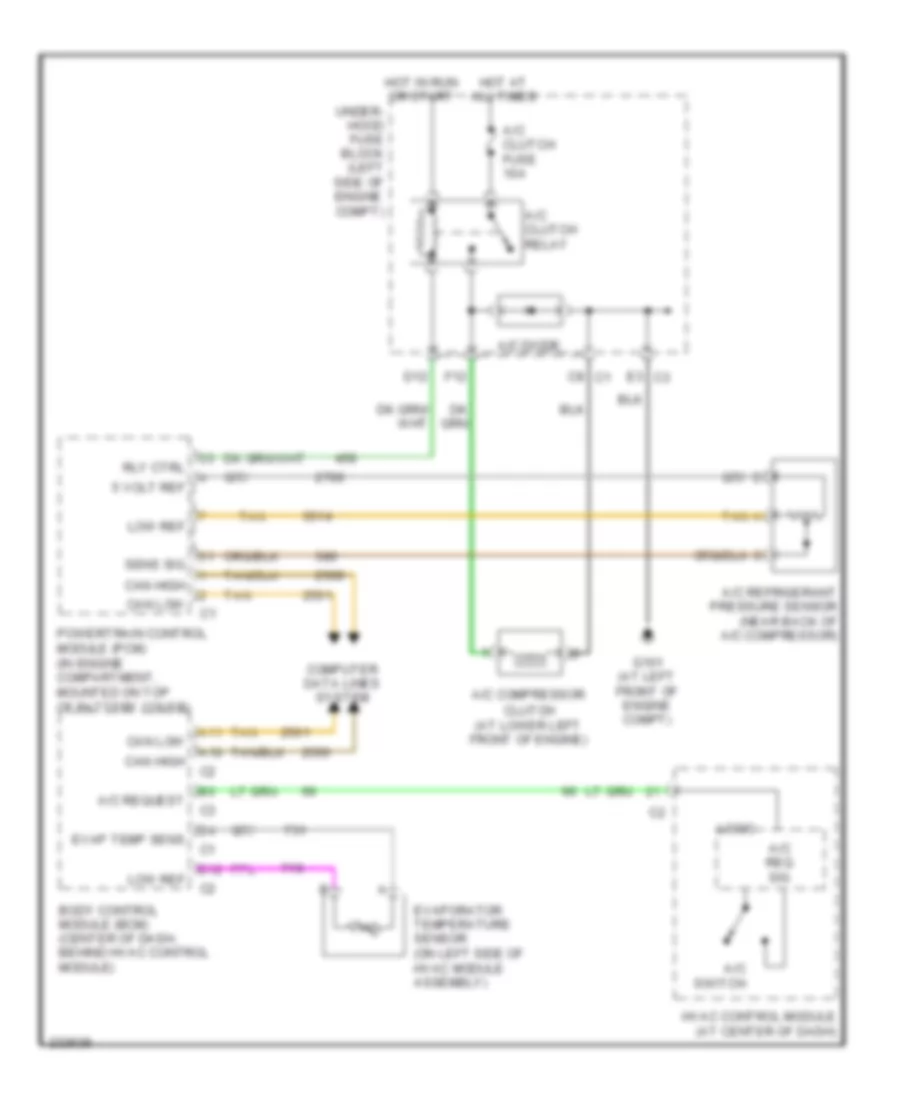

Compressor Wiring Diagram for Chevrolet Equinox LT 2006

Manual A C Wiring Diagram 1 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Manual A/C Wiring Diagram (1 of 2) for Chevrolet Equinox LT 2006

Manual A C Wiring Diagram 2 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Manual A/C Wiring Diagram (2 of 2) for Chevrolet Equinox LT 2006

ANTI-LOCK BRAKES


Anti lock Brakes Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Anti-lock Brakes Wiring Diagram for Chevrolet Equinox LT 2006

ANTI-THEFT


Anti theft Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Anti-theft Wiring Diagram for Chevrolet Equinox LT 2006

BODY CONTROL MODULES


Body Control Modules Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Body Control Modules Wiring Diagram for Chevrolet Equinox LT 2006

COMPUTER DATA LINES


Computer Data Lines Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Computer Data Lines Wiring Diagram for Chevrolet Equinox LT 2006

COOLING FAN


Cooling Fan Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Cooling Fan Wiring Diagram for Chevrolet Equinox LT 2006

CRUISE CONTROL


Cruise Control Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Cruise Control Wiring Diagram for Chevrolet Equinox LT 2006

DEFOGGERS


Defoggers Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Defoggers Wiring Diagram for Chevrolet Equinox LT 2006

ELECTRONIC POWER STEERING


Electronic Power Steering Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Electronic Power Steering Wiring Diagram for Chevrolet Equinox LT 2006

ENGINE PERFORMANCE


3.4L VIN F


3 4L VIN F Engine Performance Wiring Diagram 1 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

3.4L VIN F, Engine Performance Wiring Diagram (1 of 4) for Chevrolet Equinox LT 2006

3 4L VIN F Engine Performance Wiring Diagram 2 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

3.4L VIN F, Engine Performance Wiring Diagram (2 of 4) for Chevrolet Equinox LT 2006

3 4L VIN F Engine Performance Wiring Diagram 3 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

3.4L VIN F, Engine Performance Wiring Diagram (3 of 4) for Chevrolet Equinox LT 2006

3 4L VIN F Engine Performance Wiring Diagram 4 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

3.4L VIN F, Engine Performance Wiring Diagram (4 of 4) for Chevrolet Equinox LT 2006

EXTERIOR LIGHTS


Backup Lamps Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Backup Lamps Wiring Diagram for Chevrolet Equinox LT 2006

Exterior Lamps Wiring Diagram 1 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Exterior Lamps Wiring Diagram (1 of 2) for Chevrolet Equinox LT 2006

Exterior Lamps Wiring Diagram 2 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Exterior Lamps Wiring Diagram (2 of 2) for Chevrolet Equinox LT 2006

GROUND DISTRIBUTION


Ground Distribution Wiring Diagram 1 of 3 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Ground Distribution Wiring Diagram (1 of 3) for Chevrolet Equinox LT 2006

Ground Distribution Wiring Diagram 2 of 3 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Ground Distribution Wiring Diagram (2 of 3) for Chevrolet Equinox LT 2006

Ground Distribution Wiring Diagram 3 of 3 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Ground Distribution Wiring Diagram (3 of 3) for Chevrolet Equinox LT 2006

HEADLIGHTS


Headlights Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Headlights Wiring Diagram for Chevrolet Equinox LT 2006

HORN


Horn Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Horn Wiring Diagram for Chevrolet Equinox LT 2006

INSTRUMENT CLUSTER


Instrument Cluster Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Instrument Cluster Wiring Diagram for Chevrolet Equinox LT 2006

INTERIOR LIGHTS


Courtesy Lamps Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Courtesy Lamps Wiring Diagram for Chevrolet Equinox LT 2006

Instrument Illumination Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Instrument Illumination Wiring Diagram for Chevrolet Equinox LT 2006

POWER DISTRIBUTION


Power Distribution Wiring Diagram 1 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Distribution Wiring Diagram (1 of 4) for Chevrolet Equinox LT 2006

Power Distribution Wiring Diagram 2 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Distribution Wiring Diagram (2 of 4) for Chevrolet Equinox LT 2006

Power Distribution Wiring Diagram 3 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Distribution Wiring Diagram (3 of 4) for Chevrolet Equinox LT 2006

Power Distribution Wiring Diagram 4 of 4 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Distribution Wiring Diagram (4 of 4) for Chevrolet Equinox LT 2006

POWER DOOR LOCKS


Power Door Locks Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Door Locks Wiring Diagram for Chevrolet Equinox LT 2006

POWER MIRRORS


Electrochromic Mirror Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Electrochromic Mirror Wiring Diagram for Chevrolet Equinox LT 2006

Power Mirrors Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Mirrors Wiring Diagram for Chevrolet Equinox LT 2006

POWER SEATS


Driver Seat Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Driver Seat Wiring Diagram for Chevrolet Equinox LT 2006

Heated Seats Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Heated Seats Wiring Diagram for Chevrolet Equinox LT 2006

POWER TOP/SUNROOF


Power Top Sunroof Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Top/Sunroof Wiring Diagram for Chevrolet Equinox LT 2006

POWER WINDOWS


Power Windows Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Power Windows Wiring Diagram for Chevrolet Equinox LT 2006

RADIO


Base Radio Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Base Radio Wiring Diagram for Chevrolet Equinox LT 2006

Premium Sound Radio Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Premium Sound Radio Wiring Diagram for Chevrolet Equinox LT 2006

Satellite Radio Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Satellite Radio Wiring Diagram for Chevrolet Equinox LT 2006

SHIFT INTERLOCK


Shift Interlock Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Shift Interlock Wiring Diagram for Chevrolet Equinox LT 2006

STARTING/CHARGING


Charging Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Charging Wiring Diagram for Chevrolet Equinox LT 2006

Starting Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Starting Wiring Diagram for Chevrolet Equinox LT 2006

SUPPLEMENTAL RESTRAINTS


Supplemental Restraints Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Supplemental Restraints Wiring Diagram for Chevrolet Equinox LT 2006

TRANSMISSION


A T Wiring Diagram 1 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

A/T Wiring Diagram (1 of 2) for Chevrolet Equinox LT 2006

A T Wiring Diagram 2 of 2 for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

A/T Wiring Diagram (2 of 2) for Chevrolet Equinox LT 2006

WARNING SYSTEMS


Warning Systems Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Warning Systems Wiring Diagram for Chevrolet Equinox LT 2006

WIPER/WASHER


Wiper Washer Wiring Diagram for Chevrolet Equinox LT 2006Get access to all wiring diagrams of the carDownload PDF file

Wiper/Washer Wiring Diagram for Chevrolet Equinox LT 2006
