COOLING FAN

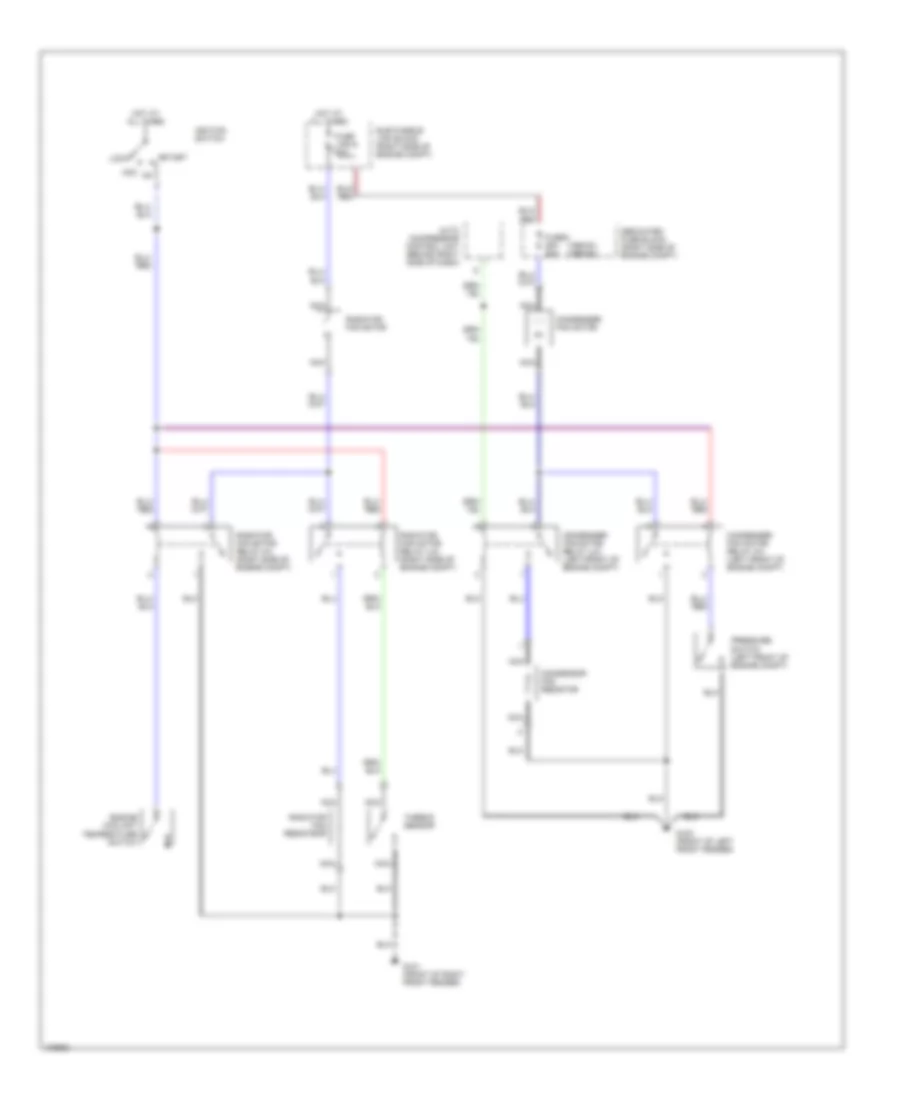

Cooling Fan Wiring Diagram, A/T for Mitsubishi Galant S 1993
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
List of elements for Cooling Fan Wiring Diagram, A/T for Mitsubishi Galant S 1993:
- (1988-91) (1992-93)
- Acc
- Auto compressor control unit (behind right side of dash)
- Condenser fan motor
- Condenser fan motor relay (hi) (left front of engine compt)
- Condenser fan motor relay (lo) (left front of engine compt)
- Condensor fan resistor
- Dedicated fuse block (right side of engine compt)
- Engine coolant temperature switch
- Fuse 6 25a 30a
- Fuse link 6 30a
- G100 (front of left front fender)
- G101 (front of right front fender)
- Hot at all times
- Ignition switch
- Lock
- Nca
- Pressure switch (left front of engine compt)
- Radiator fan motor
- Radiator fan motor relay (hi) (right side of engine compt)
- Radiator fan motor relay (lo) (right side of engine compt)
- Radiator fan resisteor
- Start
- Sub fusible link block (right side of engine compt)
- Thermo sensor
Cooling Fan Wiring Diagram, M/T for Mitsubishi Galant S 1993
List of elements for Cooling Fan Wiring Diagram, M/T for Mitsubishi Galant S 1993:
- (1988-91) (1992-93)
- Acc
- Auto compressor control unit (behind right side of dash)
- Condenser fan motor
- Condenser fan motor relay (hi) (left front of engine compt)
- Condenser fan motor relay (lo) (left front of engine compt)
- Condensor fan resistor
- Dedicated fuse block (right side of engine compt)
- Fuse 6 25a 30a
- Fuse link 6 30a
- G100 (front of left front fender)
- G101 (front of right front fender)
- Hot at all times
- Ignition switch
- Lock
- Nca
- Pressure switch (left front of engine compt)
- Radiator fan motor
- Radiator fan motor relay (hi) (right side of engine compt)
- Radiator fan motor relay (lo) (right side of engine compt)
- Start
- Sub fusible link block (right side of engine compt)
- Thermo sensor
DEFOGGERS
Defogger Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Defogger Wiring Diagram for Mitsubishi Galant S 1993:
- 10a
- 30a
- Alternator
- Defogger
- Defogger relay (right front of engine compt)
- Defogger switch
- Defogger timer (in relay box, left side of dash)
- Fuse 2
- Fuse 4
- G100 (front of left front fender)
- G202 (left side of dash)
- Hot at all times
- Hot in on
- Illumination
- Indicator
- Interior lights system
- Multipurpose fuse block (left side of dash)
- Sub fusible link block (right side of engine compt)
HORN
Horn Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Horn Wiring Diagram for Mitsubishi Galant S 1993:
- 10a
- Fuse 8
- Horn switch
- Hot in acc or on
- Left horn
- Multipurpose fuse block (left side of dash)
- Nca
- Right horn
POWER ANTENNA
Power Antenna Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Power Antenna Wiring Diagram for Mitsubishi Galant S 1993:
- (left rear quarter panel)
- 10a
- Acc or on
- All times
- Antenna feeder cable
- Fuse 17
- Fuse 3
- Fuse 9
- G300 (below left front seat)
- Hot at
- Hot in
- Hot in on or start
- Motor antenna
- Motor antenna relay
- Multipurpose fuse block (left side of dash)
- Nca
- Radio/ tape player
- Storage connector
POWER DOOR LOCKS
2.0L
2.0L Turbo, Power Door Lock Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L Turbo, Power Door Lock Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993:
- 10a
- 15a
- 1991-93
- All times
- Door lock control unit (left side of dash)
- Door lock power relay (left side of dash)
- Fuse 17
- Fuse 5
- G202 (left side of dash)
- Hot at
- Left front door lock actuator
- Left rear door lock actuator
- Lock
- Lock off
- Multipurpose fuse block (left side of dash)
- Right front door lock actuator
- Right rear door lock actuator
- Storage connector
- Unlock
- Unlock off
2.0L, Power Door Lock Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L, Power Door Lock Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993:
- 10a
- 15a
- All times
- Data link connector
- Door lock power relay (left side of dash)
- Etacs control unit (left side of dash)
- Fuse 17
- Fuse 5
- G202 (left side of dash)
- Hot at
- Interior lights system
- Key reminder switch
- Left front door lock actuator
- Left front door switch
- Left rear door lock actuator
- Lock
- Lock off
- Multipurpose fuse block (left side of dash)
- Nca
- Off
- Right front door lock actuator
- Right front door switch
- Right rear door lock actuator
- Storage connector
- Unlock
- Unlock off
2.0L, Power Door Lock Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L, Power Door Lock Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993:
- 10a
- 15a
- 1991-93
- All times
- Door lock control unit (left side of dash)
- Door lock power relay (left side of dash)
- Fuse 17
- Fuse 5
- G202 (left side of dash)
- Hot at
- Left front door lock actuator
- Left rear door lock actuator
- Lock
- Lock off
- Multipurpose fuse block (left side of dash)
- Right front door lock actuator
- Right rear door lock actuator
- Storage connector
- Unlock
- Unlock off
POWER MIRRORS
Power Mirror Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Power Mirror Wiring Diagram for Mitsubishi Galant S 1993:
- Down
- Fuse 4 15a
- G202 (left side of dash)
- Hot in acc or on
- Left
- Left front door power mirror
- Left side
- Multipurpose fuse block (left side of dash)
- Nca
- Remote controlled mirror switch
- Right
- Right front door power mirror
- Right side
POWER WINDOWS
2.0L
2.0L Turbo, Power Window Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L Turbo, Power Window Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993:
- Diode
- Down
- Etacs control unit (left side of dash)
- Fuse 10a
- Fusible link 30a
- G202 (left side of dash)
- Hot at all times
- Hot in start or on
- Interior lights system
- Left front door switch
- Left front power window motor
- Left front window switch
- Left rear power window motor
- Left rear power window switch
- Left rear window switch
- Lock switch
- Multipurpose fuse block (left side of dash)
- Nca
- Off
- One touch down circuit
- Power window main switch
- Power window relay (left side of dash)
- Red
- Right front door switch
- Right front power window motor
- Right front power window switch
- Right front window switch
- Right rear power window motor
- Right rear power window switch
- Right rear window switch
- Storage connector
- Sub fusible link block (right side of engine compt)
2.0L Turbo, Power Window Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L Turbo, Power Window Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993:
- (1991-93) (1989-90)
- Down
- Fuse 10a
- Fusible link 30a
- G202 (left side of dash)
- Hot at all times
- Hot in acc or on
- Left front power window motor
- Left front window switch
- Left rear power window motor
- Left rear power window switch
- Left rear window switch
- Lock switch
- Multipurpose fuse block (left side of dash)
- Nca
- Off
- One touch down circuit
- Power window main switch
- Power window relay (left side of dash)
- Red
- Right front power window motor
- Right front power window switch
- Right front window switch
- Right rear power window motor
- Right rear power window switch
- Right rear window switch
- Sub fusible link block (right side of engine compt)
2.0L, Power Window Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L, Power Window Wiring Diagram, with ETACS Unit for Mitsubishi Galant S 1993:
- Down
- Etacs control unit (left side of dash)
- Fuse 10a
- Fusible link 30a
- G202 (left side of dash)
- Hot at all times
- Hot in start or on
- Interior lights system
- Left front door switch
- Left front power window motor
- Left front window switch
- Left rear power window motor
- Left rear power window switch
- Left rear window switch
- Lock switch
- Multipurpose fuse block (left side of dash)
- Nca
- Off
- One touch down circuit
- Power window main switch
- Power window relay (left side of dash)
- Red
- Right front door switch
- Right front power window motor
- Right front power window switch
- Right front window switch
- Right rear power window motor
- Right rear power window switch
- Right rear window switch
- Storage connector
- Sub fusible link block (right side of engine compt)
2.0L, Power Window Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993
List of elements for 2.0L, Power Window Wiring Diagram, without ETACS Unit for Mitsubishi Galant S 1993:
- (1991-93) (1989-90)
- Down
- Fuse 10a
- Fusible link 30a
- G202 (left side of dash)
- Hot at all times
- Hot in acc or on
- Left front power window motor
- Left front window switch
- Left rear power window motor
- Left rear power window switch
- Left rear window switch
- Lock switch
- Multipurpose fuse block (left side of dash)
- Nca
- Off
- One touch down circuit
- Power window main switch
- Power window relay (left side of dash)
- Red
- Right front power window motor
- Right front power window switch
- Right front window switch
- Right rear power window motor
- Right rear power window switch
- Right rear window switch
- Sub fusible link block (right side of engine compt)
RADIO
Radio Wiring Diagrams, without CD Changer for Mitsubishi Galant S 1993
List of elements for Radio Wiring Diagrams, without CD Changer for Mitsubishi Galant S 1993:
- 10a
- Acc or on
- All times
- Antenna feeder cable
- Exterior lights system
- Fuse 17
- Fuse 3
- Hot at
- Hot in
- Interior lights system
- Left door speaker
- Left front speaker
- Left rear speaker
- Motor antenna
- Multipurpose fuse block (left side of dash)
- Nca
- Power antenna
- Radio/ tape player
- Right door speaker
- Right front speaker
- Right rear speaker
- Storage connector
STARTING/CHARGING
Charging Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Charging Wiring Diagram for Mitsubishi Galant S 1993:
- (1989-90) (1991-93)
- 100a
- 1990-93 only
- 30a
- Acc
- Alternator
- Alternator relay (right side of engine compt)
- Battery
- Charge indicator
- Fuse 10 fuse 9 10a
- Fuse link 1
- Fuse link 5
- Fusible link box (right front of engine compt)
- G101 (right front fender)
- G120 (right side of engine)
- Ignition switch
- Instrument cluster
- Lock
- Multipurpose fuse block (left side of dash)
- Nca
- Start
- Starter motor
- Sub fusible link block (right side of engine compt)
Starting Wiring Diagram, with Theft Deterrent for Mitsubishi Galant S 1993
List of elements for Starting Wiring Diagram, with Theft Deterrent for Mitsubishi Galant S 1993:
- Acc
- Battery
- Clutch pedal position switch
- Diode (left side of dash)
- Etacs control unit
- Etacs control unit (left side of dash)
- Fuse 10a
- Fuse link 5 30a
- G101 (right front fender)
- G120 (right side of engine)
- G202 (left side of dash)
- Hot at all times
- Ignition switch
- Key reminder switch
- Lock
- Multipurpose fuse block (left side of dash)
- Run
- Start
- Starter motor
- Starter relay (left side of dash)
- Sub fusible link block (right side of engine compt)
- Theft alarm starter relay (left side of dash)
Starting Wiring Diagram, without Theft Deterrent for Mitsubishi Galant S 1993
List of elements for Starting Wiring Diagram, without Theft Deterrent for Mitsubishi Galant S 1993:
- (1989-92) (1993)
- (1993) (1989-92)
- A/t
- Acc
- Battery
- Clutch pedal position switch
- Fuse link 5 30a
- G101 (right front fender)
- G120 (right side of engine)
- G202 (left side of dash)
- Ignition switch
- Lock
- M/t
- Park/ neutral position switch
- Run
- Start
- Starter motor
- Starter relay (left side of dash)
- Sub fusible link block (right side of engine compt)
TRANSMISSION
Transmission Wiring Diagram for Mitsubishi Galant S 1993
List of elements for Transmission Wiring Diagram for Mitsubishi Galant S 1993:
- (below center of i/p)
- 1995 vftc c
- 2 indic
- A-07-2x
- A/t fluid temperature sensor (on valve body)
- Air conditioning system
- Auto-cruise control unit (behind left i/p)
- C-37-1
- C-39
- C-42
- Cruise control
- D indic
- Data link connector (below left i/p)
- Dohc
- Eco
- Economy indic
- Elc 4-speed automatic transaxle control module
- Elc 4-speed automatic transaxle solenoid valve
- Engine compartment fuse/relay box (right engine compartment)
- Engine control module (behind right i/p)
- Engine controls system (ignition power transistor)
- Exterior lights system
- Fuse 10a
- G206 (below center of i/p)
- Hot at all times
- Hot in on
- Hot in on or start
- Illum.
- Instru- ment cluster system
- Interior lights system
- Iod or storage connector
- Jumper connector (behind left i/p)
- Junction block (left i/p)
- Kickdown servo switch (front of transaxle)
- L indic
- N indic
- Nca
- O/d off indic
- Off
- Oil pressure control solenoid valve
- Overdrive switch
- P indic
- P r
- Park/neutral position switch (right engine compartment)
- Power indic
- Power/economy changeover switch
- Pulse generators (top of transaxle case)
- Pwr
- R indic
- Red
- Reed switch
- Shift control solenoid valve a
- Shift control solenoid valve b
- Sohc
- Starting/ charging system
- Throttle position sensor (on throttle body)
- Torque convertor clutch solenoid valve
- W/ cruise control
- W/ optional wiring harness
- W/o cruise control
- W/o optional wiring harness
- W/o w/ cruise control
WIPER/WASHER
Wiper/Washer Wiring Diagram, with ETACS UNIT for Mitsubishi Galant S 1993
List of elements for Wiper/Washer Wiring Diagram, with ETACS UNIT for Mitsubishi Galant S 1993:
- (left side of dash) etacs control unit
- 10a
- 15a
- Auto
- Data link connector
- Fuse 3
- Fuse 7
- G116 (left side of safety wall)
- G202 (left side of dash)
- Hot in acc or on
- Instrument cluster
- Multipurpose fuse block (left side of dash)
- Off
- Reed switch
- Storage connector
- Variable intermittent wiper control switch
- Washer switch
- Wind- shield washer switch
- Windshield washer motor
- Windshield wiper motor
- Windshield wiper switch
- Windshield wiper/
- Wiper relay
Wiper/Washer Wiring Diagram, without ETACS UNIT for Mitsubishi Galant S 1993
List of elements for Wiper/Washer Wiring Diagram, without ETACS UNIT for Mitsubishi Galant S 1993:
- 15a
- Fuse 7
- G116 (left side of safety wall)
- G202 (left side of dash)
- Hot in acc or on
- Int
- Intermittent wiper relay
- Multipurpose fuse block (left side of dash)
- Off
- Variable intermittent wiper control switch
- Washer switch
- Wind- shield washer switch
- Windshield washer motor
- Windshield wiper motor
- Windshield wiper switch
- Windshield wiper/
