Звуковой сигнал Гудок
Электросхема звукового сигнал Гудка для Mazda B2600i SE-5 1991 2600
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO Электросхема звукового сигнал Гудка для Mazda B2600i SE-5 1991 2600 - Список элементов:
- Fuse block (behind left side of i/p)
- Horn (behind right headlight)
- Horn relay (on right front fender panel) (2.2l) (on left front fender panel) (2.6l)
- Horn switch
- Hot at all times
- Stop fuse 15a
Магнитола Мультимедия
Электросхемы магнитолы для Mazda B2600i SE-5 1991 2600
Электросхемы магнитолы для Mazda B2600i SE-5 1991 2600 - Список элементов:
- 1995 vftc c
- Audio unit
- Cigar fuse 15a
- Fuse block (left side of i/p, near kick panel)
- Hot at all times
- Hot in accy or on
- I-02
- J-01
- J-02
- J-05
- Left front speaker
- Left rear speaker
- Red
- Right front speaker
- Right rear speaker
- Room fuse 15a
- W/ rear speakers
Стартер Генератор
Электросхема Генератора для Mazda B2600i SE-5 1991 2600
Электросхема Генератора для Mazda B2600i SE-5 1991 2600 - Список элементов:
- Alternator
- Battery
- Btn fuse 30a
- Charge
- Fuse block (behind left side of dash, near kick panel)
- Hot in run or start
- Indicator
- Instrument cluster
- Joint connector (left side of i/p)
- Main fuse 80a
- Main fuse block (right front fender)
- Meter fuse 10a
- Nca
- Starter
Электросхема стартера, A/T для Mazda B2600i SE-5 1991 2600
Электросхема стартера, A/T для Mazda B2600i SE-5 1991 2600 - Список элементов:
- (1991 2.2l carb only)
- (2.2l egi, 2.6l only)
- (2.6l 4x4 ec-at only)
- (w/ drl) drl & rear wheel abs control unit (behind center of dash)
- (w/o drl) rear wheel abs control unit (behind center of dash)
- 2.2l carb
- 2.2l egi & 2.6l
- Acc
- Battery
- C 1996 vftc
- Circuit opening relay (left kick panel)
- Cruise control unit (left side of dash)
- Ec-at control unit (behind left kick panel)
- Engine control unit (right kick panel)
- Feedback carburator control unit (right kick panel)
- Ignition switch
- Inhibitor switch (on transmission)
- Main fuse 80a
- Main fuse box (right front fender)
- Nca
- Off
- Start
- Starter
Электросхема стартера, M/T для Mazda B2600i SE-5 1991 2600
Электросхема стартера, M/T для Mazda B2600i SE-5 1991 2600 - Список элементов:
- (w/ drl) drl & rear wheel abs control unit (behind center of dash)
- (w/o drl) rear wheel abs control unit (behind center of dash)
- 2.2l carb
- 2.2l egi & 2.6l
- Acc
- Battery
- Circuit opening relay (left kick panel)
- Engine control unit (right kick panel)
- Ignition switch
- Lock
- Main fuse 80a
- Main fuse box (right front fender)
- Nca
- Start
- Starter
- Starter inter lock switch (on clutch pedal bracket)
Стеклоочистители и Стеклоомыватели Дворники

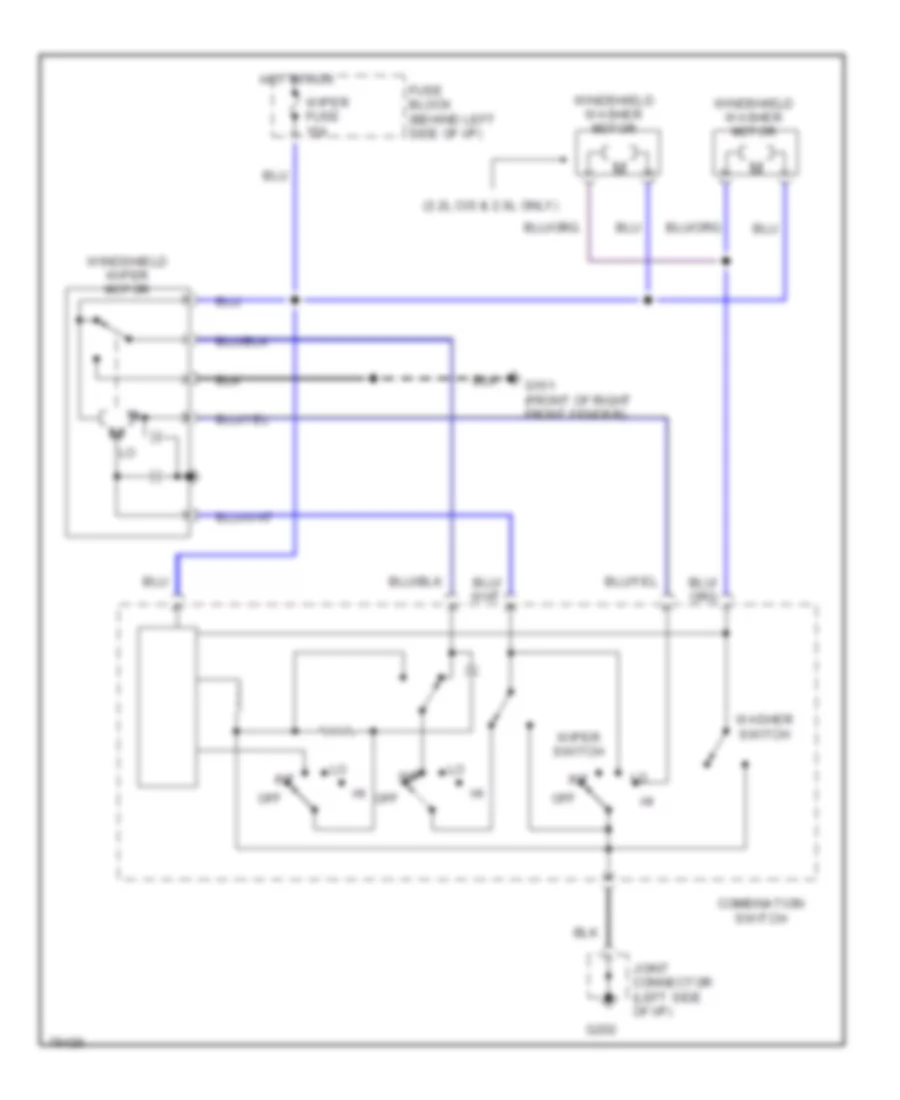

Электросхема стеклоочистителя, дворников и омывателя для Mazda B2600i SE-5 1991 2600
Электросхема стеклоочистителя, дворников и омывателя для Mazda B2600i SE-5 1991 2600 - Список элементов:
- (2.2l cis & 2.6l only)
- Combination switch
- Fuse block (behind left side of i/p)
- G101 (front of right front fender)
- G202
- Hot in run
- Int
- Joint connector (left side of i/p)
- Off
- Washer switch
- Windshield washer motor
- Windshield wiper motor
- Wiper fuse 15a
- Wiper switch
