VW PASSAT 2000 – 5 Speed automatic gearbox (AG5) . Wiring diagrams, Pin Connector, Location

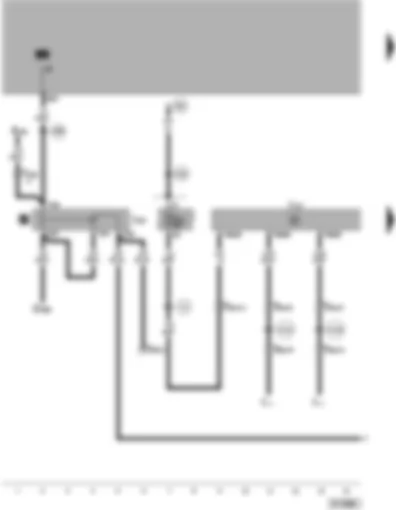

Wiring Diagram VW PASSAT 2000 - Automatic gearbox control unit - starter inhibitor relay

B	Starter
D	Ignition/starter switch
J...	Engine control unit
J207	Starter inhibitor relay, on 13 position additional relay carrier
J217	Automatic gearbox control unit, in front right footwell in front right footwell
S15	Fuse in relay plate fuse box
T9	9-pin connector, on starter inhibitor relay
T10d	10-pin connector, brown, on protective housing for control units, left in engine compartment
T10h	10-pin connector, blue, on protective housing for control units, in left engine compartment
T15m	15-pin connector, brown, coupling station right A-pillar
T15s	15-pin connector, red, on protective housing for control units, in left engine compartment
T88	88-pin connector, on automatic gearbox control unit
501	Screw connection -2- (30), on relay plate
A1	Positive (+) connection (30a), in dash panel wiring harness
A32	Positive connection (30), in dash panel wiring harness
A86	Connection (50a), in dash panel wiring harness
A121	Connection (high bus), in dash panel wiring harness
A122	Connection (low bus), in dash panel wiring harness

E45	Cruise control system switch
F4	Reversing light switch
F125	Multi-function switch
G38	Gearbox speed sender
J217	Automatic gearbox control unit in front right footwell
T3m	3-pin connector, brown, right connector point A-pillar
T8	8-pin connector, on left lower of gearbox
T10n	10-pin connector, orange, ABS (dash panel)
T15m	15-pin connector, brown, right connector point A-pillar
T16a	16-pin connector, on gearbox
T88	88-pin connector, on automatic gearbox control unit
A87	Connection (RL), in dash panel wiring harness
U10	Connection (cruise control system), in automatic gearbox wiring harness
---	Only models with cruise control system (CCS)
*	Only models with TCS
**	Only models with a petrol engine

F	Brake light switch
G93	Gearbox oil temperature sender
G182	Gearbox input speed sender
J217	Automatic gearbox control unit in front right footwell
J285	Control unit with display in dash panel insert
N88	Solenoid valve 1
N89	Solenoid valve 2
N90	Solenoid valve 3
N91	Solenoid valve 4
N92	Solenoid valve 5
N93	Solenoid valve 6
N94	Solenoid valve 7
T15m	15-pin connector, brown, right connector point A-pillar
T16	10-pin connector, self-diagnosis connector, in centre console near handbrake lever
T16a	16-pin connector, on gearbox
T32a	32-pin connector, blue, on dash panel insert
T88	88-pin connector, on automatic gearbox control unit
A76	Connection (diagnosis wire K), in dash panel wiring harness
A89	Connection (54), in dash panel wiring harness
**	Only models with a petrol engine

E45	Cruise control system switch
F8	Kick-down switch
J217	Automatic gearbox control unit, in front right footwell in front right footwell
J285	Control unit with display in dash panel insert
T10h	10-pin connector, blue, on protective housing for control units, in left engine compartment on protective housing for control units, in left engine compartment
T15m	15-pin connector, brown, coupling station right A-pillar
T32b	32-pin connector, green, on dash panel insert
T88	88-pin connector, on automatic gearbox control unit
12	Earth point, in engine compartment, left
33	Earth point, behind dash panel, right
114	Earth connection, in automatic gearbox wiring harness
124	Earth connection, in engine compartment right wiring harness
**	For vehicles with a petrol engine only

D	Ignition/starter switch
F189	Tiptronic switch
J17	Fuel pump relay
J217	Automatic gearbox control unit, in front right footwell in front right footwell
K142	Selector lever position P/N warning lamp
L101	Selector lever display illumination
N110	Selector lever lock solenoid
S231	Fuse in fuse holder
T3m	3-pin connector, brown, coupling station left A-pillar
T10q	10-pin connector, under centre console
T15m	15-pin connector, brown, coupling station right A-pillar
T88	88-pin connector, on automatic gearbox control unit
114	Earth connection (dash panel insert), in automatic gearbox wiring harness
A2	Positive (+) connection (15), in dash panel wiring harness
A19	Connection (58d), in dash panel wiring harness
A70	Connection (15a, fuse 231), in dash panel wiring harness
U3	Connection -1-, in automatic gearbox wiring harness
U6	Connection -2-, in automatic gearbox wiring harness
