VW PASSAT 2000 – Multi-function steering wheel . Wiring diagrams, Pin Connector, Location

  1. Home
  2. >VW
  3. >VW PASSAT
  4. >VW PASSAT 2000
  5. >VW PASSAT 2000 ALL WIRING DIAGRAMS - ENGLISH

Download PDF file

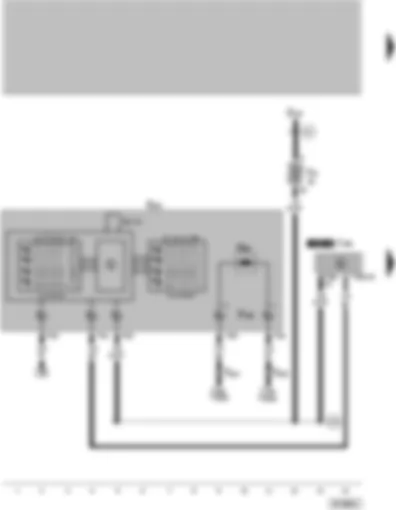

Wiring Diagram VW PASSAT 2000 - Operating unit in steering wheel - control unit for multi-function unit



Wiring Diagram VW PASSAT 2000 - Operating unit in steering wheel - control unit for multi-function unit https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Download PDF file
DIgnition/starter switch
E221Operating unit in steering wheel
F138Coil spring for airbag, return spring with slip ring
J234Airbag control unit
J453Multi-function steering wheel control unit (450)
N95Airbag igniter, driver side
S5Fuse in relay plate fuse box
T2a2-pin connector, yellow, coupling station left A-pillar
T55-pin connector, black, behind steering column trim
T18m18-pin connector, on multi-function steering wheel control unit
T7575-pin connector, on airbag control unit
   A2 Positive (+) connection (15), in dash panel wiring harness
   A74 Connection (15a, fuse 5), in dash panel wiring harness

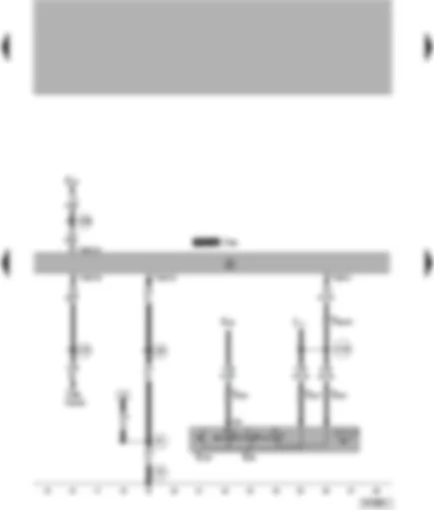

Wiring Diagram VW PASSAT 2000 - Control unit for multi-function unit - switch and button for CCS



Wiring Diagram VW PASSAT 2000 - Control unit for multi-function unit - switch and button for CCS https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
E45Cruise control system switch
E227Cruise control system (CCS) button (Set)
J...Engine control unit
J285Control unit with display in dash panel insert
J453Multi-function steering wheel control unit (450)
S10Fuse in relay plate fuse box
S32Aerial motor single fuse
T1010-pin connector, black, next to steering column
T15a15-pin connector, white, on protective housing for control units, left in engine compartment
T18m18-pin connector, on multi-function steering wheel control unit
T32a32-pin connector, blue, on dash panel insert
   32 Earth point, behind dash panel, left
   81 Earth connection -1- ,in dash panel wiring harness
   135 Earth connection -2- ,in dash panel wiring harness
   A19 Connection (58d), in dash panel wiring harness
   A98 Positive connection -4- (30), in dash panel wiring harness
   A130 Connection (CCS), in dash panel wiring harness

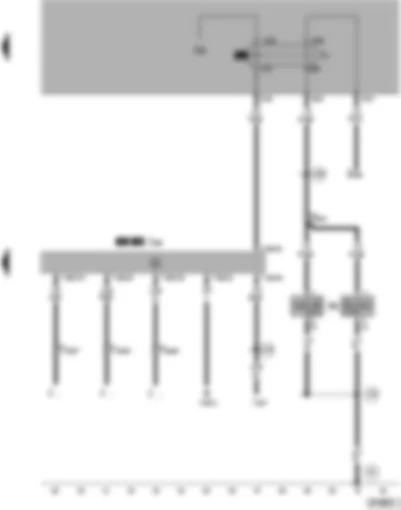

Wiring Diagram VW PASSAT 2000 - Control unit for multi-function unit - horn/dual tone horn - self-diagnosis connection



Wiring Diagram VW PASSAT 2000 - Control unit for multi-function unit - horn/dual tone horn - self-diagnosis connection https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Get access to all wiring diagrams of the carDownload PDF file
H1Horn/dual tone horn
J...Engine control unit
J4Dual tone horn relay
J59X contact relief relay (213)
J453Multi-function steering wheel control unit (450)
RRadio
S240Fuse in fuse holder
T6k6-pin connector, red, coupling station right A-pillar
T15a15-pin connector, white, on protective housing for control units, left in engine compartment
T1616-pin connector, near handbrake lever, self-diagnosis connection
T18m18-pin connector, on multi-function steering wheel control unit
T2020-pin connector, green, on radio
   43 Earth point, A-pillar, right lower
   176 Earth connection, in right headlight wiring harness
   A76 Connection (diagnosis wire K), in dash panel wiring harness
   A90 Connection (dual tone horn), in dash panel wiring harness
